LED Throwie Talkie
Maker Fair Mashup: G.R.L. LED Throwie + Cybords = Throwie Talkie
During the 2006 Maker Fair the Graffiti Research Lab was demoing their LED Throwies and Pat & Ward Cunningham were demonstrating Cybords. While talking someone made a comment about wanting to give the Throwies a voice. Ward & Pat took a simple ATtiny45 chip and added it to the mix to give the LED a voice. Computerized Throwie Demo
During the 2006 Maker Fair the Graffiti Research Lab was demoing their LED Throwies and Pat & Ward Cunningham were demonstrating Cybords. While talking someone made a comment about wanting to give the Throwies a voice. Ward & Pat took a simple ATtiny45 chip and added it to the mix to give the LED a voice. Computerized Throwie Demo
Get the Supplies
You will need:

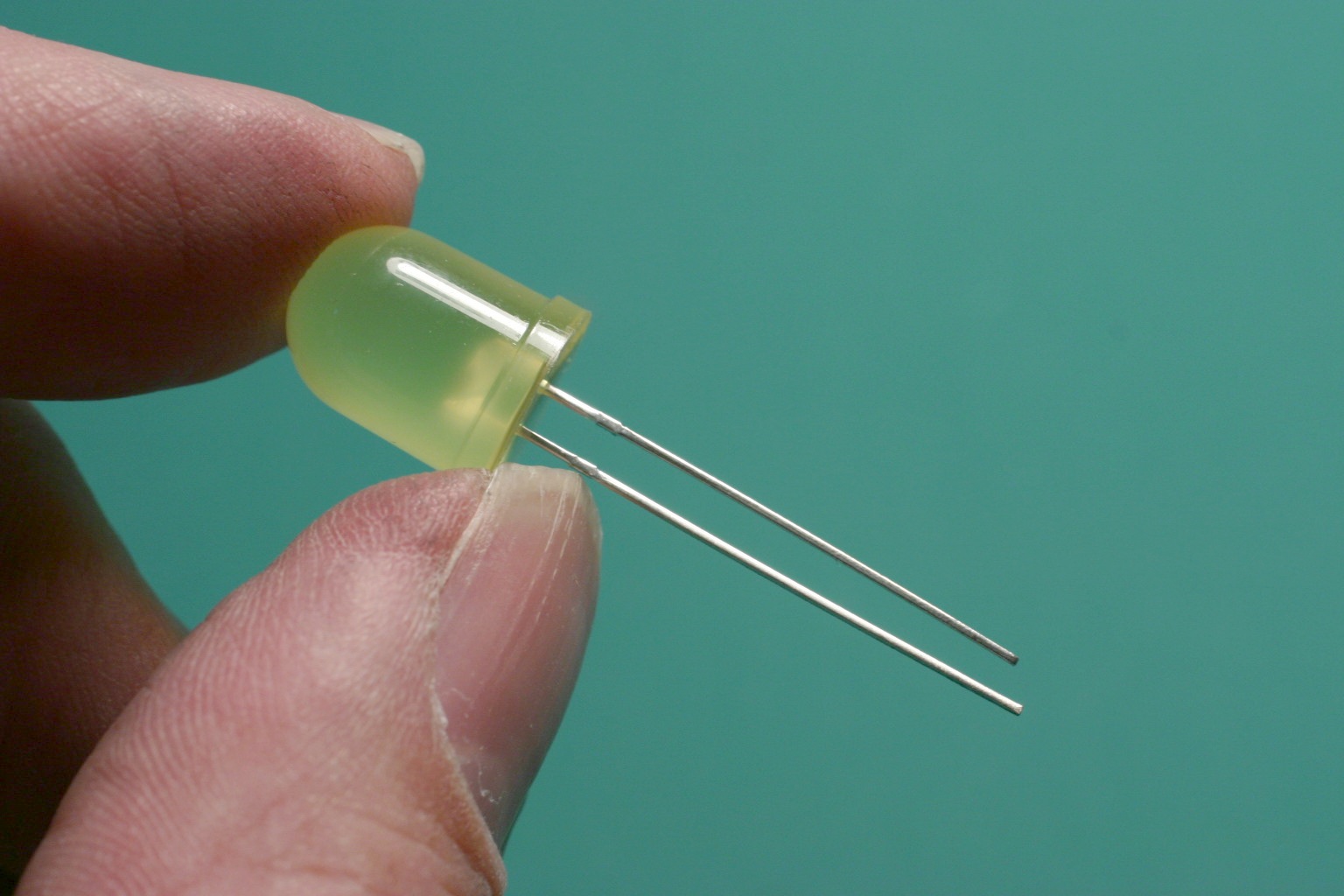

<ul><li>10mm Diffused LED

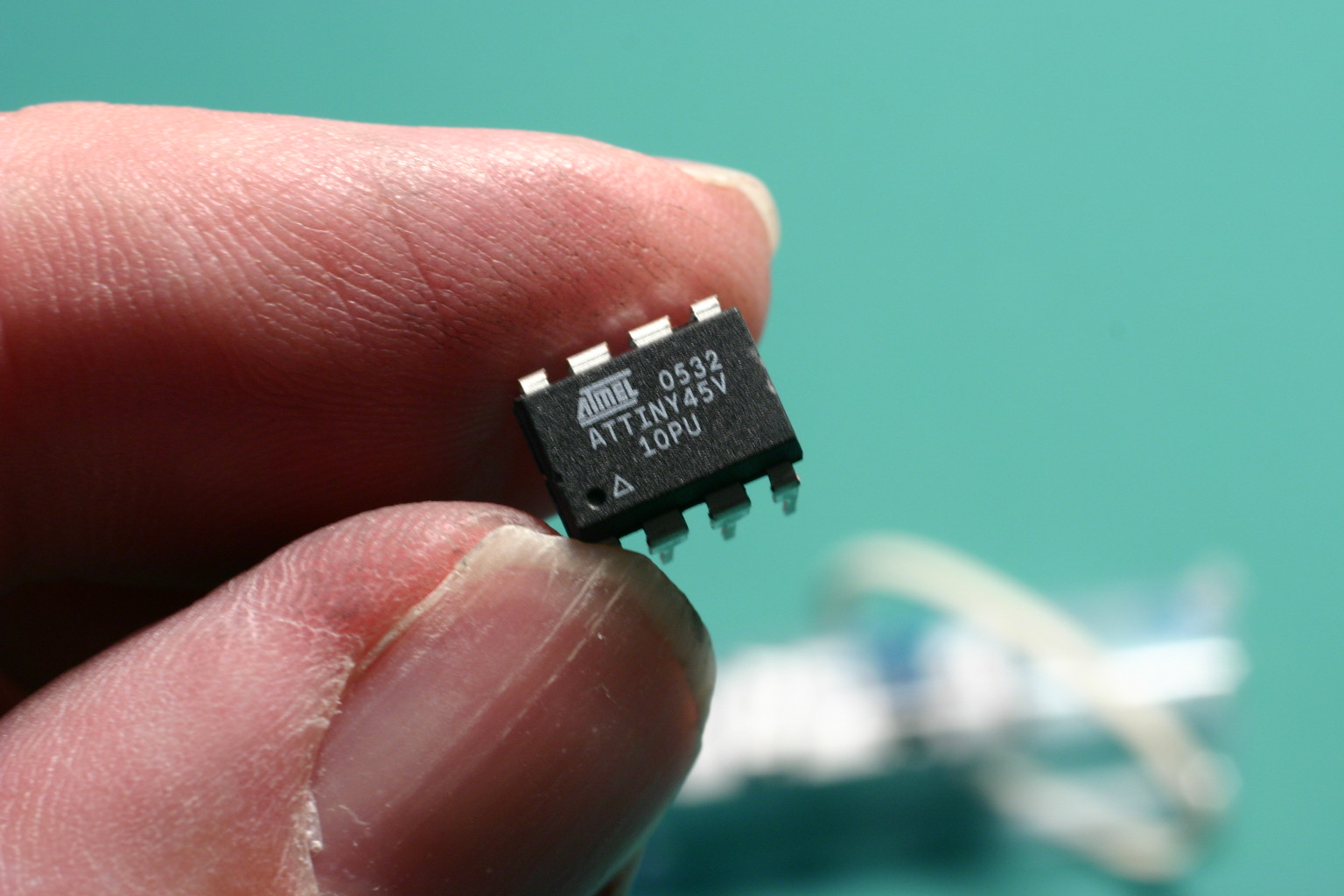

<li>Programed ATtiny45 Computer
<li>CR2032 3V Lithium Battery
<li>1/2" Dia x 1/8" Thick NdFeB Disc Magnet, Ni-Cu-Ni plated

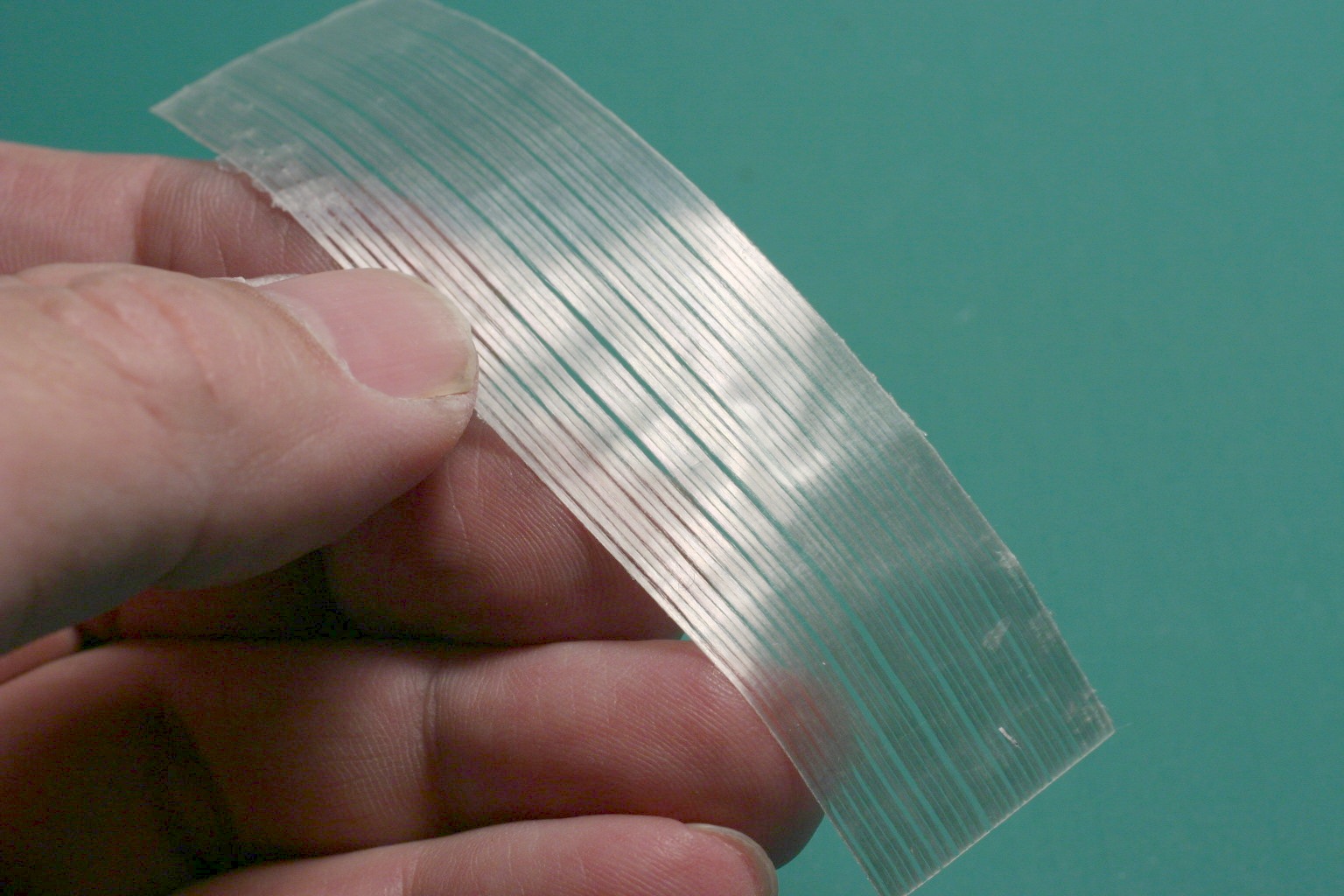

<li>1-inch wide Strapping Tape
</ul>
For a more complete parts list see: LED Throwies instructables page
<ul><li>10mm Diffused LED
<li>Programed ATtiny45 Computer
<li>CR2032 3V Lithium Battery
<li>1/2" Dia x 1/8" Thick NdFeB Disc Magnet, Ni-Cu-Ni plated
<li>1-inch wide Strapping Tape
</ul>
For a more complete parts list see: LED Throwies instructables page
How We Program the Chip
Downloads

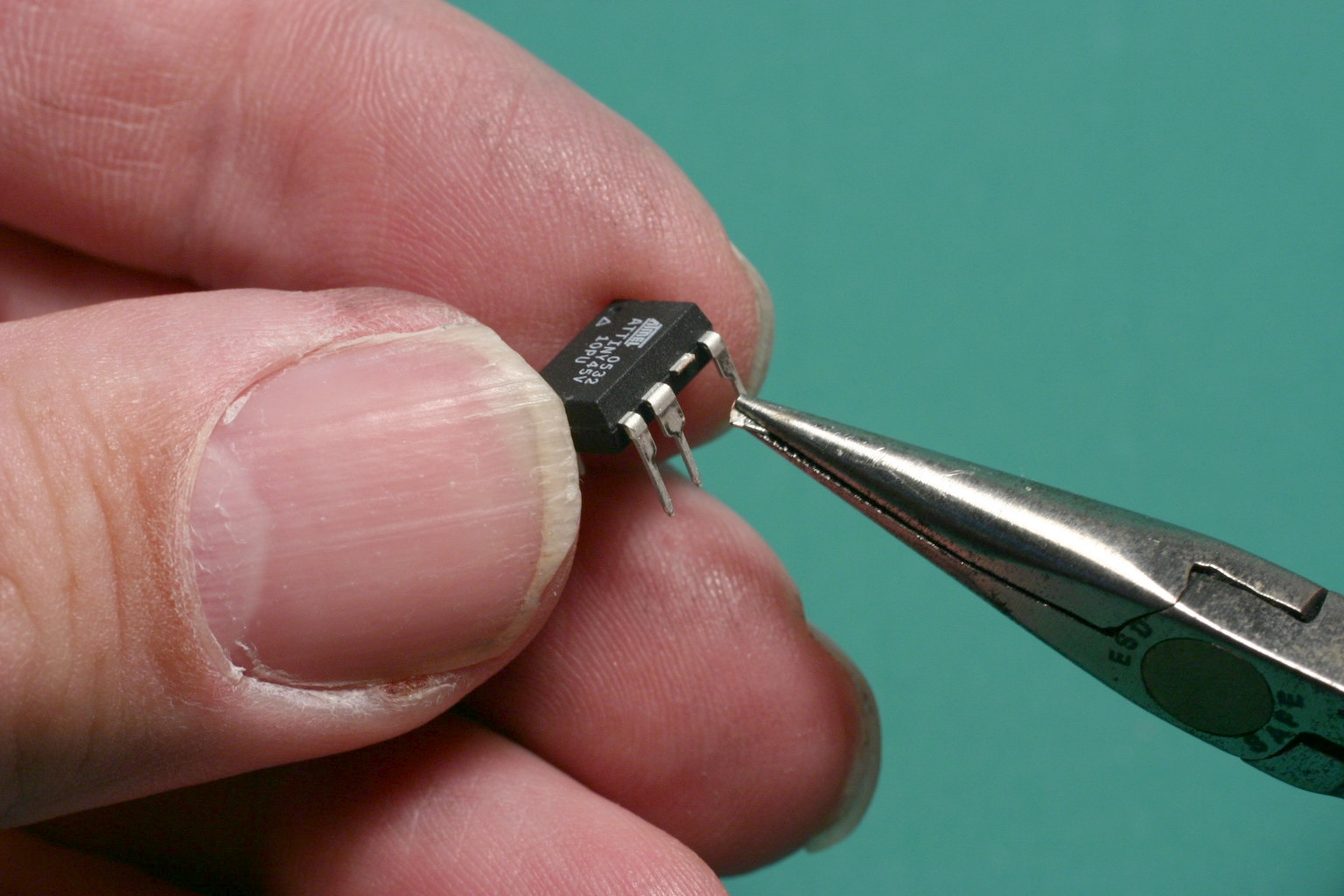

Bend the Leads

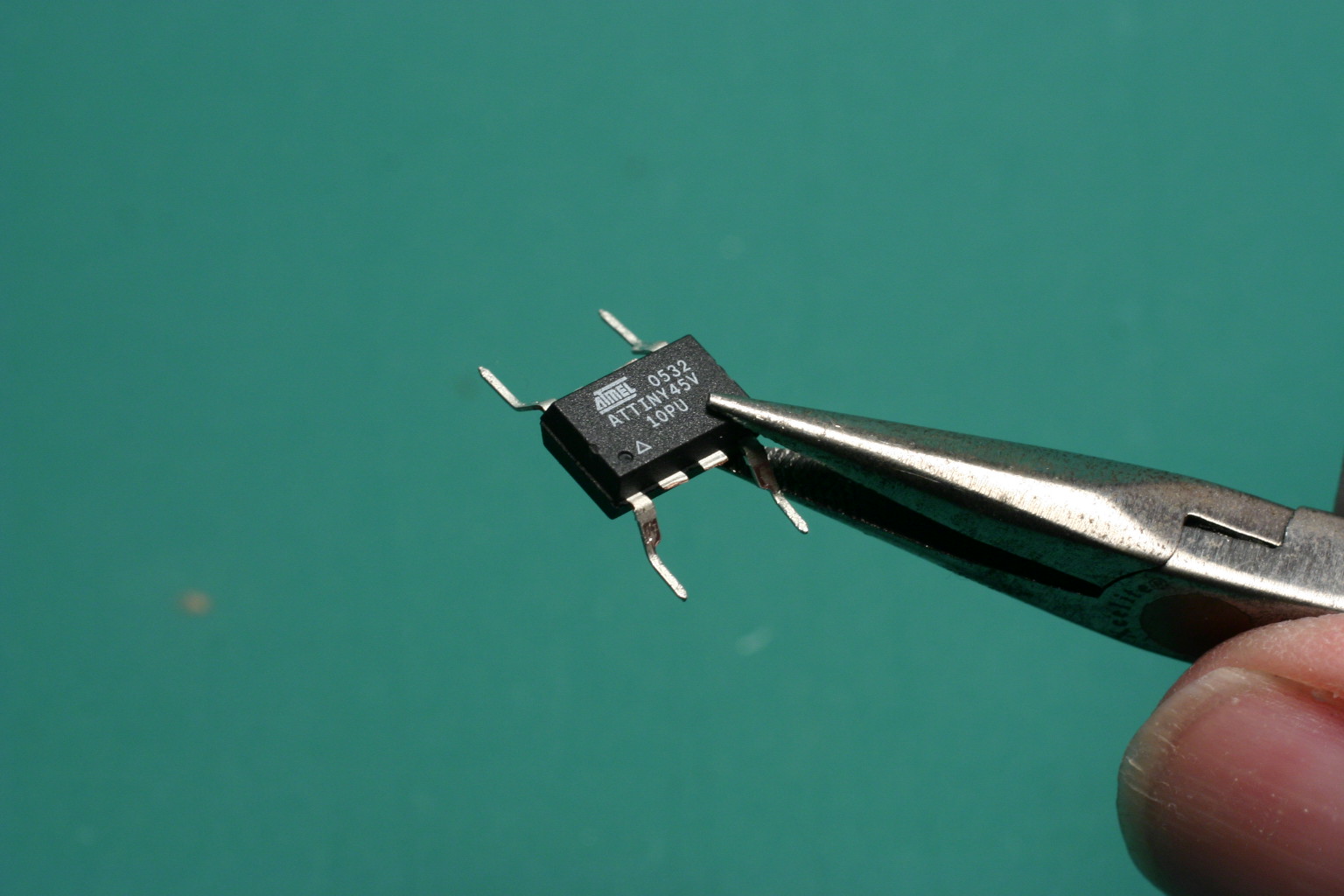

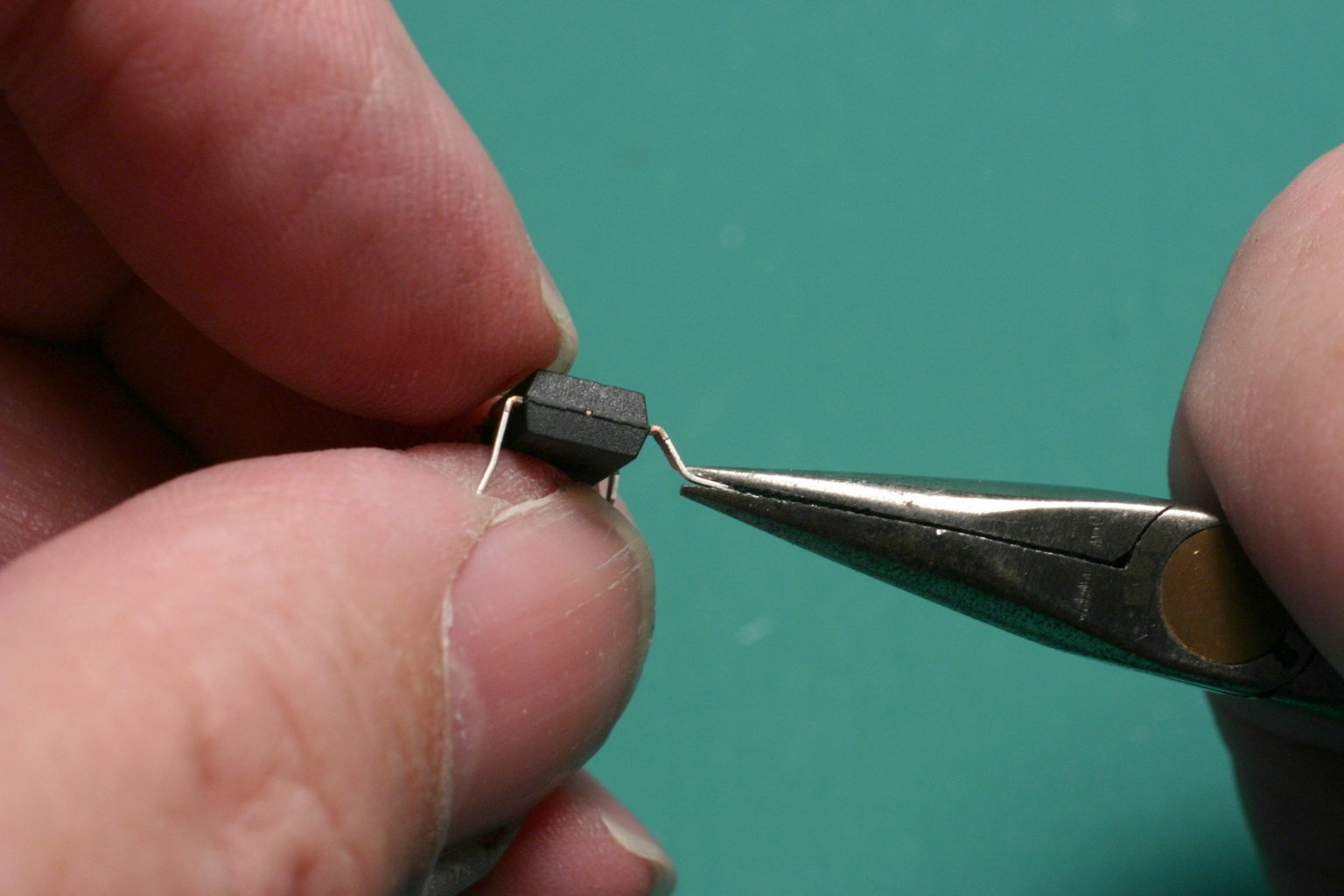

Bend the chip and LED leads to match.

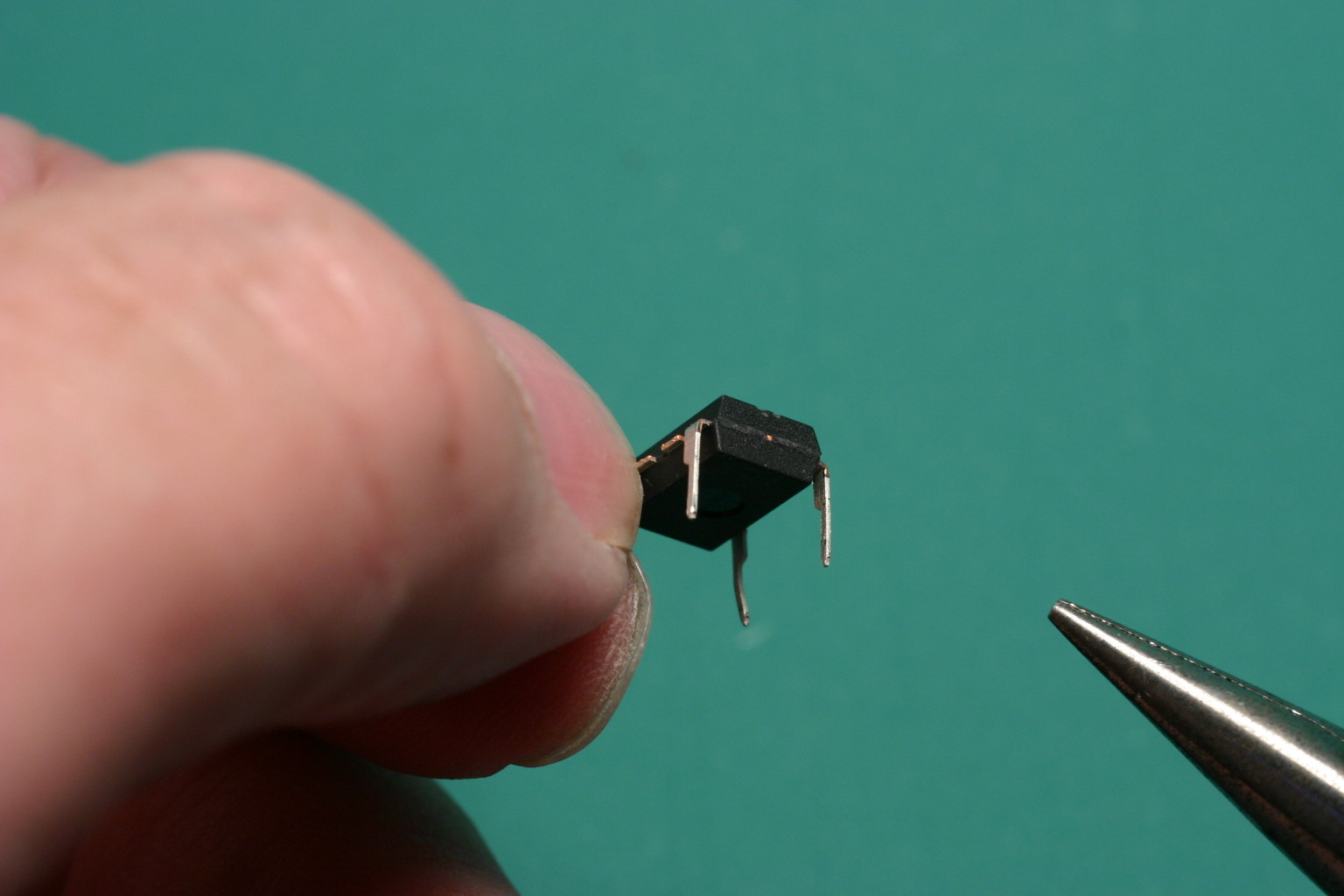

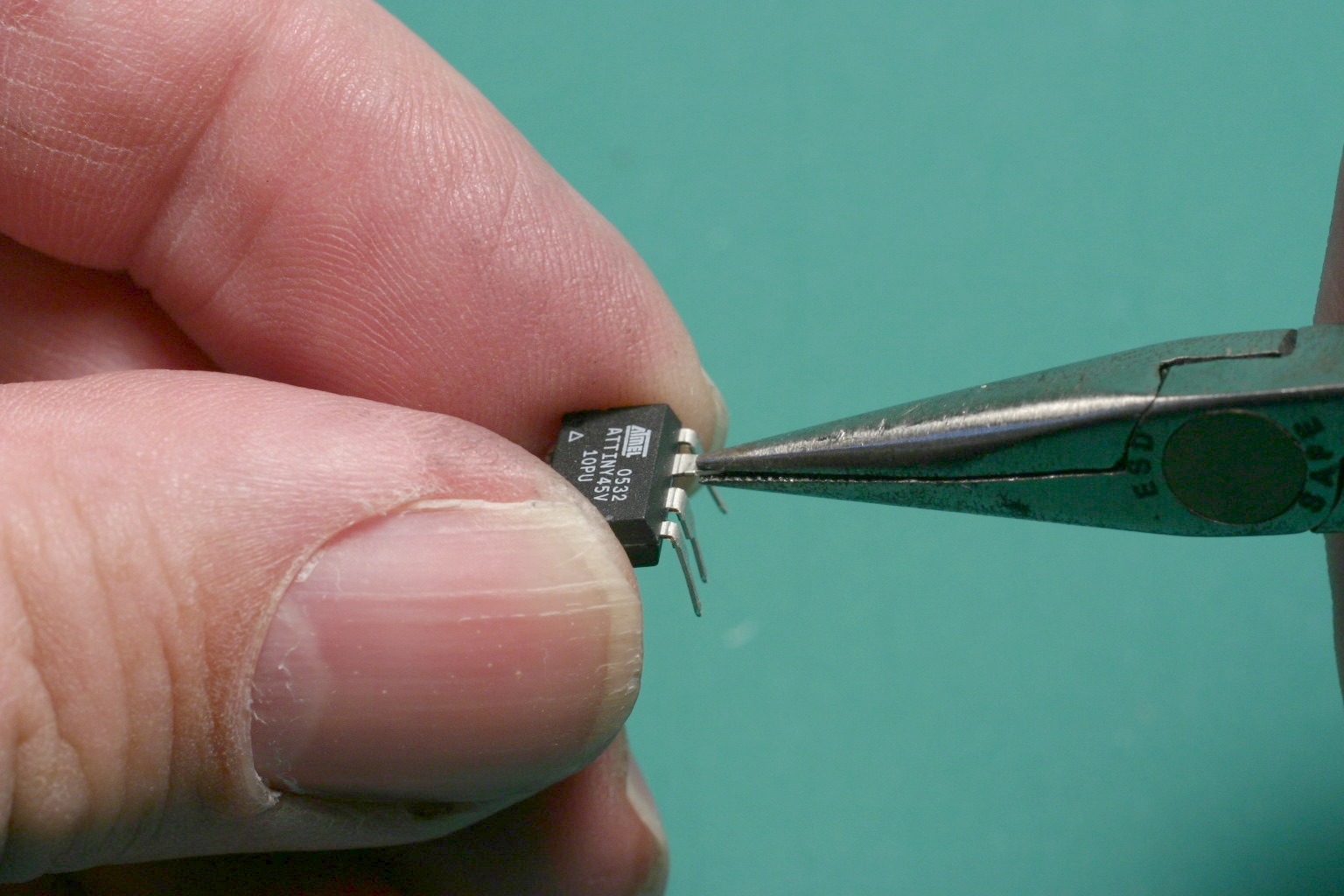

We bent off the middle leads so that they wouldent get in the way.
We bent off the middle leads so that they wouldent get in the way.

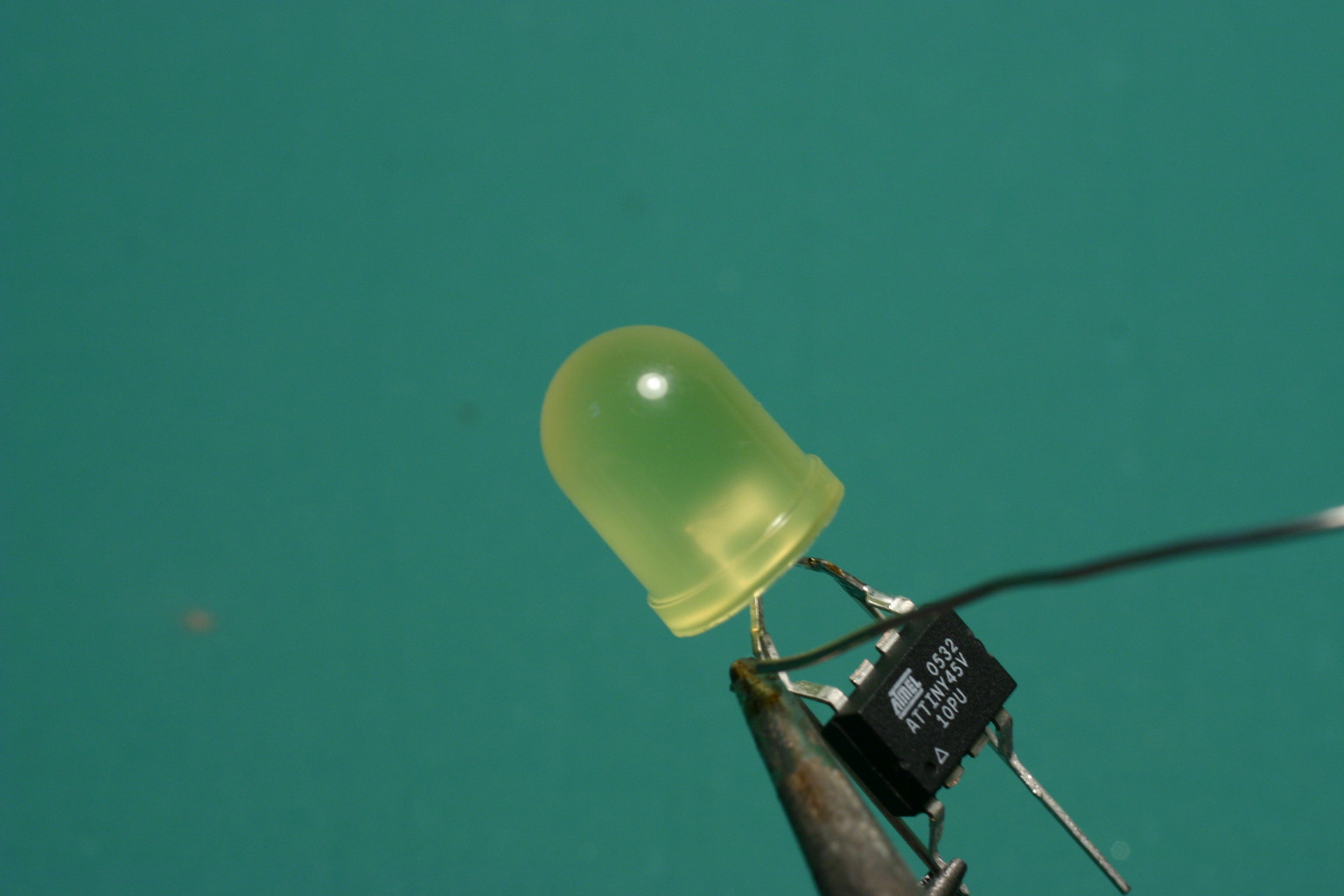

Solder the Leads

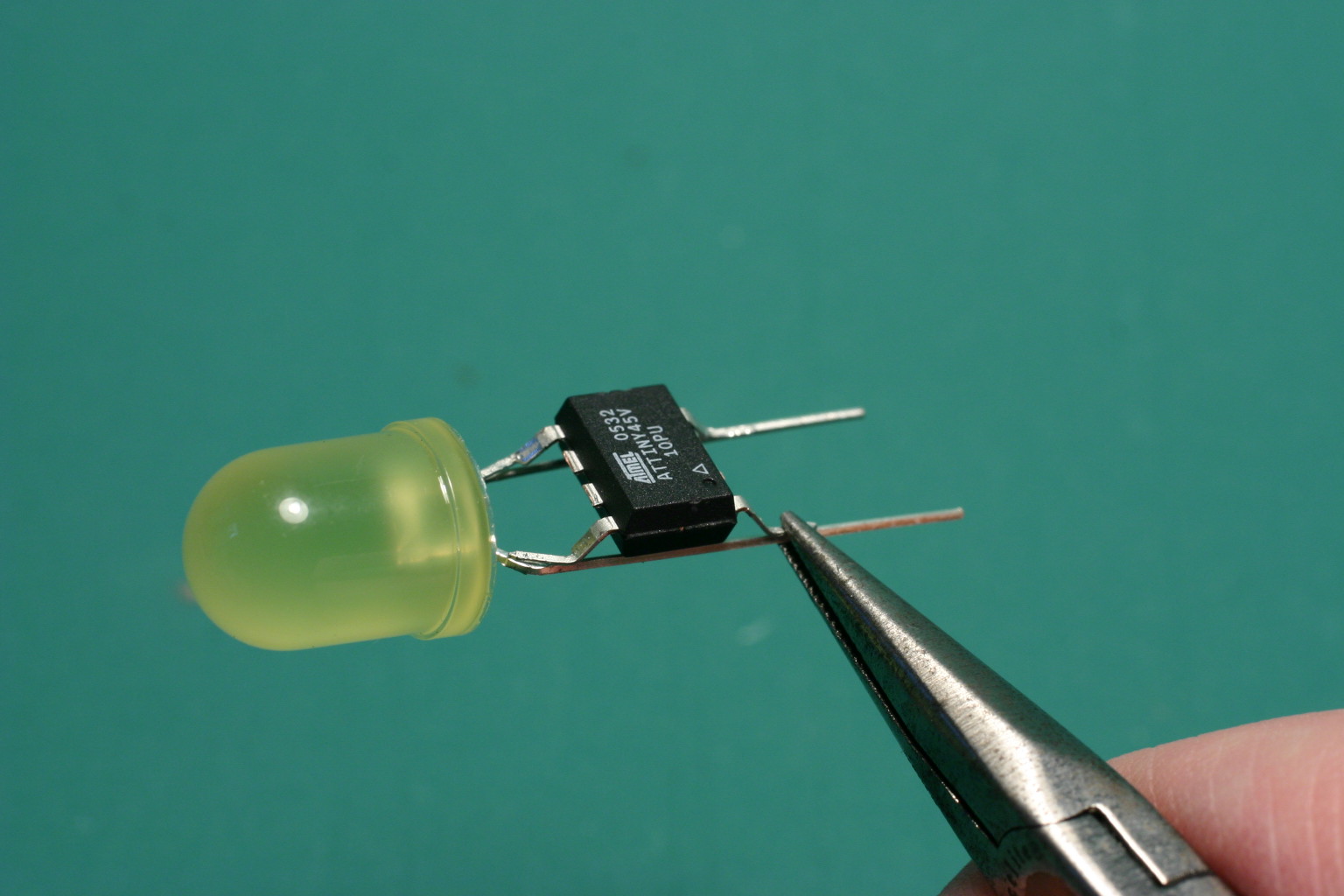

The chip is programed in a way that we can solder the LED leads right across the chip. The best way to solder them together is to hold one side with nedle nosed plyers and tap the other side with some solder.
The longer LED lead should be soldered to the 'vcc' (power) and 'rst' pins of the chip. This shorts the chip reset and gives it a more secure conection. Make sure to reference the wiring diagram in this step to get the pins correct.
The longer LED lead should be soldered to the 'vcc' (power) and 'rst' pins of the chip. This shorts the chip reset and gives it a more secure conection. Make sure to reference the wiring diagram in this step to get the pins correct.

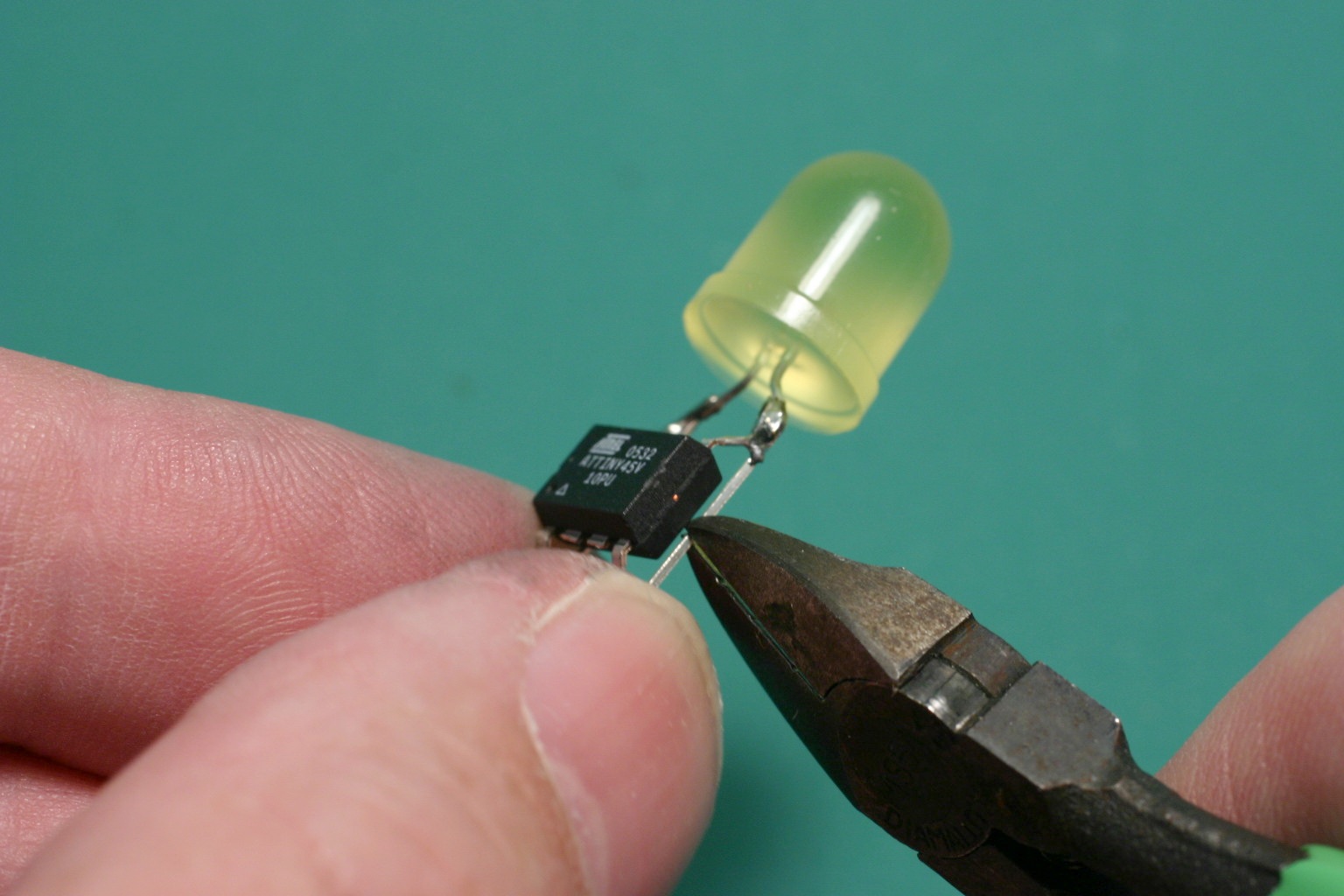

Snip the Ground
Next you have to snip the LED lead betwen the ground and control pin so the chip can compleet the conection and make a message.
Conect Battery
wedge it inbetwen the two leads.
Stick It!
This is the easiest and most fun.
