LED Strip Control With Dimmer and Audio Pulsing Circuits
37845 Views, 545 Favorites, 0 Comments
LED Strip Control With Dimmer and Audio Pulsing Circuits
This is a really neat circuit I put together based on another Instructable for pulsing LEDs to music: https://www.instructables.com/id/Sound-Reactive-LE.... This Instructable got me thinking that it's a bit of a waste just to have that LED strip sitting on the picture rail which can only be used when you're putting an audio signal through the circuit. So what I came up with is a circuit that can switch between two modes: one for pulsing the LEDs to audio and one for dimming the LEDs between 0 and 100% brightness. You'll get the best of both worlds with this project and I must say that it's a pretty cool thing to have set up in any room. Probably one of the better features is that you can plug and play. If you've got several led strips set up in your house, the box is completely self contained (apart from the power and audio leads) so you can unplug one set of LEDs and plug in another if you want to move rooms. Just make sure you use the same connector and you're good to go!
Here's what you're going to make:
Acquire the Parts
This project requires a fair few tools and materials. Here's what you will need:
Tools:
Soldering iron
Drill and drill bits
Hobby knife
Side cutters
Jigsaw
Hacksaw
Sand paper
Multimeter
Metal ruler
Materials:
5m warm white led strip (or any colour of your choice). I bought mine off eBay for $7 http://m.ebay.com.au/itm/181743113860 or http://core-electronics.com.au/warm-white-led-weat...
12V 2A power supply (match this with the specs of your led strip.) I bought mine off eBay for $13: http://m.ebay.com.au/itm/281568349041 or http://core-electronics.com.au/power-supply-12v-5v...
2* 1N5404 diode
4* 1N4007 diode
2* 1N4148 diode
2* 1kohm resistor
2* 5.1kohm resistor
2* 100kohm resistor
1* 100ohm resistor
1* TIP31C transistor
1* LM324N op amp chip http://core-electronics.com.au/lm324n-quad-op-amp....
1* NE555 timer chip http://core-electronics.com.au/555-timer.html/?acc...
1* 4.7kohm resistor
2* 100nF capacitor
1* 10kohm potentiometer https://www.jaycar.com.au/10k-ohm-linear-b-single-... or http://core-electronics.com.au/rotary-potentiomete...
1* potentiometer knob https://www.jaycar.com.au/white-push-on-style-knob... or http://core-electronics.com.au/black-plastic-knob-...
1* 2.5mm power connector socket http://core-electronics.com.au/dc-barrel-jack-adap...
2* stereo aux connectors http://core-electronics.com.au/breadboard-friendly...
1* SPDT rocker switch centre off https://www.jaycar.com.au/spdt-centre-off-rocker-s...
1* plastic enclosure
1* 2 pin MOLEX style connector
2* 3 pin JST connector (or similar) http://core-electronics.com.au/jst-connector-kit-2...
1* 2 pin JST connector (or similar) http://core-electronics.com.au/jst-connector-kit-2...
Wire
Solder
Sugru
Electrical tape
Double sided tape
Test the Led Strip
Set Up the Individual Circuits on a Breadboard

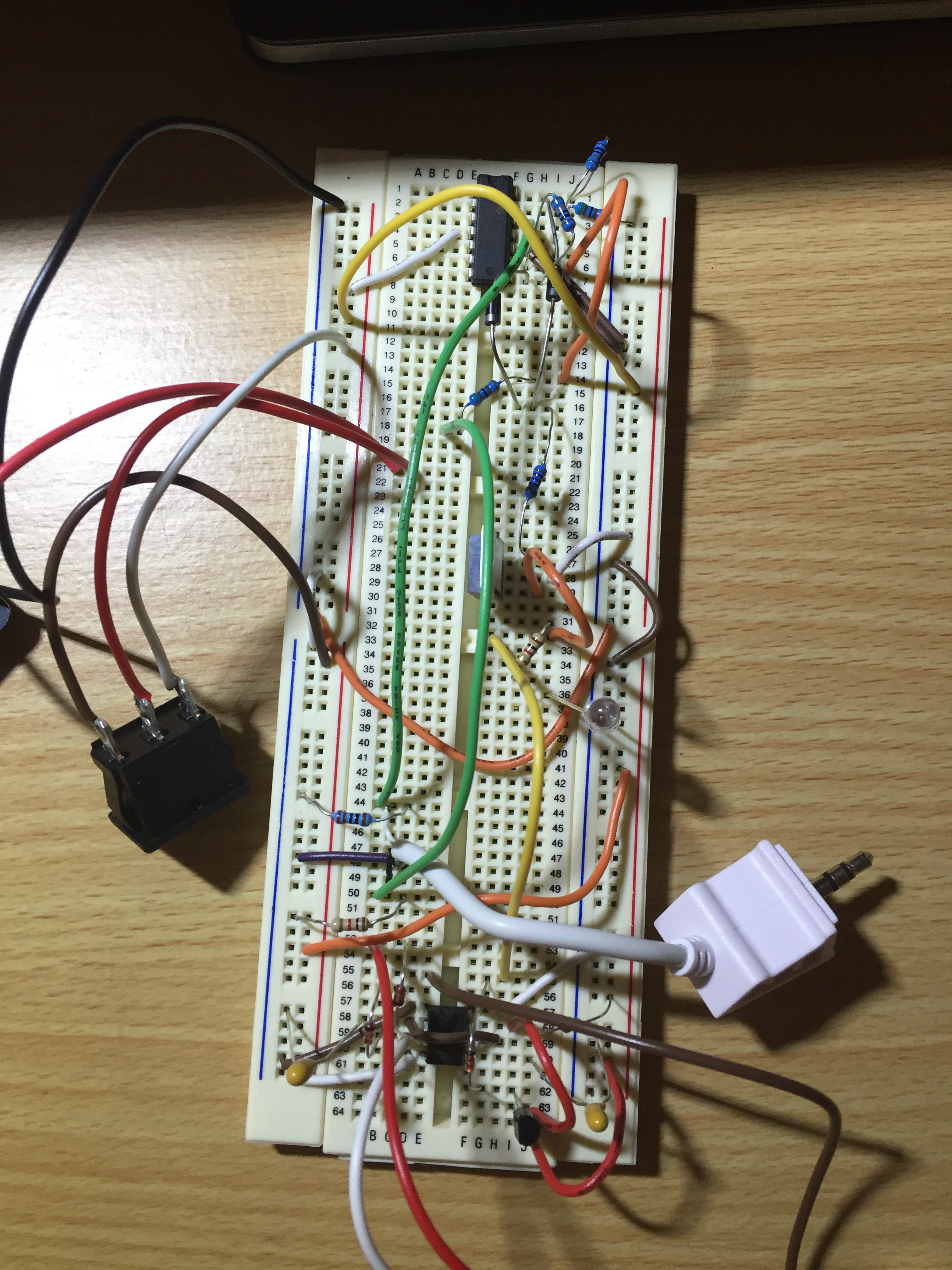

Set Up the Complete Circuit on a Breadboard

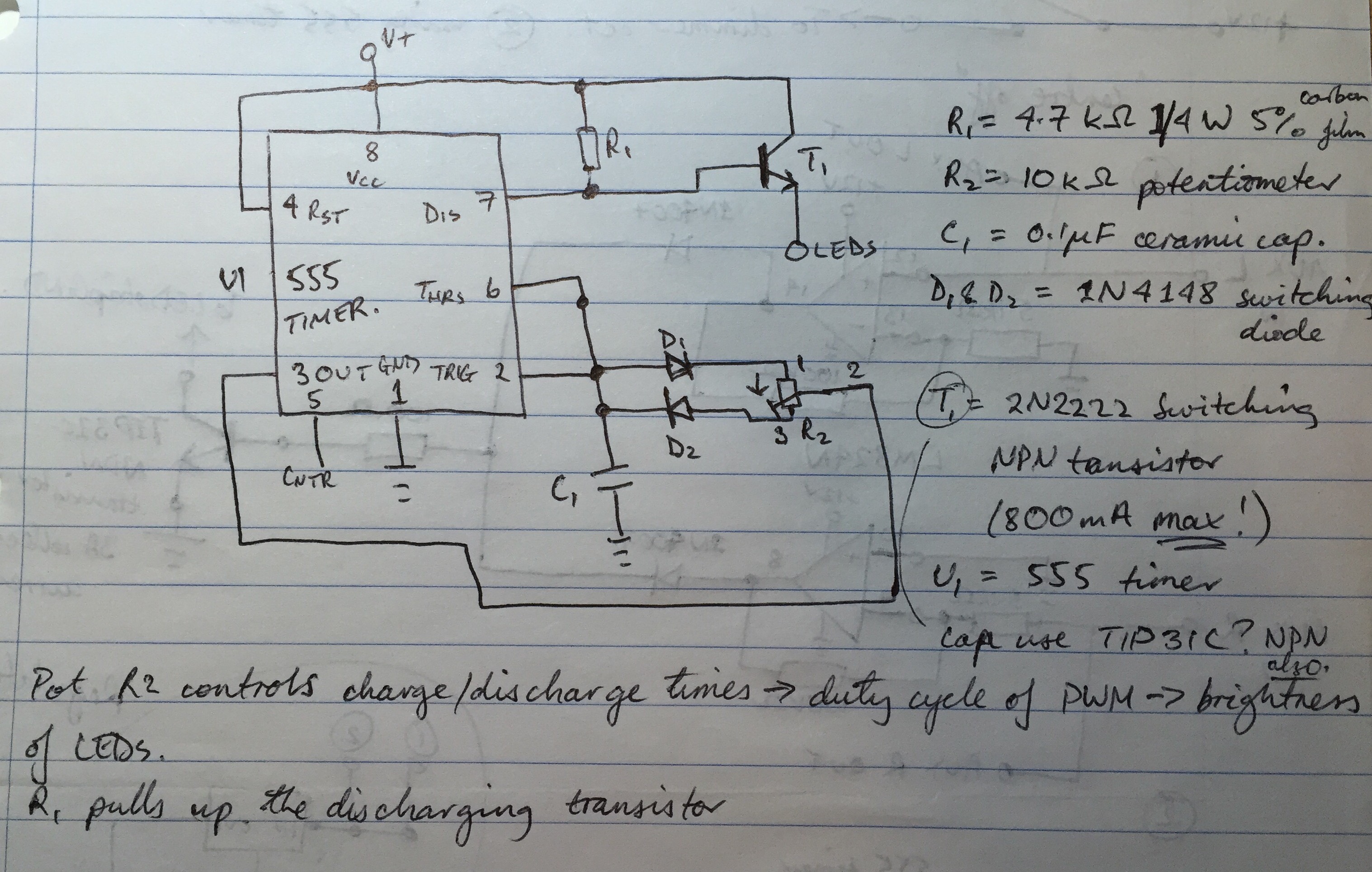

Both circuits by themselves used a transistor for the switching (powering on) of the LEDs, so when I combined the two circuits, I thought, why not just use one? So I went through a few iterations of the complete circuit so I could use a single transistor for the switching for the LED strip, this implementation basically used a few extra diodes to prevent current from one circuit running into the other and disrupting the signal to the LED strip.
What I have eventually come up with is the circuit diagram as shown in the picture. You only need to add a few components to get the two circuits running and activated with the rocker switch. Follow the circuit diagram in the picture and get the circuit working on the breadboard first so you can diagnose any problems easily and make any necessary changes/fixes without having to desolder parts. To get the complete circuit connected, you'll have to solder wires to these components: (As always, colour coding is useful!)
- 3 wires to each of the pins of the 2 stereo aux sockets (OK, I realise I don't show these in the pictures here, but for testing, it's just as good to connect up the 3 wires (L,R,gnd) of a 3.5mm audio cable if you've got one lying around that's already cut open)
- 3 wires to the SPDT centre off rocker switch
- 3 wires to the 10kohm potentiometer
- 2 wires (one to each end of the 1N5404 (big) diodes) as these don't fit in the breadboard or Veroboard
For the breadboard implementation it makes your life easier if you strip the free end of the wires and tin them with some solder. This will keep the wire strands contained and you won't get the wires fraying on you when you try jam them into the breadboard.
- 2 wires to the power barrel connector (power and ground). Before soldering these in, you want to plug the power adaptor in and use a multimeter to probe the pins and figure out which one is ground and which one is V+
Once you've got the breadboard version connected, have a play with the switch, dimmer and audio input/output and make sure it functions as it should. You're now ready to solder it up on a Veroboard so move to the next step!
Downloads
Solder the Parts to the Veroboard
I should mention that a bit of planning is needed to make sure that your layout is good for connecting the switch/ potentiometer etc. Also measure out how much space you have in the box (ie the dimensions of the rectangular surface) and make sure that your circuit board will be smaller than this area so it fits in well! It's probably better if you solder the components in first and then cut the board as you might find you need to make it slightly wider to fit all the connections in. Mine ended up being a nice fit for the enclosure.
In this design iteration, I still have the single led connected. If you've got your LED strip already, solder in a 2 pin JST (or similar) connector so you can plug and unplug the LED strip (make sure you leave room for this connector on the board and wire it up so you've got the positive and negative next to each other on the board). An alternative is to solder the wires directly to the board, but these may come loose with time if you don't glue them down. If you're mounting your LED strip on your picture rail, make sure you have enough wire to run from the control box, up the walls and to the picture rail where you will stick the led strip. Also choose a colour of wire that will blend in with your walls, I've got white which was easy to match, but other colours may be more difficult.
The other components (power switch and potentiometer) have connectors and pin headers so that once all of the parts are mounted, you can still take off the lid of the enclosure and disconnect the components that are attached to the lid. Completely optional, but recommended for ease of access to the circuitry if you have any circuit issues you need to fix.
Finally, those big diodes need to be secured to the board so they don't move around too much. A small amount of glue would probably suffice but I just covered them with some white electrical tape.
When your circuit is fully soldered and ready to cut to size, take a hobby knife and metal ruler and slice over the area you would like to cut several times. This weakens the surface of the Veroboard and you can then place the cut edge on a table edge and simply break it off.
Prepare the Enclosure
On the lid of the enclosure, drill a hole at a suitable position which is large enough to allow the shaft of the potentiometer to fit through. Also on the lid of the enclosure, drill a hole approximately at the centre of where you want to locate the SPDT rocker switch. Measure out dimensions of the switch on the lid and use a jigsaw to cut to the desired shape so that the switch can slot in. I cut my hole a bit too big but that was easily patched up with some sugru.
Mount Parts Inside Enclosure
Take some double sided tape and place it on the bottom of the circuit board. Peel off the adhesive and press the circuit into a good position on the bottom of the enclosure.
Next, I used a hacksaw to shorten the shaft of the potentiometer by 5mm and sanded the shaft to remove the sharp edges. The reason why I did this was because with the mounting method I chose, the shaft was too long. After this, I fed it through the lid of the enclosure, screwed it into place (effectively tapping the drilled hole in the plastic) and fit the knob.
Next, take the SPDT rocker switch and position it in the hole that was cut out on the lid. If the hole is too big, open some sugru and shove it in the gaps to secure the switch in place.
The power barrel connector is a tricky one to mount- you'll need some sugru here as well. Position the barrel socket within the enclosure by connecting the barrel connector from the outside. This will hold the barrel socket in the correct position for you to sugru it in. Glue would probably also be fine but I recently bought some sugru and felt like using it! Be careful to ensure that the barrel connector doesn't weigh down the socket and shift its position while the sugru is curing.
Where the wires poke out of the enclosure to go to the led strip, you can use some sugru to hold them in place and make sure that the wires don't get ripped out.
Finally, mount the 3.5mm aux sockets by removing the small nut that comes attached, pushing the connector through the drilled out hole and reattaching the nut to on the outside of the enclosure to hold the socket in place.
Connect LED Strip and Test
Personally, I hate doing connectors because they're always so fiddly and you need the right crimping tool. So my advice is to take your time with these connectors... Perhaps buy more than one so you've got back ups in case you make a mistake like I did.
Mount Led Strip to Picture Rail
Enjoy!
I hope everyone enjoys this project as much as I did, I'm very happy to say that I have this cool lighting feature in my room now!

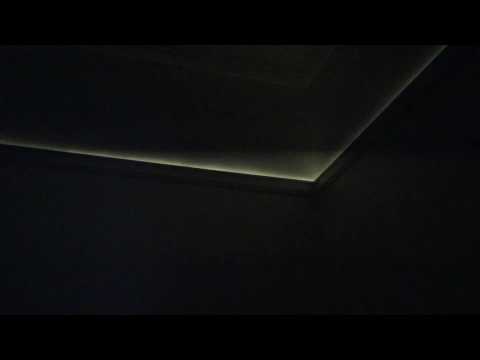

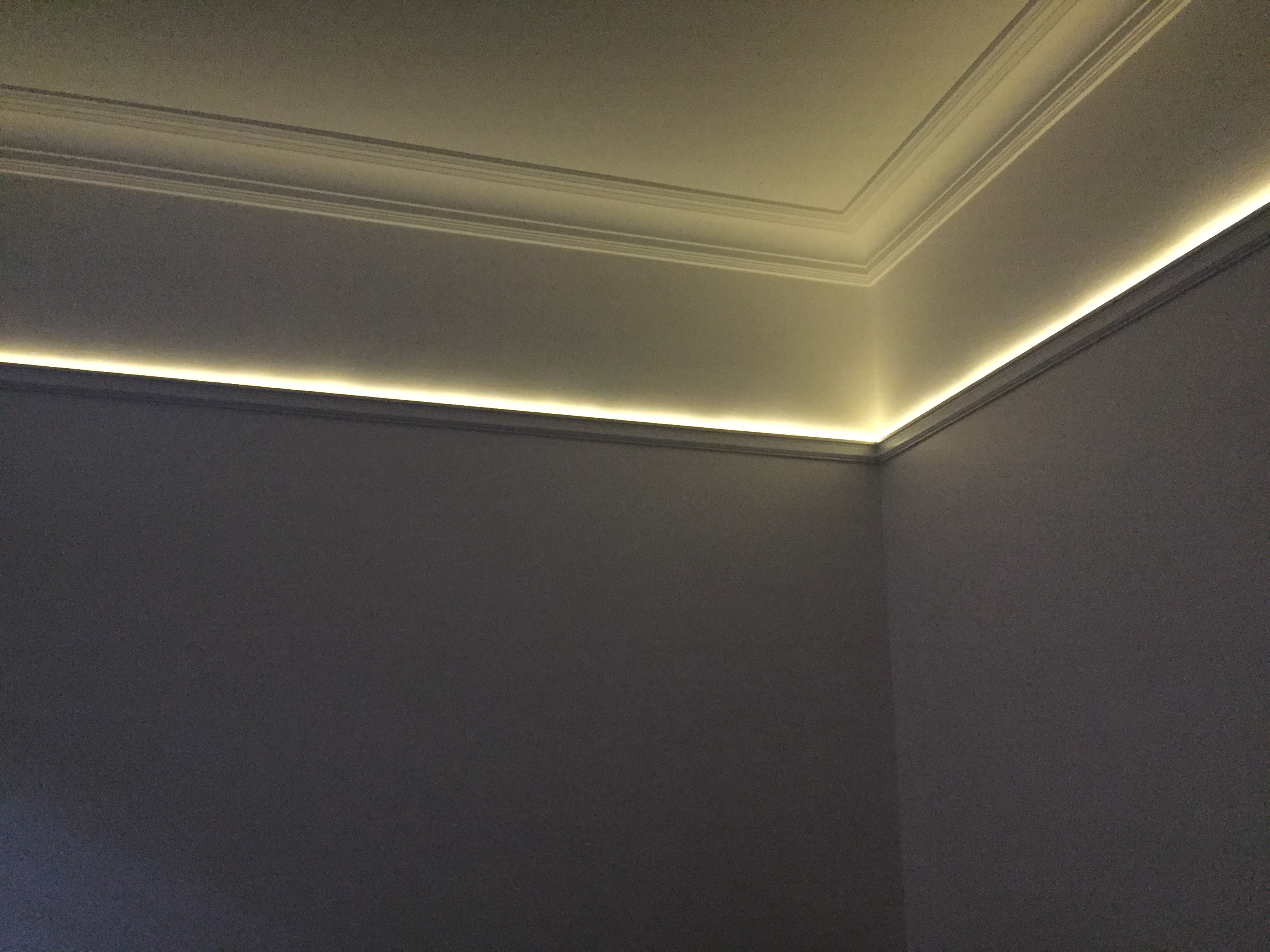

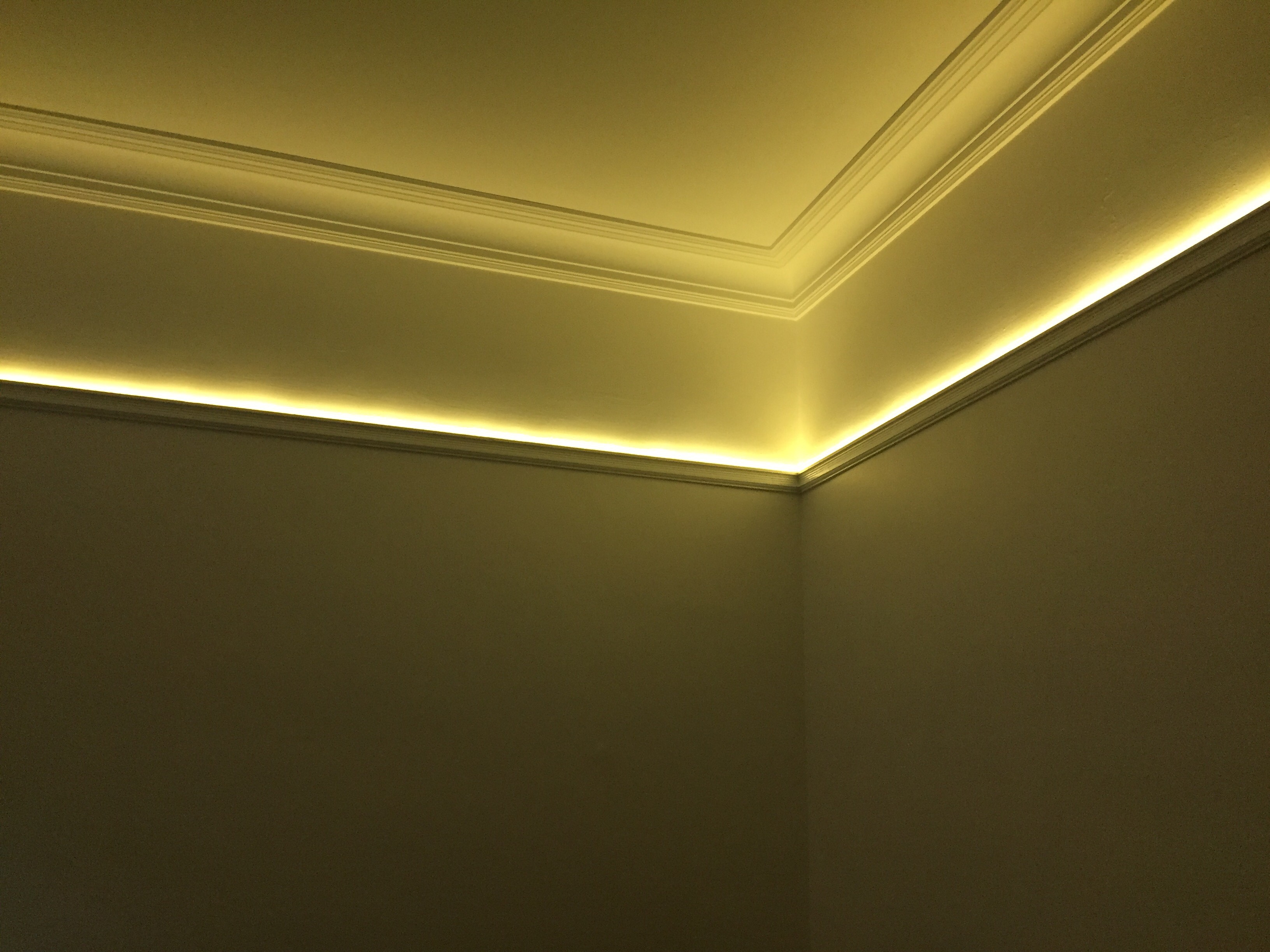

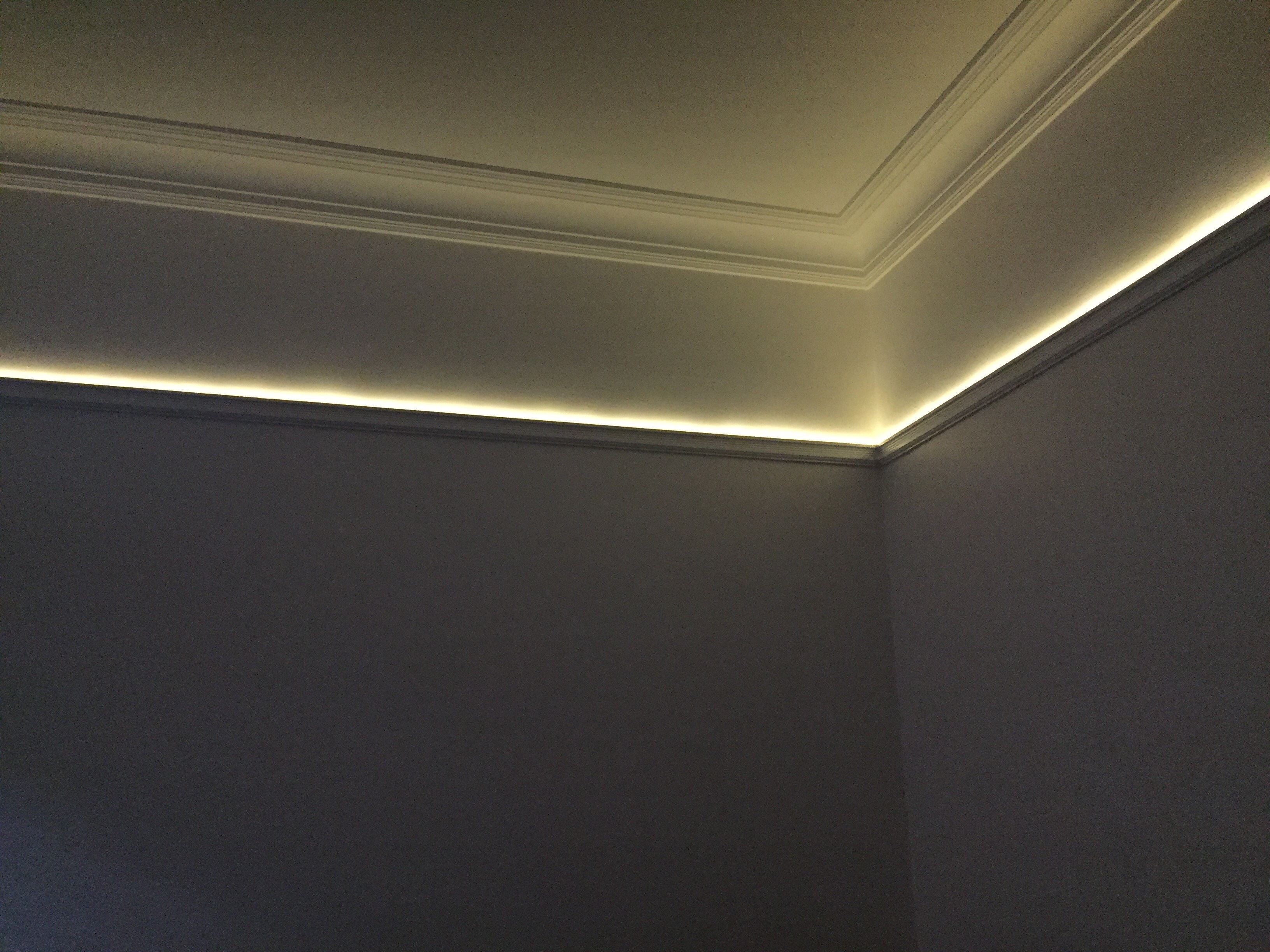

The pictures here show the lights dimmed to three different intensities, but it doesn't show up too well in pictures. Have a look at the video once again to get a better idea of what it's like: https://youtu.be/beM0C4_bT1M
