LED Sneakers - Your Shoes, Illuminated!
by BrownDogGadgets in Circuits > Wearables
15143 Views, 39 Favorites, 0 Comments
LED Sneakers - Your Shoes, Illuminated!
Light-Up sneakers are all the rage. But sadly, not all sneakers are manufactured with LED lights - and what about all those sneakers that kids already have?
It's time to add lights to any sneakers you own!
This project is a super fun standalone activity or a great workshop for a group of kids, part 2 of the workshop being a light-up dance party of course!
In this instructable, we'll show you how to:
- Construct a simple electronic circuit
- Make a DIY pressure sensor to sense when your sneakers are stepped on
- Add LEDs to light up the heels!
Watch the overview here:
If you like our projects and want to see more of what we get up to each week please follow us on Instagram, Twitter, Facebook, and YouTube.
Supplies
Brown Dog Gadgets does in fact sell kits and supplies, but you don't need to buy anything from us to make this project. Though if you do it does help support us in creating new projects and teacher resources.
Materials:
Cut Out the Pieces As Shown
- Cut a u-shaped piece of felt that fits inside the back of your sneaker.
- After testing the fit, cut another piece the same as the first.
- Cut two more pieces, 1/4 inch smaller than the first two. Fold the felt to cut three slits in those pieces as shown.
- Cut a piece of Velostat in the same shape as the smaller pieces.
* To add lights to both sneakers, repeat all steps to make another sensor.
Add Maker Tape

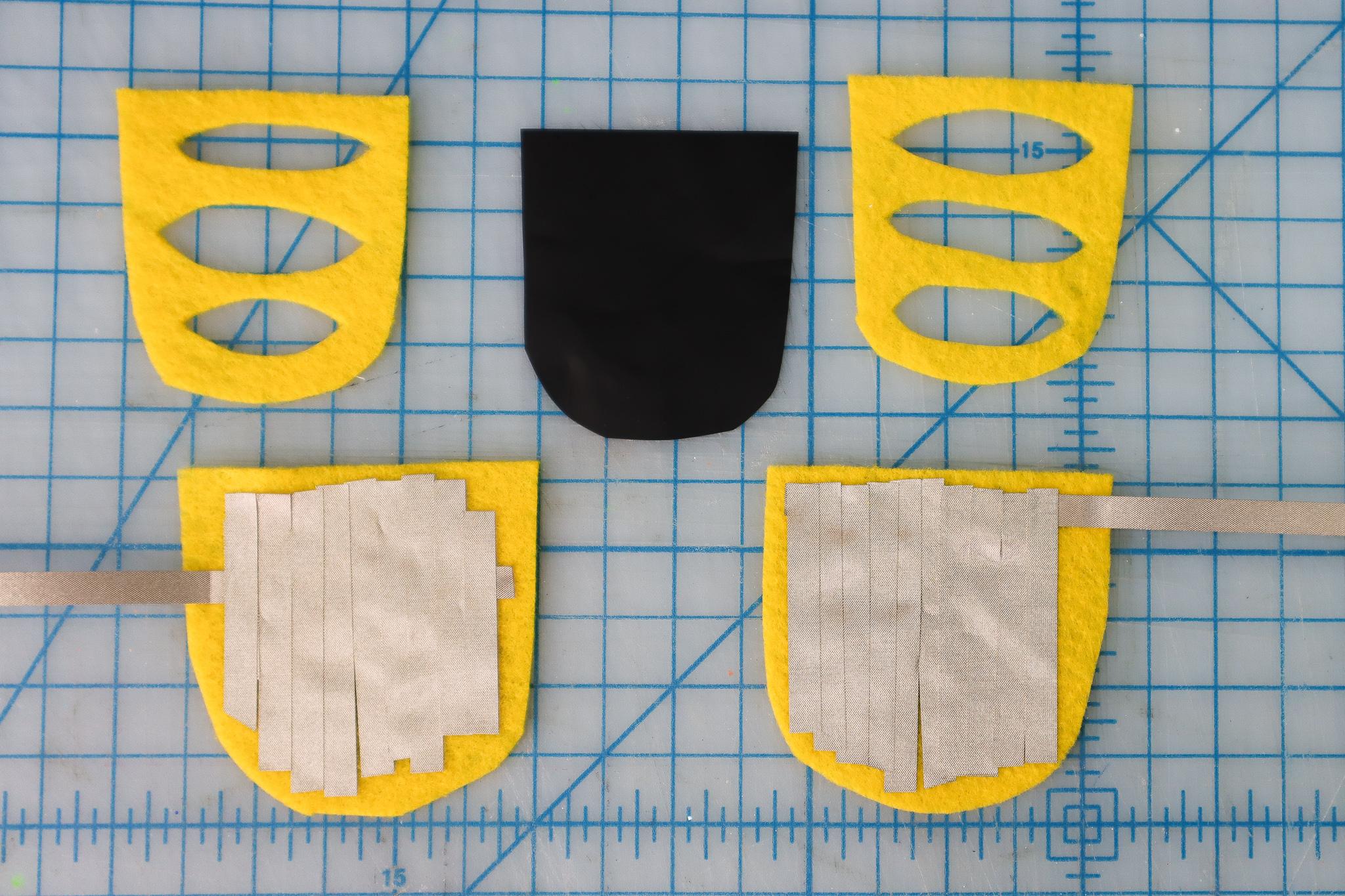

- Cover the large pieces with maker tape as shown. Allow one long piece to cross over all the pieces, and another on the second piece, slightly lower than the first coming from the opposite side as shown.
*When the pieces are placed on top of one another with the maker tape facing itself, the two long pieces should stick out of the same side, but not be touching. See Step 4 for details.

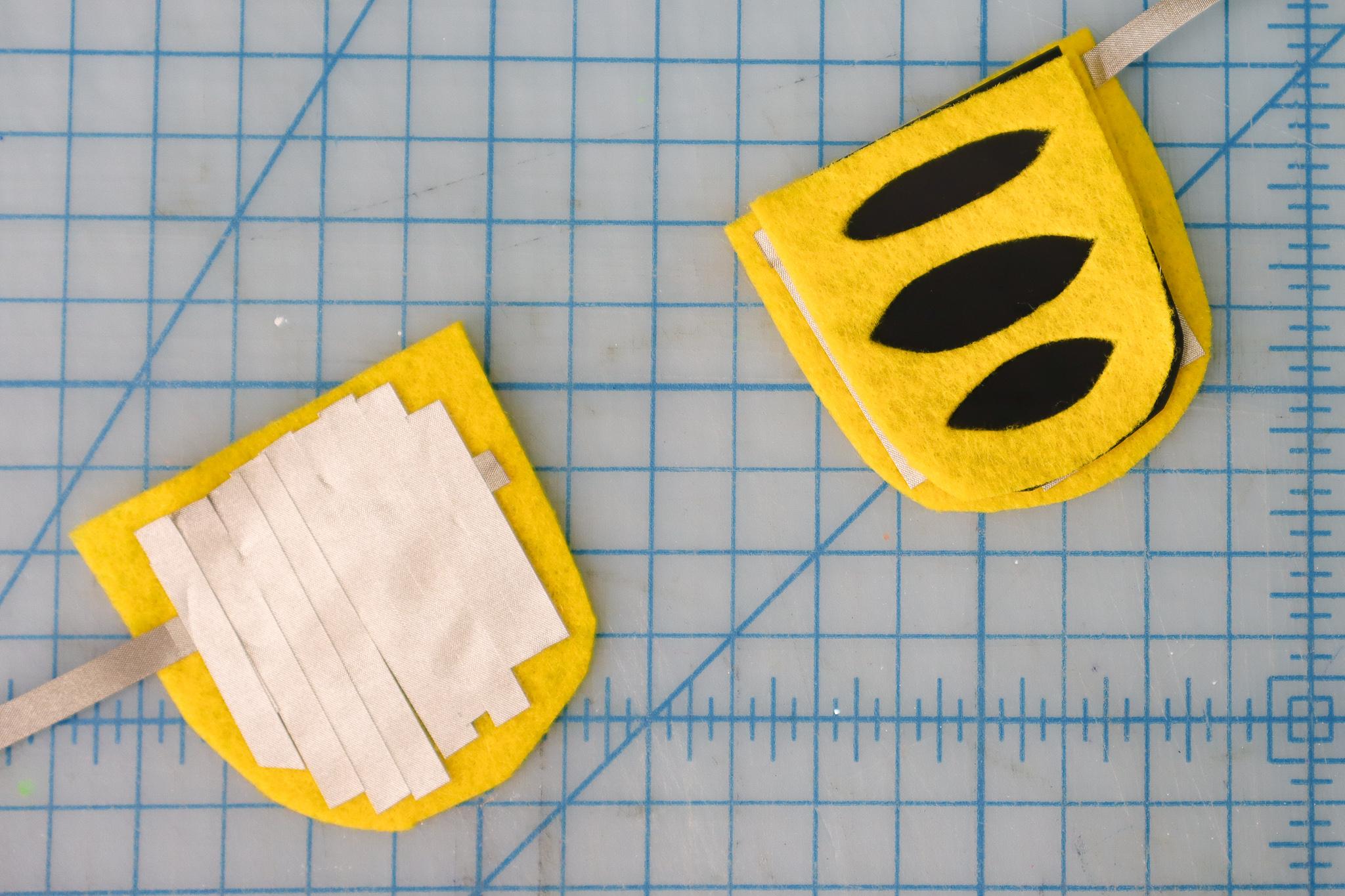

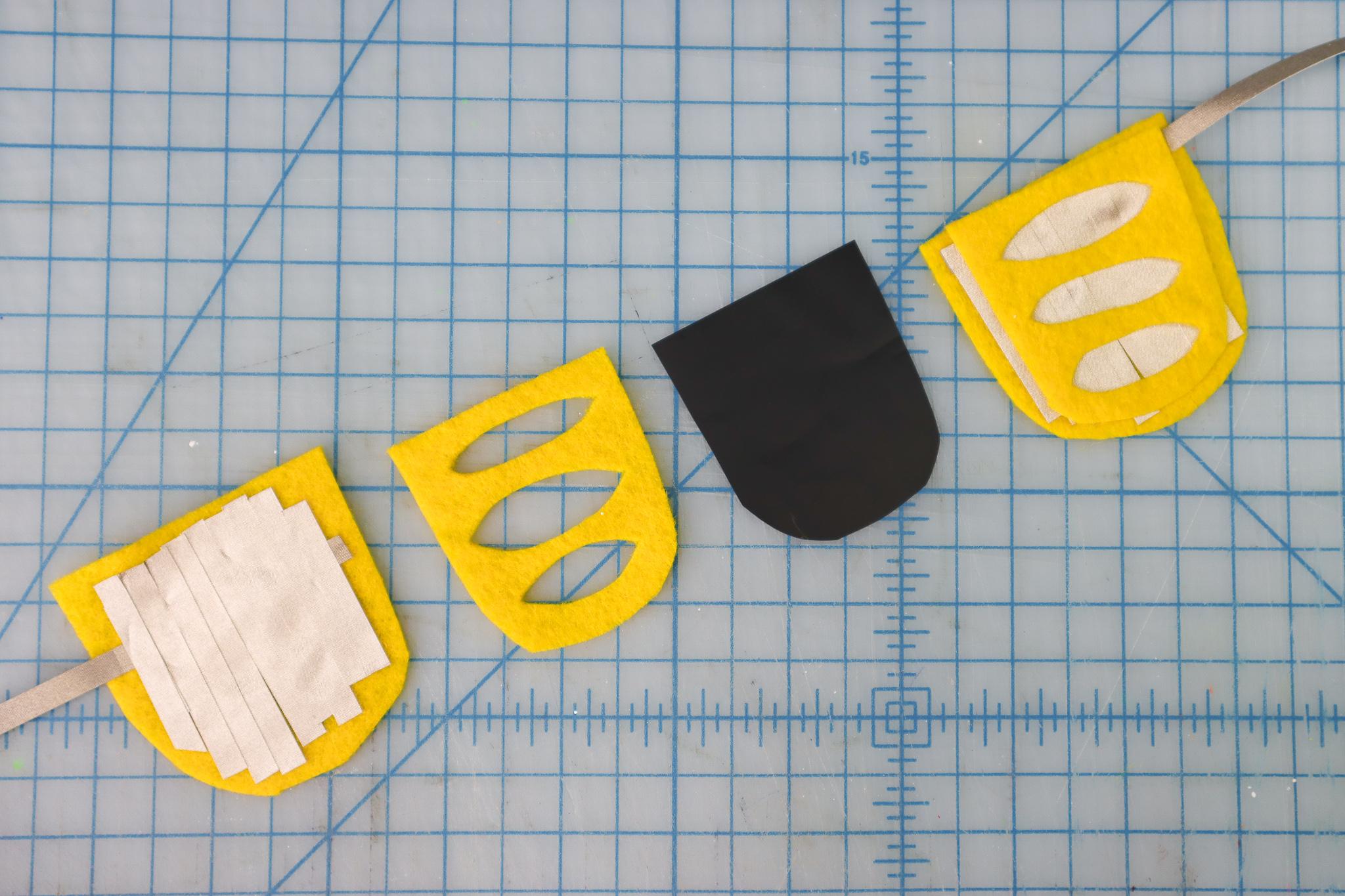

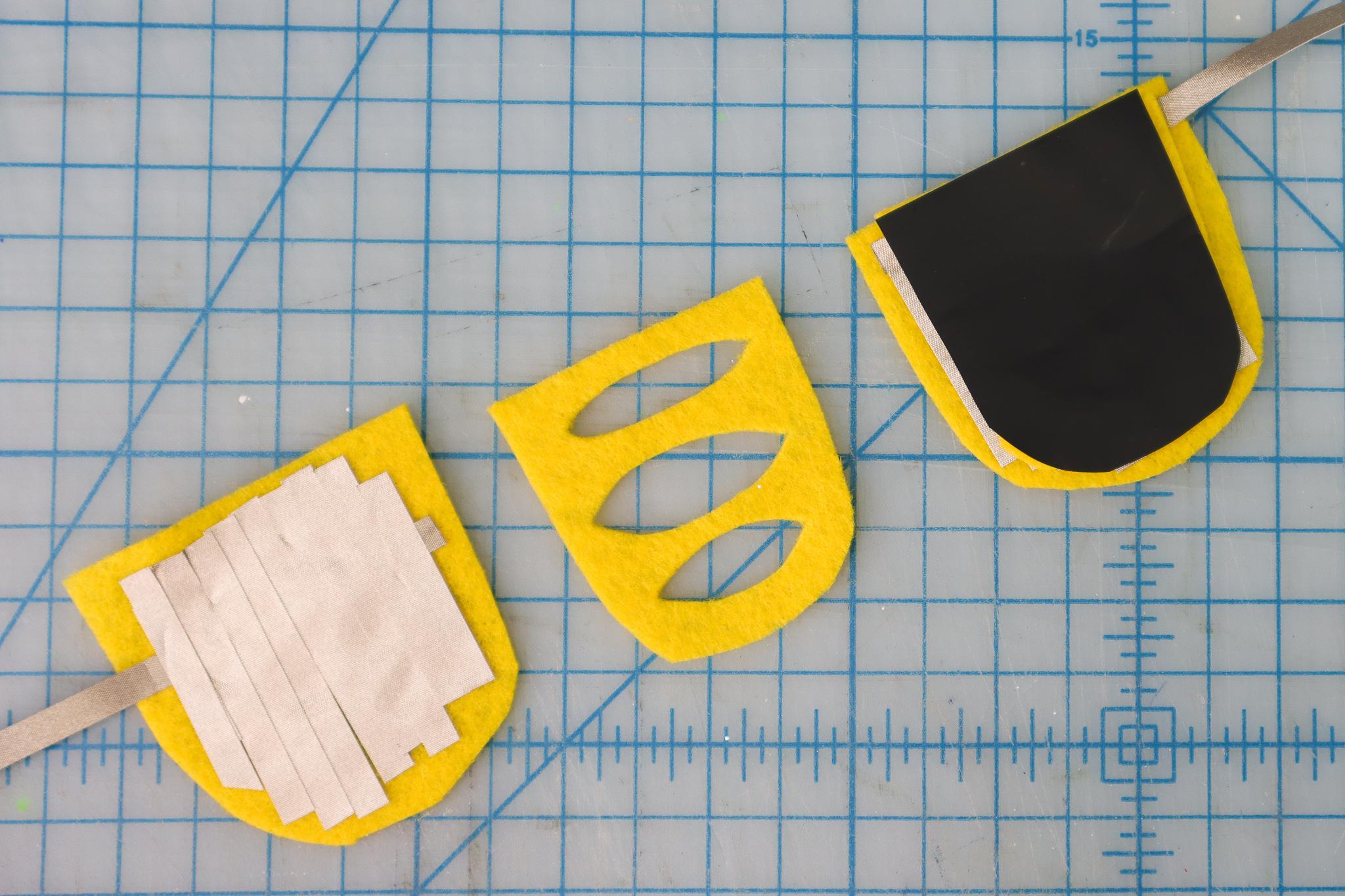

Stack the Pieces
- Start with one of the pieces with Maker Tape.
- Add the small piece with holes.
- Add the Velostat.
- Add the other small piece with holes.
- Add the other piece with Maker Tape, making sure the Maker Tape is facing the inside of the pile for both pieces.

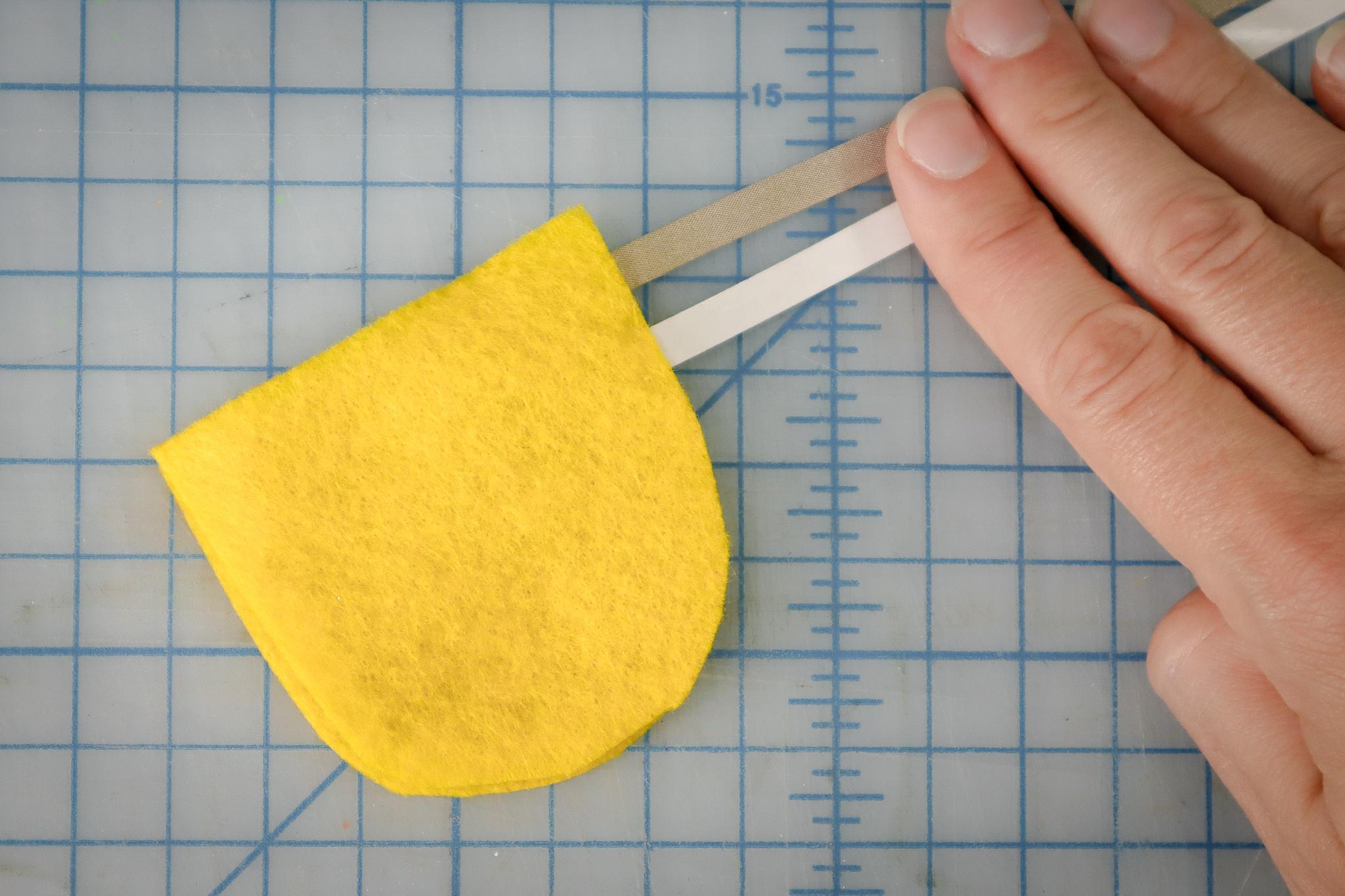

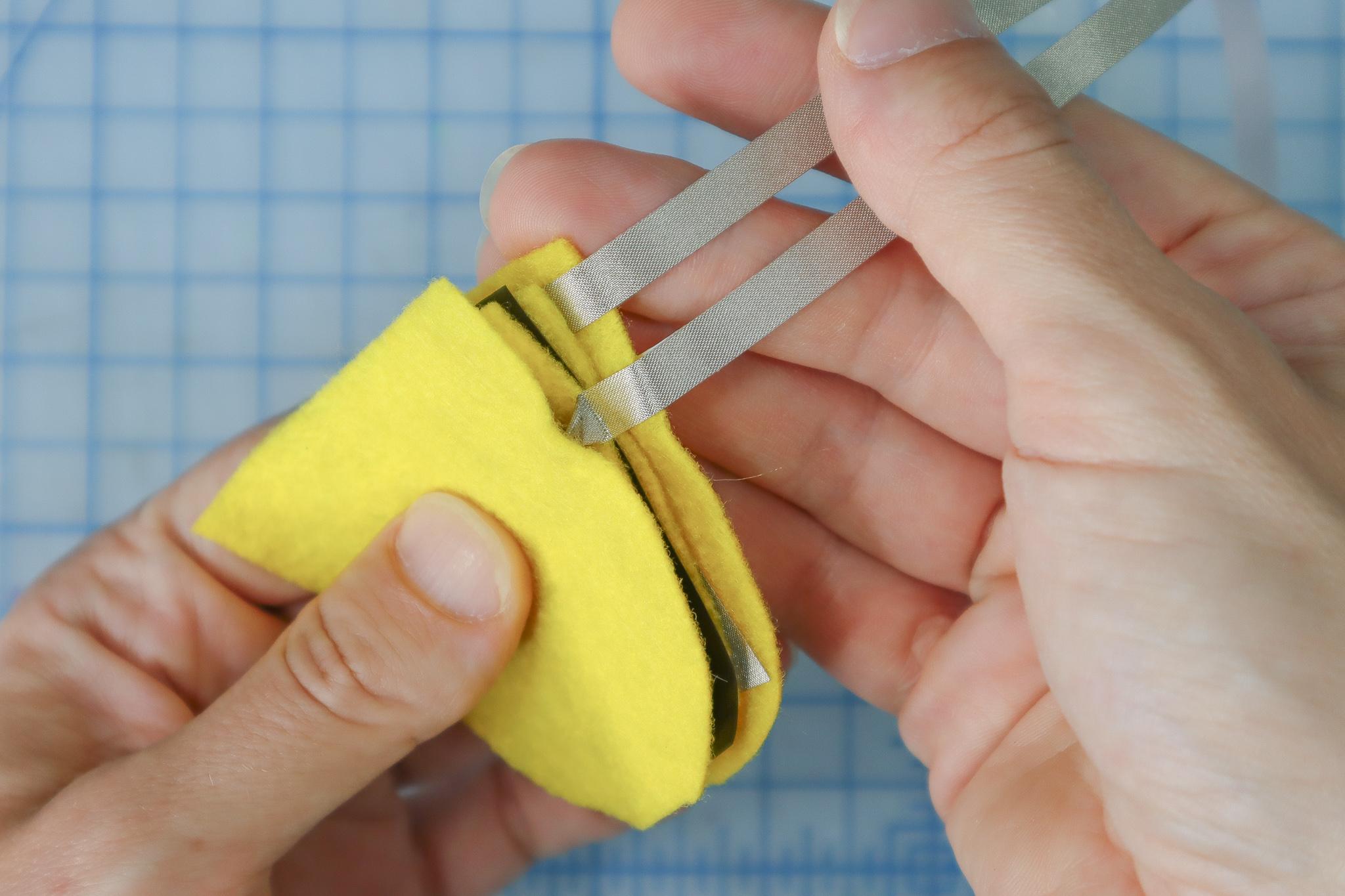

Check the Maker Tape Path
- It's important that the two long pieces of Maker Tape exit the sensor on the same side, but do not touch each other.

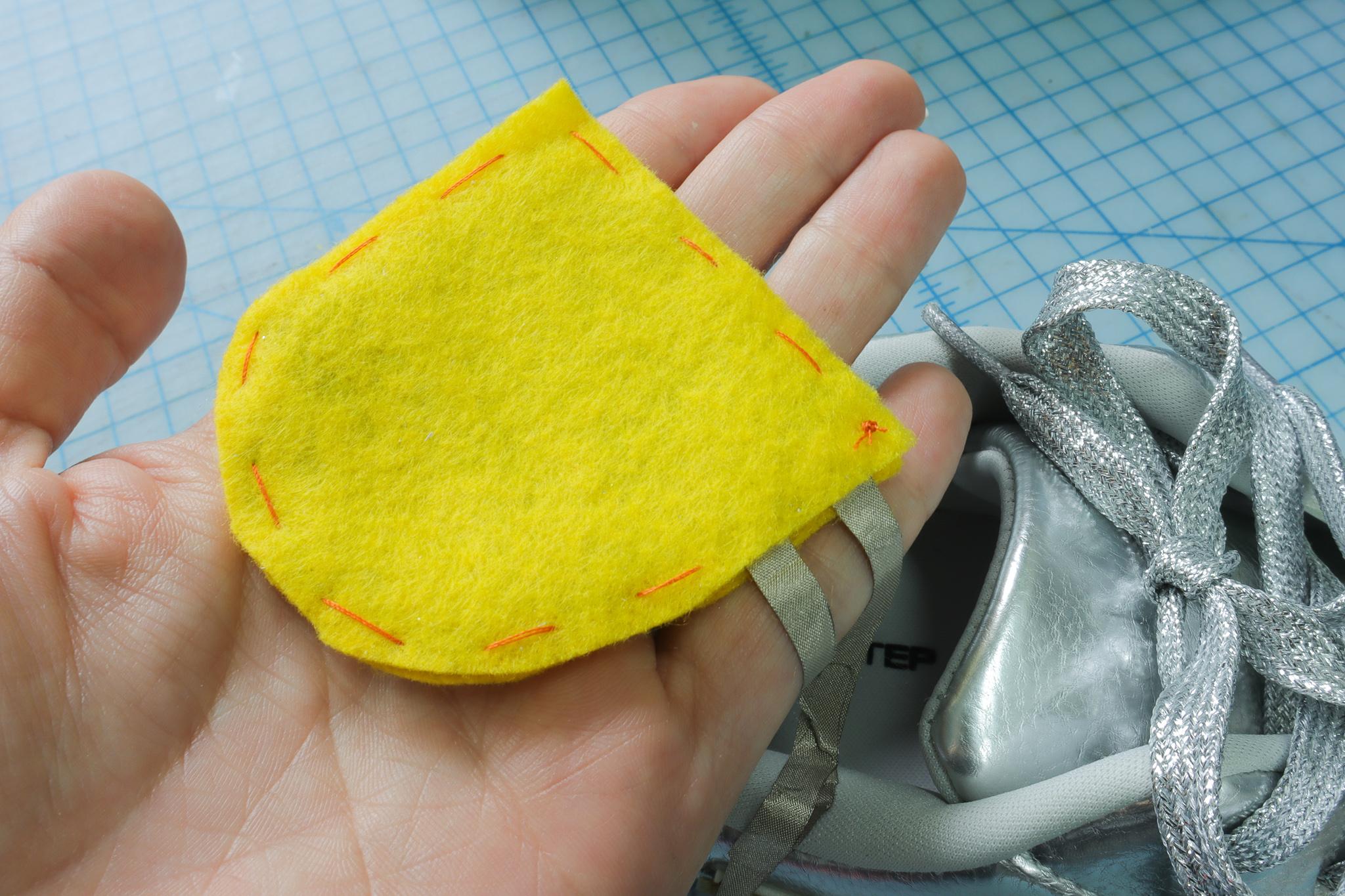

Stitch the Sensor Closed
- With the sensor laid out correctly, use a needle and thread to stitch around the sensor to keep it together as shown.
Place the Sensor in the Shoe
- Place the sensor inside the shoe with the Maker Tape pieces along the inside of the ankle. (For example: on the left shoe the Maker Tape pieces will be on the right, and on the right shoe the Maker Tape pieces will be on the left.
-
Remove the backing from the Maker Tape and adhere it to the inside of the shoe and over the edge, making sure the two pieces don't touch.
Add the Battery Pack
- Use a piece of double-sided mounting tape to attach the battery holder with the battery to the shoe.
- Using the piece of Maker Tape closest to the front of the shoe, thread it through the battery pack's "+" hole and stick it back onto itself as shown.
- Start a new piece of Maker Tape from the "-" hole as shown. About 1 foot of Maker Tape is a good length to start with.
Continue Building the Circuit

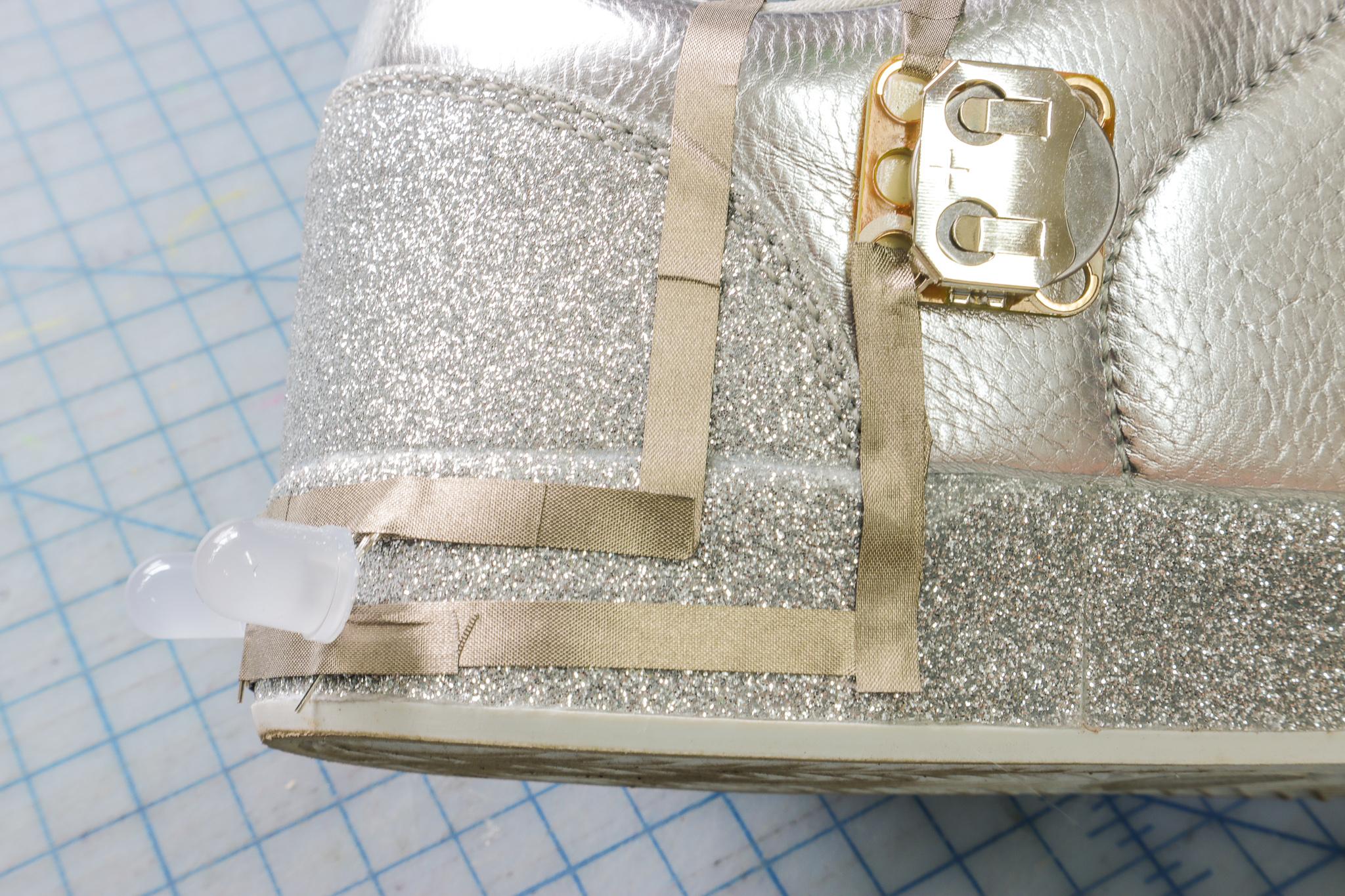

- Continue creating a path of Maker Tape around the sole of the shoe.
- See the diagram for details.

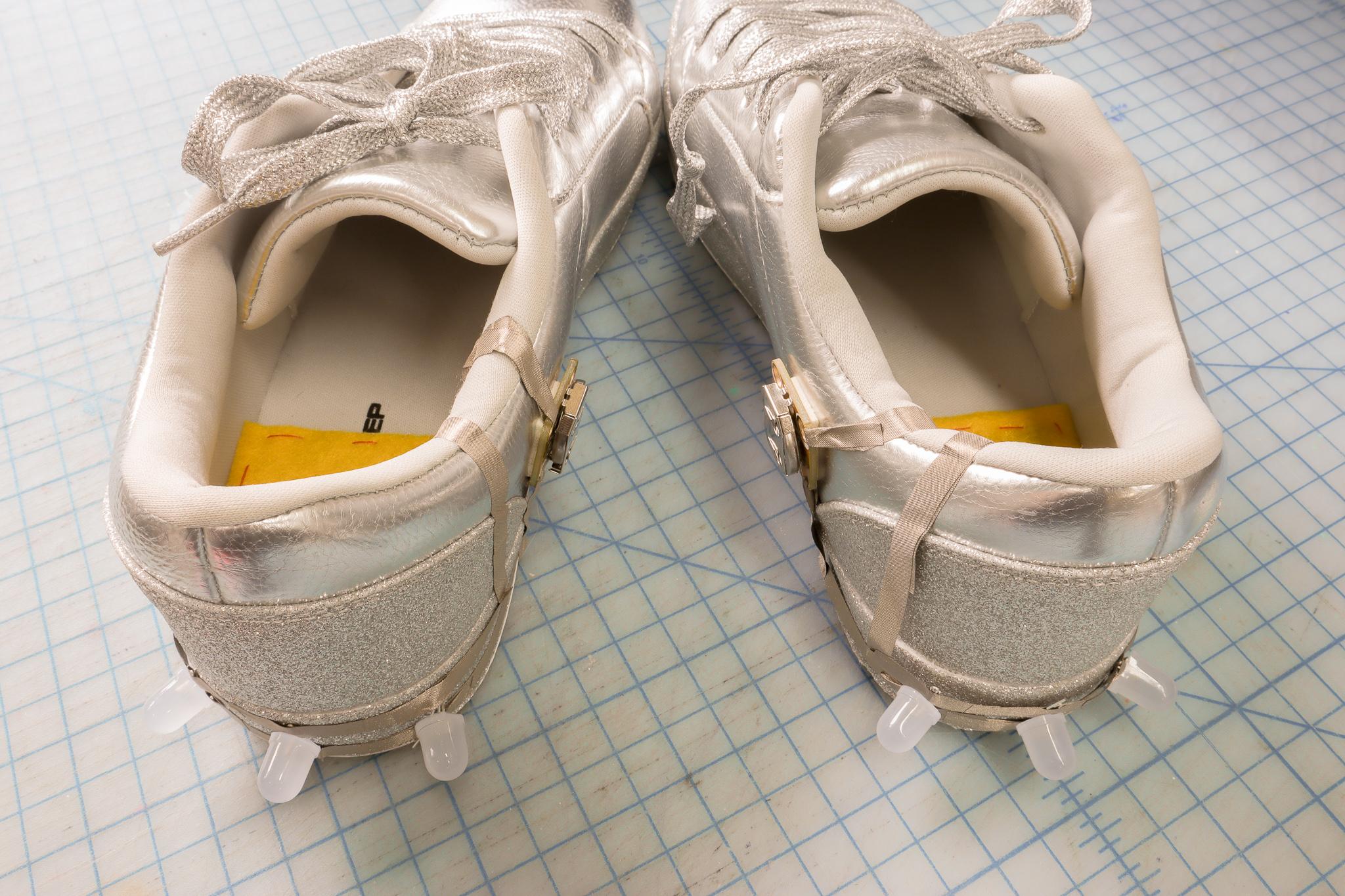

Add the LEDs

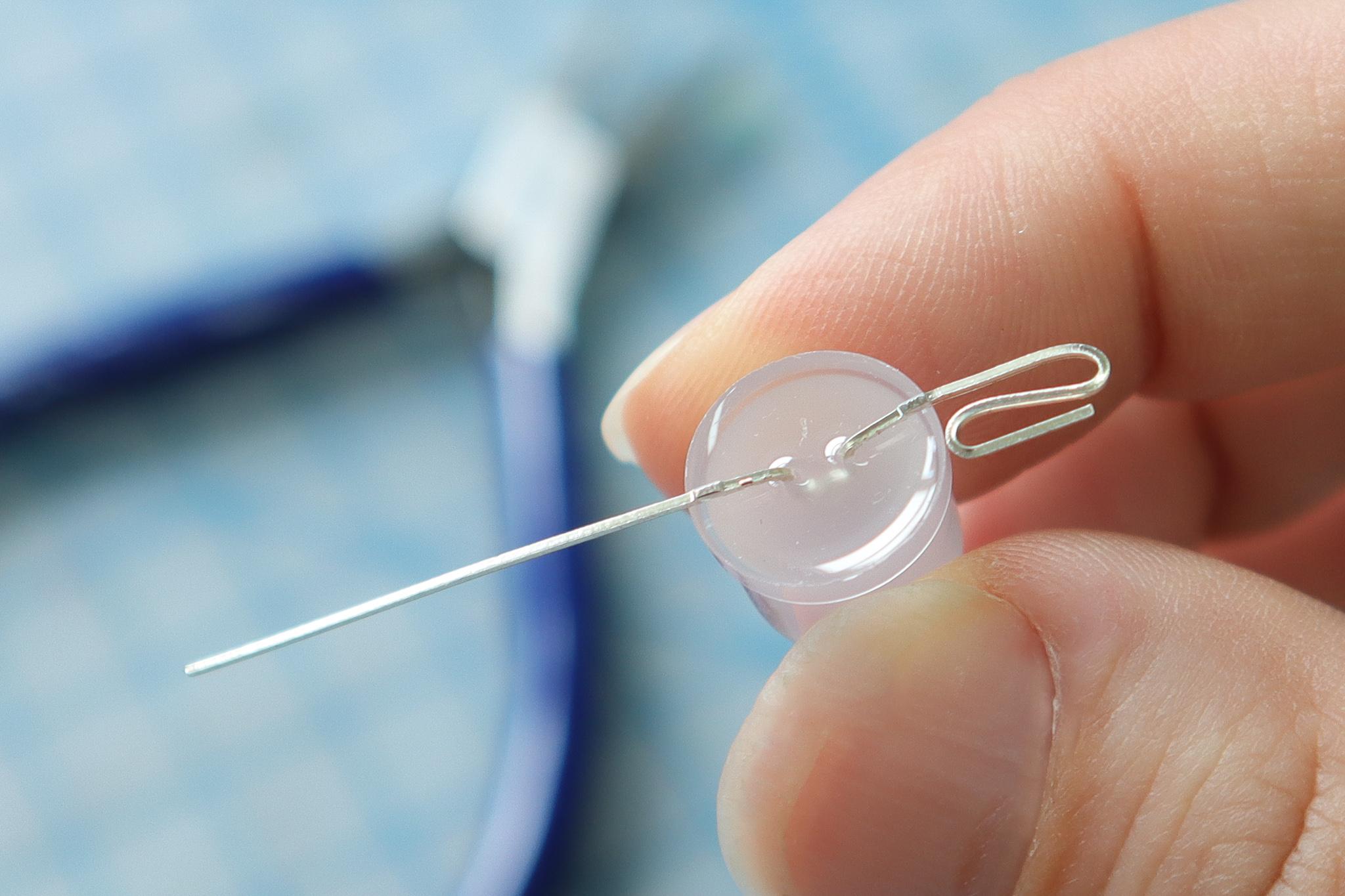

- To add the LEDs, bend the legs back and forth to make them shorter. You could also cut them, but we found that this method of bending them stays connected longer.

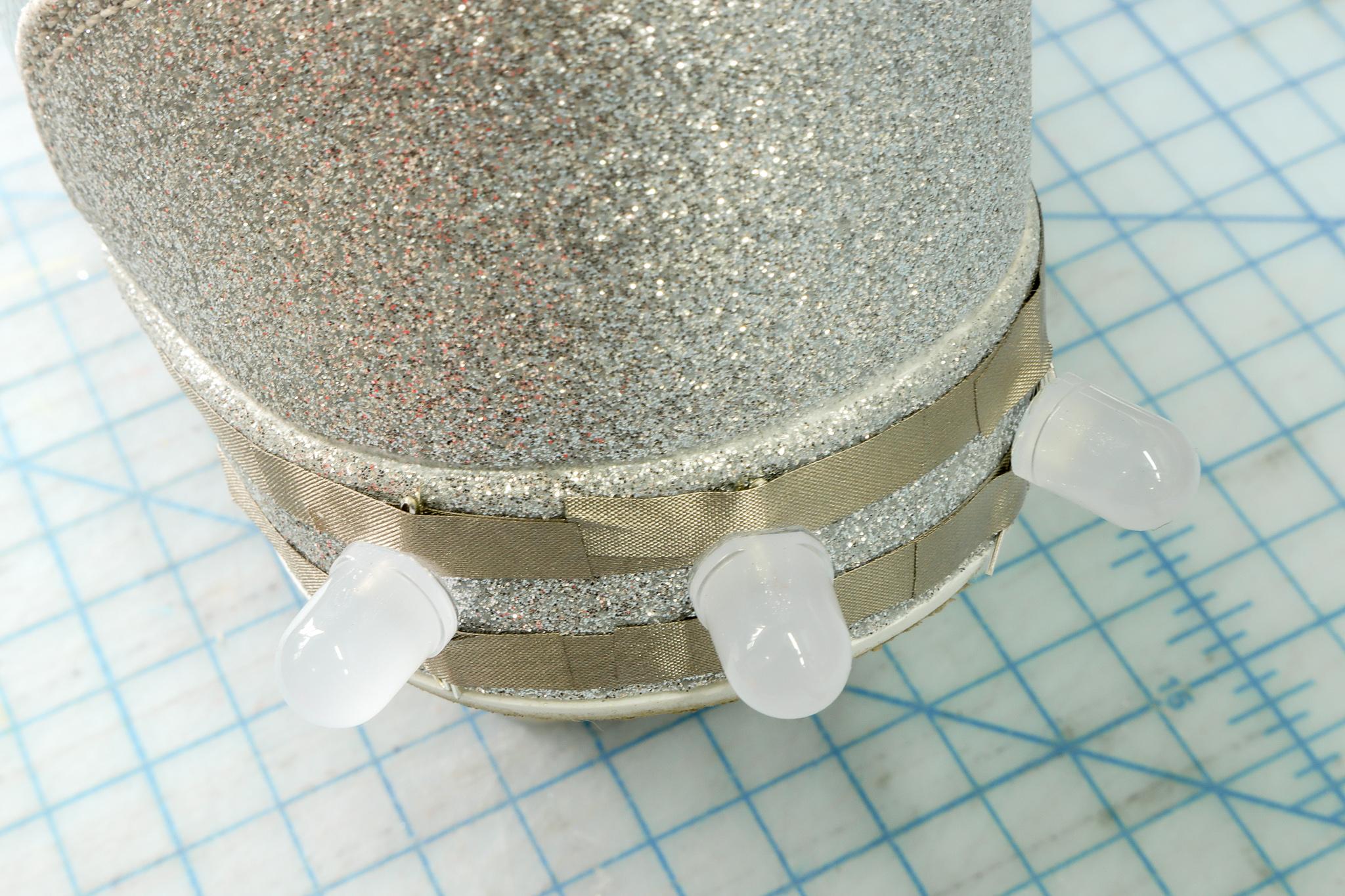

- Use small pieces of Maker Tape to connect the LEDs to the circuit as shown.
*Tip: You can check that the LED is working and that the polarity is correct by holding the LED in place and pressing the sensor. If it lights up, you're ready to tape it in place!
It's PARTY TIME!
