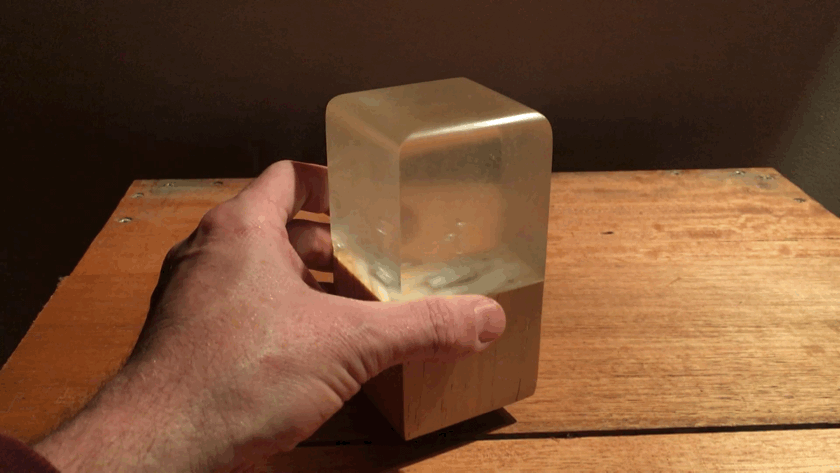

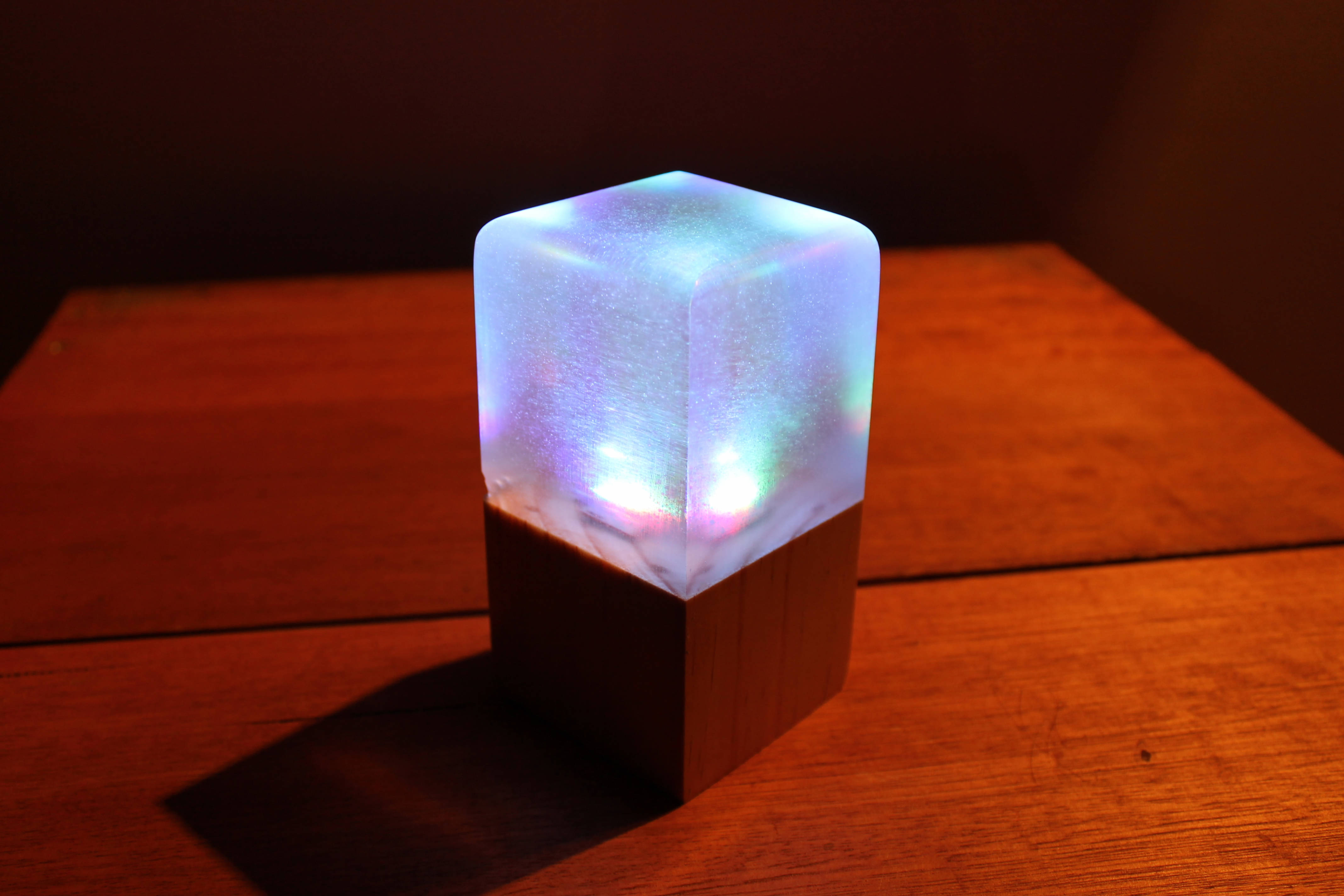

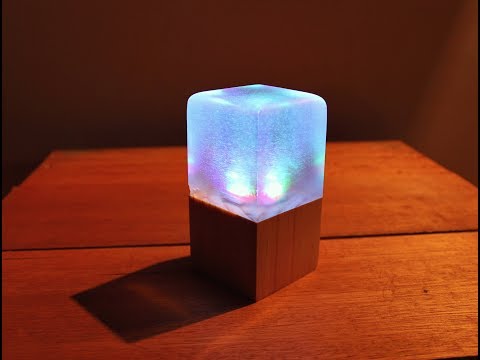

LED Resin Lamp V4

This is my 4th iteration of the LED Resin Lamp. The main difference between this lamp and the other 3 is you can change the batteries with this one, whist the others had the batteries embedded inside the resin. It seems batteries like to breath and encasing them directly into the resin has meant they don’t hold charge very well any longer. To fix this I added a wood base to the cube which allows you to change the batteries whenever you want to.

For the LED’s, I modified a small toy that you can buy cheaply on eBay. There are 3 different coloured LED’s which have a few different modes to them. You shake the cube to change the mode and turn it off. The switch is activated by a mercury tilt switch as well.

This is a pretty easy build with all the parts easily available. You do need a little soldering skill but other than that, anyone should be able to make one if they wished to.

Parts:

1. LED Circuit – You can buy the toy on eBay. Make sure you buy a couple in case you mess one up.

2. Resin – I used this one on eBay

3. Mercury Tilt Switch – eBay

4. Wood – Hardware store or any old wood that is suitable. I used a 90mm by 90mm piece of pine

5. 3 X AAA Battery Holder – eBay

6. 3 X AAA Batteries

7. For the mold I suggest you make this out of wood planks

8. If you do use wood, make sure you get some mold release - eBay

Tools:

1. Super Glue

2. Hot Glue

3. Soldering Iron

4. Chisel

5. Hammer

6. Saw

7. Sander

8. Sand Paper (180, 400, 600 and 1200 grit)

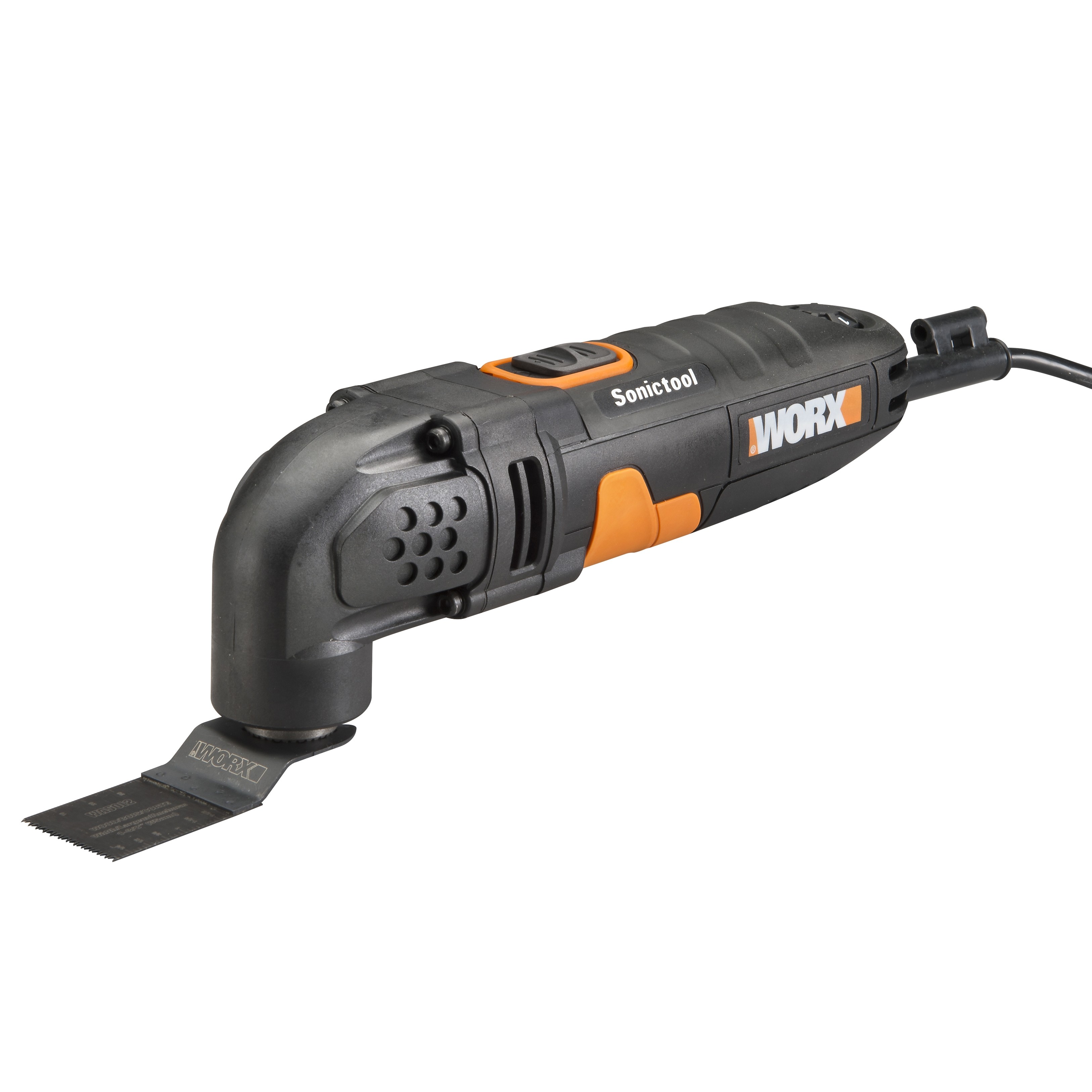

9. Oscillating Tool

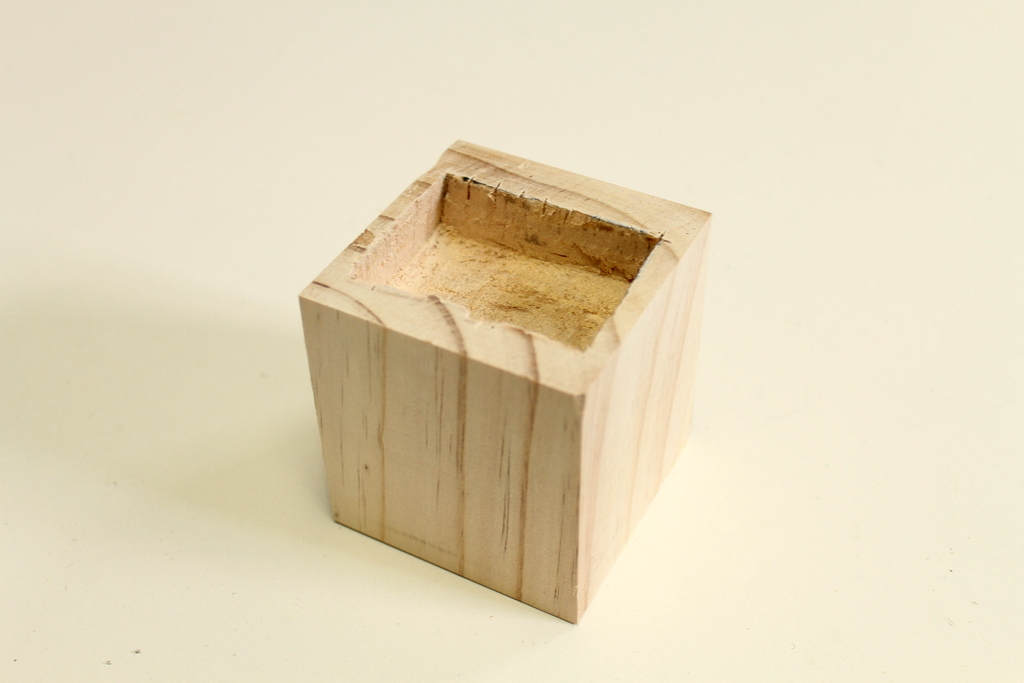

The first thing that you need to do is to make a hole in the bottom of the wood. This will allow you to add the battery holder without it being seen. I use a chisel and also an oscillating tool to help cut out the section. You could also make the hole with a hole drill bit as well if you wanted to

Steps:

1. Secure the wood so it won’t move when you are chiselling

2. Mark out the area that you need to remove. I just used the battery holder as a guide

3. If you have an oscillating tool, use this to make the incisions into the wood.

4. Use a chisel and carefully start to remove the wood.

5. If necessary use the oscillating tool again and make some more cuts.

6. Lastly, to clean up the hole, I used the oscillating tool and just ran it back and forth over the area to smooth it out.

The little circuits that come in these toys are quite delicate so be careful with you are removing and adding parts to it.

Steps:

1. The outside of the toy is quite flimsy so just rip it off with your hand

2. Inside you will see a small circuit board, some wires and a momentary switch. Cut the wires and carefully remove the circuit and switch by cutting away the small plastic tabs holding them in place

3. You can throw away the plastic outside case

Steps:

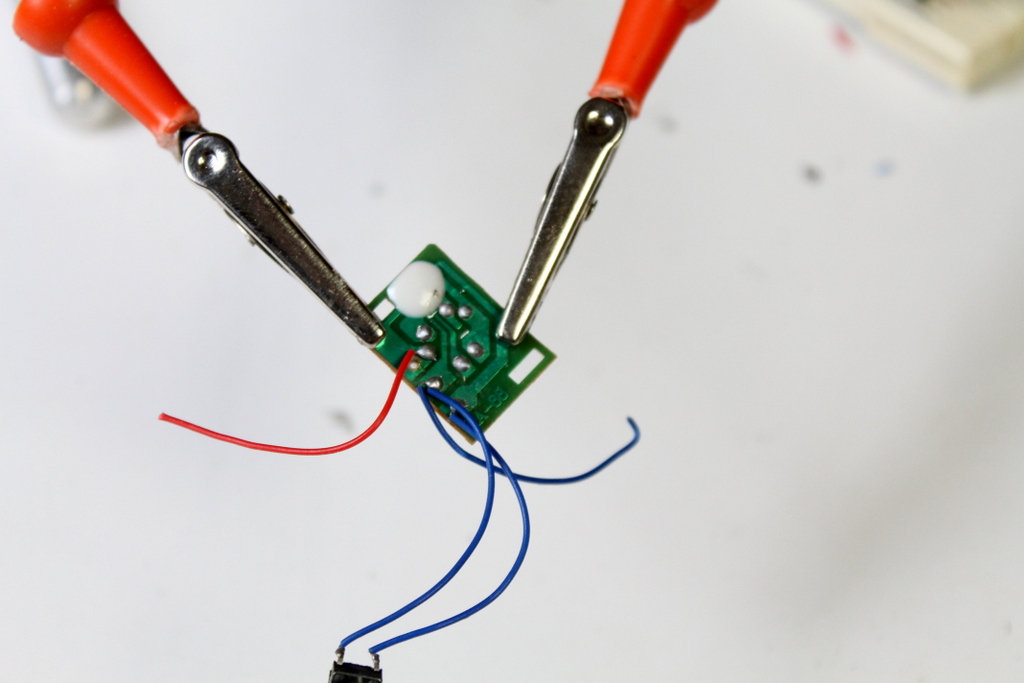

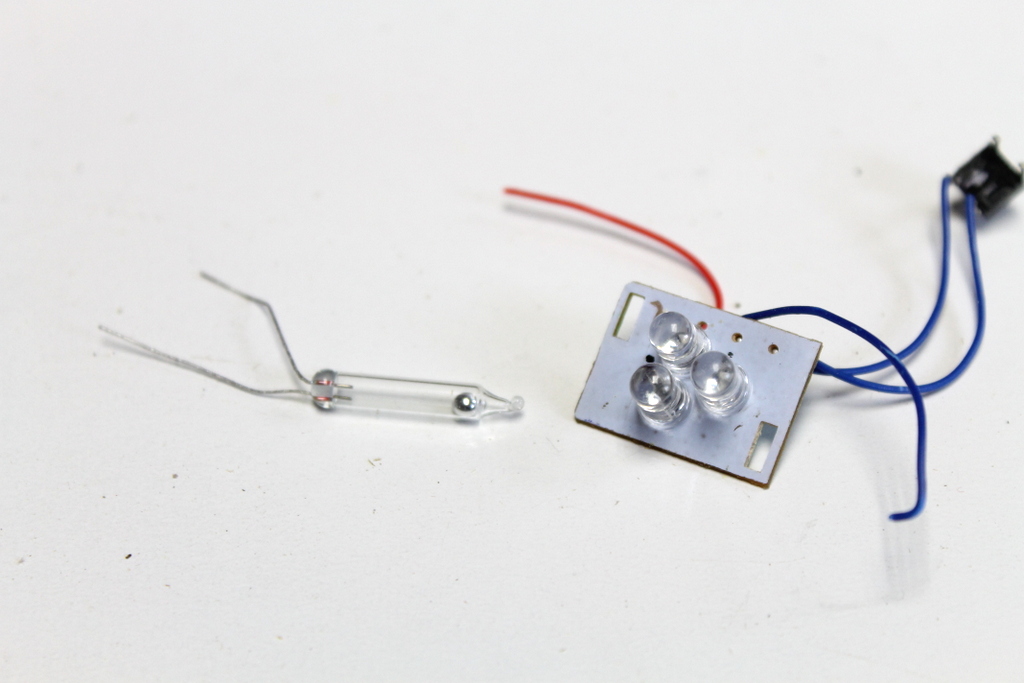

1. Before you start to remove the wires for the switch and LED’s, first mark the polarities of the LED’s on the circuit board. I used a black marker to mark where the negative solder pad was. Just look for the small cut-out on the LED to identify this.

2. Next, De-solder the wires from the switch. If you can, remove the solder from the pads as well. If you can’t, don’t worry – you’ll be able to add the legs of the mercury switch through them, just do the following:

a. Place one of the legs from the mercury switch against the hole on the front of the circuit board

b. Heat-up the solder pad and push the leg through.

c. Do the same for the other leg

3. Solder the switch into place and trim the legs

Steps:

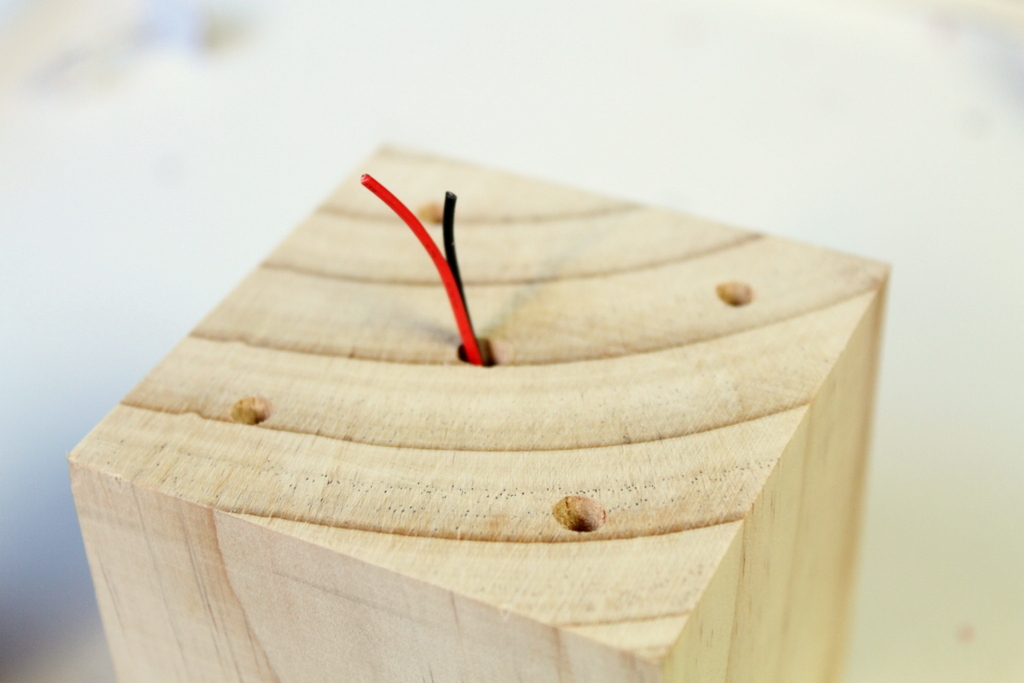

1. You will need to drill a hole through the centre of the wood and through to the battery holder section in the wood. The hole needs to be large enough to thread the wires from the battery holder through to the top of the wood

2. Thread the wires through the wood

3. Secure the battery holder to the wood. You could use hot glue, Velcro or just screw it in like I did. Don't secure though until you have soldered the circuit to the battery wires. You will then be able to take up the slack of the wires

Steps:

1. Now you need to attach the circuit to the batteries. Solder the red wire from the battery holder to the positive section of the circuit

2. Next solder the negative wire to the negative section on the circuit board

3. Pull the wires through the hole so the circuit board sits as flat as possible on top of the wood. Add a little super glue to hold into place

4. Test to make sure that everything works as it should.

The next steps involve making the mold for the resin and pouring it. The first mold that I made was from core flute and although it worked kinda ok, there were a few issues which caused a couple of problems. The first was the core flute bends inwards slightly due to the heat and shrinkage of the resin causing it to be slightly concave. also, it was a real pain to try and pull off from the resin as it has stuck fast. I had to really give it some to get the core flute away from the resin.

Next I used wood thinking that this would be easier to pull away from the resin - I was wrong. I made the mold so it had rubber along the sides which acted as a seal. This worked fine but I didn't notice that there was a small leak which caused a large air bubble to form inside the resin! Also, resin seems to stick to wood extremely well and when it came time to pull the wood mold away I had even more trouble then core flute.

If I had used some Mold Release such as this one, then I could have avoided the sticking issue. I'll go through the steps for the wood mold as I think that this had the most potential - the core flute I wouldn't bother trying.

Steps:

1. First, cut 4 pieces of flat timber which will be used for the sides.

2. Next, Place the wood against the base of the wood with the LED's (I'll call this the lamp base going forward) and work out how high the wood needs to be for the resin. The shorter the wood is, the smaller the height of the resin.

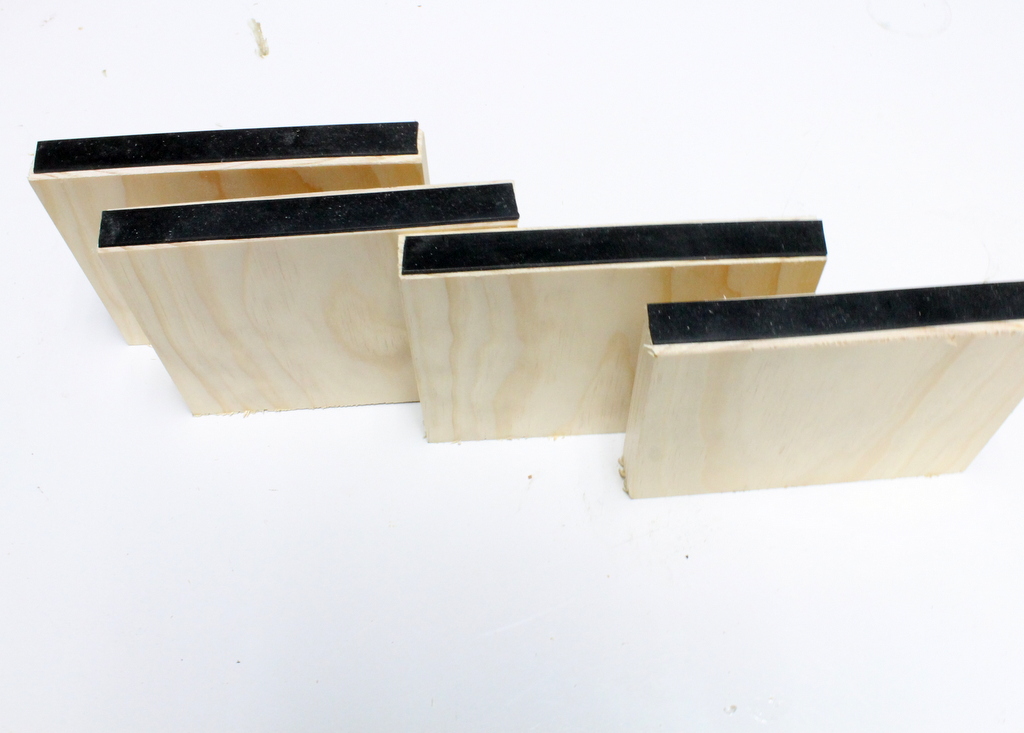

3. Cut and add strips of rubber to the sides of the wood. I brought the rubber from my local hardware store.

4. I didn't do this step but suggest you do to stop any leakage from the bottom of the mold. Add a strip of rubber right around the base of the lamp. This will ensure no resin can leak downwards. It will mean that the resin in the end will be slightly thicker than it should be but you can sand this down later.

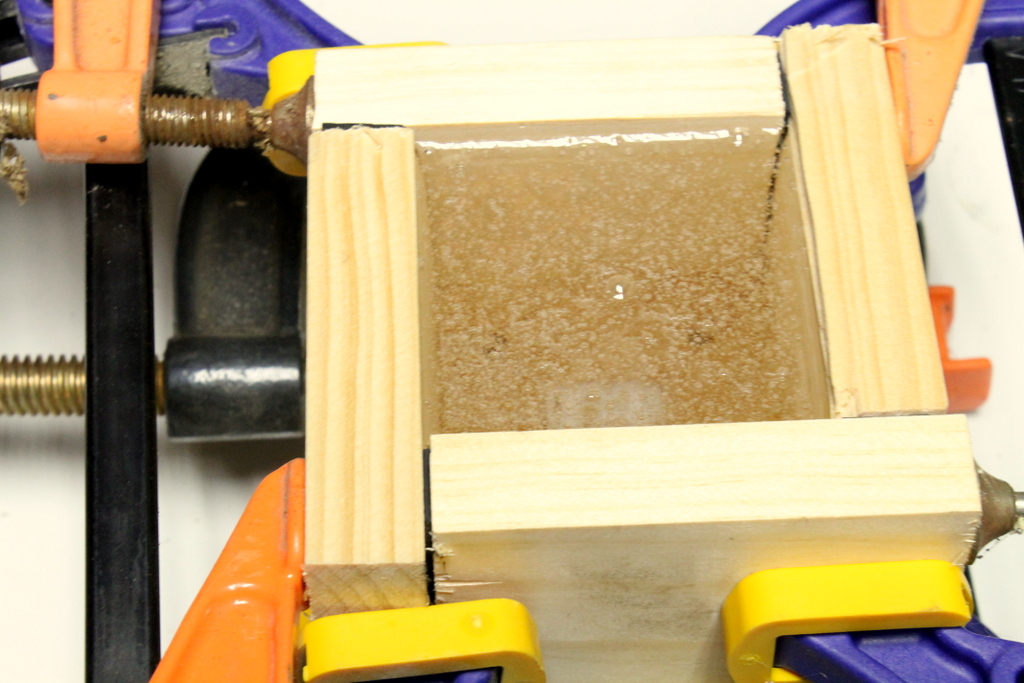

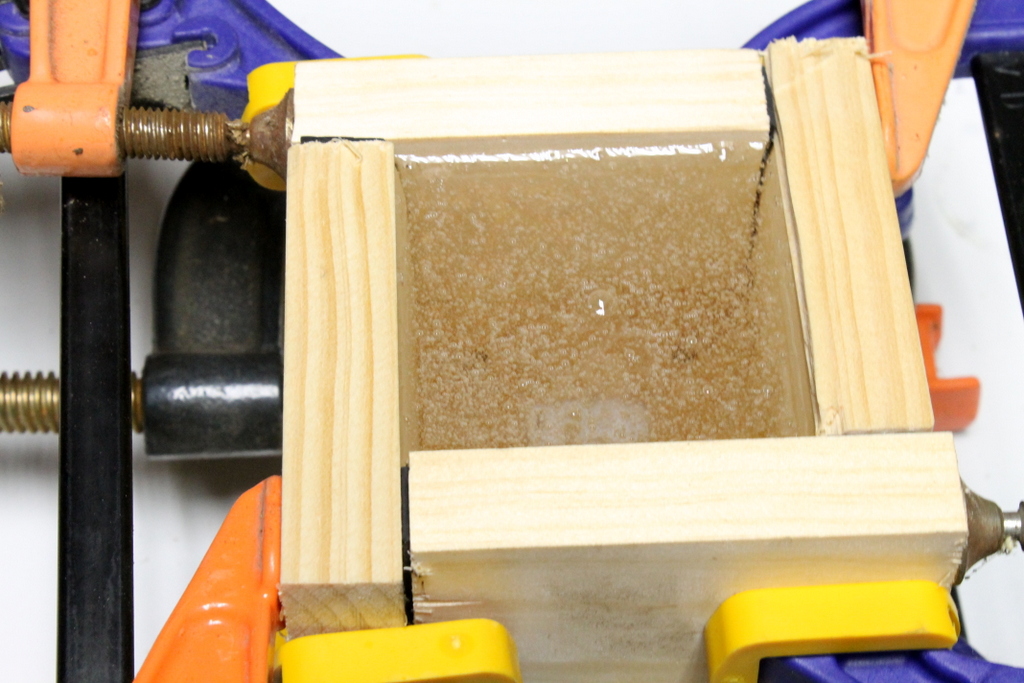

5. Next you need to secure the wood mold around the lamp base. To do this I used a whole bunch of clamps. I was going to use a whole bunch of elastic bands which I still think would also work. Make sure that you clamp each side and there are no gaps

6. Do a quick search over the mold to make sure that there are no potential leak spots anywhere. If there is, just add some hot glue to cover these.

7. Lastly, add some mold release to the inside of the mold. This will stop the mold sticking to the resin.

Now it’s time to mix and pour the resin. Resin mixing and ratios will depend on what type of resin you have purchased. I got one on-line with was a 2 to 1 ratio and was very easy to mix. Some you need a catalyst with only a few drops to get it going but I find this resin temperamental at times, especially when it is cold outside. I have had this type of resin turn yellow and also crack due to the heat generated in the curing process.

Steps:

1. Carefully measure the resin as per the instructions.

2. Take your time when stirring as you don’t want to add any more air bubbles then necessary.

3. Once the resin is fully mixed together, carefully pour into the mold. Make sure that the mold is level and on steady ground.

4. Leave for 12 hours to cure.

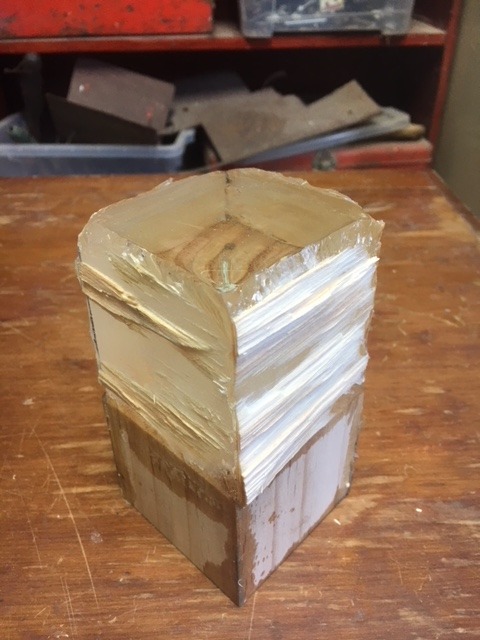

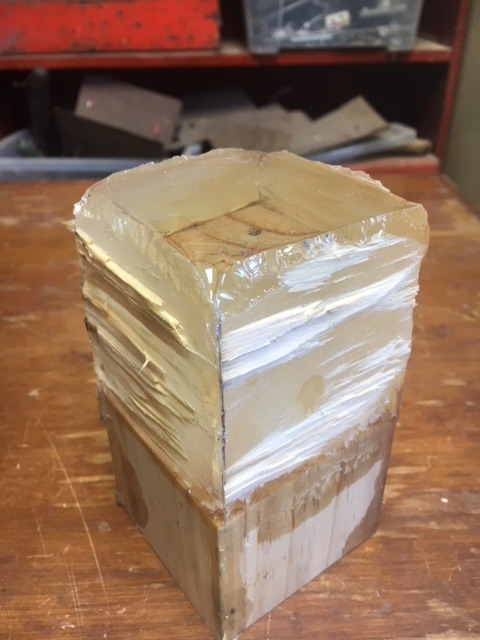

5. Once the resin is hard it’s time then to remove the mold. If you didn’t use mold release then you will have a hell of a time removing the wood from the resin. As you can see from the images below, the wood left splinters in the resin and also chipped the resin away from the top. Although a it looks like a hot mess I knew that sanding would clear most of these issues up.

What was really concerning however was the air bubbles that formed due to leakage. I did fix this in the end which I will go through in the next step.

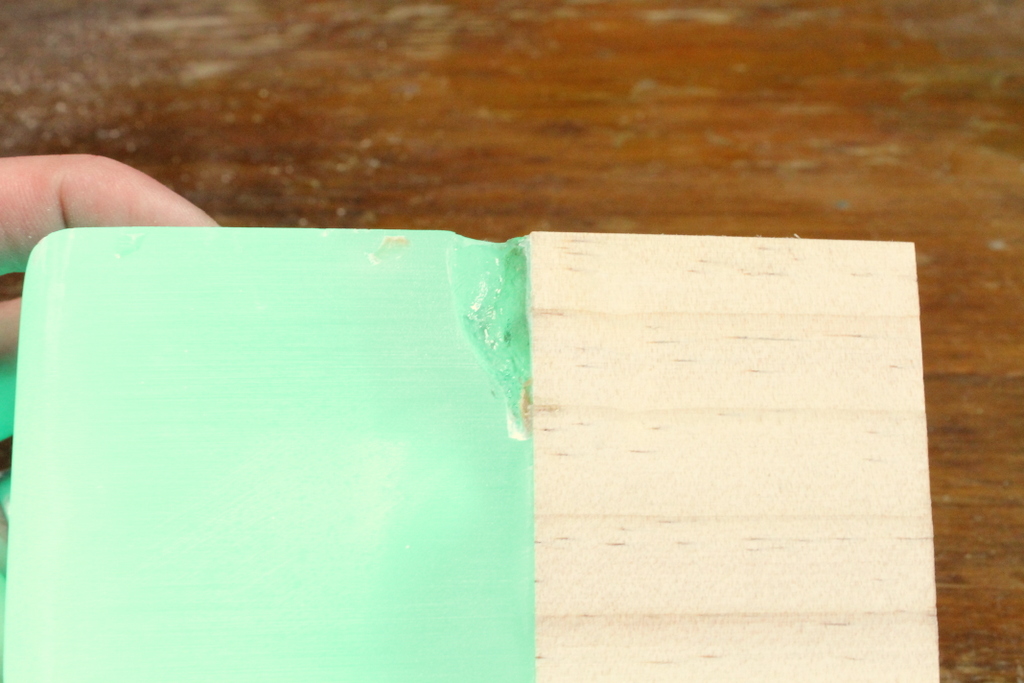

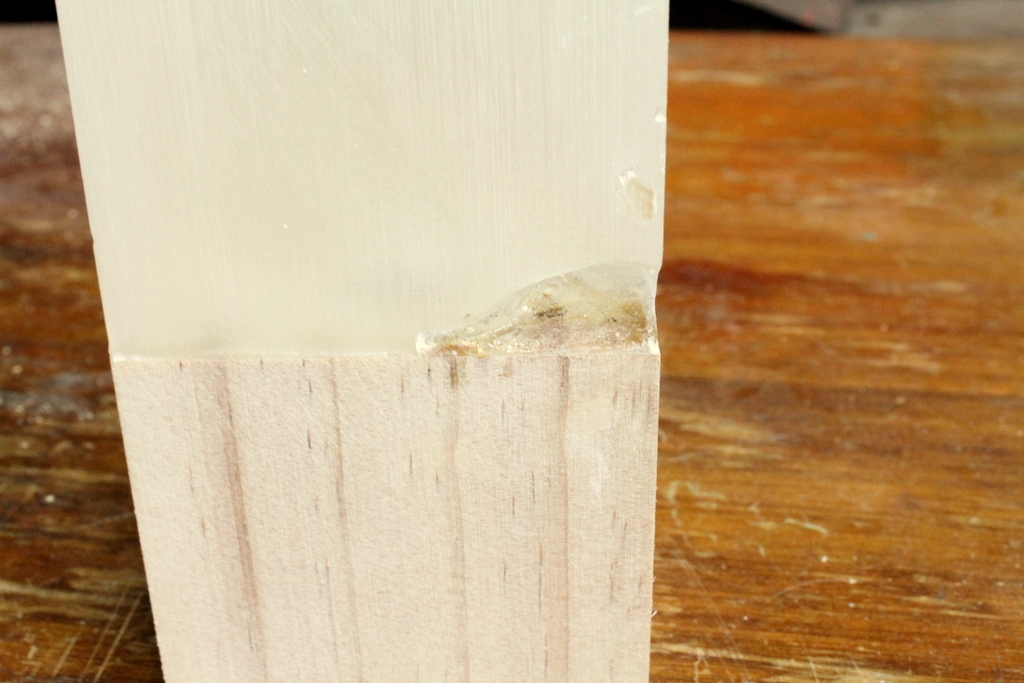

After removing the mold I discovered that resin leaked and made an air bubble in the side of the resin. At first I thought I would have to start again but on having another look I decided that I would try and fix it which I’m glad I did as it is hardly noticeable after the fix. I also started to sand the cube whist I still has the air bubble in it. No big issue really but I probably should have fixed before sanding (too impatient)

Steps:

1. Add some core flute to the side of the cube where the hole is in the resin. I used hot glue to stick this into place

2. Make sure that the cube is on steady ground and it is level

3. Mix a little resin up (only need a very small amount so mix-up the smallest that you can or use some left over from another pour) and pour it into the affected area

4. Leave to dry for 24 hours

5. Remove the core flute and any hot glue stuck to the side of the resin.

The amount of sanding you will need to do depends on how the resin comes out of the mold. If you don’t use mold release then, like me, you are going to have a lot of sanding to do to get the resin clear and looking good. If you have a belt sander you can get this done pretty quickly. If not then prepare your hand for a marathon sanding.

Steps:

1. Start to sand the resin and wood making sure that the side is getting an even sand. As mentioned above, a belt sander is the best way to do this but you can also use a hand sander if you have one. I used a high grit sandpaper the first round.

2. Keep turning the lamp to make sure that you get all of the sides sanded evenly.

3. The top of my lamp was chipped due to the mold so I decided to round off the top edges on the sander as well

4. Keep on sanding until you are happy with the way the lamp looks and you have removed any dints etc in the resin

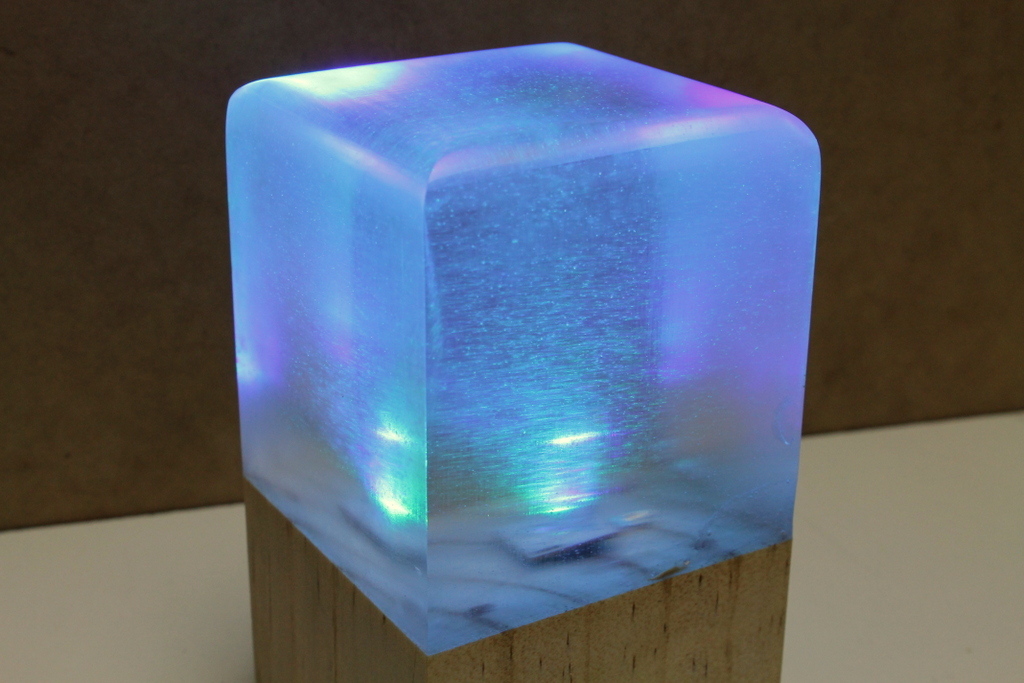

The next thing to do is to continue to sand with finer and finer grit sandpaper until you have removed all of the scratches and have a finish on the resin like glass. This obviously takes some time (and is messy too!) so go get yourself a whisky and settle in.

Steps:

1. Start with 400 grit wet and dry sandpaper. Add some water to the top of the resin and start to sand. Keep on sanding until you have removed most of the scratches in the resin. If you find that there are some stubborn scratches, you may have to use a heavier grit sandpaper to remove them

2. Move onto 600 grit and then 1200 grit and sand all of the resin until you’re happy with the finish.

3. The last thing to do is to polish the resin. I used a plastic polisher to finish it off

Steps:

1. To finish off I added some stain to the wood. Mask off the resin section

2. Add a few layers of your favourite stain.

3. Leave to dry for 12 hours

4. Done

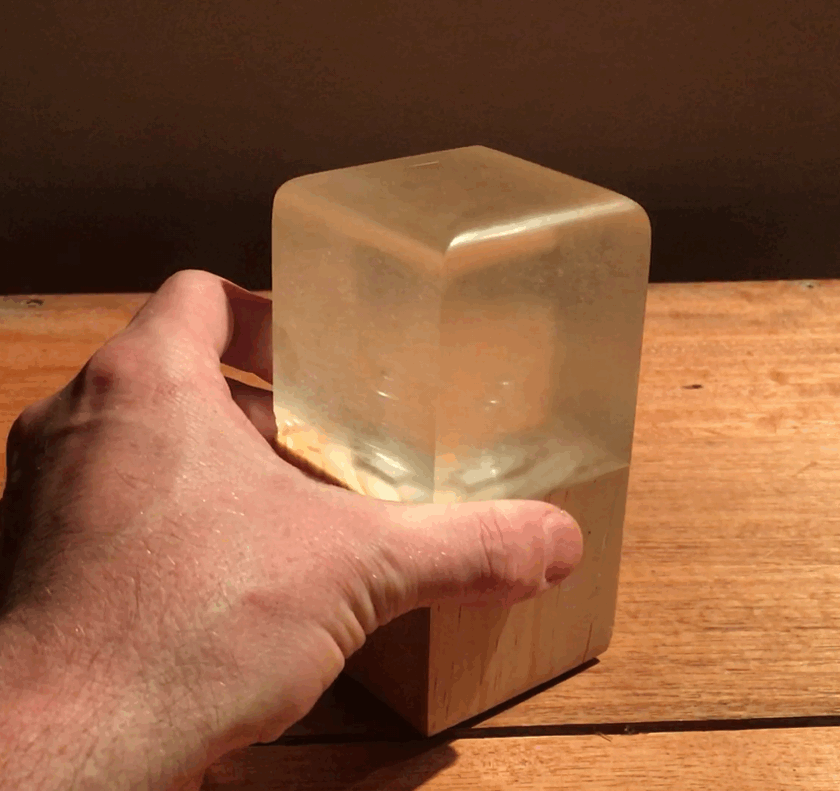

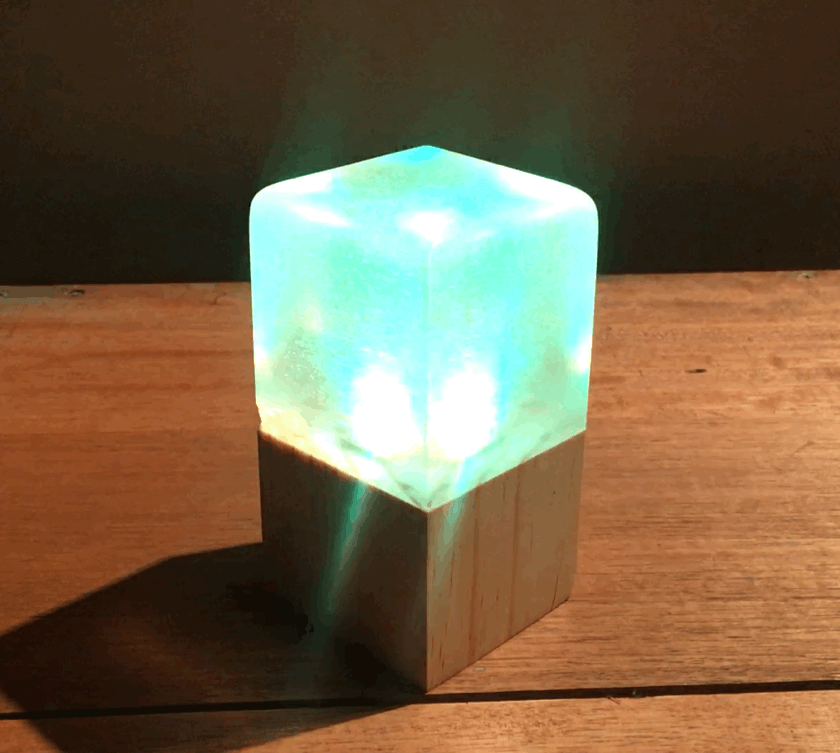

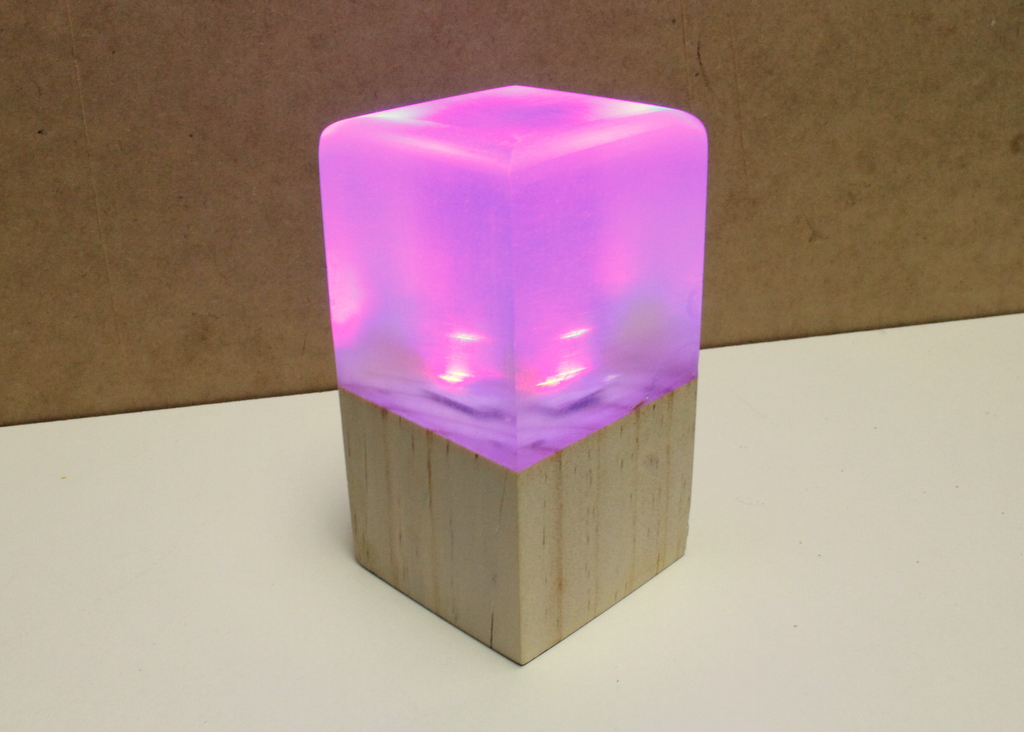

Overall I’m happy how the lamp turned out – although I need to come up with a better way to create mould for the resin. I think that using mould release would have helped immensely so I’ll use that next time.

The resin that I used was ok for the job although it did have a lot of air bubbles. I actually think that this made the lamp more interesting when the Light shines through them but I was initially looking for a crystal clear finish.

I have used diggers resin in the past and although it can be a bit finicky, if you get it right it is crystal clear and has virtually no air bubbles.

Version 5 I think I’ll go back to diggers resin again and will definitely get a can of mould release!
