LED Lamp

by MikeTheMaker in Workshop > 3D Printing

5755 Views, 38 Favorites, 0 Comments

LED Lamp

led light14.jpg

This battery powered LED lamp can be used for outdoor parties or in places where outlets are not available. It is about 7 watts and will run for 3-4 hours; depending on the batteries chosen.

LED's used can be found here:

http://www.amazon.com/gp/product/B00B2HK0LY/ref=oh...

led light01.jpg

Start by printing the various files. You will need two "uprights," three "cylinders" and one each of the other pieces.

led light02.jpg

Glue the two uprights together.

led light03.jpg

Remove the sticky tape and attach the LED lights, five on each side of the uprights.

led light10.jpg

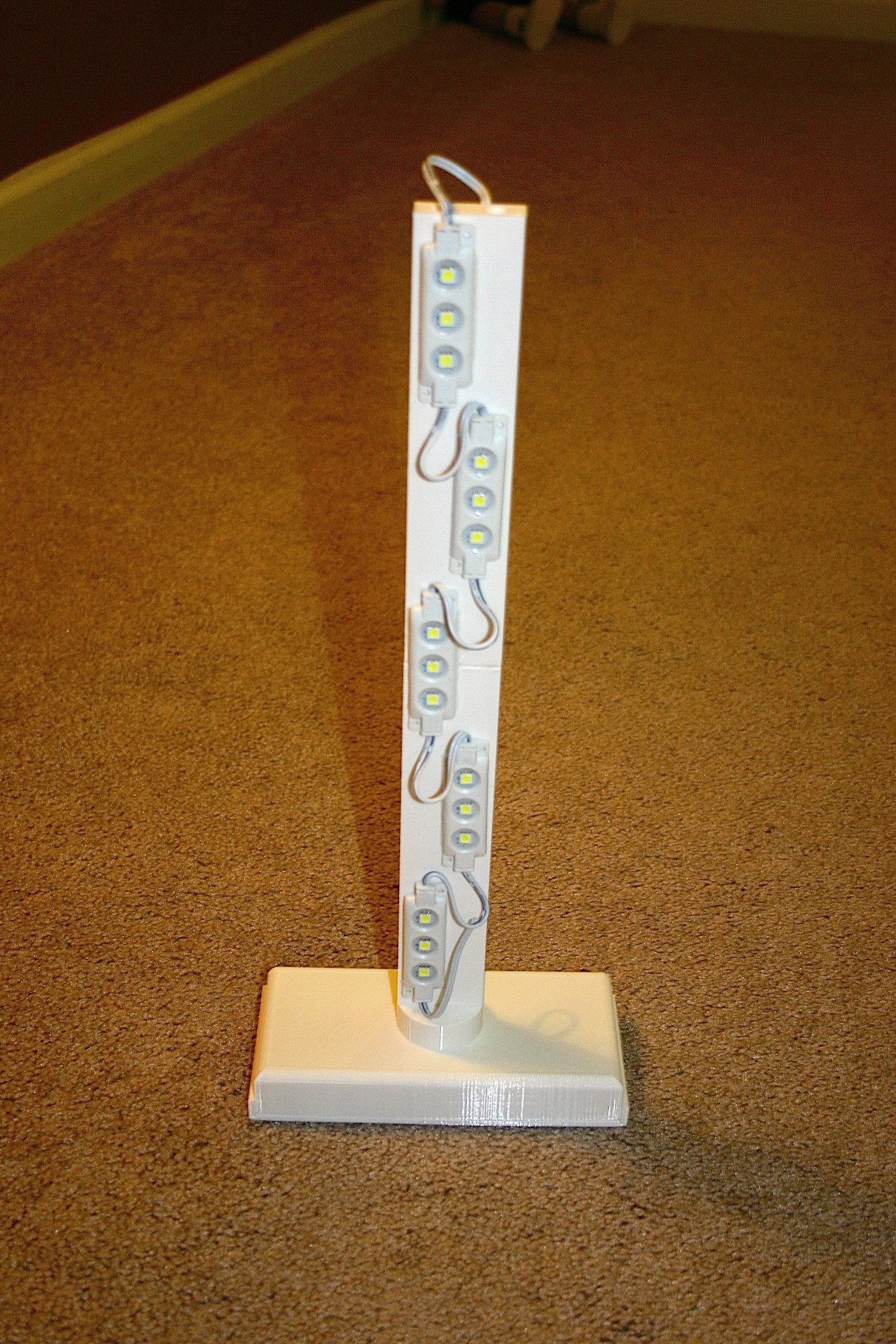

Insert the upright with lights into the base.

led light08.jpg

Glue the cylinders and end cap together. You can melt them together with a soldering iron also.

led light05.jpg

Ten AA batteries (NiMH rechargeable) will be held in the base. Solder the negative battery lead to a SPST switch.

led light04.jpg

Take a wire from the other side of the switch and attach it to the negative wire coming from the LED module.

led light06.jpg

Solder the positive battery lead to the positive lead on the LED module.

led light07.jpg

Push the wires neatly inside the base.

led light09.jpg

Add batteries.

led light11.jpg

Clip on the "base clip" to secure the batteries.

led light13.jpg
led light12.jpg
led light15.jpg

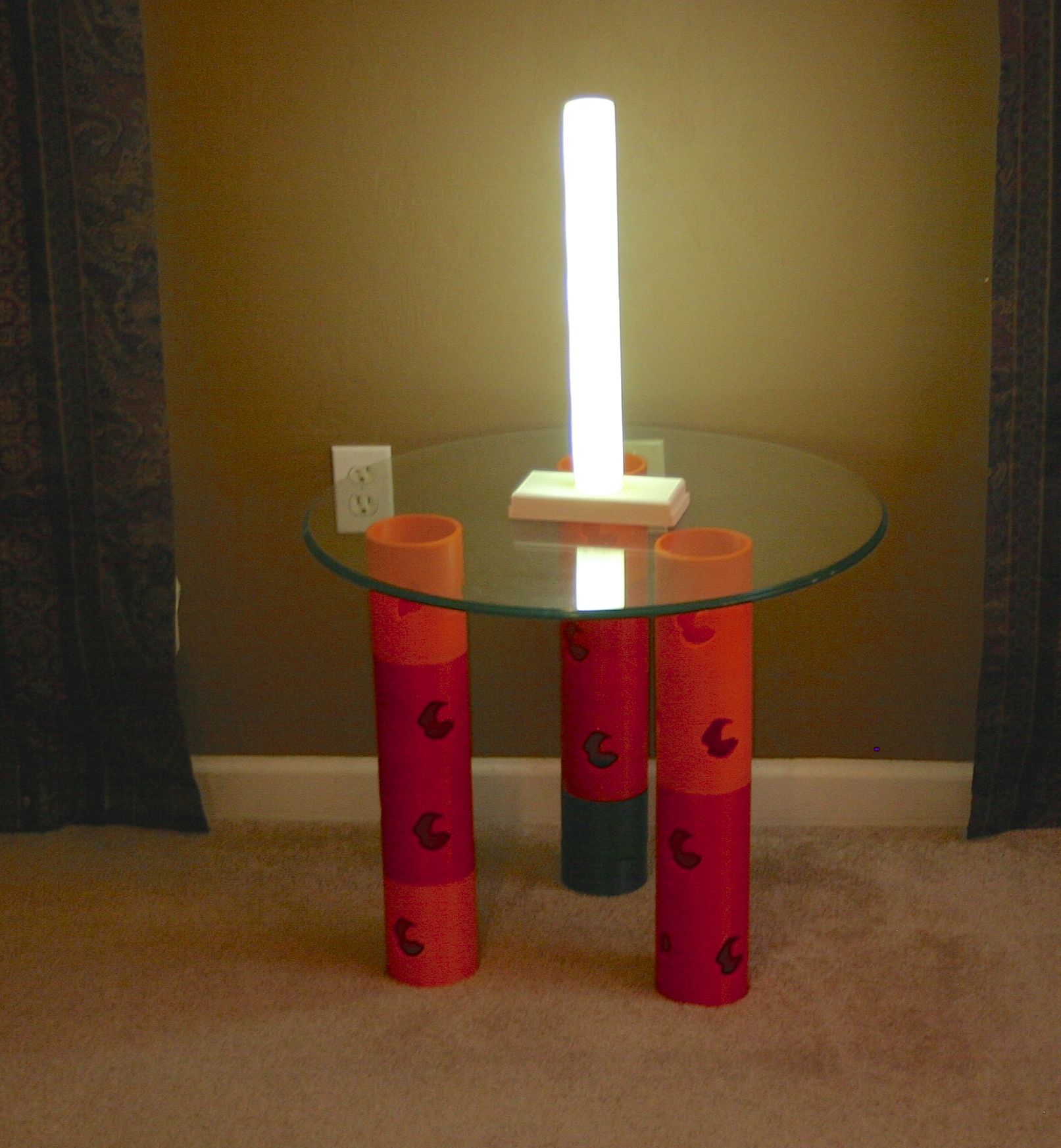

Place the lamp in a selected spot and turn it on. I used a 3d printed table

https://www.instructables.com/id/Printed-Changeable...

If you prefer, the lamp can be powered by a dc power supply, 12 volts capable of supplying 700 mA or more.
