LED Generator

by rbosch1 in Circuits > LEDs

155 Views, 0 Favorites, 0 Comments

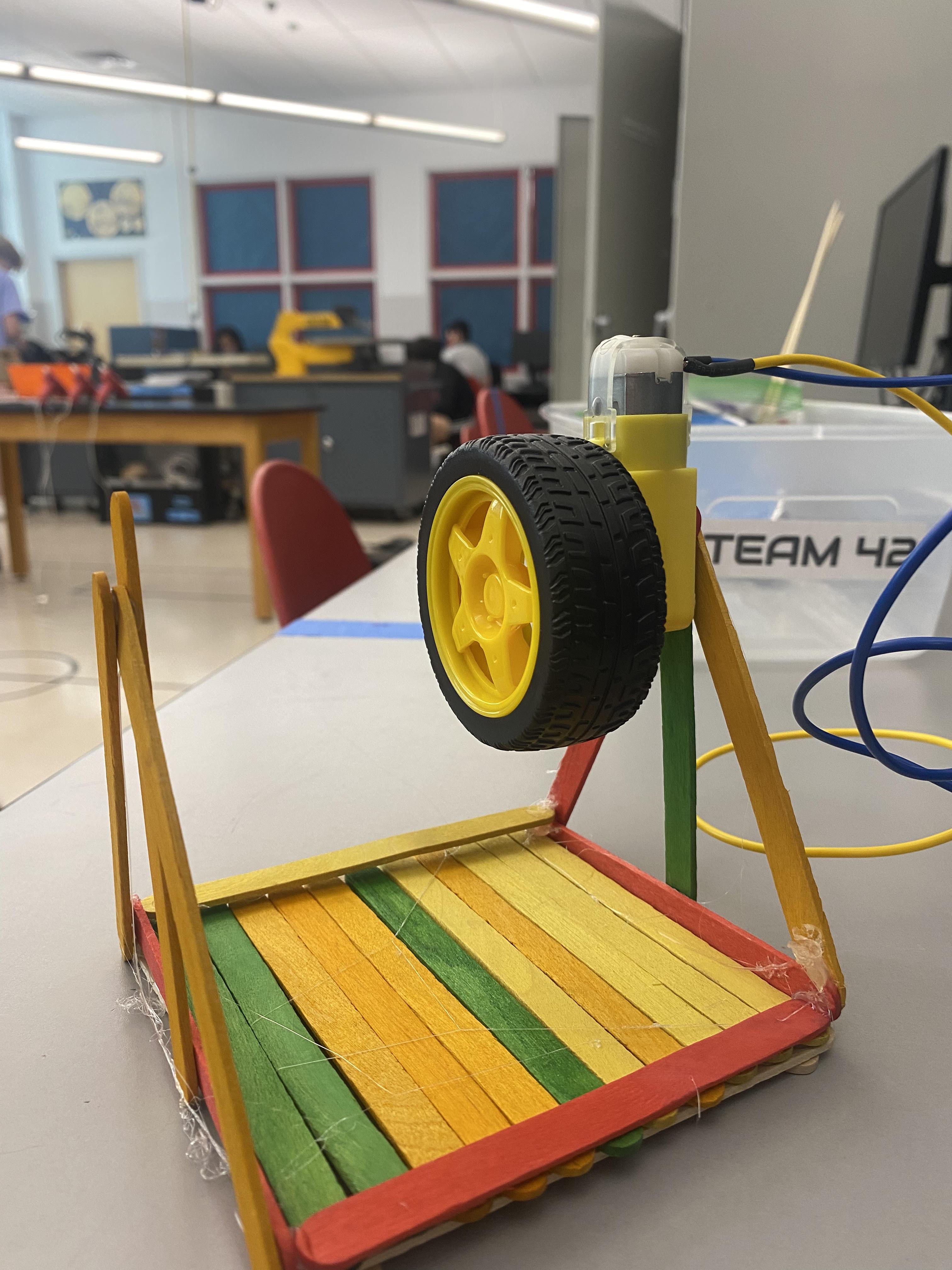

LED Generator

unnamed (1).jpg

The goal of this project is to power an LED with an electric motor.

Base

unnamed (4).jpg

The base should be created in a square with 11 popsicle sticks with 4 on the outside. Also add on two triangle structures as shown to hold the battery and wheel.

Electric Motor

unnamed (3).jpg
unnamed (2).jpg

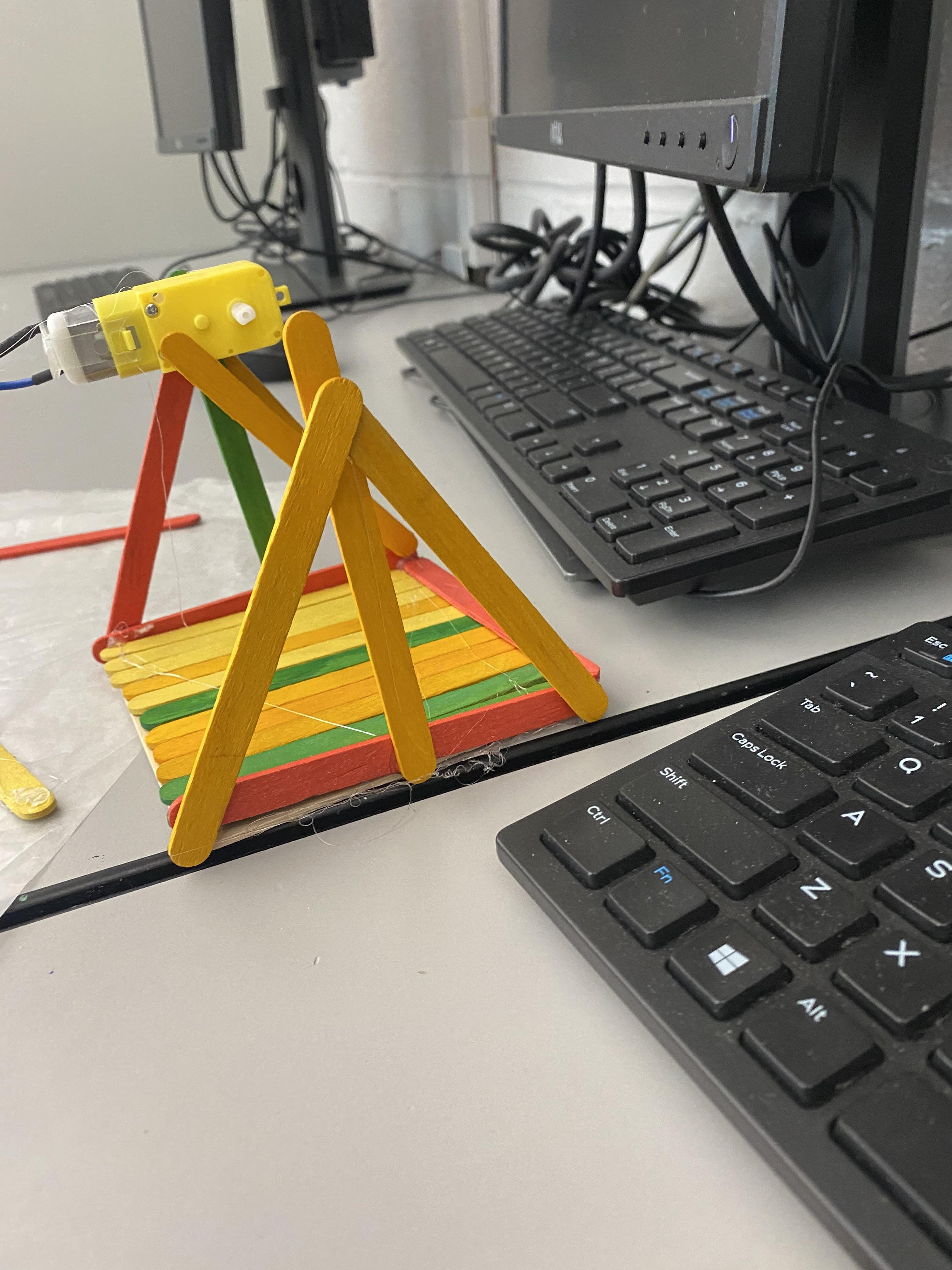

The Electric motor can be attached to one of the triangle structures on the left or the right with hot glue

Powering the Motor


The Wheel is going to be the object powering the electric motor. The wheel can be attached to the electric motor and once the wires are connected, as the wheel is spun the LED will light up.

Finished LED Generator
