LED Flashing Project Using 555 Timer IC: a Step-by-Step Guide

If you're looking for a simple and fun electronics project to try out, then building an LED flashing project using a 555 timer IC is a great place to start. In this tutorial, we'll walk you through the step-by-step process of creating your own LED flashing circuit using a 555 timer IC. From selecting your components to assembling your circuit and testing it out, we've got you covered. So, let's get started!

LEDs are commonly used in electronic projects, and adding a flashing effect to them can make your project more visually appealing. A 555-timer IC is a versatile integrated circuit that can be used in a wide range of electronic applications, including LED flashing circuits.

In this tutorial, we will guide you through the process of building a simple LED flashing circuit using a 555-timer IC. We will cover everything from selecting the required components to building and testing the circuit.

What is a 555 Timer IC?

A 555 timer IC is a type of integrated circuit that is commonly used in electronic circuits. It is a versatile IC that can be used as an oscillator, a timer, a flip-flop, and many other applications.

The 555 timer IC was first introduced in 1971 by Signetics Corporation and has since become one of the most popular ICs in the electronics industry due to its ease of use and versatility.

How Does a 555 Timer IC Work?

A 555 timer IC has three basic modes of operation: astable, monostable, and bistable. In an astable mode, the IC functions as an oscillator, producing a continuous series of pulses.

The frequency of the output pulses can be adjusted by changing the values of the resistors and capacitors connected to the IC. By connecting an LED to the output of the IC, we can create a flashing effect.

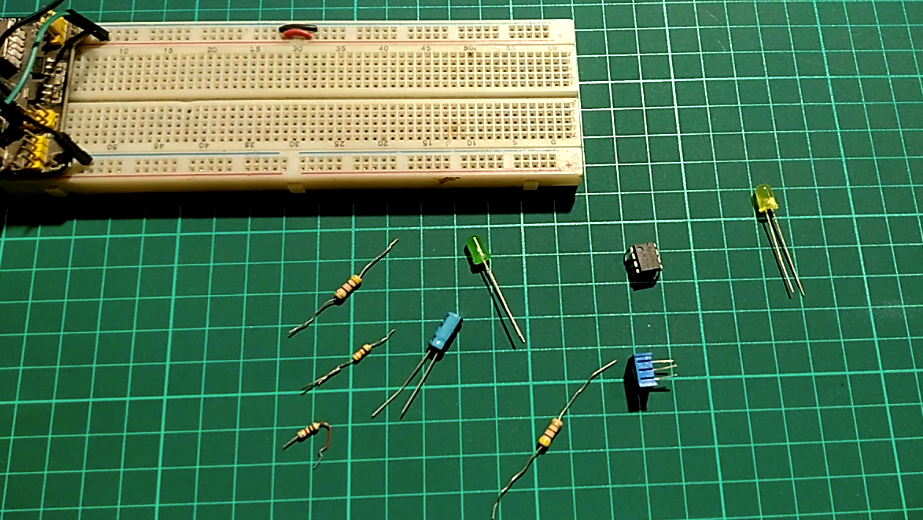

To build the LED flashing circuit, you will need the following components:

• 1x 555 Timer IC
• 1x 1kΩ Resistors
• 2x (320 - 1k)Ω Resistors
• 1x 10kΩ Potenntiometer
• 1x 10μF Capacitors
• 2x LEDs
• 1x Breadboard
• Jumper Wires
• Power Supply (5-12V DC)

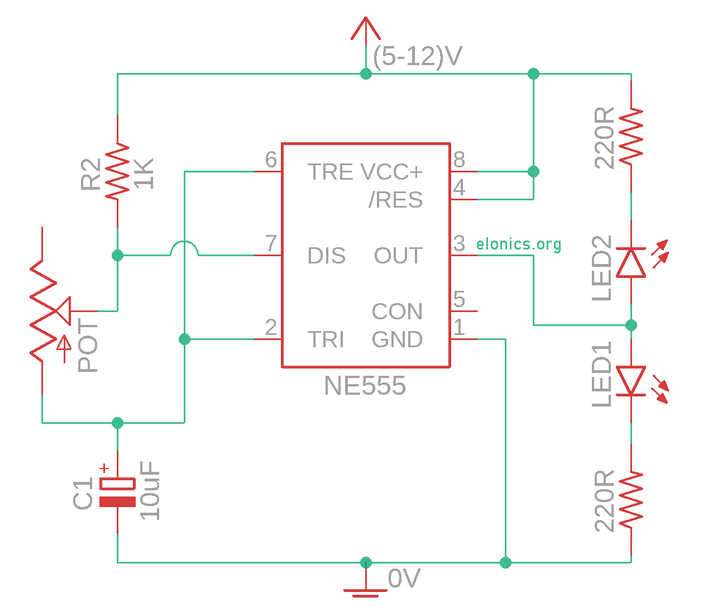

To build the circuit, follow these steps:

1. Insert the 555 timer IC into the breadboard.
2. Connect a 1kΩ resistor between pins 7 of IC and 5V supply +Ve Terminal.
3. Connect a 10kΩ potentiometer wiper (middle pin) to pin 7 of the IC.
4. Connect the other two terminals of the potentiometer with pin 2 of the IC and 5V +ve terminal.
5. Connect a 10μF capacitor between pin 2 of the IC and GND (the -ve terminal of the capacitor should be connected with GND).
6. Connect pins 6 and 2 of the IC with each other.
7. Connect pins 4 and 8 of the IC with +5V supply.
8. Leave pin 5 of the IC unconnected.
9. Connect pin 1 of IC with GND.
10. Connect the anode of the first LED to pin 3 of the IC and the cathode to the ground through a 320-ohm resistor.
11. Connect the anode of the second LED to the +5V supply through a 320-ohm resistor.

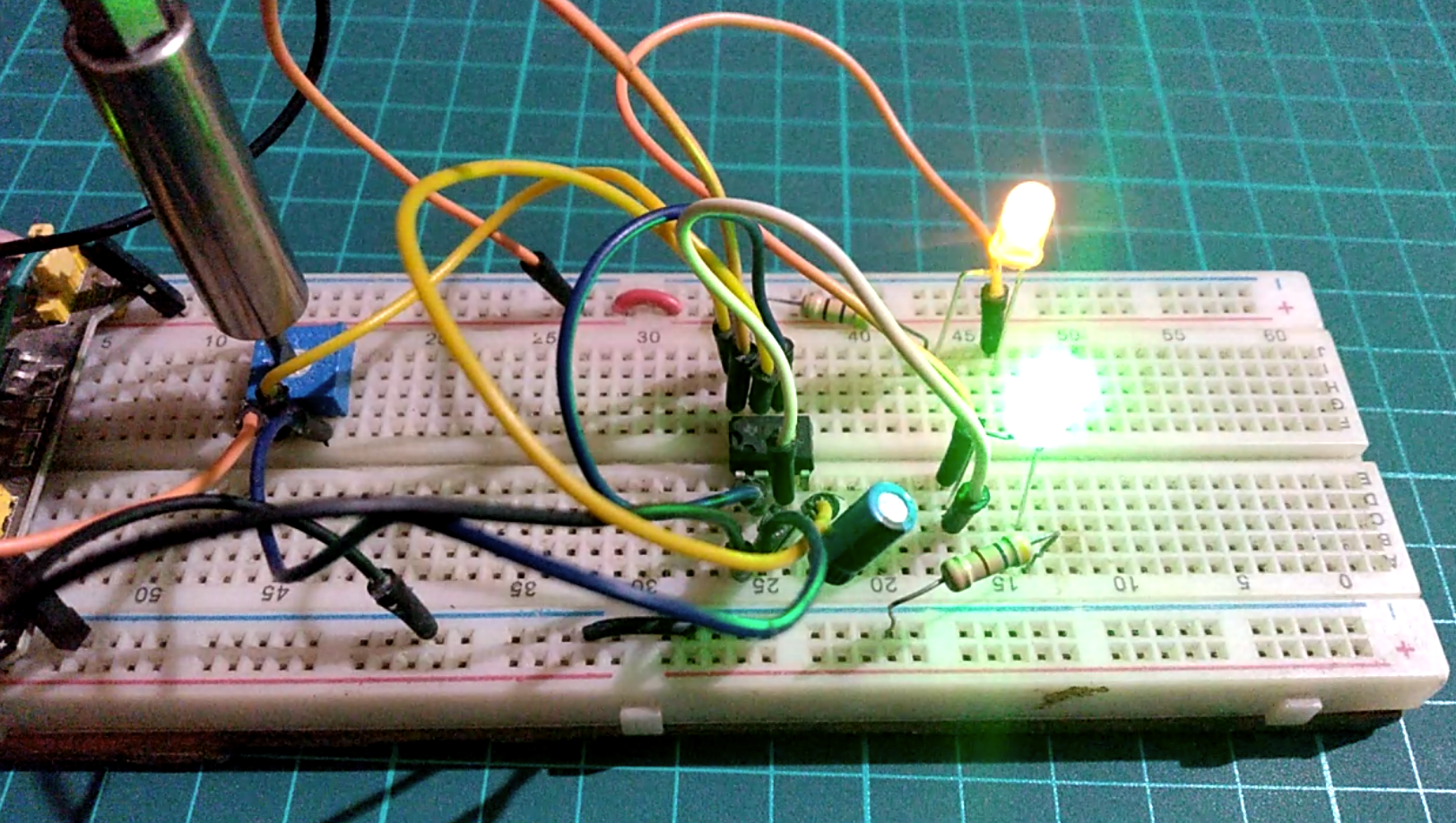

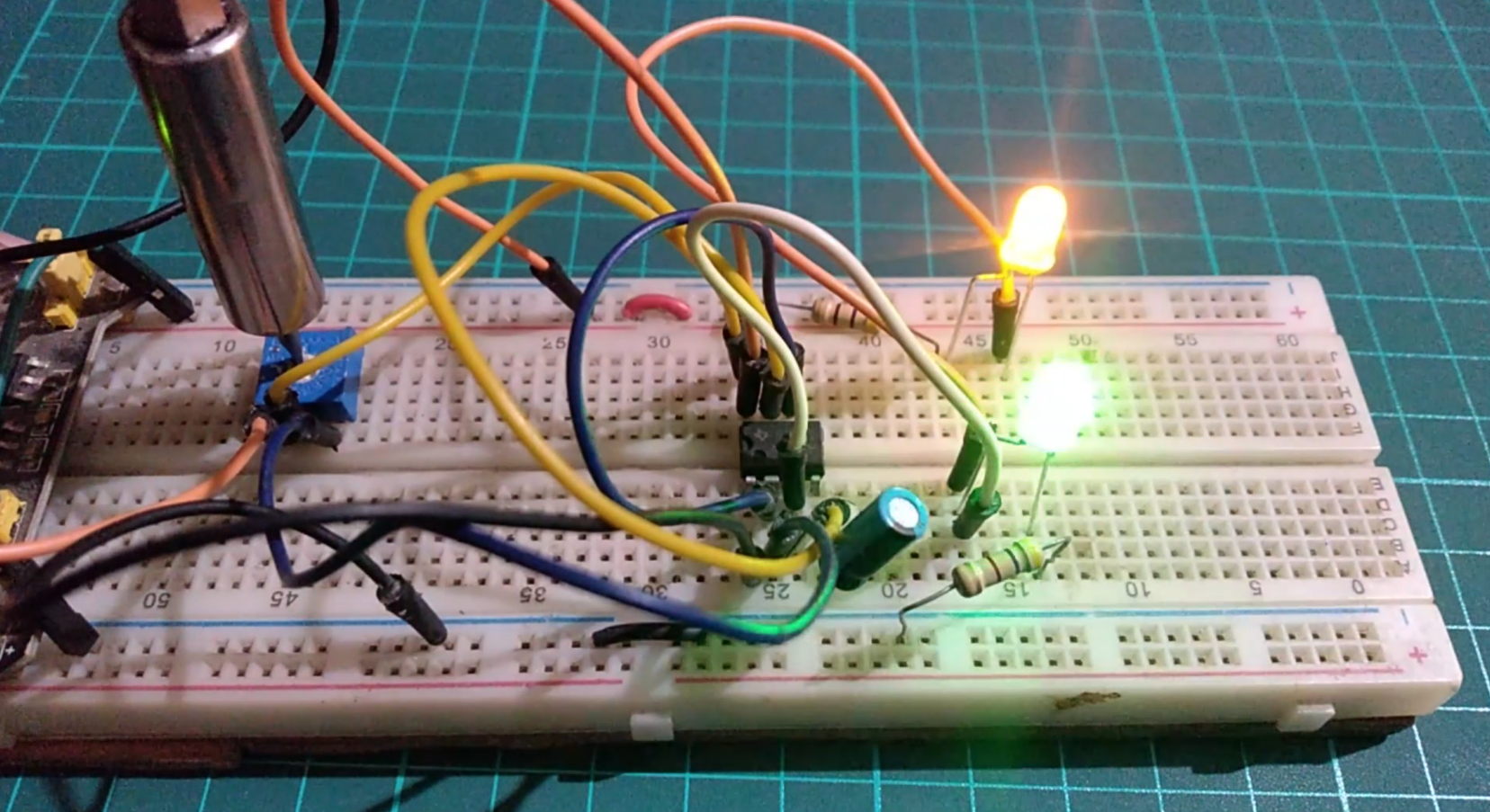

Once you have built your circuit, it's time to test it out. Connect a 9V battery to the breadboard, and you should see the LEDs start flashing.

You can adjust the frequency of the flashing by changing the values of the resistors and capacitors in the circuit.

If your circuit isn't working as expected, there are a few things you can try to troubleshoot the problem:

• Check your connections: Make sure all of your components are connected correctly and in the right place.
• Check your components: Make sure you have the correct values for your resistors and capacitors, and that your LEDs and transistors are working properly.
• Check your power source: Make sure your battery or power supply is providing the correct voltage.

Building an LED flashing/blinking circuit using a 555 timer IC is a fun and rewarding project for anyone interested in electronics or DIY. By following the steps outlined in this article, you can easily build your own circuit and customize it to create a unique visual effect. Whether you're a beginner or an experienced hobbyist, this project is a great way to learn more about circuit design and have fun in the process.

If you're interested in taking your electronics skills to the next level, there are many other projects you can try, such as building your own audio amplifier or designing a micro-controller-based system. The possibilities are endless, and with a little bit of creativity and hard work, you can create amazing projects that will impress your friends and family.

Stay tuned to me, I always publish tutorials/articles related to electronics, mechatronics, and 3D printing. For now, comment " I Made It!" below along with the images of your "LED blinking using 555 Timer IC" project.
