LED FIDGET SPINNER

In this instructable, I am going to describe how I made an led fidget spinner.

Spinners are something to play with instead of clicking your pen or biting your fingernails. They are surprisingly addictive and sometimes help you concentrate.

The basic construction is a housing or holder with a bearing in the centre. To use it you just hold the spinner between a thumb and finger and spin it.

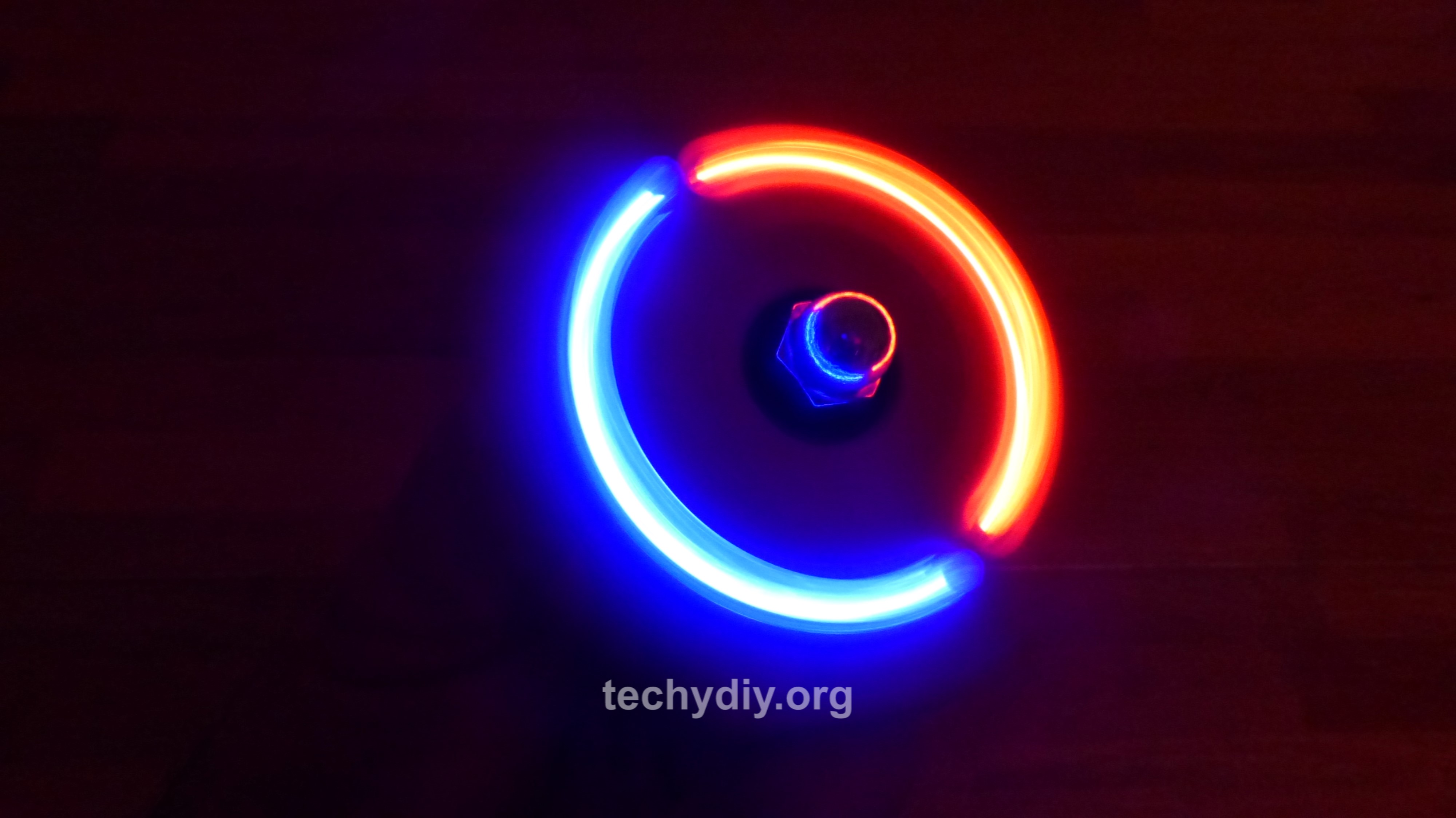

I decided to make a wooden spinner, which has a nice tactile feel and incorporate leds into it. The leds that I have used have a built-in program that changes the led colour fairly quickly, resulting in some interesting results when the spinner spins.

This instructable is entered in a competition so if you like it please vote!

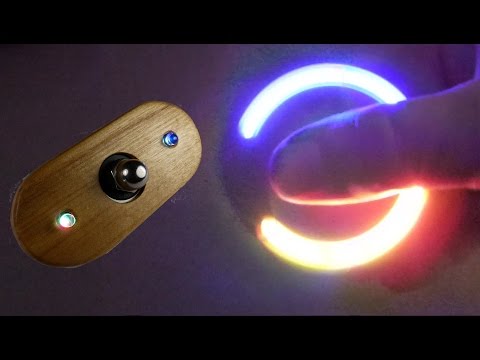

https://youtu.be/Uj1wNjH2Ytc

A piece of scrap wood 90 x 40 x 12mm

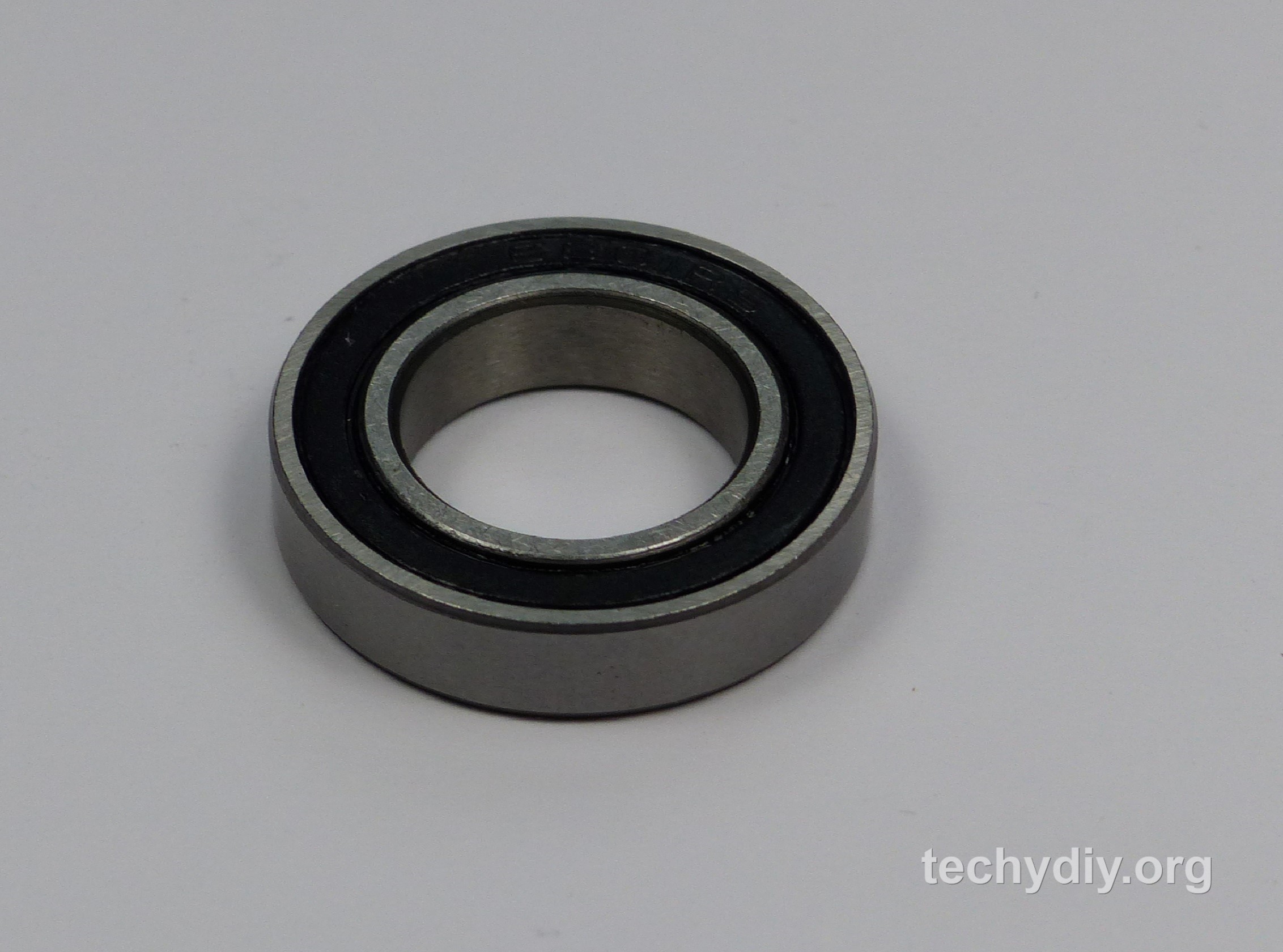

22 x 8 x 7mm bearing with rubber seals US UK  DE IT ES
fast flashing RGB LEDs US UK  DE IT ES
CR2032 battery holders US UK  DE IT ES
CR2032 coin batteries US UK  DE IT ES

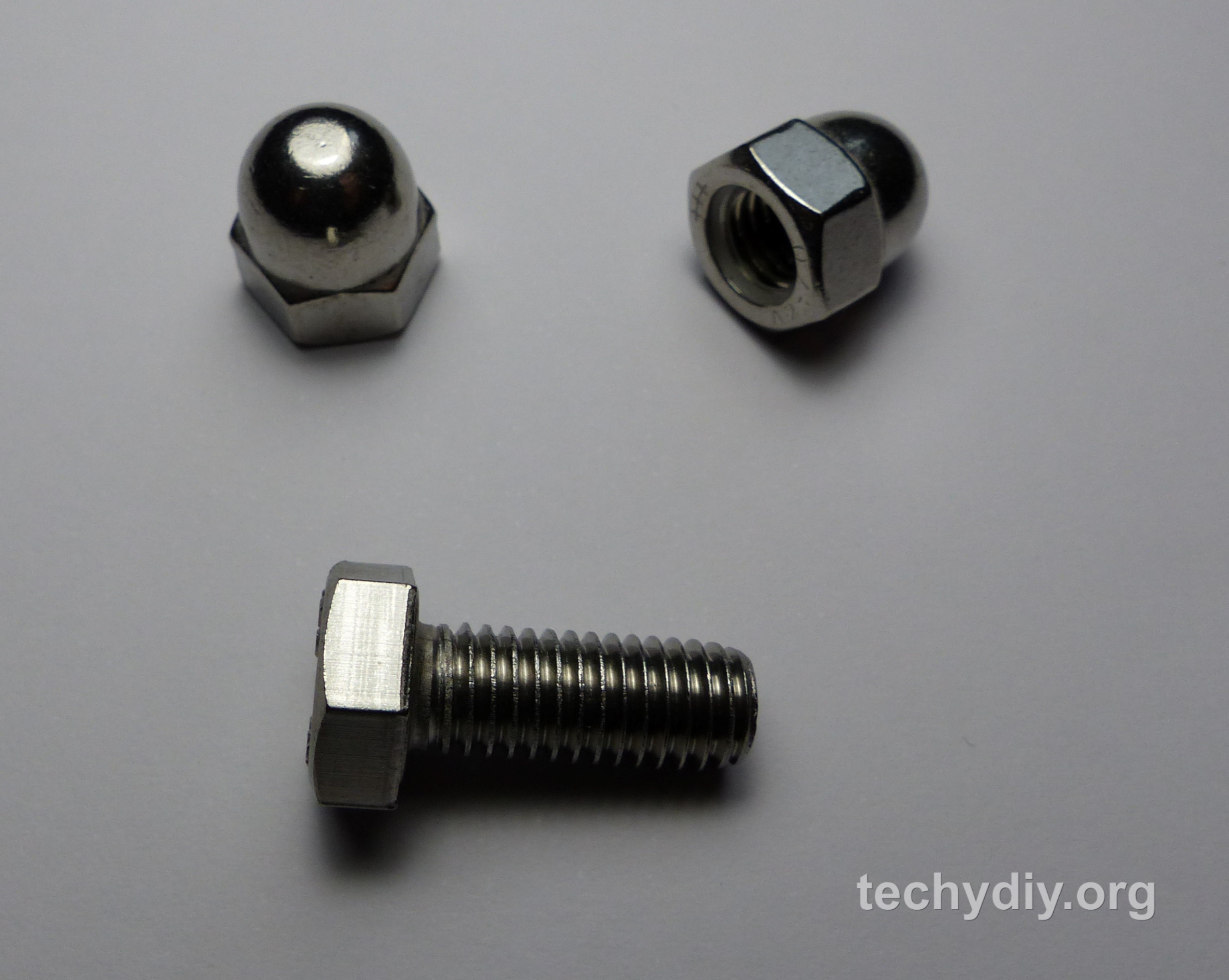

M8x20mm stainless steel bolt US UK  DE IT ES
M8 stainless steel dome nuts US UK  DE IT ES

Jigsaw US UK  DE IT ES
Router US UK  DE IT ES
Mitre saw US UK  DE IT ES
Drill press US UK  DE IT ES
Soldering iron US UK  DE IT ES
Hot glue gun US UK  DE IT ES
Forstner drill bit US UK  DE IT ES
Countersink drill bit US UK  DE IT ES

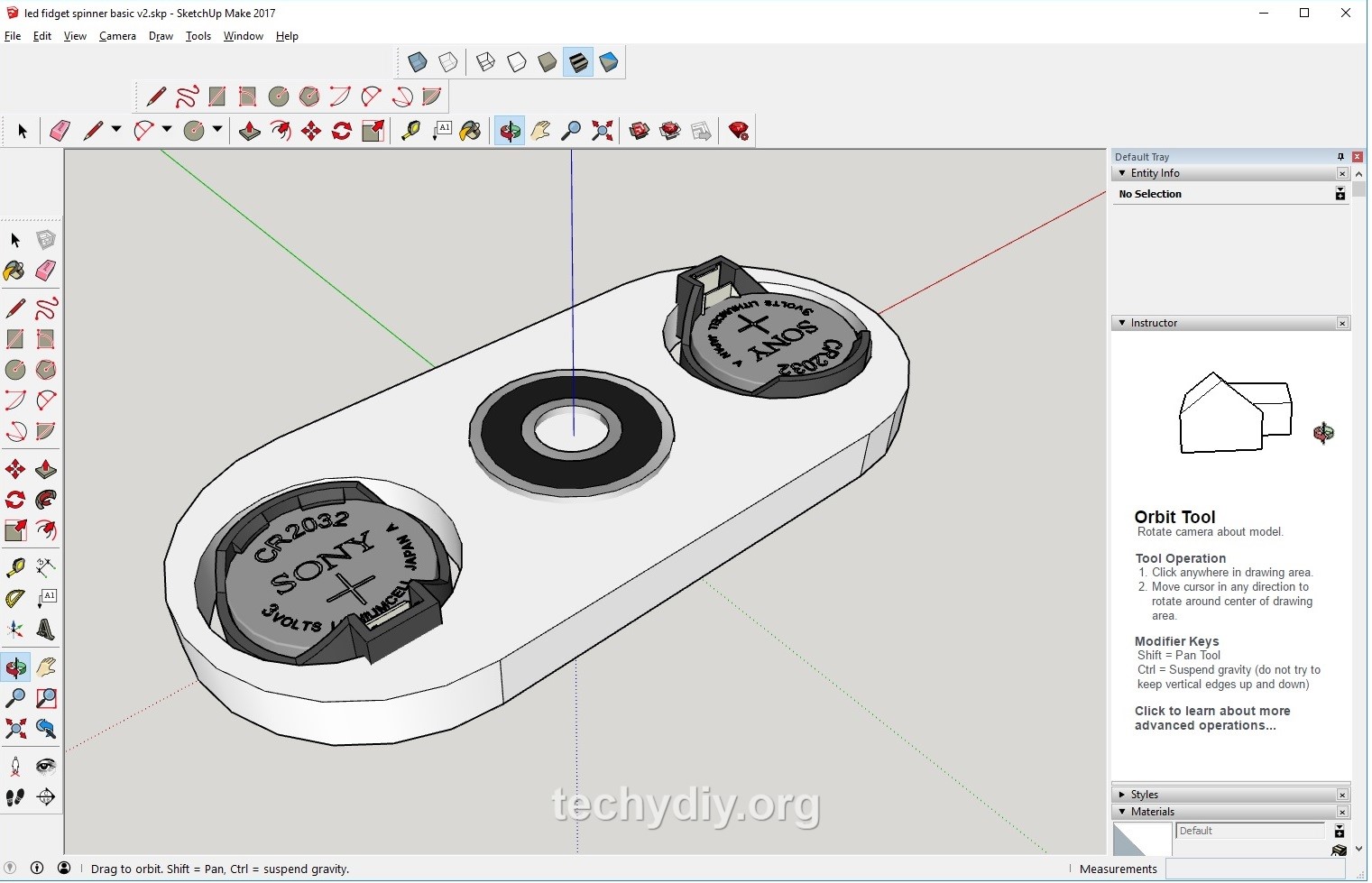

To start with I created a design using Google Sketchup and then used that to create a cutting and drilling template.

If you want to build one yourself, you can find the template here .

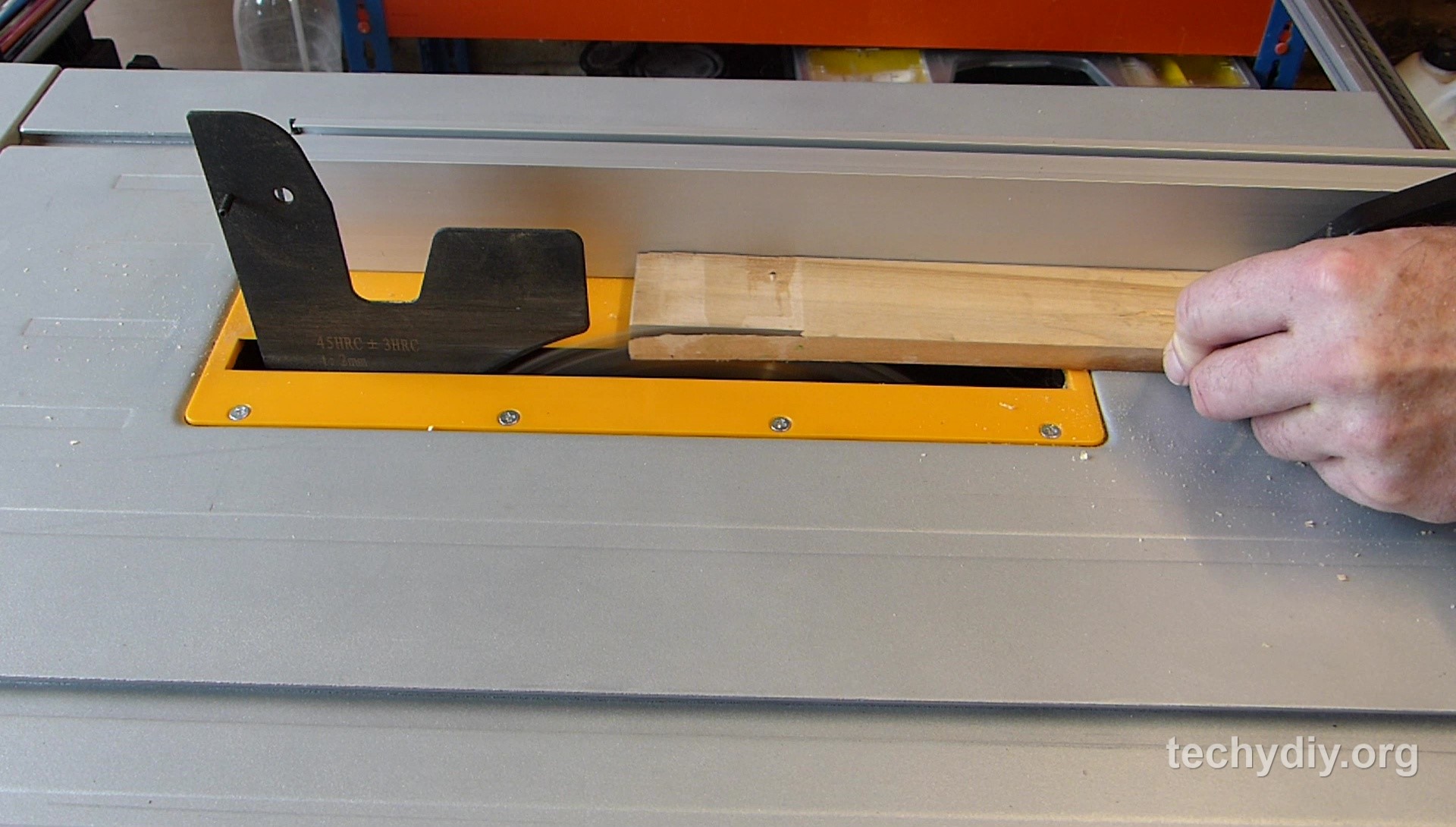

I set the table saw to 40mm and cut the wood to width.

Then I squared the end of the wood on the mitre saw.

I measured 90mm and then cut the wood to length with the mitre saw.

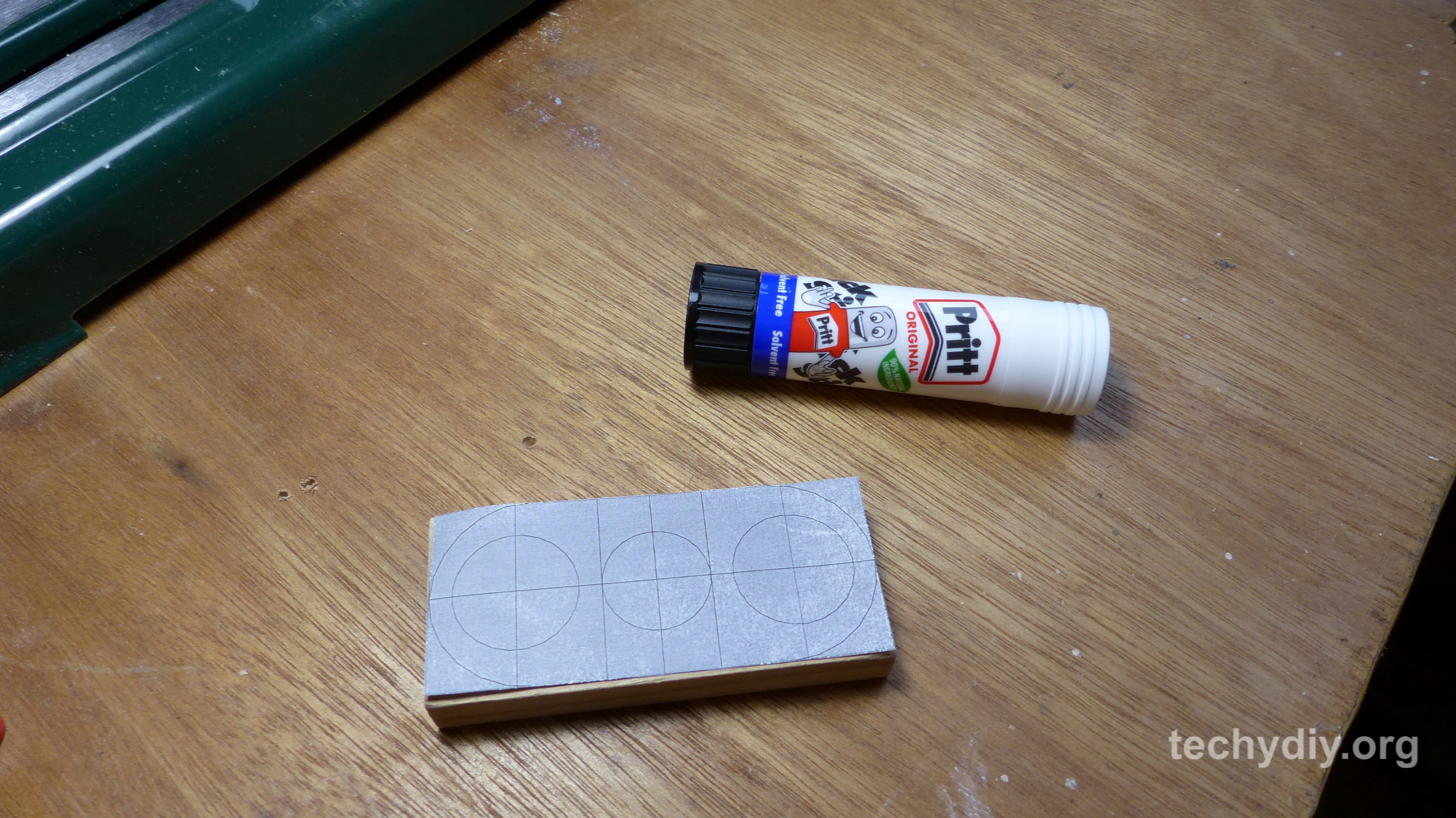

I glued the paper template onto the wood using a water-soluble glue stick, marked the centre of the three holes and then drilled pilot holes.

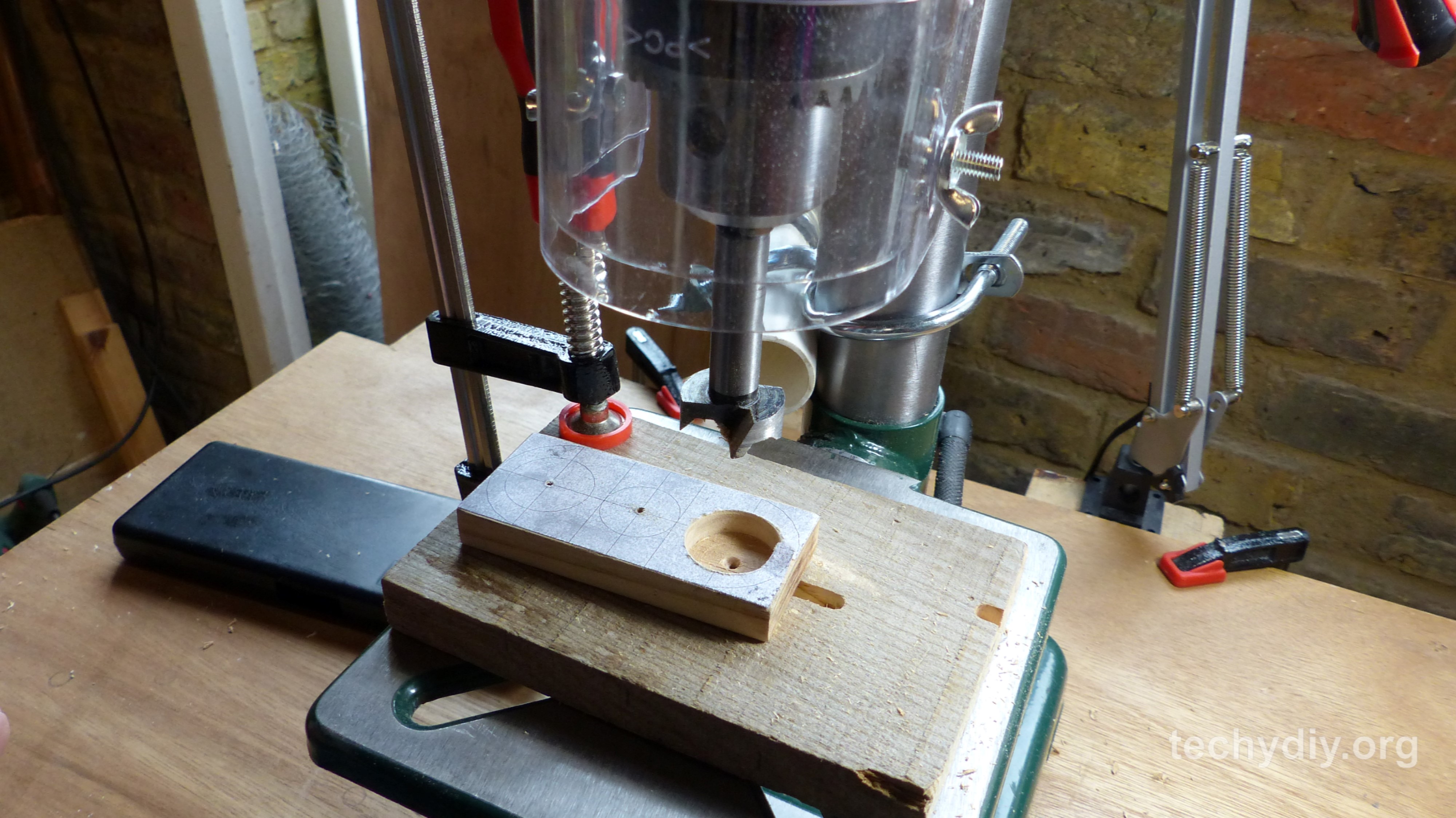

To cut the holes for the battery connectors, I used a 25mm diameter Forstner drill bit and then drilled down to a depth of 7.5mm.

The battery holders that I used had an offset rectangular section, so I drew around one and then used a chisel to cut out the marked area.

I used a 22mm diameter spade bit to cut the hole in the centre to accept the bearing, but didn’t cut all the way through the wood; instead I stopped a couple of mm short.

Then from the rear I cut a 20mm diameter hole, which left a ledge for the bearing to sit against.

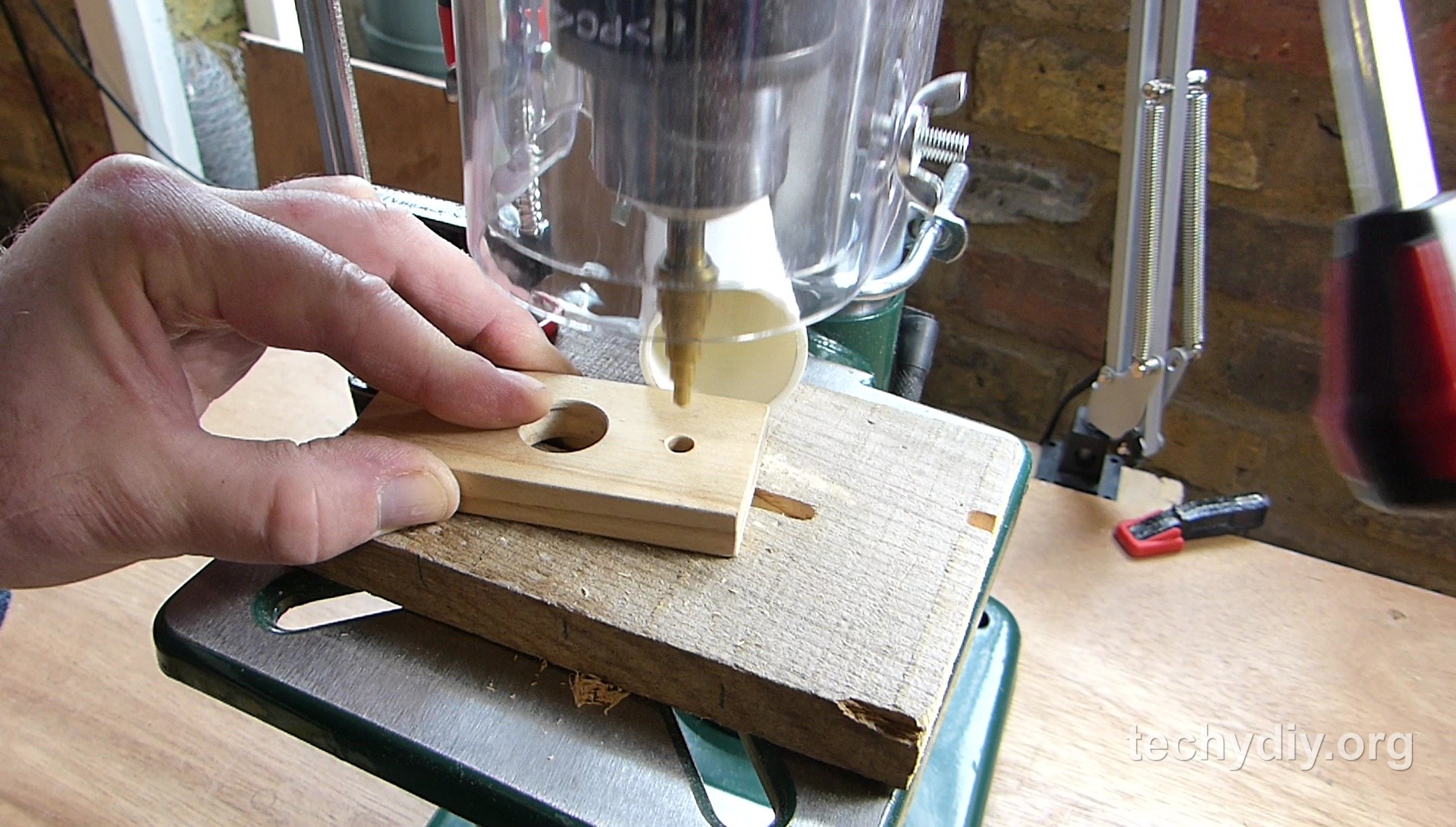

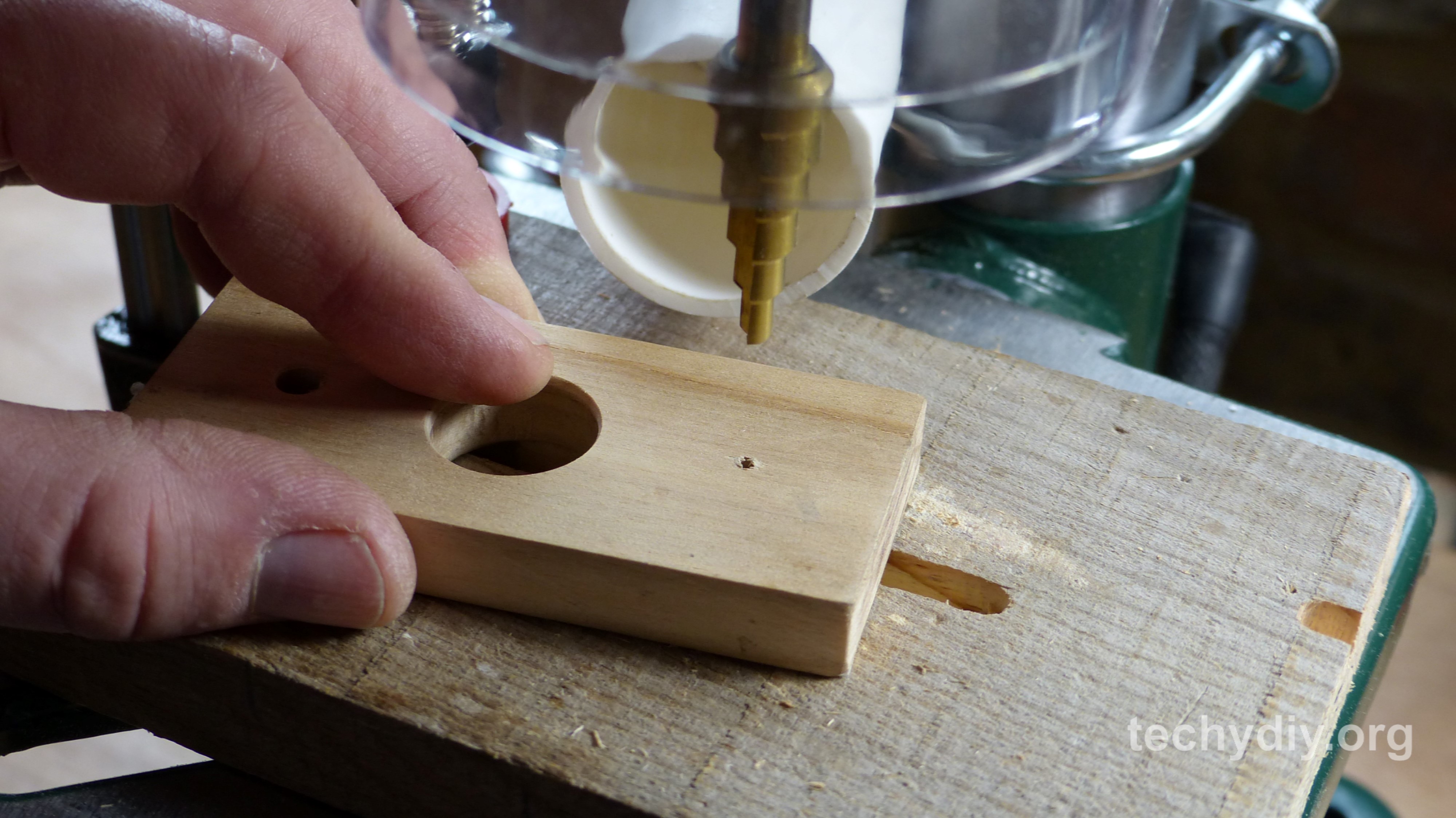

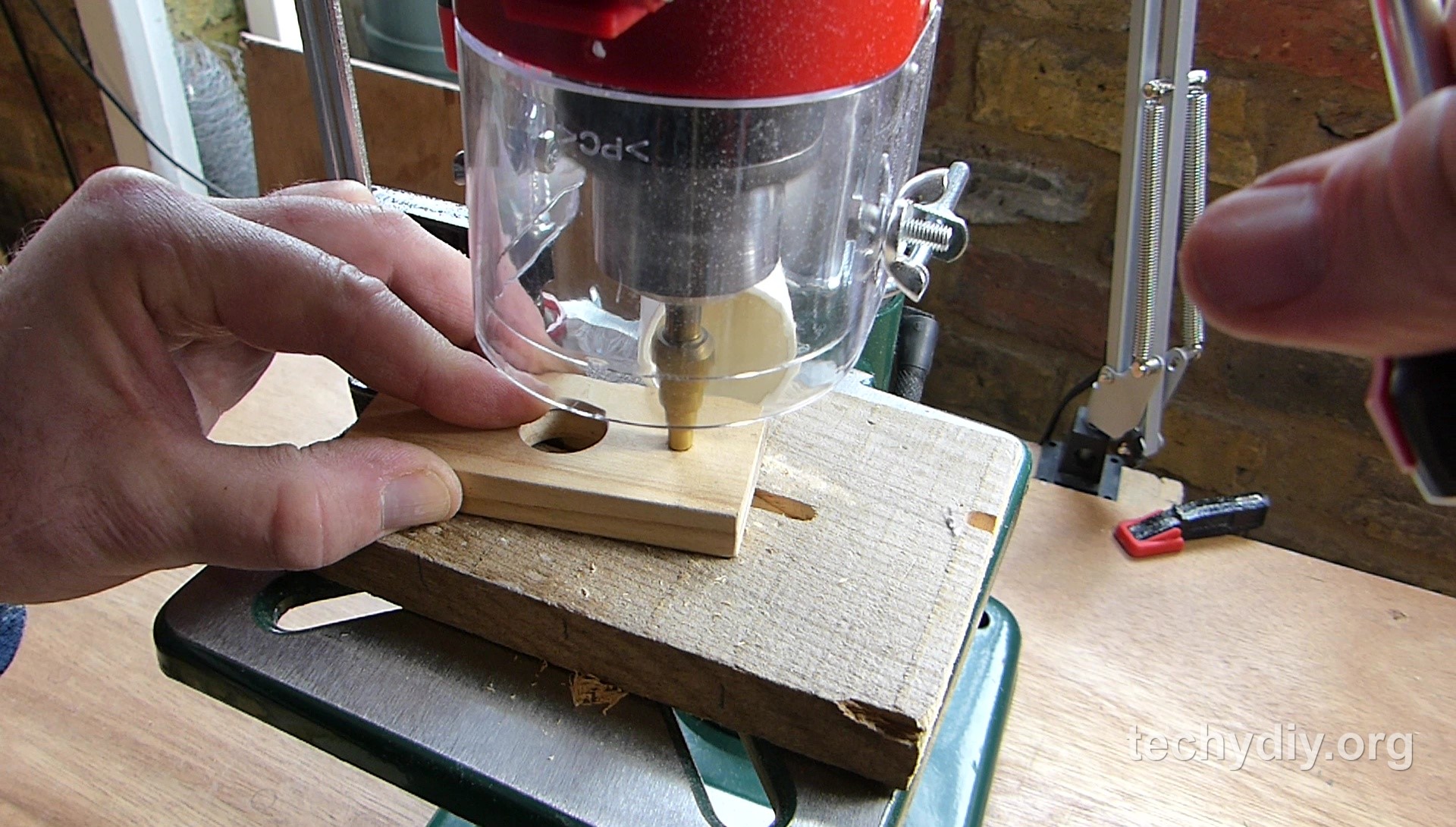

Using a step drill bit, I drilled 6mm diameter holes to accommodate the leds and then finished the holes with a countersink drill bit.

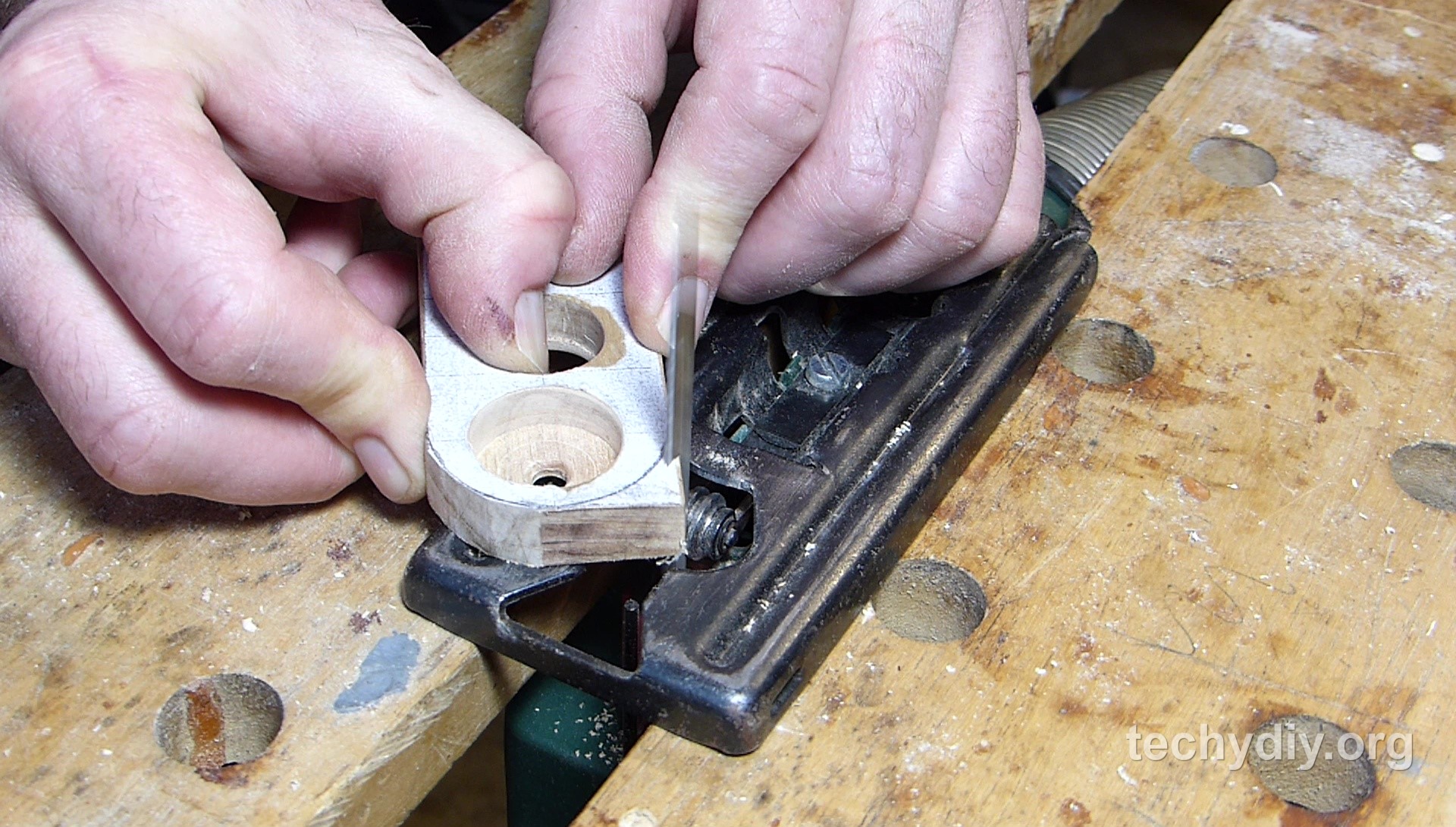

To cut out the spinner shape I used an inverted jigsaw.

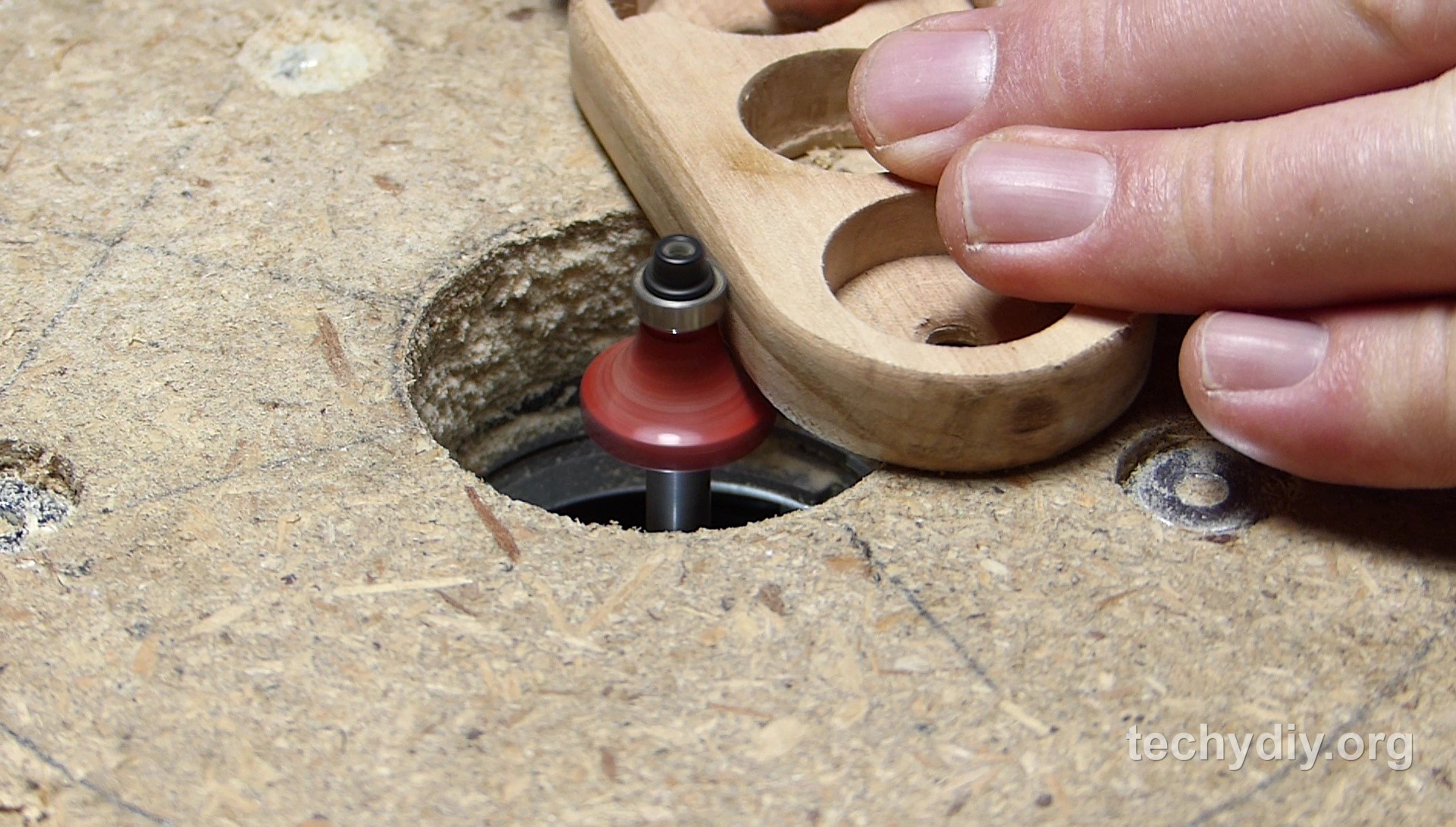

I removed the paper template and then rounded the edges using a round over bit, installed in the router table.

The wood was then sanded until smooth.

The wood was finished with a couple of coats of lacquer.

The next task was to solder the leds to the battery holders.

The long lead on the led was soldered to the positive side of the battery holder and the short lead to the negative side.

The led was located directly below the hole in the base of the battery holder rather than centrally between the two solder terminals.

Placing a small piece of heat shrink tubing on the short led lead to identify it, I then bent it over with some thin nose pliers.

The long led lead was bent over.

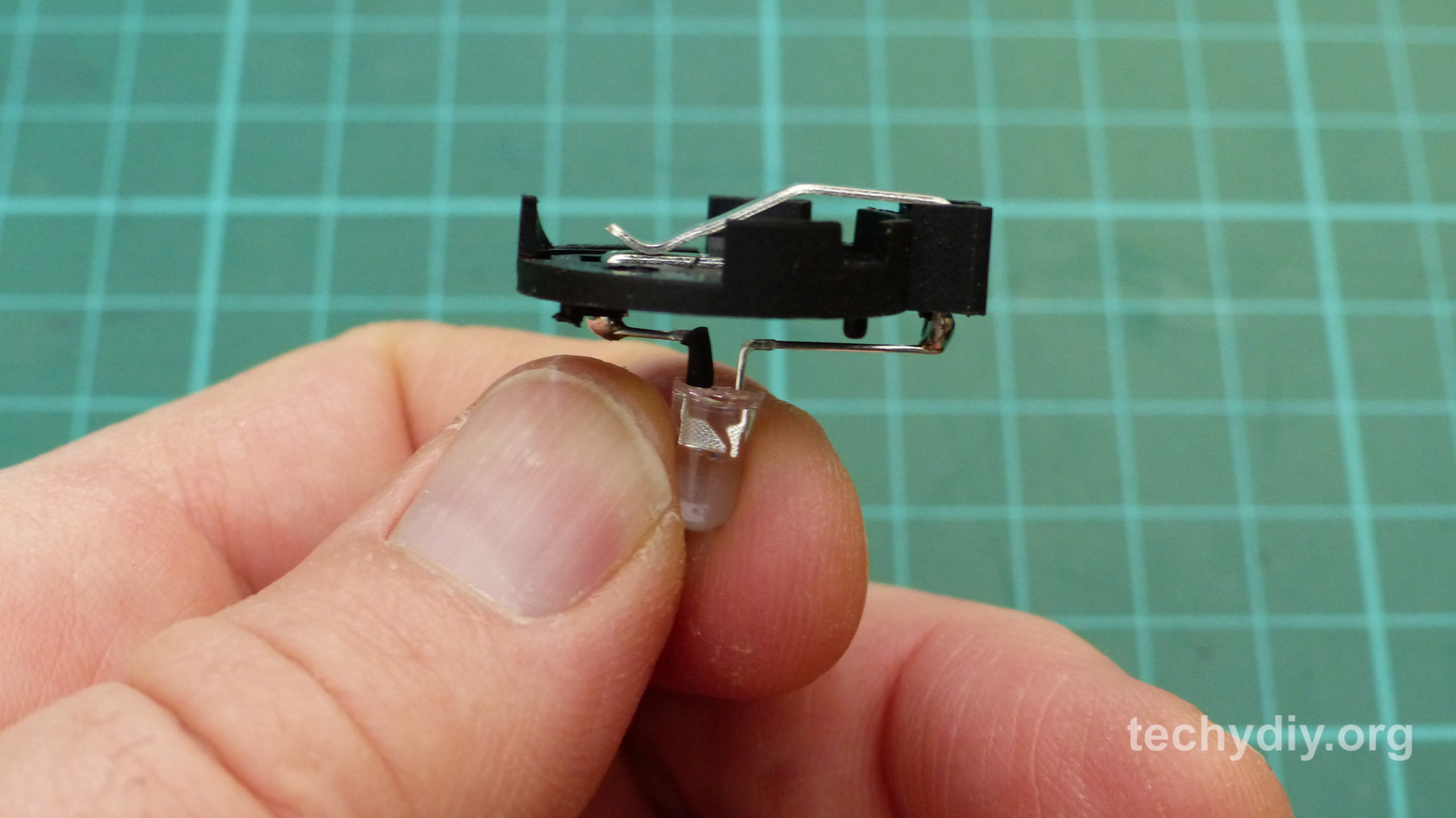

After placing the led over the hole in the battery holder, I bent the long lead around the positive terminal.

The short led lead was then bent around the negative terminal and both leads were soldered in place.

I then removed the tops of the terminals with cutters.

Before glueing the leds in place, I tested that they were working by inserting a battery into the holder.

I used hot glue to fix the holders into place.

To enable the spinner to spin faster, I cleaned the grease out of the bearing.

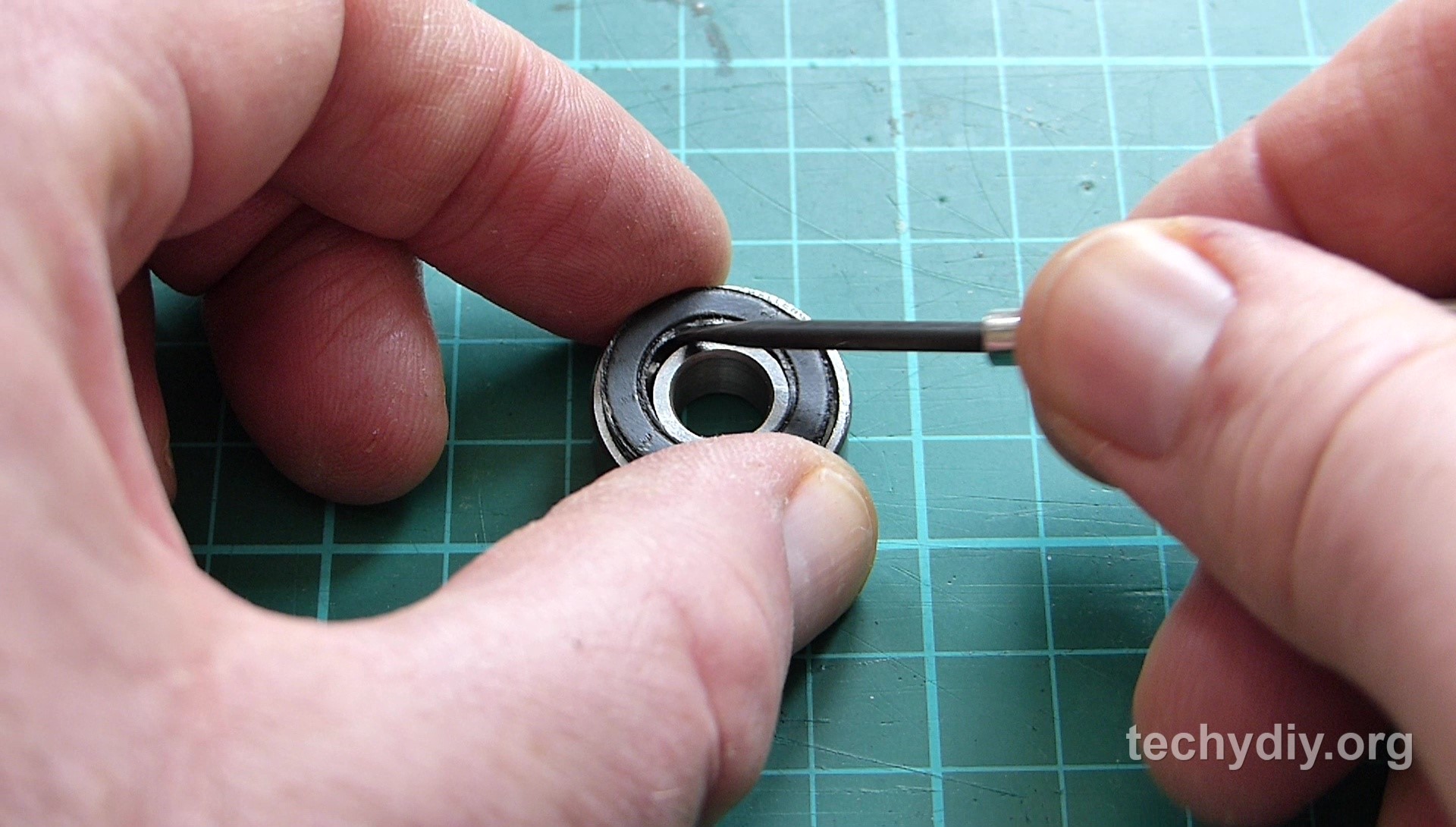

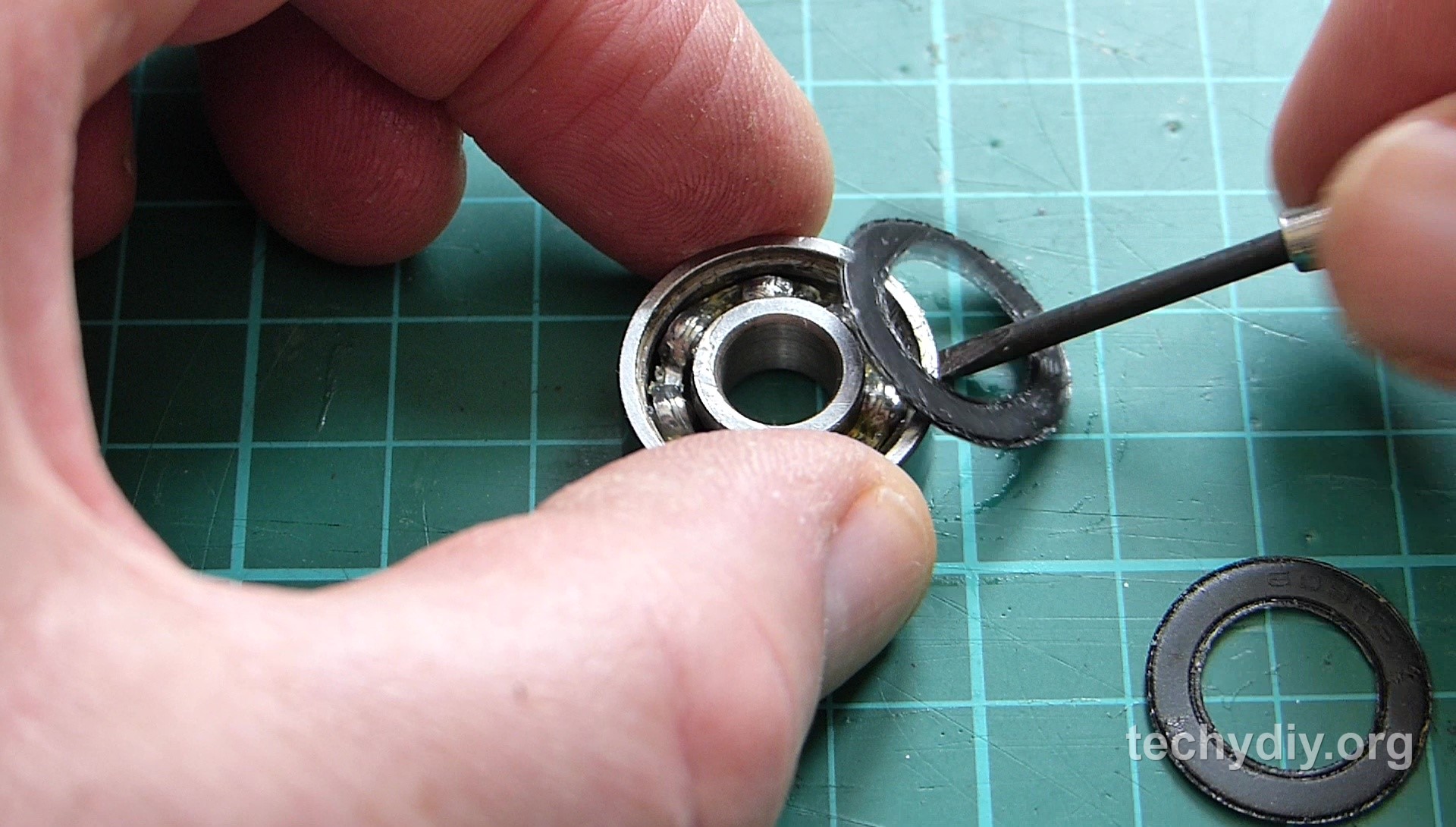

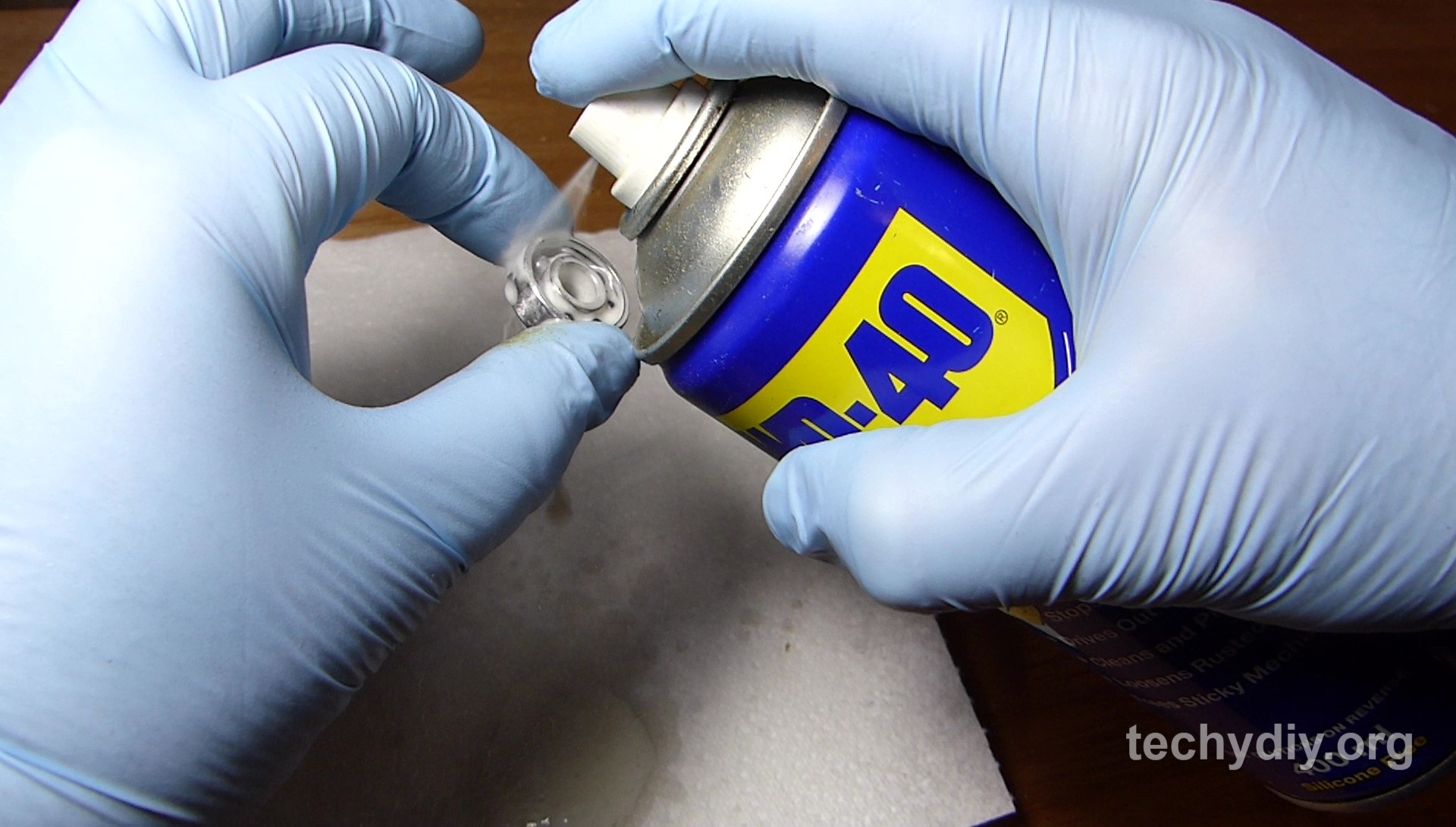

I removed the bearing’s rubber seals by levering them out with a screwdriver and then sprayed wd40 oil into it until all grease was removed.

The rubber seals were then cleaned and put back on the bearing.

The next task was to cut off the bolt head. I did this by clamping it into a vice and cutting it off with a hack saw. I then filed away the rough edges with a hand file.

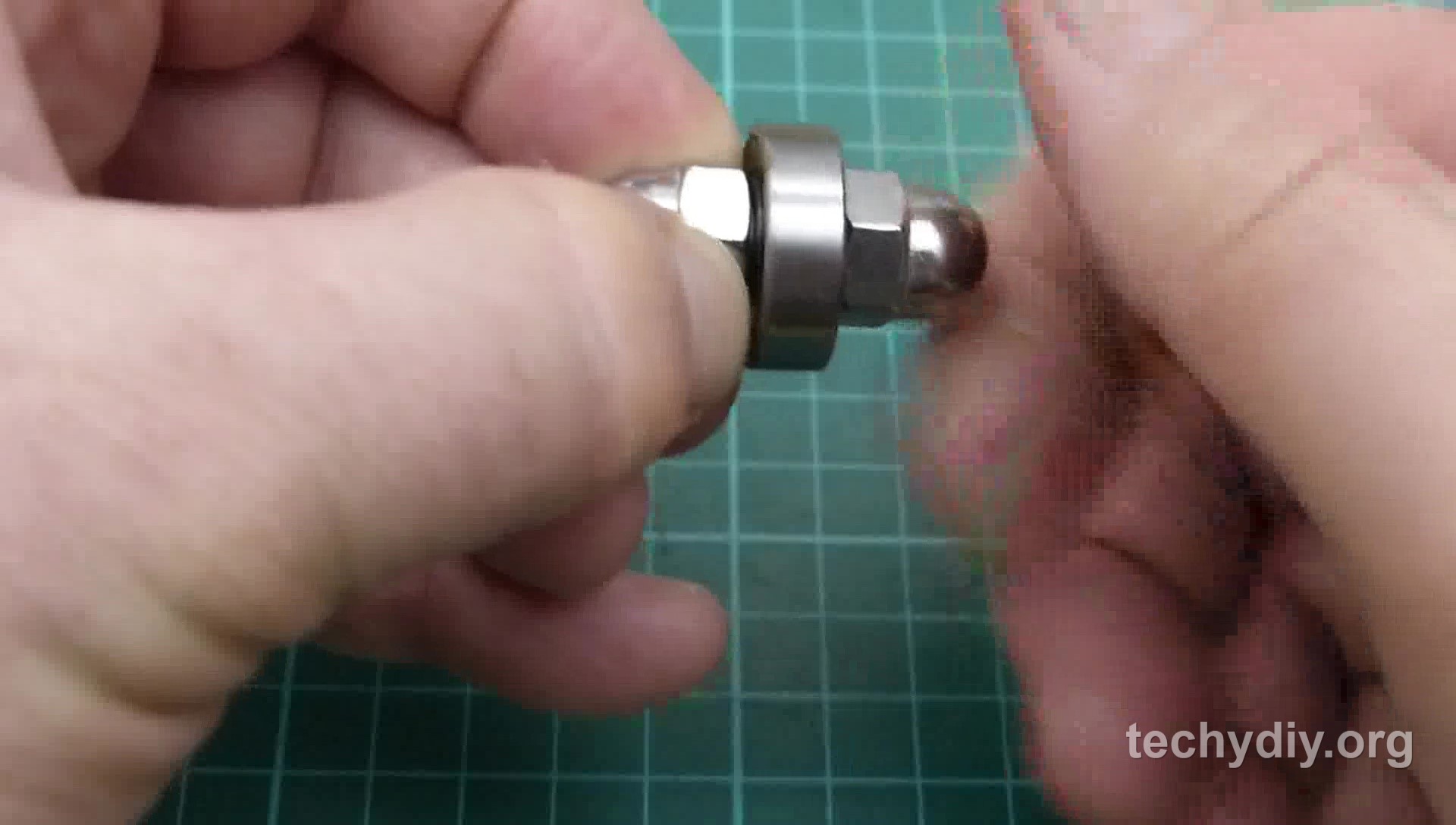

The screw thread was then inserted through the bearing and the two dome nuts screwed onto either end.

The final task was to install the bearing assembly into the wooden housing. To ensure that it stayed in position I glued it with Super-glue.

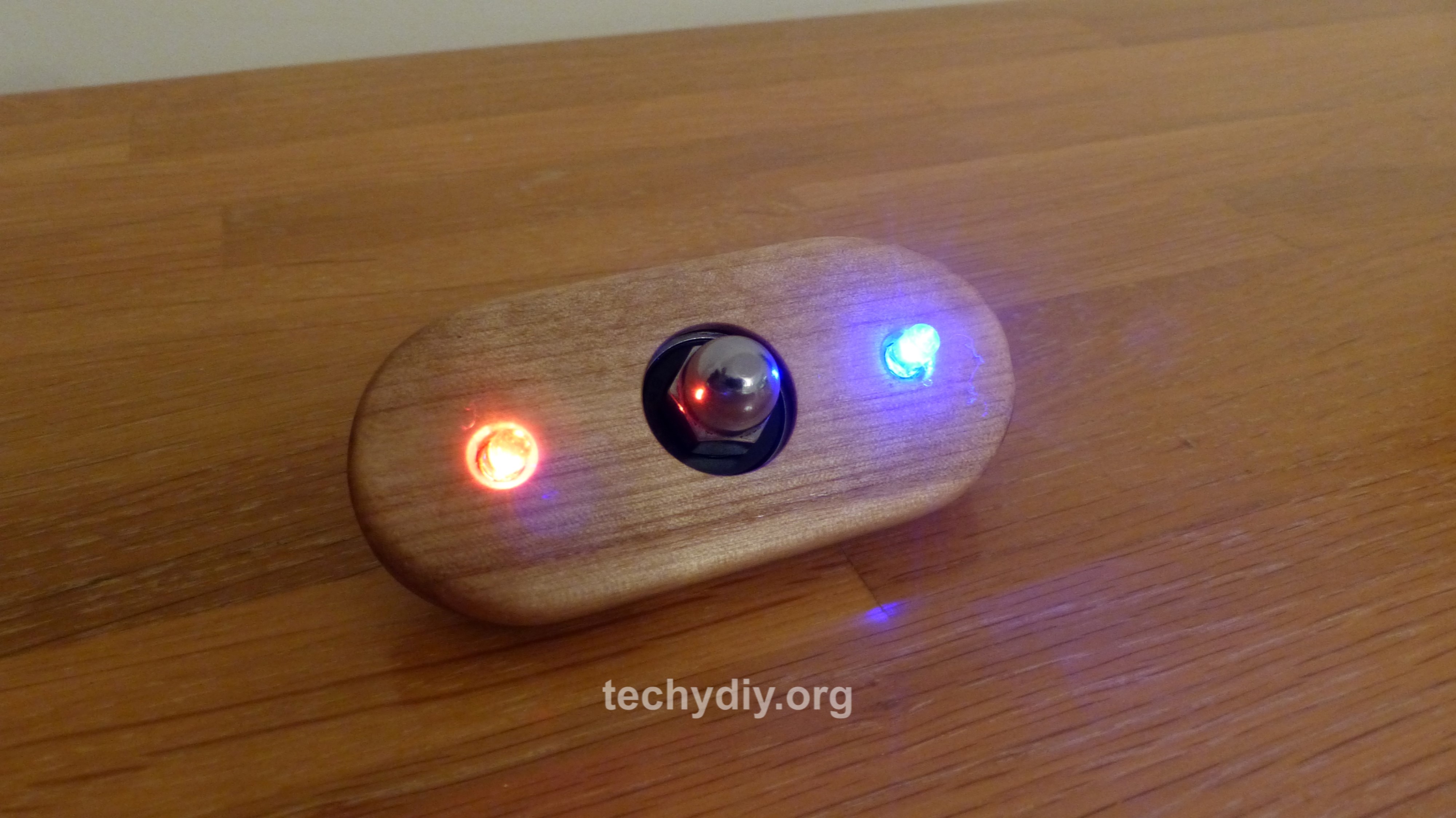

To turn the leds on the batteries are inserted into the battery holders. The leds follow a pre-set program and will change colour fairly quickly.

To turn the leds off I inserted small strips of thin plastic between the battery terminals.

I hope you enjoyed this project.

This instructable is entered in a competition so if you like it please vote!

Check out my easy to make Batman led fidget spinner

Also you might like to visit the Techydiy YouTube channel and techydiy.org website .

Thanks for reading, Nigel.
