LED Display Snowboard
![Snowboard_wall mount.jpg](/proxy/?url=https://content.instructables.com/FQO/0D76/KQ57IQTQ/FQO0D76KQ57IQTQ.jpg&filename=Snowboard_wall mount.jpg)
![Snowboard_wall mount2.jpg](/proxy/?url=https://content.instructables.com/FJ7/L2FV/KQ57IQUG/FJ7L2FVKQ57IQUG.jpg&filename=Snowboard_wall mount2.jpg)
![IMG_1748.JPEG](/proxy/?url=https://content.instructables.com/F6K/47JE/KQ6MPNYH/F6K47JEKQ6MPNYH.jpg&filename=IMG_1748.JPEG)
![IMG_1747.JPEG](/proxy/?url=https://content.instructables.com/FRU/TFN9/KQ6MPNYG/FRUTFN9KQ6MPNYG.jpg&filename=IMG_1747.JPEG)
![IMG_1745.JPEG](/proxy/?url=https://content.instructables.com/FZX/T7WC/KQ6MPNYE/FZXT7WCKQ6MPNYE.jpg&filename=IMG_1745.JPEG)
![IMG_1746.JPEG](/proxy/?url=https://content.instructables.com/FU2/YT33/KQ6MPNYF/FU2YT33KQ6MPNYF.jpg&filename=IMG_1746.JPEG)
This project was started as a way to recycle a snowboard to
display in an art exhibition featuring recycled snowboards hosted by NZ Shred, New Zealand's first Snowboarding shop. I am not an artist but I am an engineer, so I decided a gloss white snowboard with LED backlighting would be a good way to contribute. Turns out a new 3D printer arrived moments before I began the project so it was a good opportunity to learn how to use my 3D printer and incorporate 3D printed parts into the project. I am happy with the results and learnt a lot from the process.
I will continue to update this with details and code over the next few days...

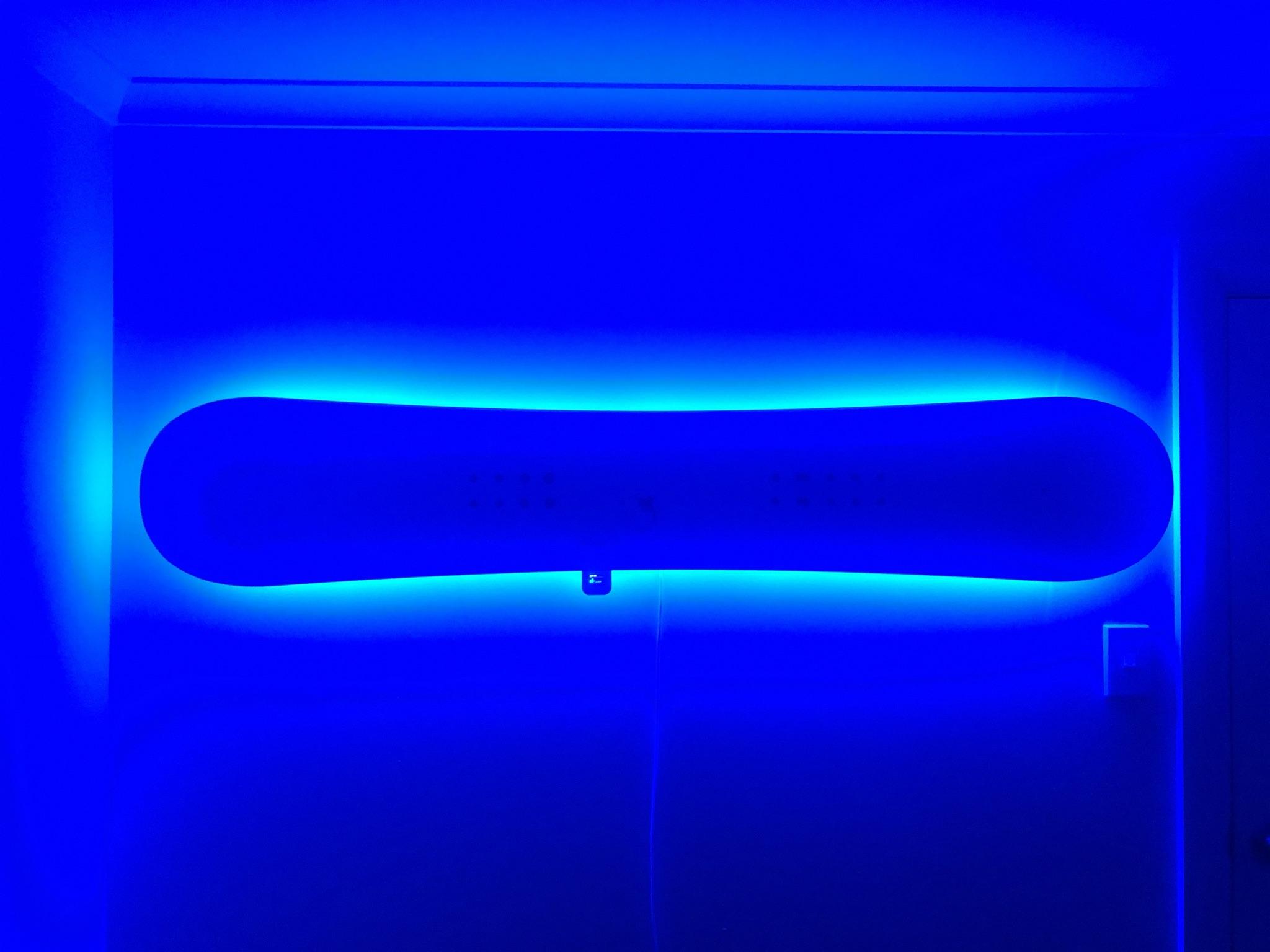

check out the final result here:
Supplies
- Retired / Recycled snowboard
- ESP32 microcontroller
- Numerous electronic parts
- screen
- buttons
- microphone
- logic level converter
- 6A power supply
- plugs and sockets
- PCB
- Arduino IDE +FASTLED and ESP libraries
- WS2812b LED strip (approx 4m)
- Aluminum extrusion
- Translucent 3mm acrylic strips
- Heat gun
- Sander
- Spray paint
- ...
Things to Do
I will be adding:
- source code
- photos
- instructions
- videos
- links to sources and inspiration
Prepare the Snowboard
![0C3794E0-6144-4D3C-9394-71ED8431364E.jpg](/proxy/?url=https://content.instructables.com/FJI/7MYD/KQ6MPO1F/FJI7MYDKQ6MPO1F.jpg&filename=0C3794E0-6144-4D3C-9394-71ED8431364E.jpg)
![06E11924-D7E0-459E-8E6B-3035D588D266.jpg](/proxy/?url=https://content.instructables.com/FC4/HN00/KQ6MPO1O/FC4HN00KQ6MPO1O.jpg&filename=06E11924-D7E0-459E-8E6B-3035D588D266.jpg)
![IMG_1066.JPEG](/proxy/?url=https://content.instructables.com/F6H/6XRK/KQ6MPNIH/F6H6XRKKQ6MPNIH.jpg&filename=IMG_1066.JPEG)
![IMG_1050.JPEG](/proxy/?url=https://content.instructables.com/FXL/QZZZ/KQ6MPNI0/FXLQZZZKQ6MPNI0.jpg&filename=IMG_1050.JPEG)
![IMG_1052.JPEG](/proxy/?url=https://content.instructables.com/FPO/URDX/KQ6MPNI4/FPOURDXKQ6MPNI4.jpg&filename=IMG_1052.JPEG)
![IMG_1062.JPEG](/proxy/?url=https://content.instructables.com/FNA/71DN/KQ6MPNIE/FNA71DNKQ6MPNIE.jpg&filename=IMG_1062.JPEG)
![IMG_1055.JPEG](/proxy/?url=https://content.instructables.com/FUU/YEMX/KQ6MPNI7/FUUYEMXKQ6MPNI7.jpg&filename=IMG_1055.JPEG)

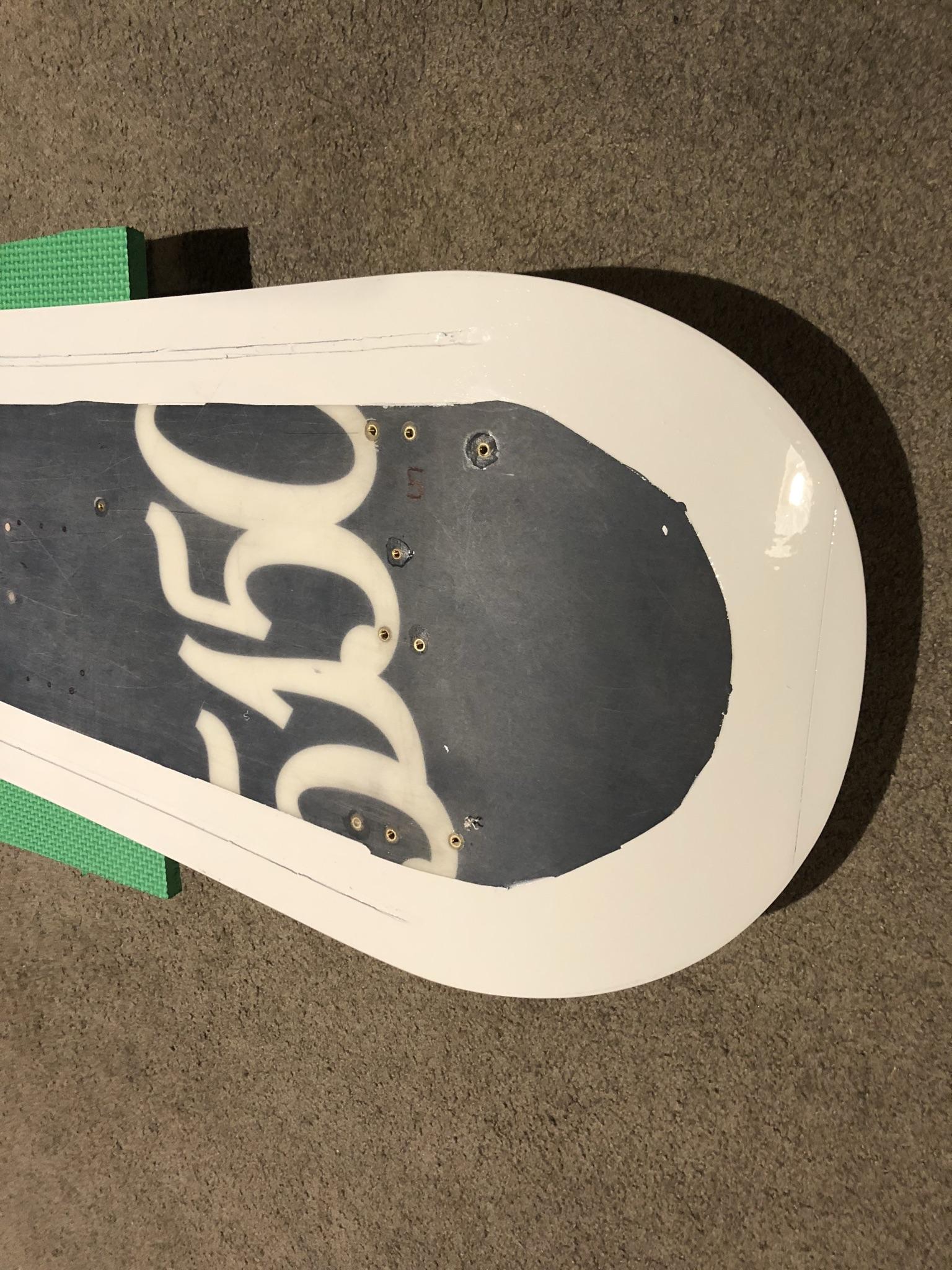

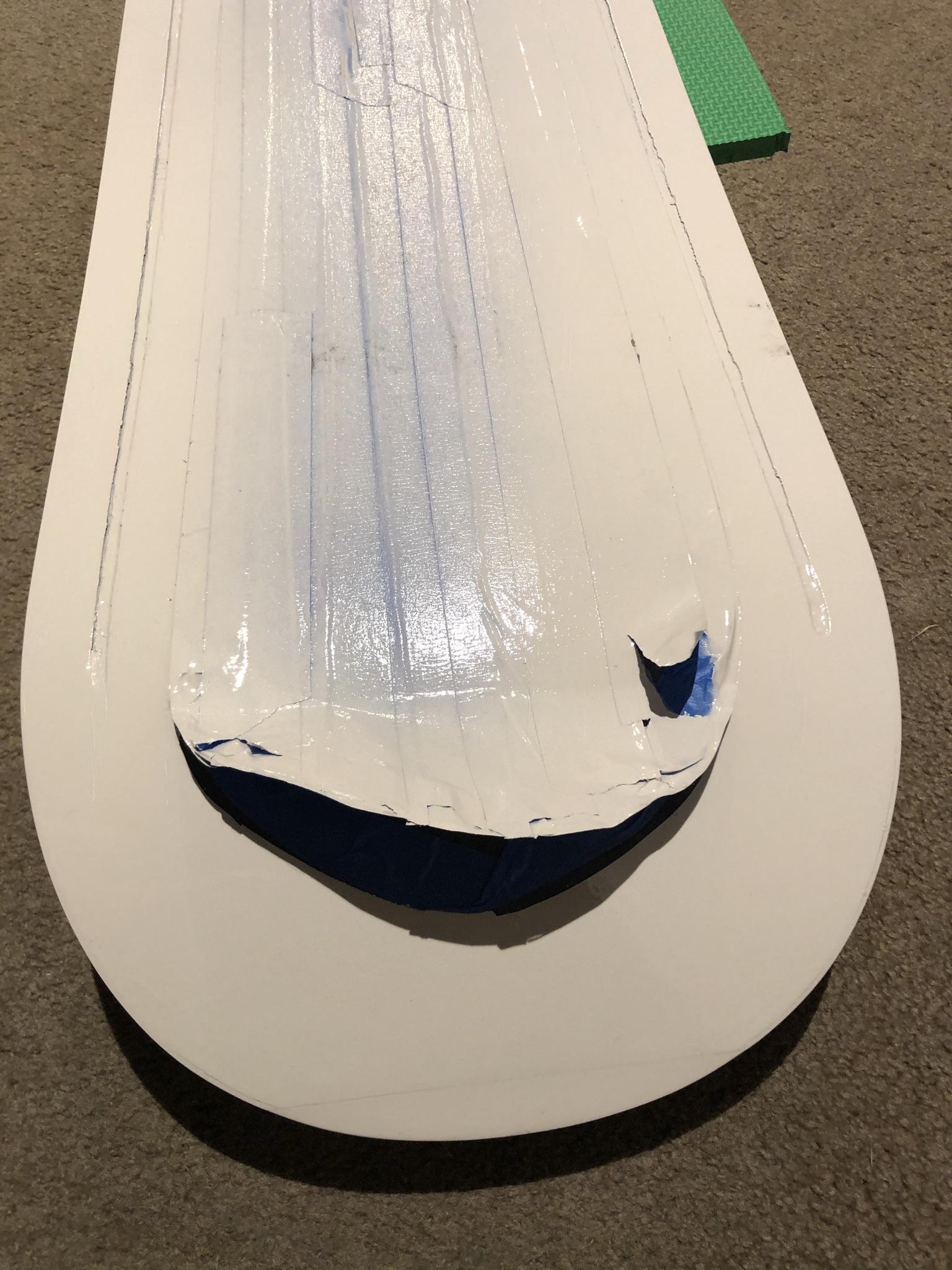

the first thing do do was to find a suitable snowboard and strip it back removing damaged and chipped paint etc. sanding to remove dirt rust and scratches caused by years of fun
