LED Beaded Curtain

by bekathwia in Circuits > LEDs

12040 Views, 120 Favorites, 0 Comments

LED Beaded Curtain

Pretty 3.jpg
curtain pretty.jpg

I built a flexible screen in the form of a beaded curtain encrusted with LEDs that I control remotely. I’ve had this project on my list for quite some time, and the idea is simple: run lots of LEDs in vertical strips, enough to form a curtain.

Supplies

04_LED strands.jpg
Aug-02-2023 09-07-55.gif

I used a PixelBlaze wifi microcontroller, so I can control the animations remotely on my computer or phone.

I started with an existing beaded curtain to use as my substrate. I figured I could use the bead strands to attach the LEDs, so they don’t have too much strain.

Here’s what I used to make this project:

If you’re a beginner, don’t miss my introductory electronic series on the Digi-Key YouTube channel. It’ll bring you up to speed on the wiring and soldering techniques you’ll need to build your own LED curtain.

Watch the Video

I made my own LED beaded curtain

I made a video about the full process for making this curtain on my YouTube channel. Check it out to see the process step-by-step!

Wiring the LEDs

05_wiring sketch.jpg
06_big black clips.jpg
08_secondary power.jpg
09_thread trimming.jpg
Existing curtain attach leds.gif

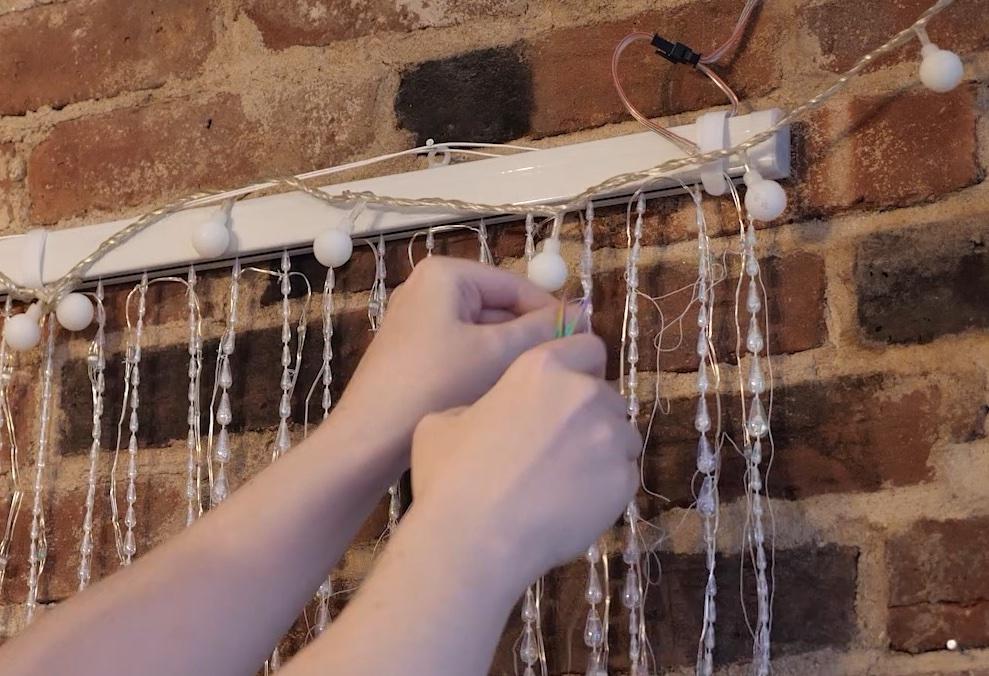

Ideally, there would be a bunch of strands coming down from the top. But these pixels are best wired in a single data chain, so that would require soldering at the top of each strand, as well as a long data wire connecting the end of each strand to the top of the next.

I opted to wire mine in a zigzag pattern, linking two strands at the bottom as well as the top. The strands are pretty close together, which makes for the least soldering possible– only where it’s needed to connect the termination of one strand with the beginning of another. That’s just because I don’t like the look of the big black clips.

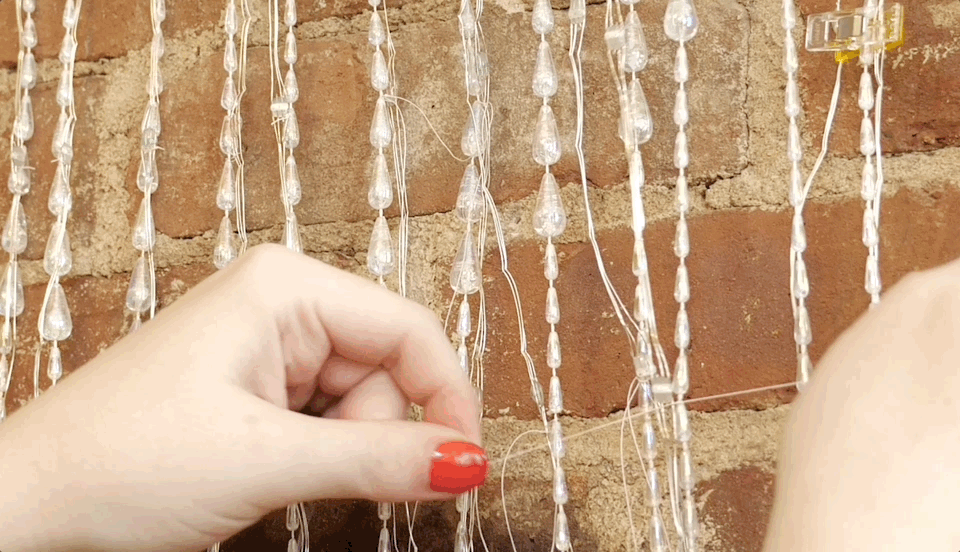

I attached the LED strands to the beaded strands with plain sewing thread, tying individual double knots around one or more of the wires as well as the string in between the beads.

I had to set up my soldering iron nearby the curtain and make sure to attach the next strand before the end of the previous one gets too short, or it wouldn’t reach. This process was not too quick, but it was fun to toil over while the LEDs were on. I attached a secondary power and ground to the end of the last LED strand, then connected up all the LEDs to test them and double-check that everything was getting enough power.

Off-the-shelf Curtain Comparison

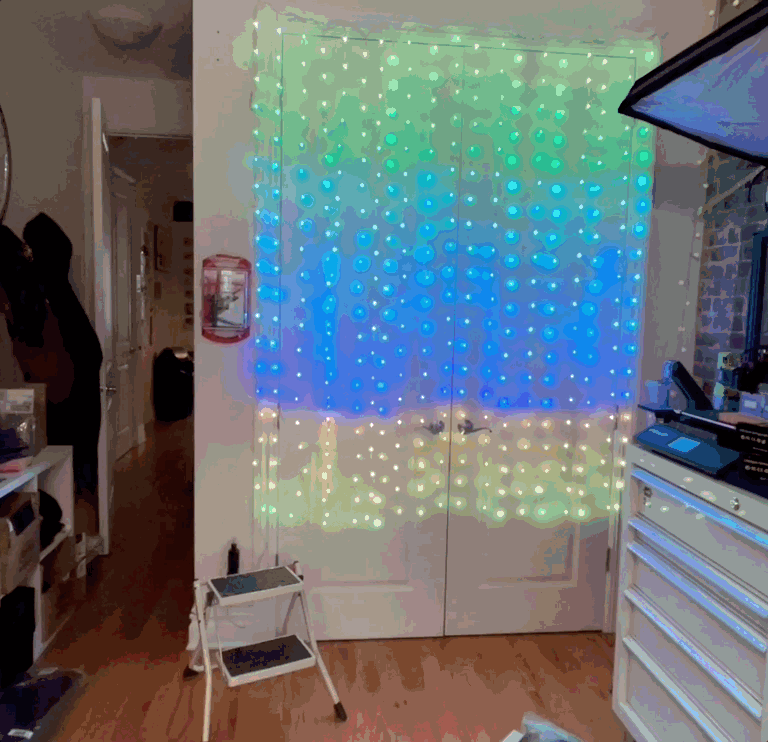

premade curtain.gif

When I put this project on my long list of things to make, I could swear there weren’t readymade LED screen-like curtains available for purchase, but now there are.

So if you are satisfied with the size and the animations that come preloaded on this thing, maybe buy the off-the-shelf version. But if you want to make entirely custom and very sophisticated-looking animations, the handmade one has the advantage.

Hang & Enjoy Your Curtain!

showcase curtain.gif
walking through.gif

After hanging it in the doorway and trying it out, it’s pretty obvious that the connections at the bottom impact the ease of walking through it. This could be mitigated by tying threads in between connected strands every so often, so the two strands pull apart more as one. Or just use it against a flat surface like a window instead of a doorway.

But it is successful by the metric of projects my 13 year-old self would love.

If I were to take this further, I might try to reverse-engineer the store-bought version to see if it’s possible to replace the microcontroller. Then I’d have the best of both worlds with purpose-built function and high-class algorithmic fashion.
