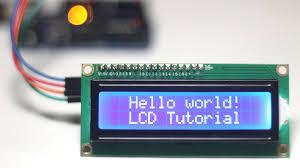

LCD Arduino Sign


Dr. White needs a way to make a Arduino welcome sign because he needs a way to show other students what Computer Science involves.

Supplies


Arduino Uno, LCD screen, Male to Female wires, USB 2.0 Cable Type A/B

https://store-usa.arduino.cc/products/arduino-uno-rev3

https://www.amazon.com/HiLetgo-Display-Backlight-Controller-Character/dp/B00HJ6AFW6/ref=sr_1_1_sspa?crid=1EJ3FO9TAWMBE&keywords=lcd+display+arduino&qid=1667945106&sprefix=LCD+dis%2Caps%2C177&sr=8-1-spons&psc=1

https://www.amazon.com/GenBasic-Solderless-Dupont-Compatible-Breadboard-Prototyping/dp/B01L5UKAPI/ref=sr_1_3?keywords=male+to+female+jumper+wires&qid=1669671173&sr=8-3

https://store-usa.arduino.cc/products/usb-2-0-cable-type-a-b

Downloads


Prototype- Open Tinkercad

Tinkercad Screen shot.png
Tinkercad Screen shot new circuit.png

Log in/ Sign up to Tinkercad. In the upper right hand corner, select "new" and then select "circuit".

Prototype- Design

Tinkercad Screen shot search bar.png
Tinkercad Screen shot LCD.png

In the search bar, type in "LCD". In the results under starters, select and drag "LCD" onto the workspace.

Code A

Tinkercad Screen shot select code.png
Tinkercad Screen shot change text.png

In the upper right hand corner, select "code". If desired, change the wording on the screen by typing in different messages.

Code B

Tinkercad Screen shot code block.png
Tinkercad Screen shot Block and text code.png

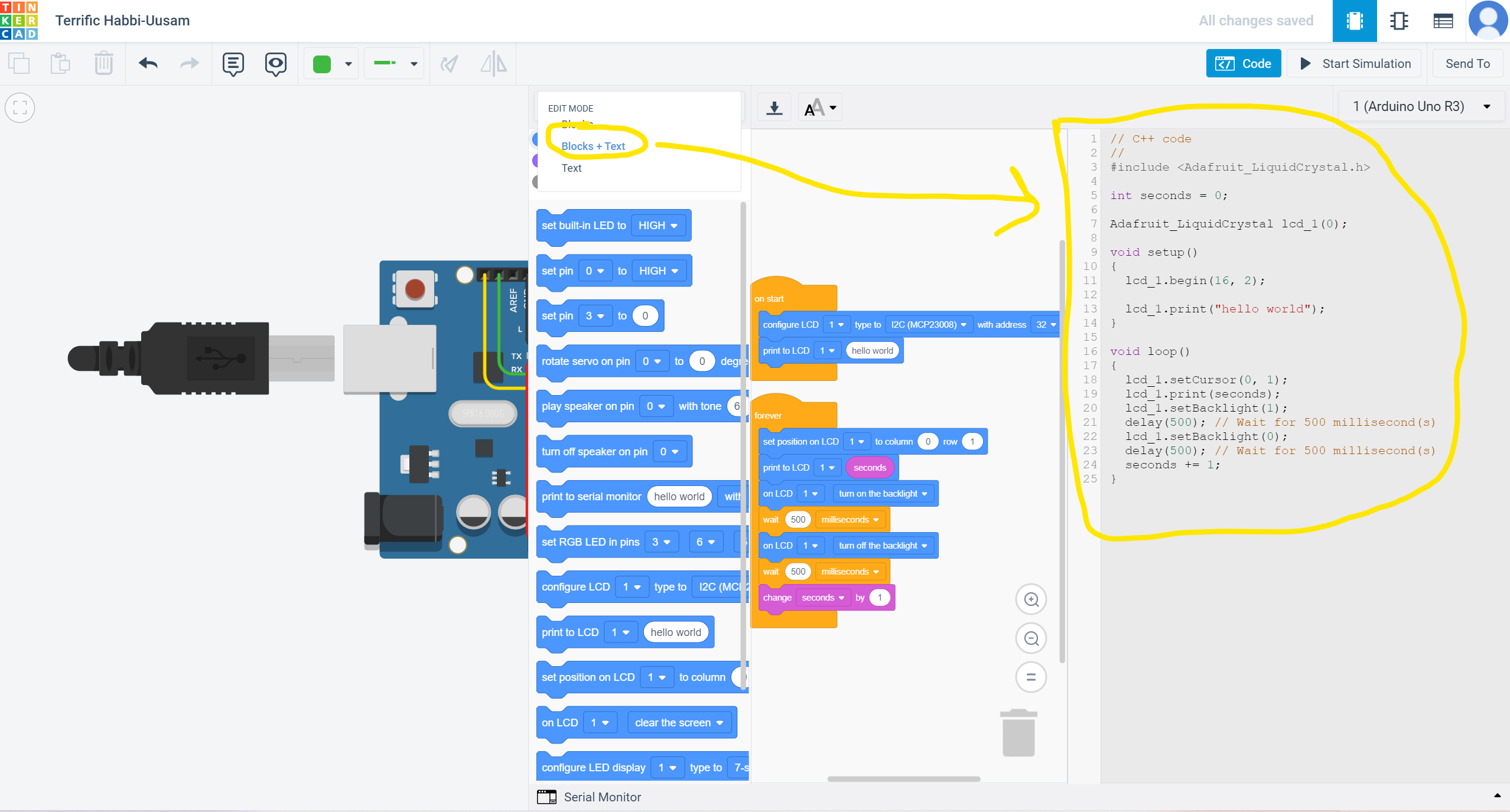

Above the six colored circles, select "Blocks". Then select "Blocks + Text".

Code C

Code select arduino.png
Tinkercad Screen shot Code to arduino.png

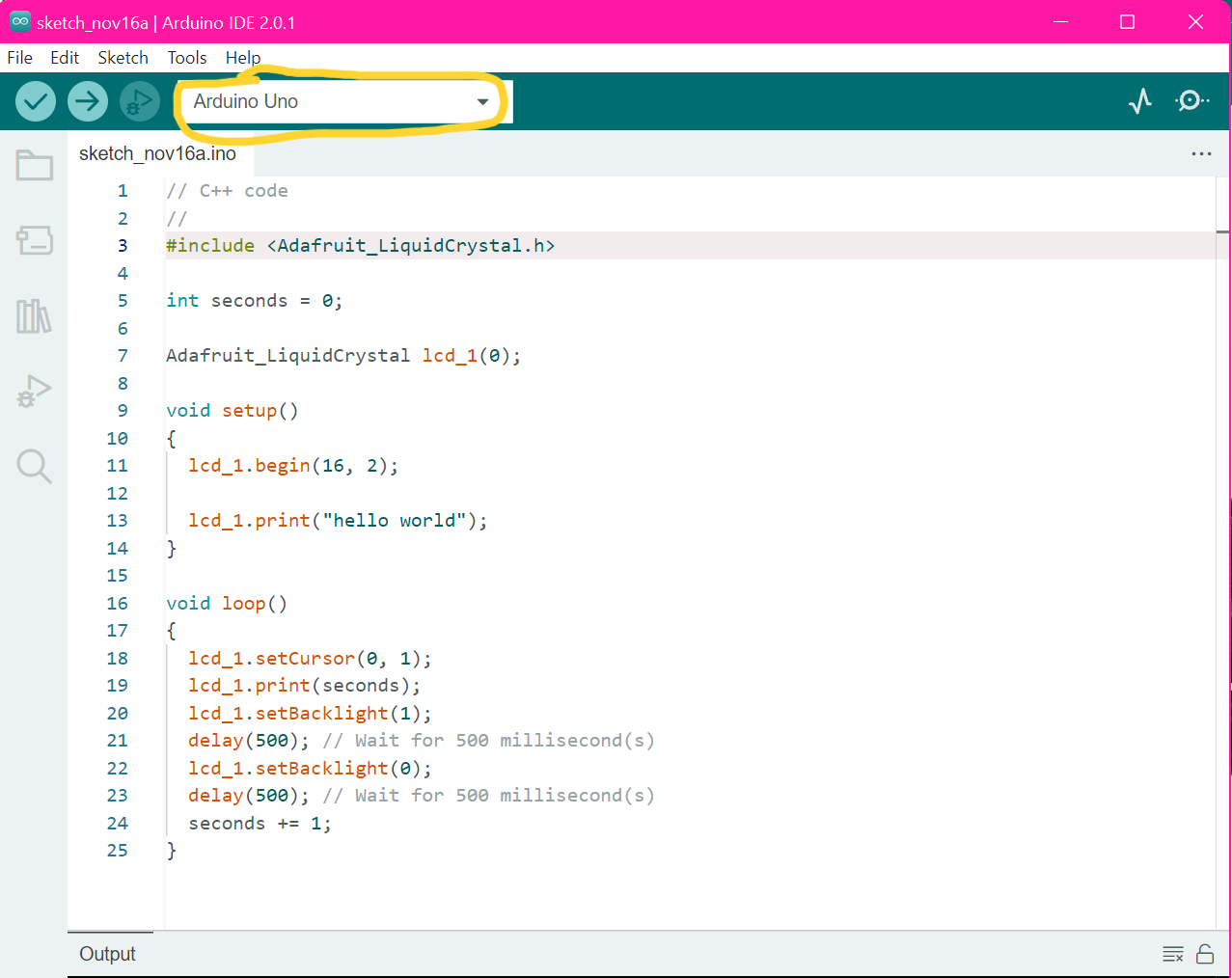

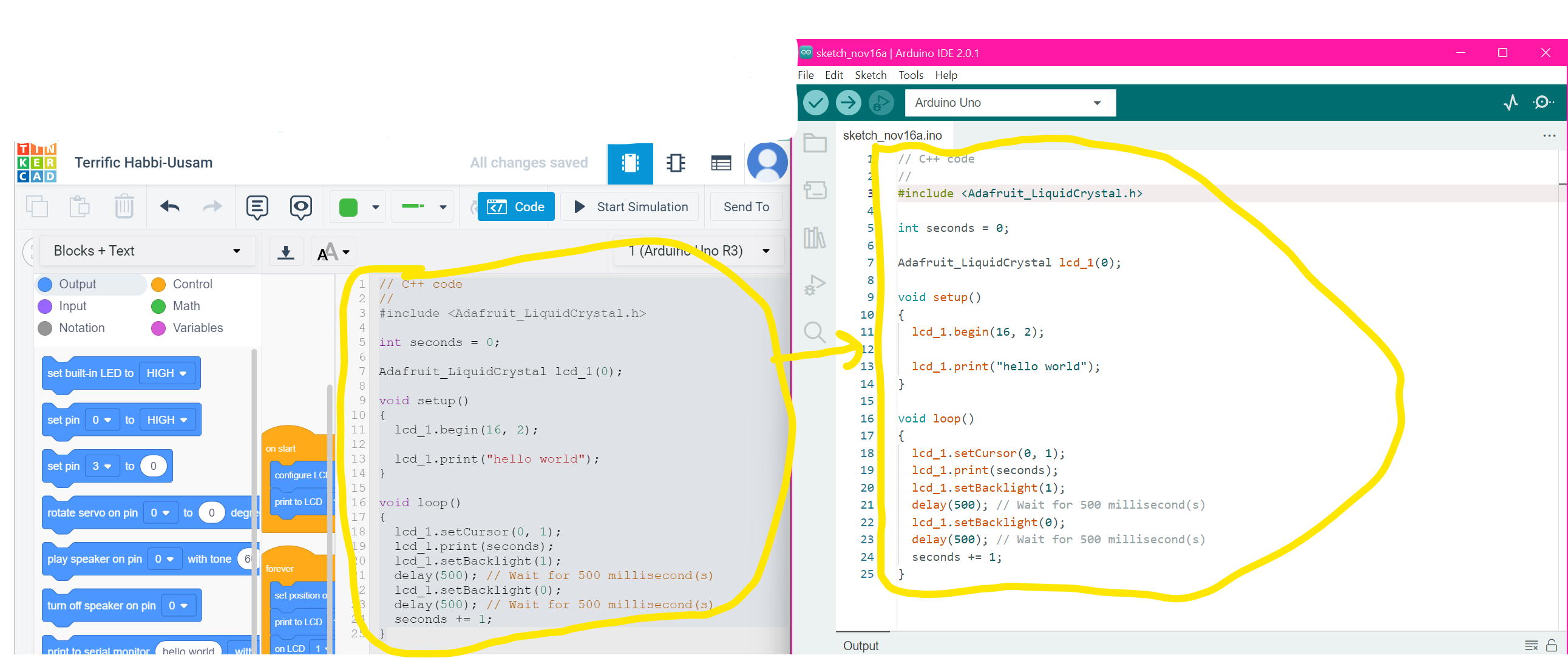

Download the Arduino IDE. At the top, there is a drop down box. Select Arduino Uno. Copy and Paste the code into Arduino. Hold on to that for a minute.

Build

Arduino Prototype.jpg

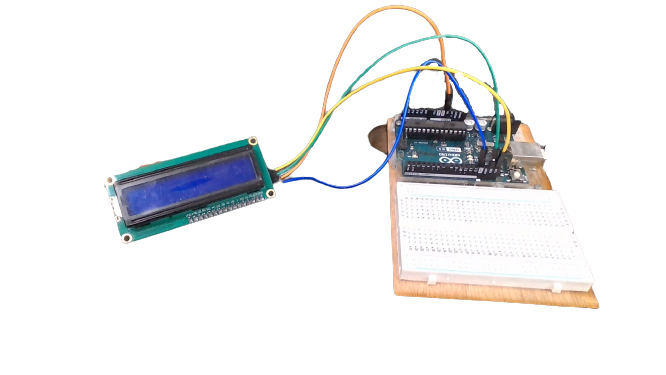

Gather 4 Male to Female wires, the Arduino Uno, and the LCD screen. Set them up just like you did the Tinkercad.

Attach

Arduino Plug in.jpg

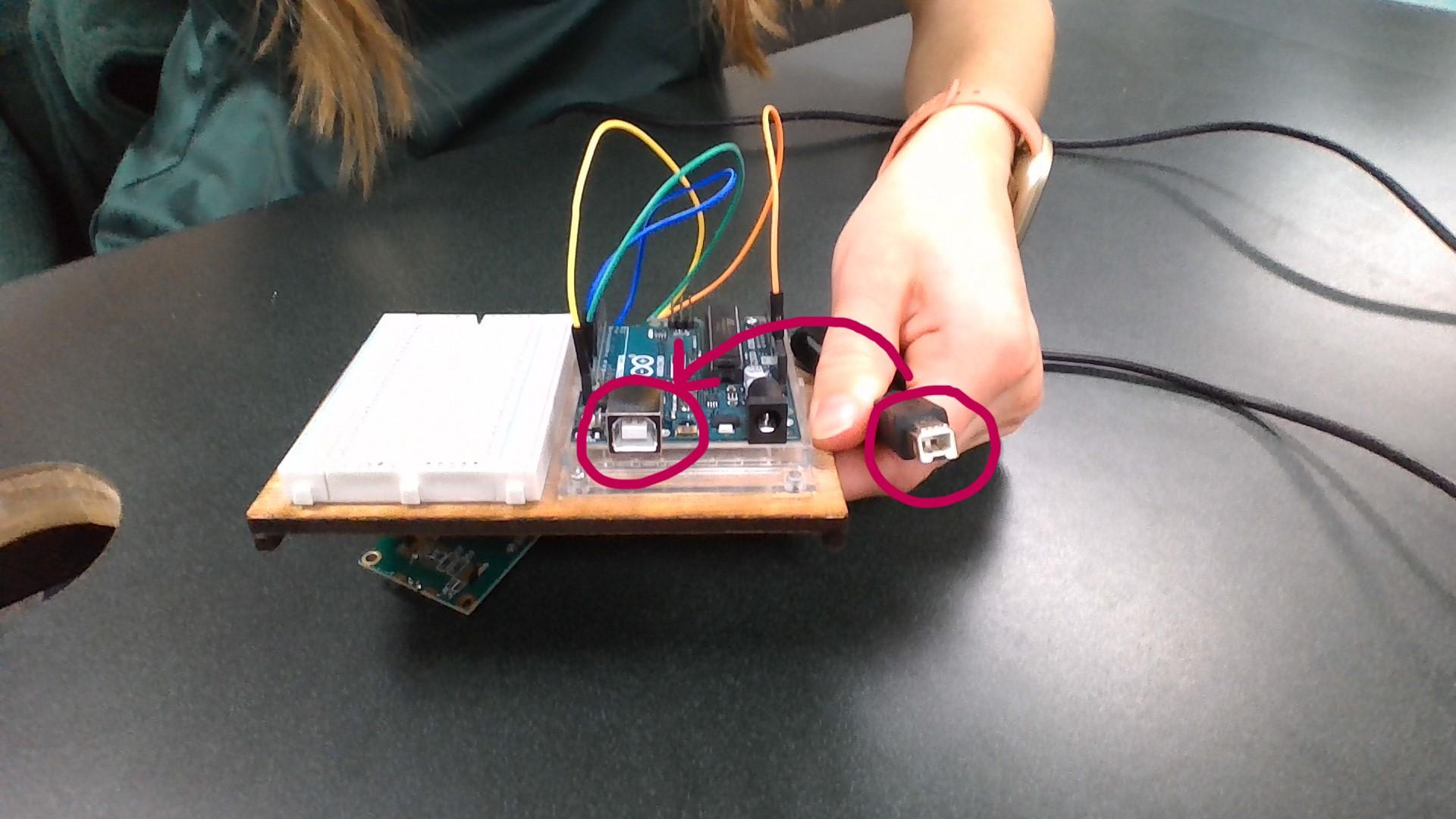

Plug the hexagonal side of the USB cable into the Arduino and plug the other side into the USB port in your computer.

Final

Code Final.png
LCD screen.jpg

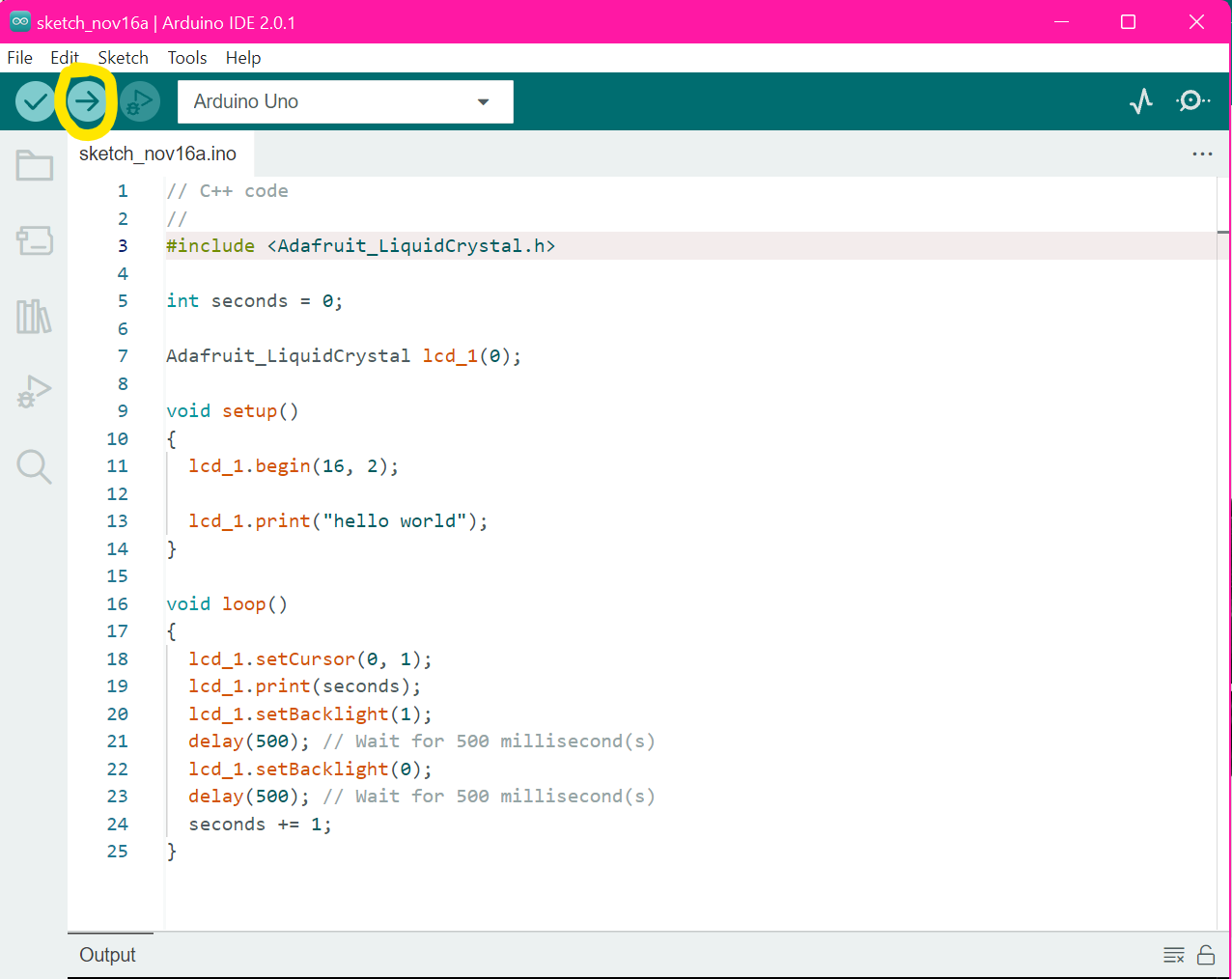

Once the Arduino is set up and it is plugged into your computer, go back to Arduino IDE. In the upper left hand corner select the blue arrow. Tada! You have made an Sign on an LCD screen using an Arduino!
