LA4160 IC POWER AMPLIFIER

INTRODUCTION:

In this Instructables I am going to make an audio power amplifier using LA4160 IC. LA4160 IC is an monolithic integrated circuit that contains pre amplifier, power amplifier and ALC (Automatic Level Control) circuit. In order to make an audio power amplifier, we can use the power Amplifier block of this IC to make an audio power amplifier.so Let's get started!

Pin Map of LA4160 IC:

1. Power Amp Output
2. Bootstrap
3. Power Amplifier Negative Feedback
4. Power Amplifier Input
5. Automatic Level Control Input
6. Pre Amplifier Output
7. Phase Compensation
8. Pre Amplifier Negative Feedback
9. Pre Amplifier Input
10. Automatic Level Control Output
11. Pre Amplifier Ground
12. Decoupling Capacitor -1
13. Decoupling Capacitor -2
14. Vcc

Block Diagram of LA4160 IC:

Block Diagram of LA4160 IC is given on the step -1

BLOCK DIAGRAM OF LA4160 IC

The block diagram of LA4160 IC has been given the following image. Having a look at the block diagram

You Can download This Schematic diagram if you want to make it.

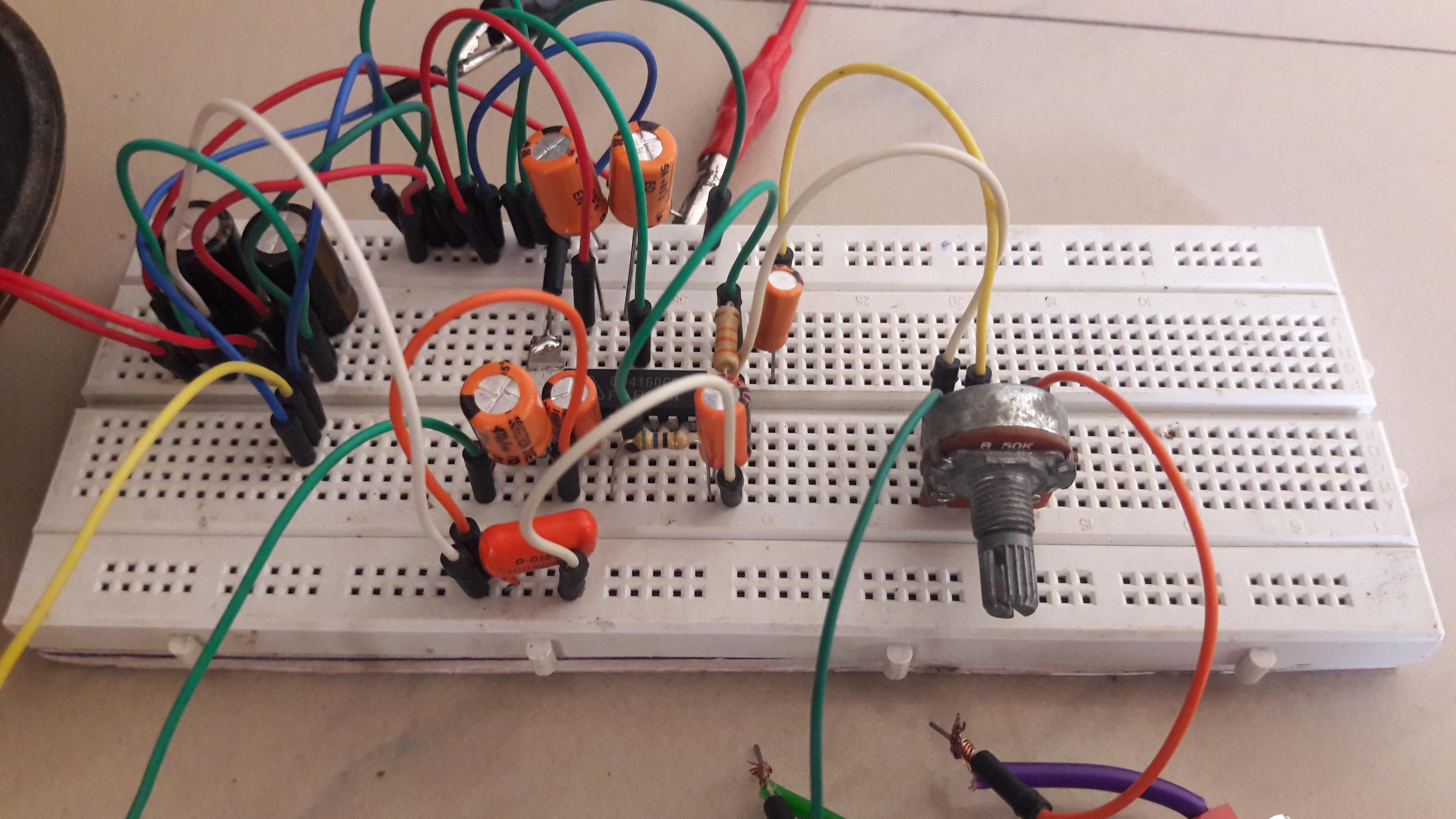

you can watch my pictures carefully if you want to make it.
