Knife Grinding Jig

I made the jig to achieve consistent grinds on both sides of the knife without having to reposition the blade, the jig has a definite location point

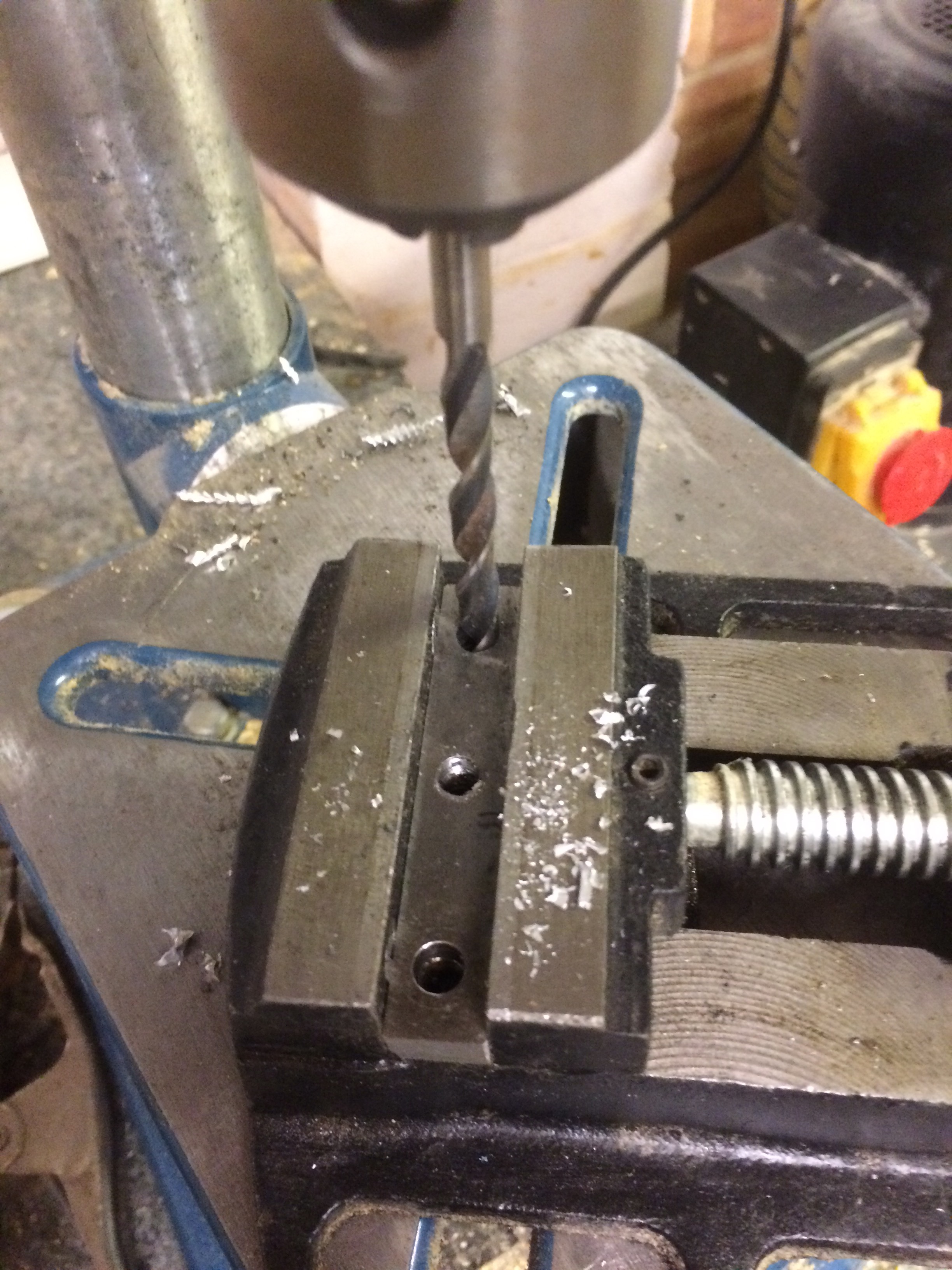

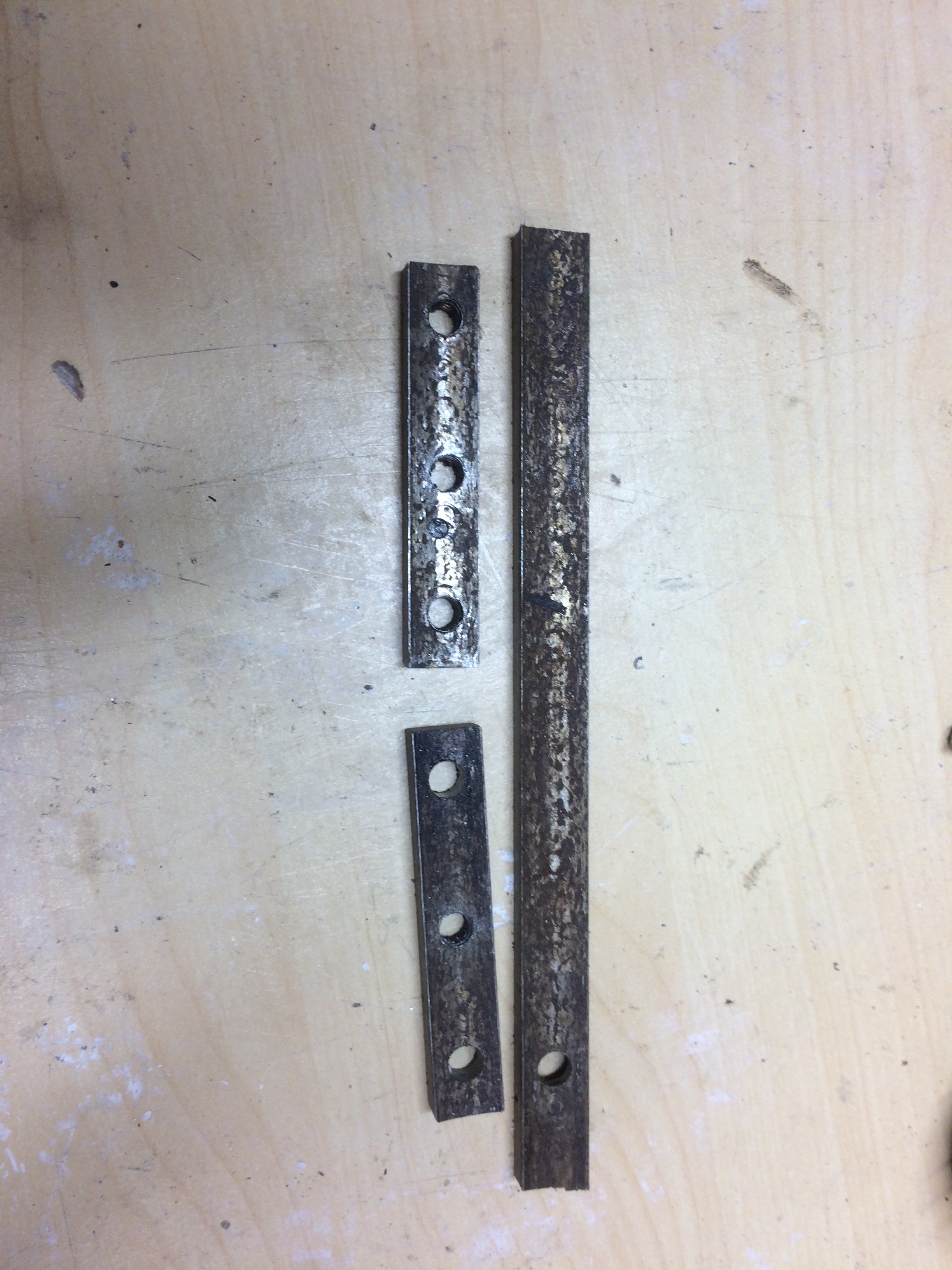

I used 12 x 6 mm bar cut to 64mm and drilled 3 holes at 5mm and tapped the middle hole through both bars and then tapped the holes on the ends on on piece only.

I enlarged the holes on the other bar so that the bolts would go through one bar and thread into the other

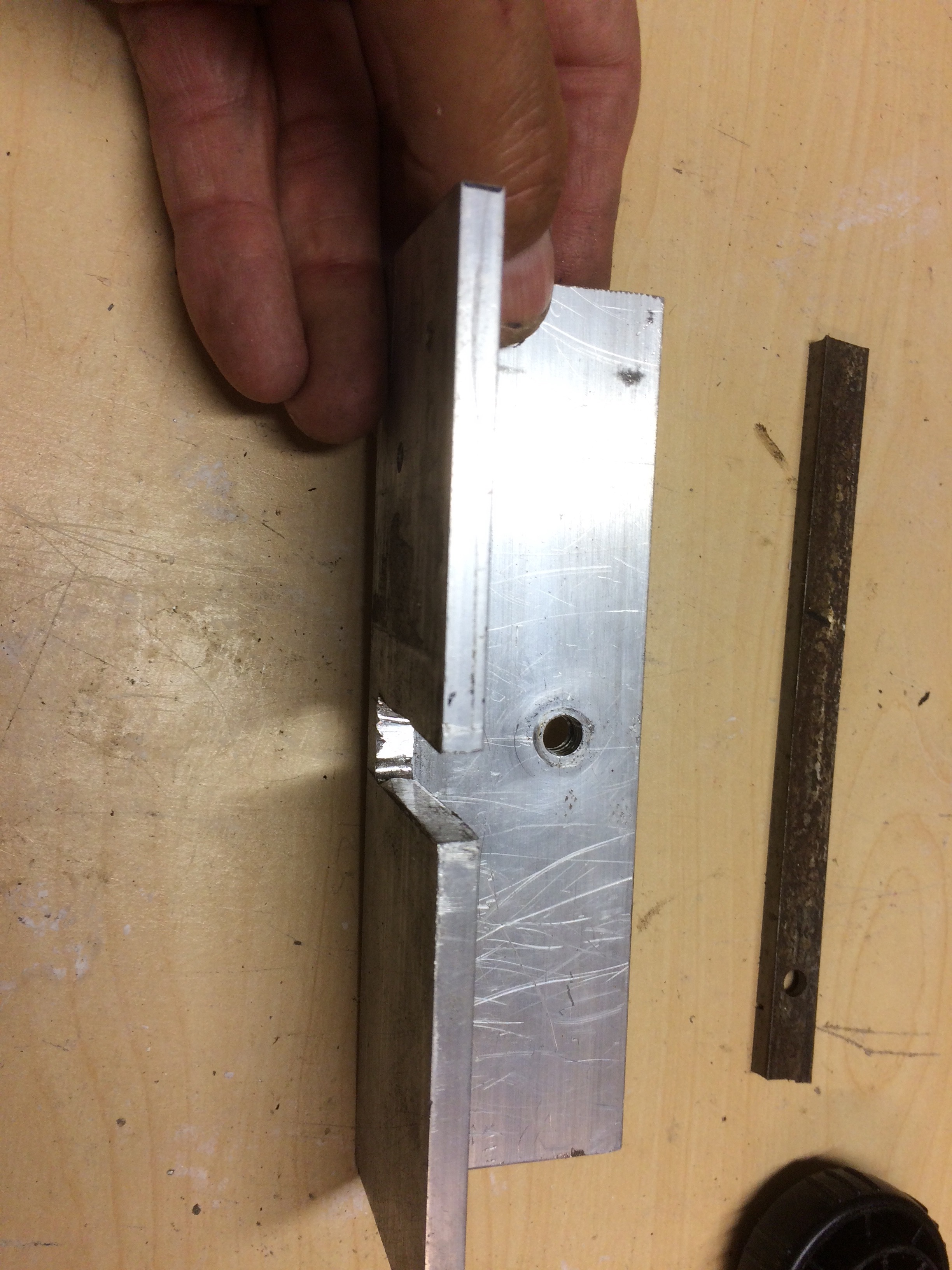

I cut a slot in the middle of a piece of 50x50x5mm aluminium angle corresponding to the size of the bar knife holder and drilled and tapped a M8 hole for the angle grind adjustment.

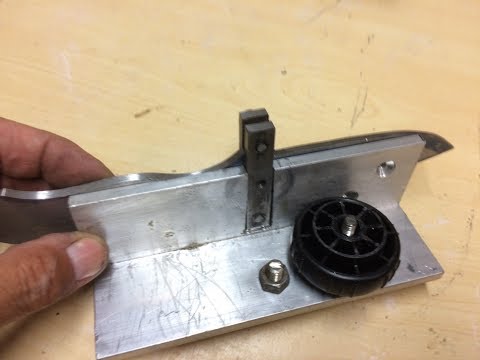

second photo of the knife blank fitted in the slot

need enough thread so it clamps knife to angle Jig without touching the knife
