Knex Rail Car and Track

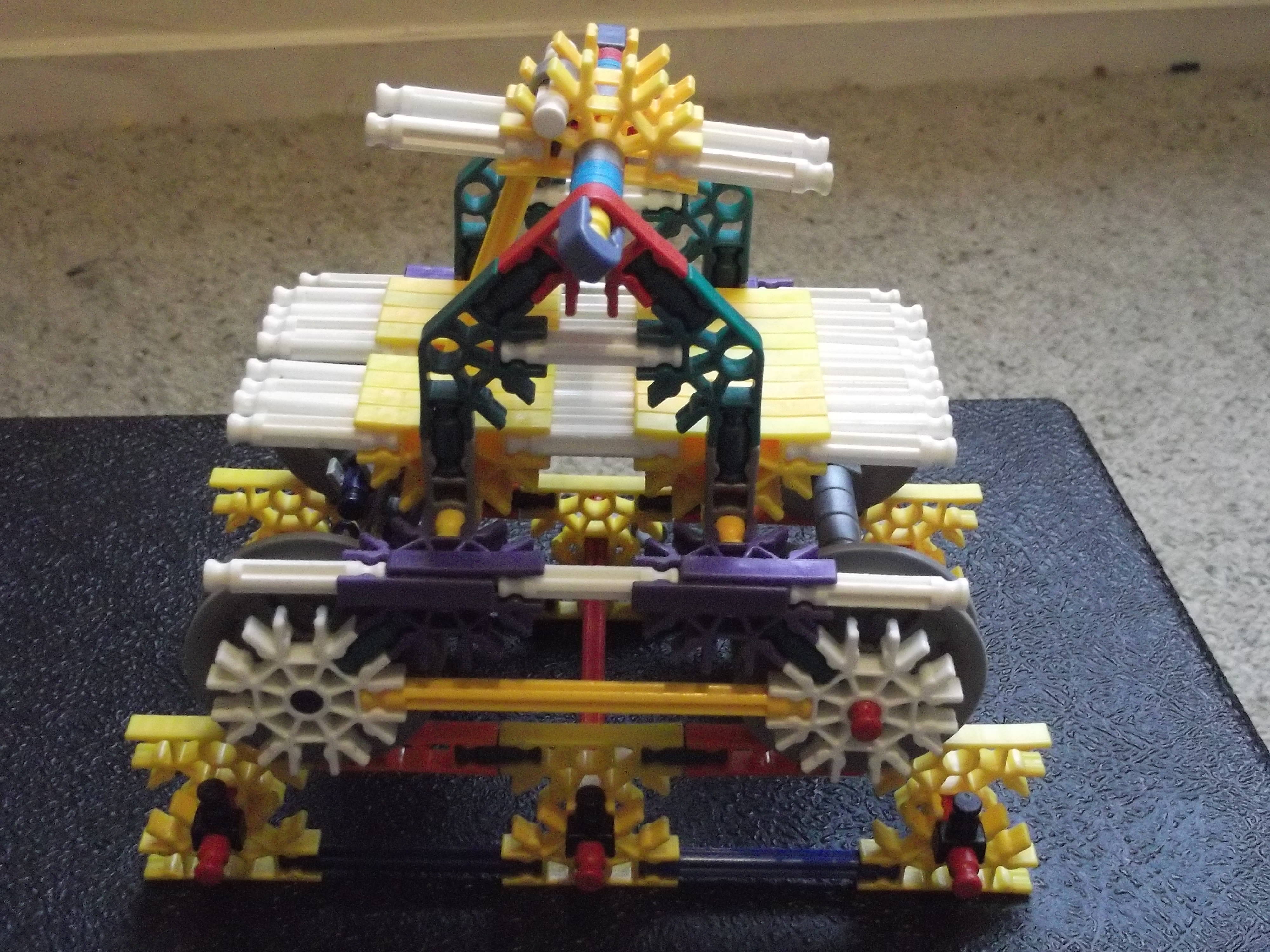

A small functional K'nex rail car/ jigger with track.

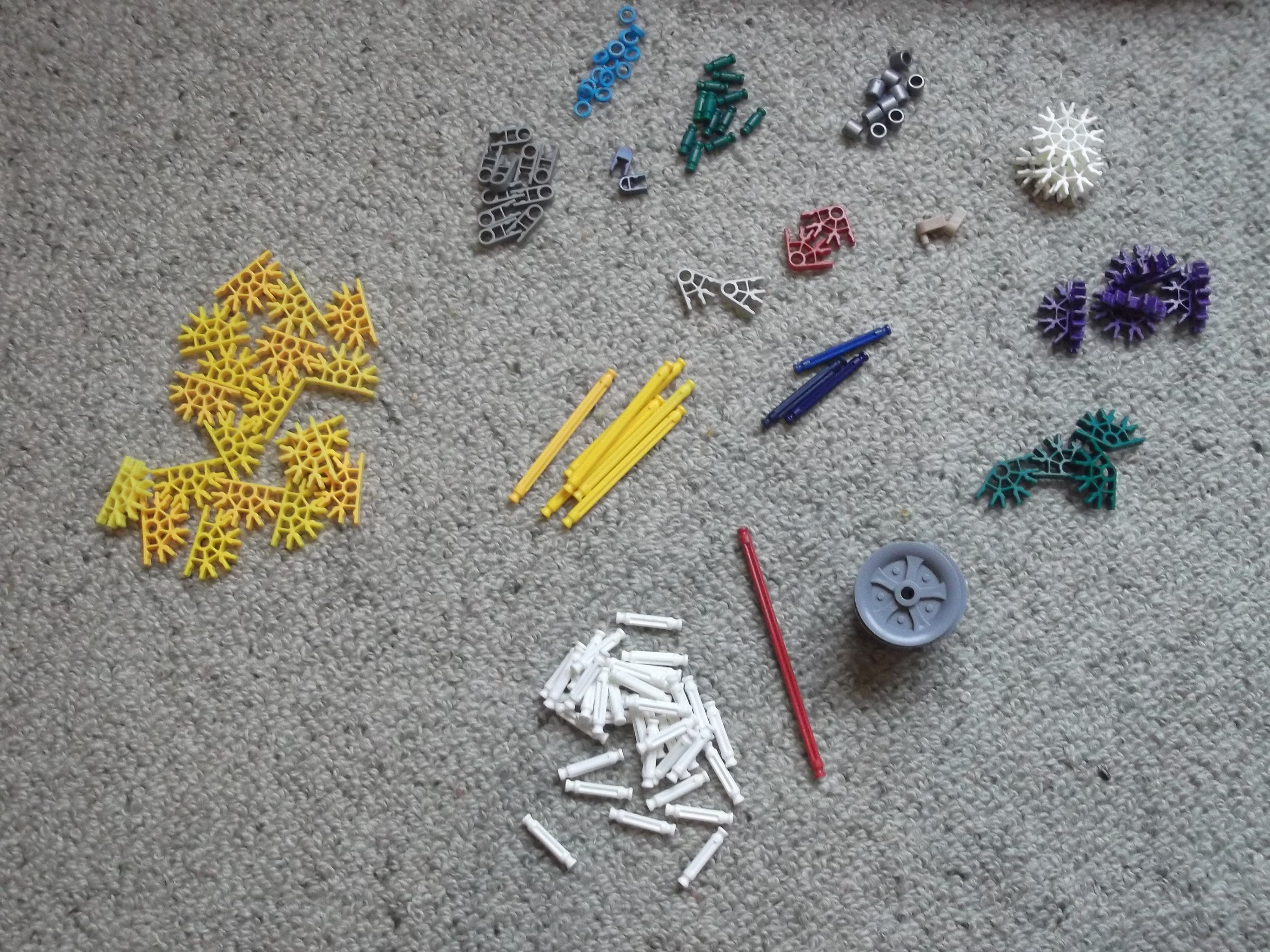

Piece List
JIGGER
Connectors:
Green: 4
Red: 2
Dark Grey: 10
Light Grey: 2
Purple: 8
Tan: 2
Yellow: 19
Light Blue: 2
White: 4
Rods:
White: 38
Blue: 3
Red: 1
Yellow: 6
Green: 12
Washers/Wheels:
Blue: 16
Silver: 10
Medium Wheels: 4
(No tyres)
TRACK (Per section)
Connectors:
Yellow: 4
Black Y: 1
Orange: 2
Dark Grey: 1
Rods:
Red: 1
Green: 4
Blue: 2
Connectors:
Green: 4
Red: 2
Dark Grey: 10
Light Grey: 2
Purple: 8
Tan: 2
Yellow: 19
Light Blue: 2
White: 4
Rods:
White: 38
Blue: 3
Red: 1
Yellow: 6
Green: 12
Washers/Wheels:
Blue: 16
Silver: 10
Medium Wheels: 4
(No tyres)
TRACK (Per section)
Connectors:
Yellow: 4
Black Y: 1
Orange: 2
Dark Grey: 1
Rods:
Red: 1
Green: 4
Blue: 2

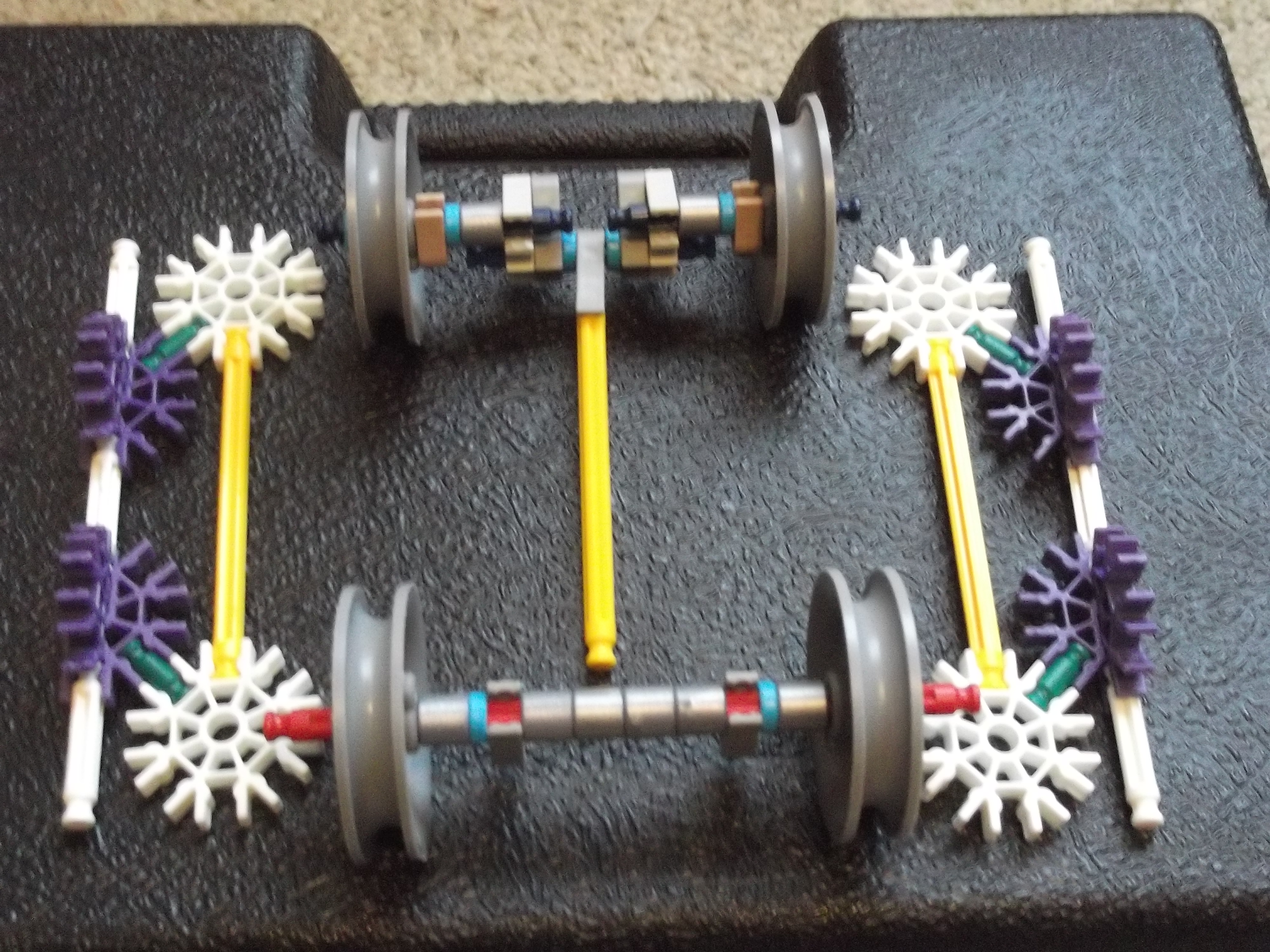

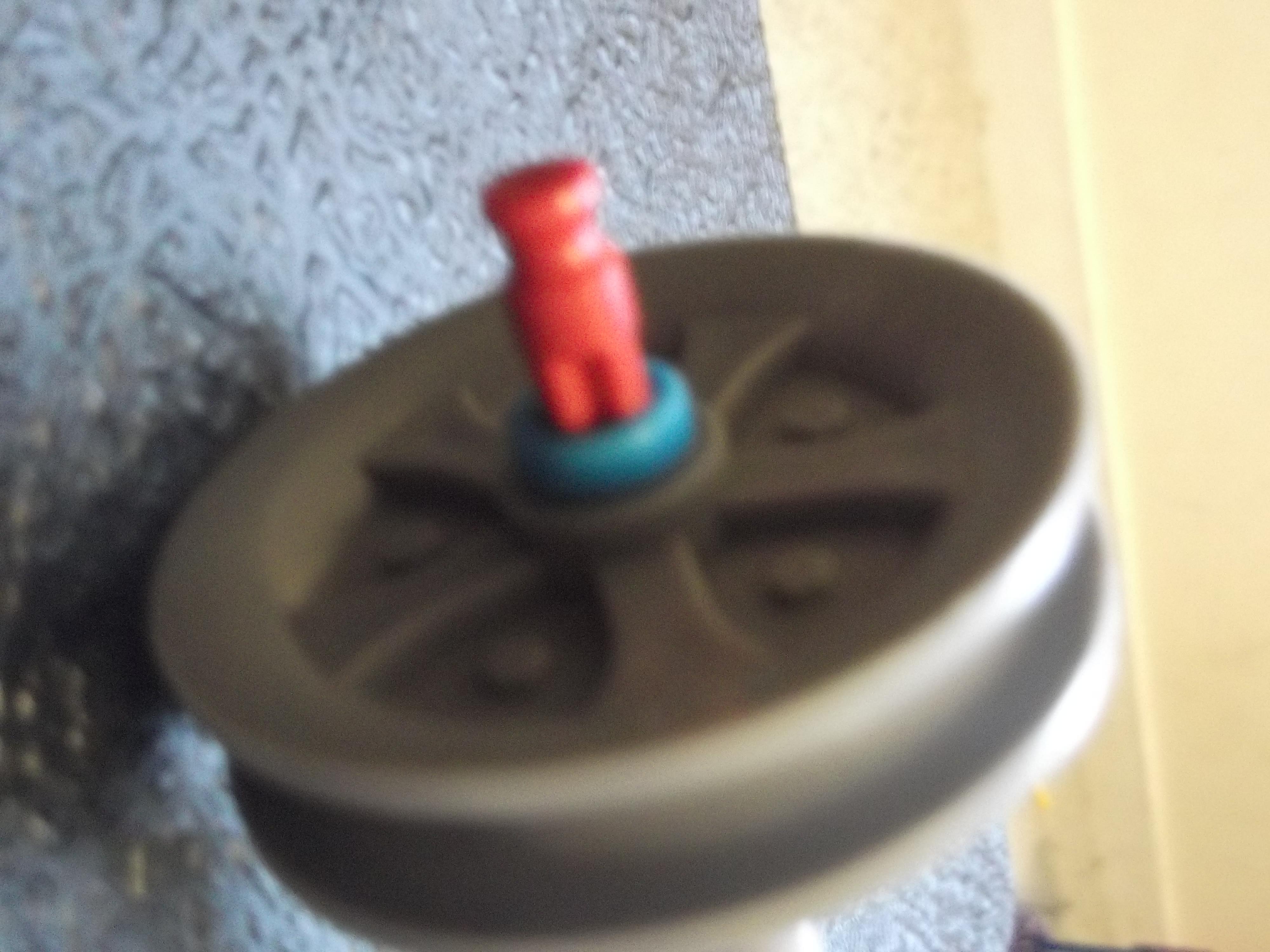

Assembling the crankshaft, axels and wheels! Pay attention to the washers!
Create-a-Chasis
Make 2
Create-a-chasis Part 2!

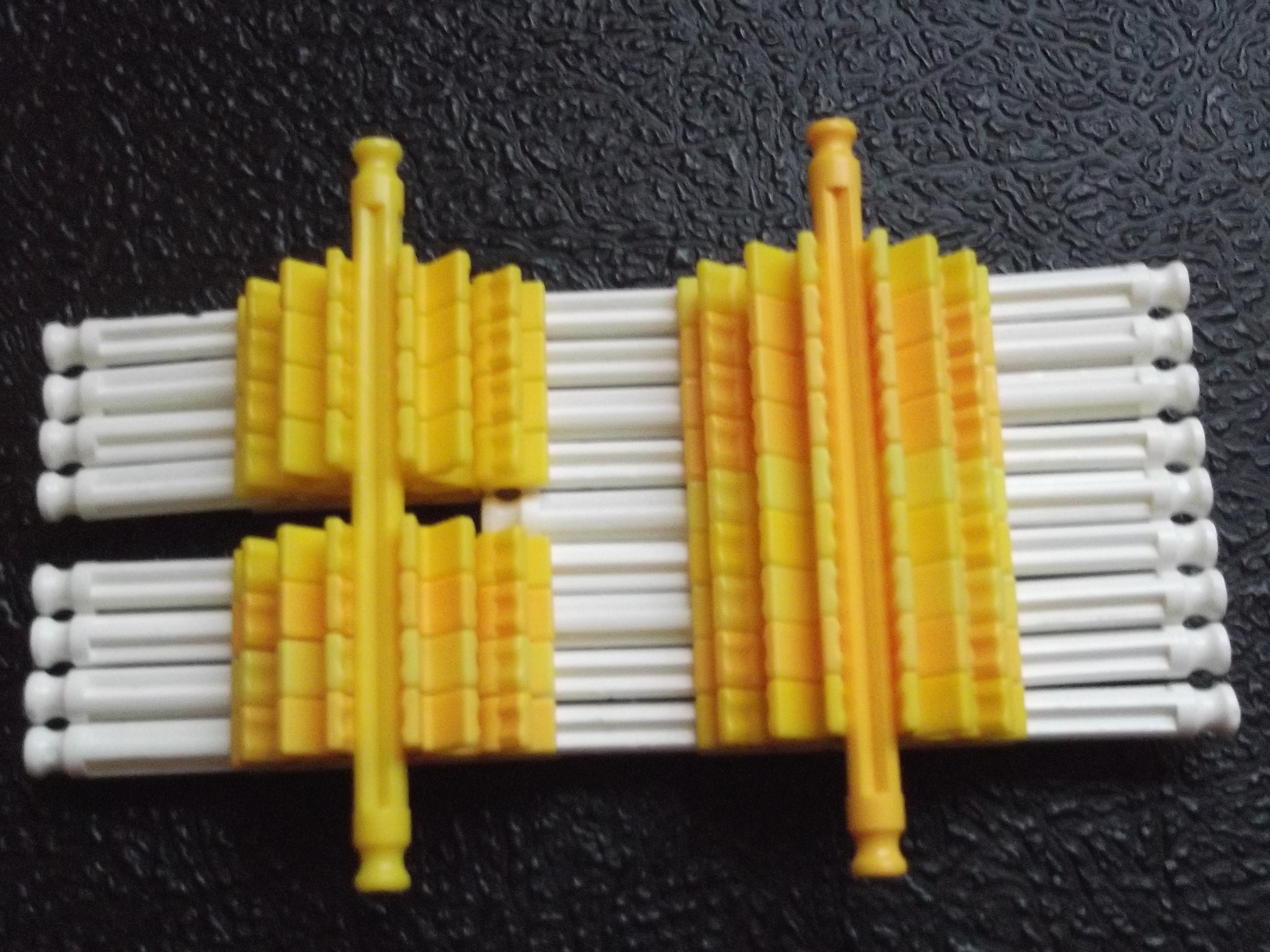

Make the deck. It is 9 connectors wide, pay attention to the gap!

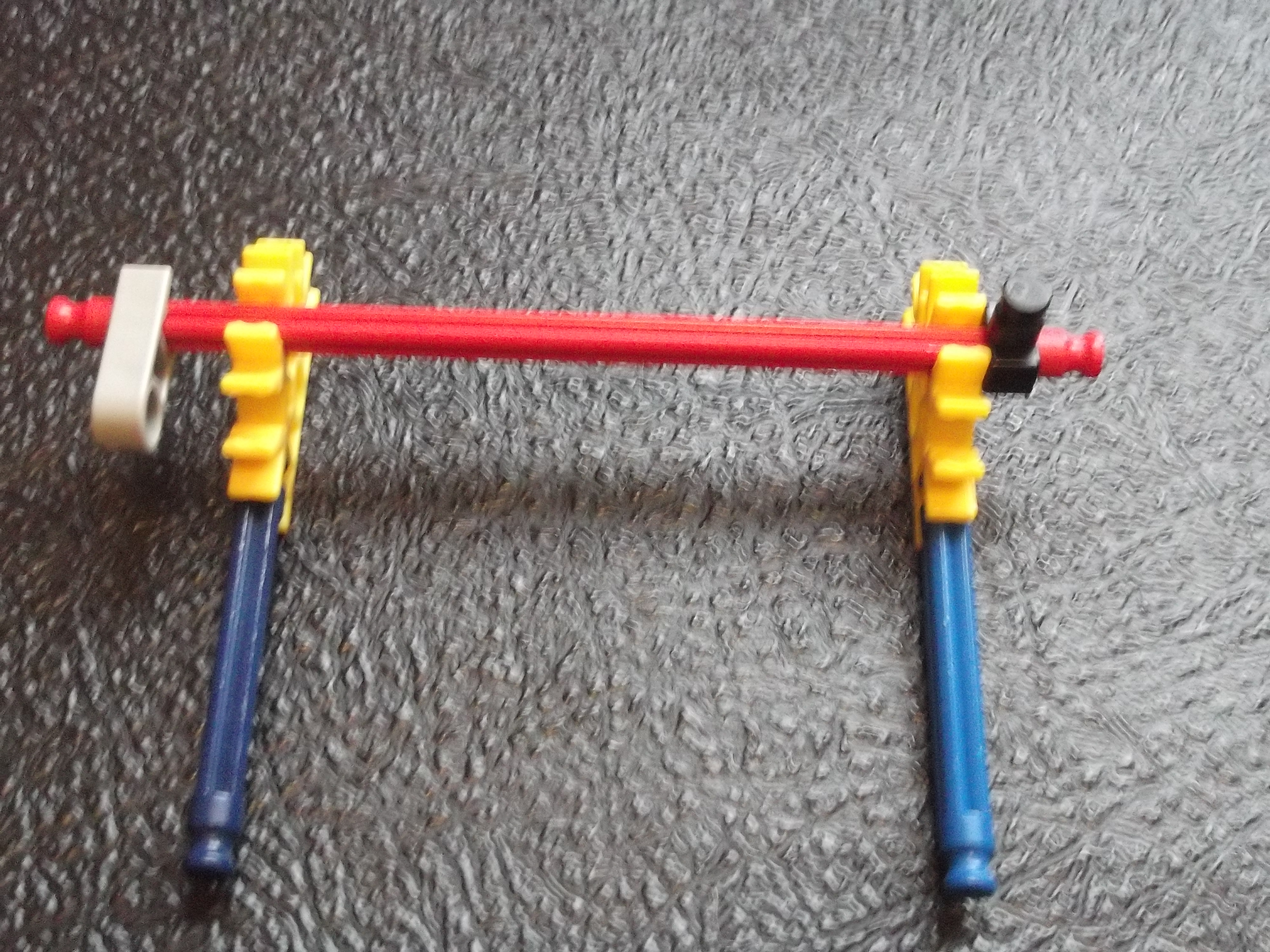

Handle Support Adn Axel!
Make 2 supports

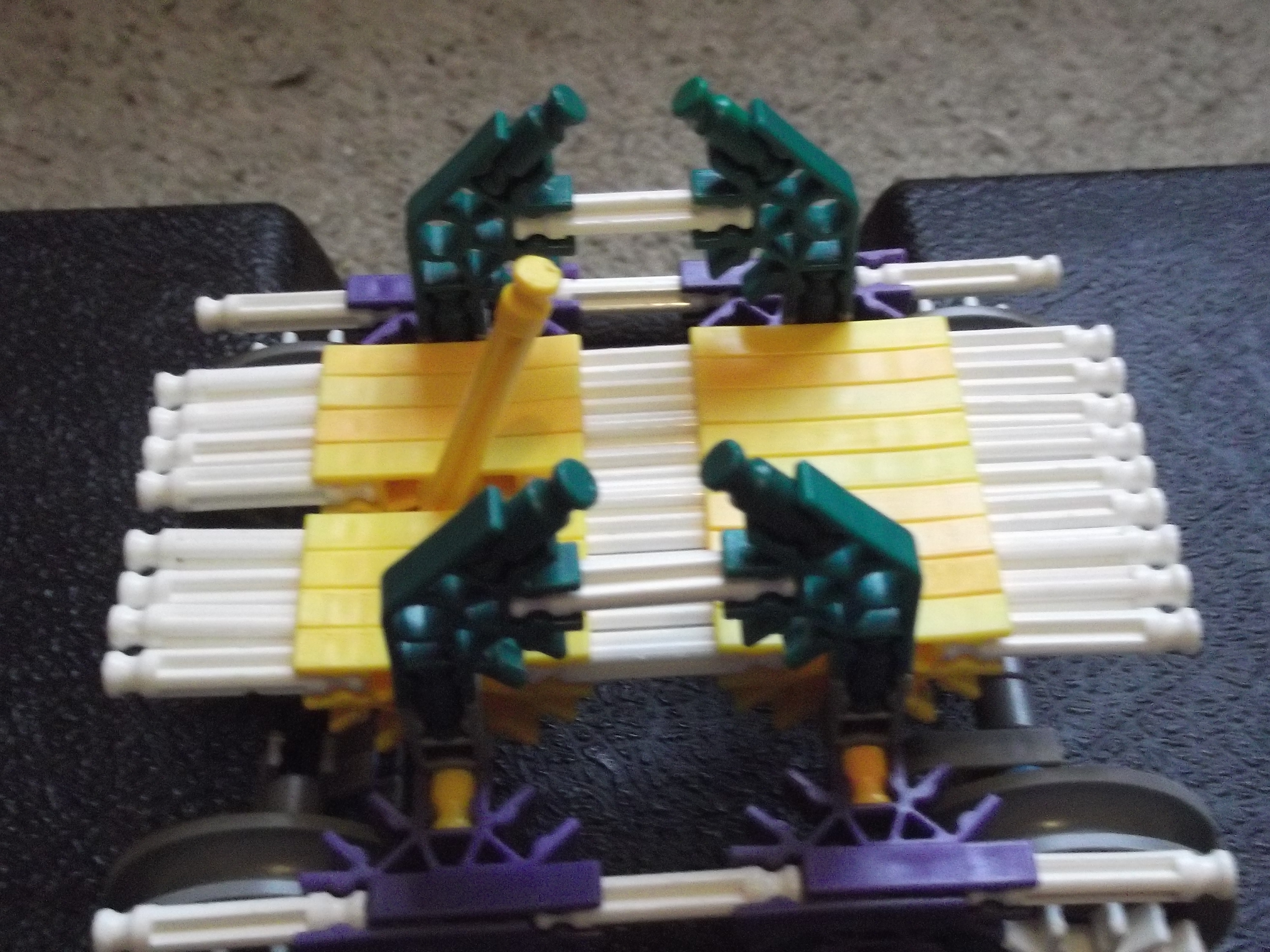

Body Building!

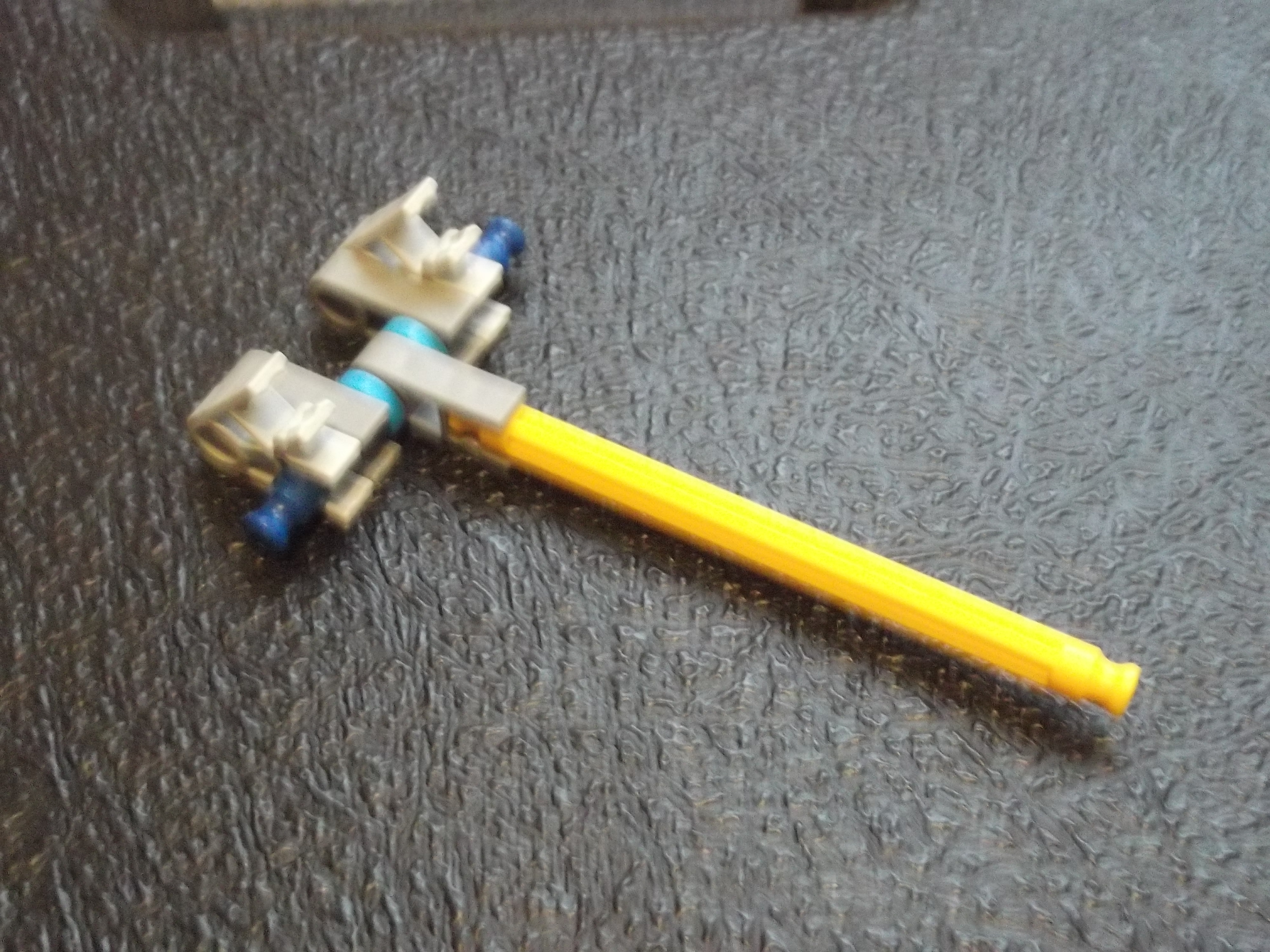

Here we will assemble the entire Jigger, Make sure you clip the rod from the crankshaft onto the grey connector on the handle
Track
These instructions describe the creation of a modular track system, easily expandable! The jigger can't corner very well and I am yet to find a decent curve :(
