Welcome to my instructable on how to build a k'nex piston!

Be sure to check out my k'nex piston version 2 also!

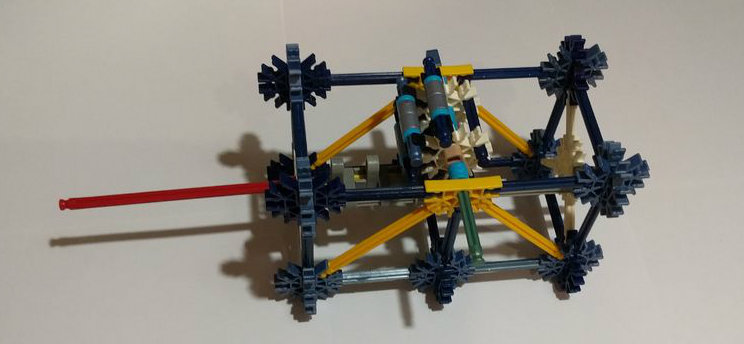

This k'nex piston converts rotational motion to linear motion. (or vice versa). This piston is able to retract/extend 65 mm (about 2.5 inches)

It has always been a challenge to create linear movement with k'nex. But no longer! I have designed a rack gear (something which k'nex should have made a long time ago in my opinion) built completely out of k'nex. A rack gear is a rod with teeth on it which allows a round gear to push the rod back and forth.

This video demonstrates how a rack gear works:

These are the parts you will need to build the piston:

4 - white circle connectors

20 - blue 3D connectors

3 - brown clips

11 - grey clips

1 - red connector

11 - black clips

12 - grey spacers

18 - blue spacers

8 - white rods

26 - blue rods

5 - yellow rods

2 - red rods

2 - grey rods

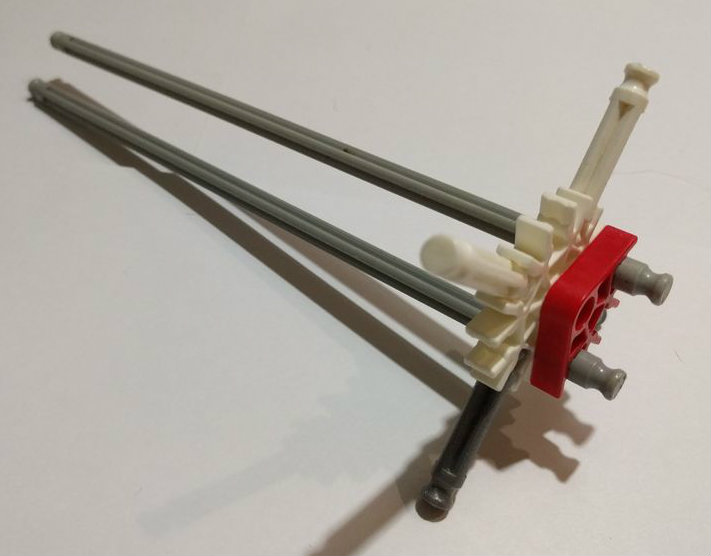

The track will be what guides the rack gear and piston.

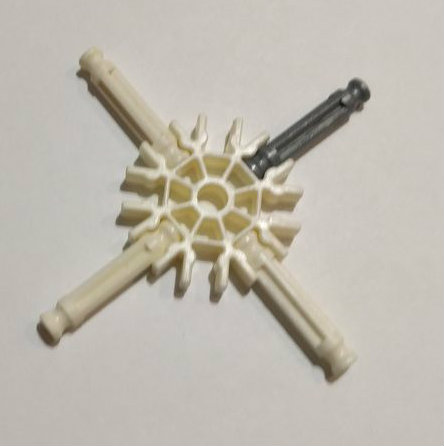

• Pic 1:
  • Build two of these (one will be set aside for the next step)
• Pic 2:

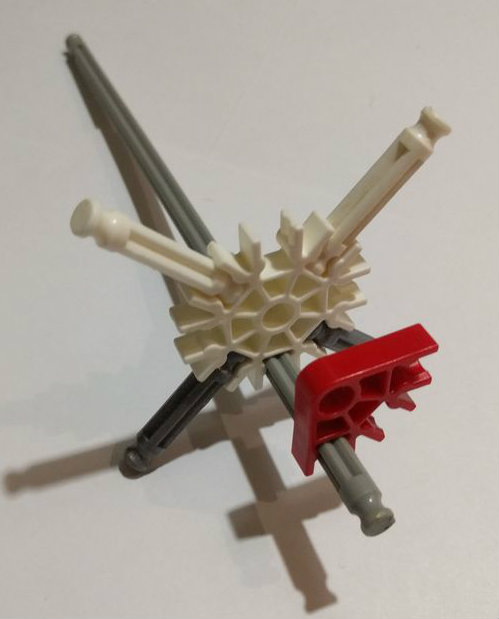

  • Snap a grey rod onto the white connector
  • Then snap a red connector on the grey rod so the hole on the red connector lines up with the hole on the white connector
• Pic 3:
  • Snap the other grey rod onto the red and white connector
• Pic 4:
  • Slide the connectors to the end of the grey rods so that the red connector is at the end.

• Pic 1:

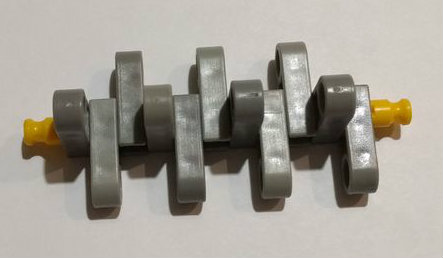

  • This is the rack gear. Build exactly as shown on a yellow rod.

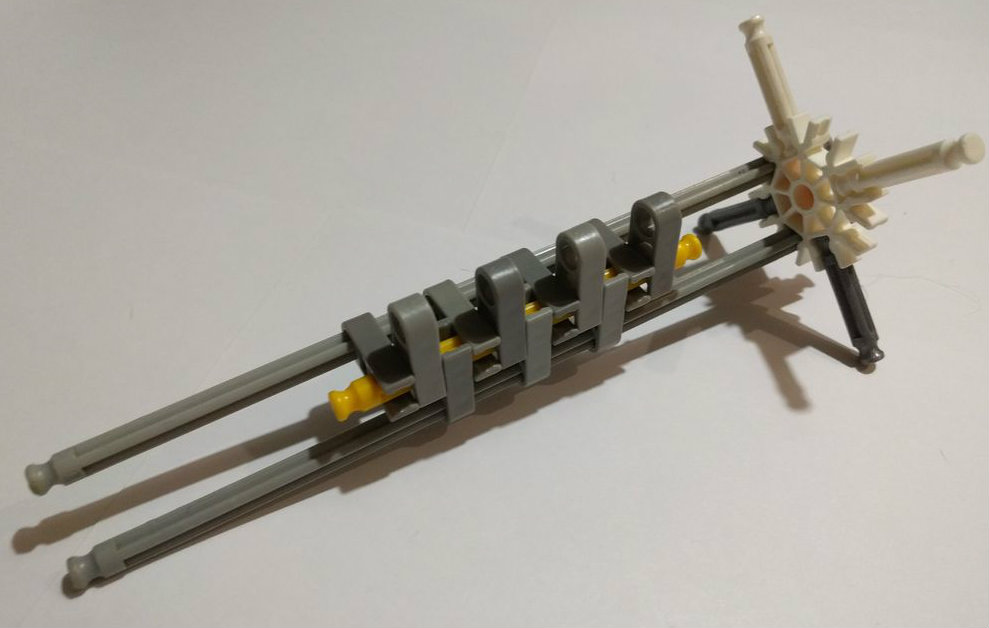

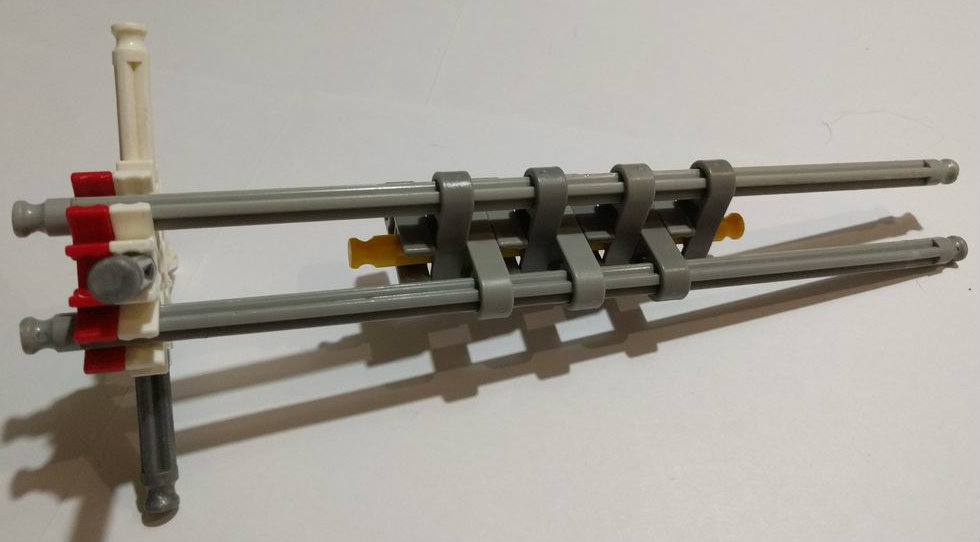

• Pic 2-3:

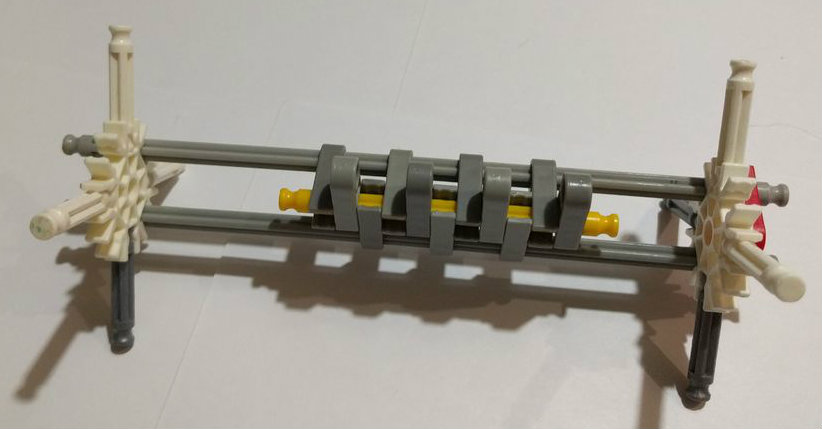

  • Slide the rack gear onto the track as shown. Make sure that the side with only 3 grey connectors is on the track. Make sure that the yellow rod is lined up with the hole on the white connector.
• Pic 4:
  • Clip the white connector from the previous step onto the grey rods as shown.

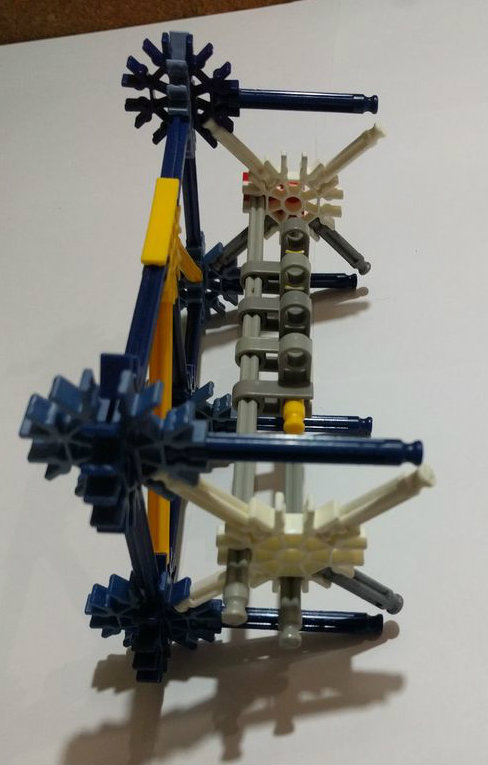

The structure holds everything together.

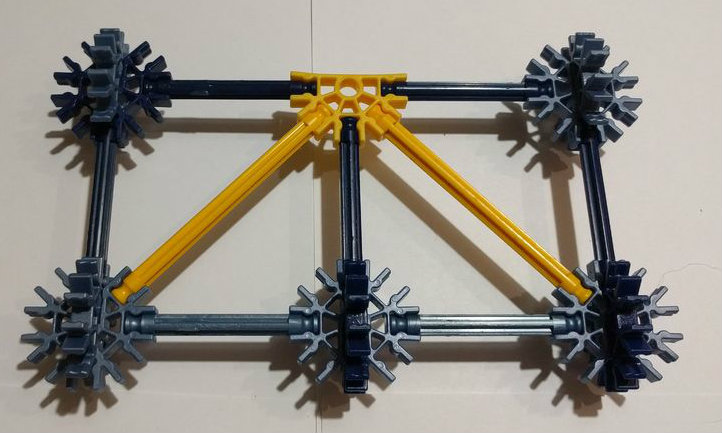

• Pic 1:
  • Build 2 of these. (again, one will be set aside to be used later)
• Pic 2:

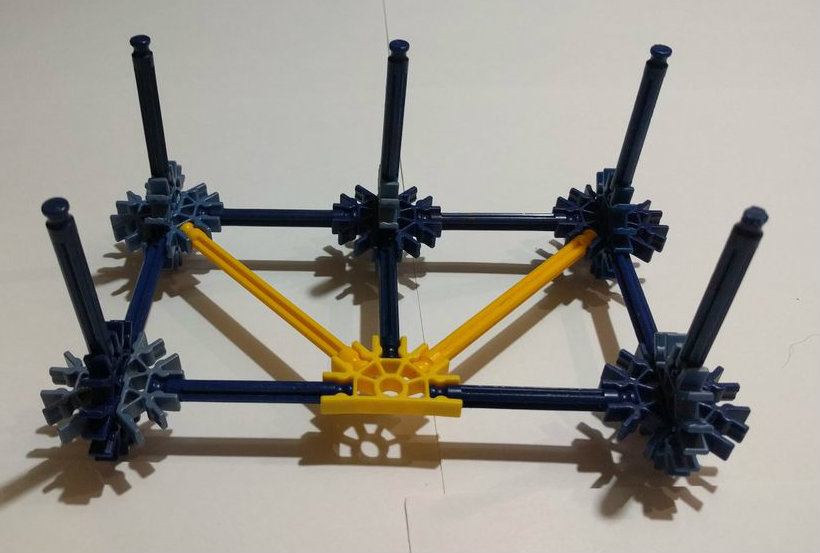

  • Add 5 blue rods as shown.
• Pic 3-4:

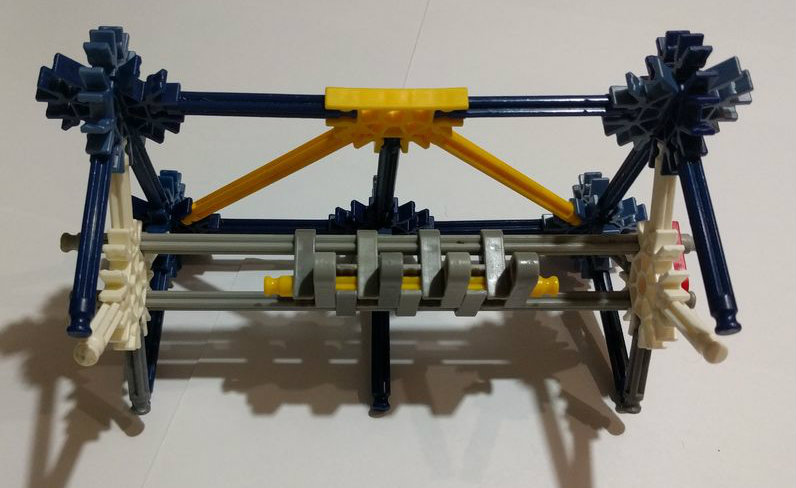

  • Attach the track and rack gear.

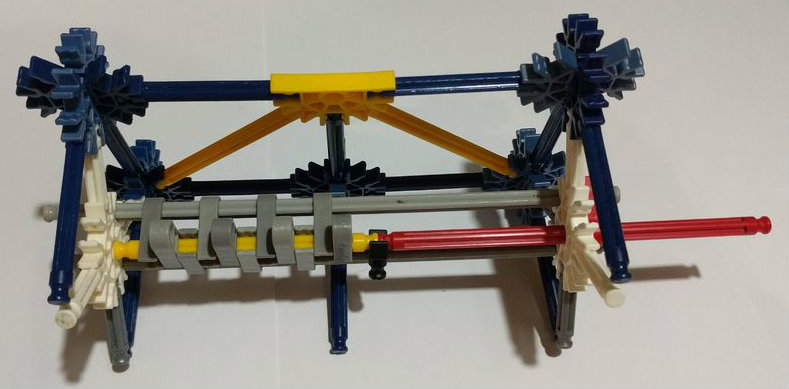

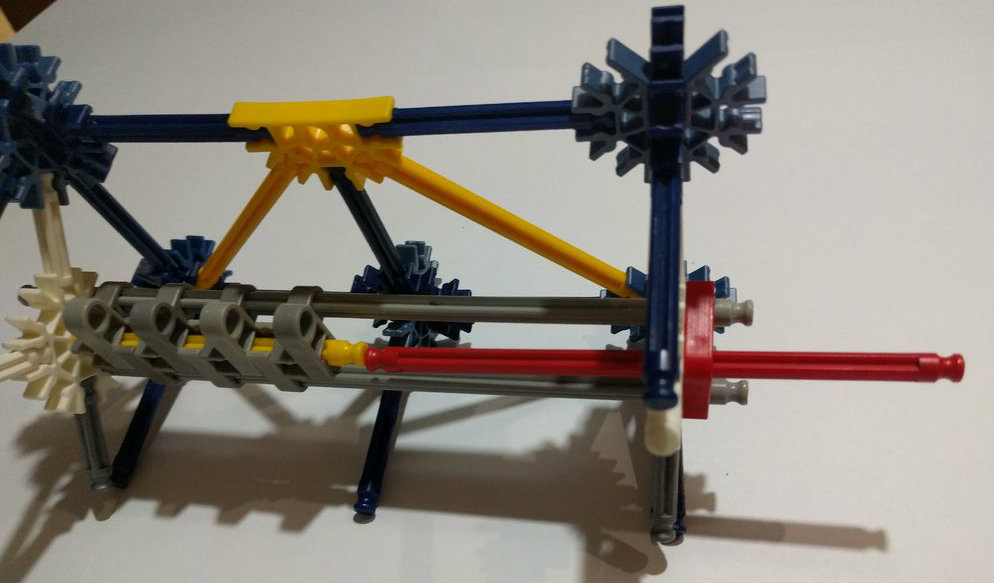

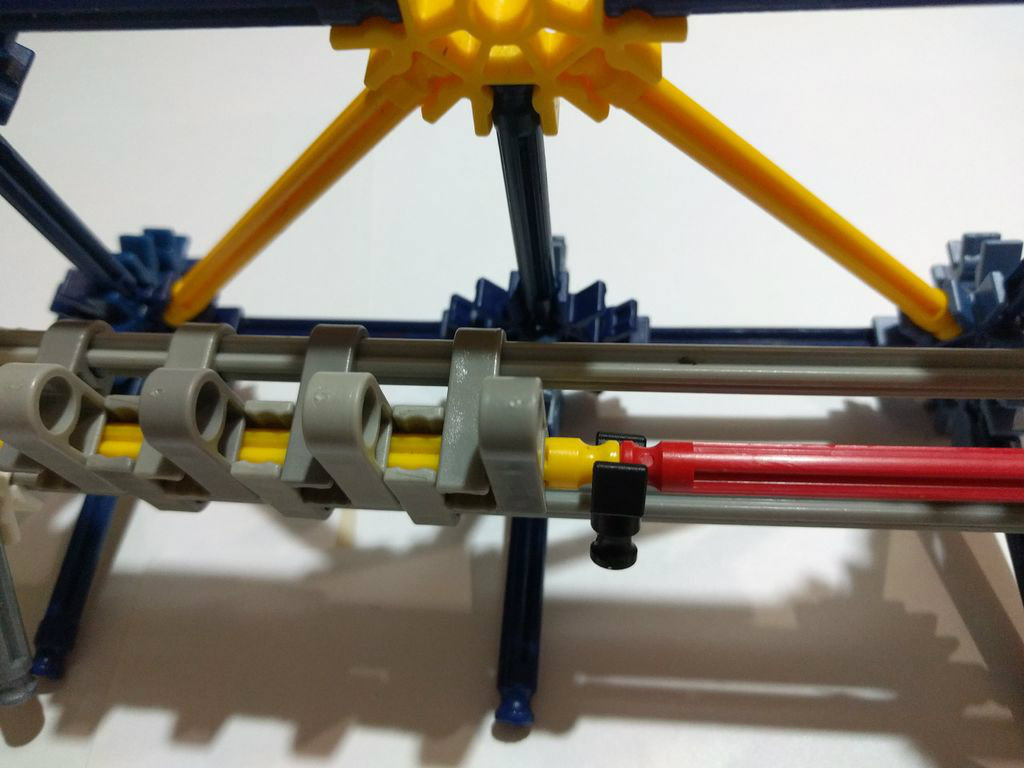

Now we will attach the piston shaft to the rack gear. The piston shaft used in the instruction will be a red rod. However a yellow or grey rod may also be used.

• Slide the red rod through the red and white connectors. Slide it down until it is flush against the yellow rod of the rack gear.
• Clip a black clip on the rods where they meet. This will secure them together.

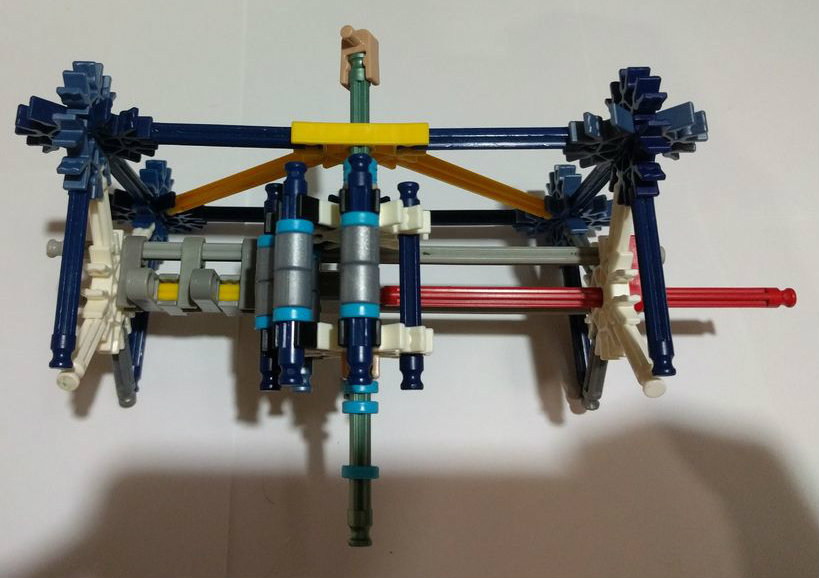

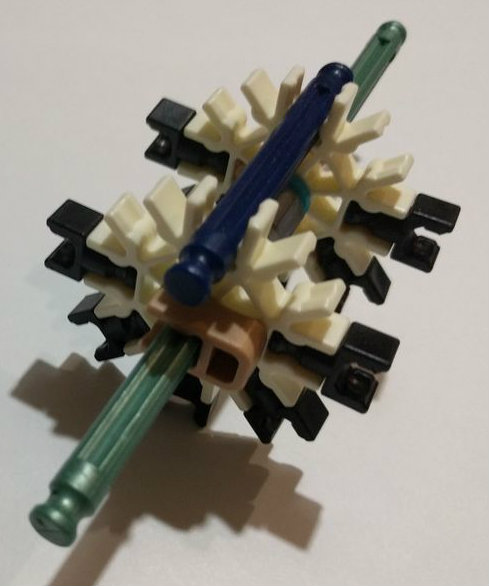

Now we will build the rotational gear which will drive the rack gear and piston.

• Pic 1:
  • Build 2 of these.

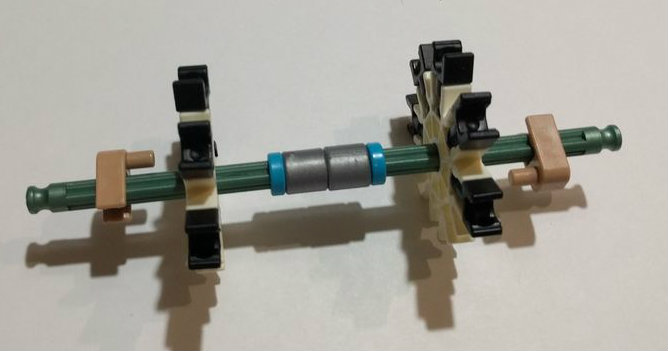

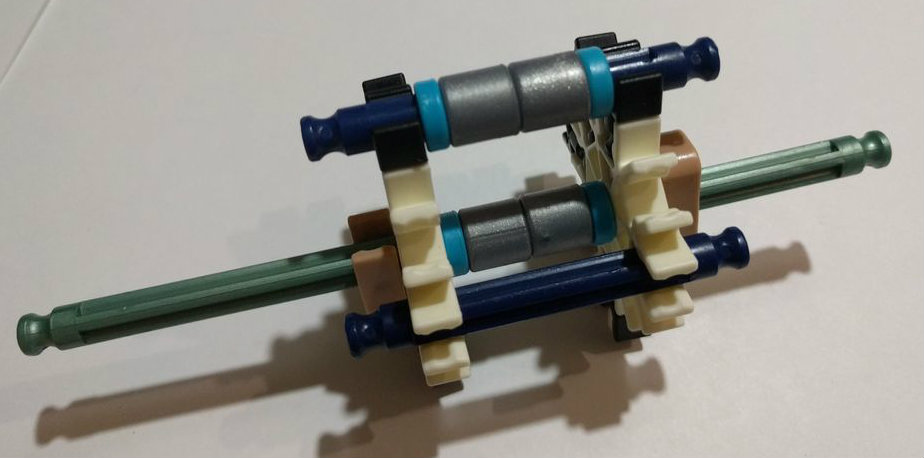

• Pic 2-3:

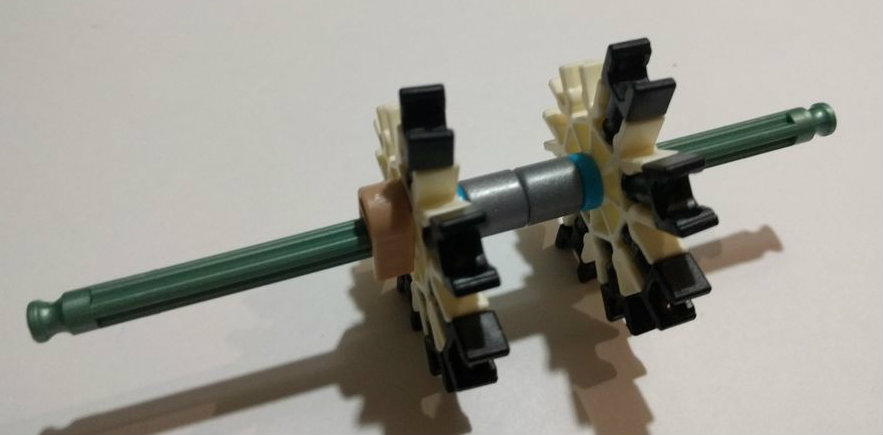

  • Slide two grey and two blue spacers onto a red rod.
  • Slide the two parts we built from the first picture on both sides of the spacers.
  • Clip two grey clips on both sides of the rod and slide everything together in the center of the rod.
  • Make sure the black clips on the white connectors are aligned.
• Pic 4:
  • Clip a blue rod on the white connectors.
• pic 5:
  • Build 5 of these.
• pic 6-7:

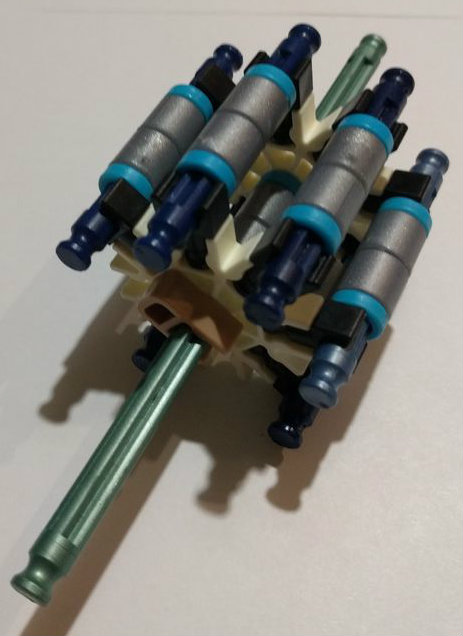

  • `clip the parts built in pic 5 to the black clips.

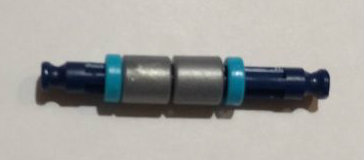

• Slide 3 spacers on both sides of the gear axle
• Mount the gear axle on the yellow connector of the structure and secure it with a grey clip
• note the alignment between the gear and rack gear shown in picture 4 and make sure your gears are aligned properly.

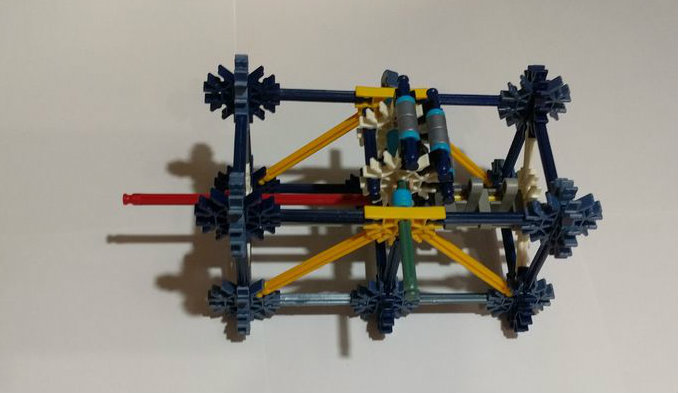

Now add the last part of the structure you built earlier.

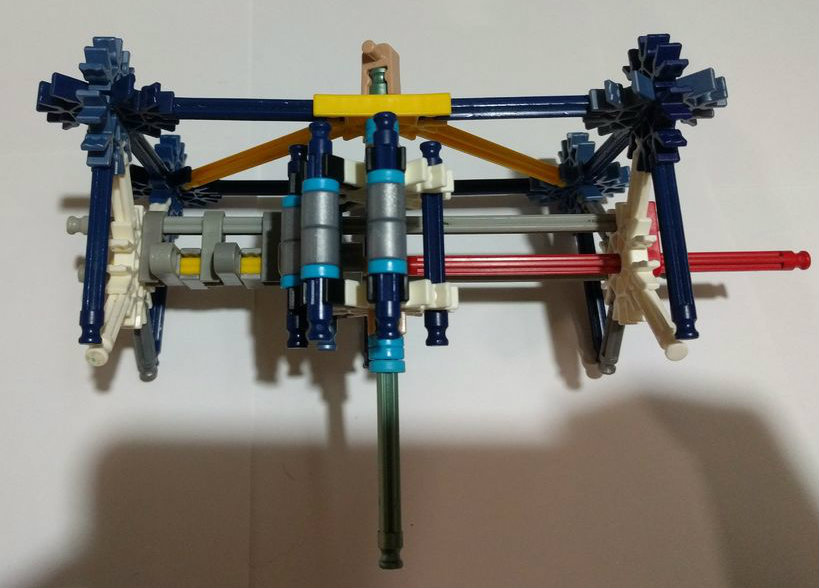

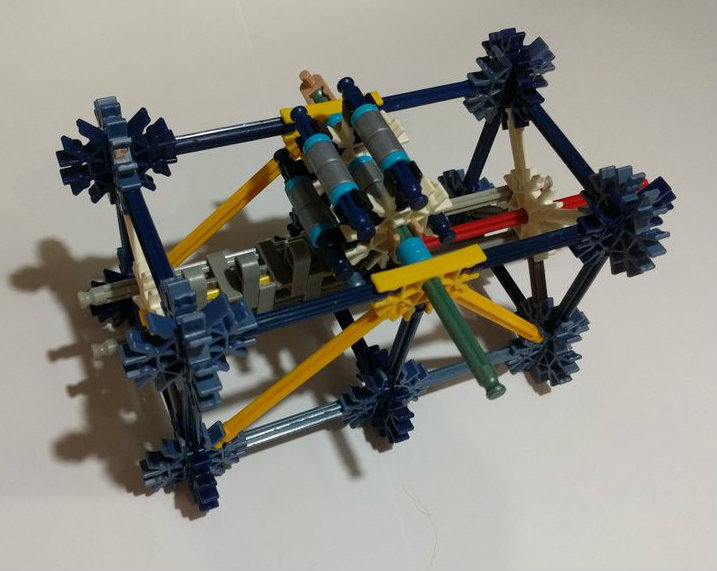

Congratulations you have just built a piston out of k'nex!

Thanks for viewing my instructable! Be sure to check out my other instructables!
