K'nex Flywheel Ball Launcher (by Austron) Instructions
by Mister Gears in Living > LEGO & K'NEX
1715 Views, 5 Favorites, 0 Comments
K'nex Flywheel Ball Launcher (by Austron) Instructions
![juin à septembre 2016 235.JPG](/proxy/?url=https://content.instructables.com/FF0/XPJO/K4EC1K7S/FF0XPJOK4EC1K7S.jpg&filename=juin à septembre 2016 235.JPG)
Well, seems like i was too lazy to do those instructions sooner.
So, 2 years ago i reproduced the Austron's flywheel ball launcher by watching this video and i did photos for instructions. So here it is :-)
Pieces Count
I will probably do it later (maybe never), if someone want to do it, feel free to post it in the comment section

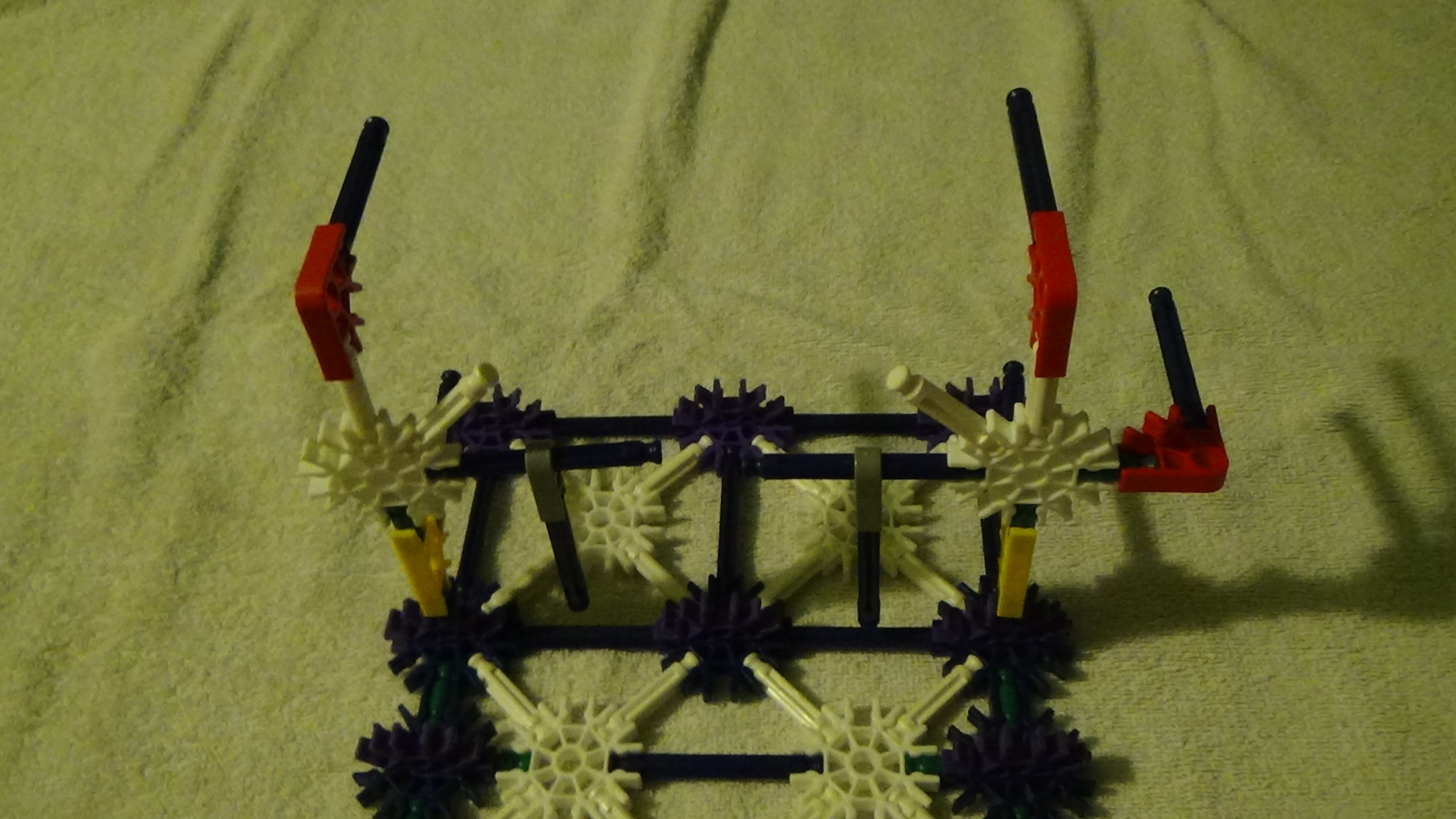

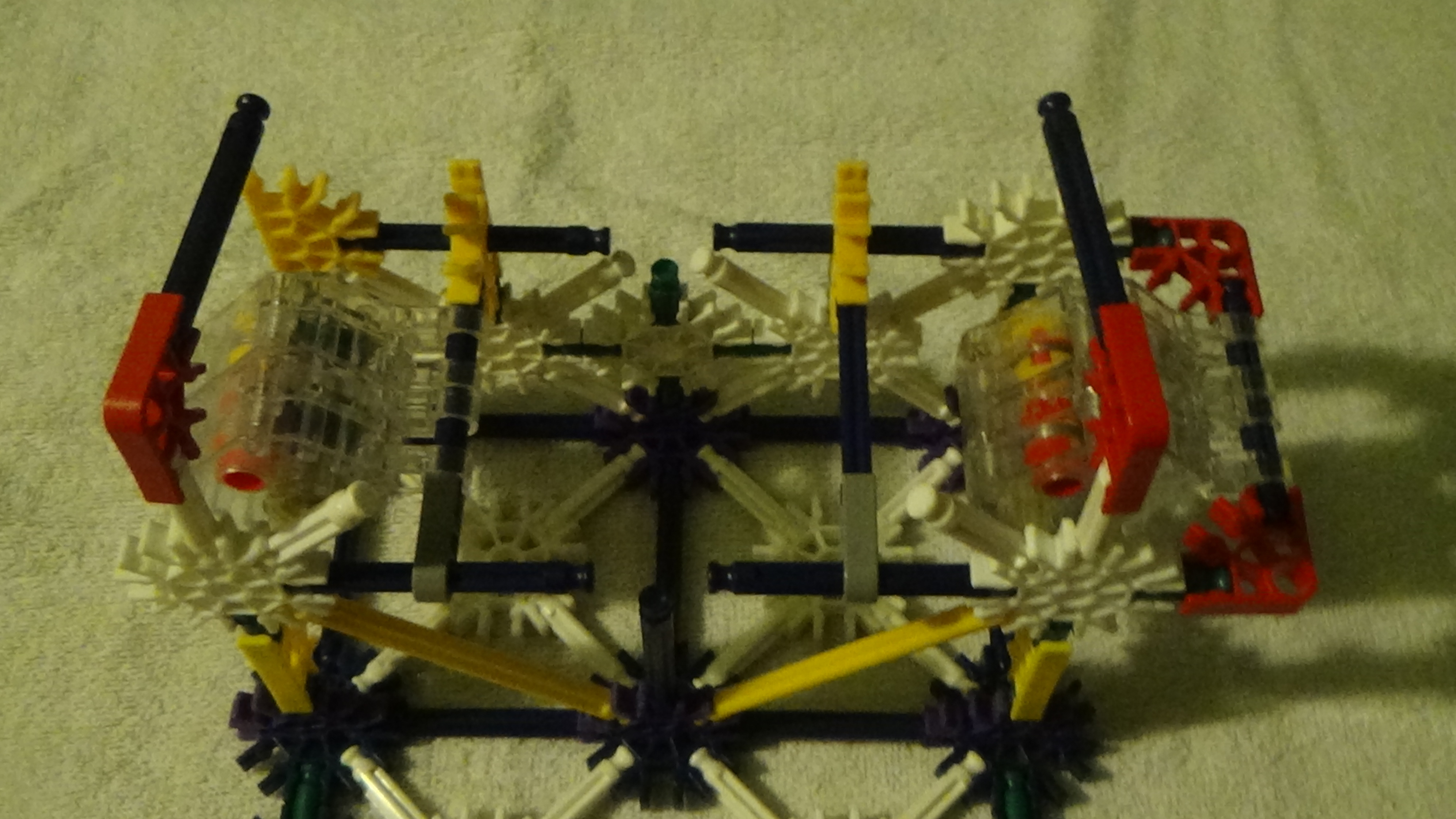

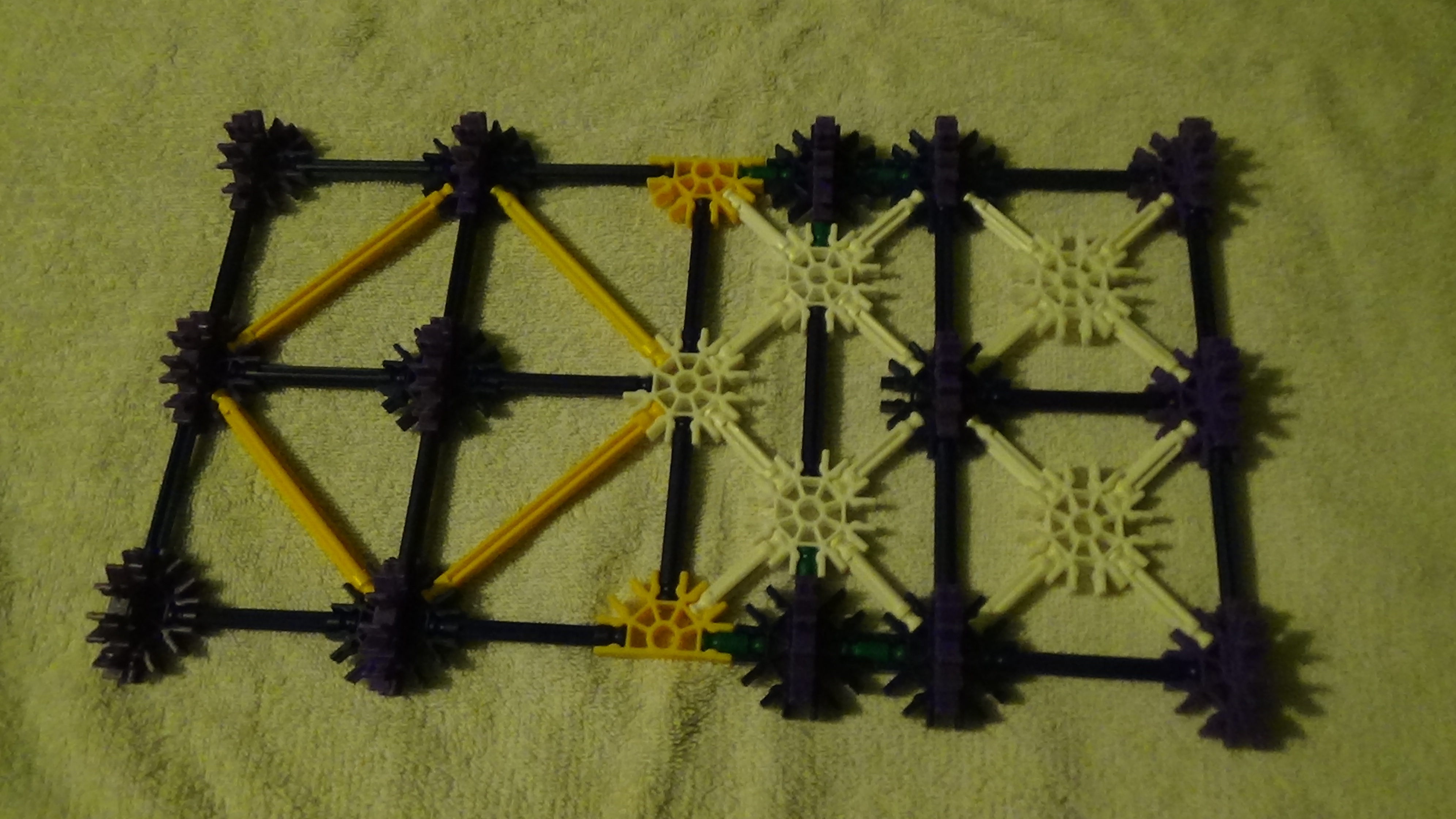

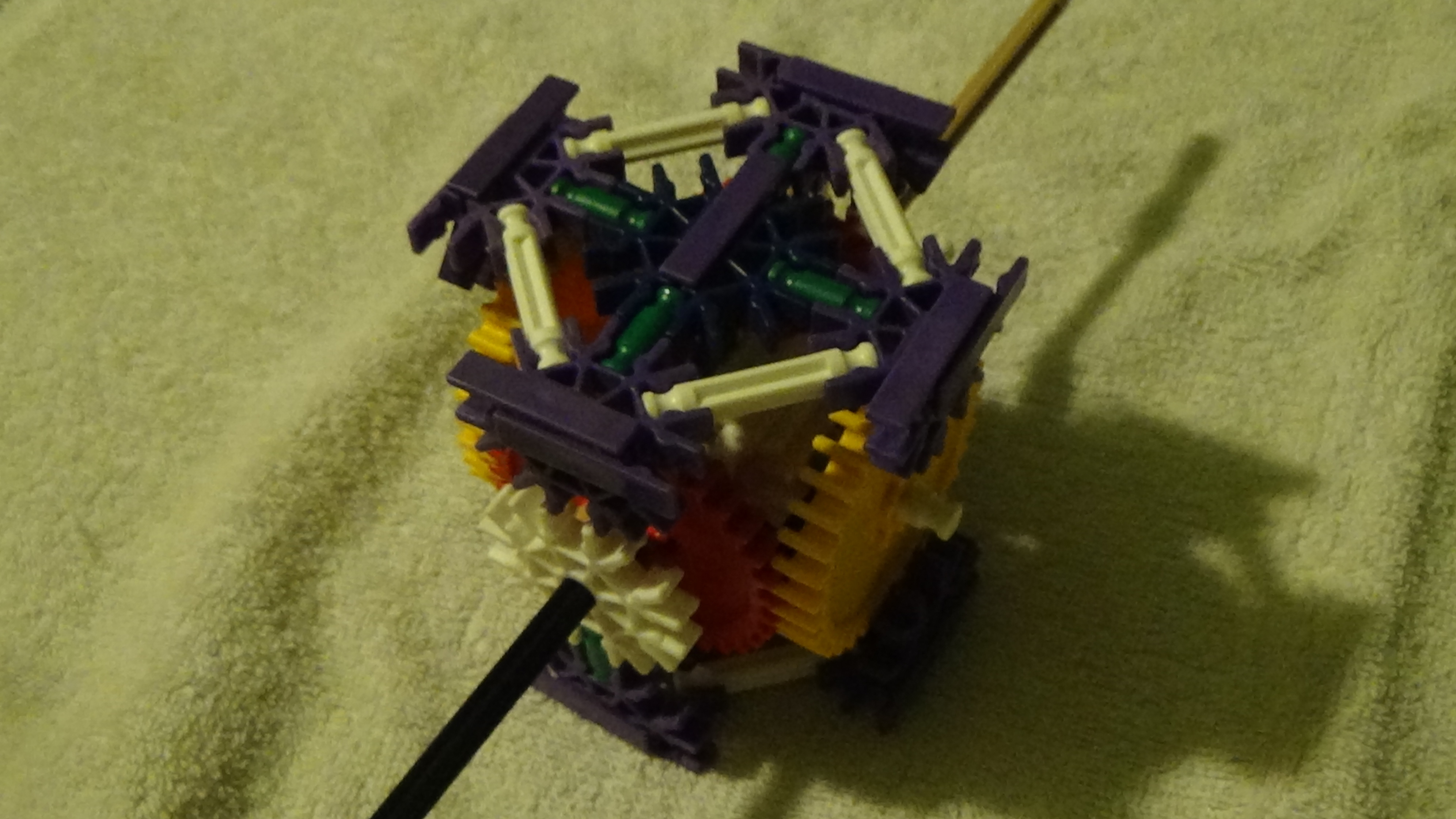

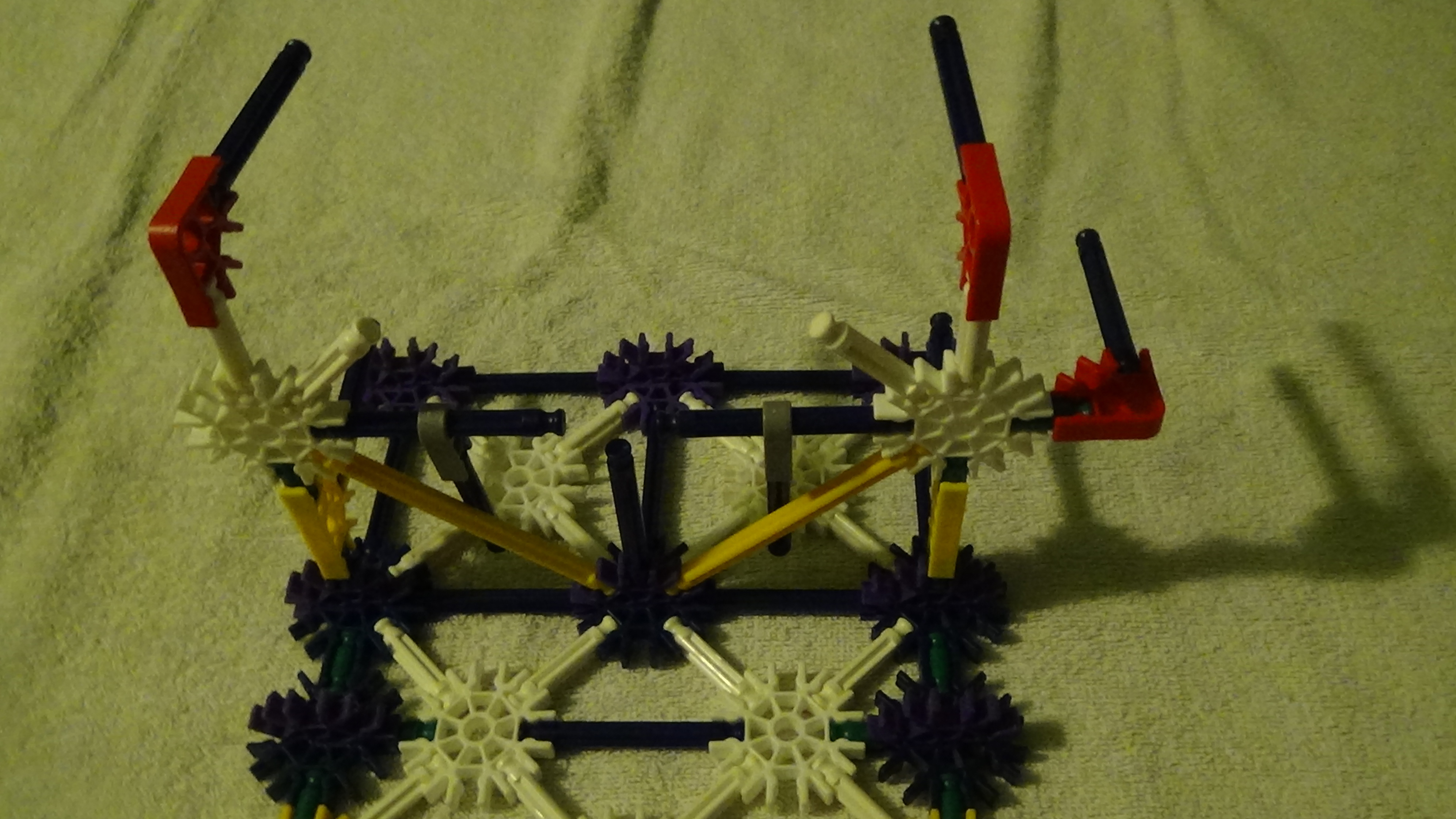

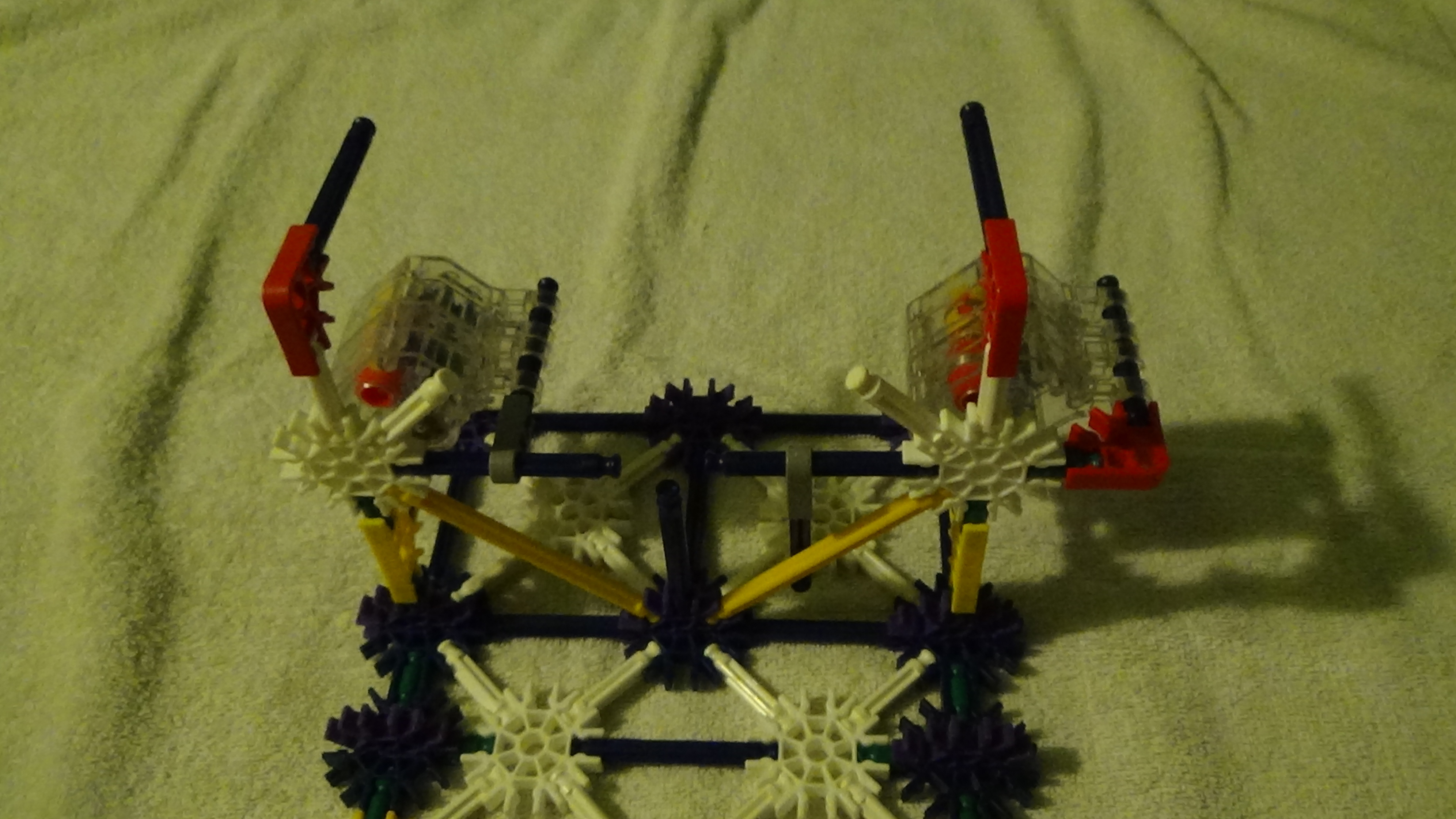

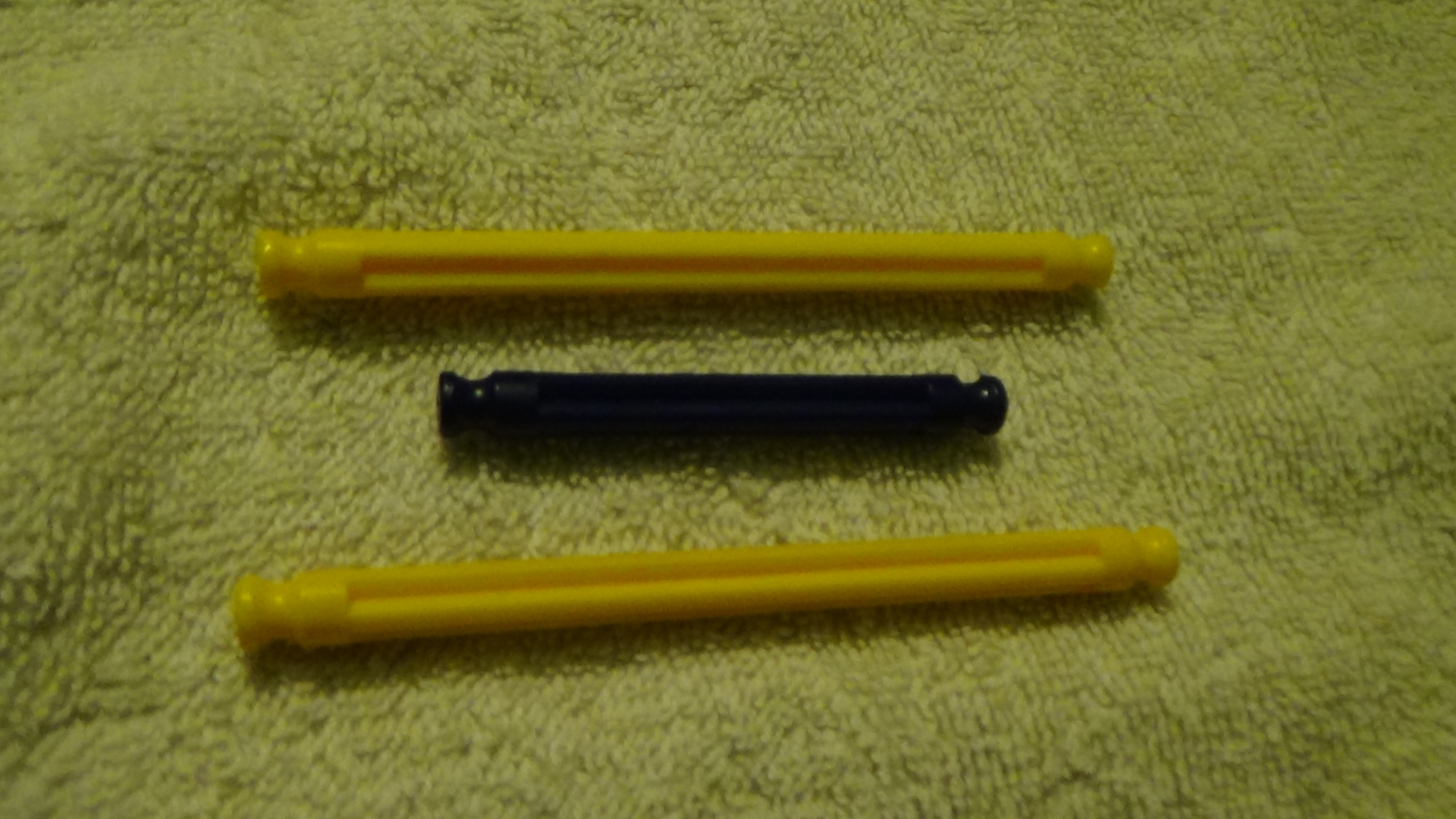

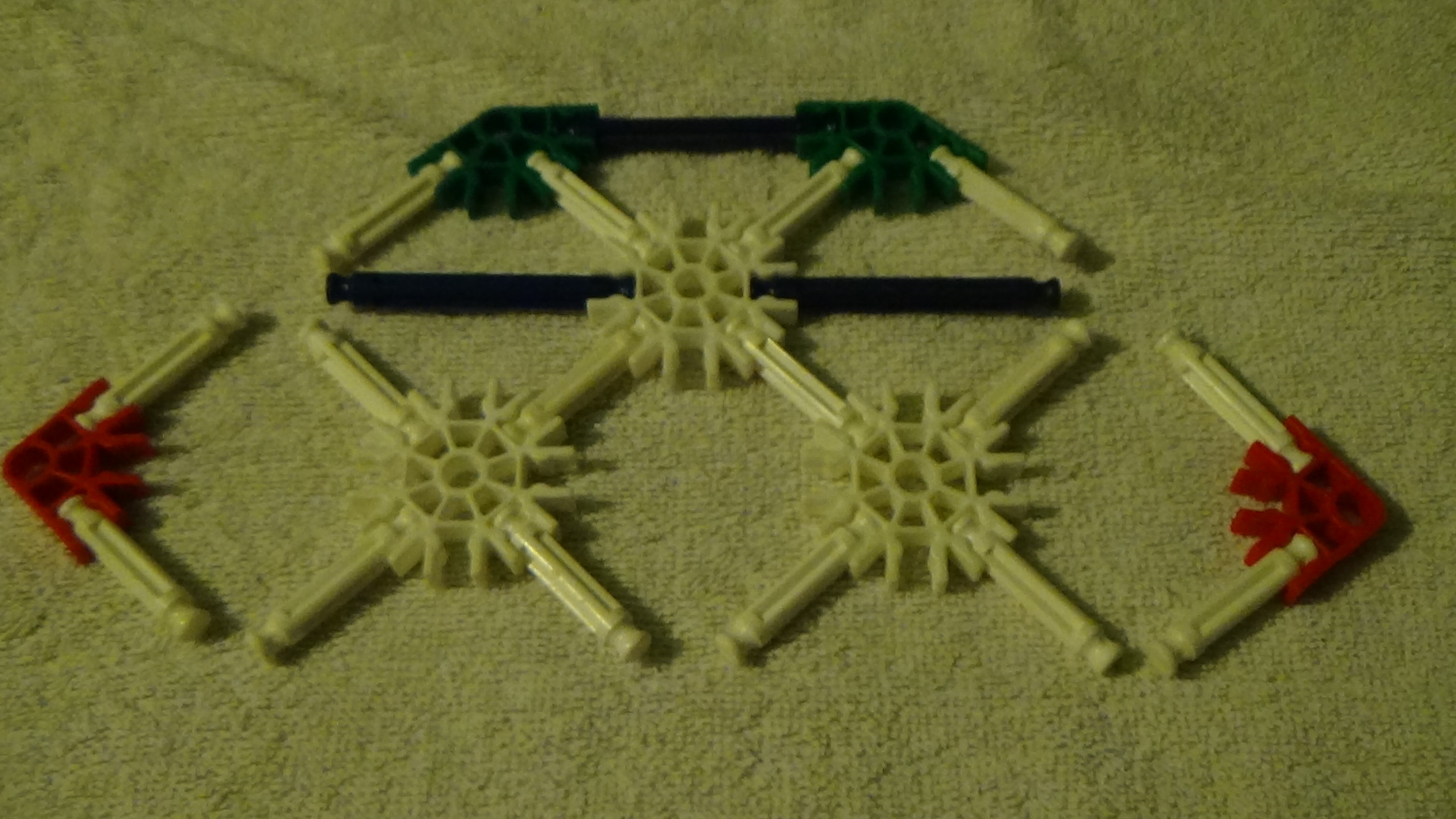

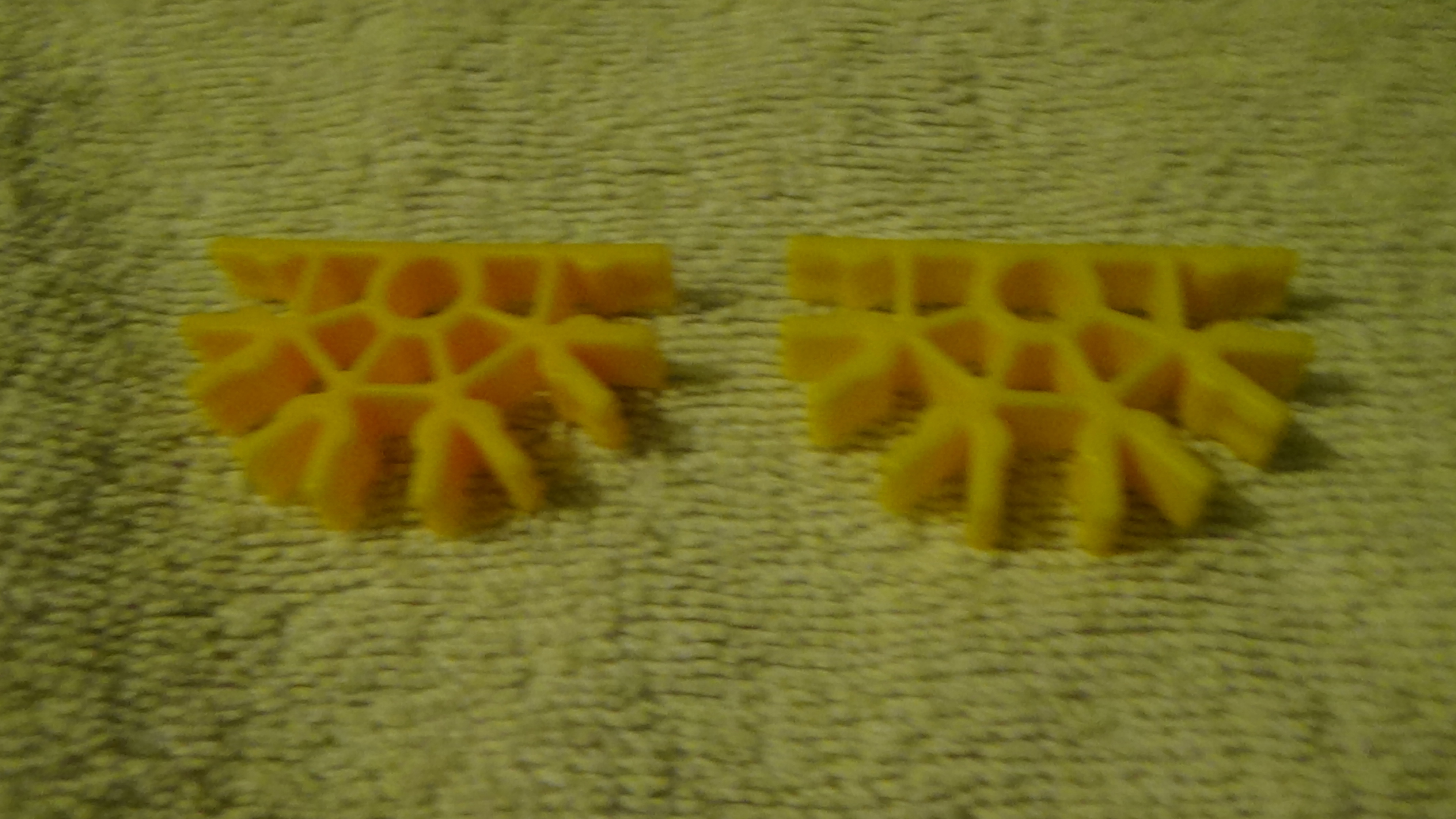

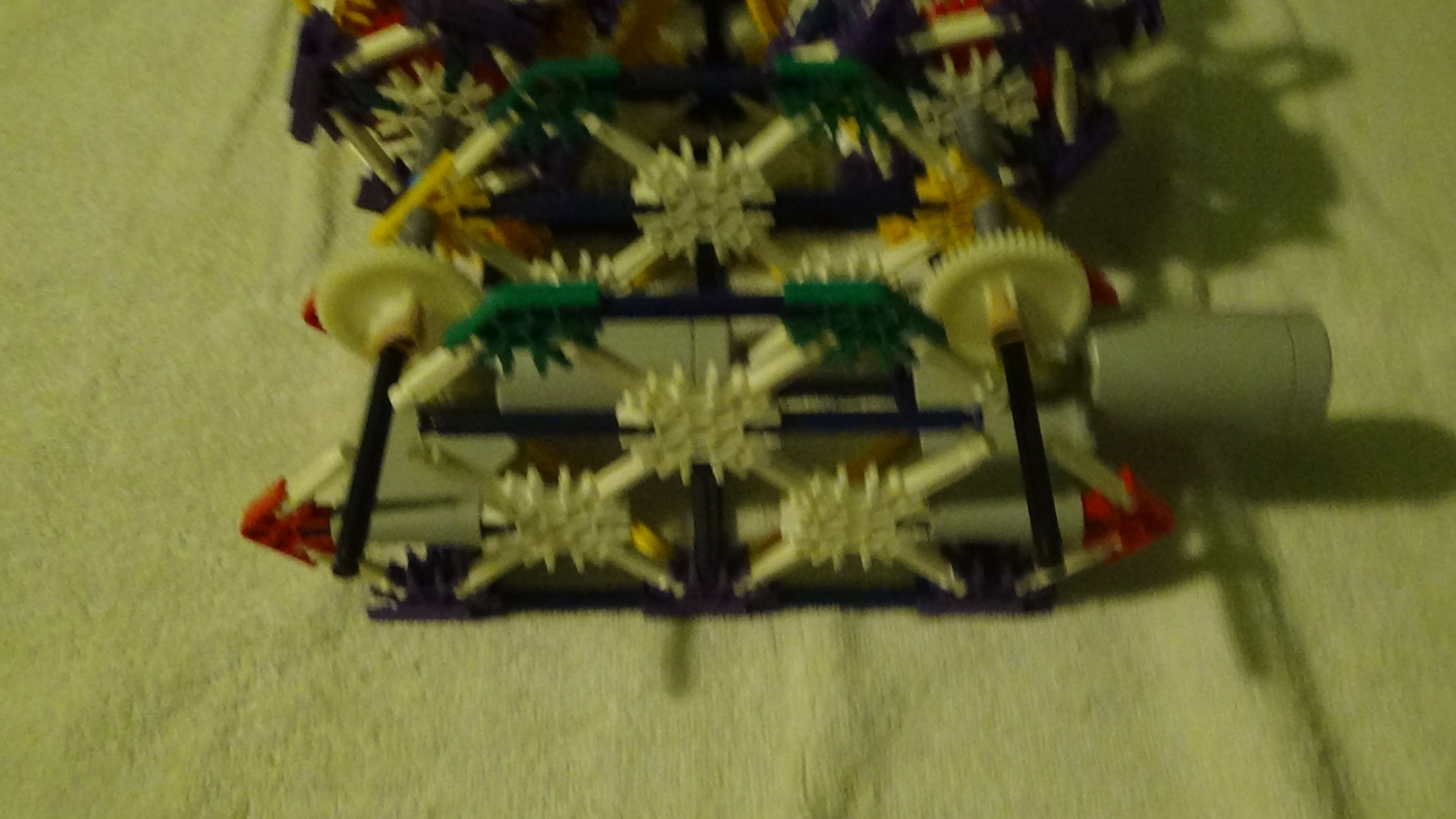

The Frame
![juin à septembre 2016 052.JPG](/proxy/?url=https://content.instructables.com/FUE/45V2/K4EC1F7D/FUE45V2K4EC1F7D.jpg&filename=juin à septembre 2016 052.JPG)
![juin à septembre 2016 119.JPG](/proxy/?url=https://content.instructables.com/FJT/2XAW/K4EC1HBH/FJT2XAWK4EC1HBH.jpg&filename=juin à septembre 2016 119.JPG)
![juin à septembre 2016 120.JPG](/proxy/?url=https://content.instructables.com/F8F/ST4L/K4EC1HDG/F8FST4LK4EC1HDG.jpg&filename=juin à septembre 2016 120.JPG)
![juin à septembre 2016 121.JPG](/proxy/?url=https://content.instructables.com/FZI/TP3M/K4EC1HH7/FZITP3MK4EC1HH7.jpg&filename=juin à septembre 2016 121.JPG)
![juin à septembre 2016 122.JPG](/proxy/?url=https://content.instructables.com/F51/3JYW/K4EC1HJ7/F513JYWK4EC1HJ7.jpg&filename=juin à septembre 2016 122.JPG)
![juin à septembre 2016 123.JPG](/proxy/?url=https://content.instructables.com/FKJ/OPF9/K4EC1HLX/FKJOPF9K4EC1HLX.jpg&filename=juin à septembre 2016 123.JPG)
![juin à septembre 2016 124.JPG](/proxy/?url=https://content.instructables.com/FH4/CO9A/K4EC1HOG/FH4CO9AK4EC1HOG.jpg&filename=juin à septembre 2016 124.JPG)
![juin à septembre 2016 125.JPG](/proxy/?url=https://content.instructables.com/FP4/0BMF/K4EC1HPB/FP40BMFK4EC1HPB.jpg&filename=juin à septembre 2016 125.JPG)
![juin à septembre 2016 126.JPG](/proxy/?url=https://content.instructables.com/F55/H1U6/K4EC1HQ5/F55H1U6K4EC1HQ5.jpg&filename=juin à septembre 2016 126.JPG)
![juin à septembre 2016 127.JPG](/proxy/?url=https://content.instructables.com/FK6/CVH9/K4EC1HRJ/FK6CVH9K4EC1HRJ.jpg&filename=juin à septembre 2016 127.JPG)
![juin à septembre 2016 128.JPG](/proxy/?url=https://content.instructables.com/FAU/Z5DX/K4EC1HSW/FAUZ5DXK4EC1HSW.jpg&filename=juin à septembre 2016 128.JPG)
![juin à septembre 2016 129.JPG](/proxy/?url=https://content.instructables.com/FJI/TH9Q/K4EC1HU9/FJITH9QK4EC1HU9.jpg&filename=juin à septembre 2016 129.JPG)

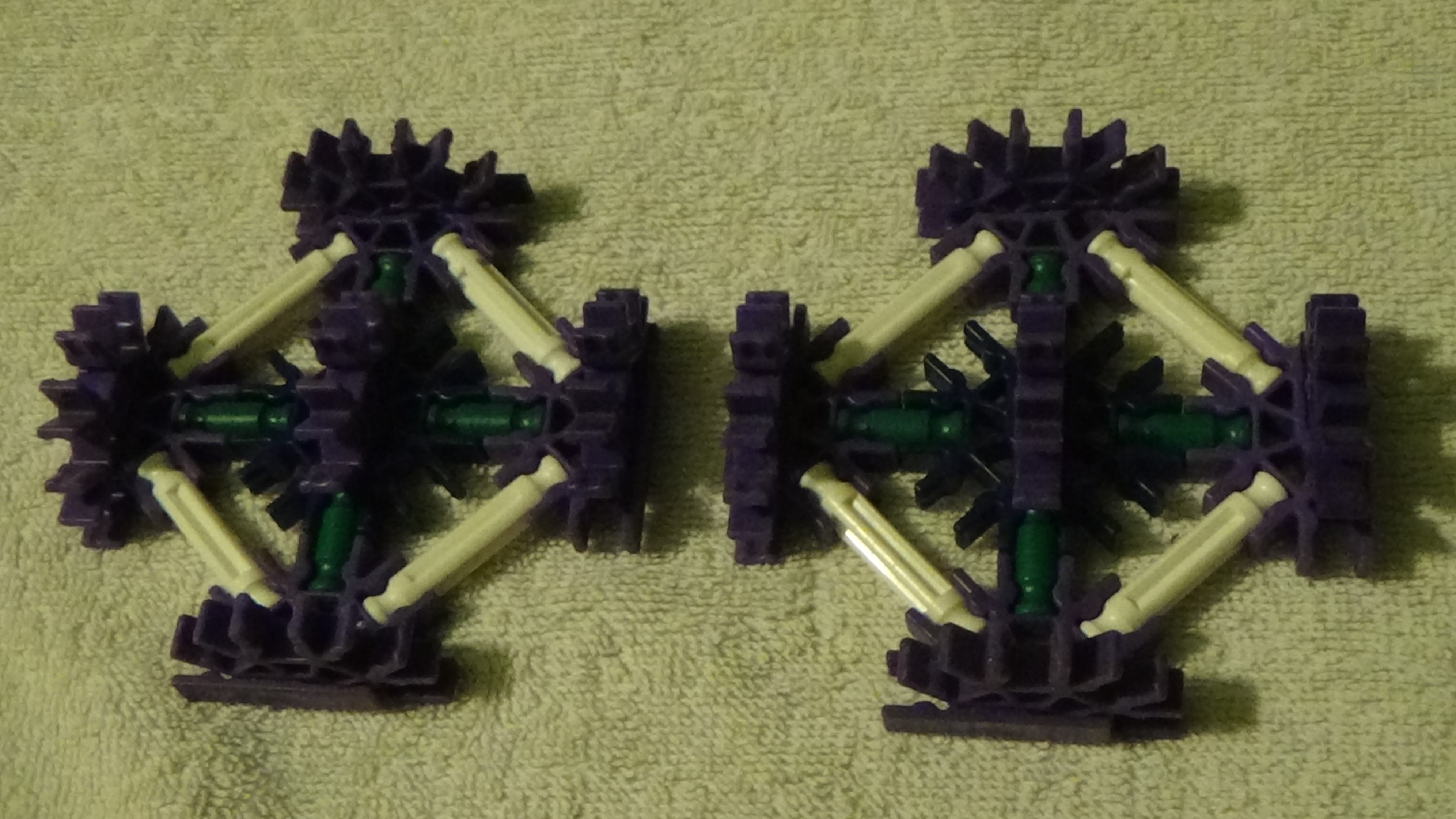

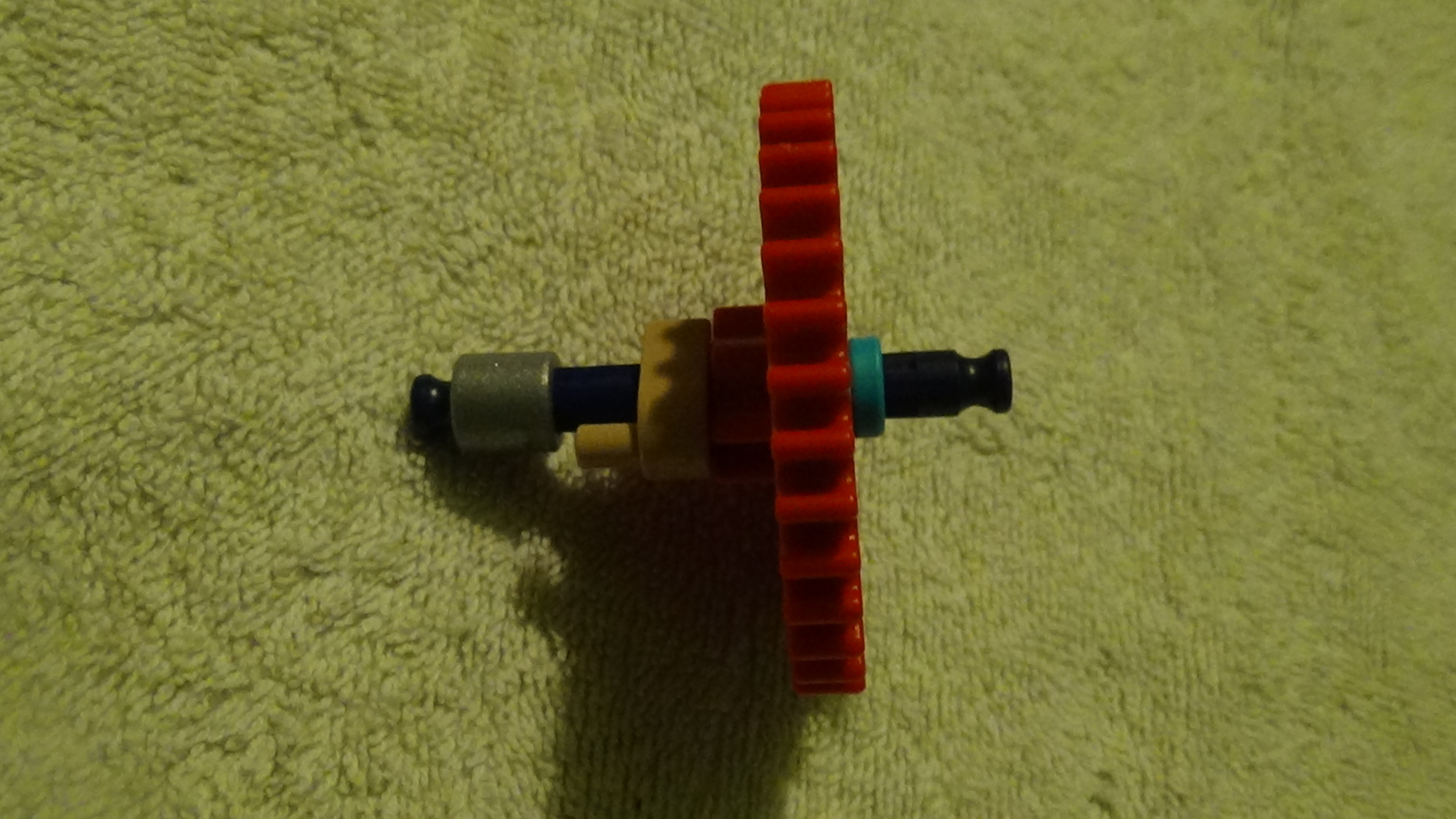

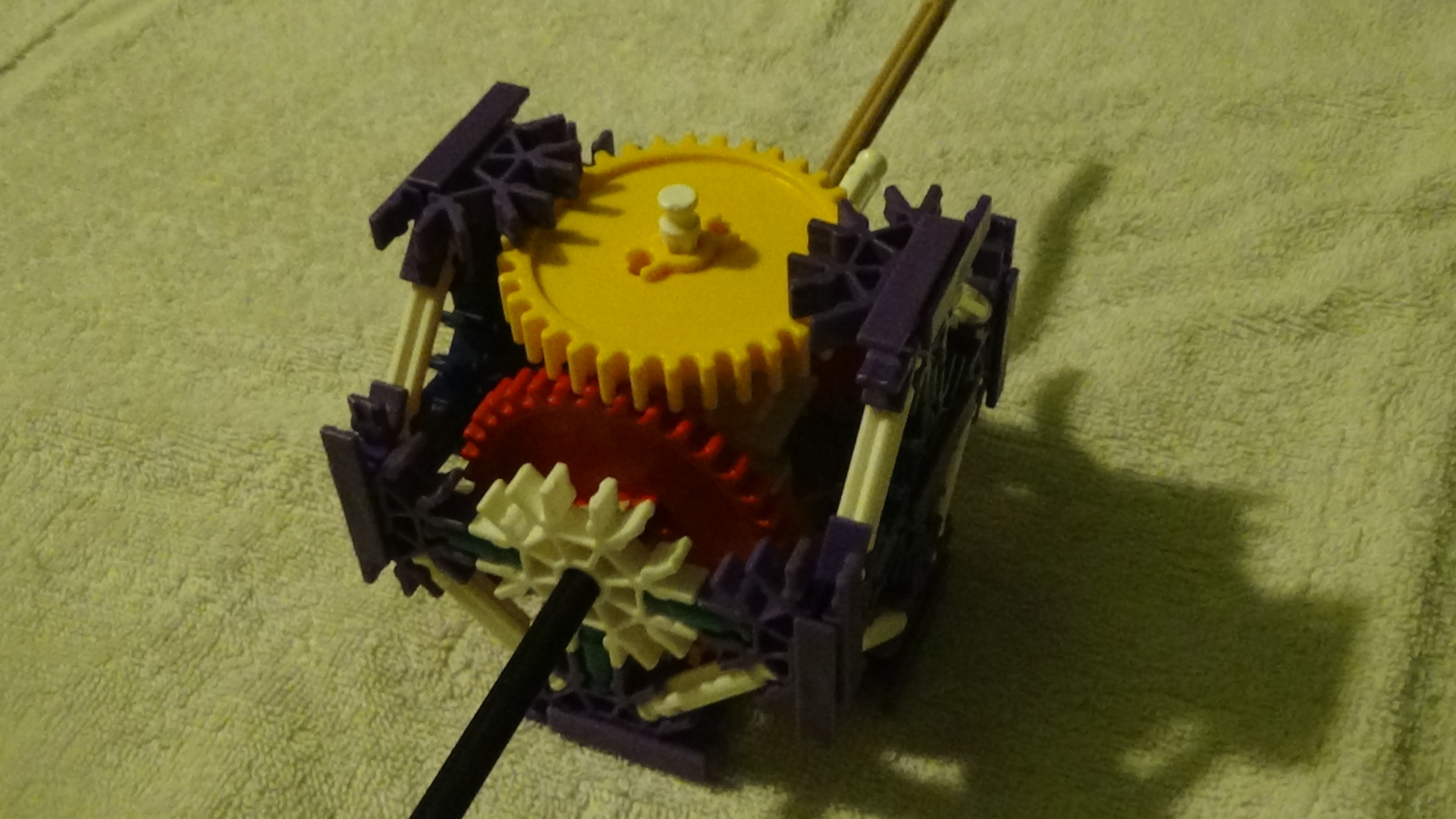

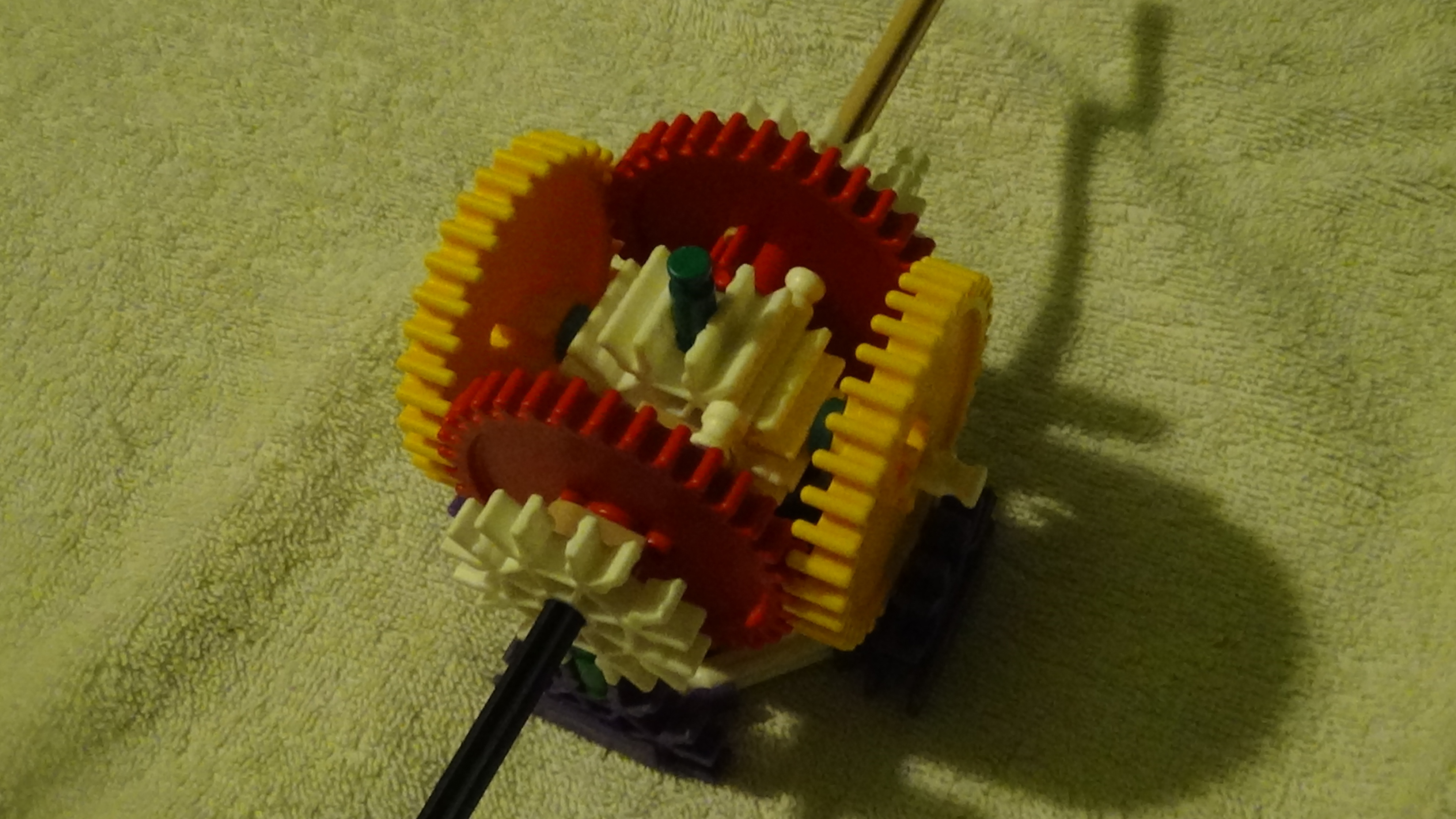

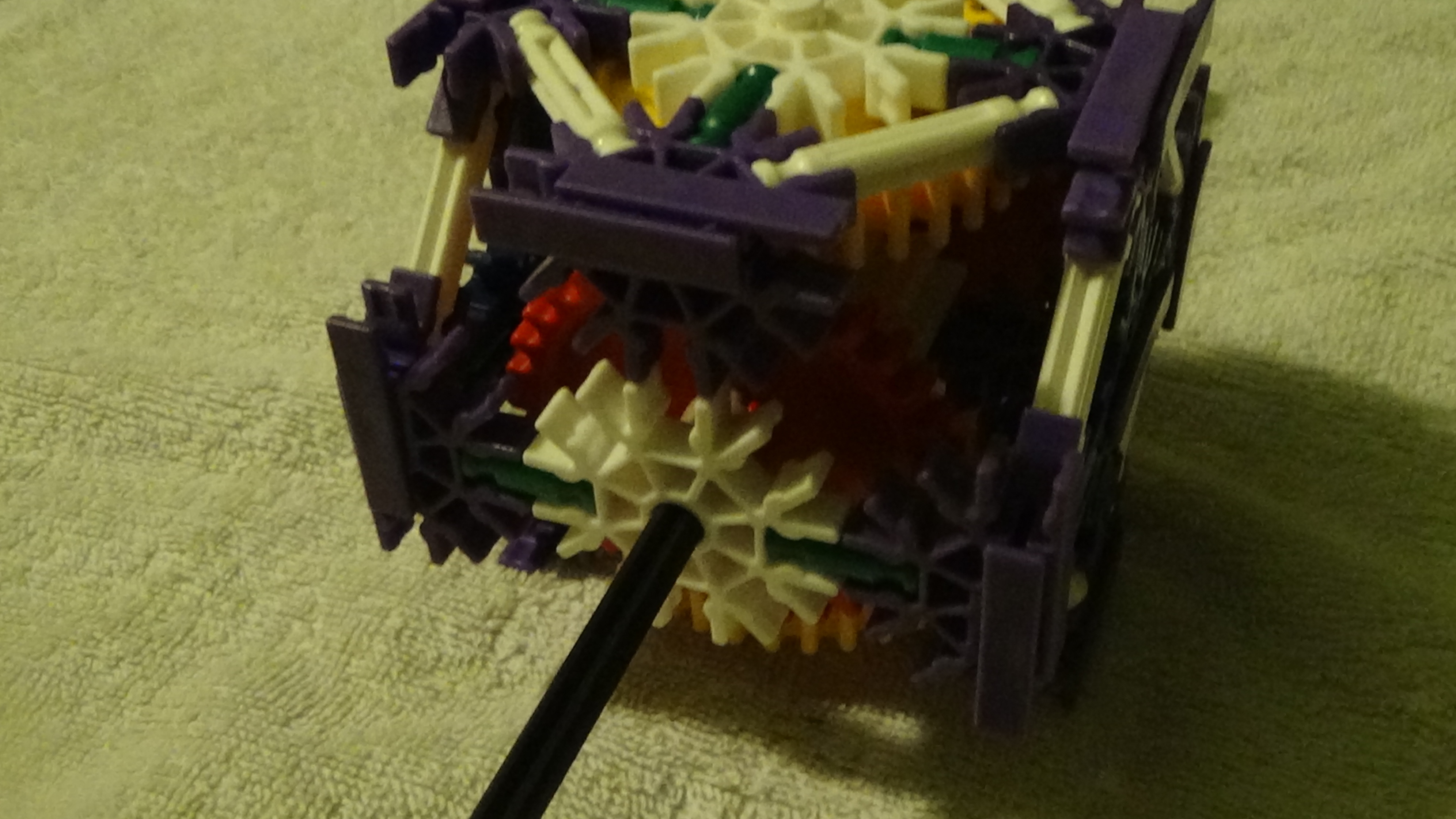

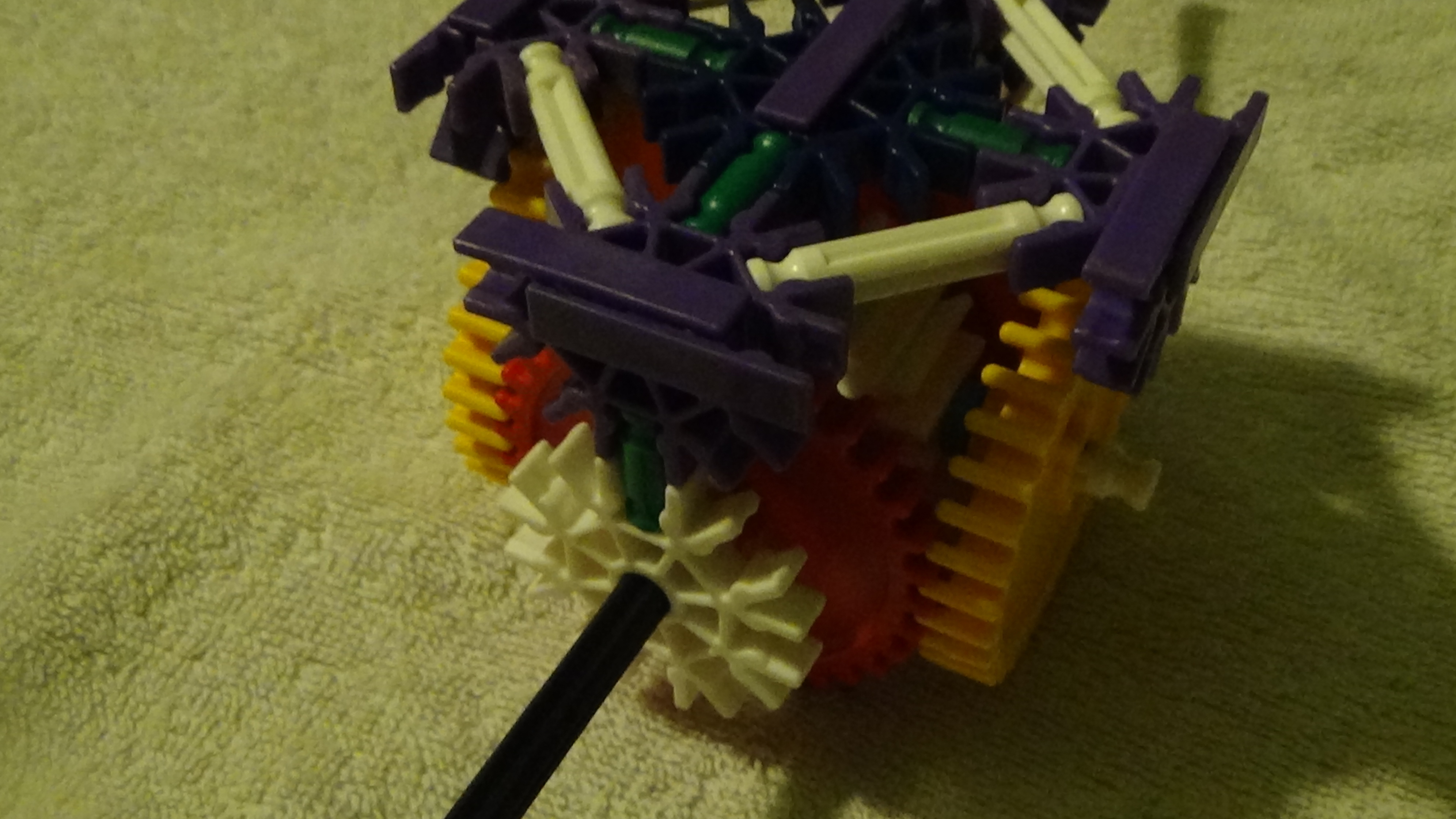

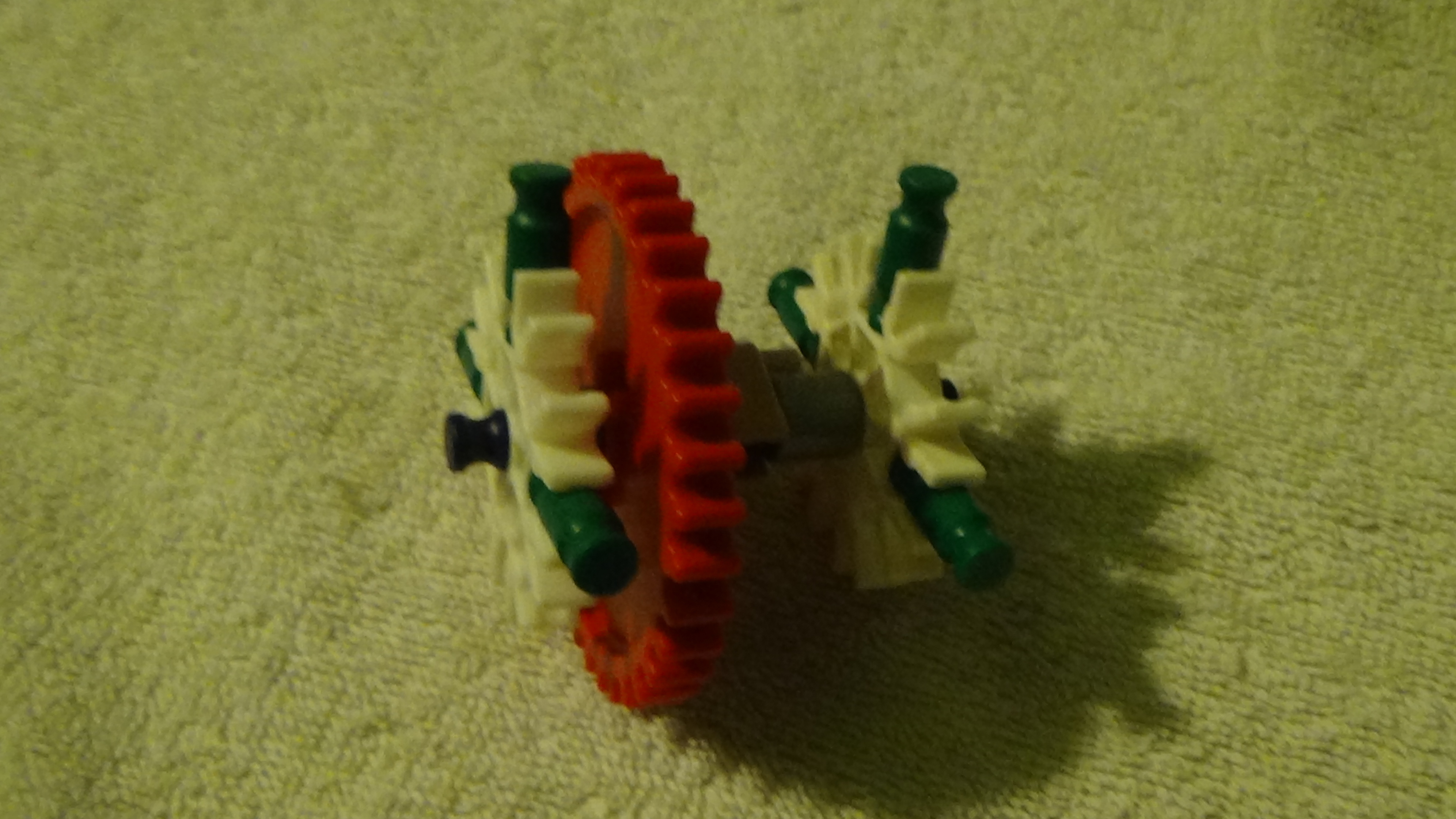

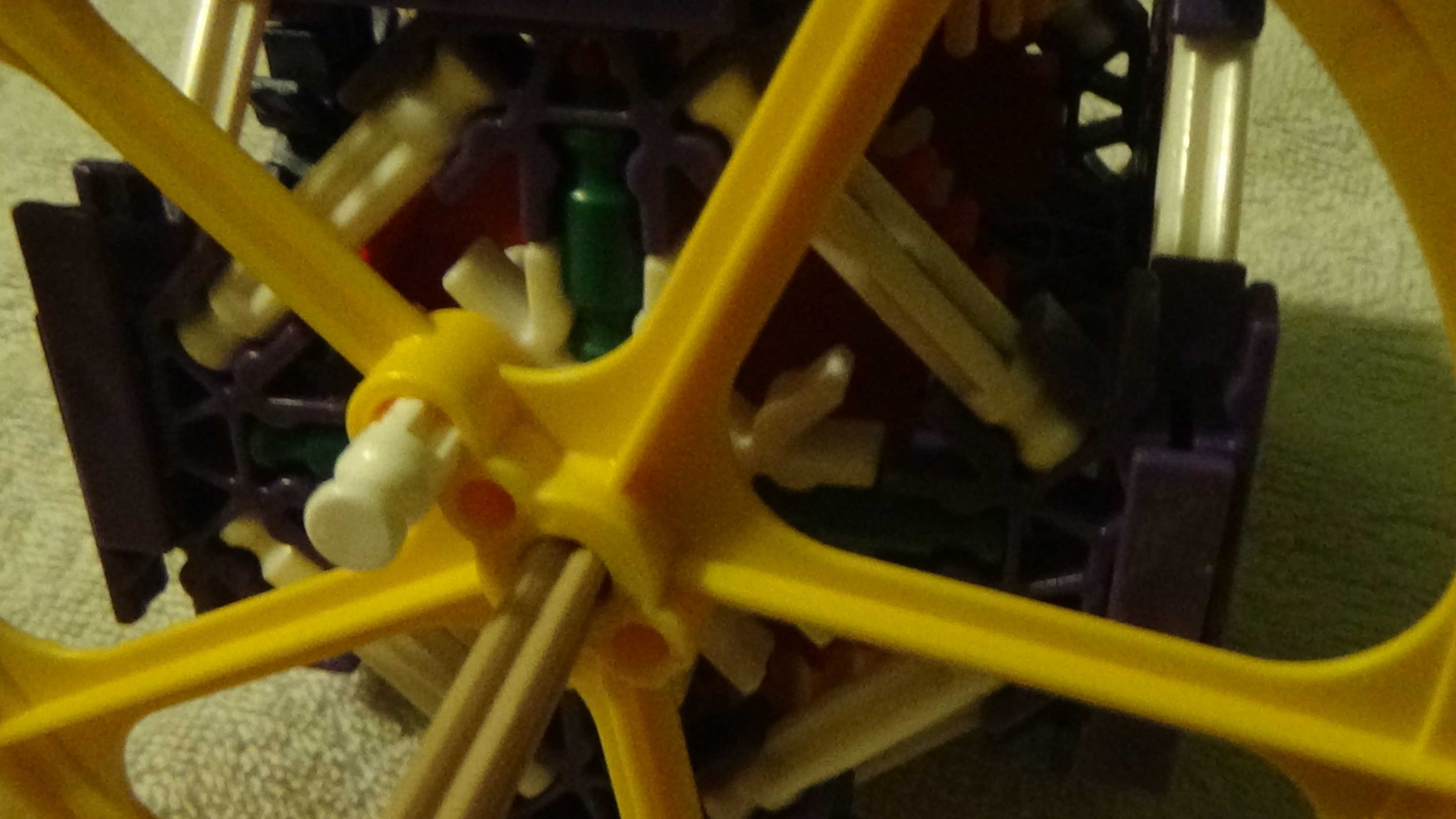

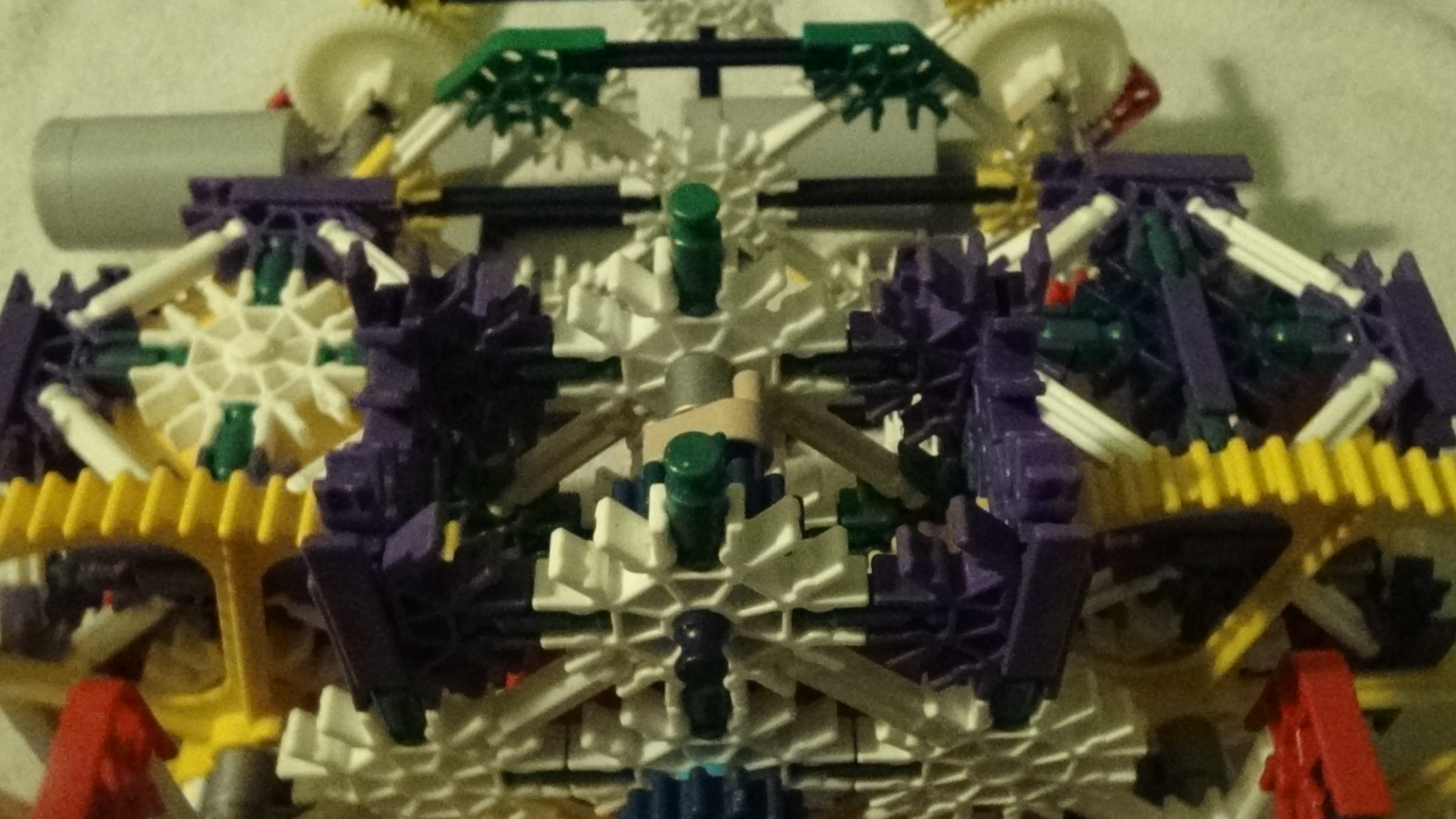

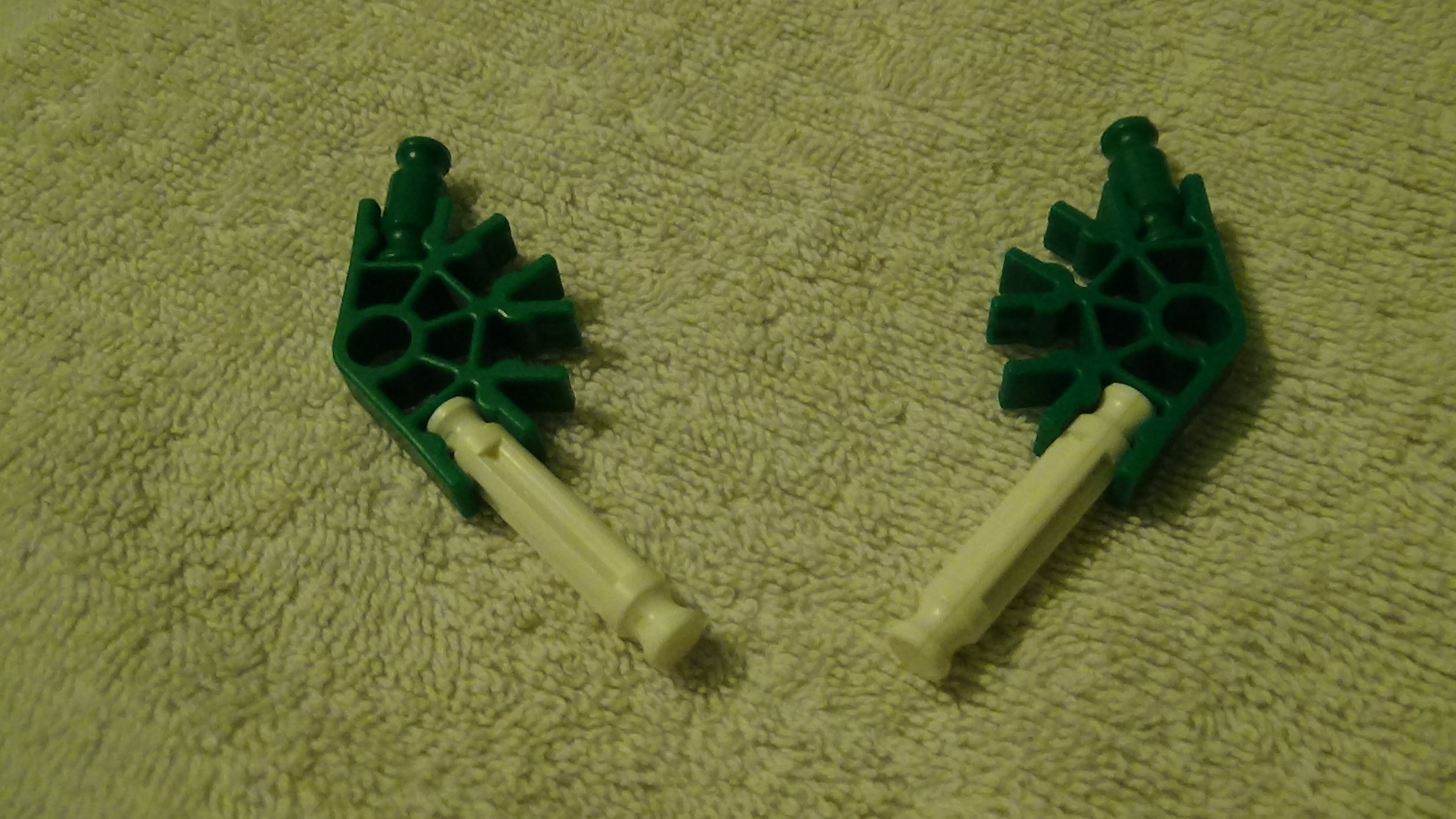

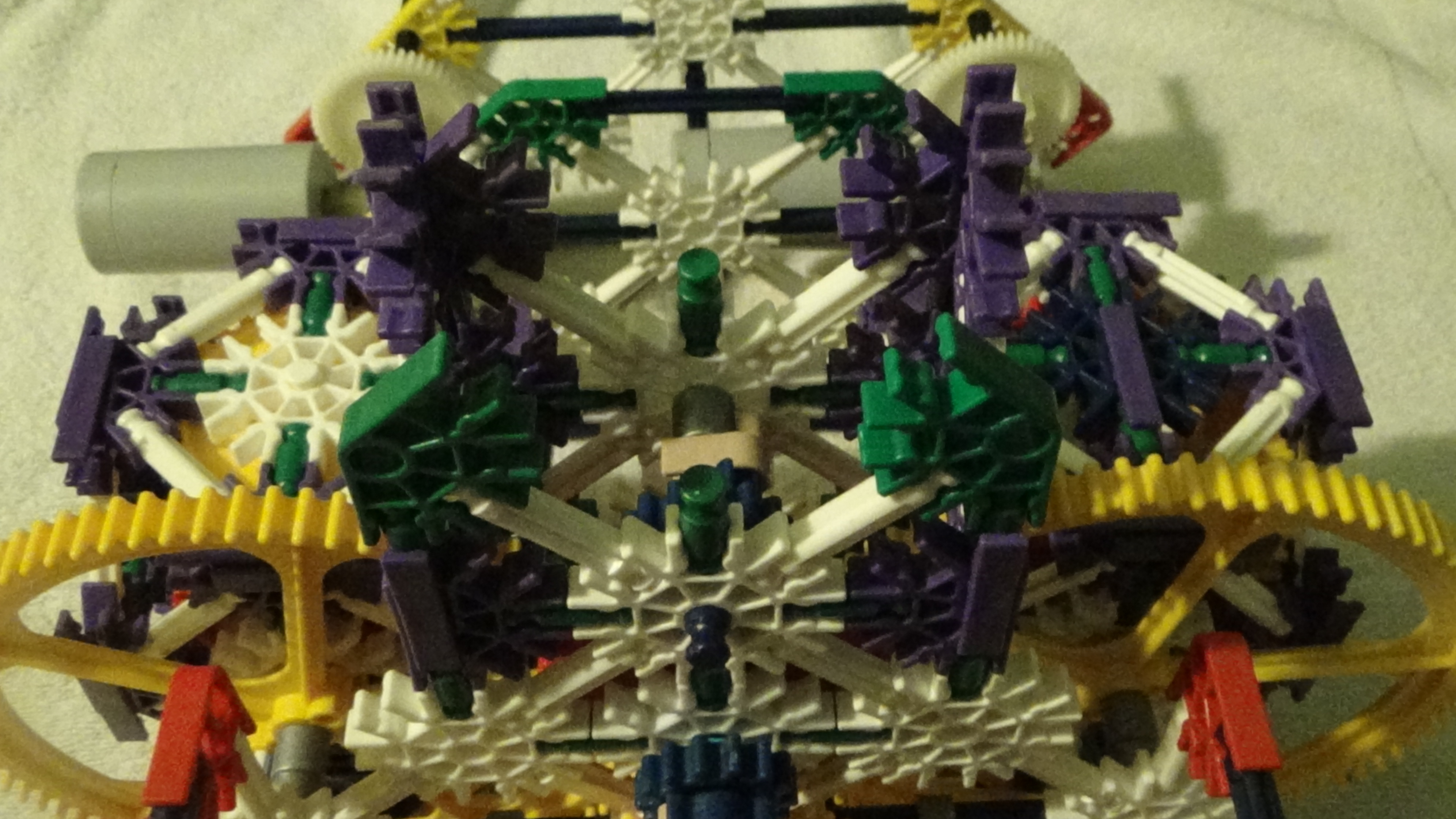

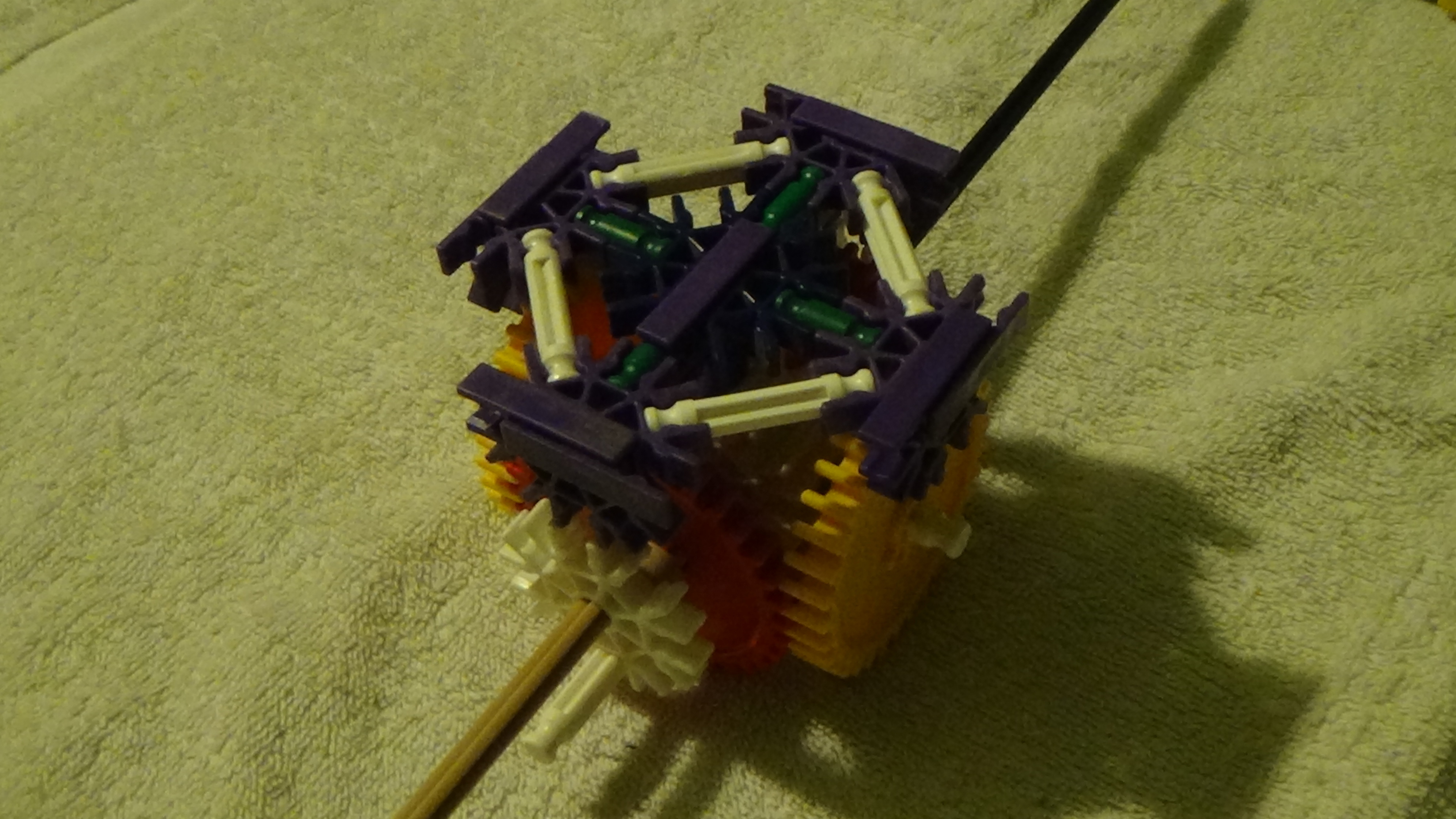

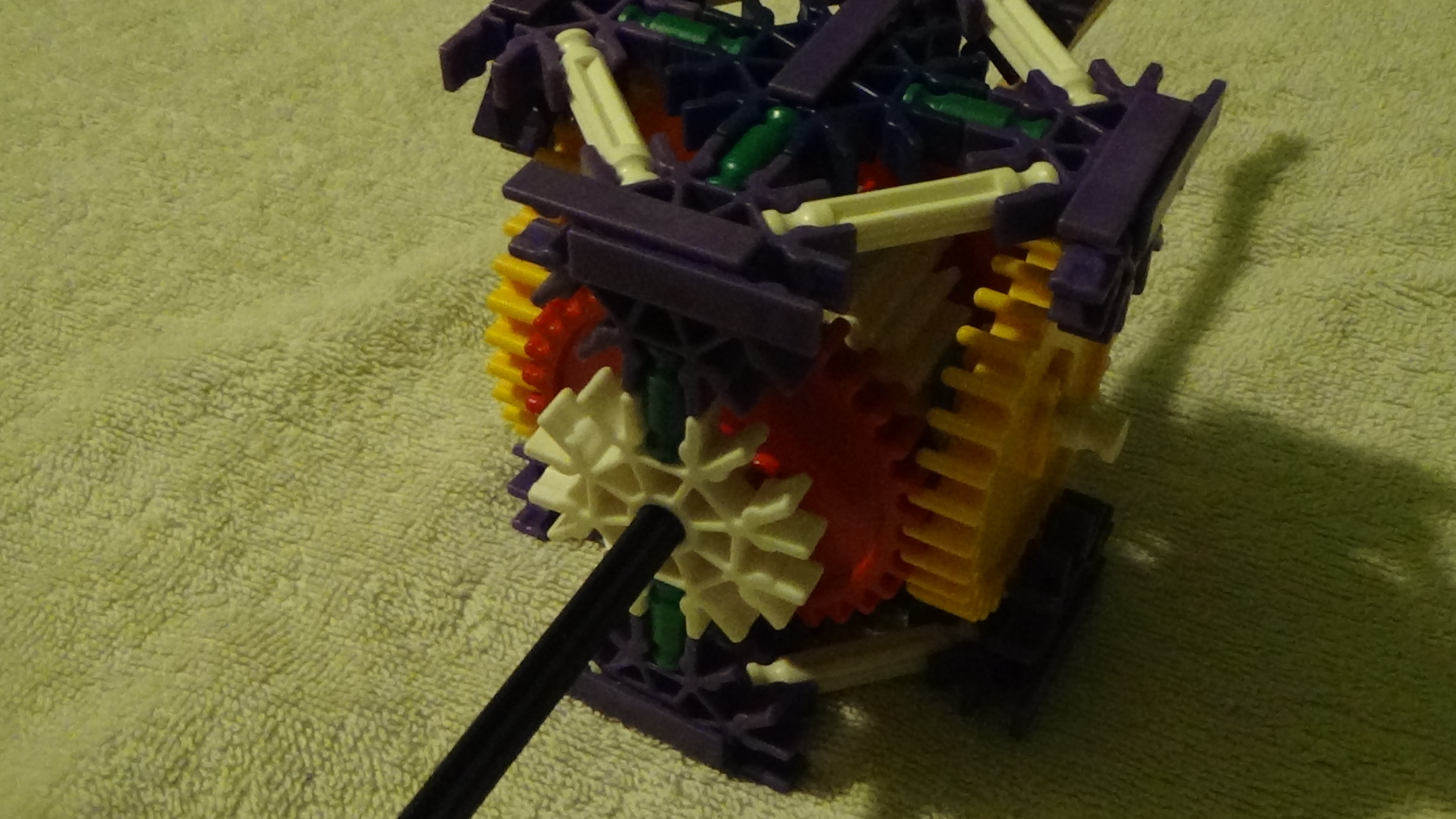

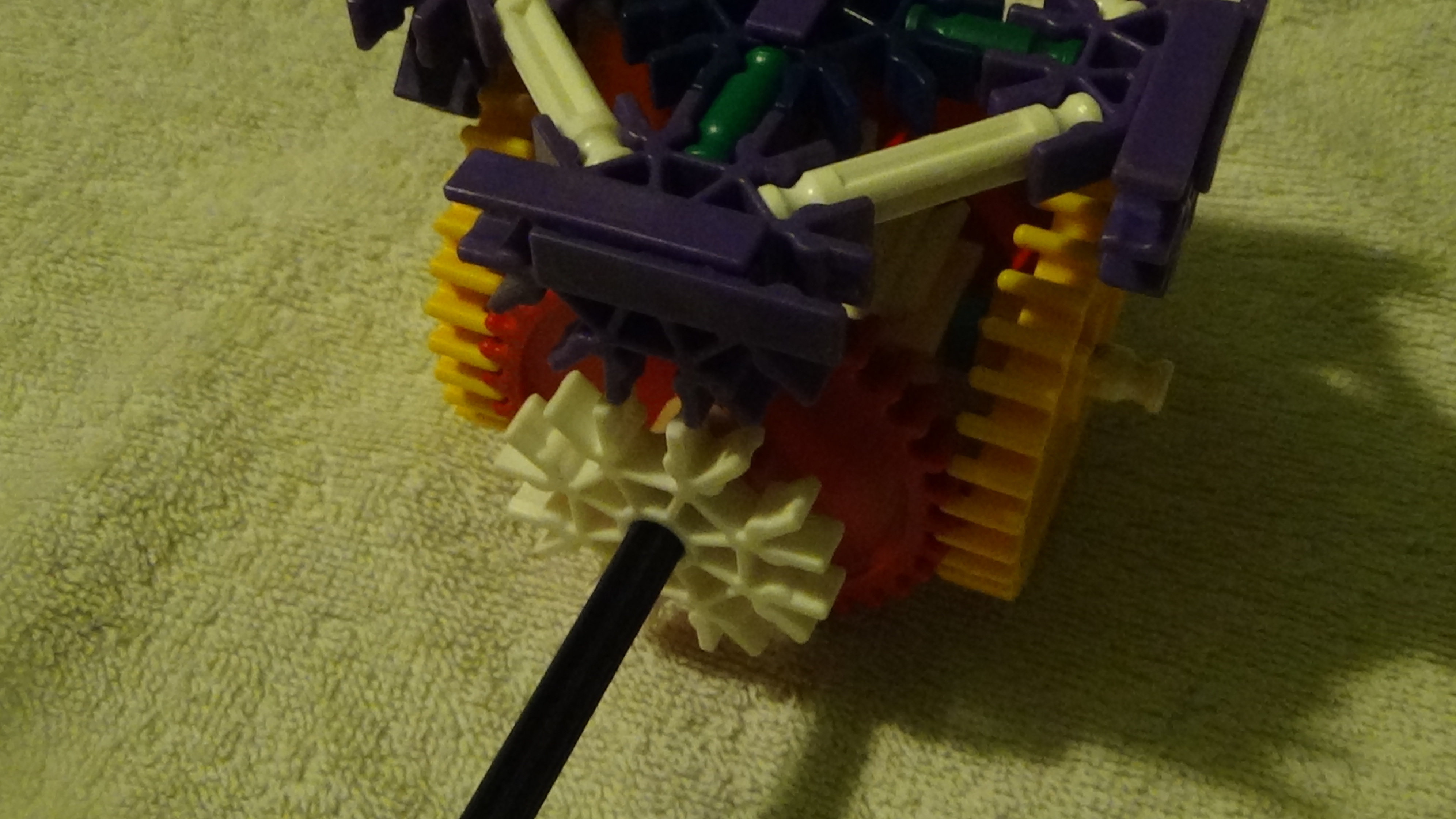

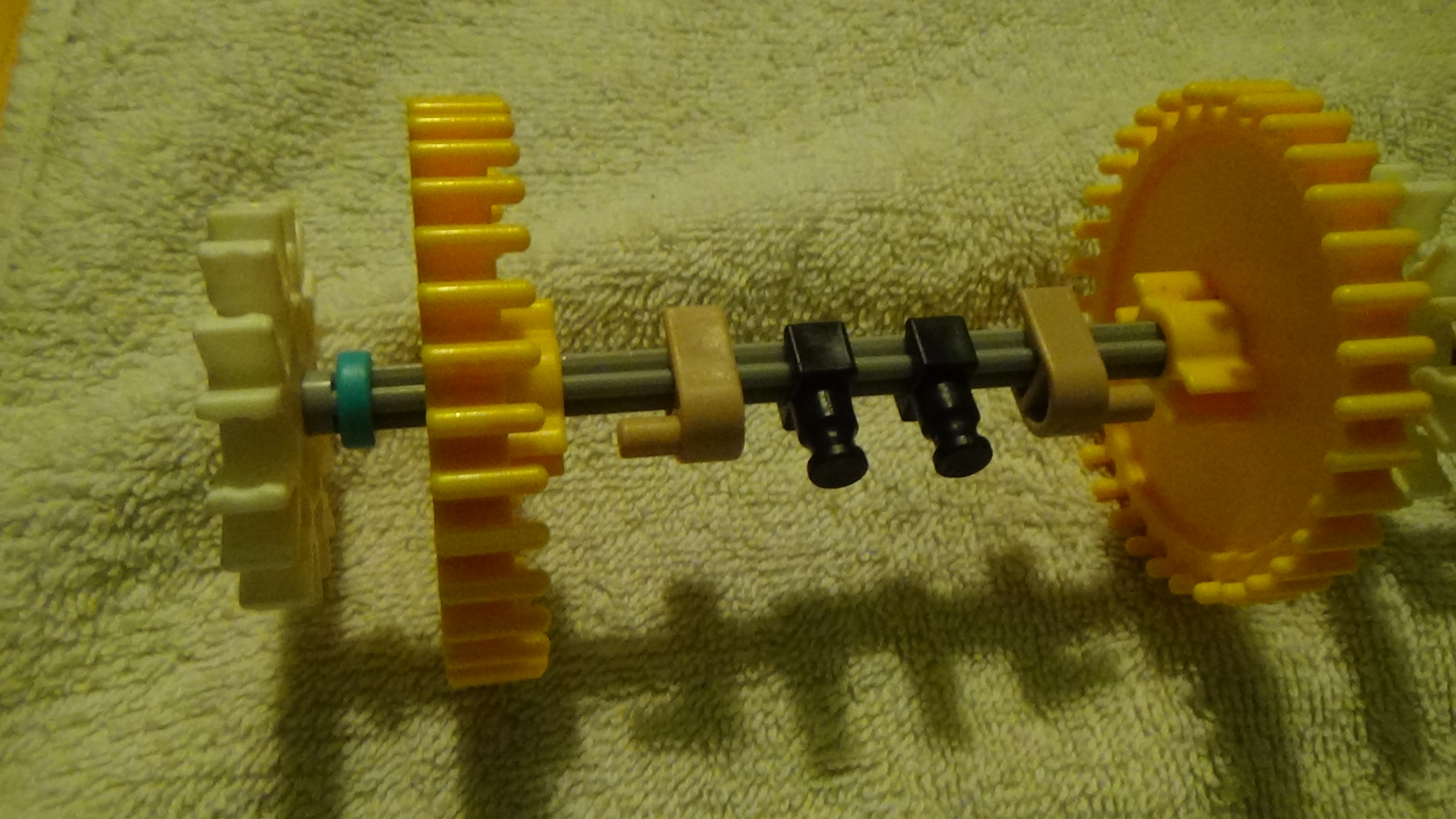

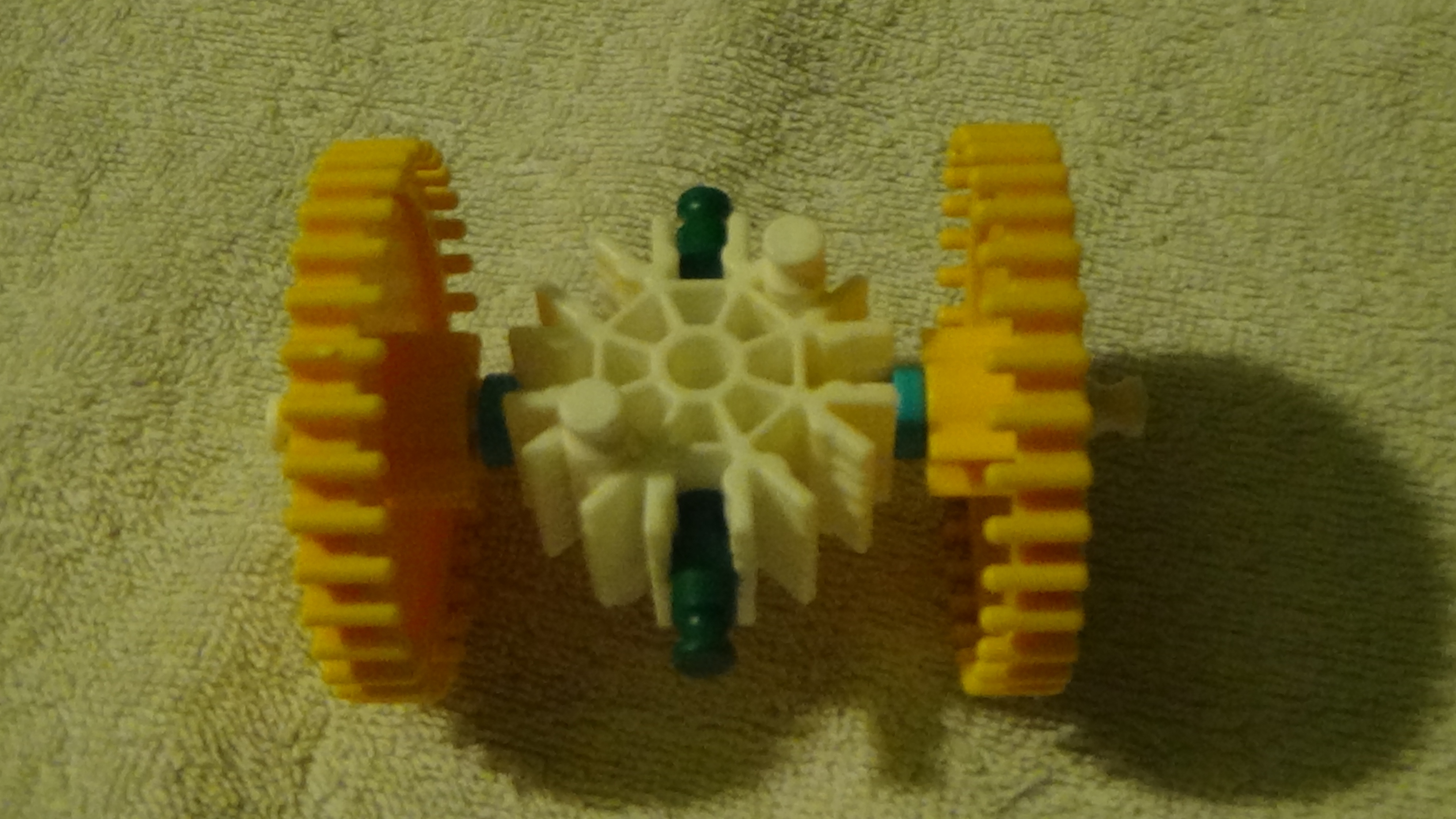

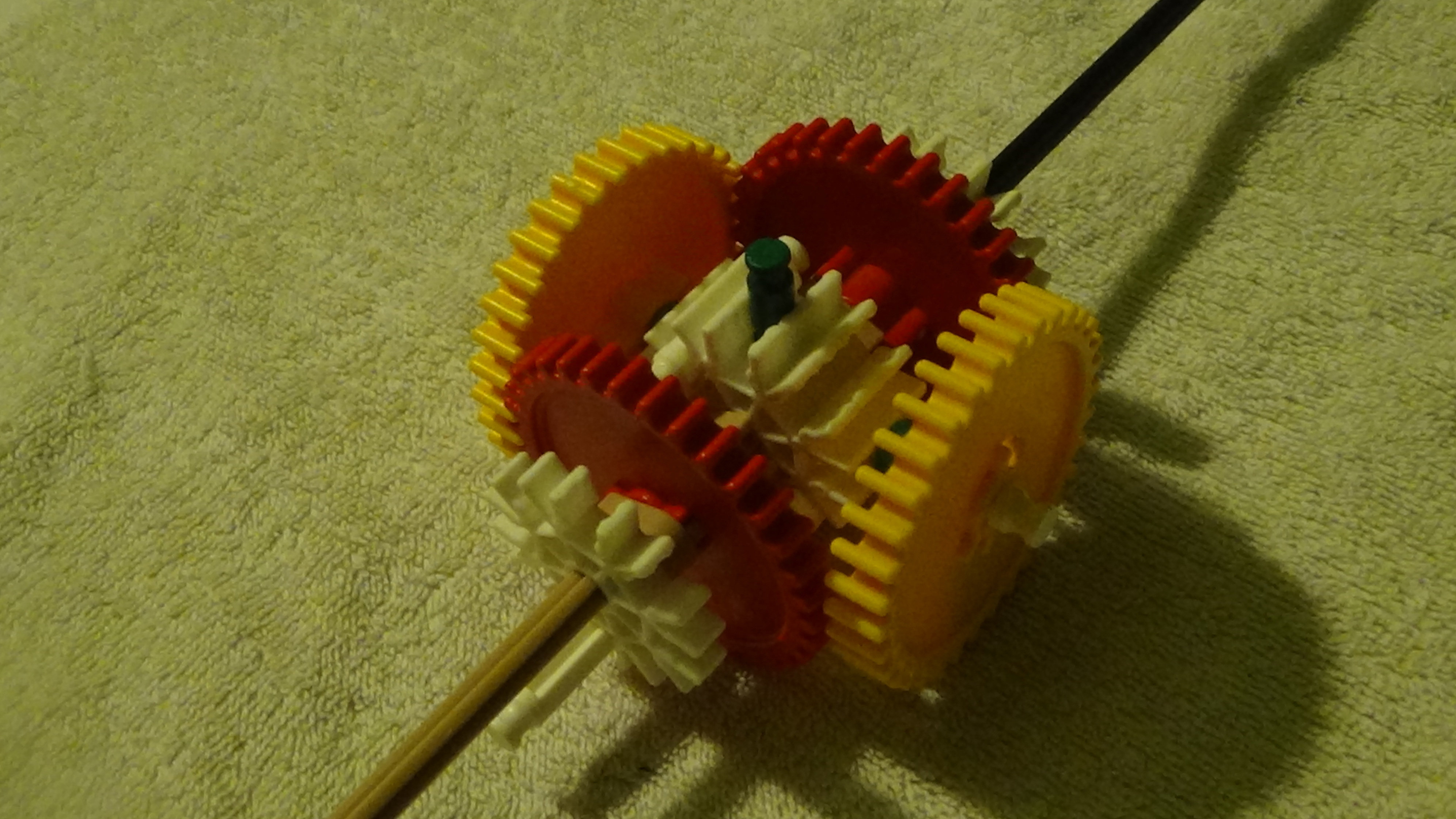

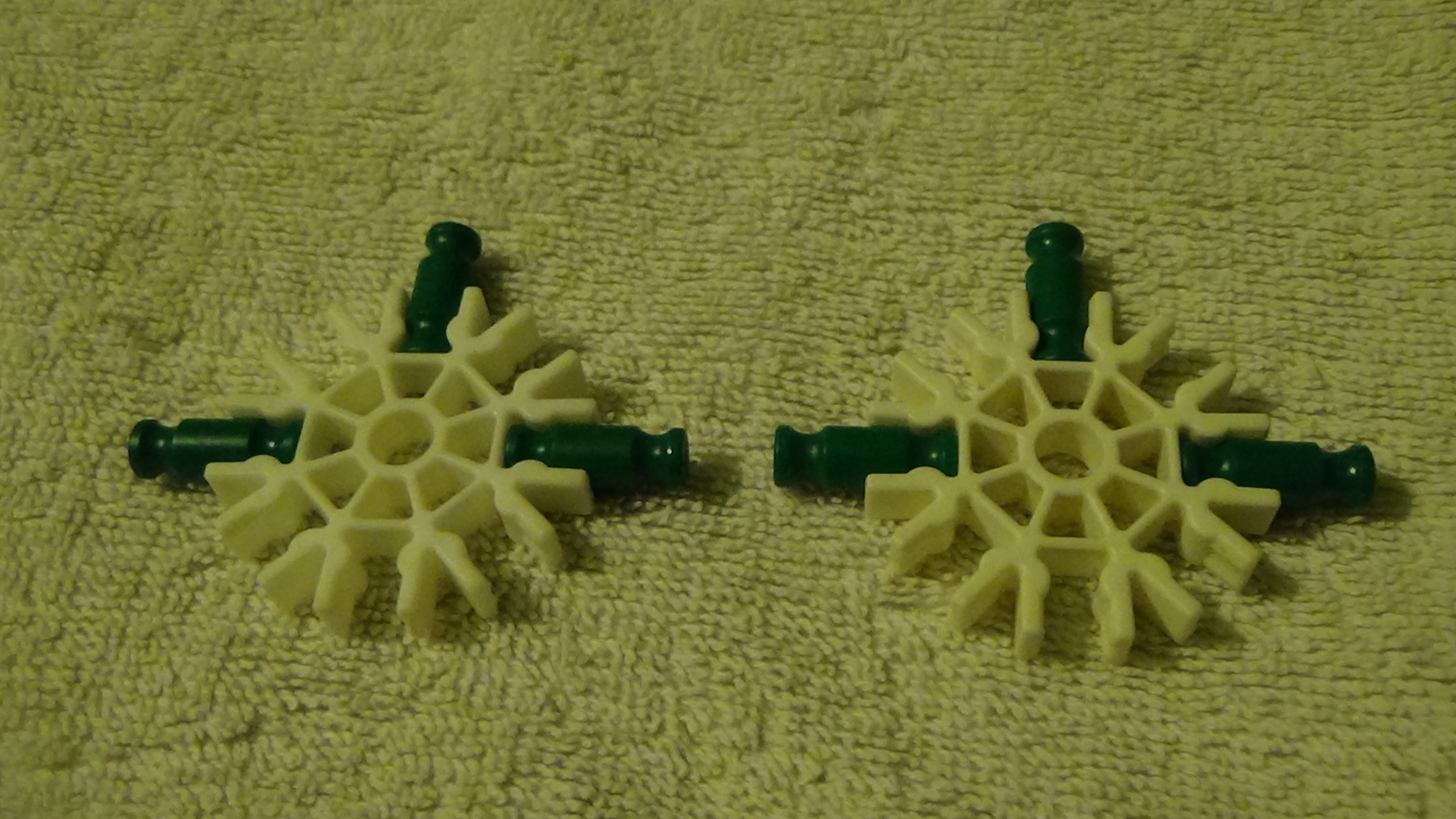

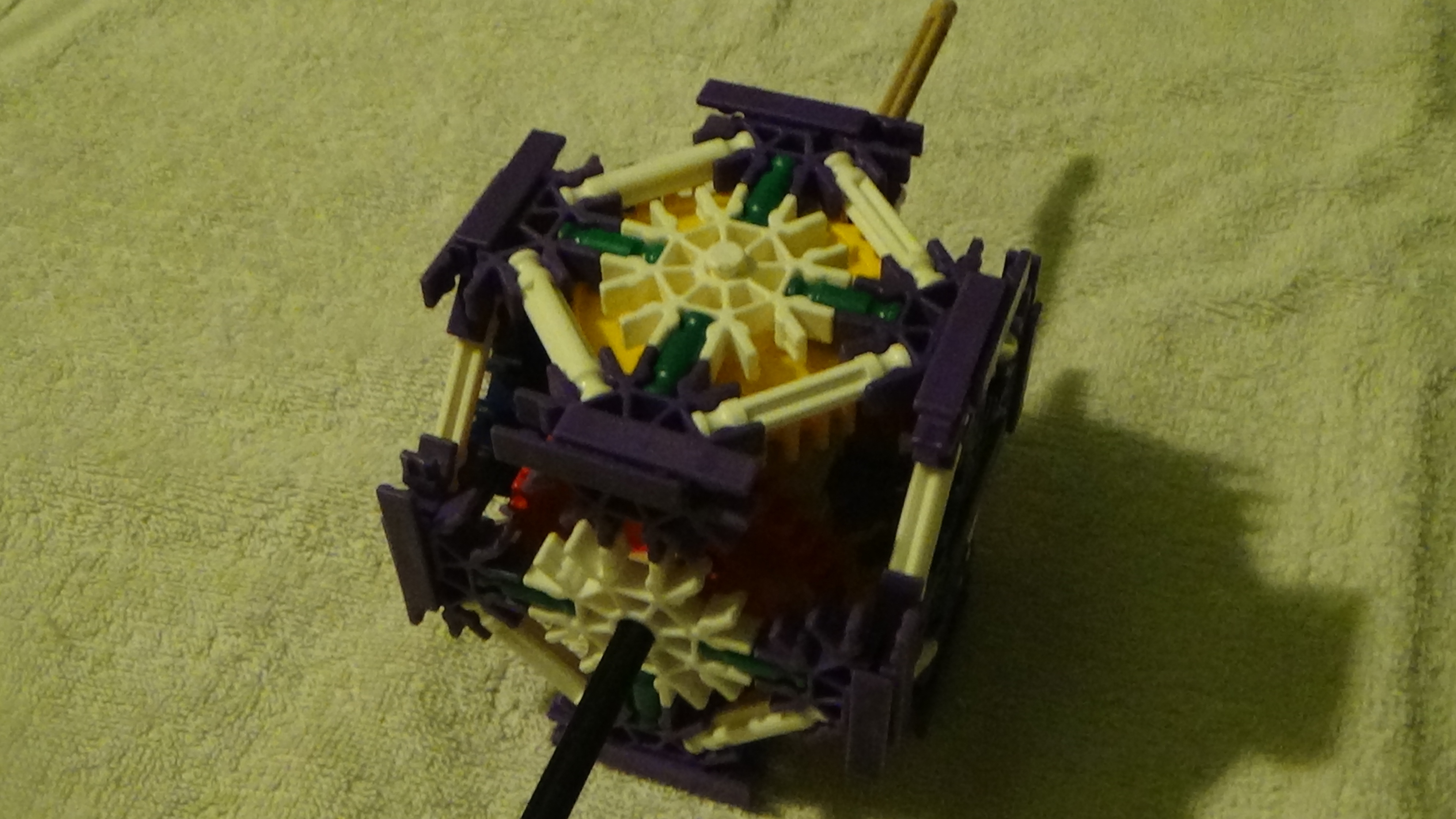

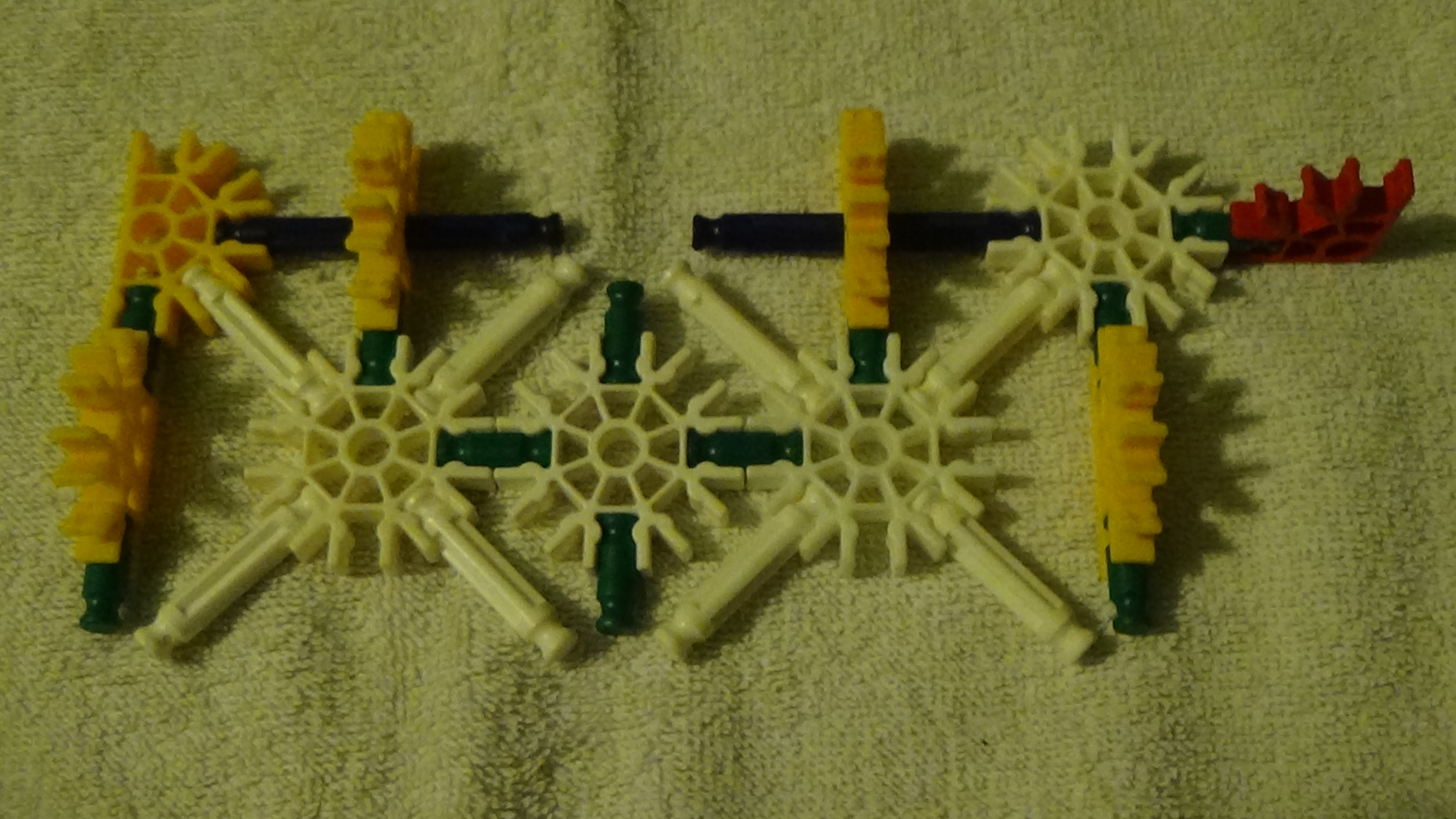

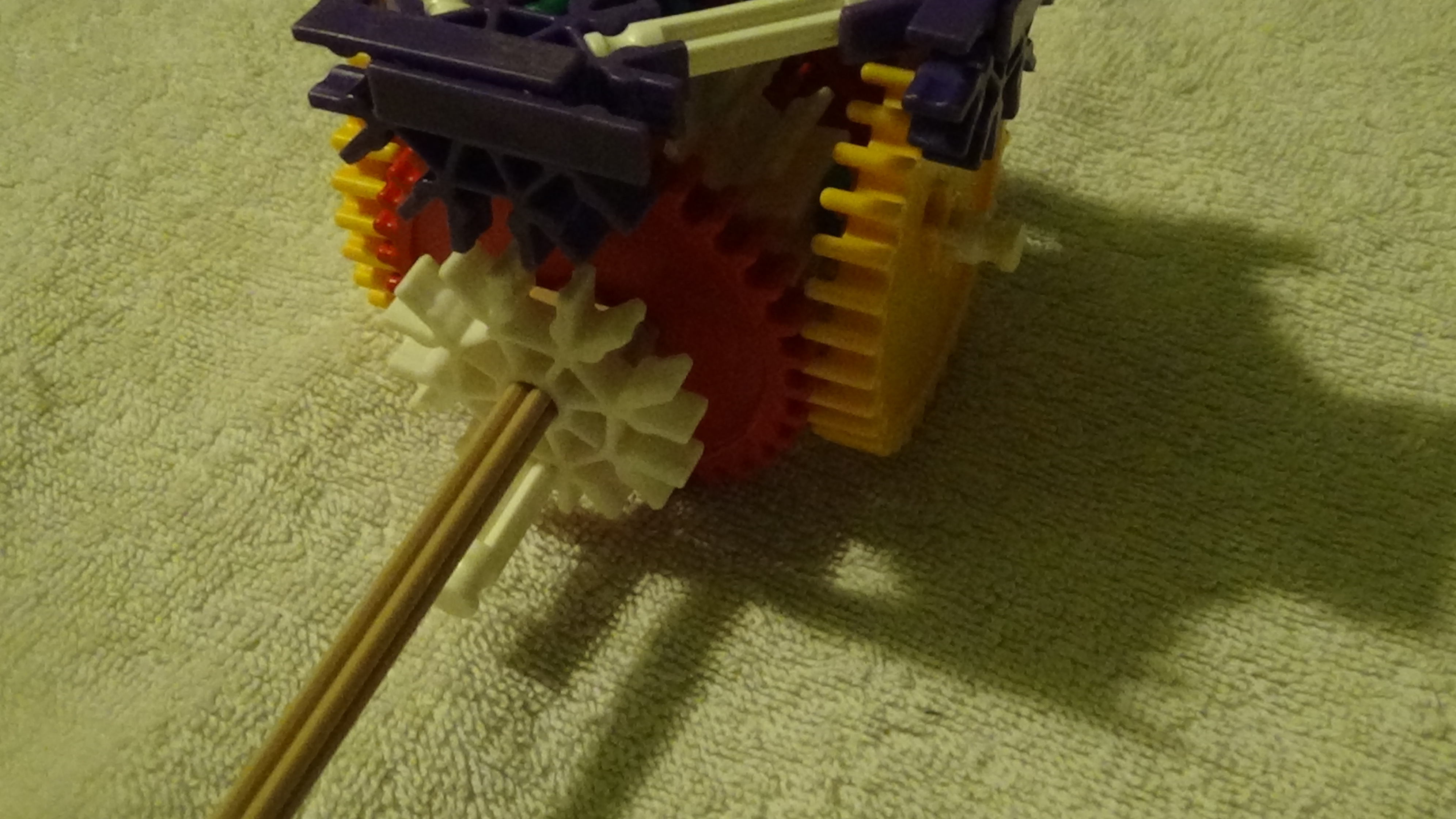

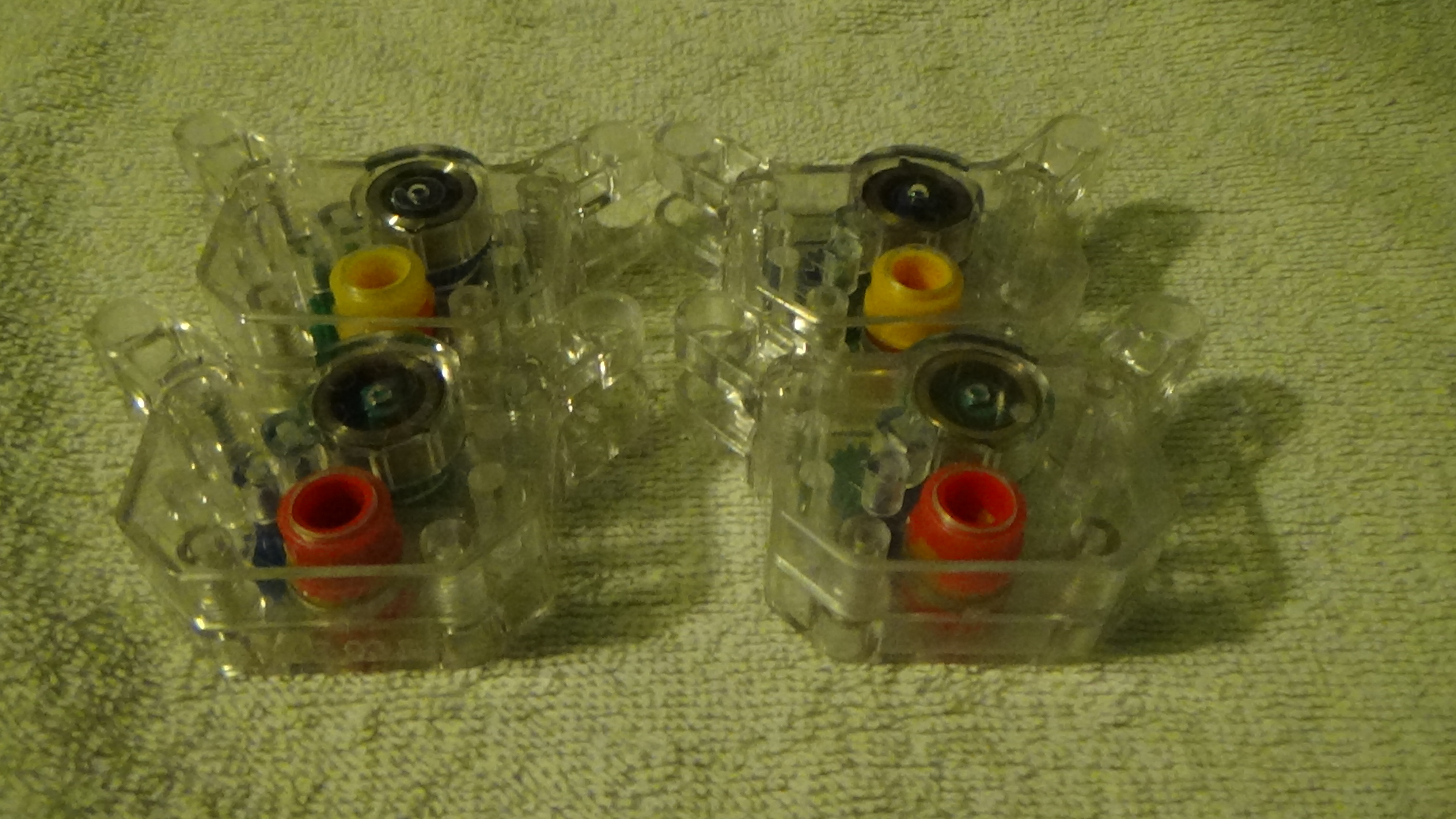

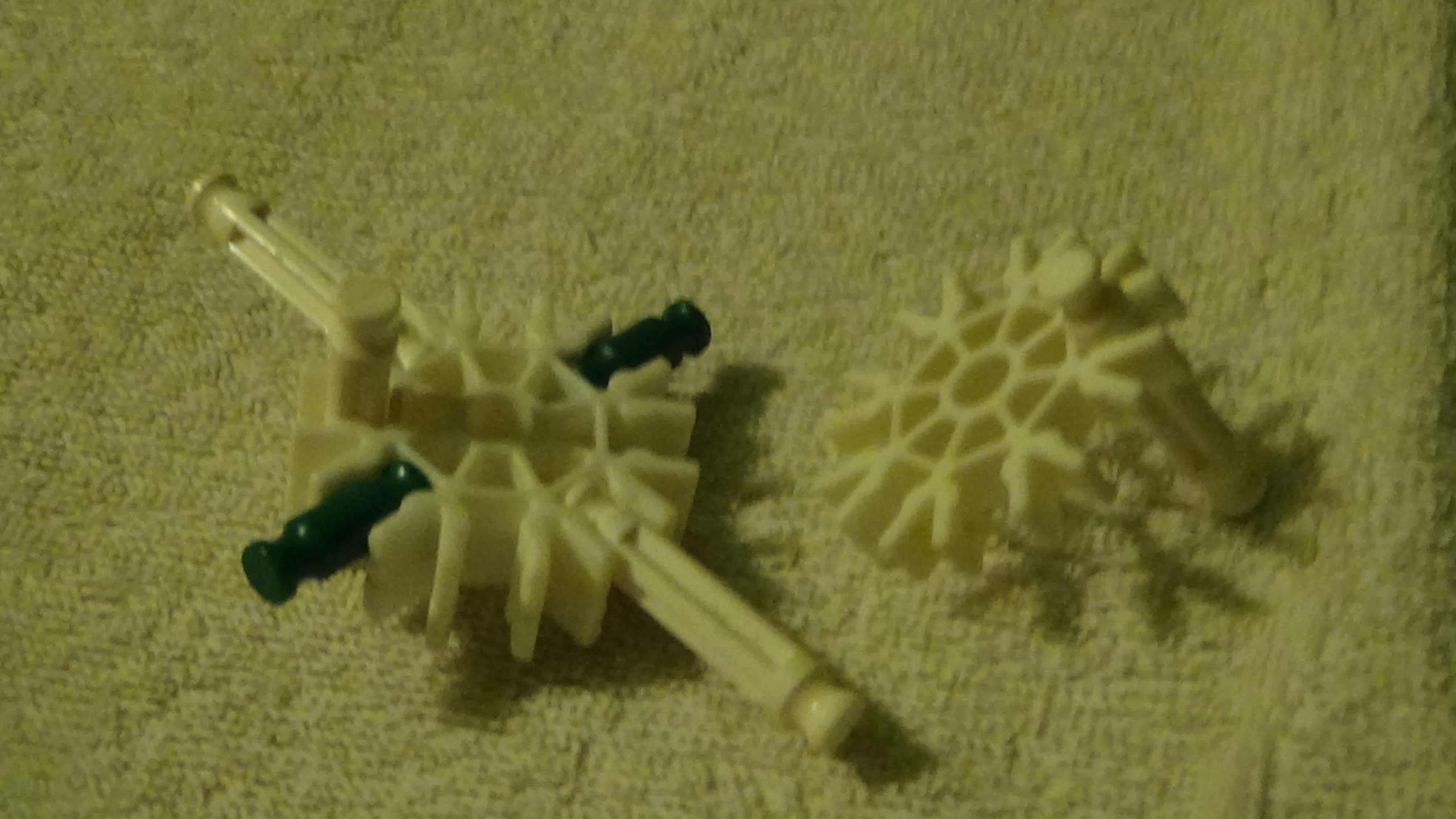

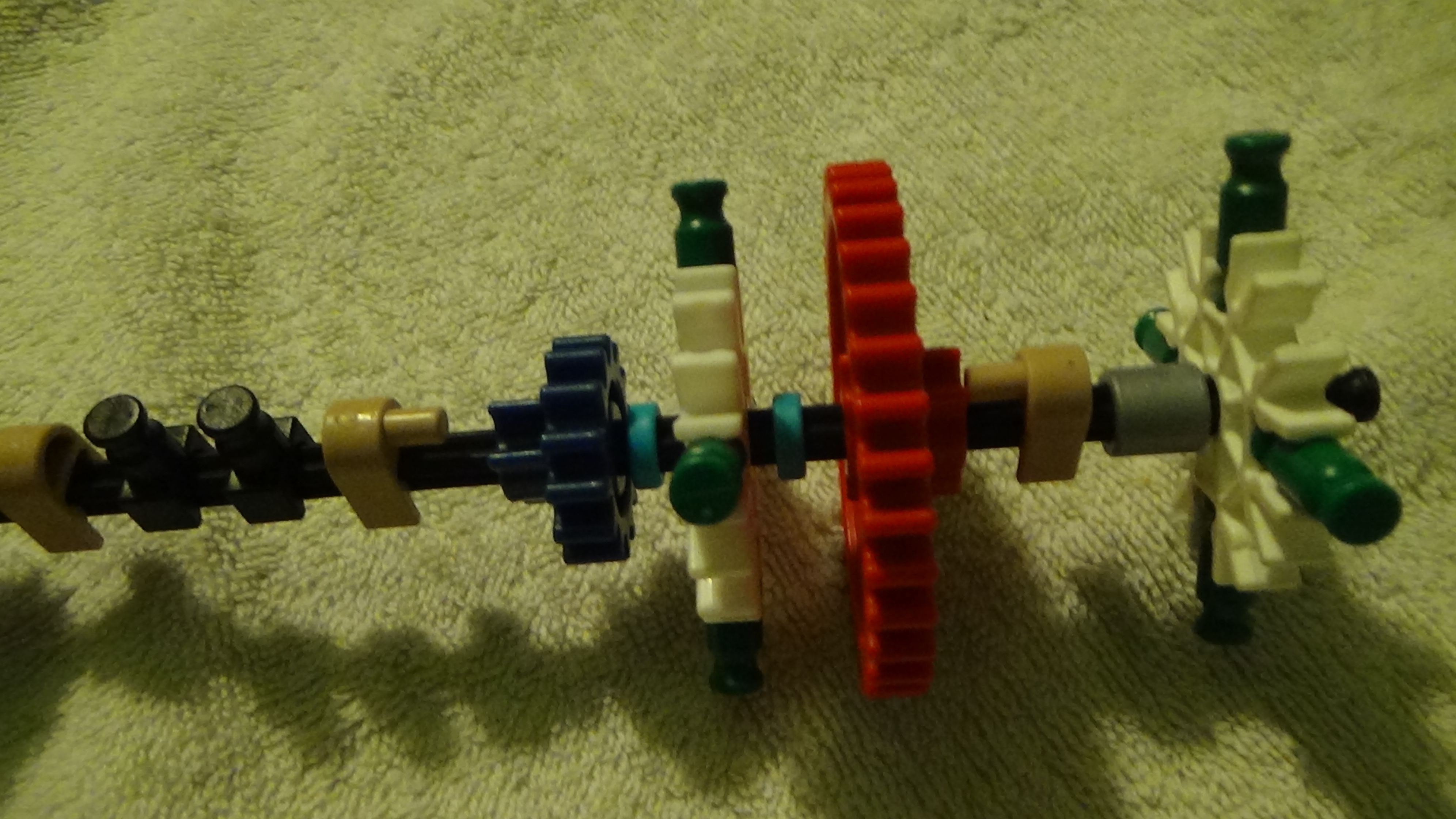

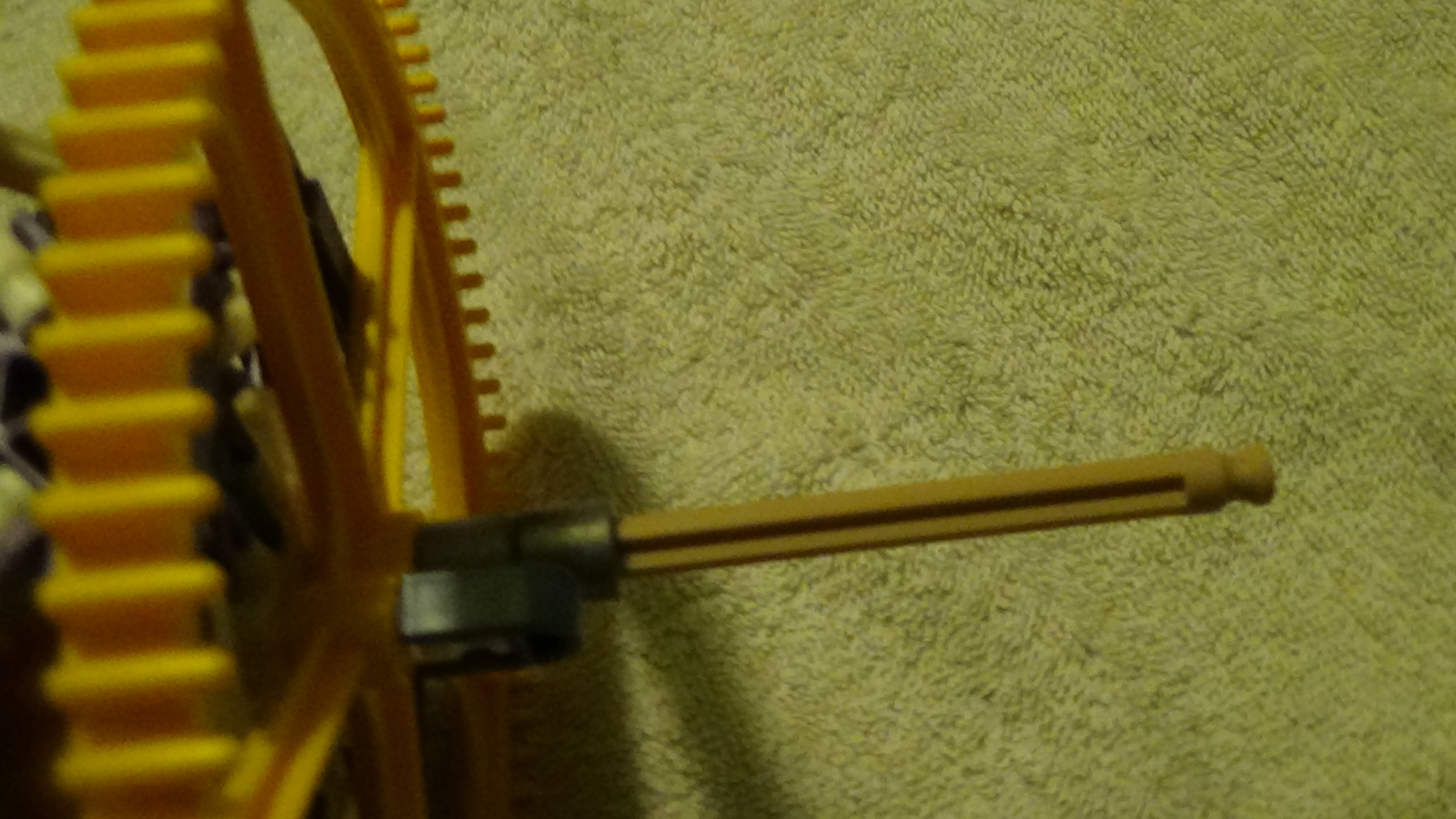

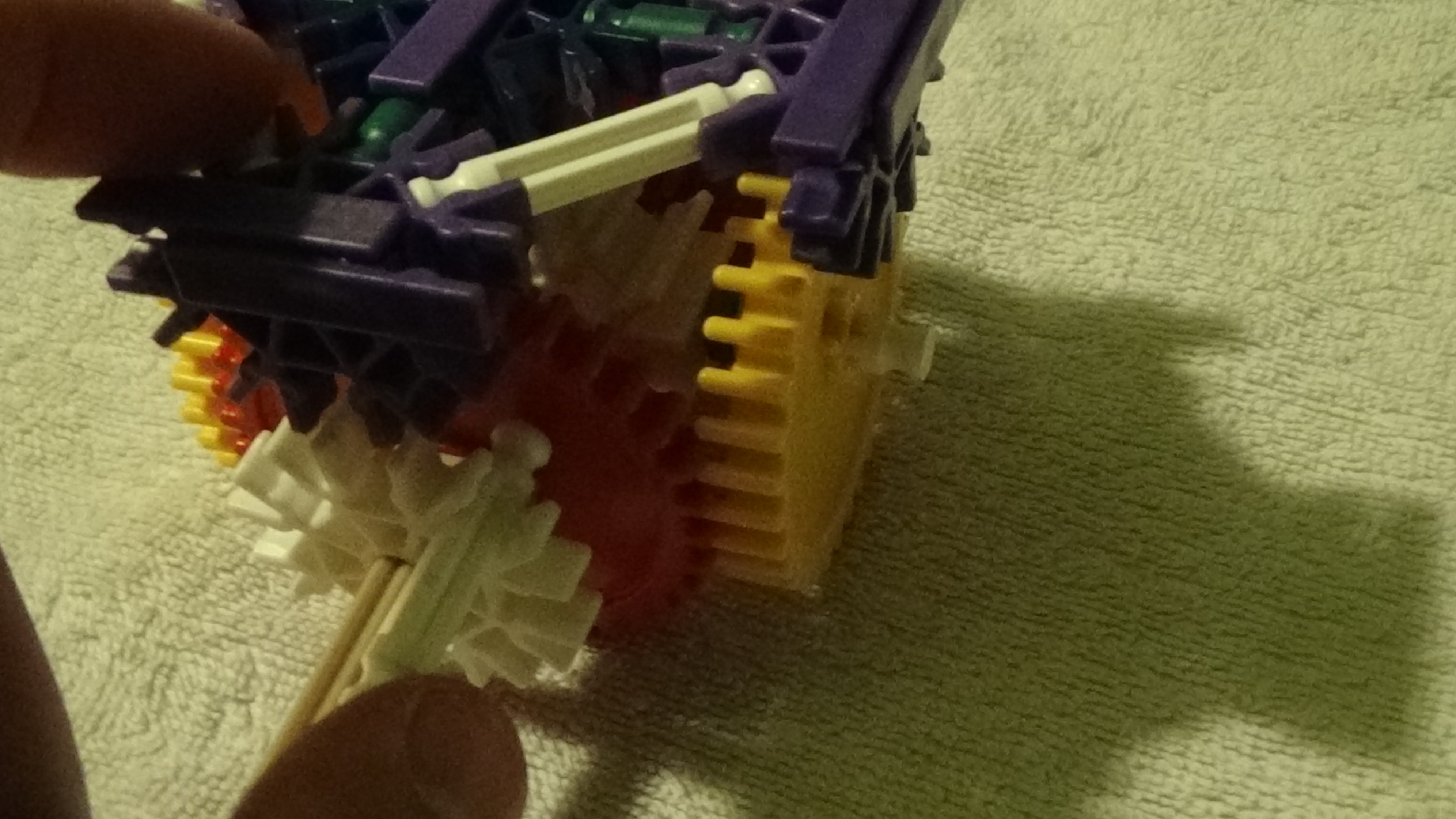

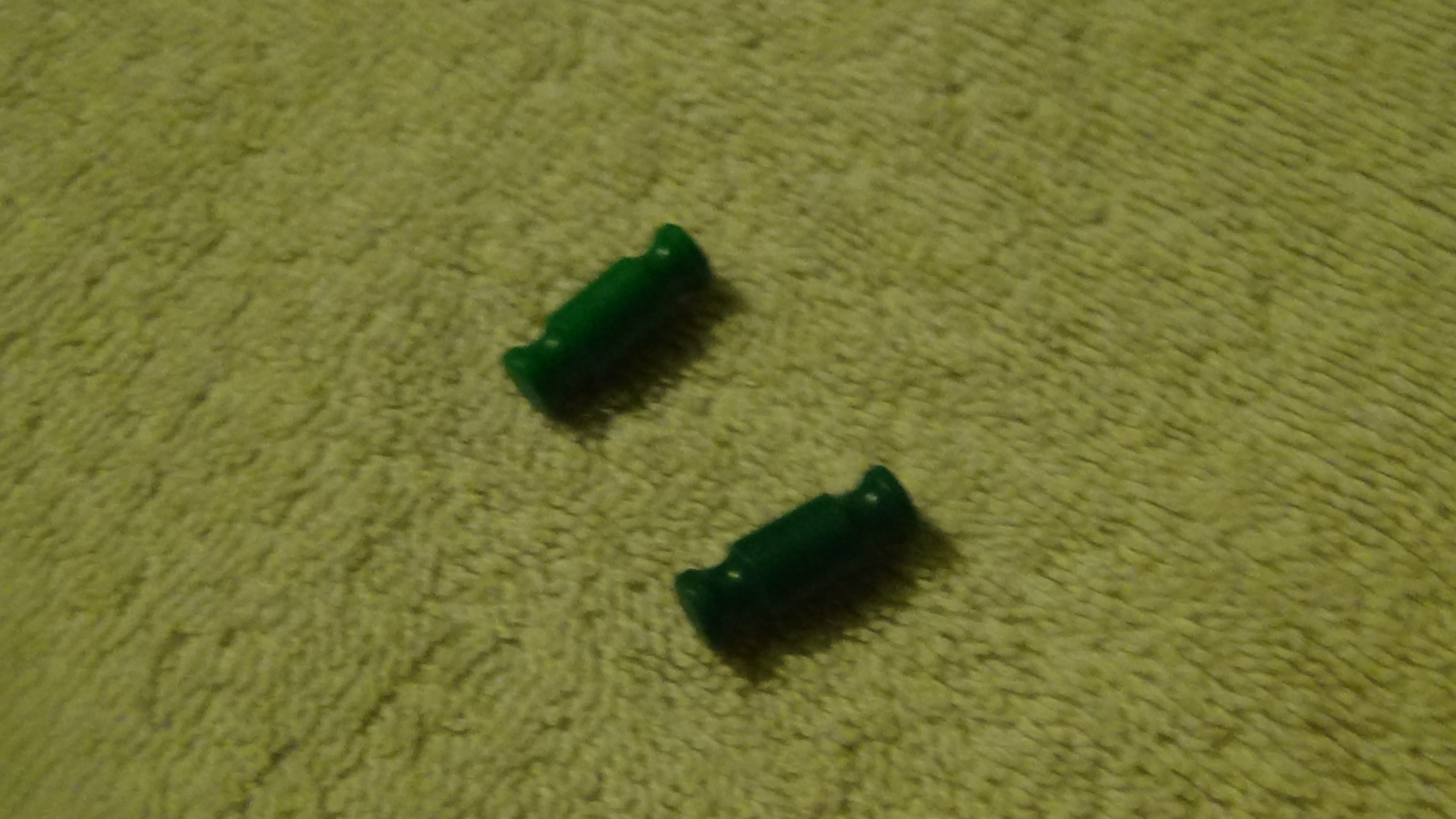

The Differentials
![juin à septembre 2016 055.JPG](/proxy/?url=https://content.instructables.com/FQY/I1KC/K4EC1FA2/FQYI1KCK4EC1FA2.jpg&filename=juin à septembre 2016 055.JPG)
![juin à septembre 2016 054.JPG](/proxy/?url=https://content.instructables.com/FGY/I6CV/K4EC1FA1/FGYI6CVK4EC1FA1.jpg&filename=juin à septembre 2016 054.JPG)
![juin à septembre 2016 056.JPG](/proxy/?url=https://content.instructables.com/FN2/4HG5/K4EC1FA9/FN24HG5K4EC1FA9.jpg&filename=juin à septembre 2016 056.JPG)
![juin à septembre 2016 057.JPG](/proxy/?url=https://content.instructables.com/FEL/VOFA/K4EC1FB3/FELVOFAK4EC1FB3.jpg&filename=juin à septembre 2016 057.JPG)
![juin à septembre 2016 058.JPG](/proxy/?url=https://content.instructables.com/FYA/P23X/K4EC1FB4/FYAP23XK4EC1FB4.jpg&filename=juin à septembre 2016 058.JPG)
![juin à septembre 2016 059.JPG](/proxy/?url=https://content.instructables.com/F46/FCPH/K4EC1FB8/F46FCPHK4EC1FB8.jpg&filename=juin à septembre 2016 059.JPG)
![juin à septembre 2016 060.JPG](/proxy/?url=https://content.instructables.com/FYL/XZ08/K4EC1FBA/FYLXZ08K4EC1FBA.jpg&filename=juin à septembre 2016 060.JPG)
![juin à septembre 2016 067.JPG](/proxy/?url=https://content.instructables.com/F3V/JIO3/K4EC1FKR/F3VJIO3K4EC1FKR.jpg&filename=juin à septembre 2016 067.JPG)
![juin à septembre 2016 068.JPG](/proxy/?url=https://content.instructables.com/FKK/1QOB/K4EC1FM4/FKK1QOBK4EC1FM4.jpg&filename=juin à septembre 2016 068.JPG)
![juin à septembre 2016 069.JPG](/proxy/?url=https://content.instructables.com/F1G/2SHH/K4EC1FMD/F1G2SHHK4EC1FMD.jpg&filename=juin à septembre 2016 069.JPG)
![juin à septembre 2016 070.JPG](/proxy/?url=https://content.instructables.com/FAI/0K66/K4EC1FN8/FAI0K66K4EC1FN8.jpg&filename=juin à septembre 2016 070.JPG)
![juin à septembre 2016 072.JPG](/proxy/?url=https://content.instructables.com/F5T/7PCW/K4EC1FO8/F5T7PCWK4EC1FO8.jpg&filename=juin à septembre 2016 072.JPG)
![juin à septembre 2016 073.JPG](/proxy/?url=https://content.instructables.com/FSU/PO5T/K4EC1FOX/FSUPO5TK4EC1FOX.jpg&filename=juin à septembre 2016 073.JPG)
![juin à septembre 2016 074.JPG](/proxy/?url=https://content.instructables.com/FIO/8GH3/K4EC1FPS/FIO8GH3K4EC1FPS.jpg&filename=juin à septembre 2016 074.JPG)
![juin à septembre 2016 075.JPG](/proxy/?url=https://content.instructables.com/FFU/ZK8N/K4EC1FRA/FFUZK8NK4EC1FRA.jpg&filename=juin à septembre 2016 075.JPG)
![juin à septembre 2016 061.JPG](/proxy/?url=https://content.instructables.com/FA6/261I/K4EC1FC0/FA6261IK4EC1FC0.jpg&filename=juin à septembre 2016 061.JPG)
![juin à septembre 2016 062.JPG](/proxy/?url=https://content.instructables.com/FCL/YEO6/K4EC1FDA/FCLYEO6K4EC1FDA.jpg&filename=juin à septembre 2016 062.JPG)
![juin à septembre 2016 064.JPG](/proxy/?url=https://content.instructables.com/FPQ/1JKP/K4EC1FGJ/FPQ1JKPK4EC1FGJ.jpg&filename=juin à septembre 2016 064.JPG)
![juin à septembre 2016 076.JPG](/proxy/?url=https://content.instructables.com/F3R/AU4D/K4EC1FRC/F3RAU4DK4EC1FRC.jpg&filename=juin à septembre 2016 076.JPG)
![juin à septembre 2016 077.JPG](/proxy/?url=https://content.instructables.com/FGC/GKFE/K4EC1FSX/FGCGKFEK4EC1FSX.jpg&filename=juin à septembre 2016 077.JPG)
![juin à septembre 2016 078.JPG](/proxy/?url=https://content.instructables.com/FVP/YOSH/K4EC1FSZ/FVPYOSHK4EC1FSZ.jpg&filename=juin à septembre 2016 078.JPG)
![juin à septembre 2016 079.JPG](/proxy/?url=https://content.instructables.com/FB6/YA30/K4EC1FVC/FB6YA30K4EC1FVC.jpg&filename=juin à septembre 2016 079.JPG)
![juin à septembre 2016 080.JPG](/proxy/?url=https://content.instructables.com/FVH/WYQX/K4EC1FW9/FVHWYQXK4EC1FW9.jpg&filename=juin à septembre 2016 080.JPG)
![juin à septembre 2016 081.JPG](/proxy/?url=https://content.instructables.com/FKS/TPX4/K4EC1FWF/FKSTPX4K4EC1FWF.jpg&filename=juin à septembre 2016 081.JPG)
![juin à septembre 2016 082.JPG](/proxy/?url=https://content.instructables.com/FHT/LK6I/K4EC1FWM/FHTLK6IK4EC1FWM.jpg&filename=juin à septembre 2016 082.JPG)
![juin à septembre 2016 083.JPG](/proxy/?url=https://content.instructables.com/F9K/P4H3/K4EC1FXG/F9KP4H3K4EC1FXG.jpg&filename=juin à septembre 2016 083.JPG)
![juin à septembre 2016 084.JPG](/proxy/?url=https://content.instructables.com/FQ4/SXAU/K4EC1FXJ/FQ4SXAUK4EC1FXJ.jpg&filename=juin à septembre 2016 084.JPG)
![juin à septembre 2016 085.JPG](/proxy/?url=https://content.instructables.com/FER/J2CO/K4EC1FYG/FERJ2COK4EC1FYG.jpg&filename=juin à septembre 2016 085.JPG)
![juin à septembre 2016 086.JPG](/proxy/?url=https://content.instructables.com/FL3/X0WZ/K4EC1FYM/FL3X0WZK4EC1FYM.jpg&filename=juin à septembre 2016 086.JPG)
![juin à septembre 2016 087.JPG](/proxy/?url=https://content.instructables.com/FSC/YU7G/K4EC1FYX/FSCYU7GK4EC1FYX.jpg&filename=juin à septembre 2016 087.JPG)
![juin à septembre 2016 088.JPG](/proxy/?url=https://content.instructables.com/FRM/LVL0/K4EC1FZP/FRMLVL0K4EC1FZP.jpg&filename=juin à septembre 2016 088.JPG)
![juin à septembre 2016 089.JPG](/proxy/?url=https://content.instructables.com/F3T/PB2U/K4EC1G0F/F3TPB2UK4EC1G0F.jpg&filename=juin à septembre 2016 089.JPG)
![juin à septembre 2016 065.JPG](/proxy/?url=https://content.instructables.com/FHJ/PKYH/K4EC1FHU/FHJPKYHK4EC1FHU.jpg&filename=juin à septembre 2016 065.JPG)
![juin à septembre 2016 066.JPG](/proxy/?url=https://content.instructables.com/FC9/0YO1/K4EC1FJ9/FC90YO1K4EC1FJ9.jpg&filename=juin à septembre 2016 066.JPG)
![juin à septembre 2016 090.JPG](/proxy/?url=https://content.instructables.com/F2O/OIOC/K4EC1G0M/F2OOIOCK4EC1G0M.jpg&filename=juin à septembre 2016 090.JPG)
![juin à septembre 2016 091.JPG](/proxy/?url=https://content.instructables.com/FPP/SRN0/K4EC1G1A/FPPSRN0K4EC1G1A.jpg&filename=juin à septembre 2016 091.JPG)
![juin à septembre 2016 093.JPG](/proxy/?url=https://content.instructables.com/F5K/QO18/K4EC1G2D/F5KQO18K4EC1G2D.jpg&filename=juin à septembre 2016 093.JPG)
![juin à septembre 2016 094.JPG](/proxy/?url=https://content.instructables.com/FRU/DLX5/K4EC1G2M/FRUDLX5K4EC1G2M.jpg&filename=juin à septembre 2016 094.JPG)
![juin à septembre 2016 095.JPG](/proxy/?url=https://content.instructables.com/F9C/H8MK/K4EC1G3H/F9CH8MKK4EC1G3H.jpg&filename=juin à septembre 2016 095.JPG)
![juin à septembre 2016 096.JPG](/proxy/?url=https://content.instructables.com/FTN/NKWT/K4EC1G3M/FTNNKWTK4EC1G3M.jpg&filename=juin à septembre 2016 096.JPG)
![juin à septembre 2016 098.JPG](/proxy/?url=https://content.instructables.com/FBF/P86F/K4EC1GDD/FBFP86FK4EC1GDD.jpg&filename=juin à septembre 2016 098.JPG)
![juin à septembre 2016 099.JPG](/proxy/?url=https://content.instructables.com/FKU/F1AD/K4EC1GER/FKUF1ADK4EC1GER.jpg&filename=juin à septembre 2016 099.JPG)
![juin à septembre 2016 100.JPG](/proxy/?url=https://content.instructables.com/F3X/UL7J/K4EC1GG6/F3XUL7JK4EC1GG6.jpg&filename=juin à septembre 2016 100.JPG)
![juin à septembre 2016 101.JPG](/proxy/?url=https://content.instructables.com/F35/VLWK/K4EC1GHH/F35VLWKK4EC1GHH.jpg&filename=juin à septembre 2016 101.JPG)
![juin à septembre 2016 102.JPG](/proxy/?url=https://content.instructables.com/F0T/GE0C/K4EC1GIS/F0TGE0CK4EC1GIS.jpg&filename=juin à septembre 2016 102.JPG)
![juin à septembre 2016 103.JPG](/proxy/?url=https://content.instructables.com/FC4/4UP7/K4EC1GJG/FC44UP7K4EC1GJG.jpg&filename=juin à septembre 2016 103.JPG)
![juin à septembre 2016 104.JPG](/proxy/?url=https://content.instructables.com/F9P/XQEG/K4EC1GLI/F9PXQEGK4EC1GLI.jpg&filename=juin à septembre 2016 104.JPG)
![juin à septembre 2016 105.JPG](/proxy/?url=https://content.instructables.com/FCQ/CHBQ/K4EC1GMT/FCQCHBQK4EC1GMT.jpg&filename=juin à septembre 2016 105.JPG)
![juin à septembre 2016 106.JPG](/proxy/?url=https://content.instructables.com/FRT/9332/K4EC1GOA/FRT9332K4EC1GOA.jpg&filename=juin à septembre 2016 106.JPG)
![juin à septembre 2016 107.JPG](/proxy/?url=https://content.instructables.com/FDA/TX8H/K4EC1GPM/FDATX8HK4EC1GPM.jpg&filename=juin à septembre 2016 107.JPG)
![juin à septembre 2016 108.JPG](/proxy/?url=https://content.instructables.com/FUD/9EJU/K4EC1GQI/FUD9EJUK4EC1GQI.jpg&filename=juin à septembre 2016 108.JPG)
![juin à septembre 2016 109.JPG](/proxy/?url=https://content.instructables.com/FNG/9VRF/K4EC1GQN/FNG9VRFK4EC1GQN.jpg&filename=juin à septembre 2016 109.JPG)
![juin à septembre 2016 110.JPG](/proxy/?url=https://content.instructables.com/FKQ/0K65/K4EC1GQS/FKQ0K65K4EC1GQS.jpg&filename=juin à septembre 2016 110.JPG)
![juin à septembre 2016 111.JPG](/proxy/?url=https://content.instructables.com/F0D/HN44/K4EC1GSU/F0DHN44K4EC1GSU.jpg&filename=juin à septembre 2016 111.JPG)
![juin à septembre 2016 112.JPG](/proxy/?url=https://content.instructables.com/F9U/ZLUH/K4EC1GUE/F9UZLUHK4EC1GUE.jpg&filename=juin à septembre 2016 112.JPG)
![juin à septembre 2016 113.JPG](/proxy/?url=https://content.instructables.com/F83/ASEI/K4EC1GWI/F83ASEIK4EC1GWI.jpg&filename=juin à septembre 2016 113.JPG)
![juin à septembre 2016 114.JPG](/proxy/?url=https://content.instructables.com/FFH/UWAM/K4EC1GXB/FFHUWAMK4EC1GXB.jpg&filename=juin à septembre 2016 114.JPG)
![juin à septembre 2016 116.JPG](/proxy/?url=https://content.instructables.com/FI9/6IZV/K4EC1H4X/FI96IZVK4EC1H4X.jpg&filename=juin à septembre 2016 116.JPG)
![juin à septembre 2016 117.JPG](/proxy/?url=https://content.instructables.com/FQF/BYIU/K4EC1H7L/FQFBYIUK4EC1H7L.jpg&filename=juin à septembre 2016 117.JPG)
![juin à septembre 2016 118.JPG](/proxy/?url=https://content.instructables.com/F2B/HFKC/K4EC1H8Z/F2BHFKCK4EC1H8Z.jpg&filename=juin à septembre 2016 118.JPG)

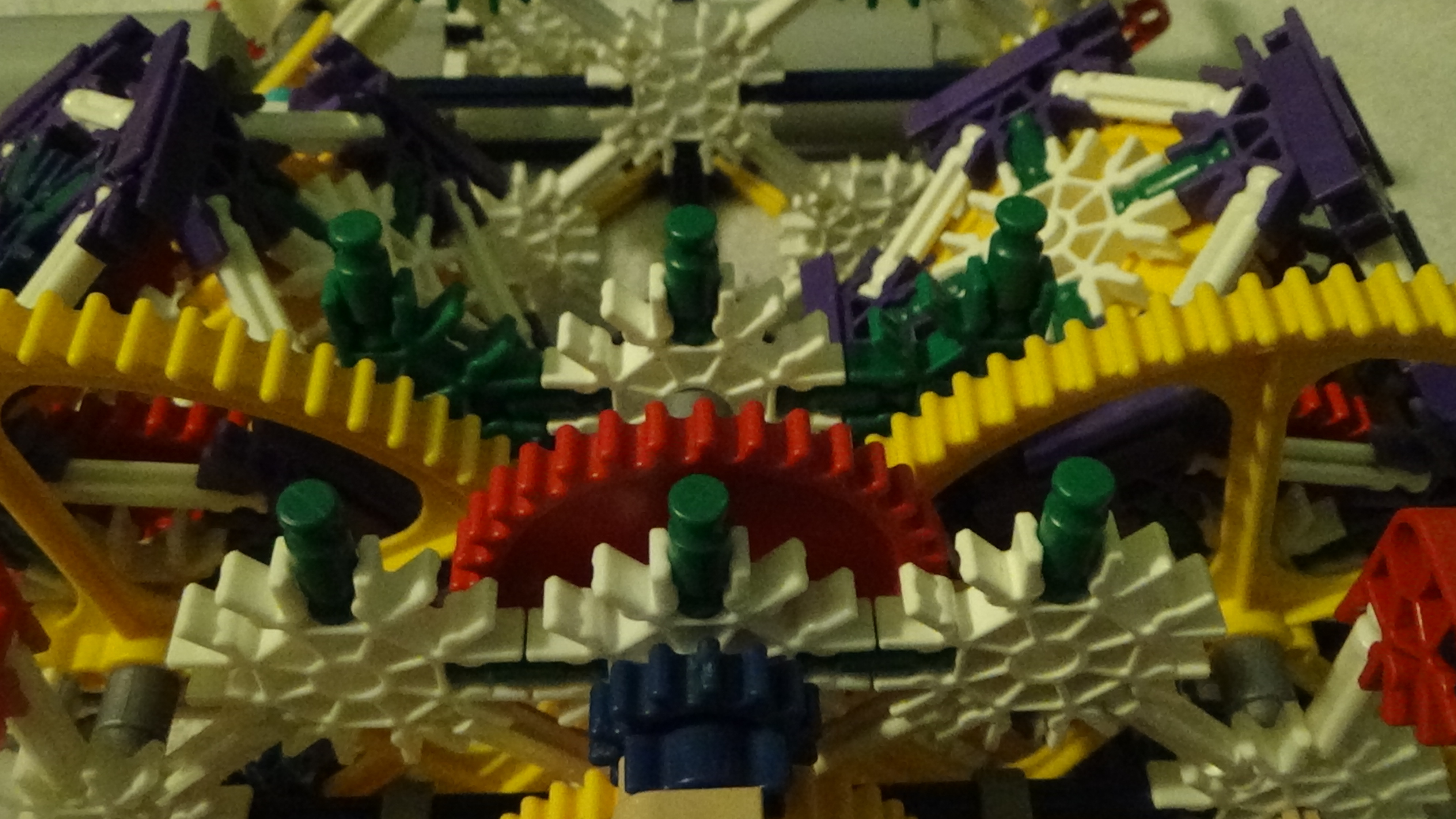

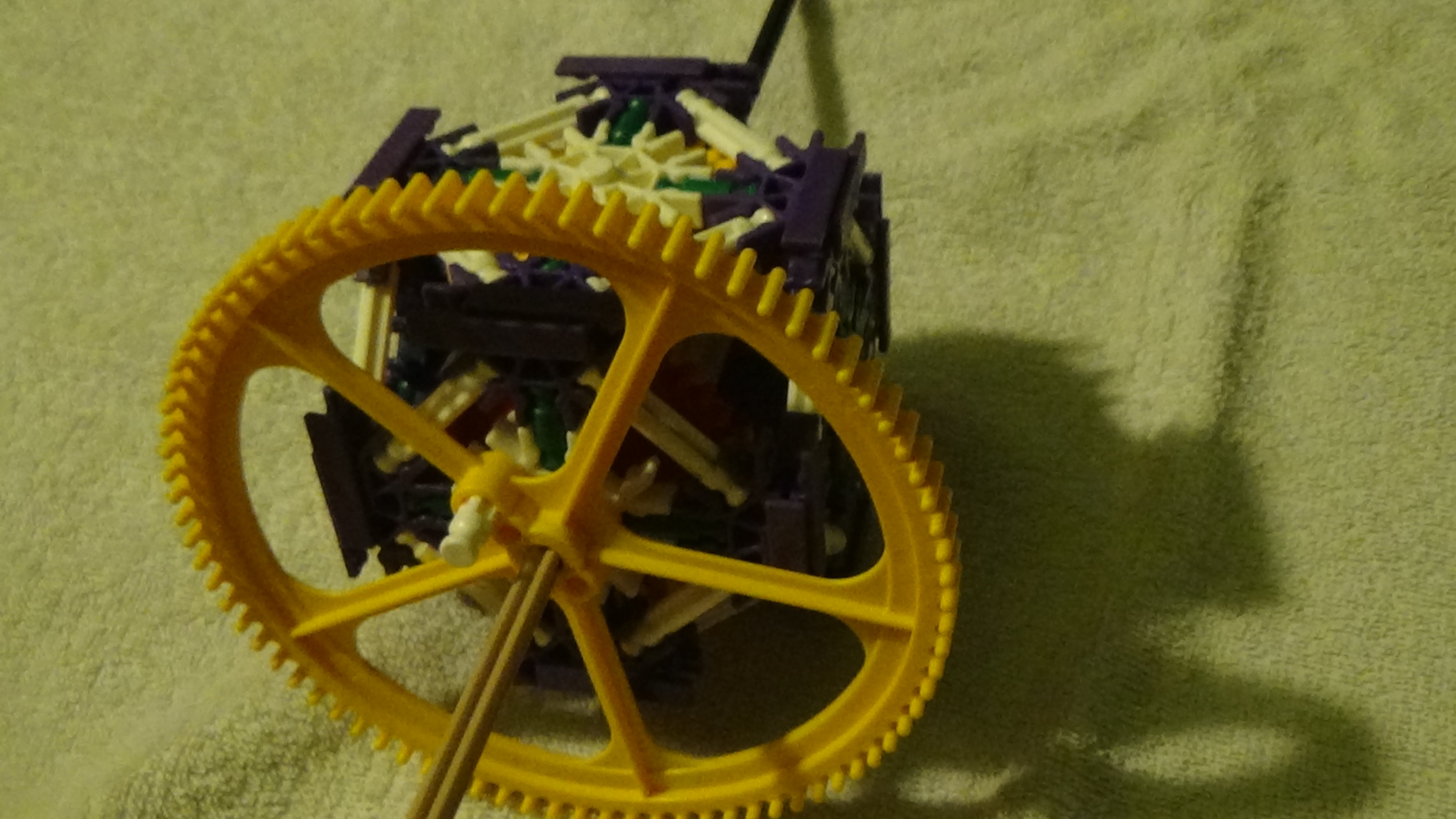

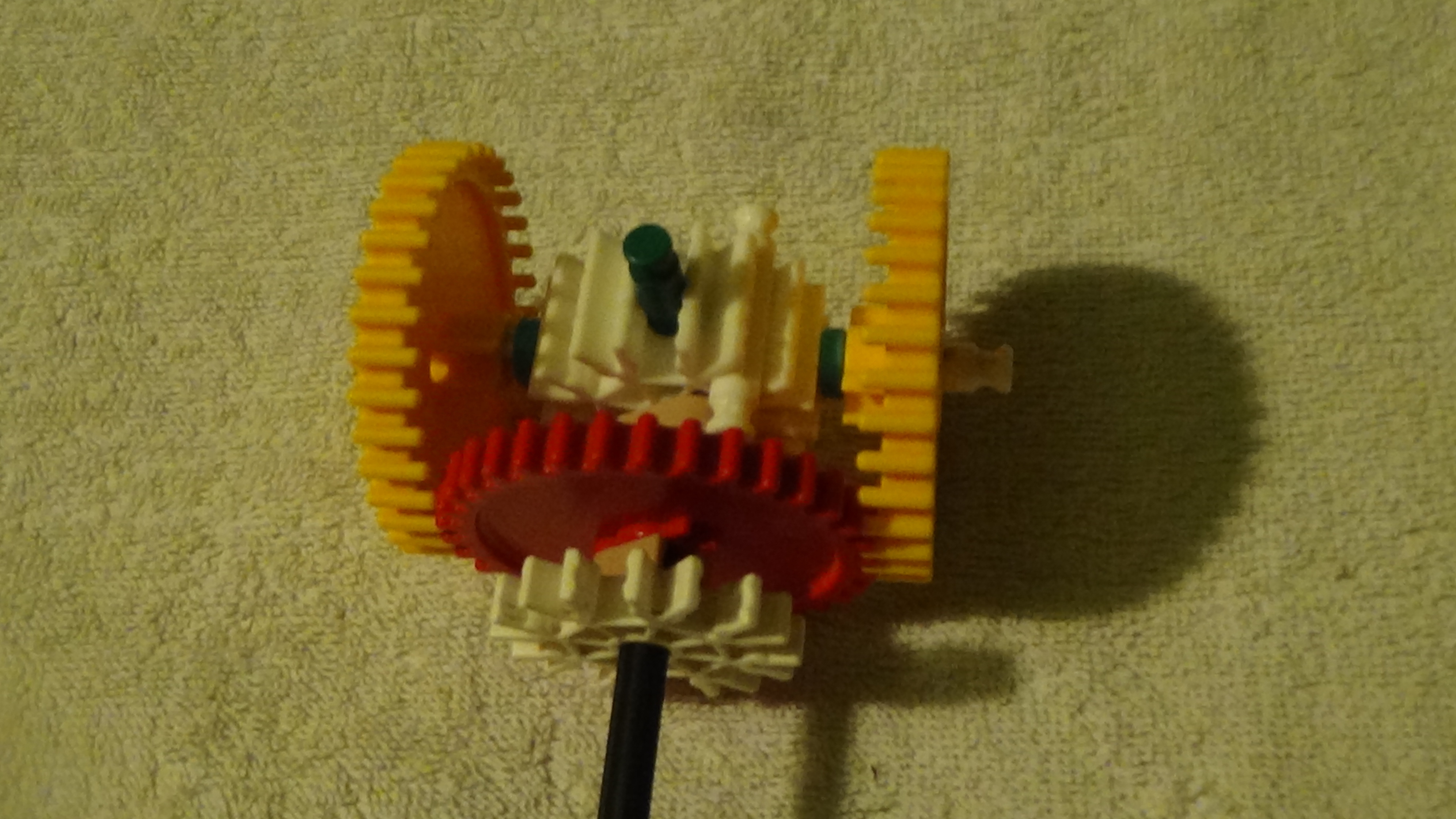

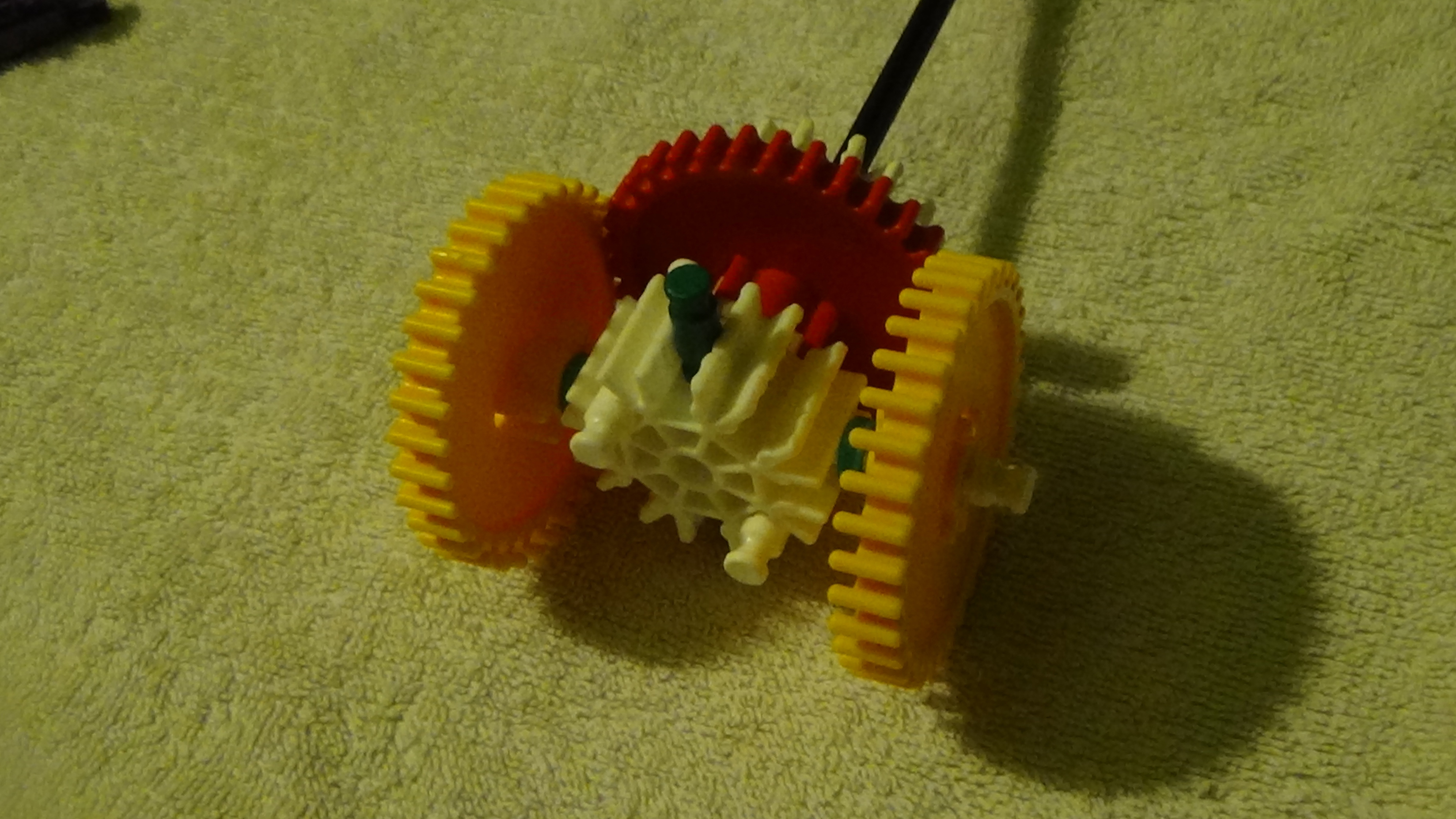

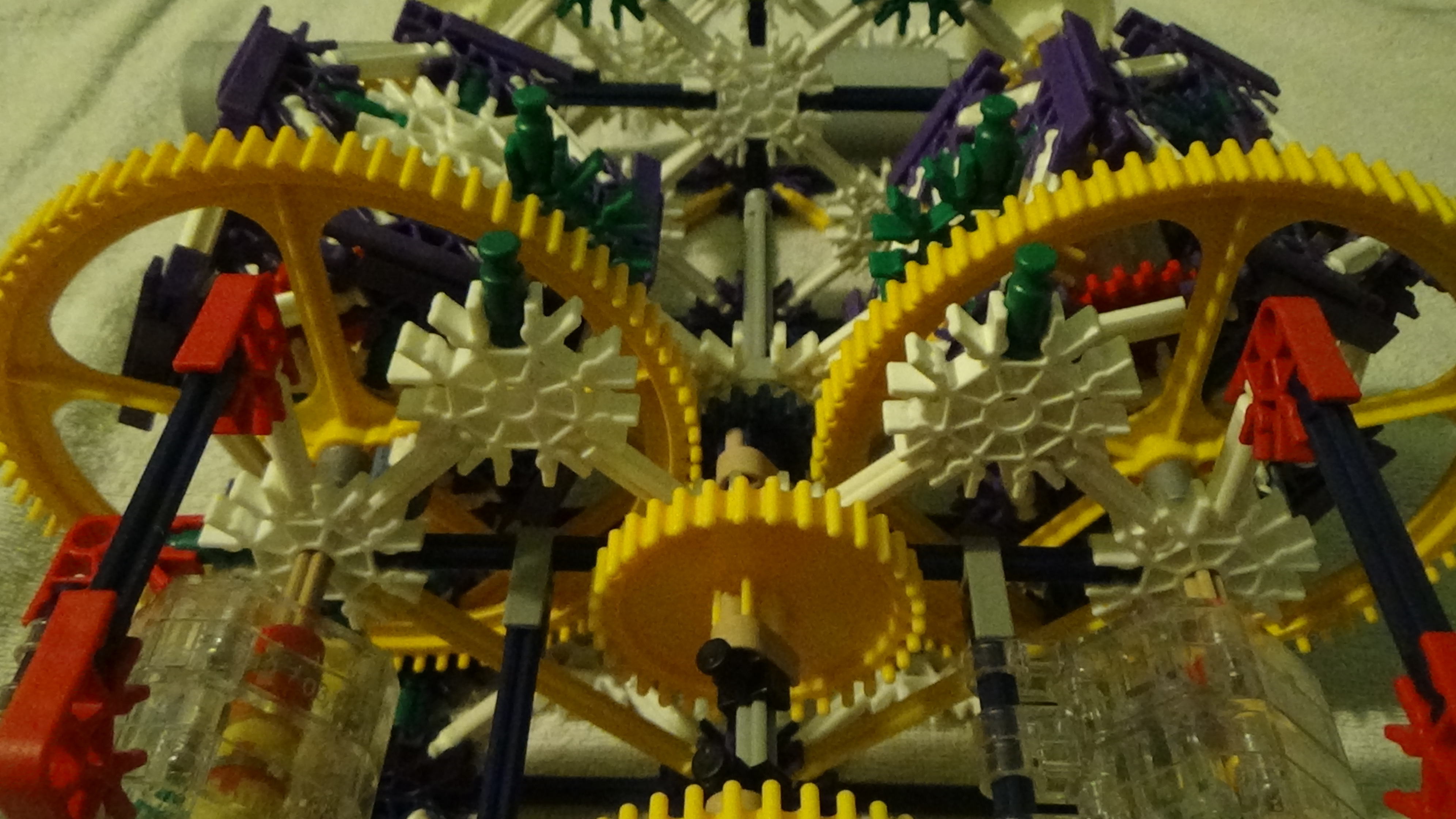

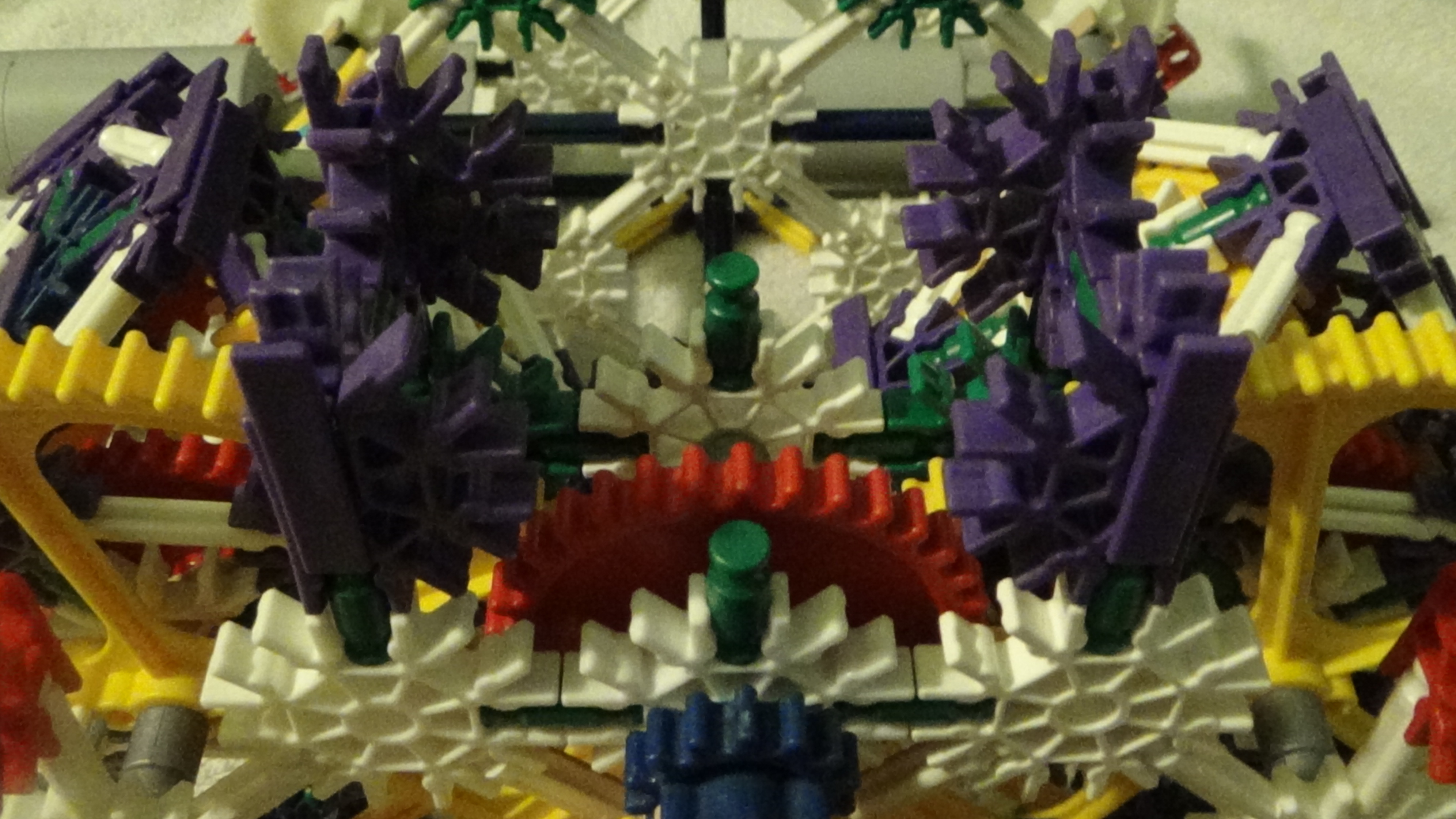

What the hell is a differential ???
this animation represent perfectly how the differential of this machine work:
the green gear in the video correspond to the big yellow gear in our differential.
This is how it's working:

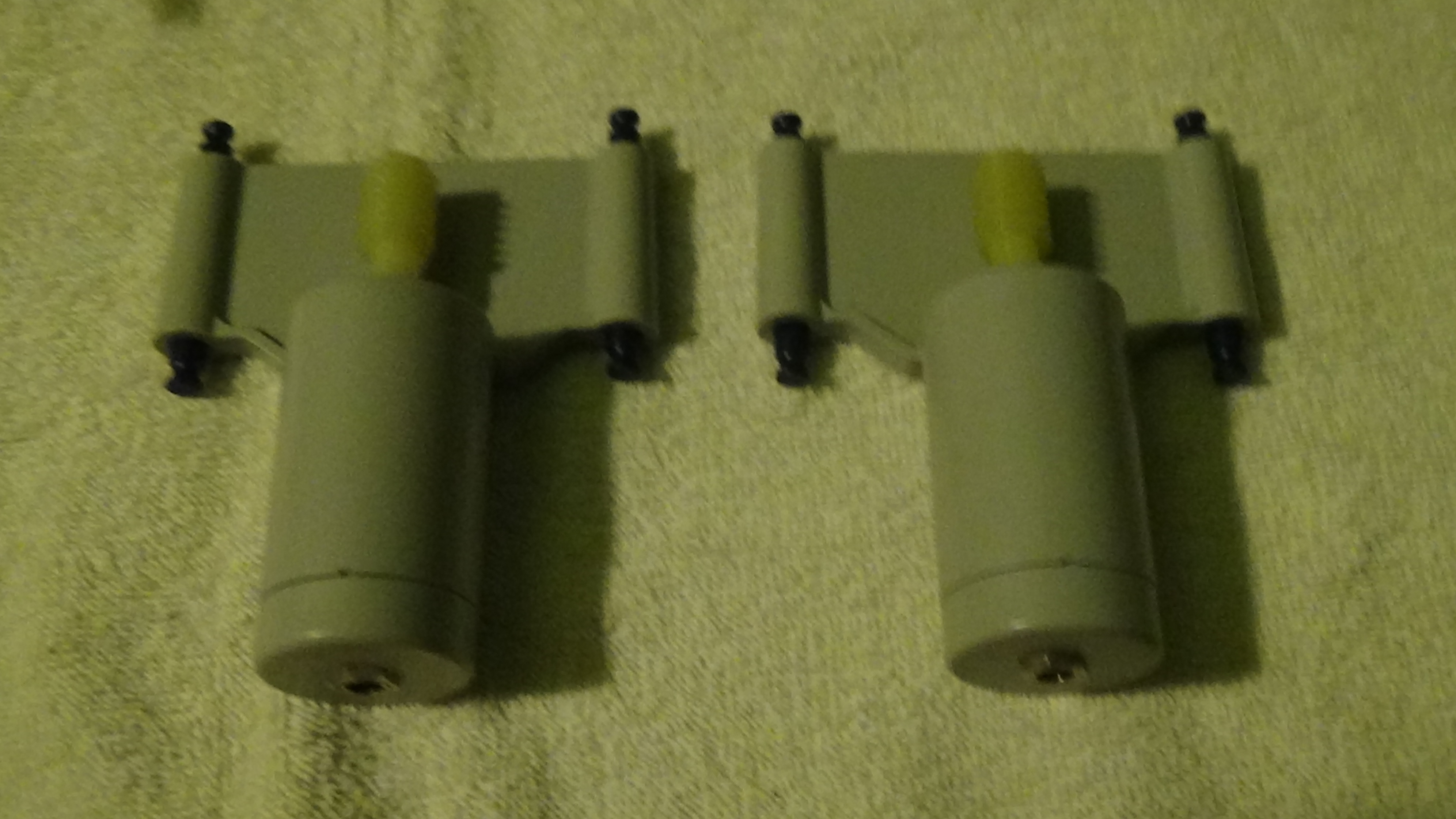

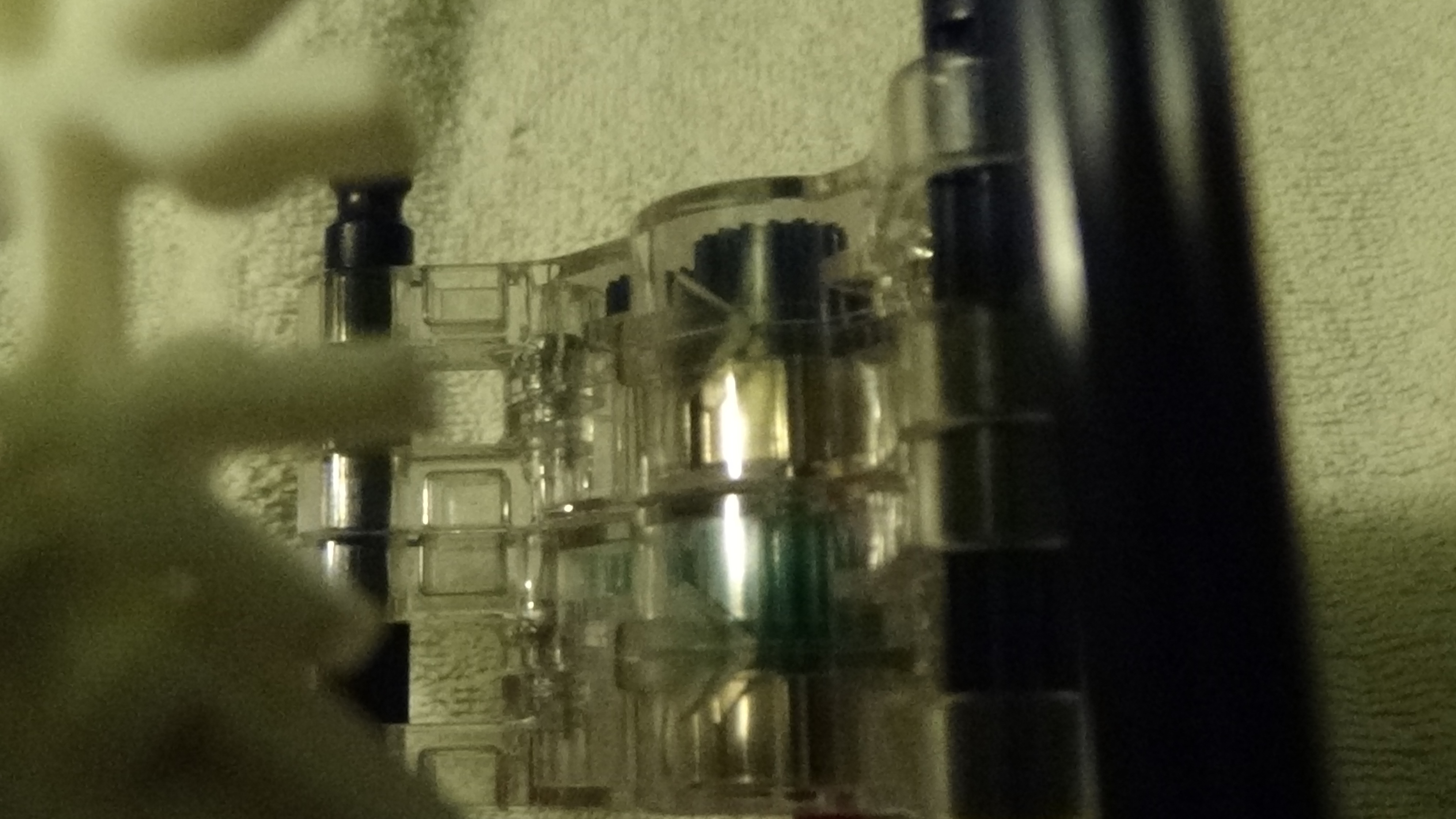

when the motor start moving first it rewind the spring motors and the yellow gear don't move
Then, when the spring torque compensates the motor torque the spring motor shaft is maintained gradually in a balanced position and the movement is gradually transmited to the yellow gear
The torque provided by the motor and the spring motors is transmitted to the yellow gear wich cause the springs to unload a bit, but because the spring motors torque became lower than the motor torque, a bit of the movement generated by the motor will rewind the springs to balance them again while the main part of the movement is still transmitted to the yellow gear. Then again the spring motors will unload a bit and supply torque to the yellow gear.
But why do we made this complex things ?
It's simple (or not): we need to provide an high speed rotation to the last shaft of the mechanism (not build yet), however in any mechanism when a gear multiplier is used, the torque at the end of the multiplier is lower than the torque at the begining. But the k'nex motors torque is pretty low, so to solve this, first we use a flywheel to keep a motion inertia in the mechanism (the mechanism won't get stuck suddenly when it will launch a ball, and the lock clips won't get disconnected thanks to that) and then our differential take action, when the machine launch a ball, the mechanism is suddenly slow down, but the 2 motors are still spining at the same speed than before. So the exessive motor torque is transmitted to the spring motors thanks to the differential wich will rewind them even more. And thanks to the biggest pressure in the springs than before, the initial high speed is gradually reestablished and the spring torque came also gradually back to normal

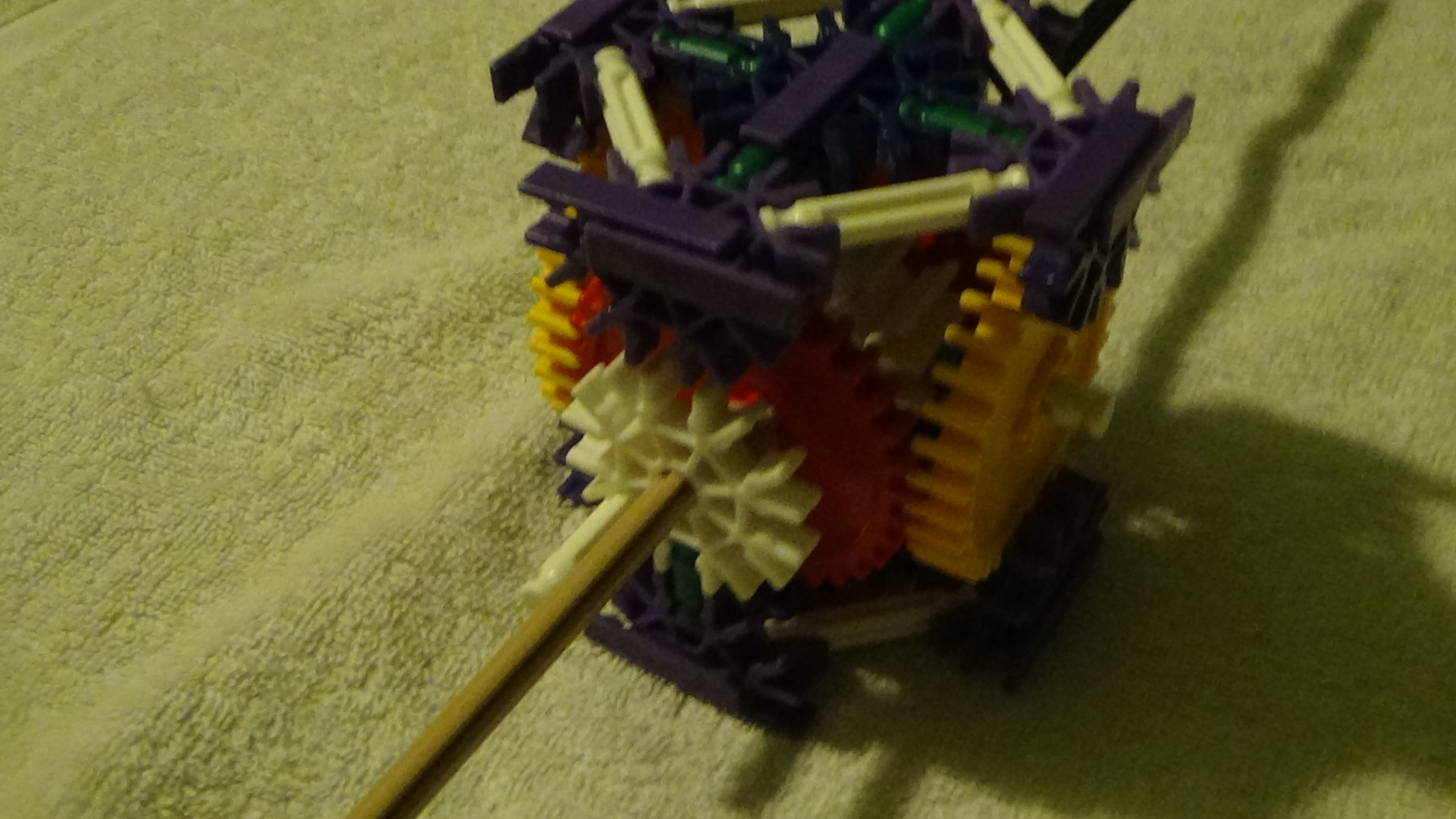

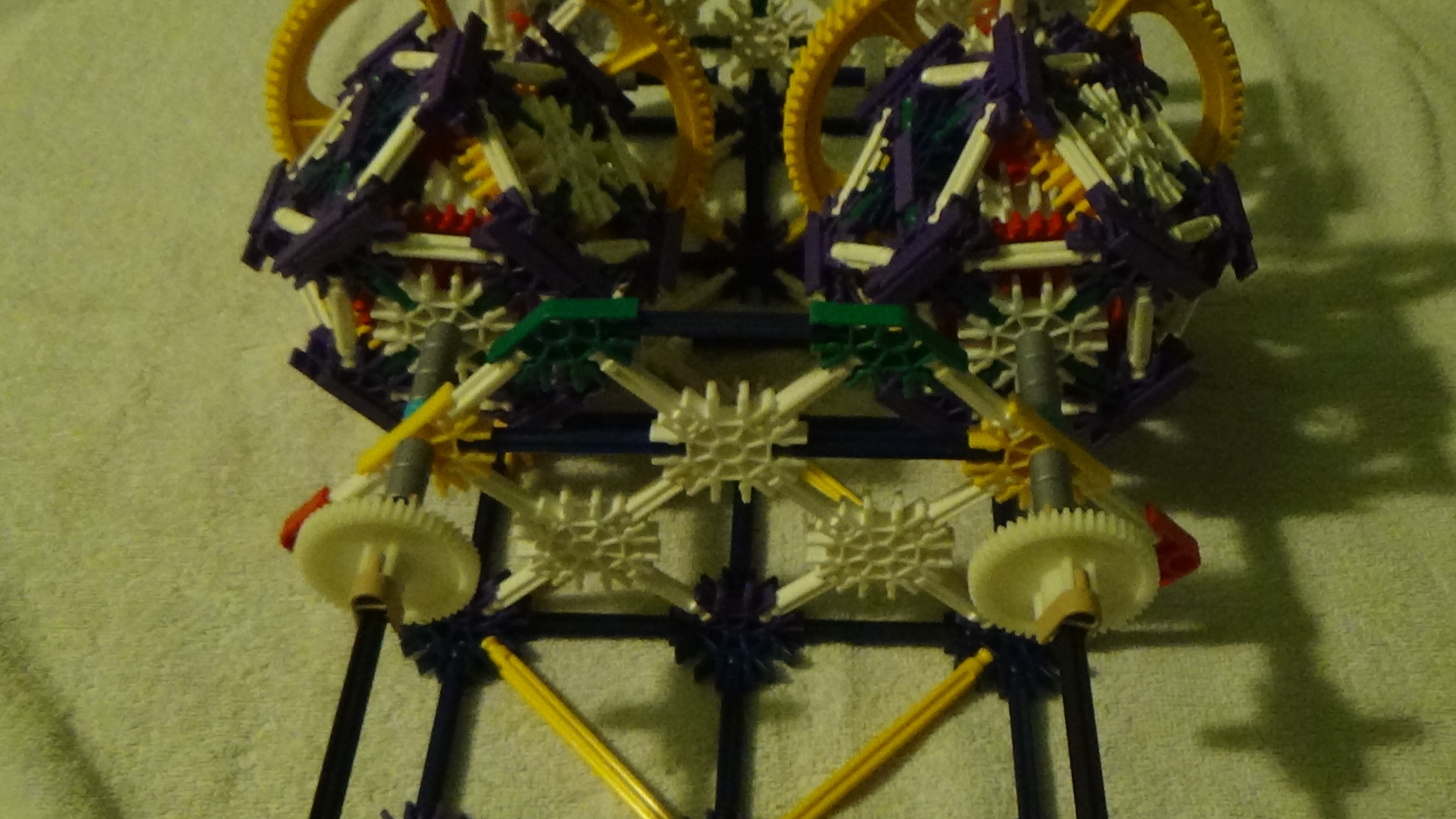

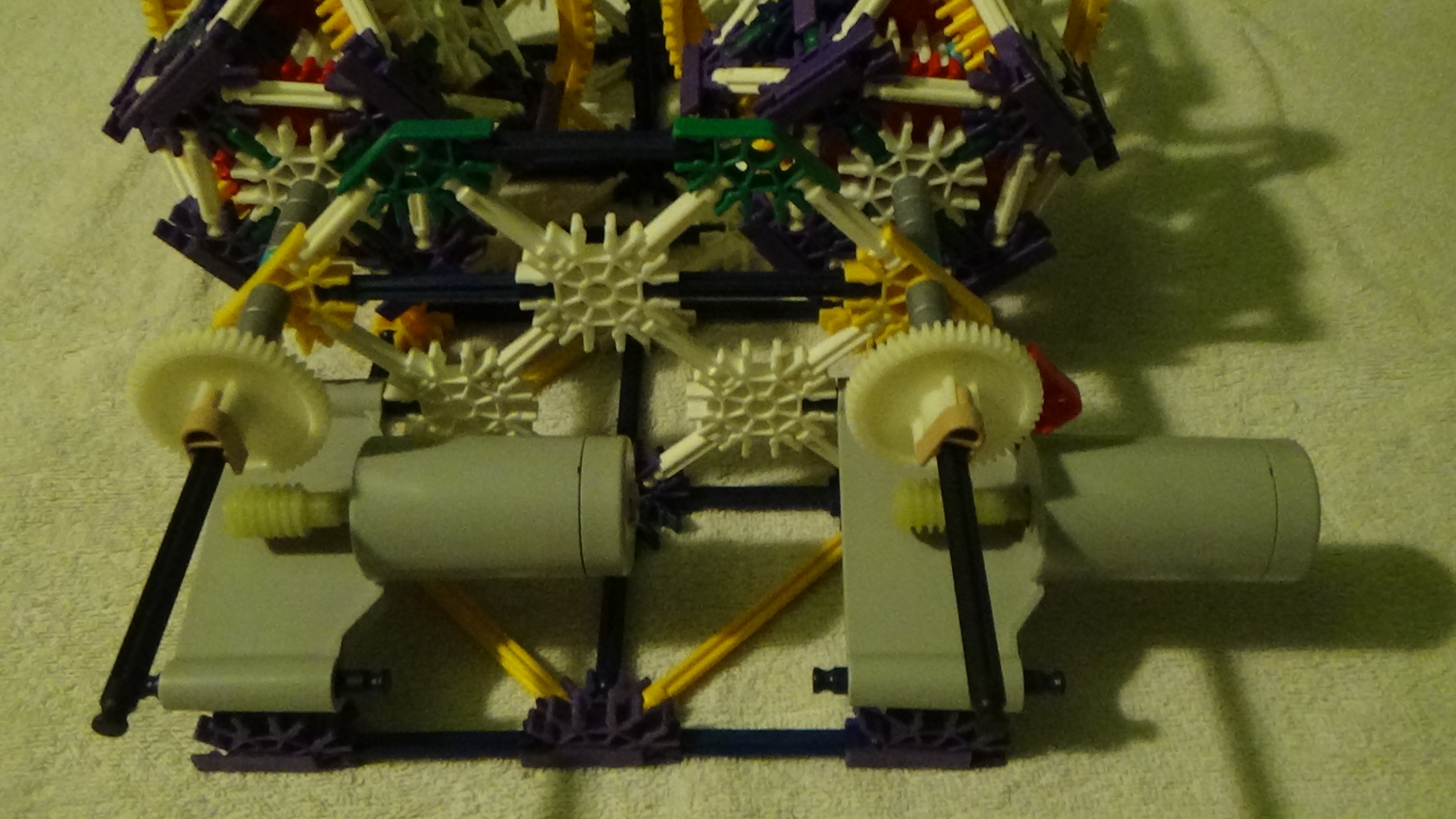

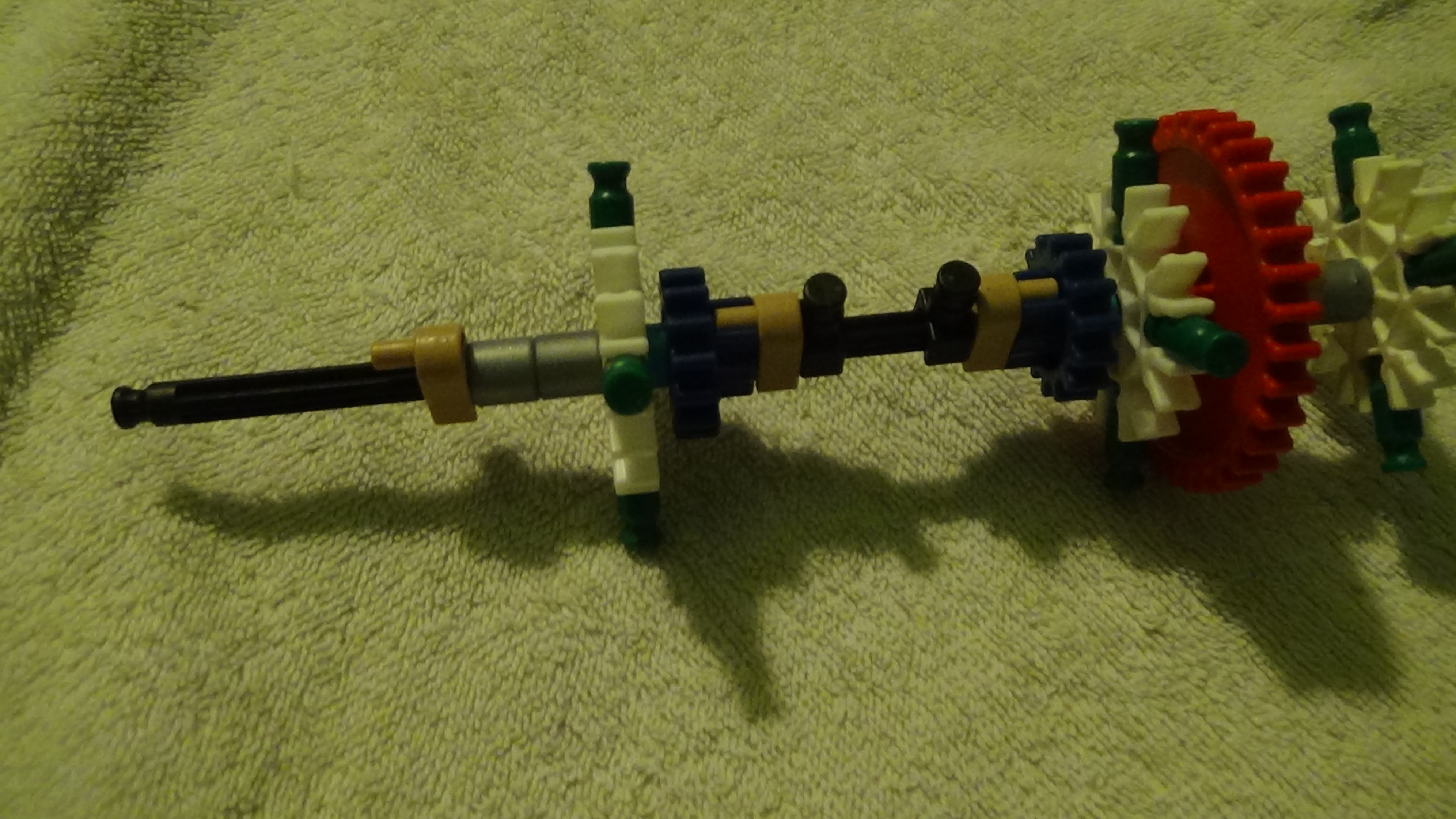

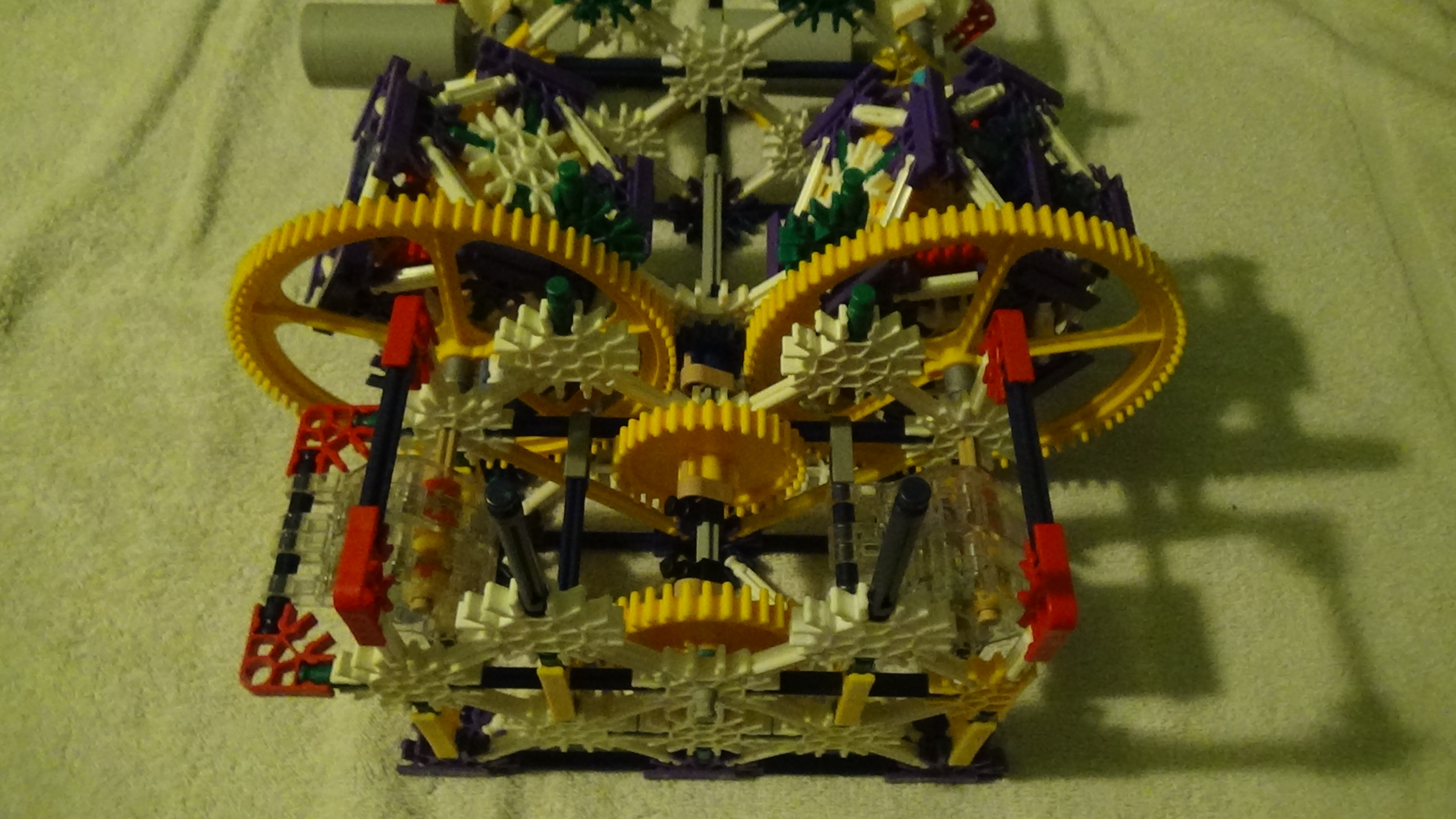

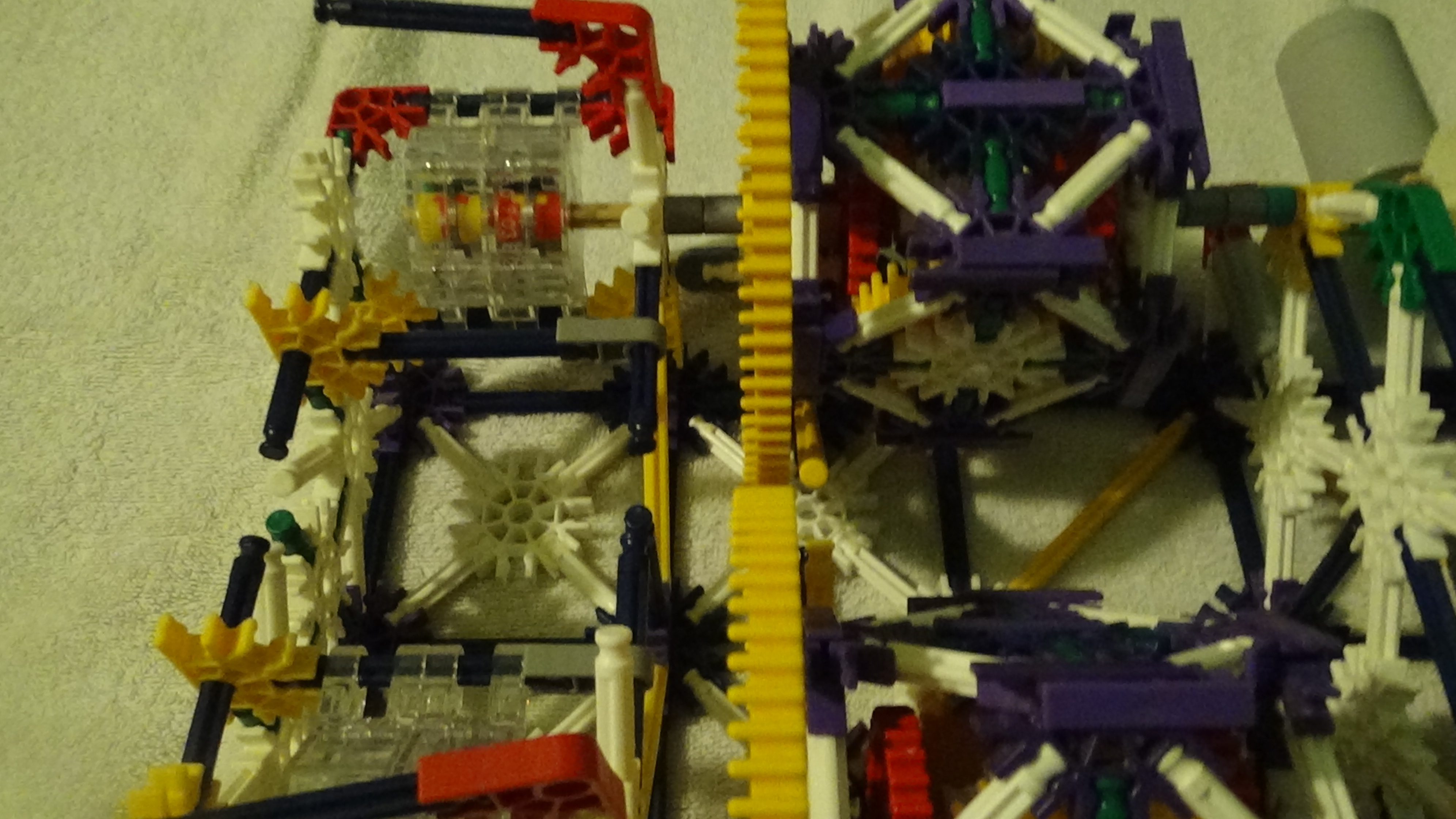

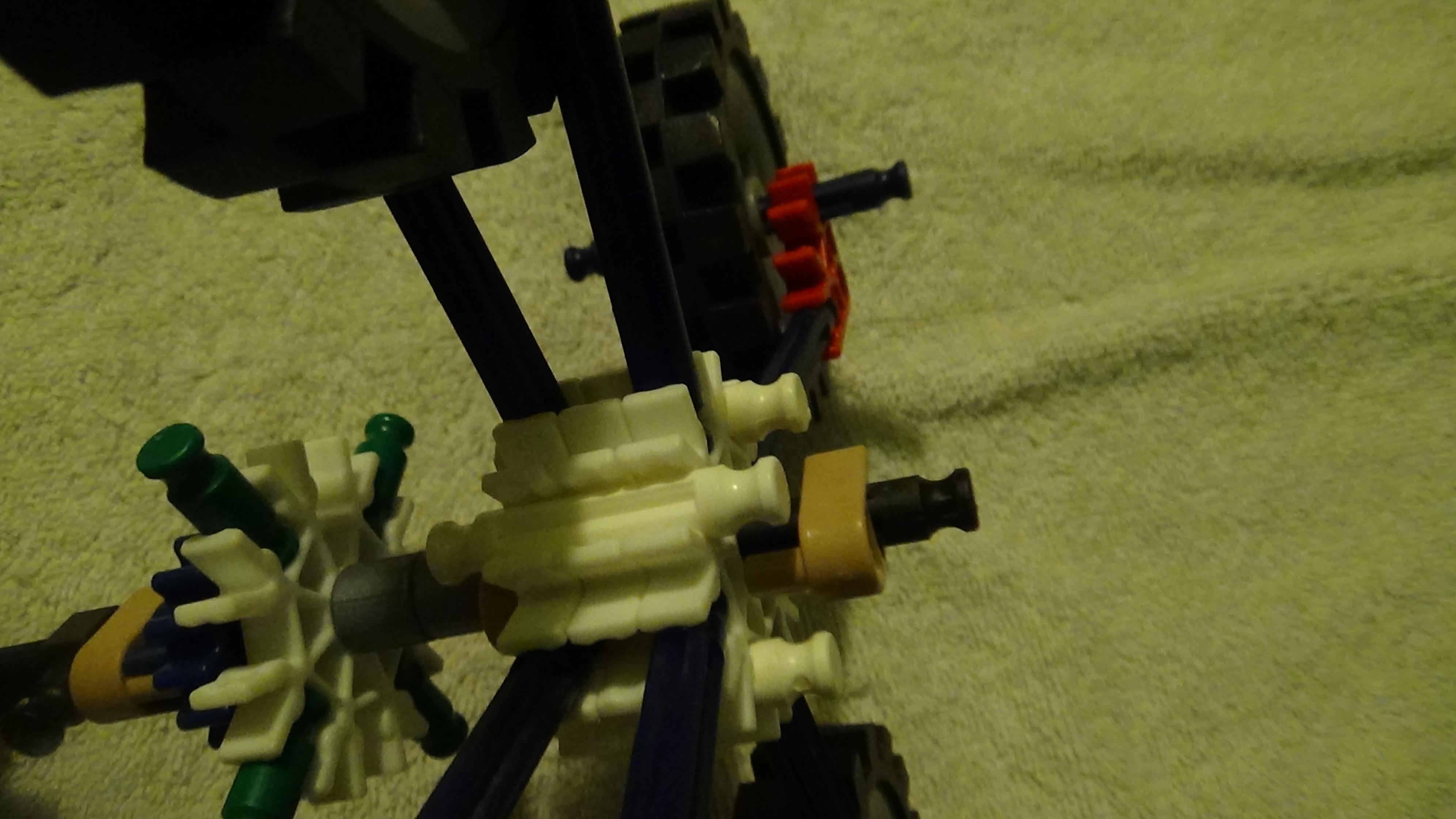

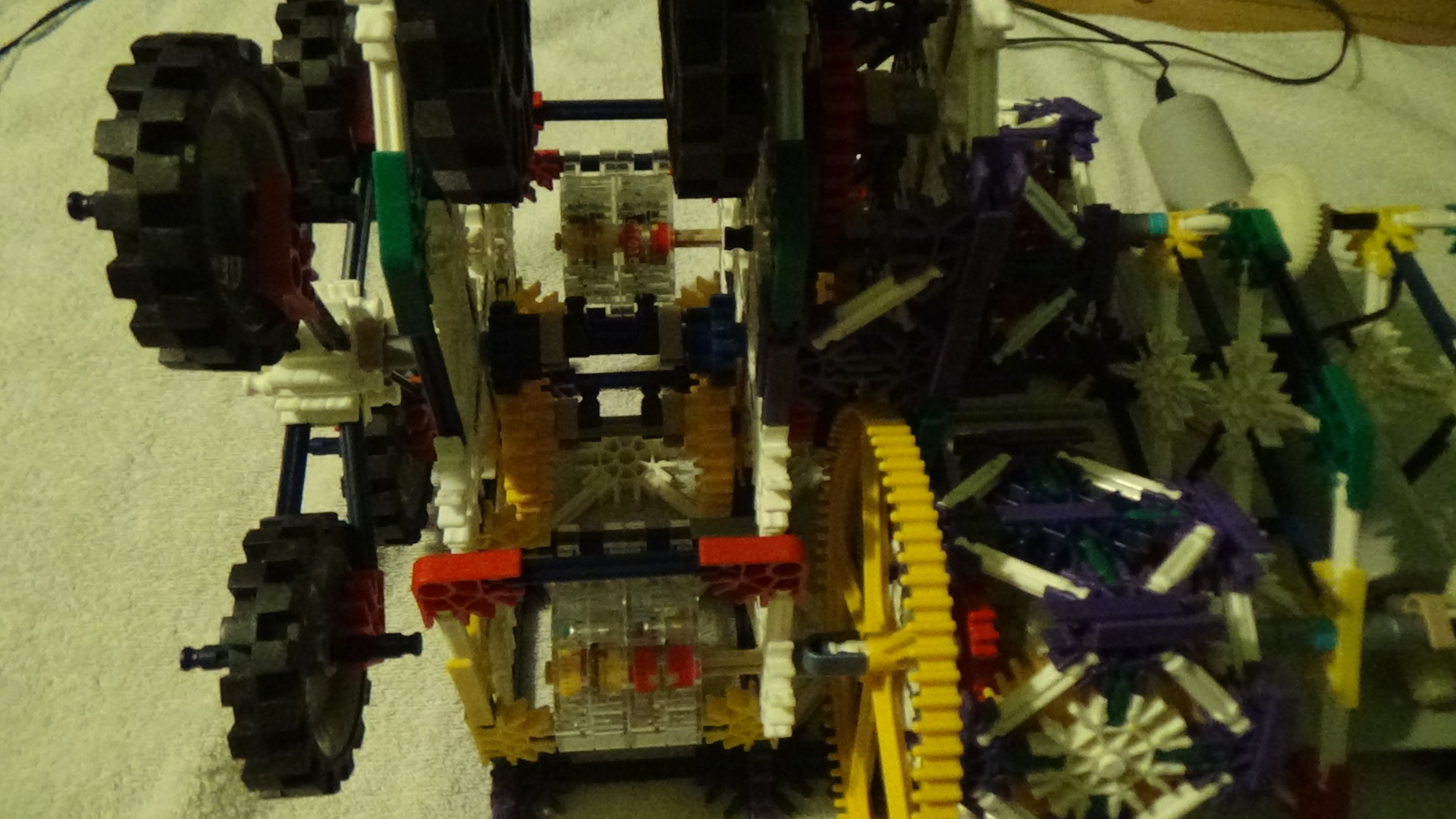

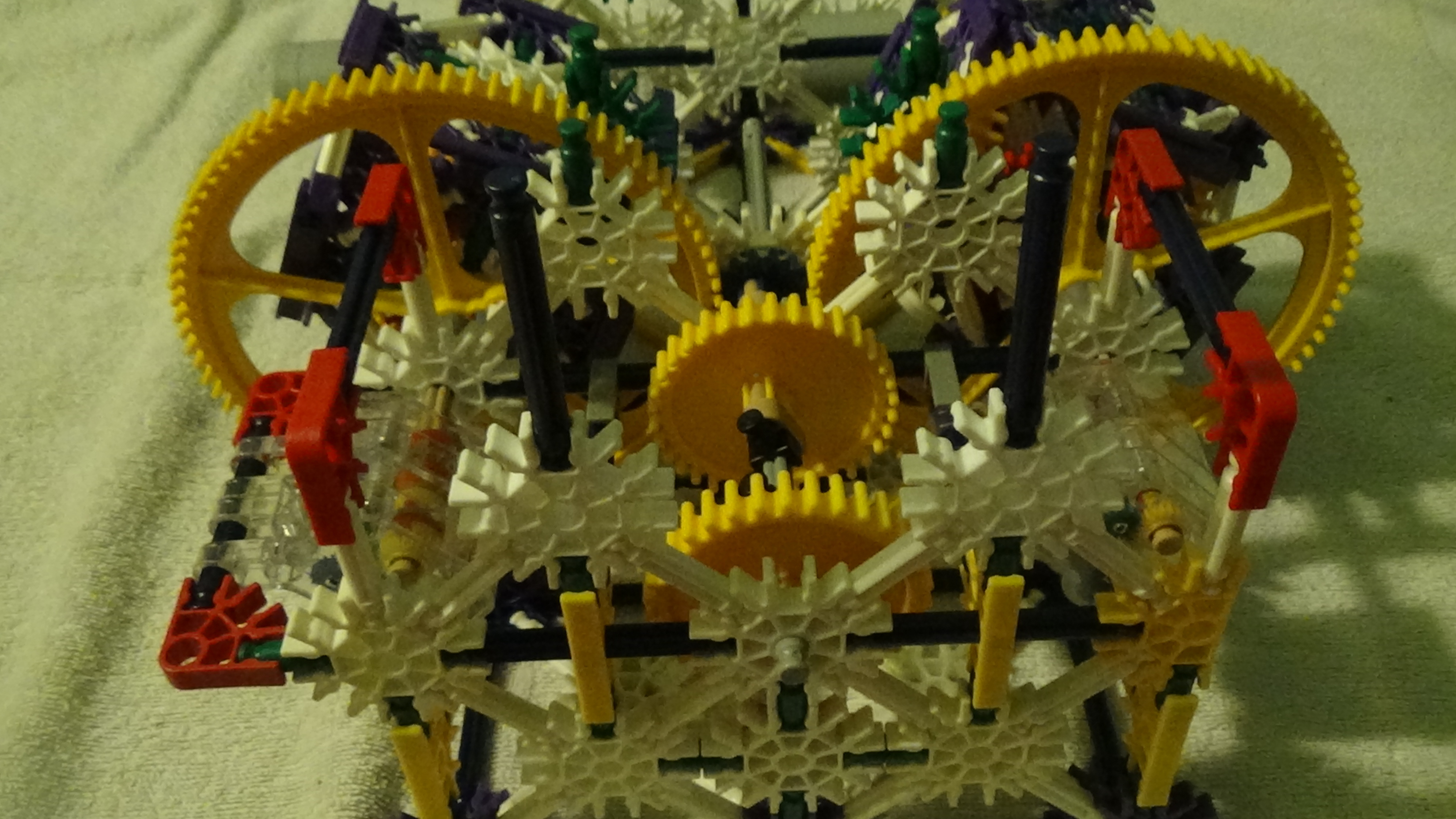

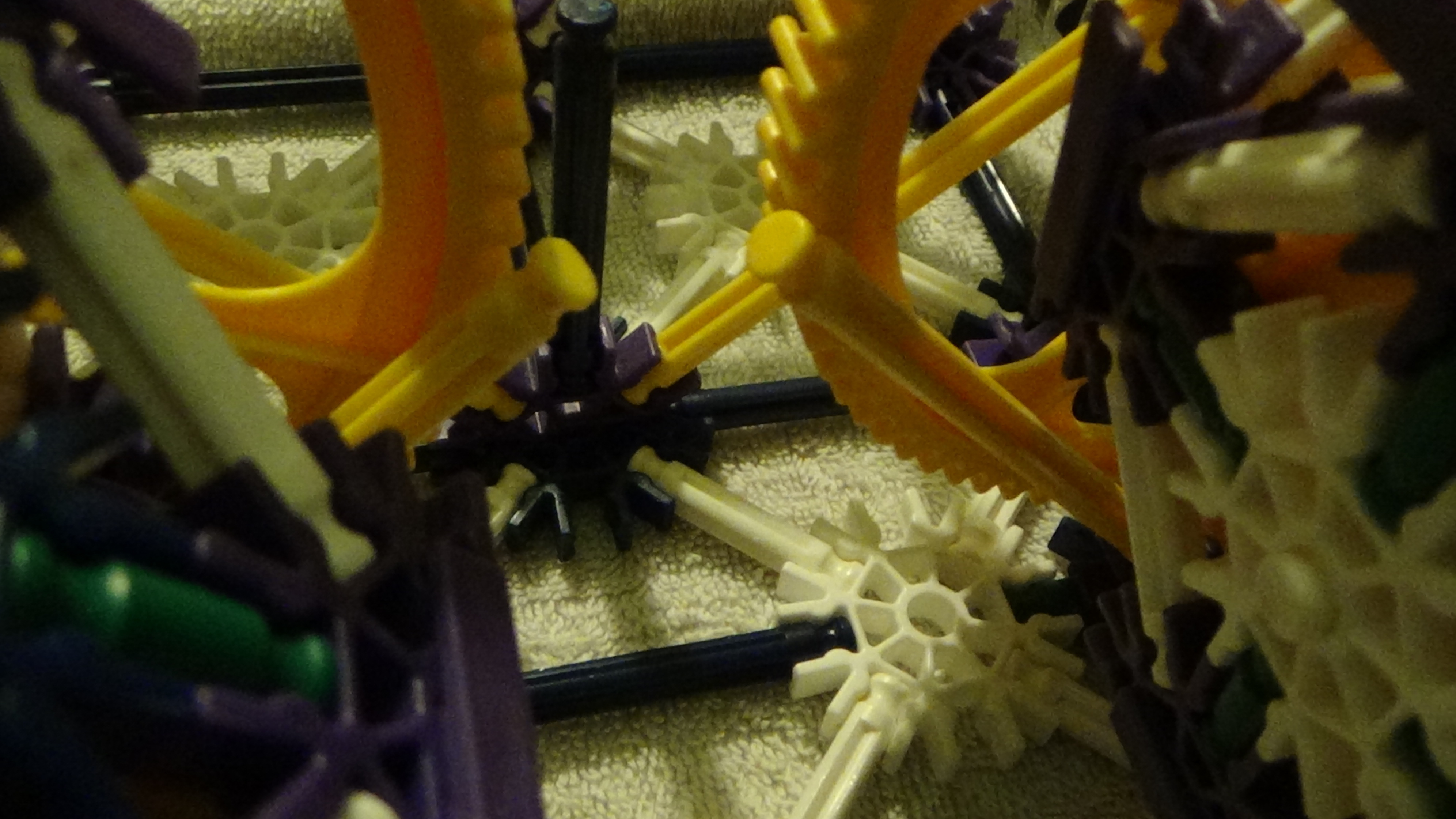

Assemble
![juin à septembre 2016 130.JPG](/proxy/?url=https://content.instructables.com/FLC/AT91/K4EC1HVI/FLCAT91K4EC1HVI.jpg&filename=juin à septembre 2016 130.JPG)
![juin à septembre 2016 131.JPG](/proxy/?url=https://content.instructables.com/F9P/XPYM/K4EC1HWA/F9PXPYMK4EC1HWA.jpg&filename=juin à septembre 2016 131.JPG)
![juin à septembre 2016 132.JPG](/proxy/?url=https://content.instructables.com/FGW/YU90/K4EC1HXP/FGWYU90K4EC1HXP.jpg&filename=juin à septembre 2016 132.JPG)
![juin à septembre 2016 134.JPG](/proxy/?url=https://content.instructables.com/FPP/HM2M/K4EC1HZT/FPPHM2MK4EC1HZT.jpg&filename=juin à septembre 2016 134.JPG)
![juin à septembre 2016 133.JPG](/proxy/?url=https://content.instructables.com/FV8/EMOW/K4EC1HYJ/FV8EMOWK4EC1HYJ.jpg&filename=juin à septembre 2016 133.JPG)
![juin à septembre 2016 135.JPG](/proxy/?url=https://content.instructables.com/FR1/Z8PM/K4EC1I15/FR1Z8PMK4EC1I15.jpg&filename=juin à septembre 2016 135.JPG)
![juin à septembre 2016 136.JPG](/proxy/?url=https://content.instructables.com/FC8/SEXK/K4EC1I27/FC8SEXKK4EC1I27.jpg&filename=juin à septembre 2016 136.JPG)
![juin à septembre 2016 137.JPG](/proxy/?url=https://content.instructables.com/FDW/S1DQ/K4EC1I49/FDWS1DQK4EC1I49.jpg&filename=juin à septembre 2016 137.JPG)
![juin à septembre 2016 138.JPG](/proxy/?url=https://content.instructables.com/FBY/NY2Q/K4EC1I4Z/FBYNY2QK4EC1I4Z.jpg&filename=juin à septembre 2016 138.JPG)
![juin à septembre 2016 139.JPG](/proxy/?url=https://content.instructables.com/FWO/0RMB/K4EC1I57/FWO0RMBK4EC1I57.jpg&filename=juin à septembre 2016 139.JPG)
Watch out ! 12 volts motors may not spin in the same direction depending where you buy them !
If the mechanism don't work connect the motor in the opposite way.

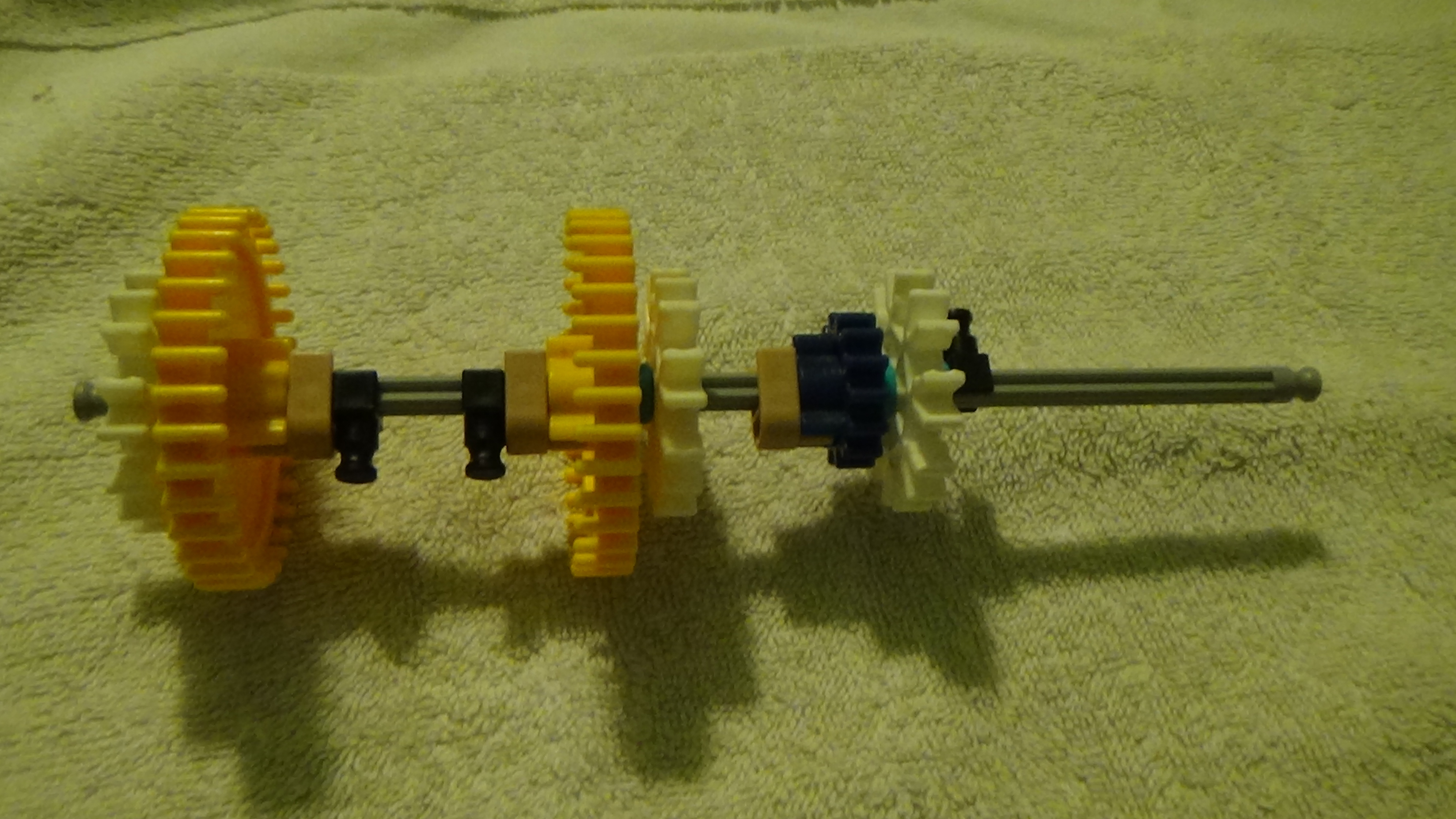

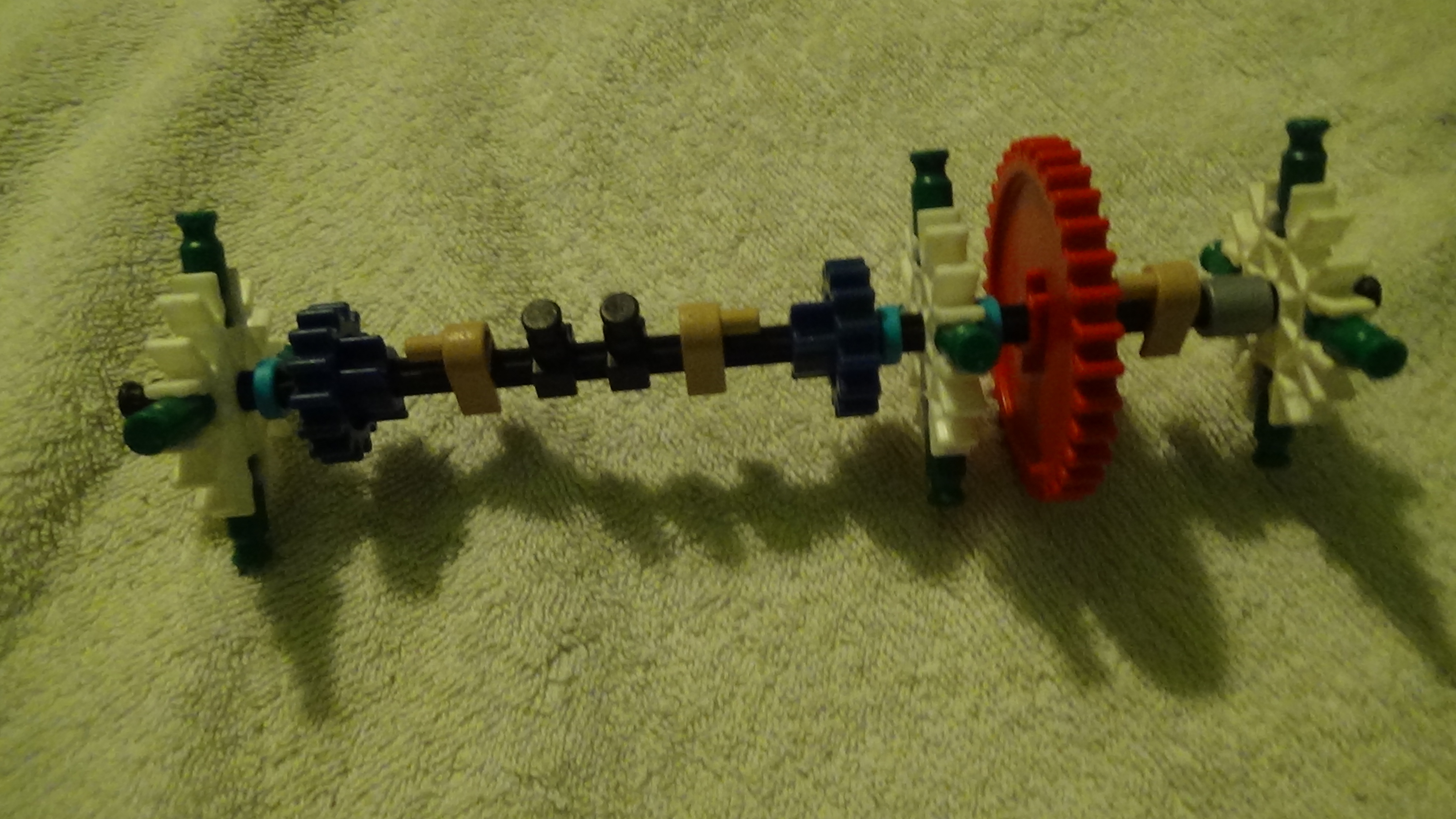

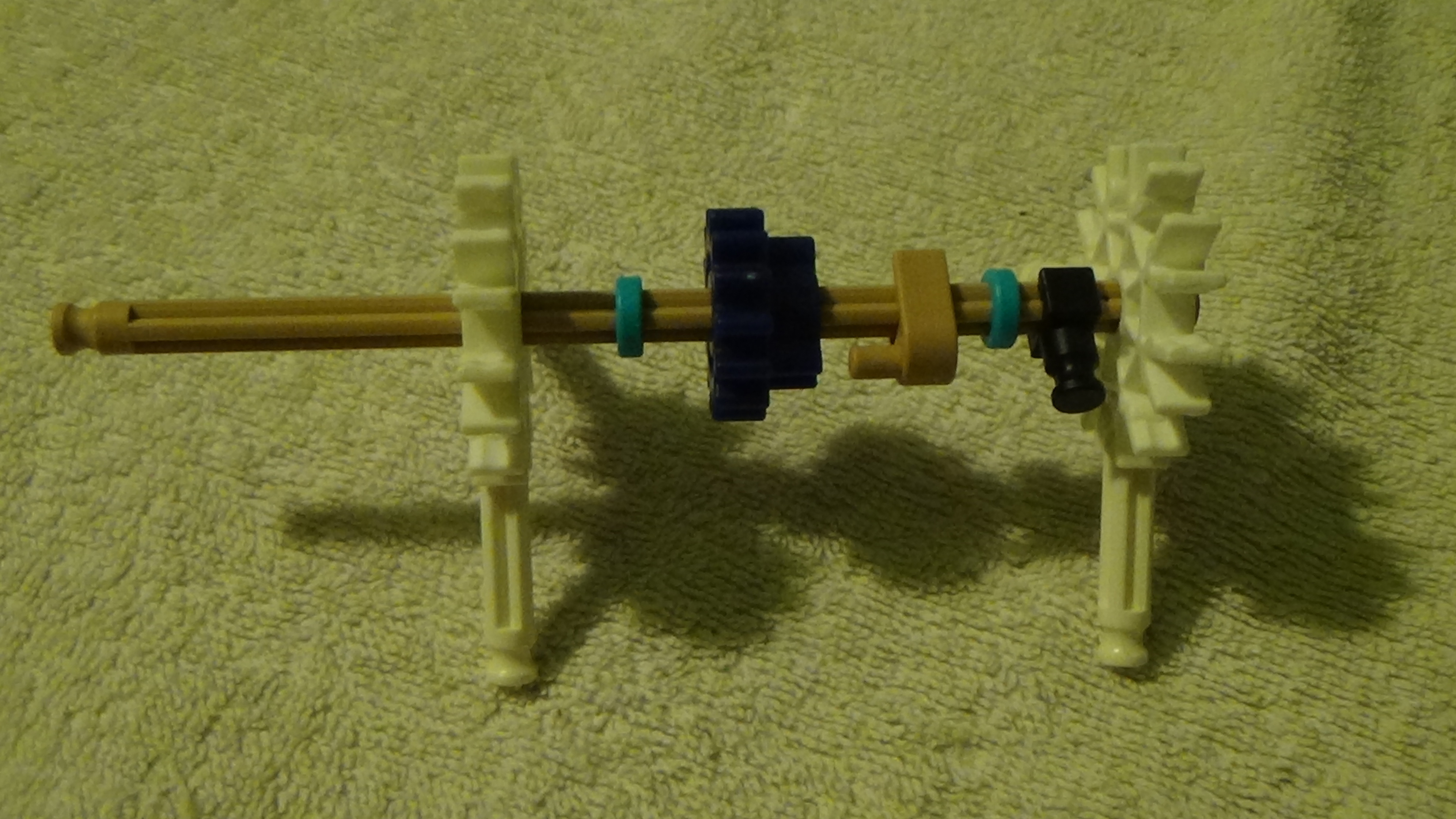

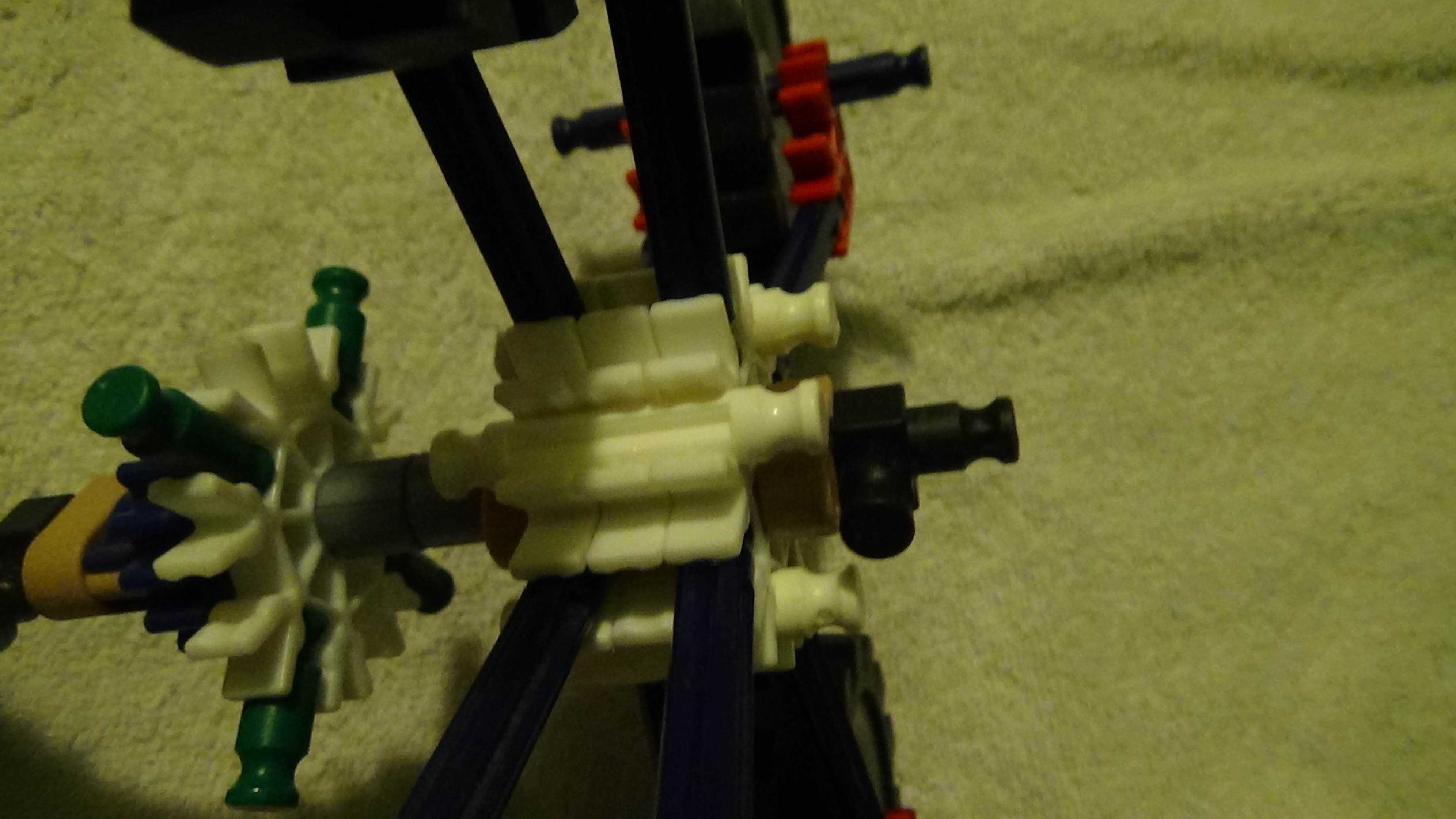

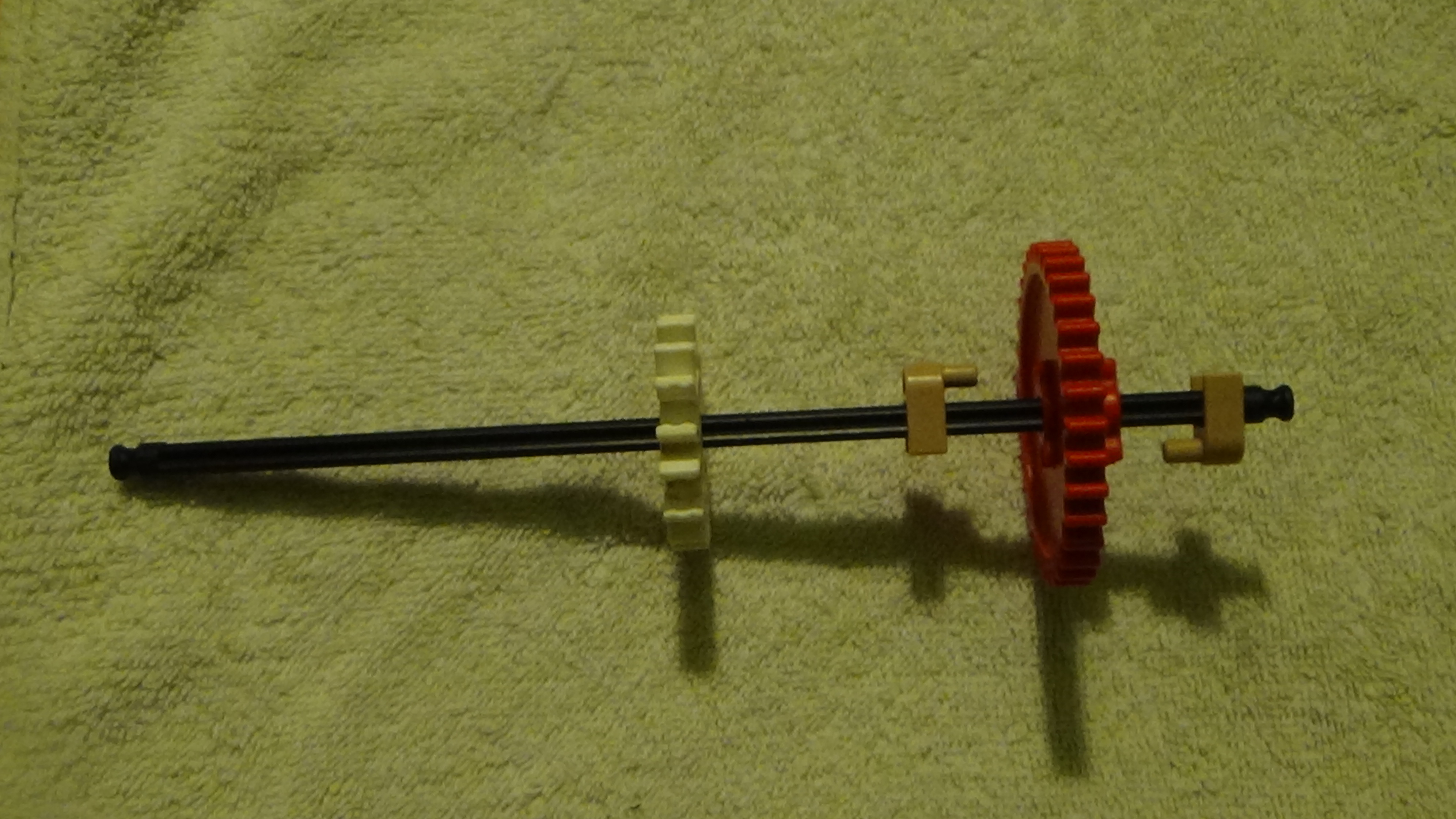

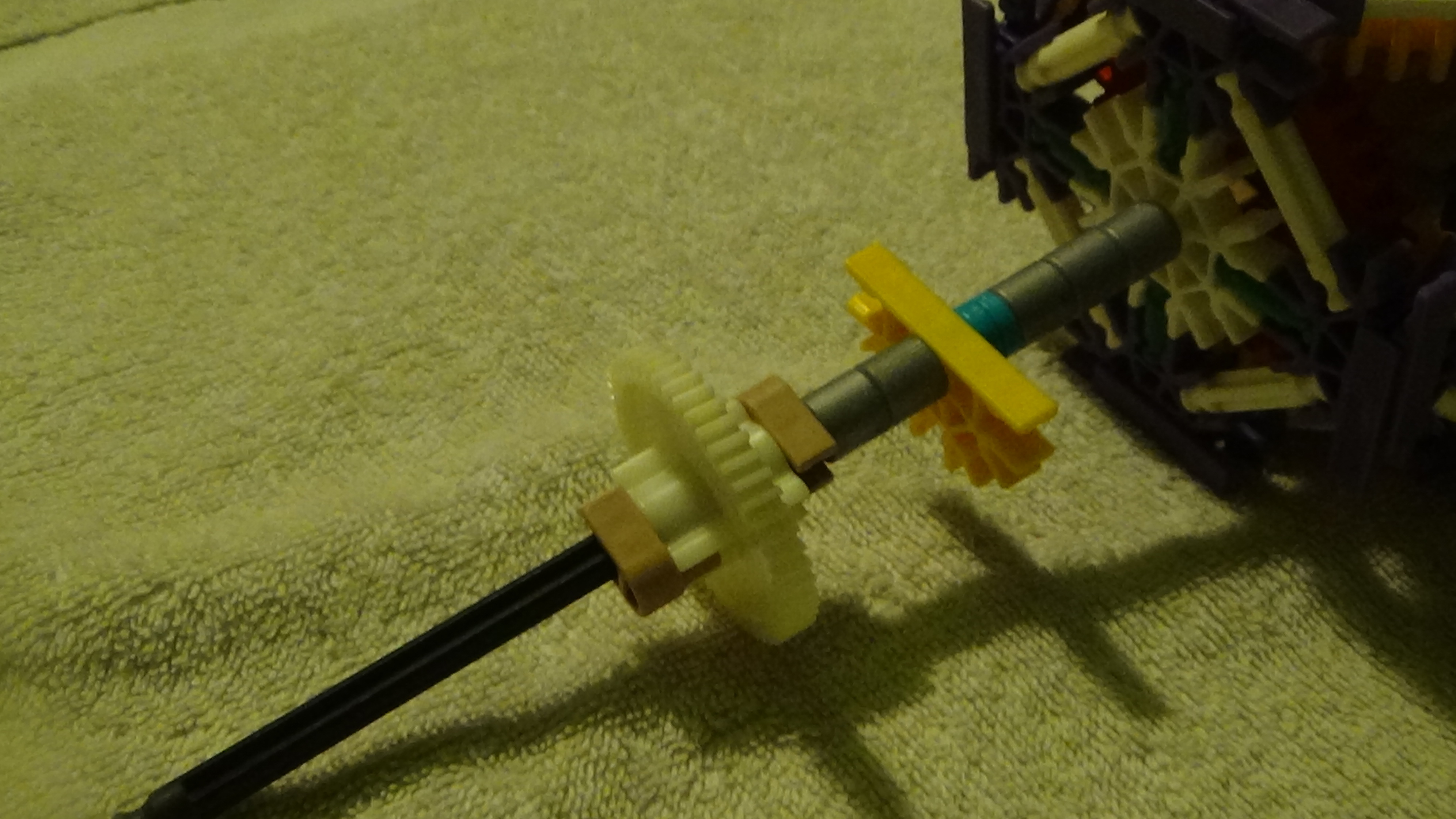

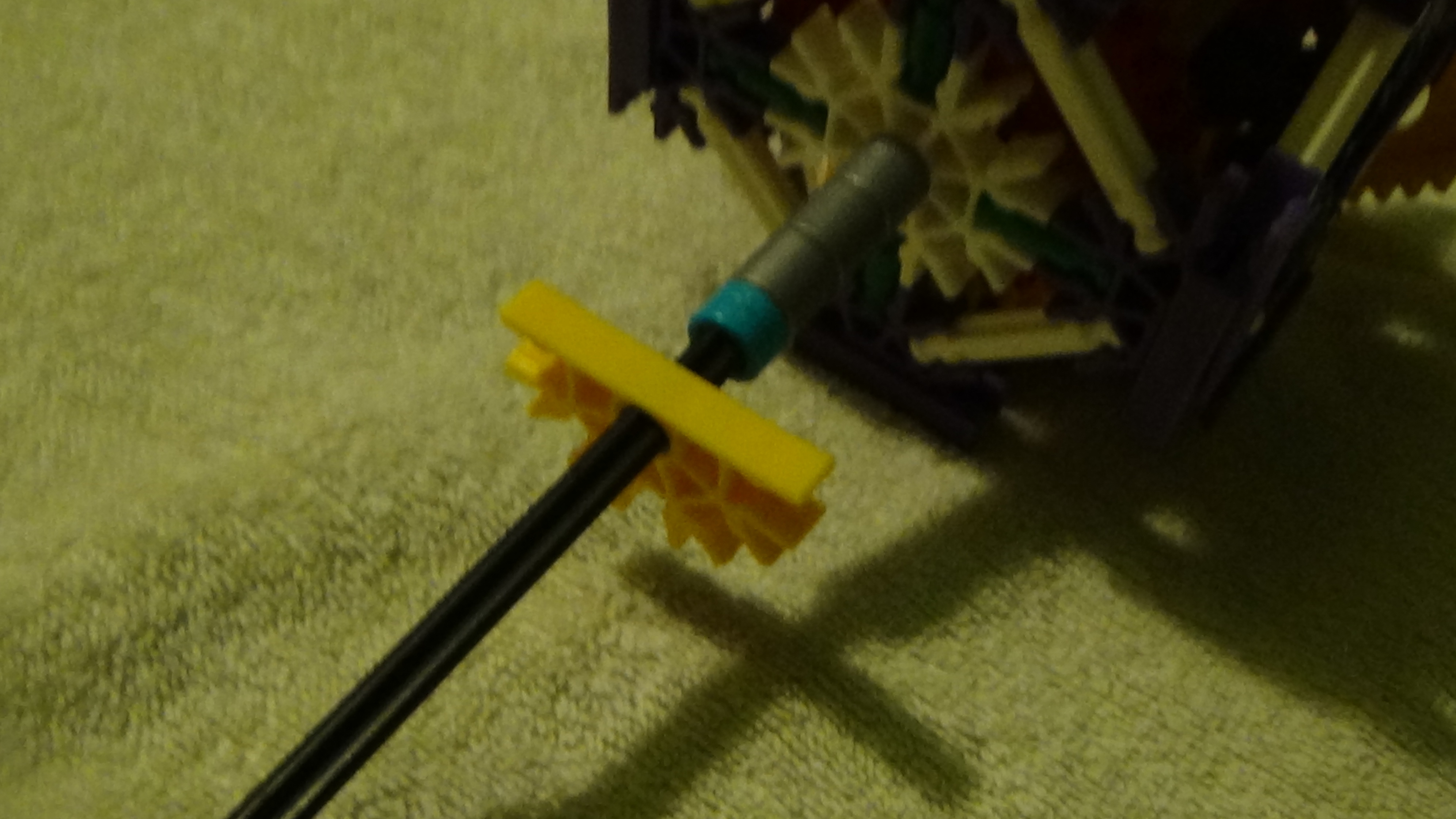

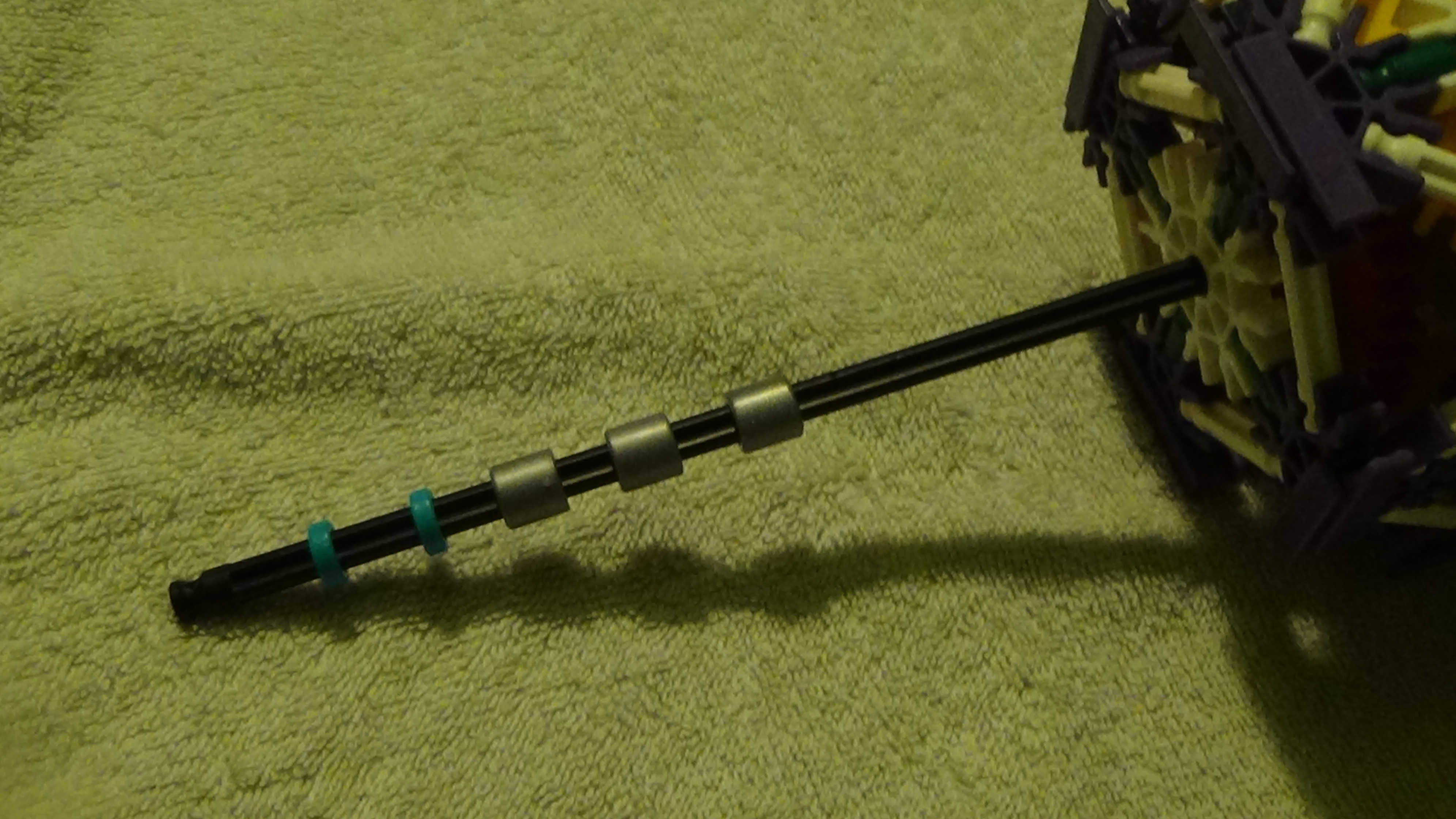

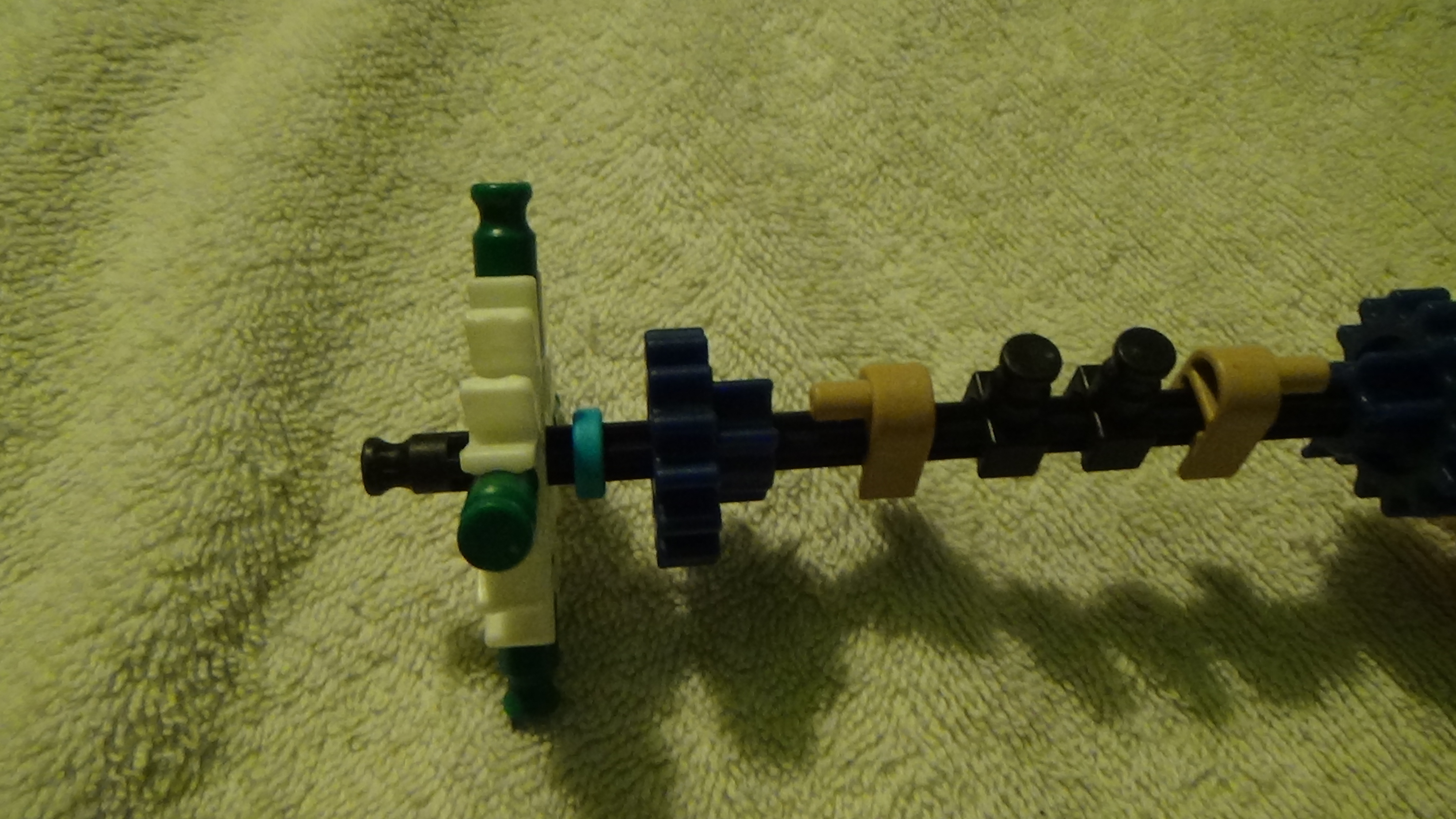

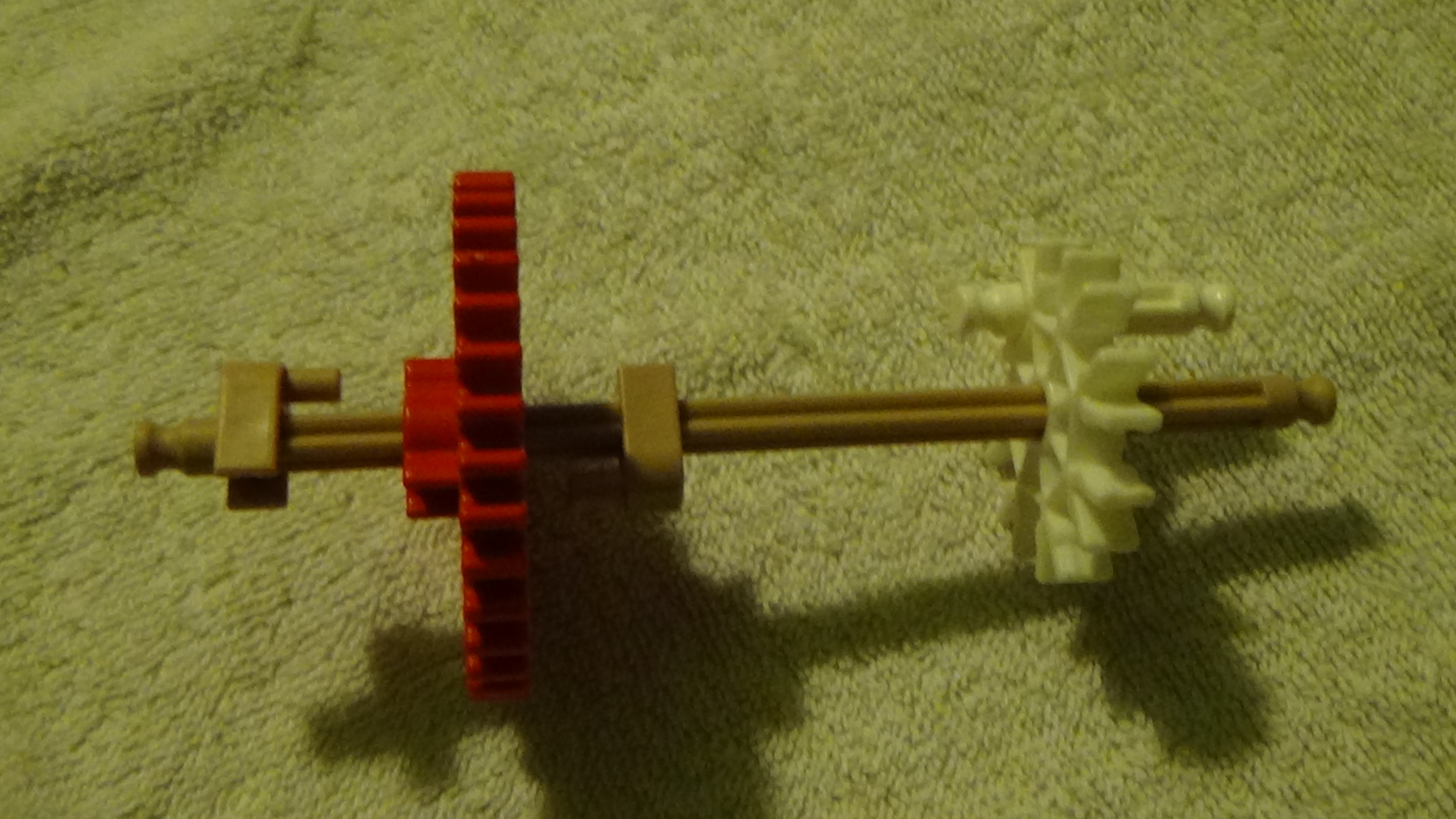

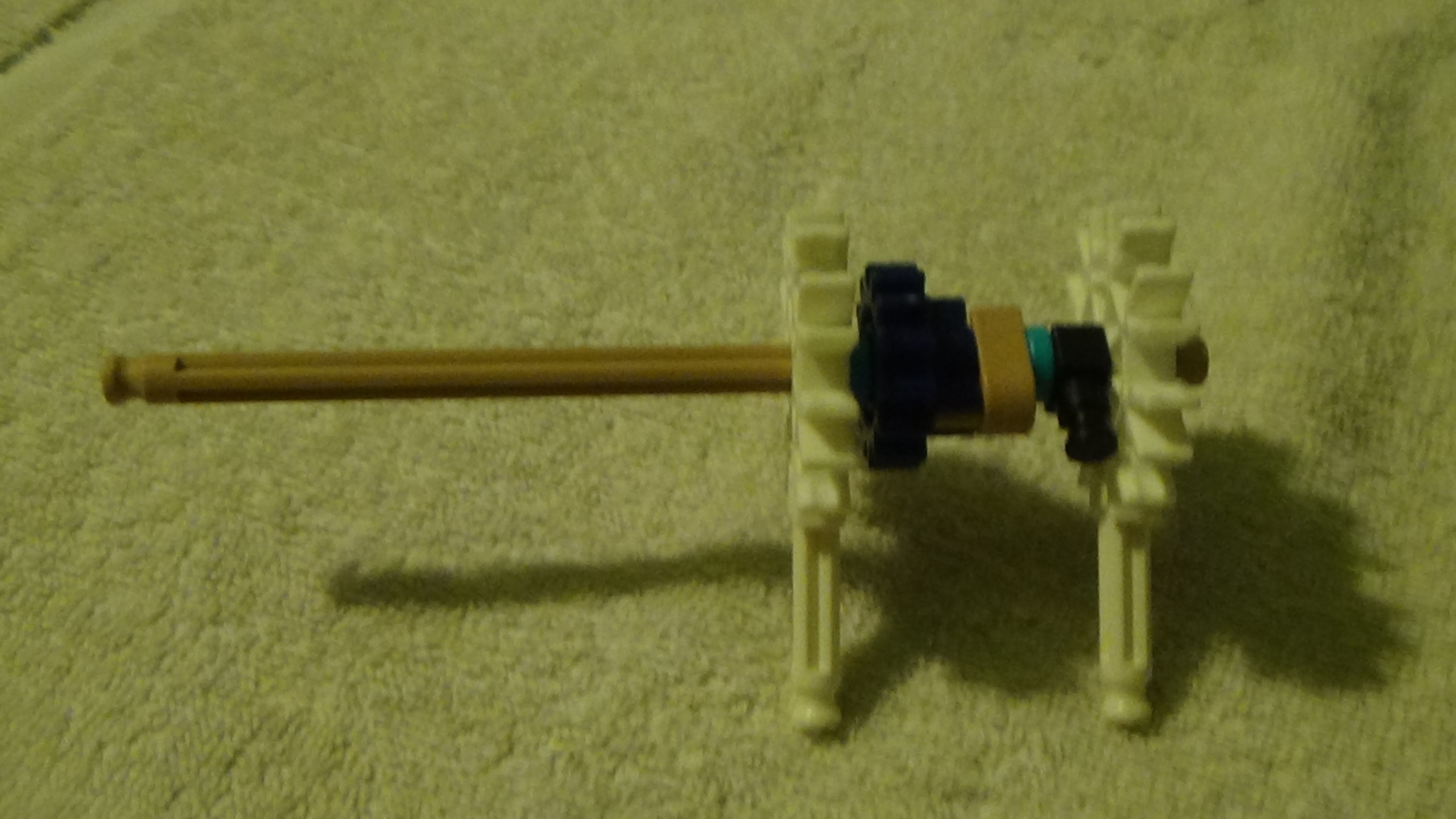

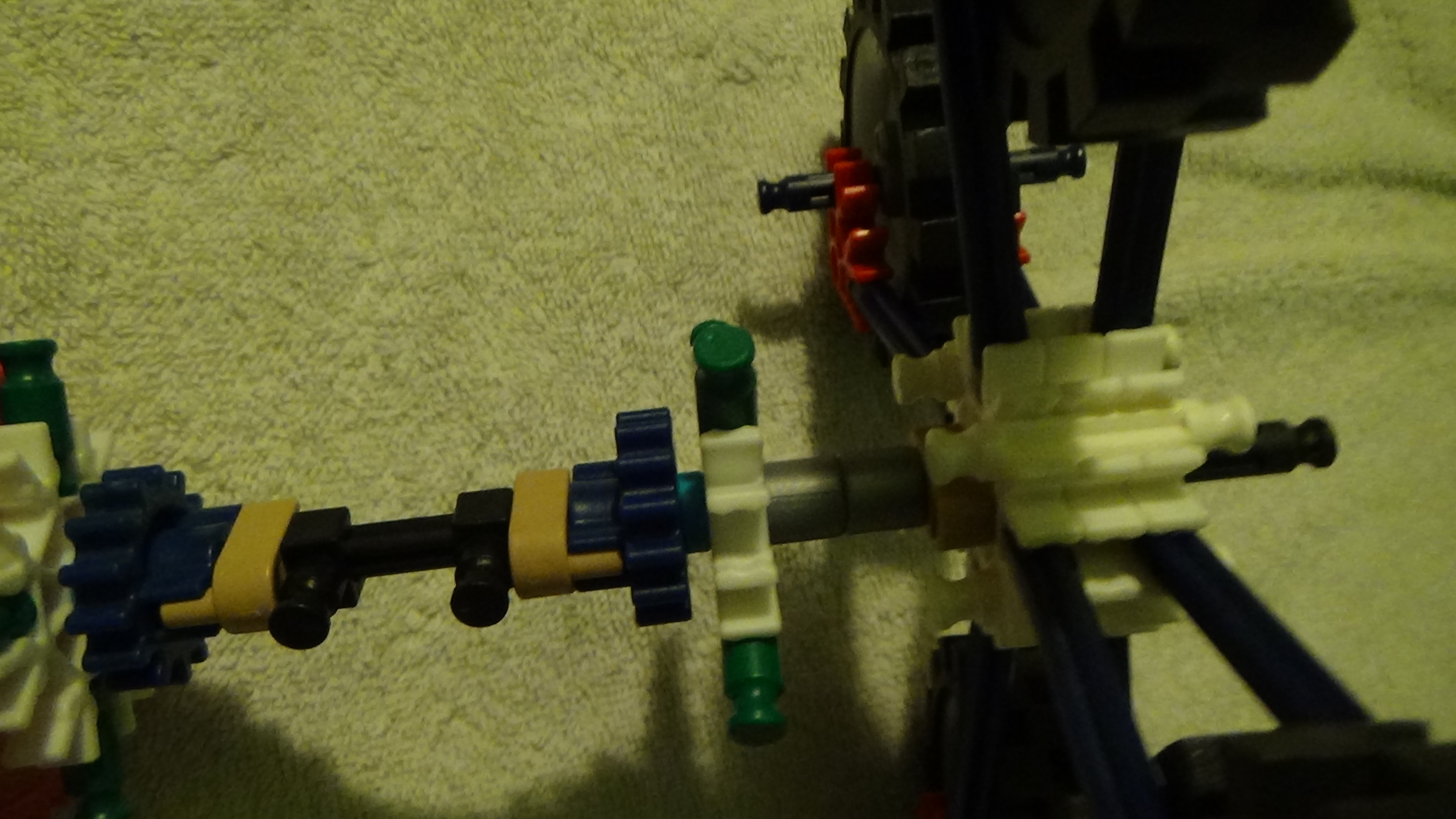

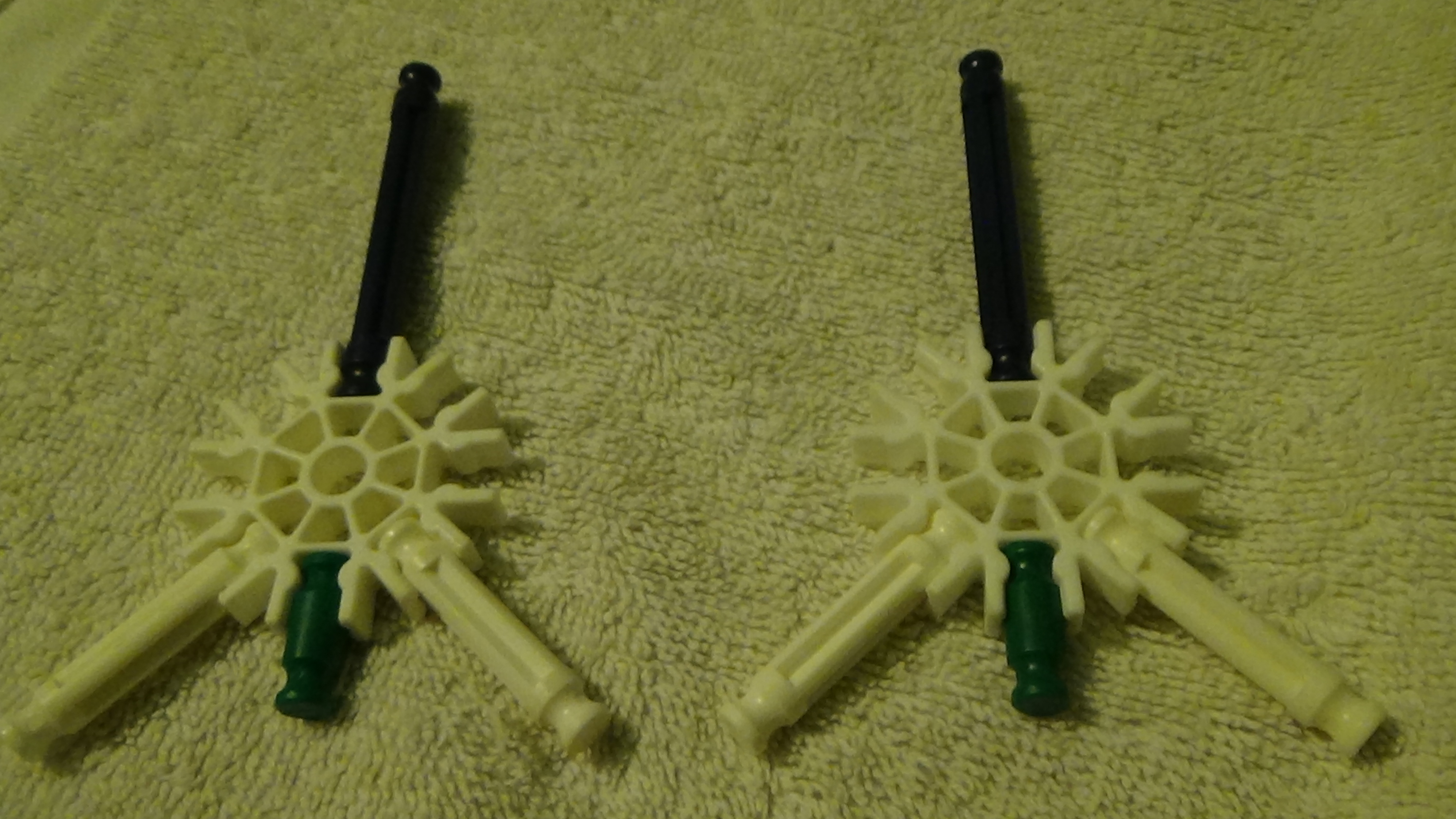

The Input Shaft
![juin à septembre 2016 142.JPG](/proxy/?url=https://content.instructables.com/F83/4E0K/K4EC1I7B/F834E0KK4EC1I7B.jpg&filename=juin à septembre 2016 142.JPG)
![juin à septembre 2016 140.JPG](/proxy/?url=https://content.instructables.com/FHO/DVFH/K4EC1I5Y/FHODVFHK4EC1I5Y.jpg&filename=juin à septembre 2016 140.JPG)
![juin à septembre 2016 141.JPG](/proxy/?url=https://content.instructables.com/FS7/ZG3K/K4EC1I5Z/FS7ZG3KK4EC1I5Z.jpg&filename=juin à septembre 2016 141.JPG)
![juin à septembre 2016 143.JPG](/proxy/?url=https://content.instructables.com/FGW/8BXL/K4EC1I7E/FGW8BXLK4EC1I7E.jpg&filename=juin à septembre 2016 143.JPG)
![juin à septembre 2016 144.JPG](/proxy/?url=https://content.instructables.com/F53/RMTA/K4EC1I7I/F53RMTAK4EC1I7I.jpg&filename=juin à septembre 2016 144.JPG)
![juin à septembre 2016 145.JPG](/proxy/?url=https://content.instructables.com/FQM/4C94/K4EC1I7J/FQM4C94K4EC1I7J.jpg&filename=juin à septembre 2016 145.JPG)
![juin à septembre 2016 146.JPG](/proxy/?url=https://content.instructables.com/F7B/NDEB/K4EC1I7R/F7BNDEBK4EC1I7R.jpg&filename=juin à septembre 2016 146.JPG)
![juin à septembre 2016 147.JPG](/proxy/?url=https://content.instructables.com/FDI/X1KJ/K4EC1I8I/FDIX1KJK4EC1I8I.jpg&filename=juin à septembre 2016 147.JPG)
![juin à septembre 2016 148.JPG](/proxy/?url=https://content.instructables.com/FCG/NGI0/K4EC1I8K/FCGNGI0K4EC1I8K.jpg&filename=juin à septembre 2016 148.JPG)
![juin à septembre 2016 149.JPG](/proxy/?url=https://content.instructables.com/F7Q/F6XN/K4EC1I9E/F7QF6XNK4EC1I9E.jpg&filename=juin à septembre 2016 149.JPG)
![juin à septembre 2016 150.JPG](/proxy/?url=https://content.instructables.com/F47/ONEO/K4EC1I9G/F47ONEOK4EC1I9G.jpg&filename=juin à septembre 2016 150.JPG)
![juin à septembre 2016 151.JPG](/proxy/?url=https://content.instructables.com/FS2/304P/K4EC1IA4/FS2304PK4EC1IA4.jpg&filename=juin à septembre 2016 151.JPG)
![juin à septembre 2016 152.JPG](/proxy/?url=https://content.instructables.com/FQB/GLV3/K4EC1IA7/FQBGLV3K4EC1IA7.jpg&filename=juin à septembre 2016 152.JPG)
![juin à septembre 2016 154.JPG](/proxy/?url=https://content.instructables.com/FP2/J9QQ/K4EC1IAK/FP2J9QQK4EC1IAK.jpg&filename=juin à septembre 2016 154.JPG)
![juin à septembre 2016 155.JPG](/proxy/?url=https://content.instructables.com/FMY/S3E5/K4EC1IAO/FMYS3E5K4EC1IAO.jpg&filename=juin à septembre 2016 155.JPG)
![juin à septembre 2016 156.JPG](/proxy/?url=https://content.instructables.com/FRK/GJEE/K4EC1IAS/FRKGJEEK4EC1IAS.jpg&filename=juin à septembre 2016 156.JPG)
![juin à septembre 2016 157.JPG](/proxy/?url=https://content.instructables.com/FK4/KG4X/K4EC1IBK/FK4KG4XK4EC1IBK.jpg&filename=juin à septembre 2016 157.JPG)
![juin à septembre 2016 158.JPG](/proxy/?url=https://content.instructables.com/FME/EMJU/K4EC1IBO/FMEEMJUK4EC1IBO.jpg&filename=juin à septembre 2016 158.JPG)
![juin à septembre 2016 159.JPG](/proxy/?url=https://content.instructables.com/FFP/4E9B/K4EC1IBV/FFP4E9BK4EC1IBV.jpg&filename=juin à septembre 2016 159.JPG)

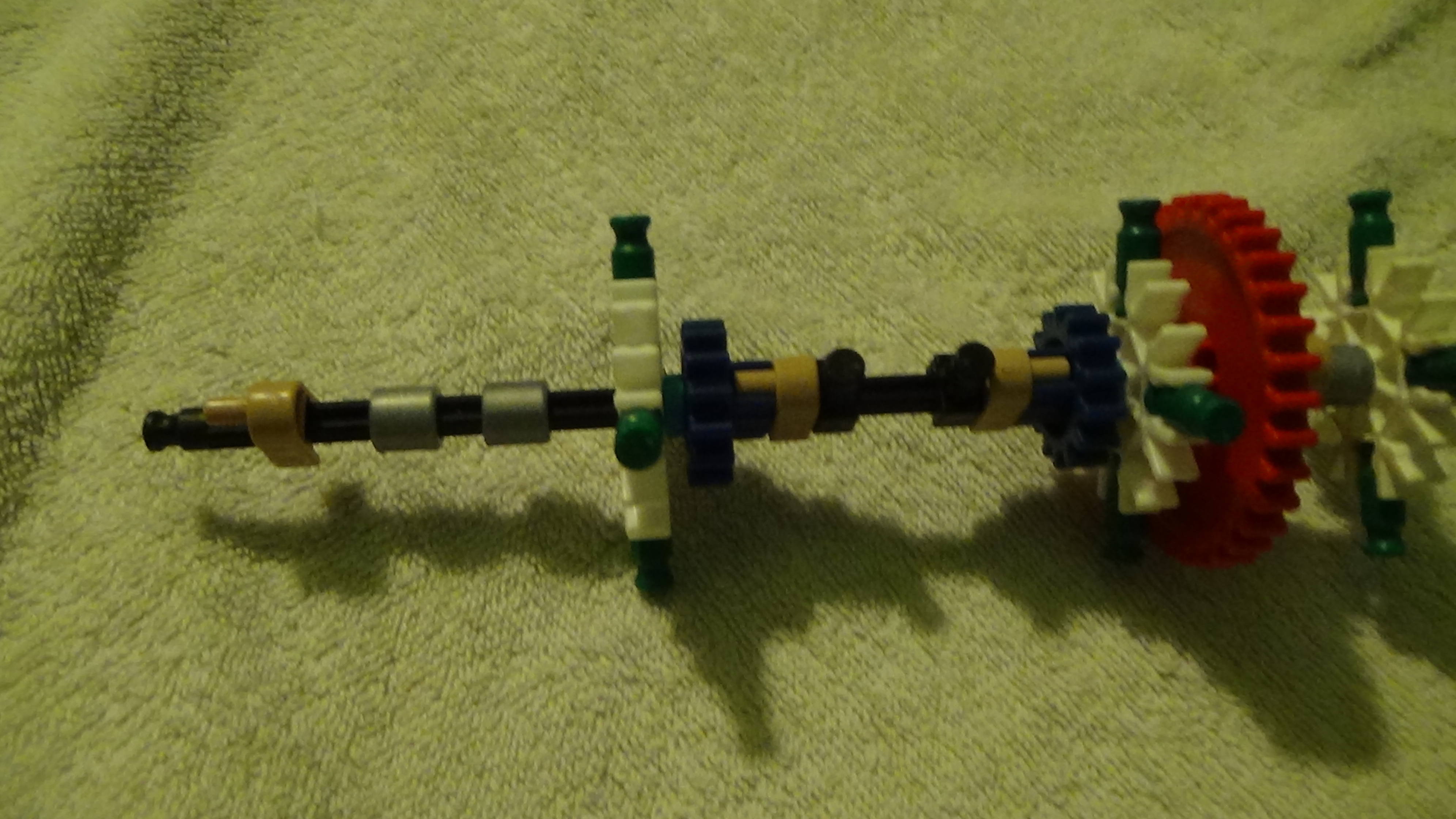

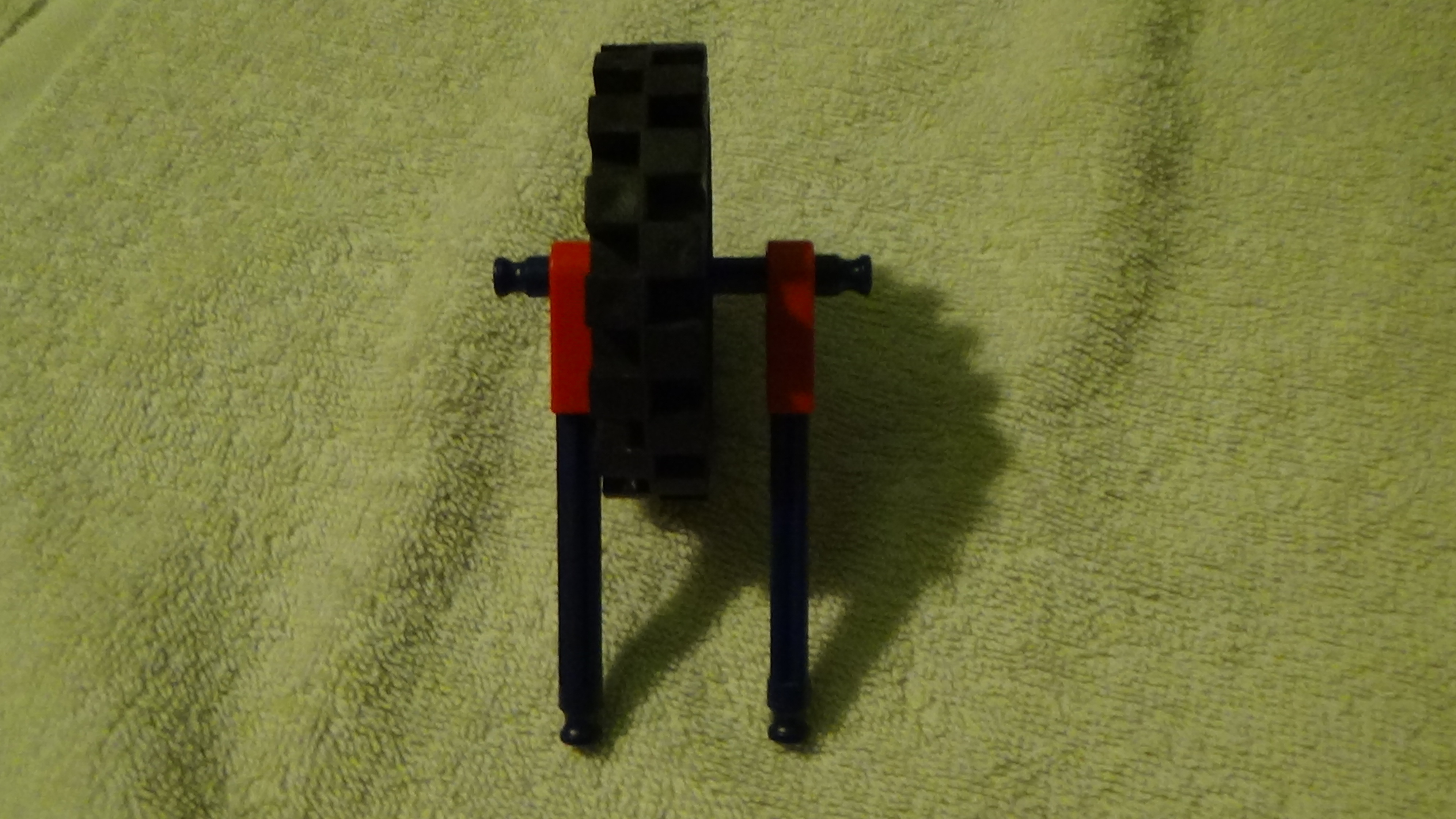

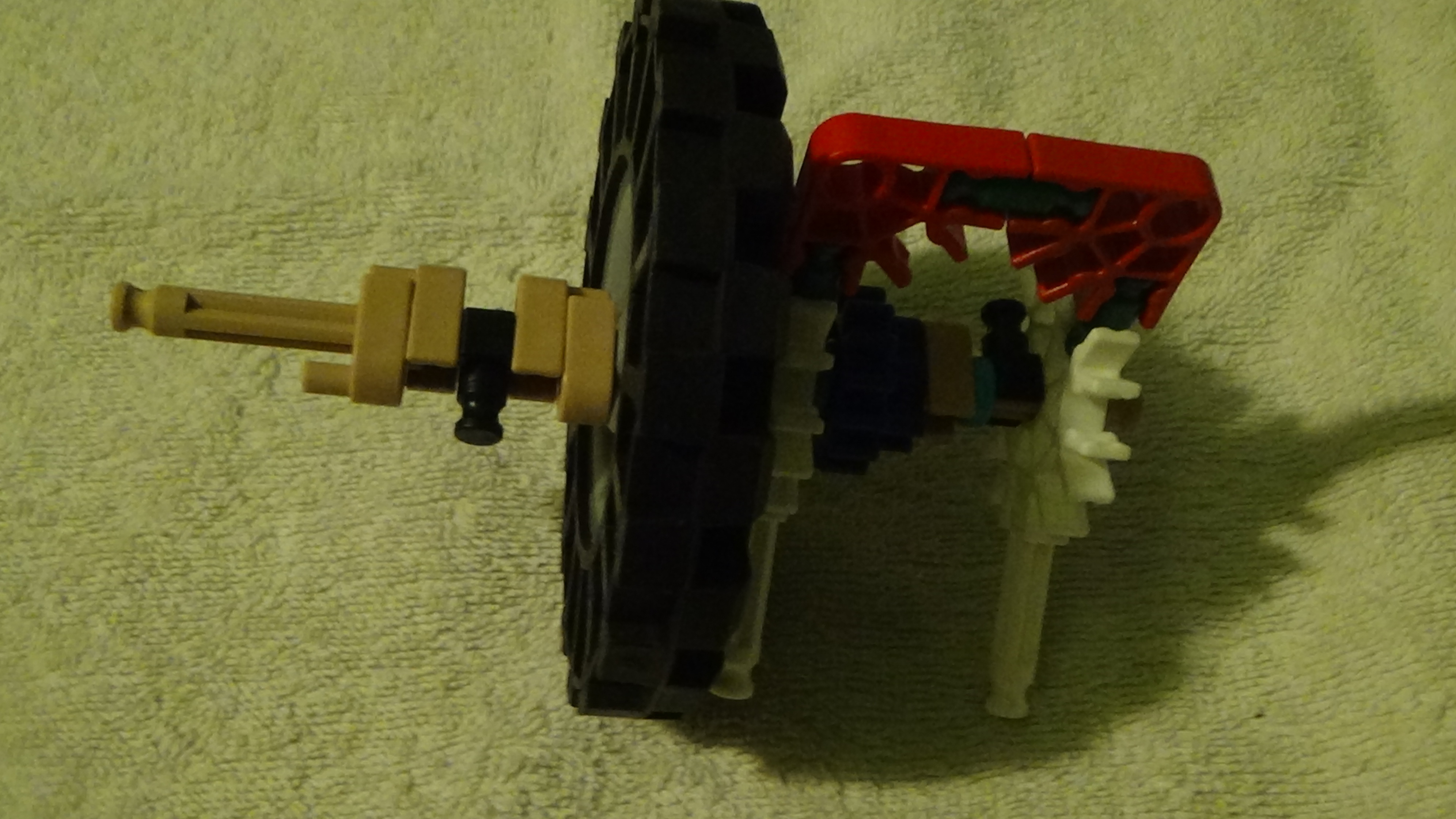

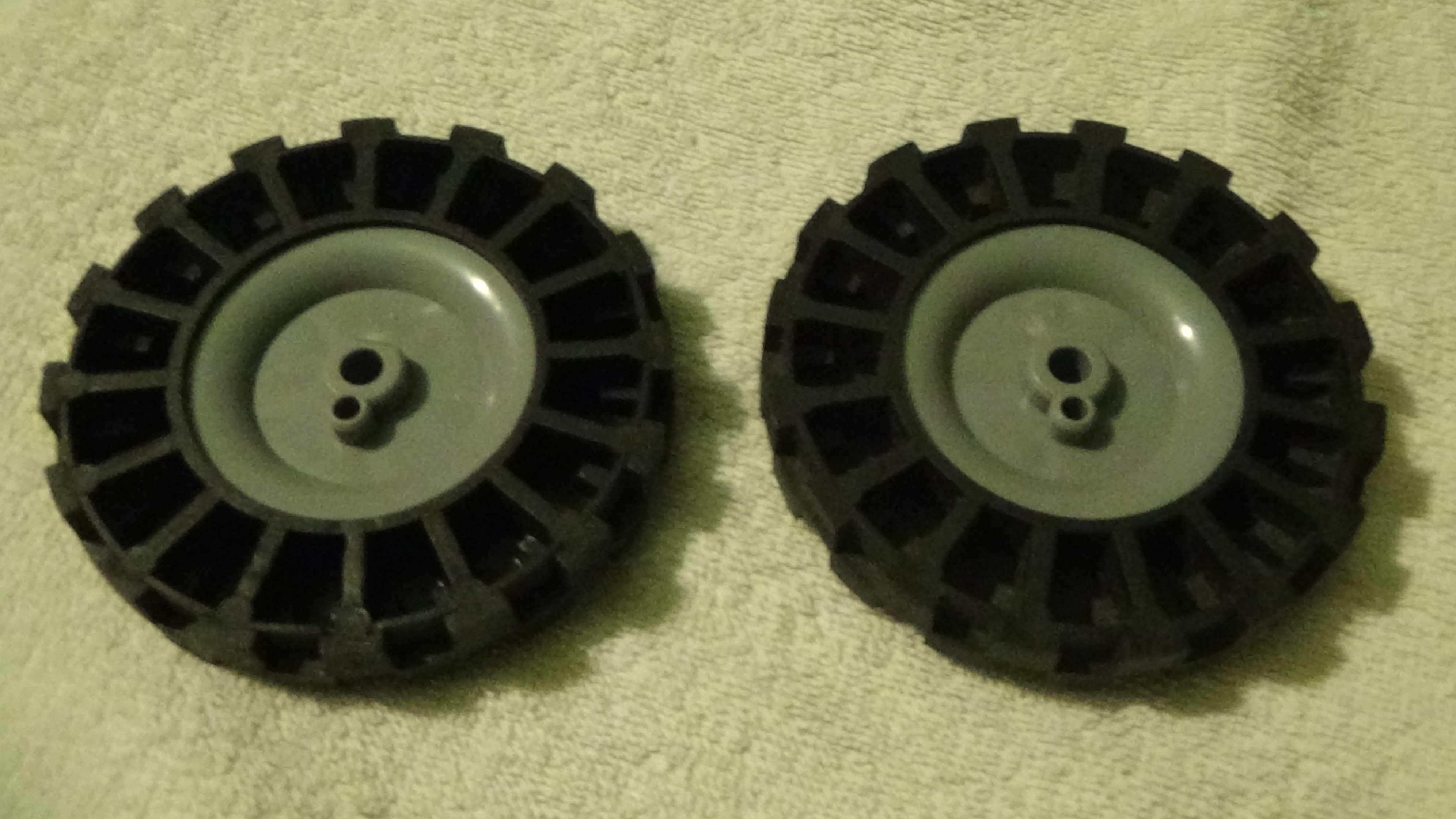

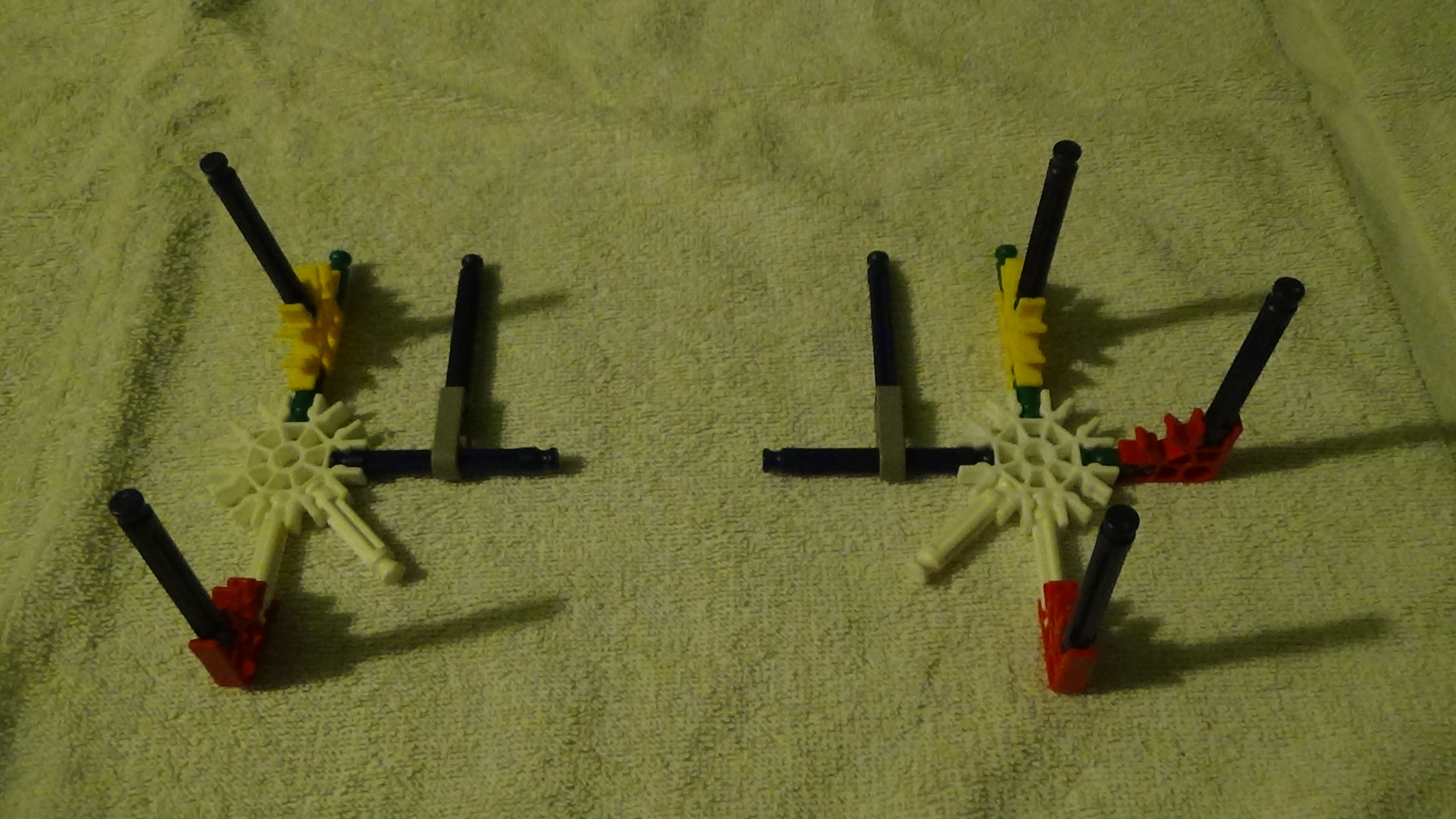

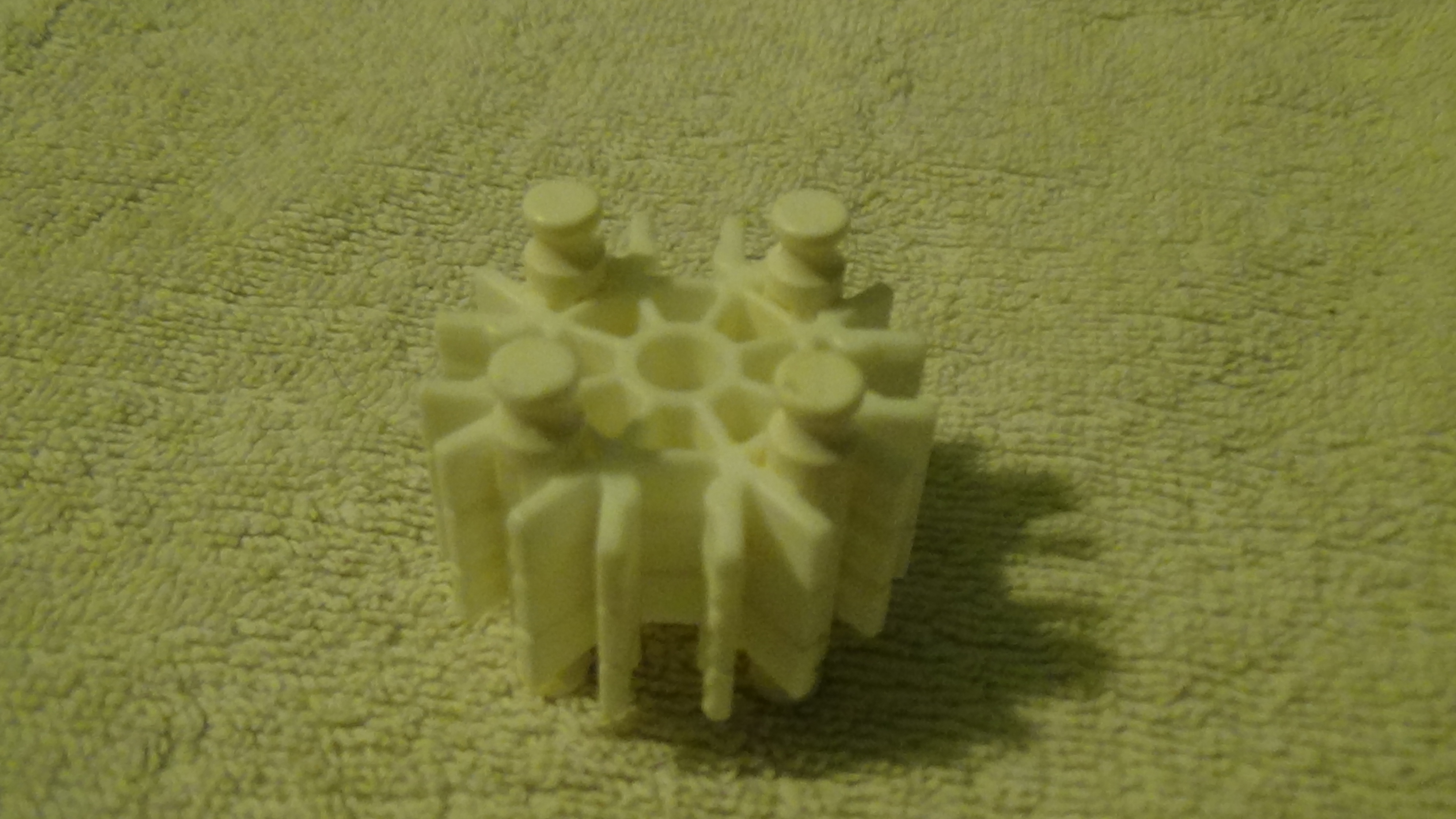

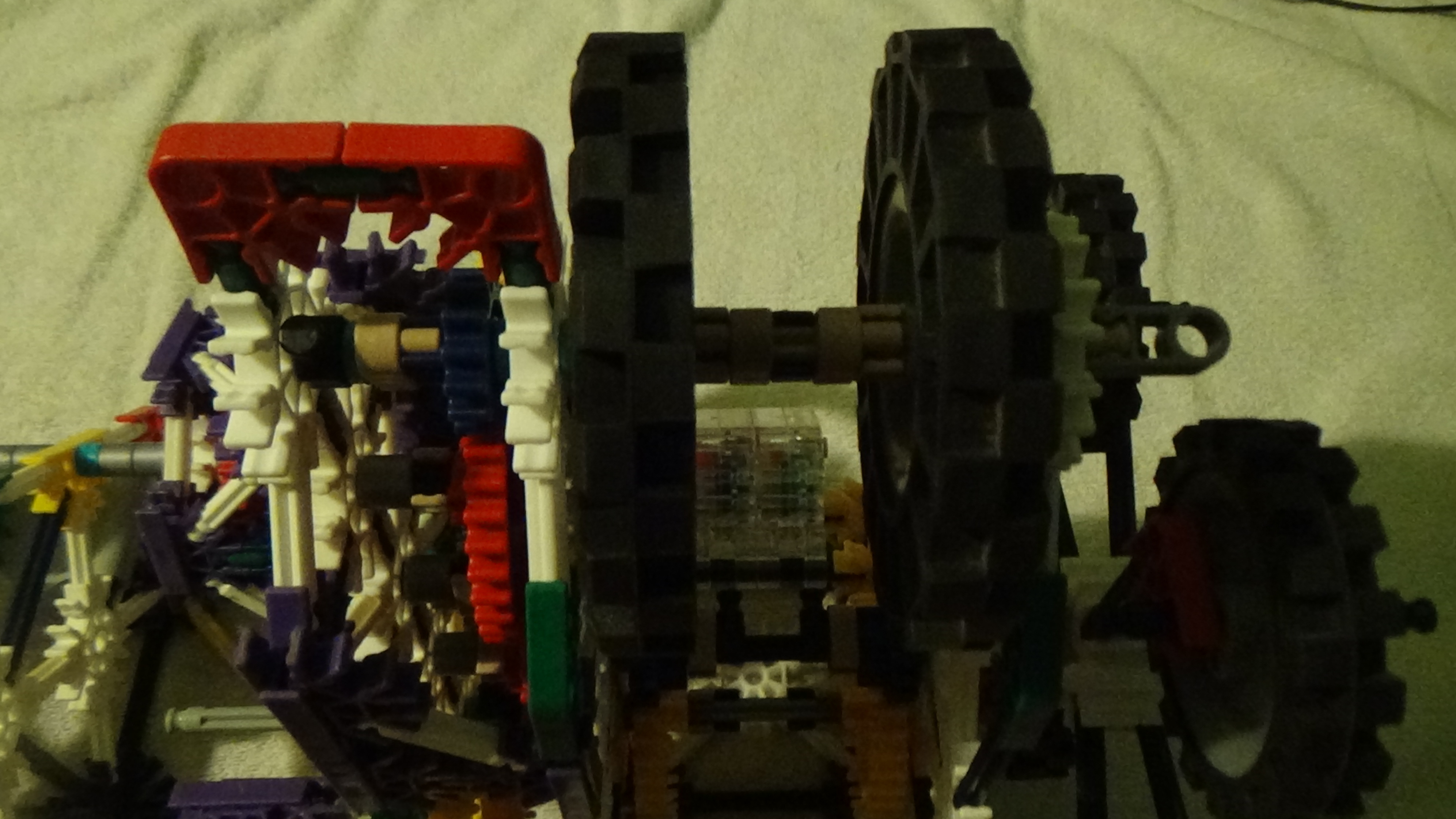

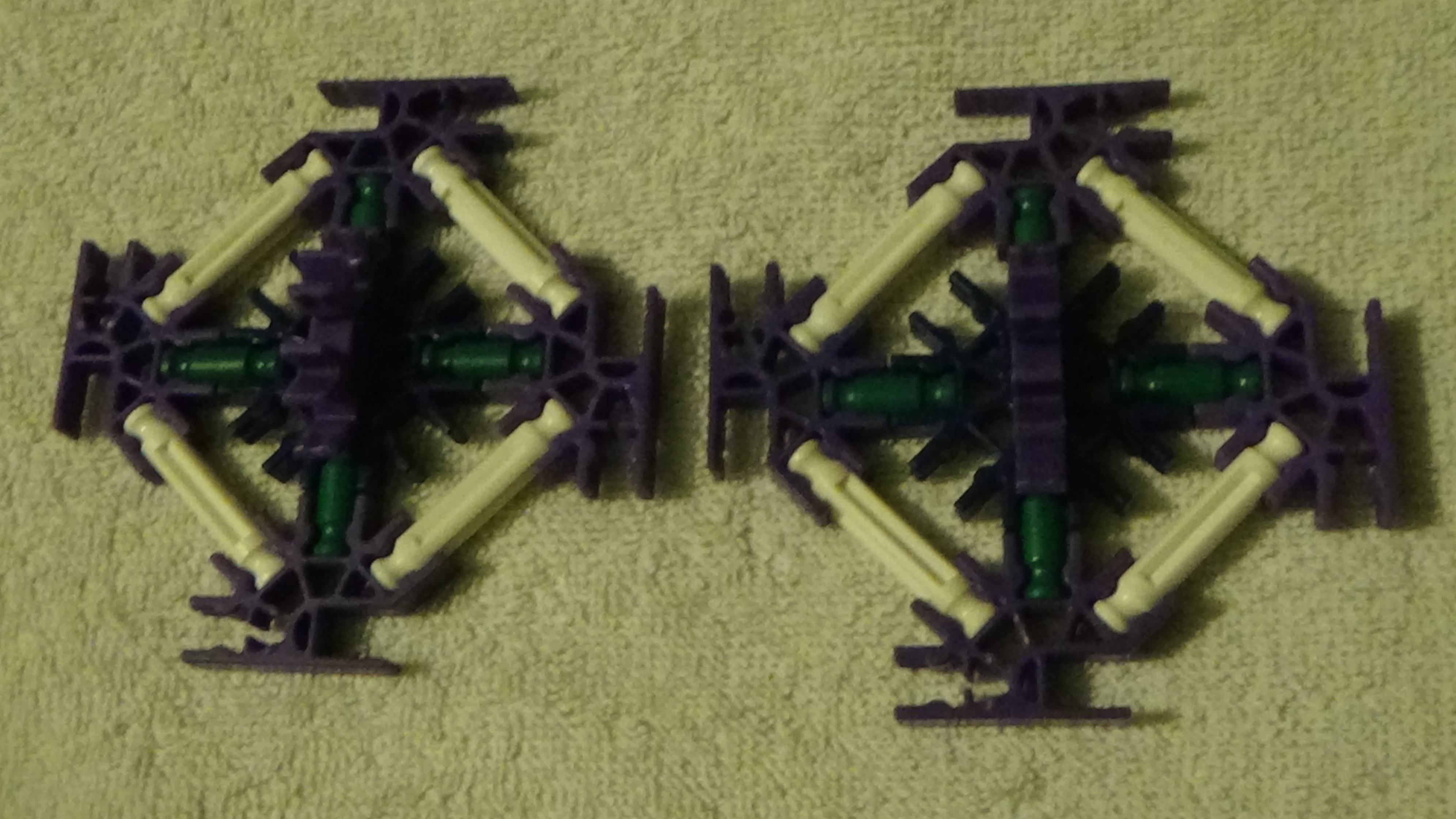

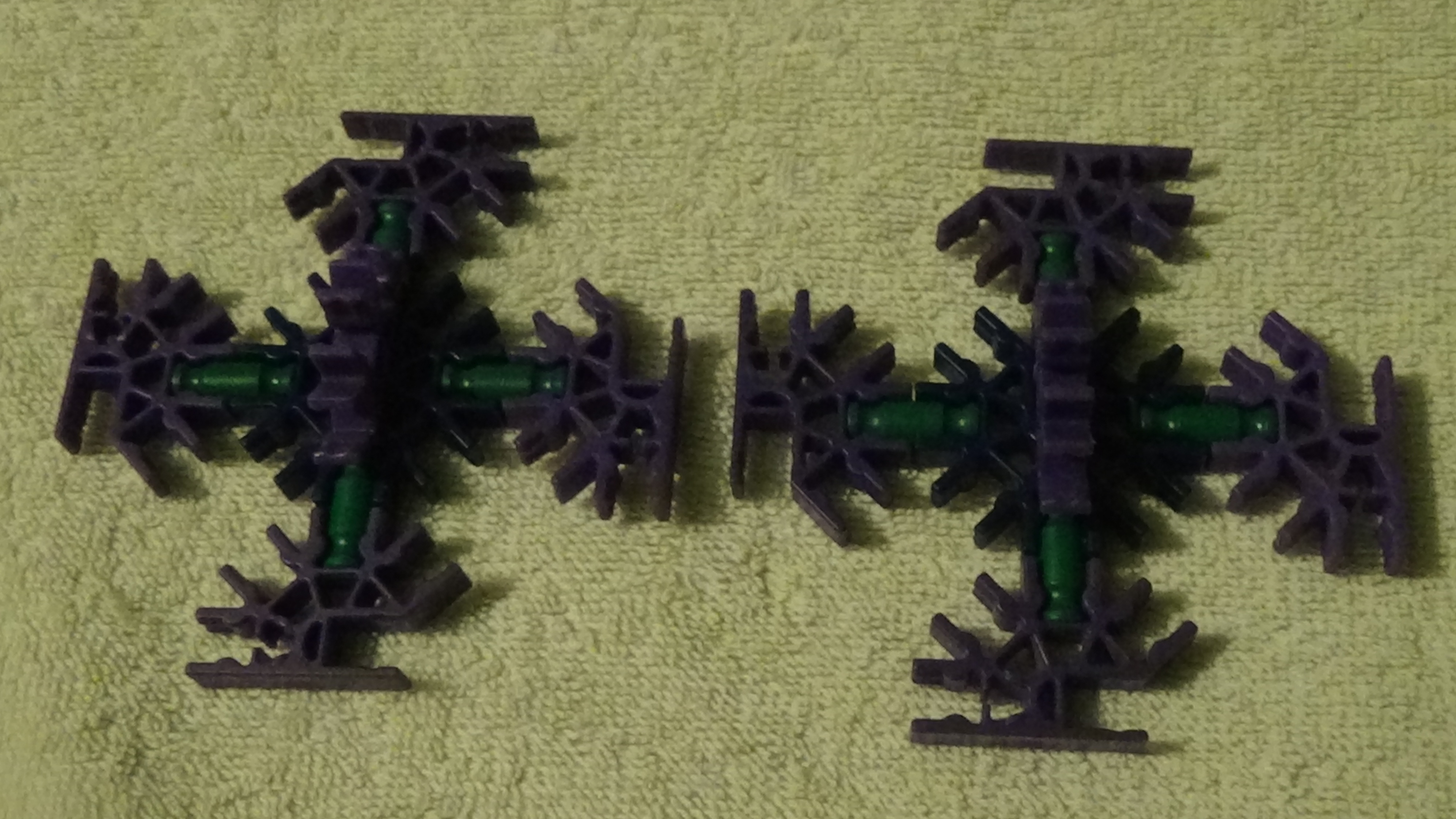

The Flywheel
![juin à septembre 2016 160.JPG](/proxy/?url=https://content.instructables.com/F3D/7XT8/K4EC1IC3/F3D7XT8K4EC1IC3.jpg&filename=juin à septembre 2016 160.JPG)
![juin à septembre 2016 161.JPG](/proxy/?url=https://content.instructables.com/FY2/II2T/K4EC1IE5/FY2II2TK4EC1IE5.jpg&filename=juin à septembre 2016 161.JPG)
![juin à septembre 2016 162.JPG](/proxy/?url=https://content.instructables.com/FX5/J6TY/K4EC1IGC/FX5J6TYK4EC1IGC.jpg&filename=juin à septembre 2016 162.JPG)
![juin à septembre 2016 163.JPG](/proxy/?url=https://content.instructables.com/FSK/JR2Q/K4EC1IIE/FSKJR2QK4EC1IIE.jpg&filename=juin à septembre 2016 163.JPG)
![juin à septembre 2016 164.JPG](/proxy/?url=https://content.instructables.com/FB3/PB0F/K4EC1IJP/FB3PB0FK4EC1IJP.jpg&filename=juin à septembre 2016 164.JPG)
![juin à septembre 2016 165.JPG](/proxy/?url=https://content.instructables.com/FN4/94WI/K4EC1ILO/FN494WIK4EC1ILO.jpg&filename=juin à septembre 2016 165.JPG)
![juin à septembre 2016 166.JPG](/proxy/?url=https://content.instructables.com/FP5/OLF1/K4EC1IMZ/FP5OLF1K4EC1IMZ.jpg&filename=juin à septembre 2016 166.JPG)
![juin à septembre 2016 168.JPG](/proxy/?url=https://content.instructables.com/F45/PUVH/K4EC1IOE/F45PUVHK4EC1IOE.jpg&filename=juin à septembre 2016 168.JPG)
![juin à septembre 2016 169.JPG](/proxy/?url=https://content.instructables.com/FEP/LSE1/K4EC1IPO/FEPLSE1K4EC1IPO.jpg&filename=juin à septembre 2016 169.JPG)
![juin à septembre 2016 170.JPG](/proxy/?url=https://content.instructables.com/FOO/RKUQ/K4EC1IRO/FOORKUQK4EC1IRO.jpg&filename=juin à septembre 2016 170.JPG)
![juin à septembre 2016 171.JPG](/proxy/?url=https://content.instructables.com/FB2/FNZC/K4EC1ISB/FB2FNZCK4EC1ISB.jpg&filename=juin à septembre 2016 171.JPG)
![juin à septembre 2016 172.JPG](/proxy/?url=https://content.instructables.com/F5A/W7KK/K4EC1IT3/F5AW7KKK4EC1IT3.jpg&filename=juin à septembre 2016 172.JPG)
![juin à septembre 2016 173.JPG](/proxy/?url=https://content.instructables.com/FK9/220D/K4EC1IUI/FK9220DK4EC1IUI.jpg&filename=juin à septembre 2016 173.JPG)
![juin à septembre 2016 174.JPG](/proxy/?url=https://content.instructables.com/FV4/9S4U/K4EC1IVV/FV49S4UK4EC1IVV.jpg&filename=juin à septembre 2016 174.JPG)
![juin à septembre 2016 175.JPG](/proxy/?url=https://content.instructables.com/F6Z/CLDV/K4EC1IXE/F6ZCLDVK4EC1IXE.jpg&filename=juin à septembre 2016 175.JPG)
![juin à septembre 2016 176.JPG](/proxy/?url=https://content.instructables.com/FLR/6TQ6/K4EC1IYR/FLR6TQ6K4EC1IYR.jpg&filename=juin à septembre 2016 176.JPG)
![juin à septembre 2016 177.JPG](/proxy/?url=https://content.instructables.com/FSY/G6A9/K4EC1IYS/FSYG6A9K4EC1IYS.jpg&filename=juin à septembre 2016 177.JPG)
![juin à septembre 2016 178.JPG](/proxy/?url=https://content.instructables.com/F5I/5VHC/K4EC1IYV/F5I5VHCK4EC1IYV.jpg&filename=juin à septembre 2016 178.JPG)
![juin à septembre 2016 179.JPG](/proxy/?url=https://content.instructables.com/FTW/5VB8/K4EC1IZ2/FTW5VB8K4EC1IZ2.jpg&filename=juin à septembre 2016 179.JPG)
![juin à septembre 2016 180.JPG](/proxy/?url=https://content.instructables.com/F76/CDMM/K4EC1IZ4/F76CDMMK4EC1IZ4.jpg&filename=juin à septembre 2016 180.JPG)
![juin à septembre 2016 181.JPG](/proxy/?url=https://content.instructables.com/FZK/SAJR/K4EC1IZ5/FZKSAJRK4EC1IZ5.jpg&filename=juin à septembre 2016 181.JPG)
pro tip: don't put your finger nearby when it spin x)

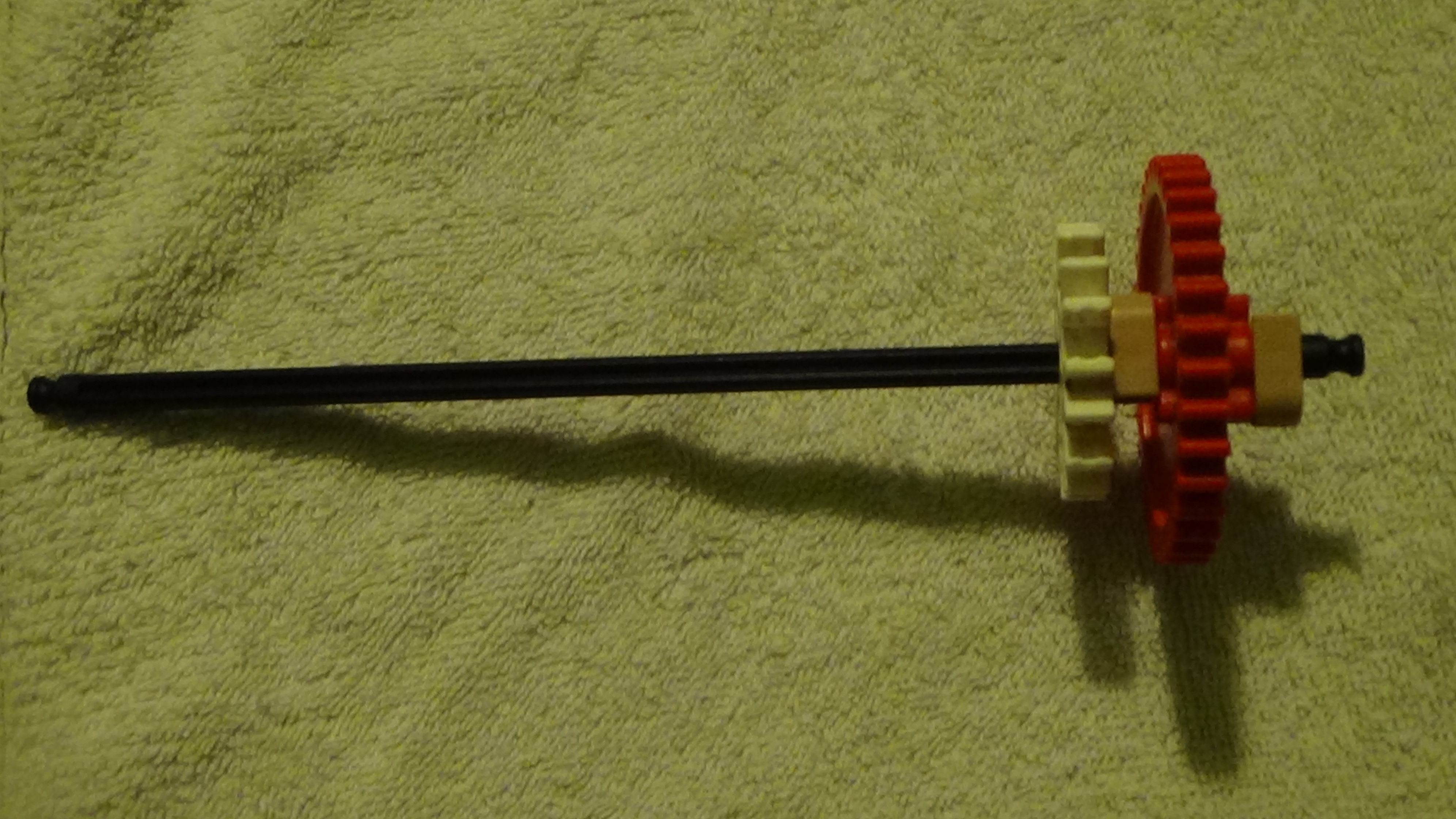

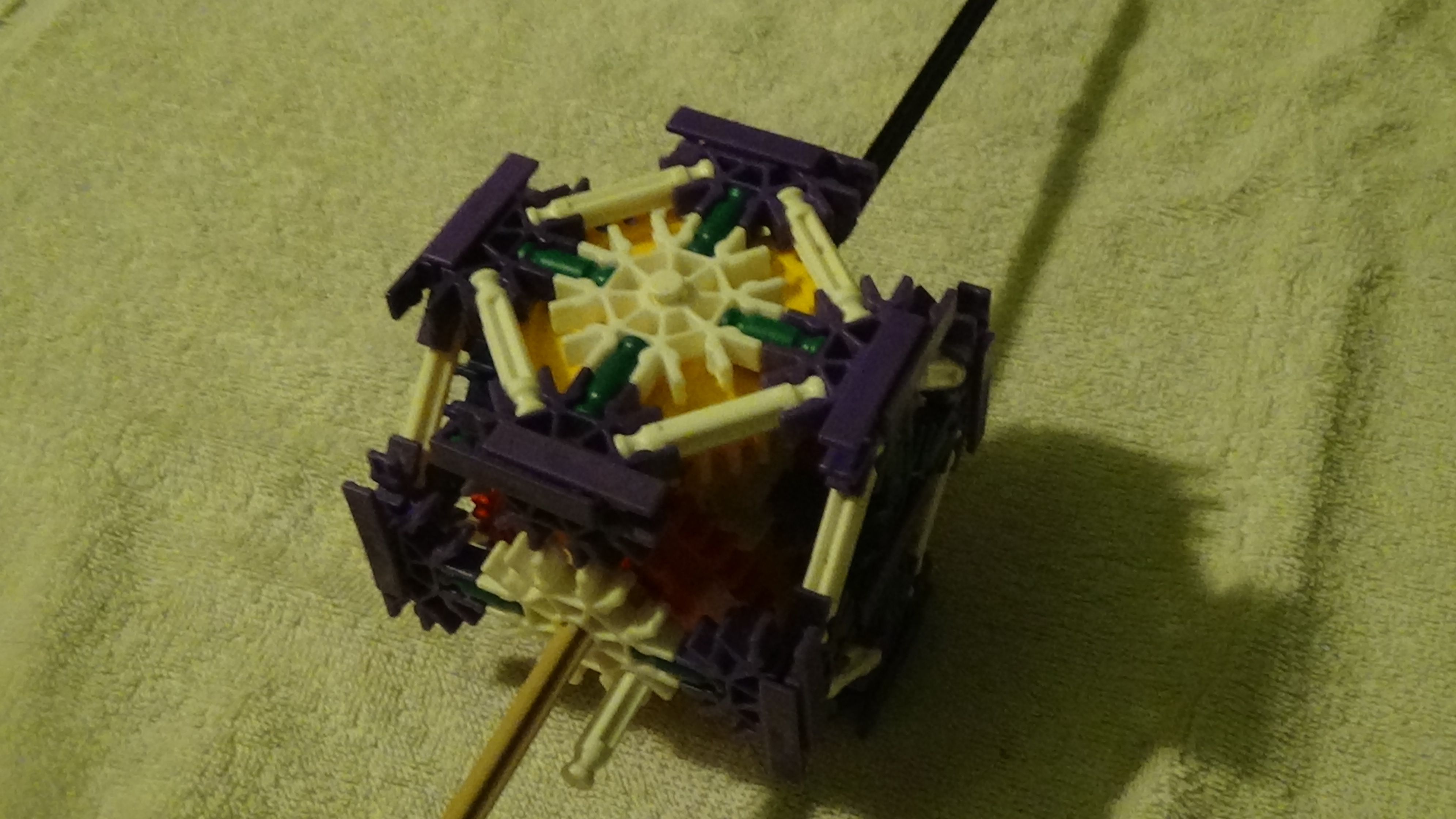

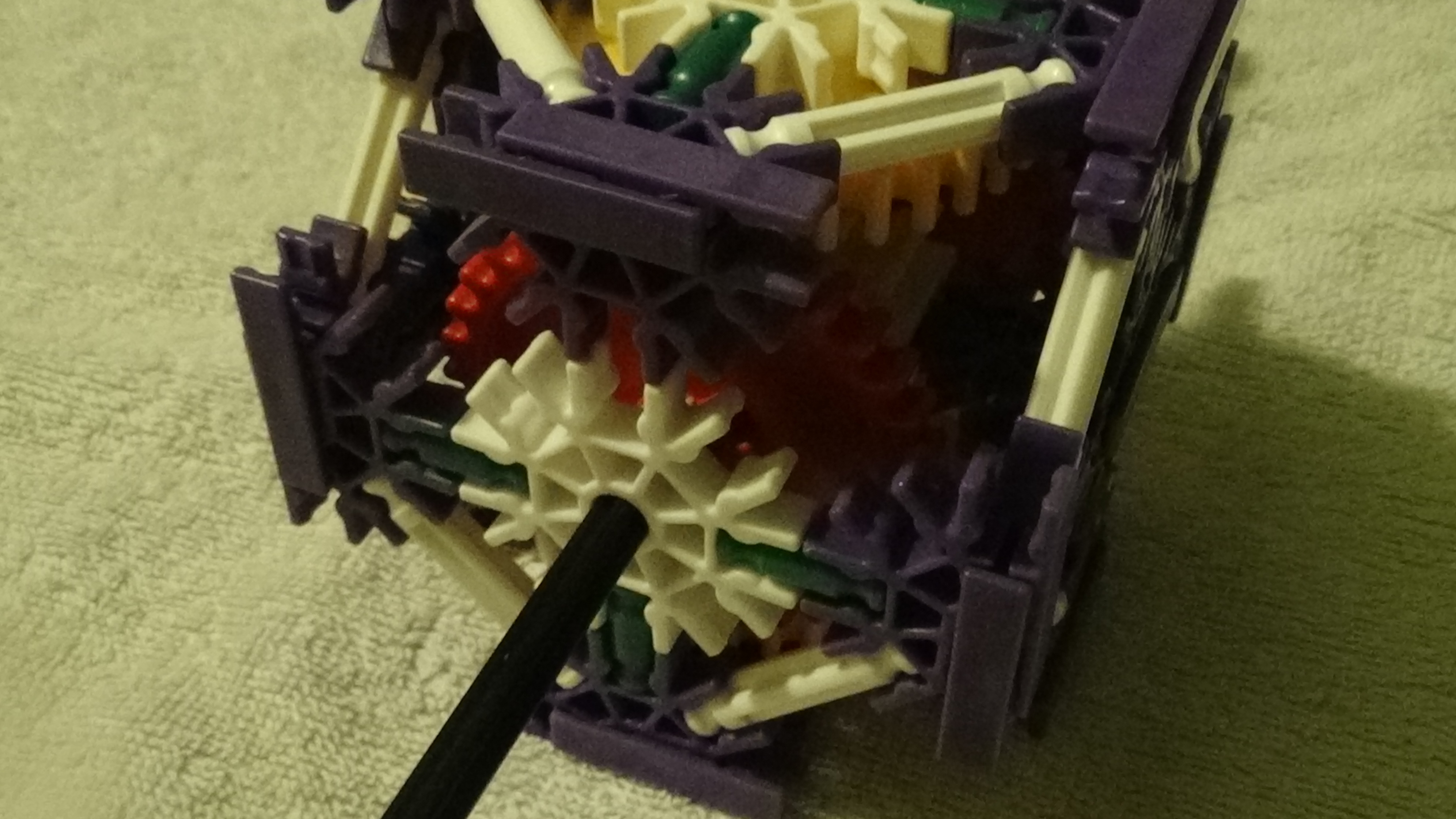

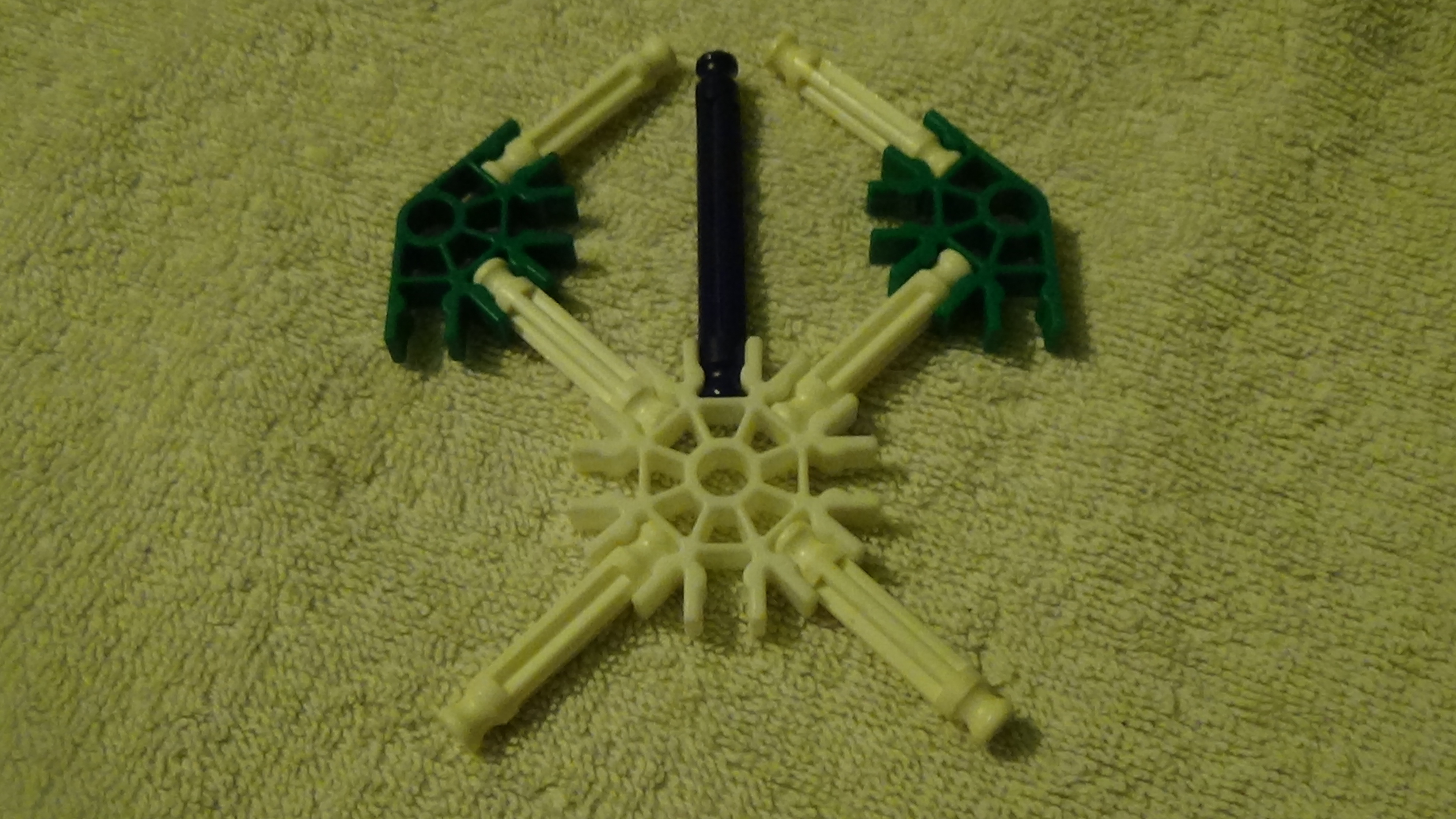

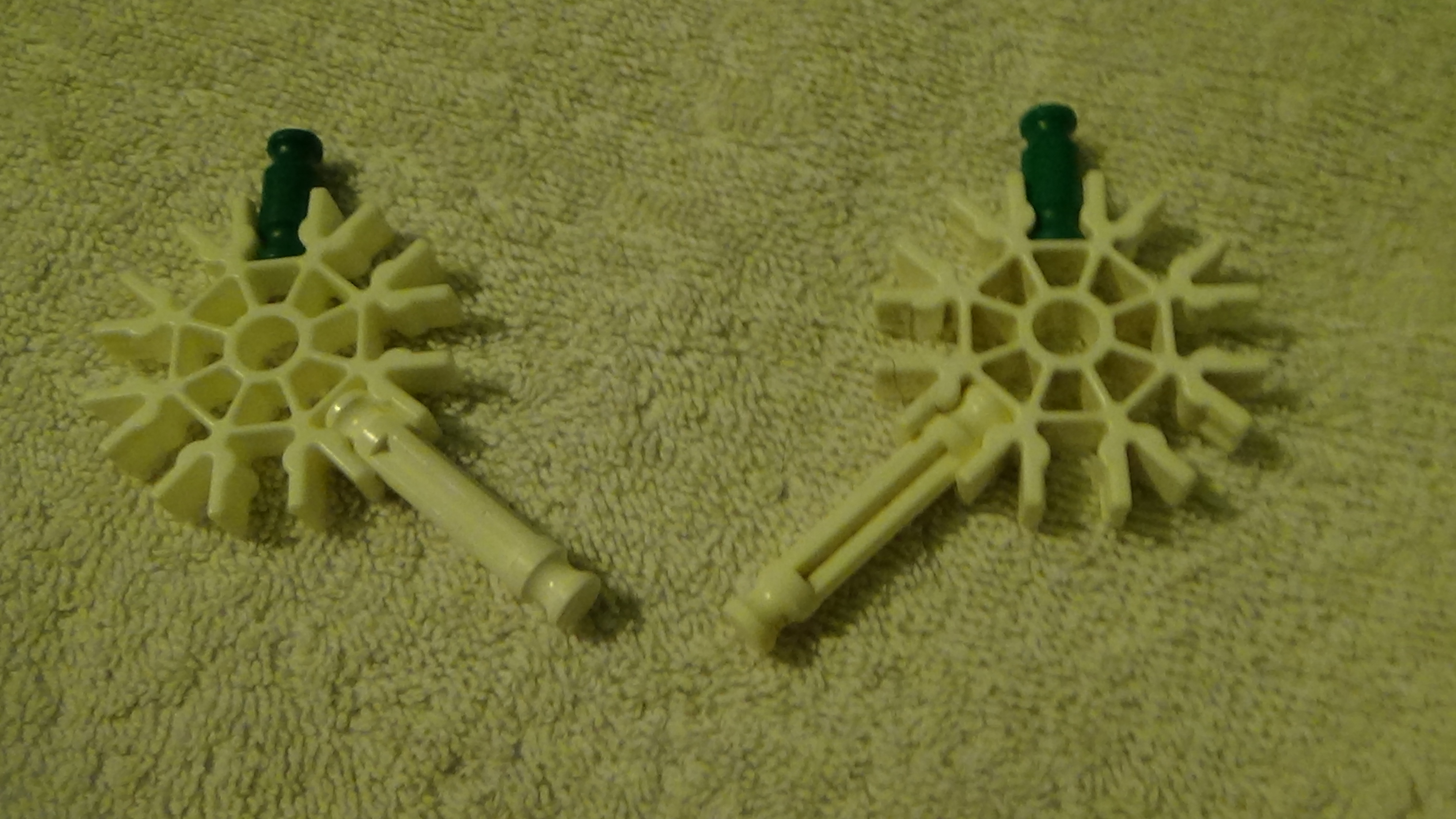

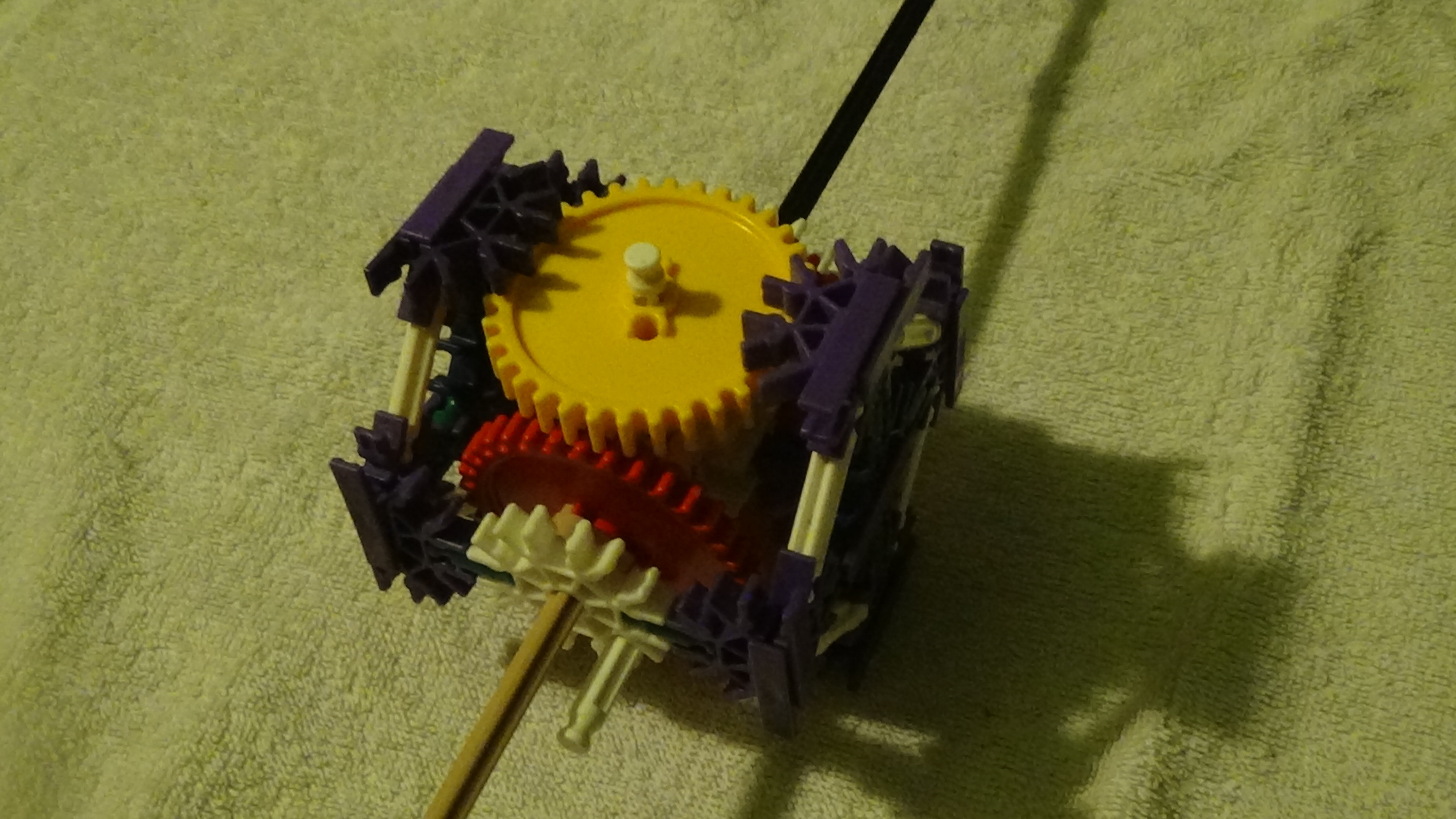

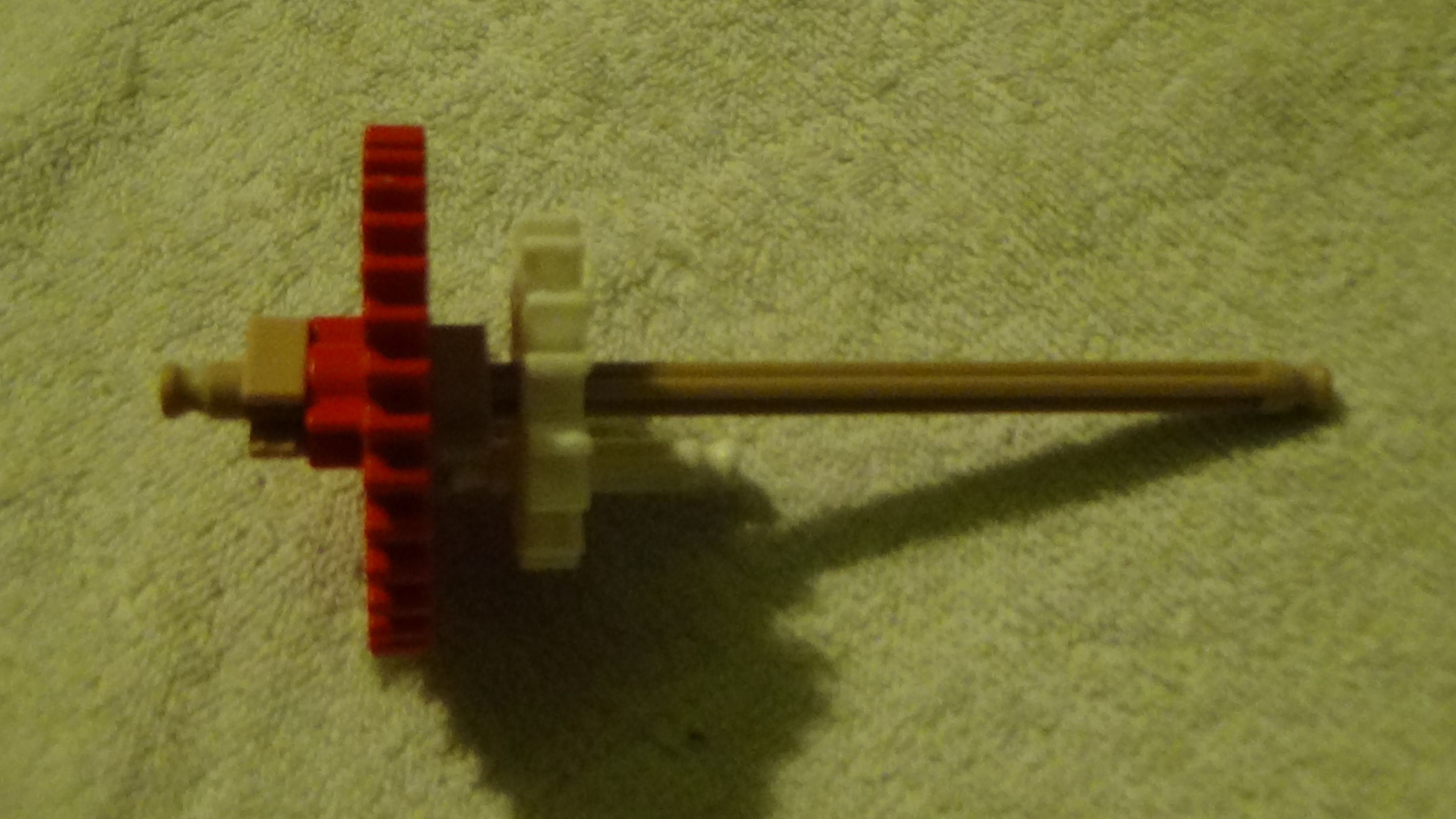

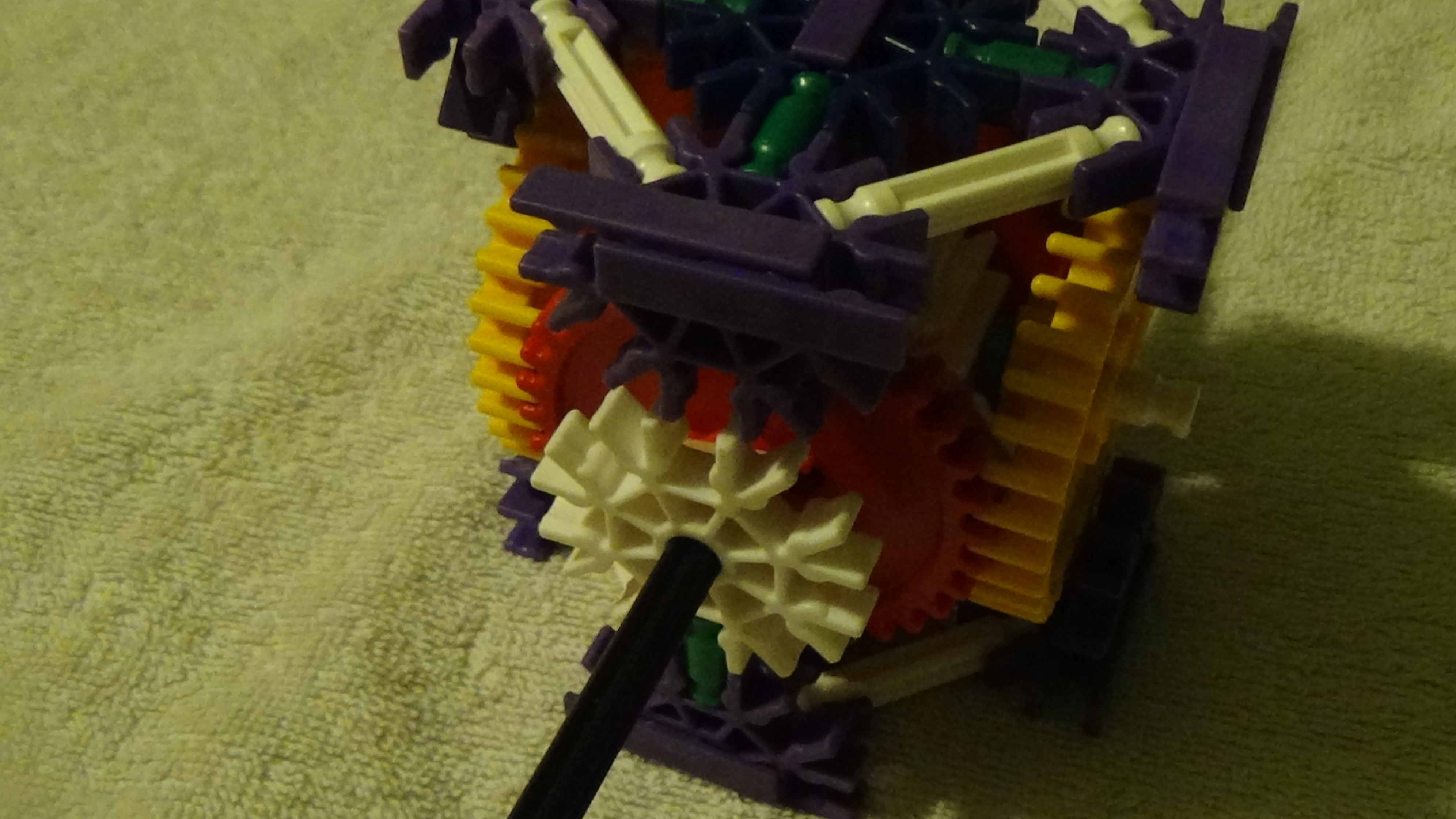

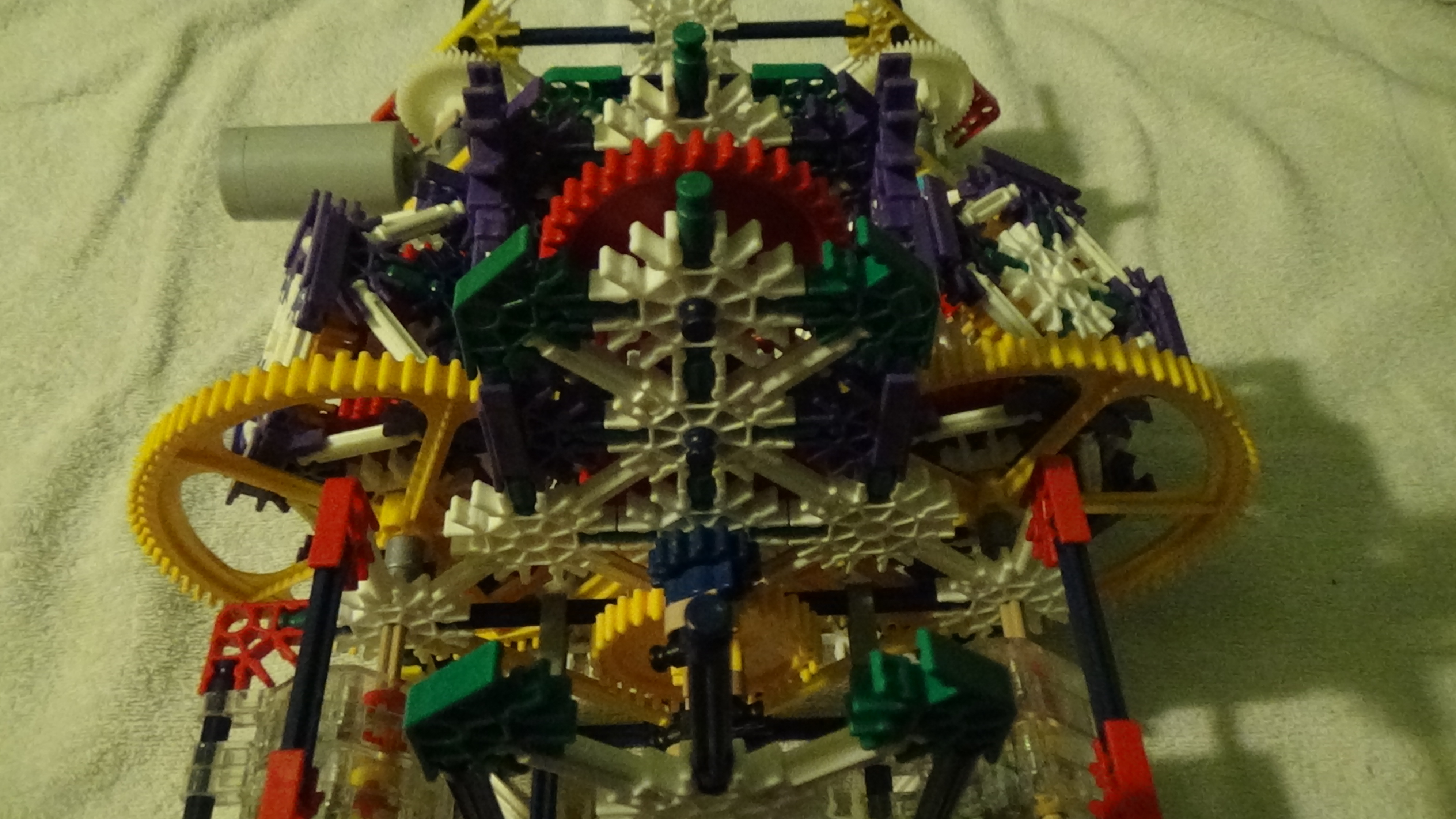

The Gear Box
![juin à septembre 2016 186.JPG](/proxy/?url=https://content.instructables.com/F6Z/DQ1K/K4EC1J32/F6ZDQ1KK4EC1J32.jpg&filename=juin à septembre 2016 186.JPG)
![juin à septembre 2016 183.JPG](/proxy/?url=https://content.instructables.com/FM1/SJZ6/K4EC1IZE/FM1SJZ6K4EC1IZE.jpg&filename=juin à septembre 2016 183.JPG)
![juin à septembre 2016 184.JPG](/proxy/?url=https://content.instructables.com/FFT/IR73/K4EC1J0U/FFTIR73K4EC1J0U.jpg&filename=juin à septembre 2016 184.JPG)
![juin à septembre 2016 185.JPG](/proxy/?url=https://content.instructables.com/FJH/1TSG/K4EC1J31/FJH1TSGK4EC1J31.jpg&filename=juin à septembre 2016 185.JPG)
![juin à septembre 2016 187.JPG](/proxy/?url=https://content.instructables.com/FKO/2XJU/K4EC1J3U/FKO2XJUK4EC1J3U.jpg&filename=juin à septembre 2016 187.JPG)
![juin à septembre 2016 188.JPG](/proxy/?url=https://content.instructables.com/FUR/SYRB/K4EC1J5E/FURSYRBK4EC1J5E.jpg&filename=juin à septembre 2016 188.JPG)
![juin à septembre 2016 190.JPG](/proxy/?url=https://content.instructables.com/FSF/4E7J/K4EC1J87/FSF4E7JK4EC1J87.jpg&filename=juin à septembre 2016 190.JPG)
![juin à septembre 2016 191.JPG](/proxy/?url=https://content.instructables.com/F5C/IKBL/K4EC1J9N/F5CIKBLK4EC1J9N.jpg&filename=juin à septembre 2016 191.JPG)
![juin à septembre 2016 192.JPG](/proxy/?url=https://content.instructables.com/F44/DEJB/K4EC1JB6/F44DEJBK4EC1JB6.jpg&filename=juin à septembre 2016 192.JPG)
![juin à septembre 2016 193.JPG](/proxy/?url=https://content.instructables.com/F4W/UJNH/K4EC1JC9/F4WUJNHK4EC1JC9.jpg&filename=juin à septembre 2016 193.JPG)
![juin à septembre 2016 194.JPG](/proxy/?url=https://content.instructables.com/FP1/WYQ9/K4EC1JE8/FP1WYQ9K4EC1JE8.jpg&filename=juin à septembre 2016 194.JPG)
![juin à septembre 2016 195.JPG](/proxy/?url=https://content.instructables.com/FX6/YG63/K4EC1JEV/FX6YG63K4EC1JEV.jpg&filename=juin à septembre 2016 195.JPG)
![juin à septembre 2016 196.JPG](/proxy/?url=https://content.instructables.com/FPA/R1K1/K4EC1JF4/FPAR1K1K4EC1JF4.jpg&filename=juin à septembre 2016 196.JPG)
![juin à septembre 2016 197.JPG](/proxy/?url=https://content.instructables.com/FDF/TWRT/K4EC1JFV/FDFTWRTK4EC1JFV.jpg&filename=juin à septembre 2016 197.JPG)
![juin à septembre 2016 198.JPG](/proxy/?url=https://content.instructables.com/F8J/QPI3/K4EC1JGX/F8JQPI3K4EC1JGX.jpg&filename=juin à septembre 2016 198.JPG)
![juin à septembre 2016 200.JPG](/proxy/?url=https://content.instructables.com/F24/LZZF/K4EC1JI2/F24LZZFK4EC1JI2.jpg&filename=juin à septembre 2016 200.JPG)
![juin à septembre 2016 201.JPG](/proxy/?url=https://content.instructables.com/FFS/LJHO/K4EC1JII/FFSLJHOK4EC1JII.jpg&filename=juin à septembre 2016 201.JPG)
![juin à septembre 2016 203.JPG](/proxy/?url=https://content.instructables.com/FKN/GD5Y/K4EC1JLK/FKNGD5YK4EC1JLK.jpg&filename=juin à septembre 2016 203.JPG)
![juin à septembre 2016 204.JPG](/proxy/?url=https://content.instructables.com/FFN/DN3K/K4EC1JO9/FFNDN3KK4EC1JO9.jpg&filename=juin à septembre 2016 204.JPG)
![juin à septembre 2016 205.JPG](/proxy/?url=https://content.instructables.com/F8T/8MMT/K4EC1JPS/F8T8MMTK4EC1JPS.jpg&filename=juin à septembre 2016 205.JPG)
![juin à septembre 2016 206.JPG](/proxy/?url=https://content.instructables.com/FDY/L651/K4EC1JQG/FDYL651K4EC1JQG.jpg&filename=juin à septembre 2016 206.JPG)

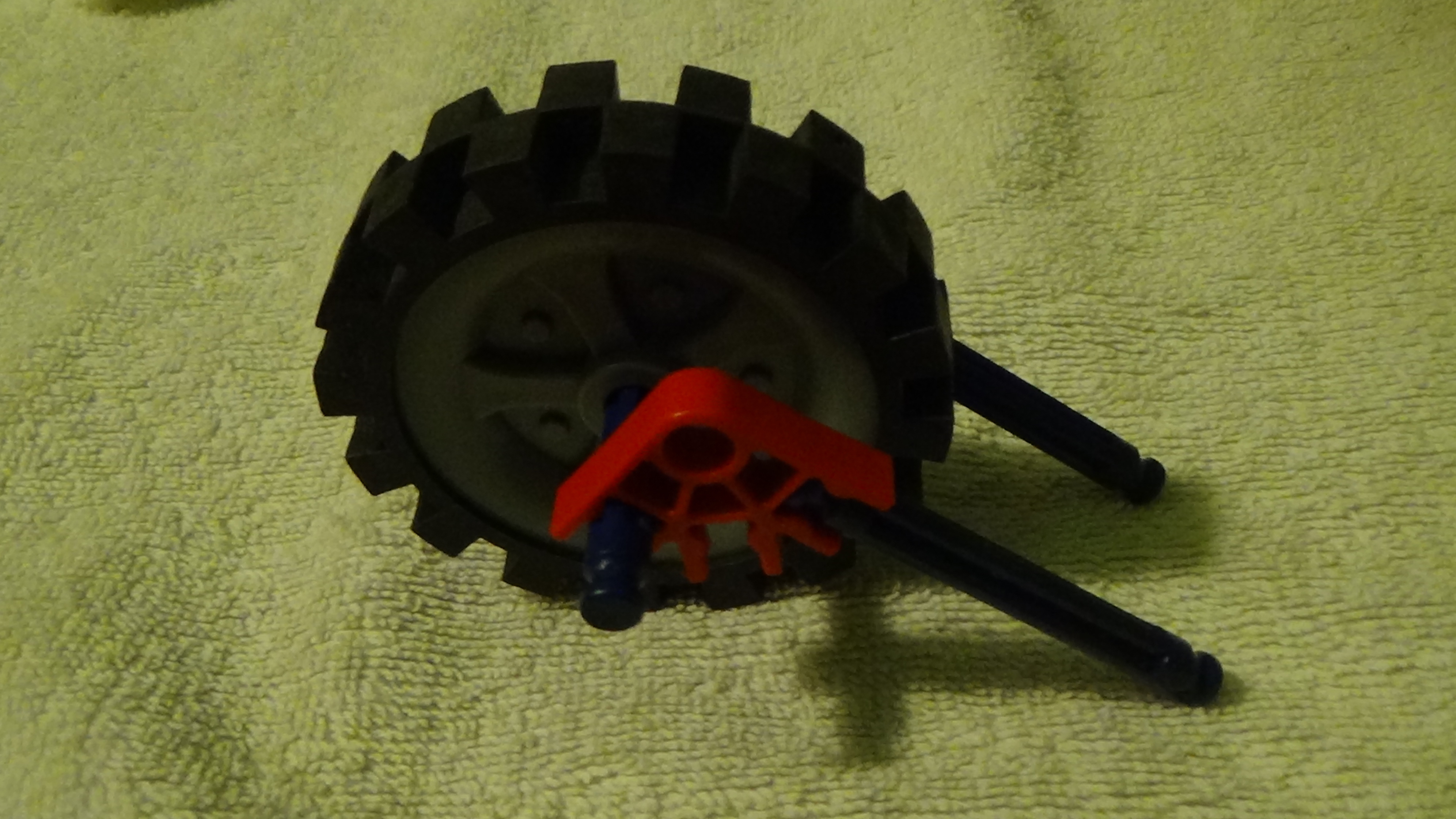

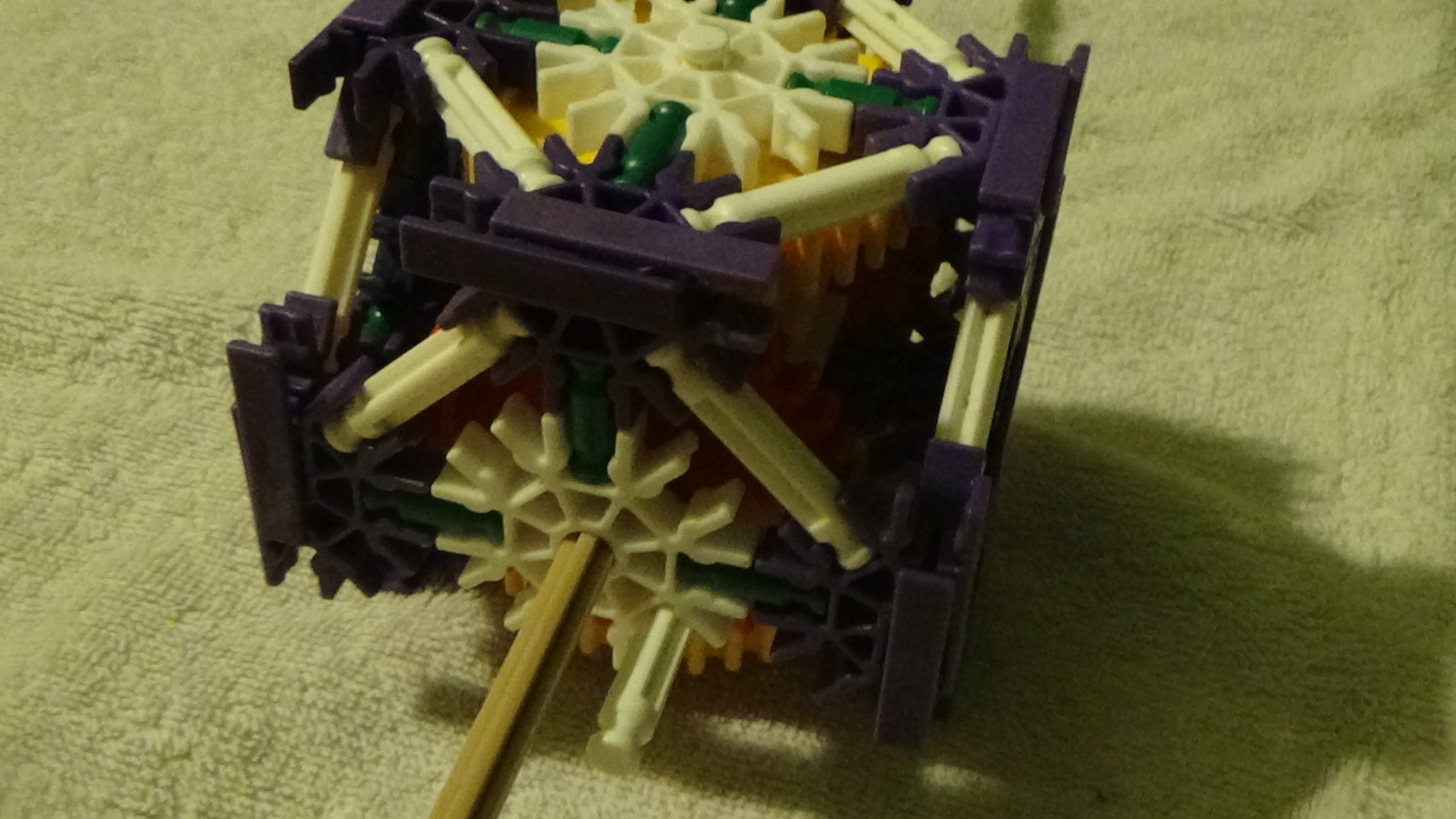

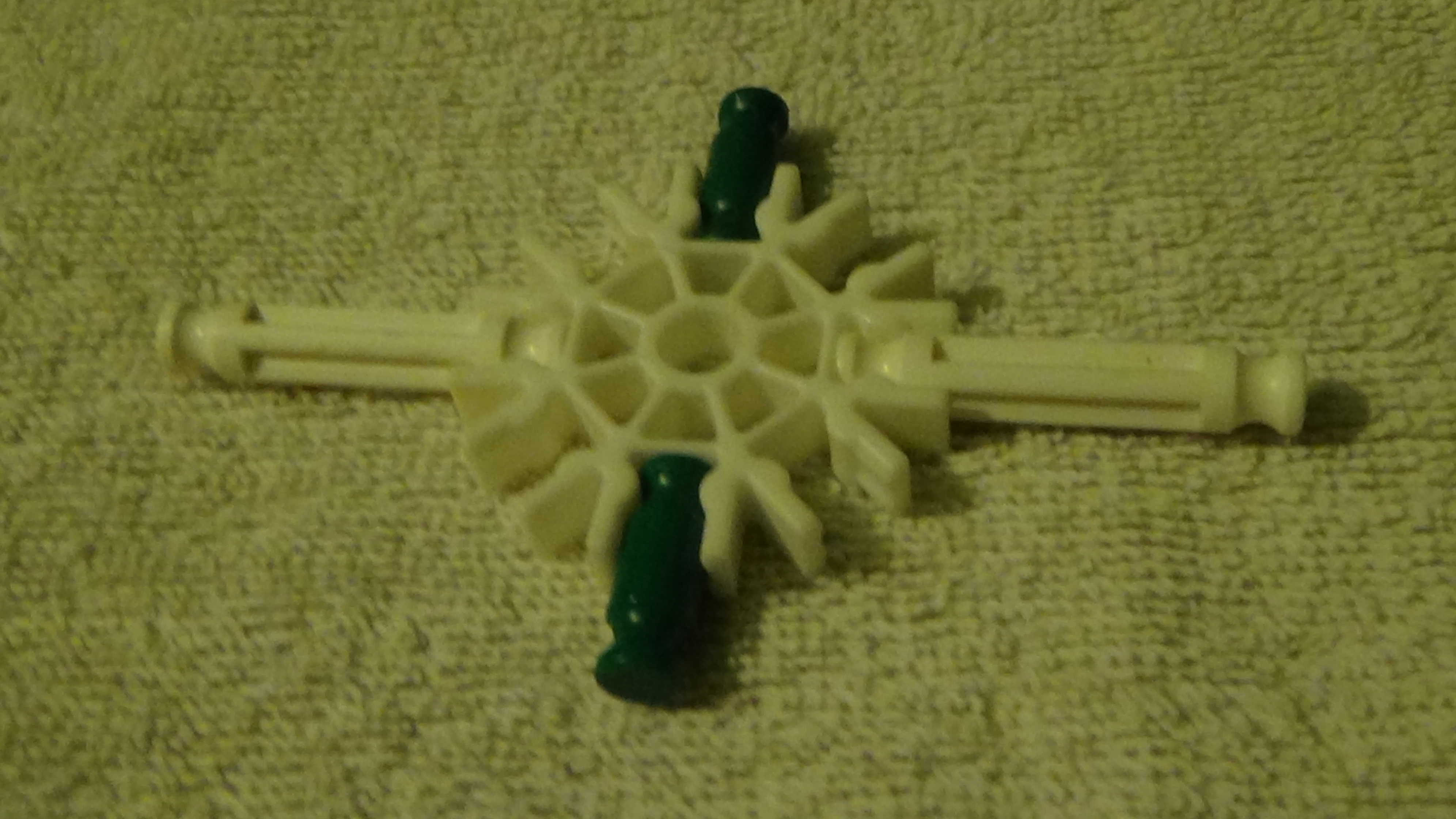

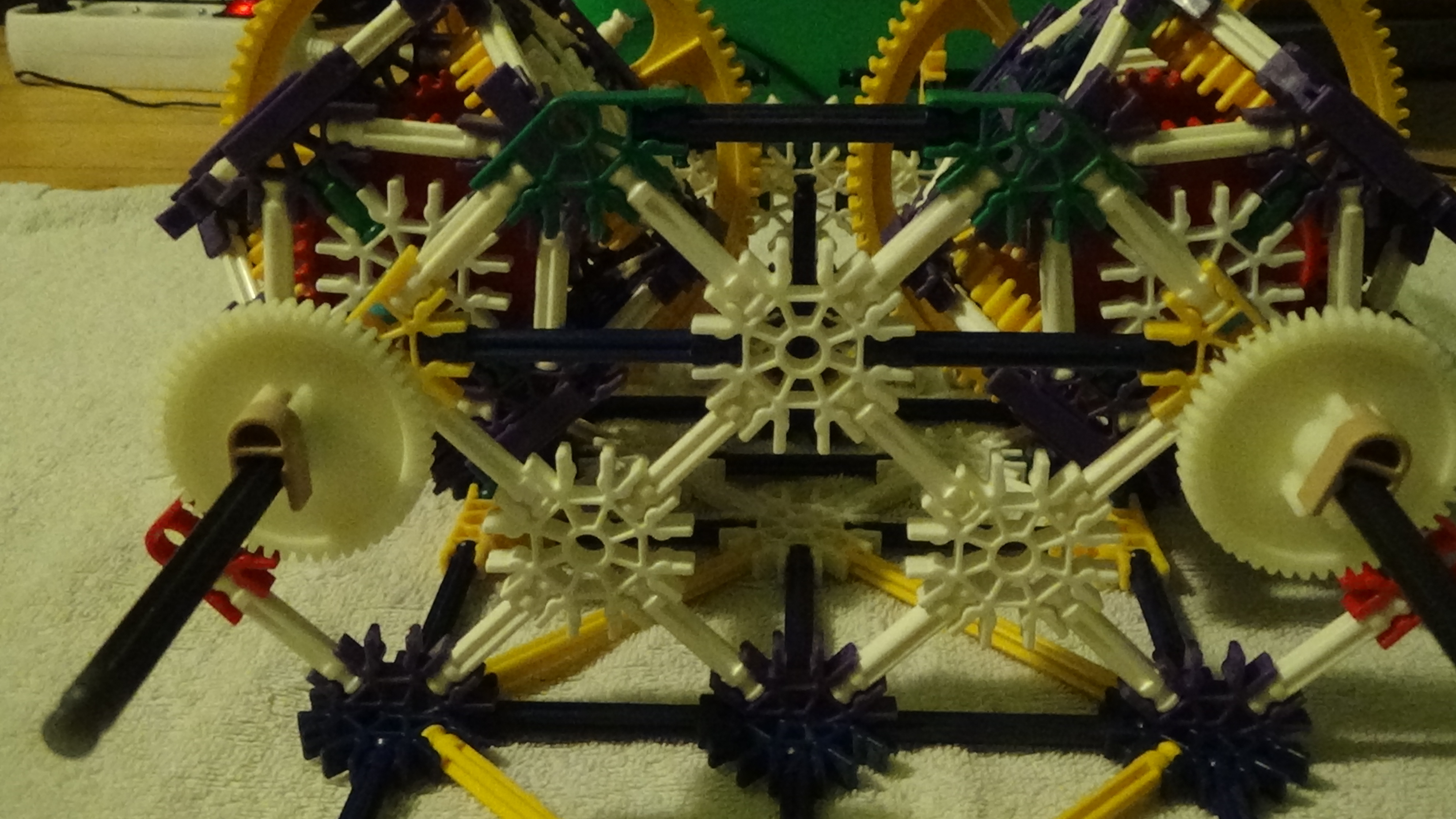

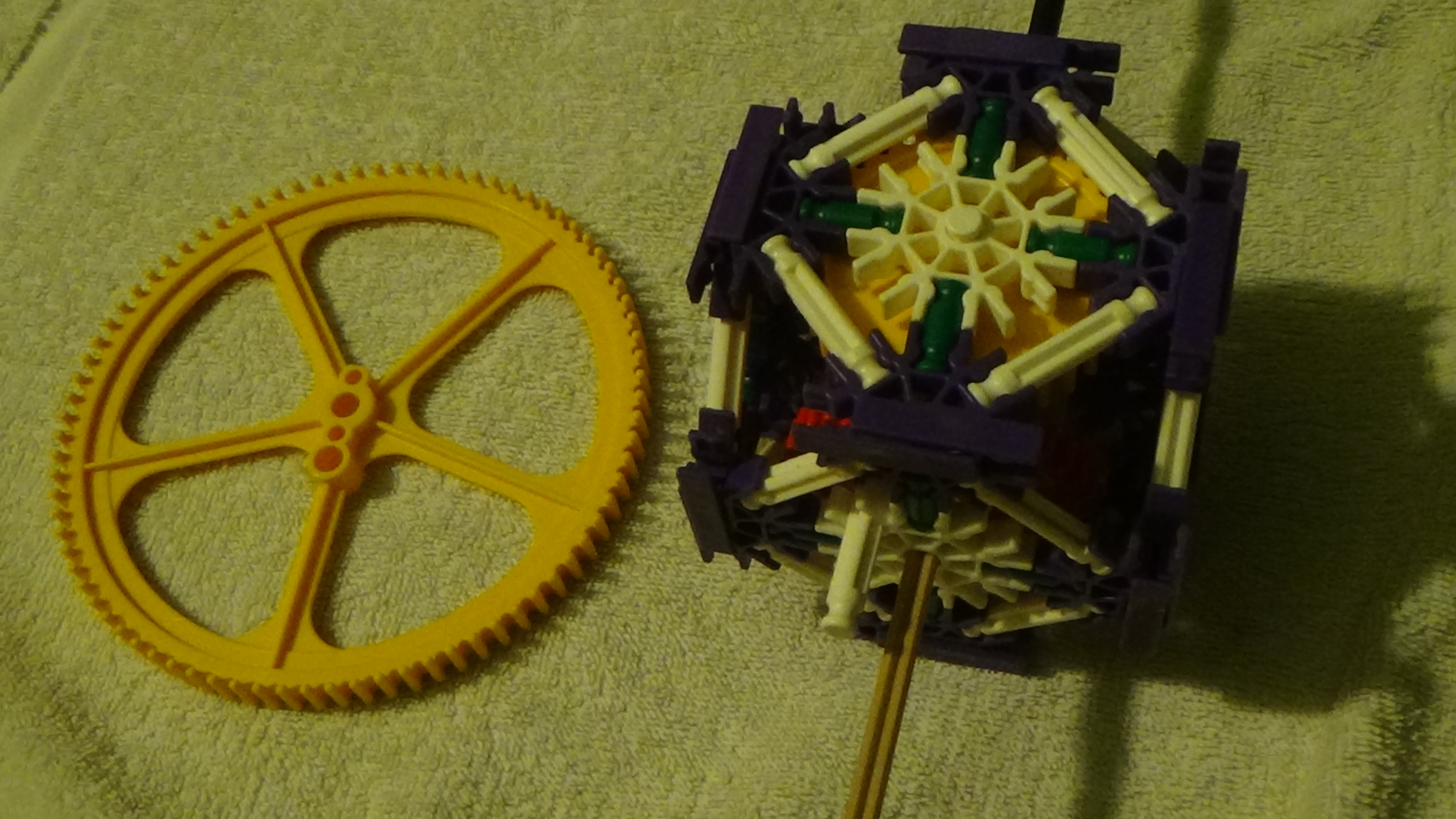

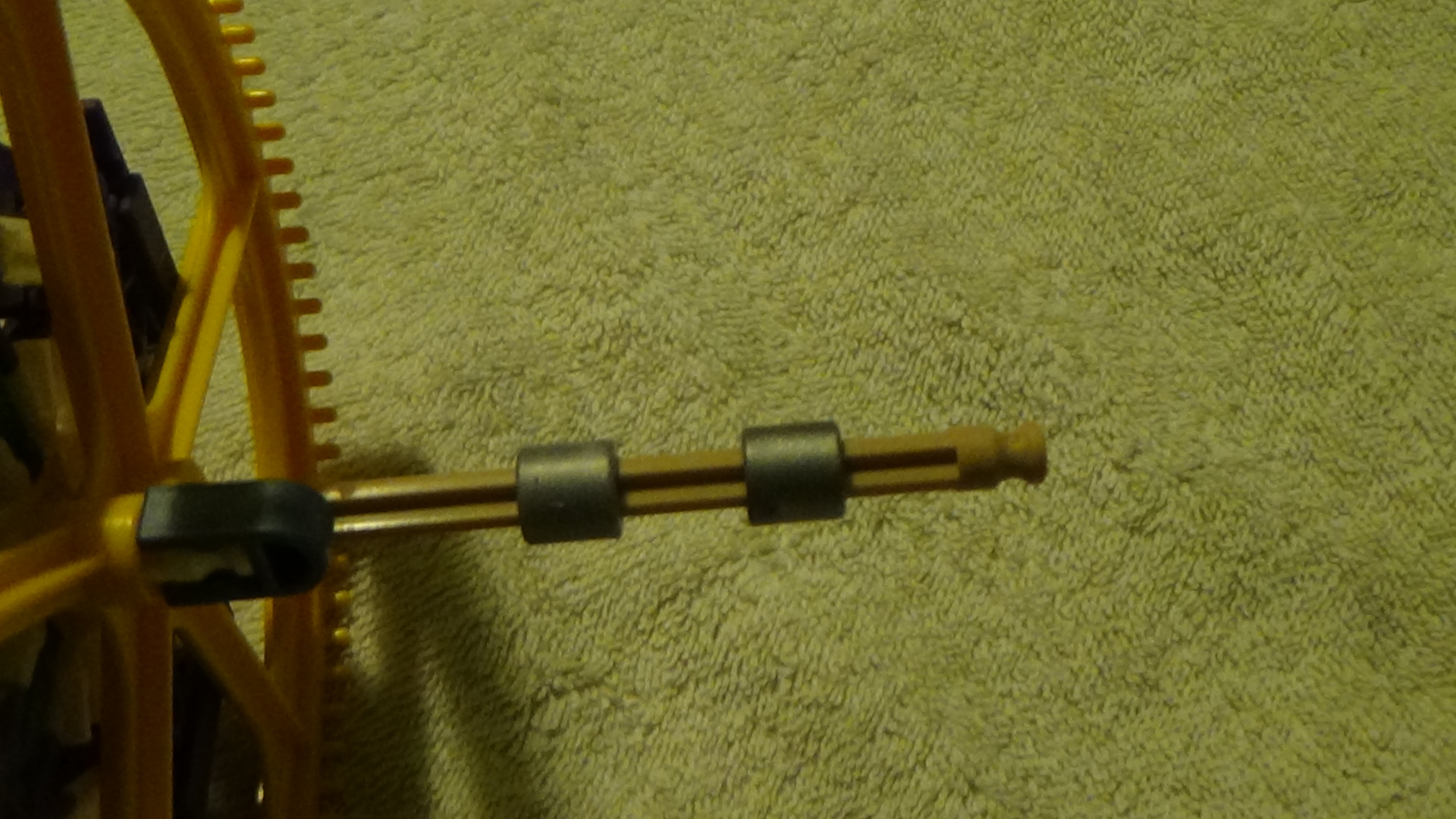

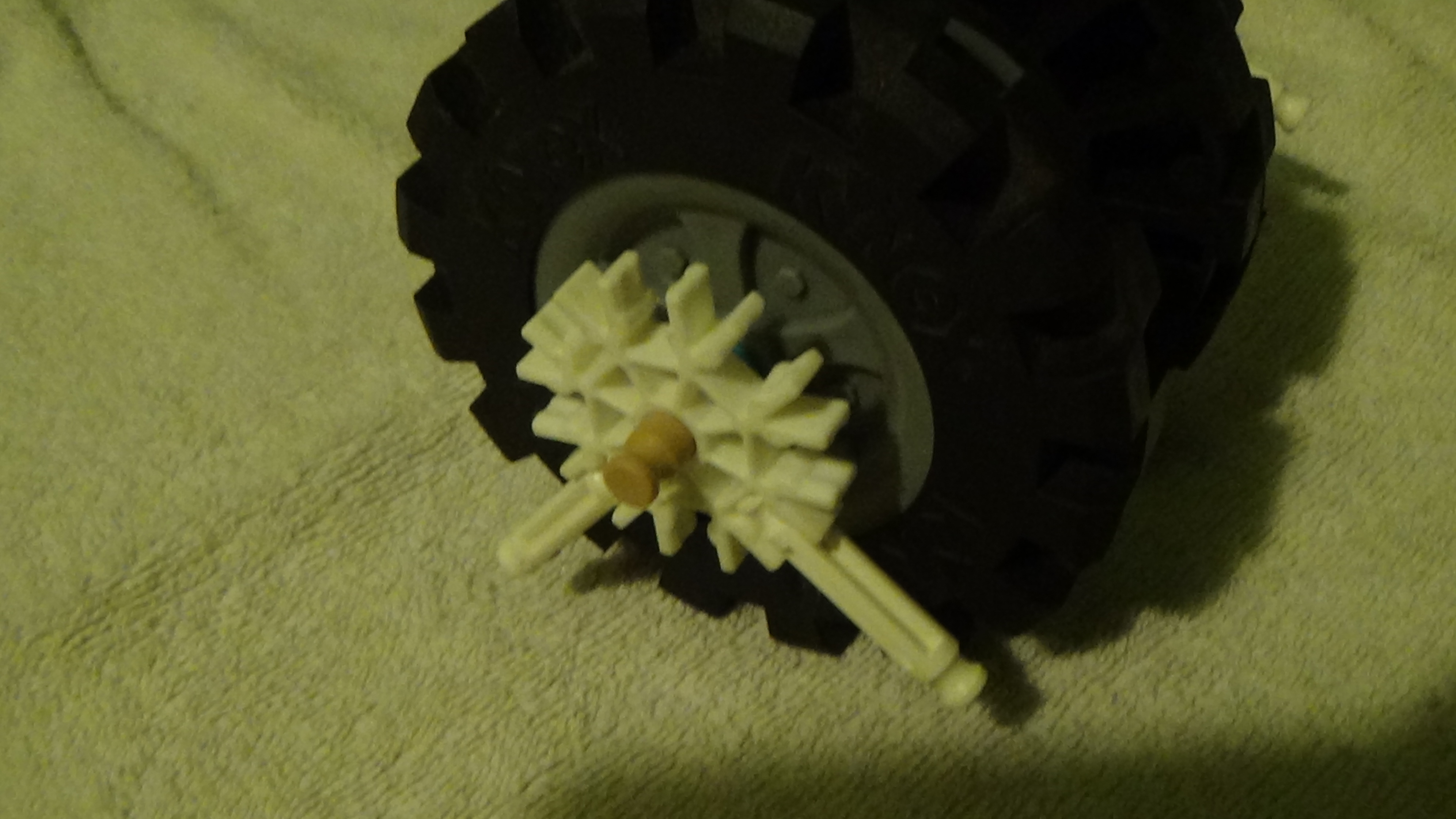

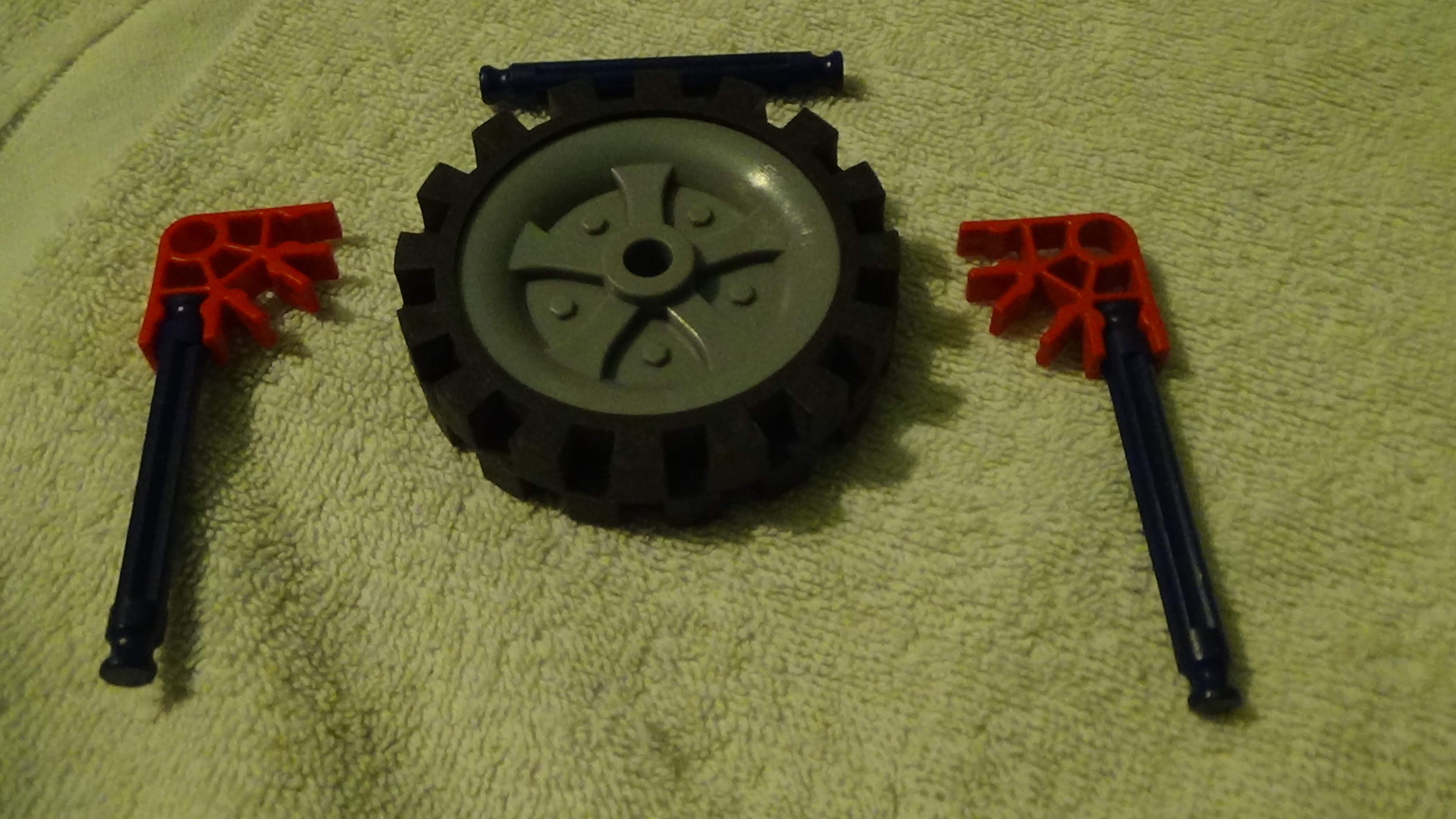

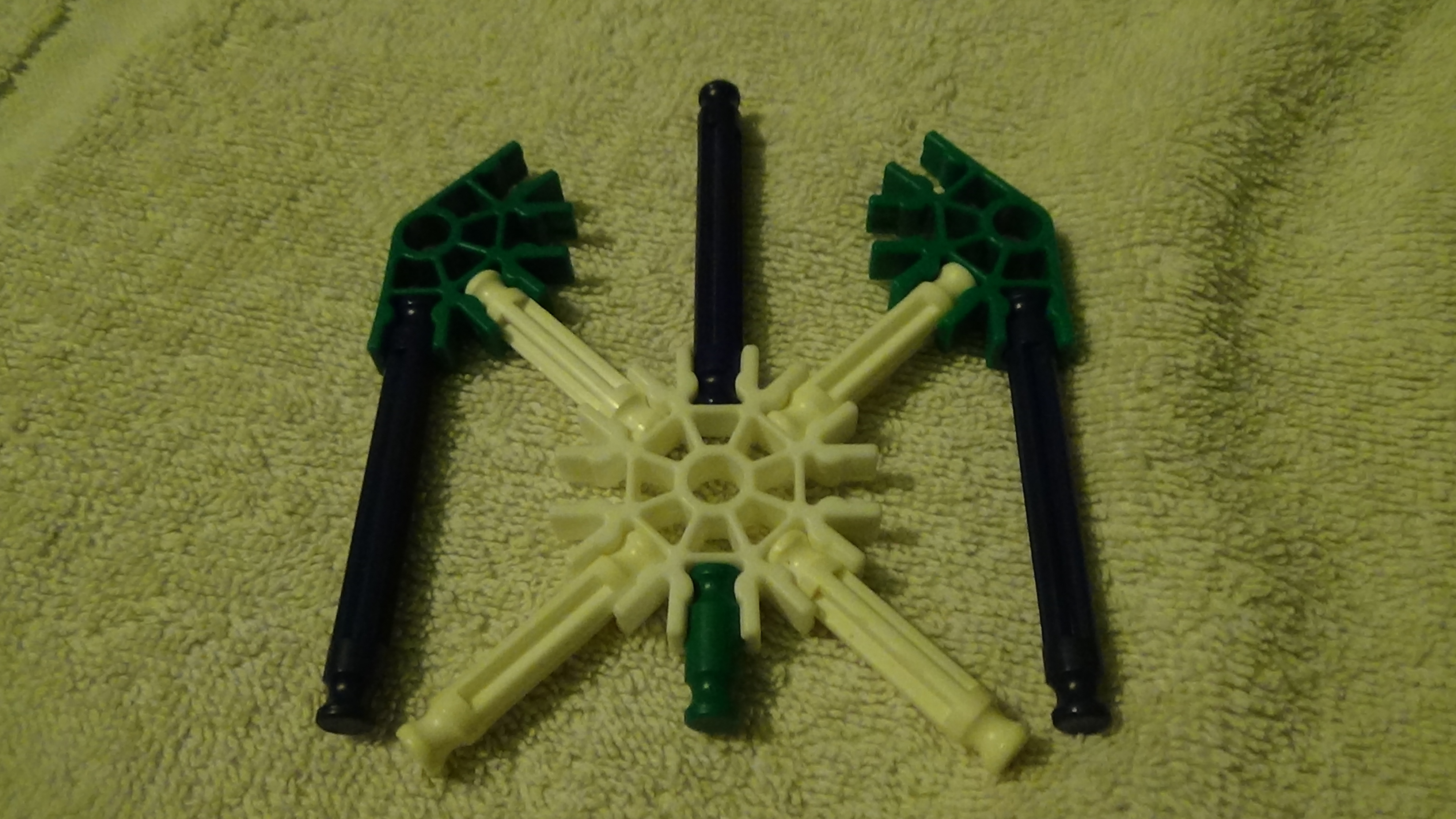

The Launch Wheel

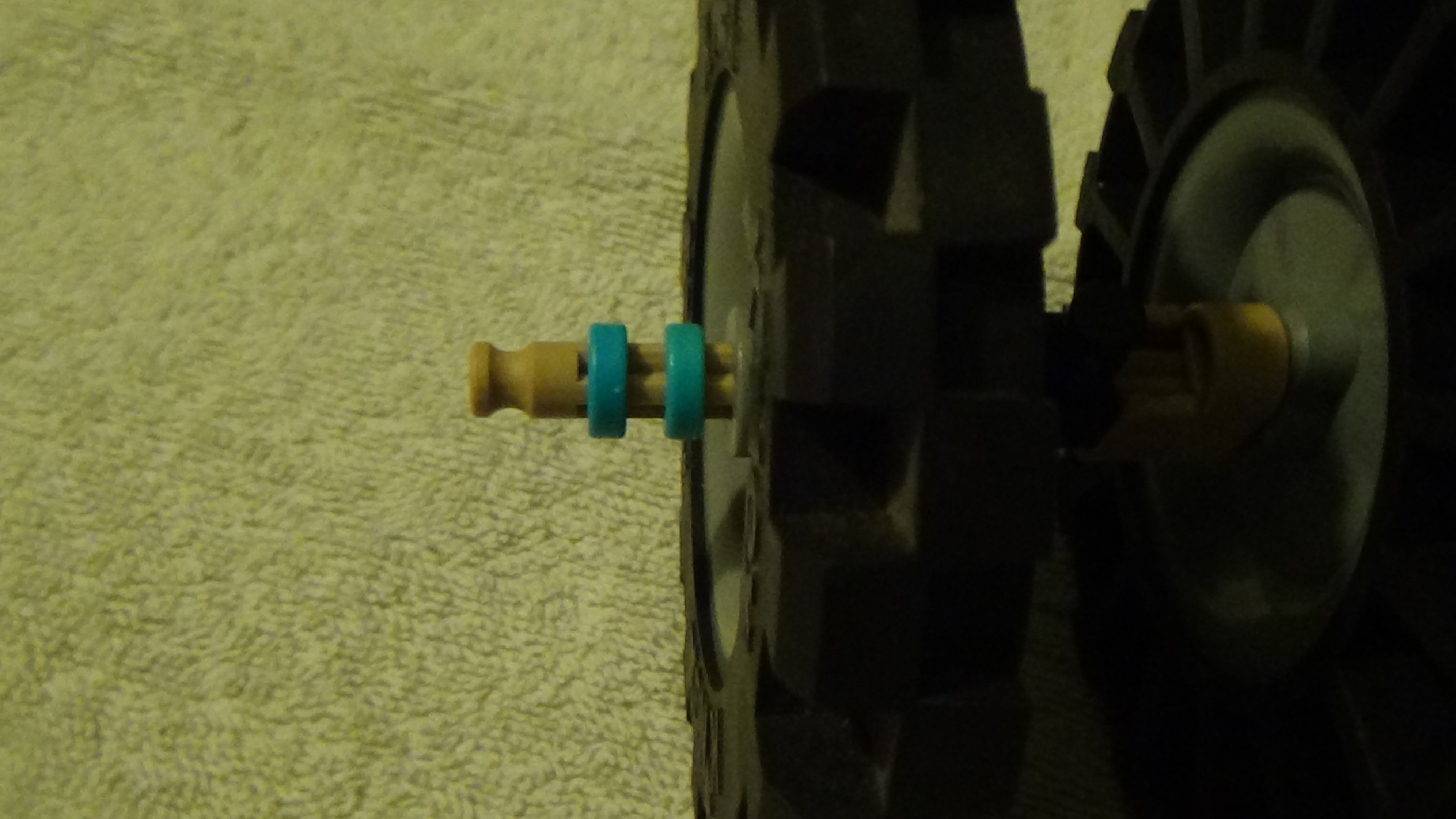

![juin à septembre 2016 208.JPG](/proxy/?url=https://content.instructables.com/F7R/U9CE/K4EC1JU6/F7RU9CEK4EC1JU6.jpg&filename=juin à septembre 2016 208.JPG)

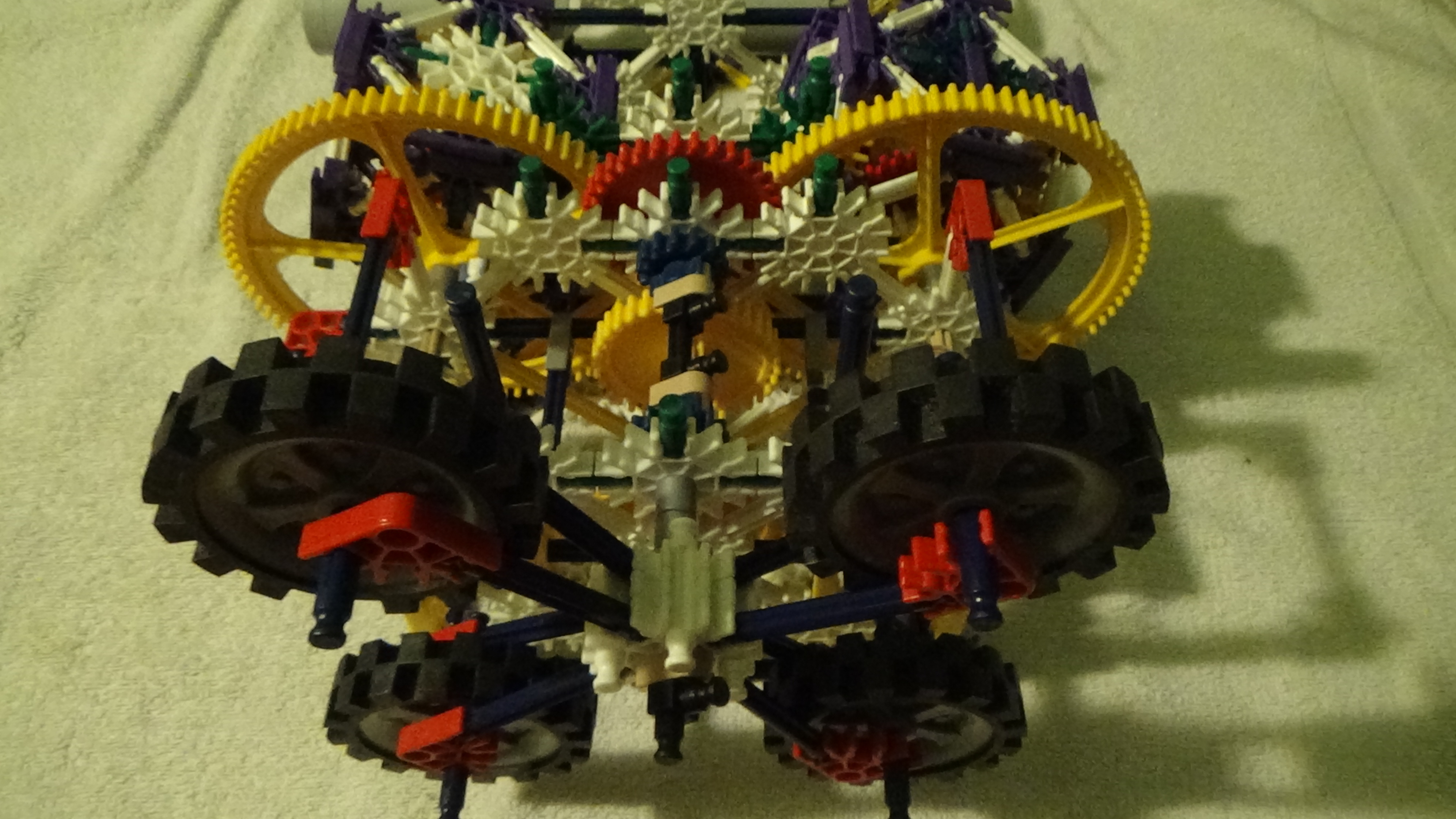

![juin à septembre 2016 209.JPG](/proxy/?url=https://content.instructables.com/FQJ/OU46/K4EC1JU8/FQJOU46K4EC1JU8.jpg&filename=juin à septembre 2016 209.JPG)

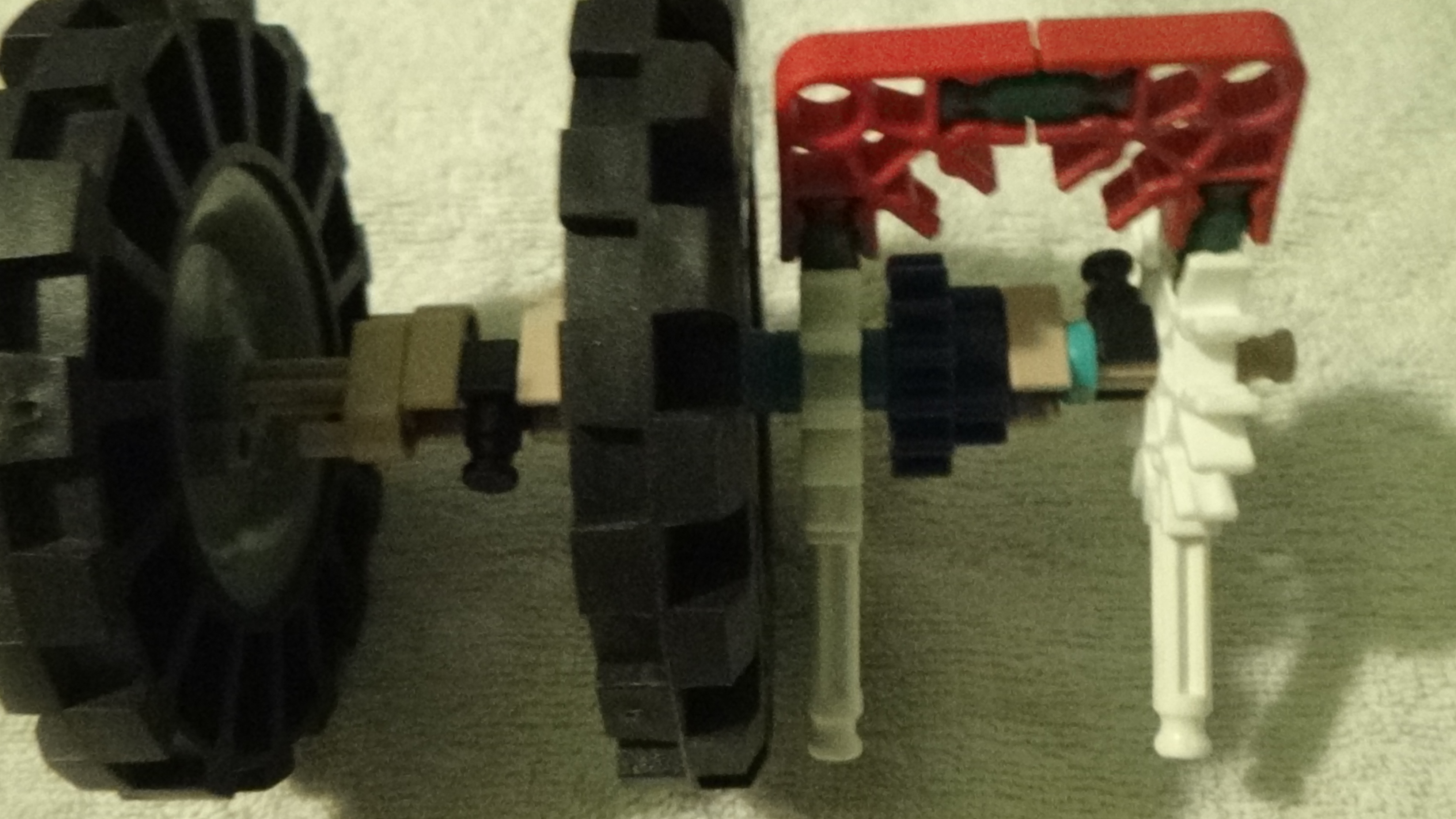

![juin à septembre 2016 210.JPG](/proxy/?url=https://content.instructables.com/FA3/ADJU/K4EC1JUC/FA3ADJUK4EC1JUC.jpg&filename=juin à septembre 2016 210.JPG)

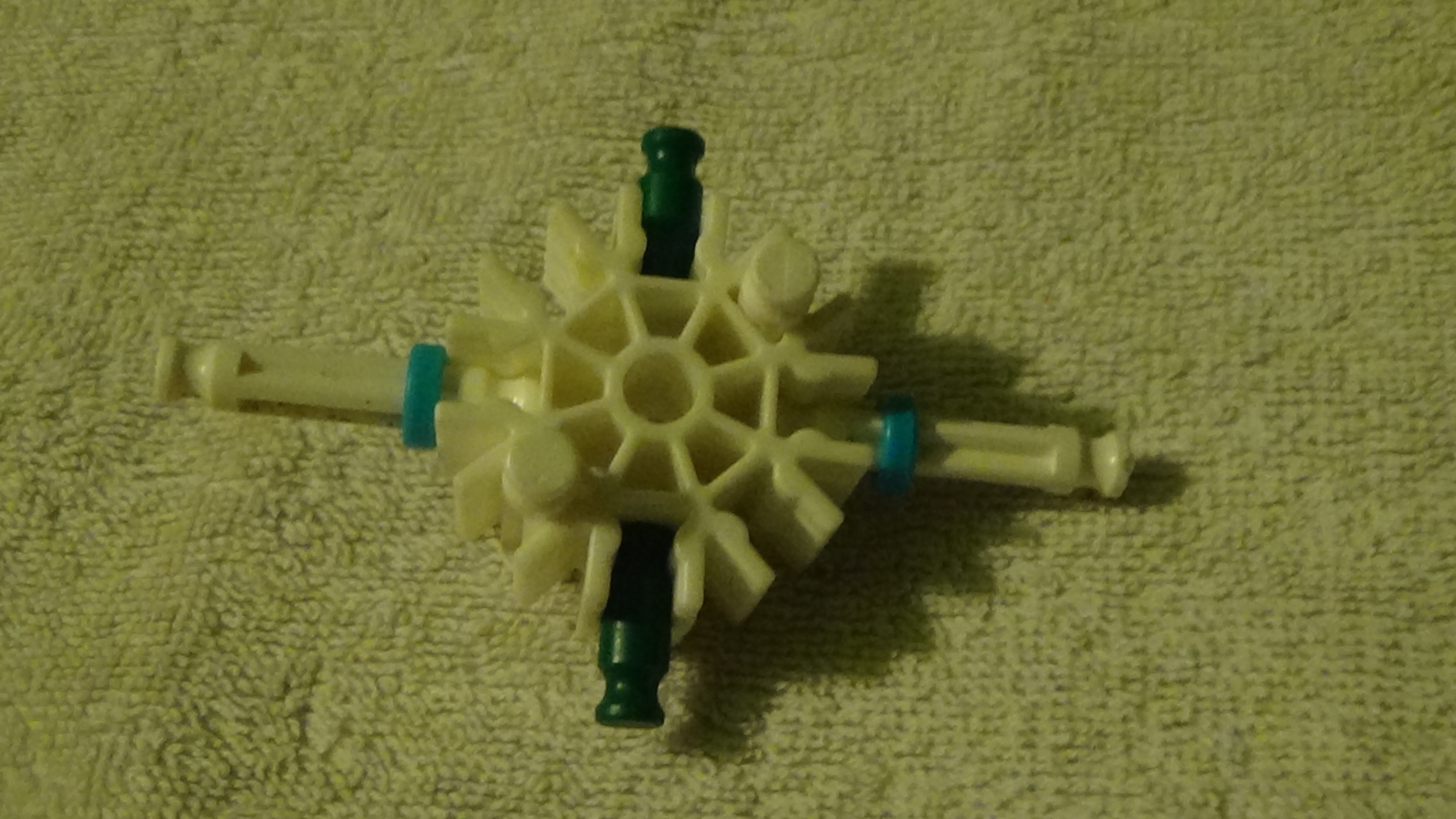

![juin à septembre 2016 211.JPG](/proxy/?url=https://content.instructables.com/FC9/195A/K4EC1JUO/FC9195AK4EC1JUO.jpg&filename=juin à septembre 2016 211.JPG)

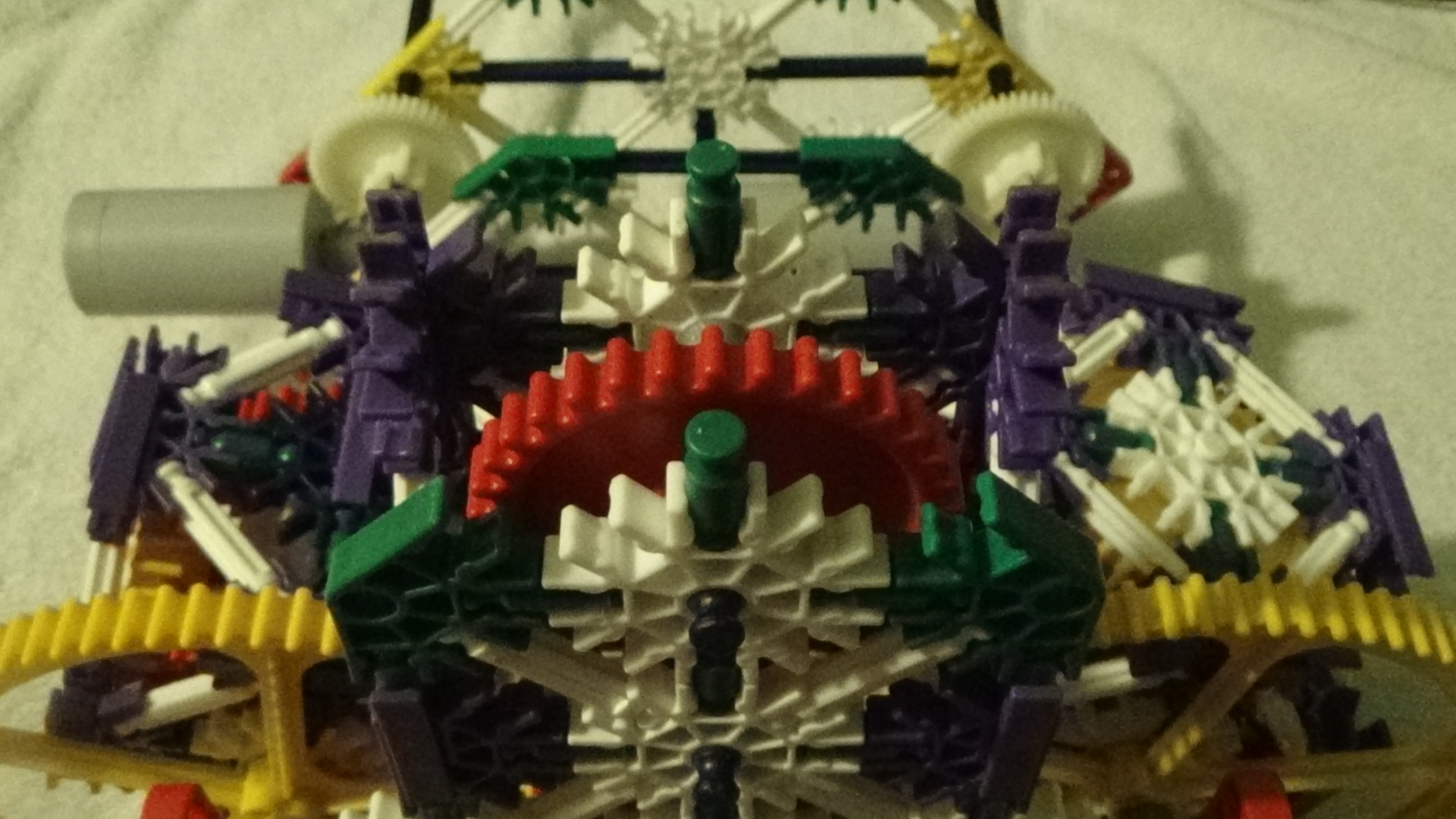

![juin à septembre 2016 213.JPG](/proxy/?url=https://content.instructables.com/FHN/2PWF/K4EC1JWJ/FHN2PWFK4EC1JWJ.jpg&filename=juin à septembre 2016 213.JPG)

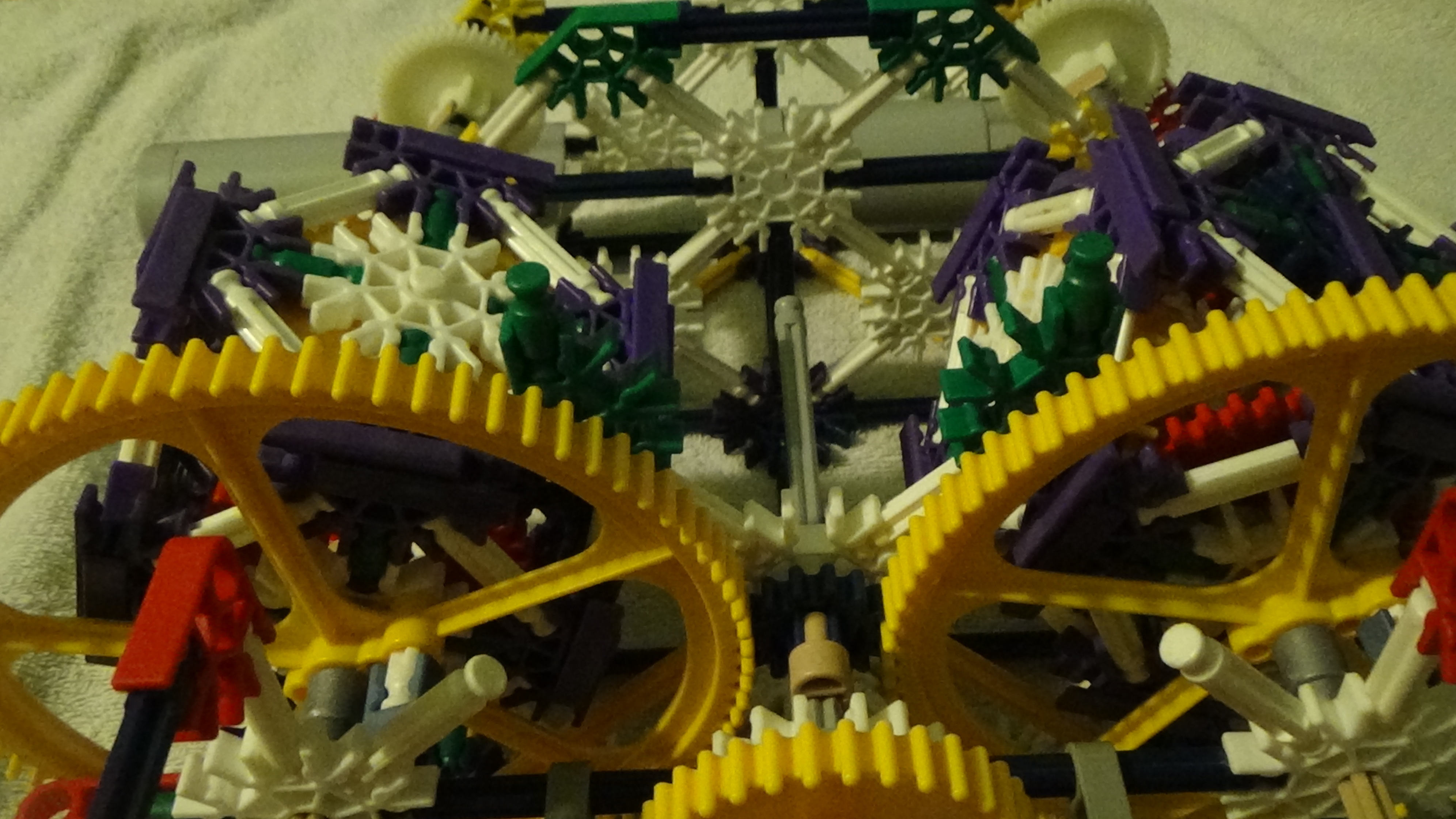

![juin à septembre 2016 214.JPG](/proxy/?url=https://content.instructables.com/F2Z/901E/K4EC1JXB/F2Z901EK4EC1JXB.jpg&filename=juin à septembre 2016 214.JPG)

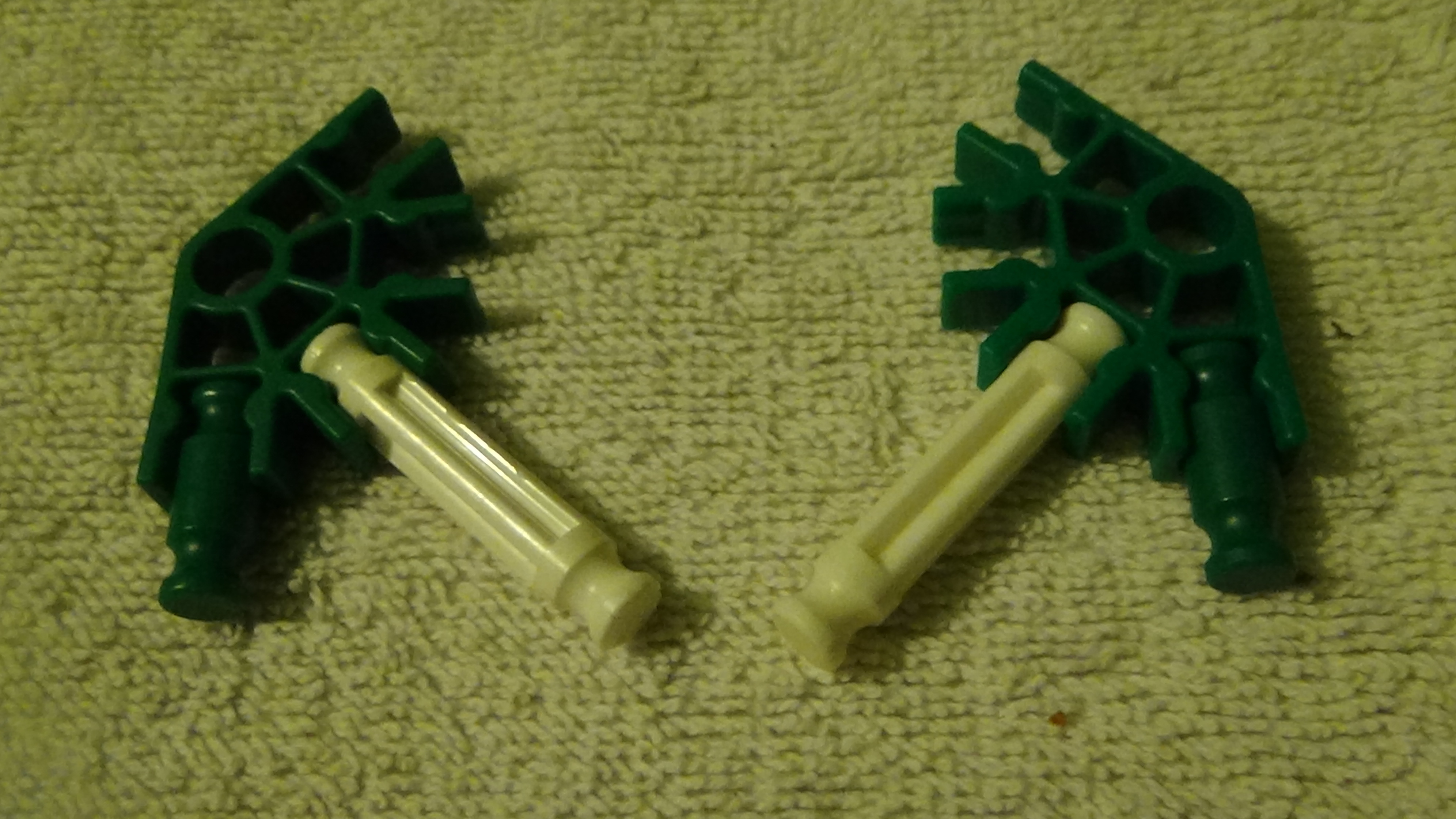

![juin à septembre 2016 215.JPG](/proxy/?url=https://content.instructables.com/F9Z/2IDP/K4EC1JXO/F9Z2IDPK4EC1JXO.jpg&filename=juin à septembre 2016 215.JPG)

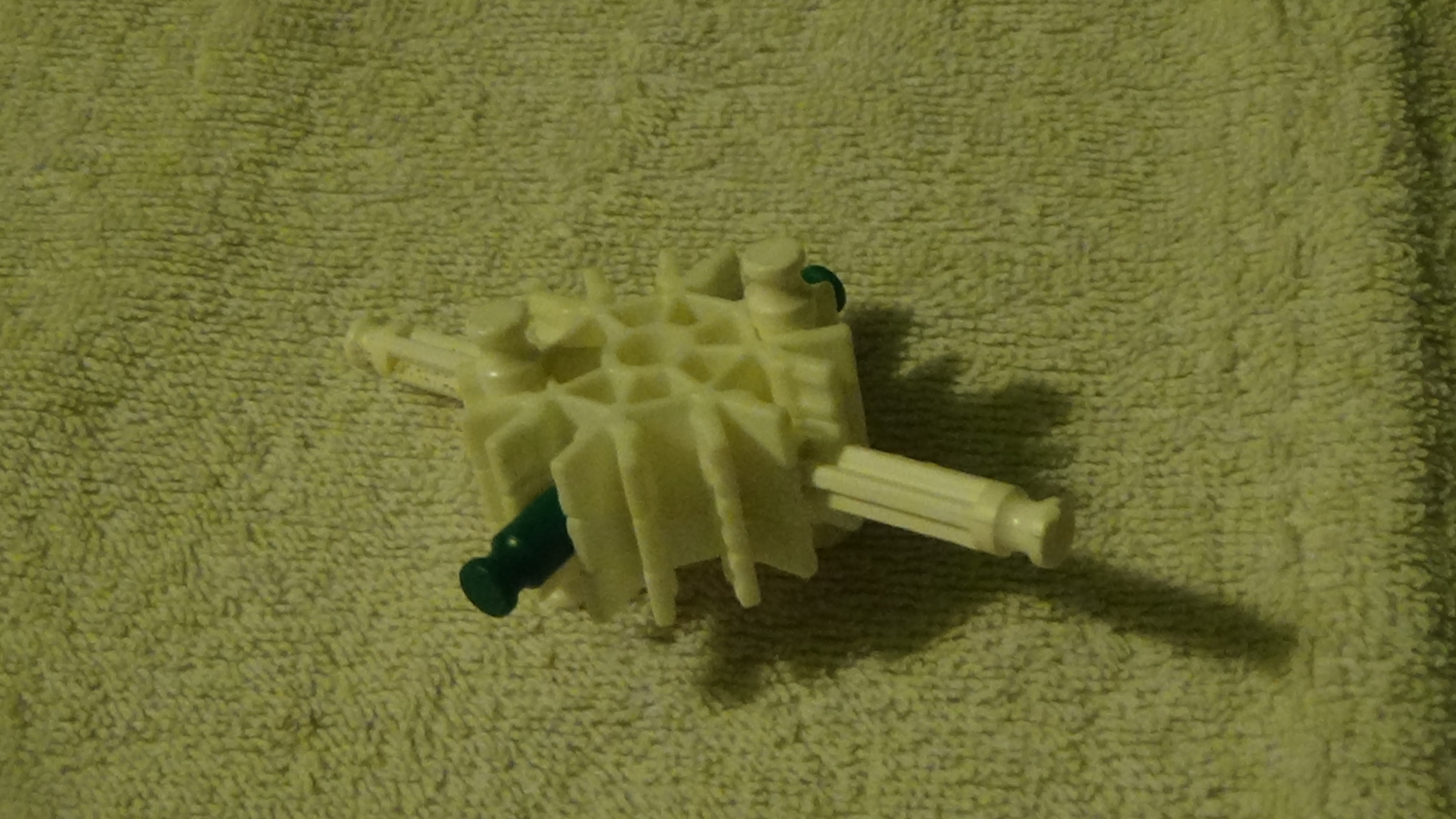

![juin à septembre 2016 216.JPG](/proxy/?url=https://content.instructables.com/FLQ/6C2Z/K4EC1JXU/FLQ6C2ZK4EC1JXU.jpg&filename=juin à septembre 2016 216.JPG)
![juin à septembre 2016 217.JPG](/proxy/?url=https://content.instructables.com/FC7/K8YU/K4EC1JXX/FC7K8YUK4EC1JXX.jpg&filename=juin à septembre 2016 217.JPG)
![juin à septembre 2016 218.JPG](/proxy/?url=https://content.instructables.com/F7M/UQIV/K4EC1JXY/F7MUQIVK4EC1JXY.jpg&filename=juin à septembre 2016 218.JPG)
![juin à septembre 2016 219.JPG](/proxy/?url=https://content.instructables.com/FGN/H1XA/K4EC1JY0/FGNH1XAK4EC1JY0.jpg&filename=juin à septembre 2016 219.JPG)
![juin à septembre 2016 220.JPG](/proxy/?url=https://content.instructables.com/F5N/V2TN/K4EC1JY2/F5NV2TNK4EC1JY2.jpg&filename=juin à septembre 2016 220.JPG)
![juin à septembre 2016 221.JPG](/proxy/?url=https://content.instructables.com/FM1/MASL/K4EC1JYA/FM1MASLK4EC1JYA.jpg&filename=juin à septembre 2016 221.JPG)
![juin à septembre 2016 223.JPG](/proxy/?url=https://content.instructables.com/FV8/RUL2/K4EC1JZ5/FV8RUL2K4EC1JZ5.jpg&filename=juin à septembre 2016 223.JPG)
![juin à septembre 2016 225.JPG](/proxy/?url=https://content.instructables.com/F5R/JO8Z/K4EC1K04/F5RJO8ZK4EC1K04.jpg&filename=juin à septembre 2016 225.JPG)
![juin à septembre 2016 226.JPG](/proxy/?url=https://content.instructables.com/FJ2/L0OL/K4EC1K07/FJ2L0OLK4EC1K07.jpg&filename=juin à septembre 2016 226.JPG)
![juin à septembre 2016 227.JPG](/proxy/?url=https://content.instructables.com/F9P/PQ9U/K4EC1K0E/F9PPQ9UK4EC1K0E.jpg&filename=juin à septembre 2016 227.JPG)
![juin à septembre 2016 228.JPG](/proxy/?url=https://content.instructables.com/FQJ/608O/K4EC1K0O/FQJ608OK4EC1K0O.jpg&filename=juin à septembre 2016 228.JPG)
![juin à septembre 2016 229.JPG](/proxy/?url=https://content.instructables.com/FVX/S5W4/K4EC1K0S/FVXS5W4K4EC1K0S.jpg&filename=juin à septembre 2016 229.JPG)
![juin à septembre 2016 230.JPG](/proxy/?url=https://content.instructables.com/FEO/W2Y3/K4EC1K0U/FEOW2Y3K4EC1K0U.jpg&filename=juin à septembre 2016 230.JPG)

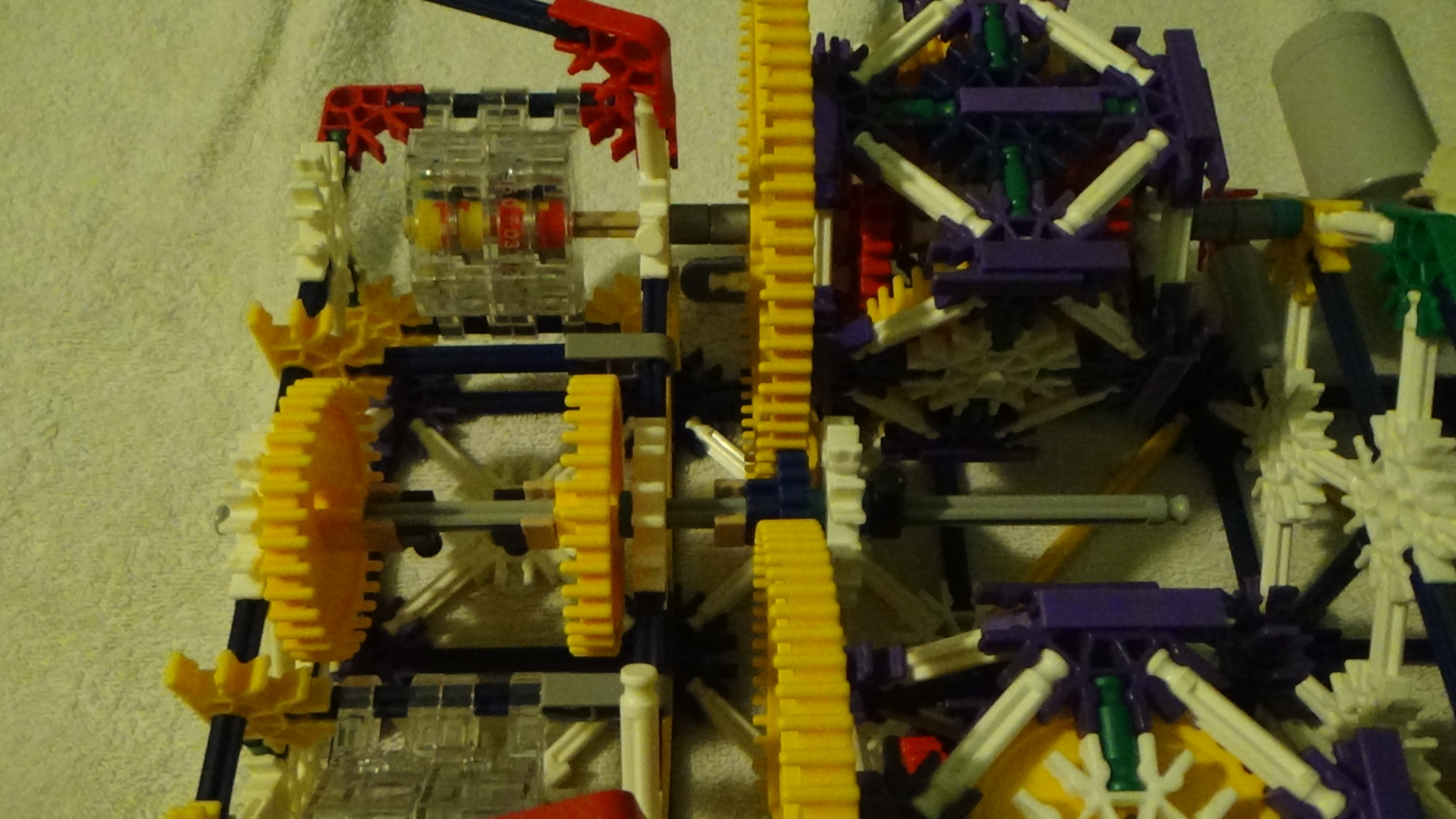

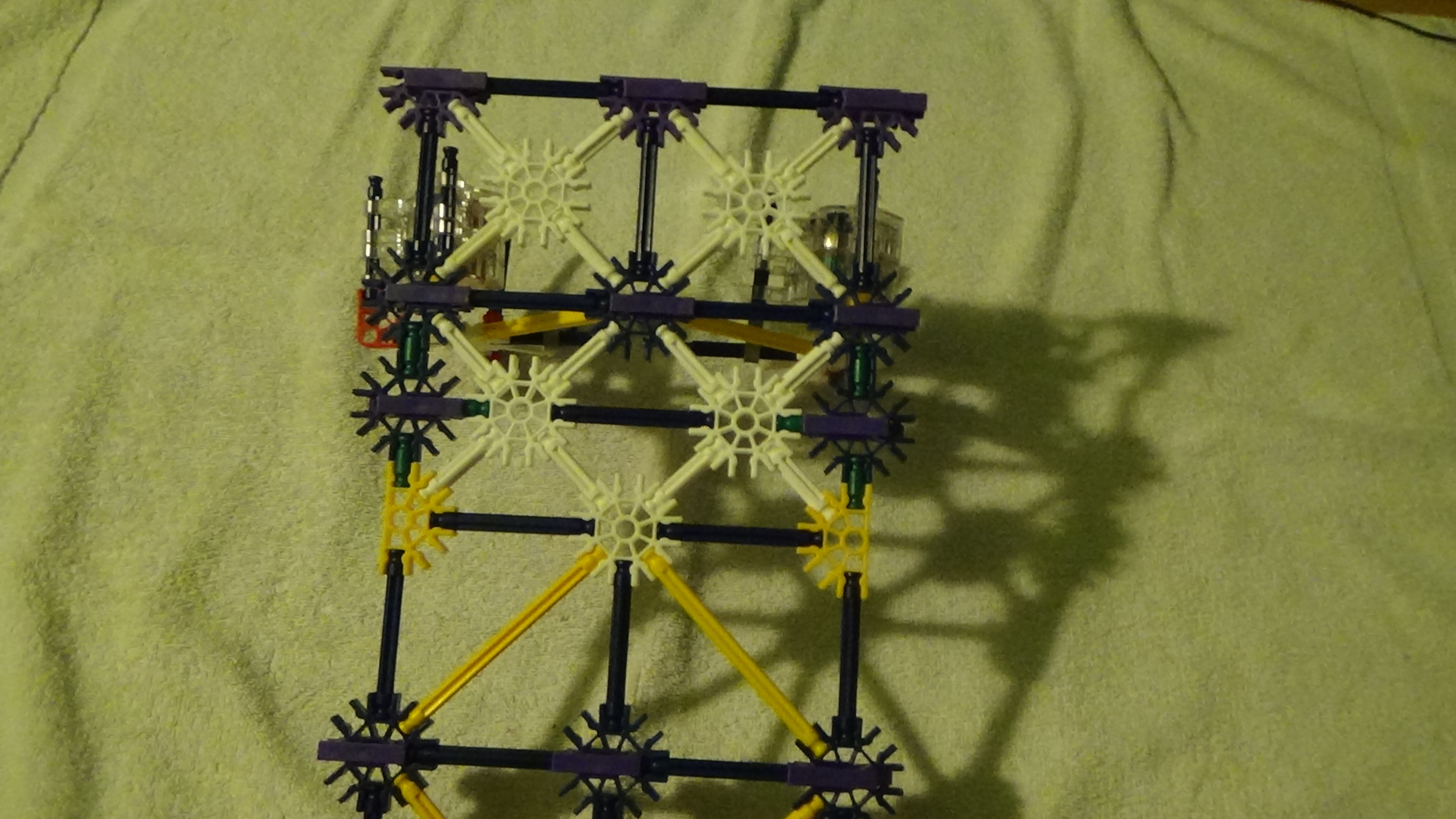

The Ball Track
![juin à septembre 2016 231.JPG](/proxy/?url=https://content.instructables.com/FX2/ISOK/K4EC1K1R/FX2ISOKK4EC1K1R.jpg&filename=juin à septembre 2016 231.JPG)
![juin à septembre 2016 232.JPG](/proxy/?url=https://content.instructables.com/FSU/4JKD/K4EC1K3D/FSU4JKDK4EC1K3D.jpg&filename=juin à septembre 2016 232.JPG)
![juin à septembre 2016 233.JPG](/proxy/?url=https://content.instructables.com/FR6/WHTJ/K4EC1K3I/FR6WHTJK4EC1K3I.jpg&filename=juin à septembre 2016 233.JPG)
![juin à septembre 2016 234.JPG](/proxy/?url=https://content.instructables.com/FRT/SJ0H/K4EC1K4H/FRTSJ0HK4EC1K4H.jpg&filename=juin à septembre 2016 234.JPG)
![juin à septembre 2016 235.JPG](/proxy/?url=https://content.instructables.com/FF0/XPJO/K4EC1K7S/FF0XPJOK4EC1K7S.jpg&filename=juin à septembre 2016 235.JPG)
Boom it's done !
