Knex Ball Machine Lithium W/ Instructions

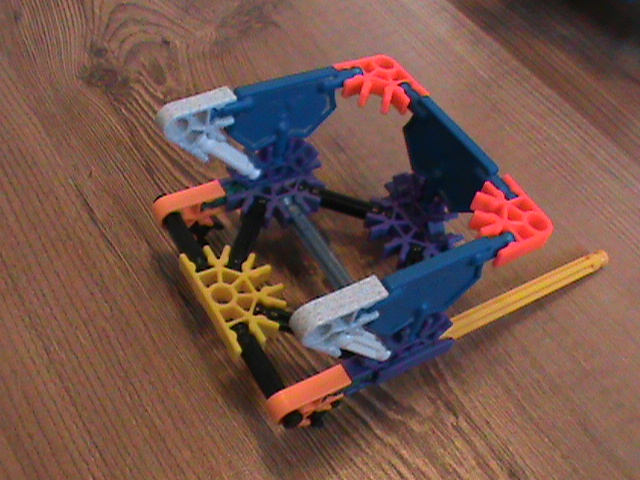

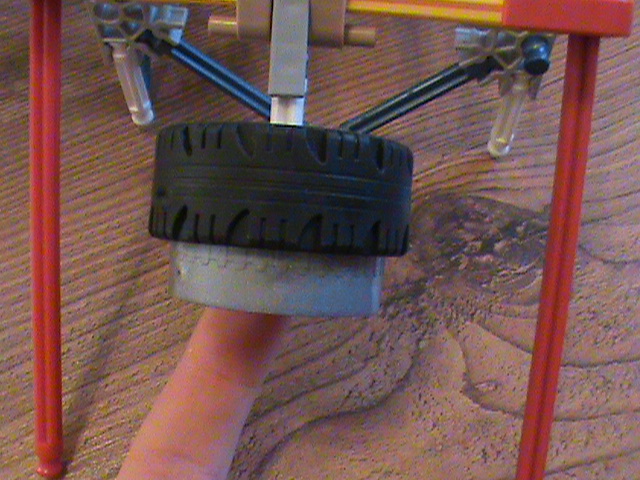

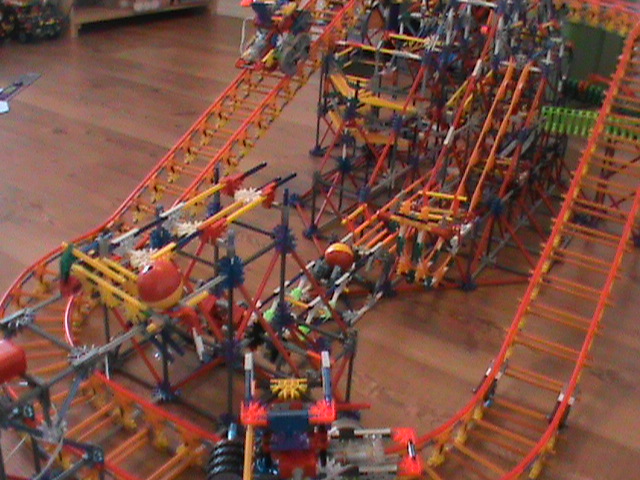

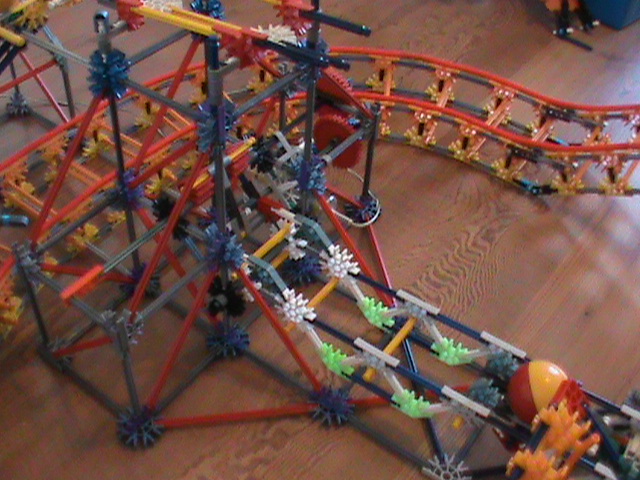

   Introducing my ball machine Lithium. It has 2 lifts including Keggore1's car lift and ChassisDude98's Quarter Arm Lift. I have modified Keggore's car so that it can work on the thin and thick roller coaster track. If you want your car to have better grip than use the thick roller coaster track, but if you want it to turn easier use the thin roller coaster track. The angle I used is the steepest possible angle the car can climb.
              Lithium also has 6 tracks and 6 new elements. It also contains martb95's spiral panel stairs. All of the new elements (including martb95's spiral panel stairs) will be posted on my guide plus a few extras. So be sure to check it out.
              Lithium is the biggest project I've ever made instructions for, so if you have a question or are confused about something please leave a comment. If you like it please vote for it in the Toy Contest. Enjoy the video. p.s. The first song is by me.

Parts List

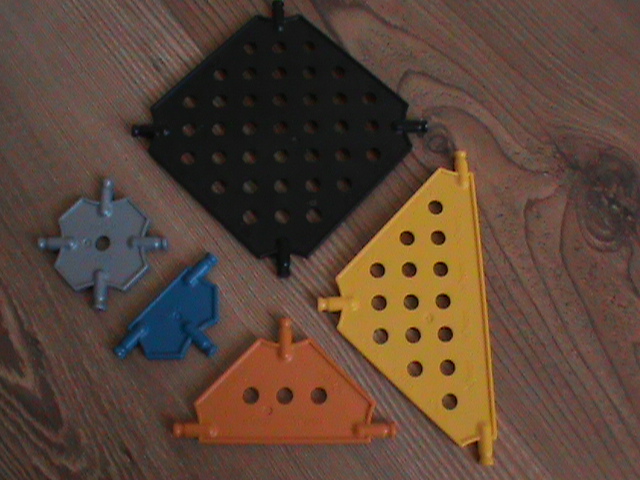

If you don't know what part I'm talking about refer to the pictures. p.s. On pieces exceeding the hundreds I can't guaranty an exact piece count.

Connectors

grey connectors 129
light grey connectors 77
red connectors 144
green connectors 116
orange connectors 61
yellow connectors 262
white connectors 40
purple connectors 232
blue connectors 124
orange roller coaster connectors 157
green roller coaster connectors 22

Rods

green rods 290
white rods 458
blue rods 287
yellow rods 345
red rods 180
grey rods 61
tan roller coaster rods 136
small bendy rod 1
large bendy rods 11

Panels

small triangle panel 6 or more
medium triangle panel 4
large triangle panel 6
small square panel 3
large square panel 1

Wheels, Tires, Gears, and Balls

medium wheels 8 or more
small thin wheels 12
small thin tires 8
small thick wheel and tire 1
small gears 4
medium gears 4
balls 2-5

Miscellaneous

chain link 15
blue hinge half 8
black hinge half 9
tan locking clip 23
blue clip 16
Y-clip 51
blue spacer 78
silver spacer 85
washer 4 or more
rubber bands 8 or more

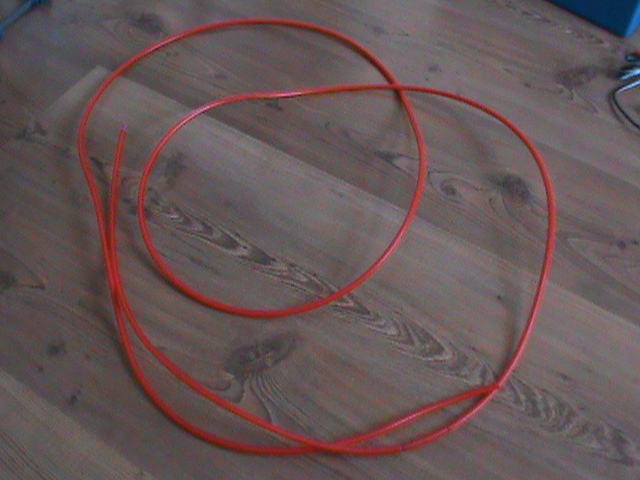

roller coster tubing 27in(69 cm) X2
roller coster tubing 12'1"(3.7m)
roller coster tubing 14'1"(4.3 m)
total roller coaster tubing 28'5"(8.7 m)

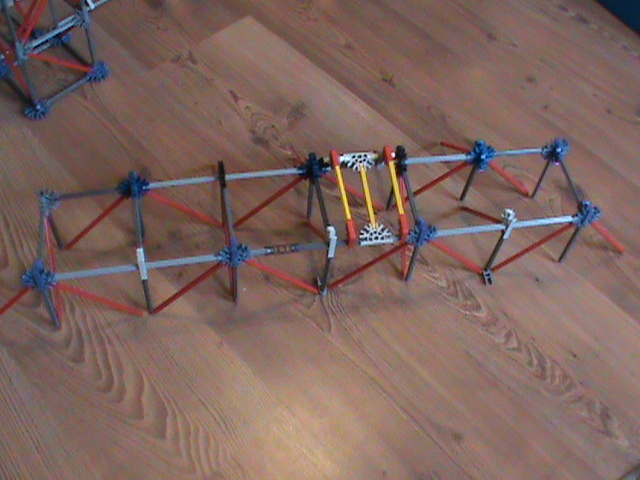

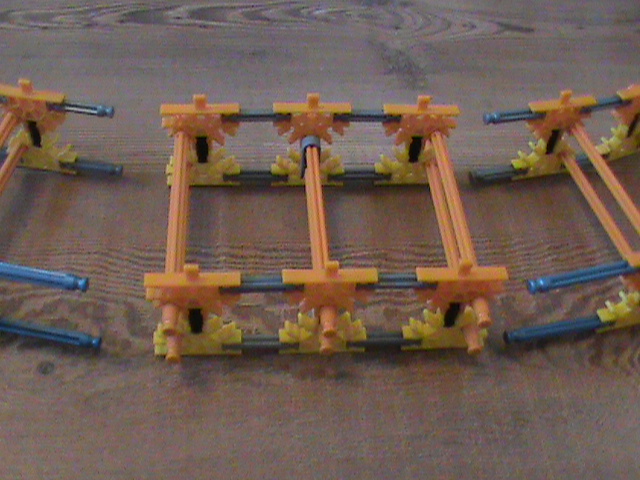

Building the Track

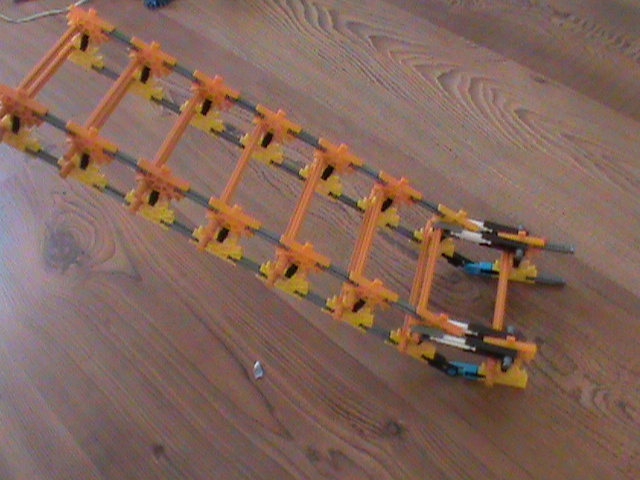

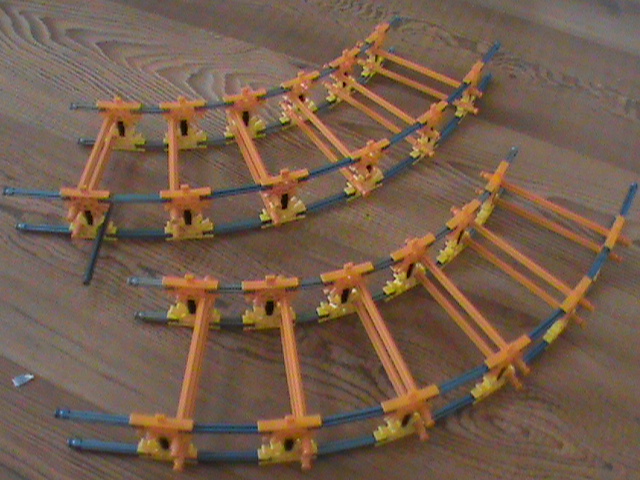

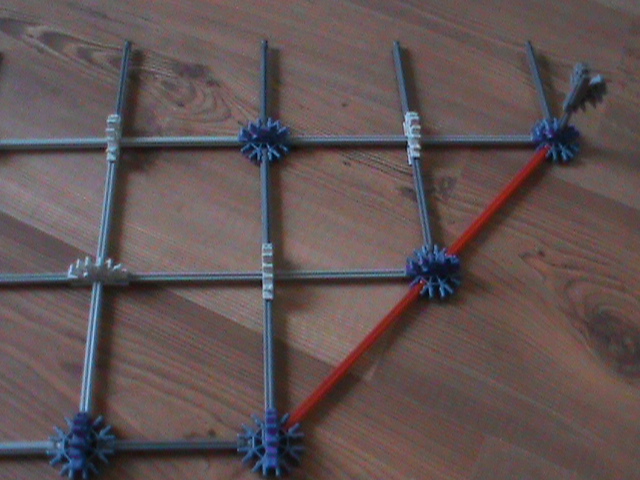

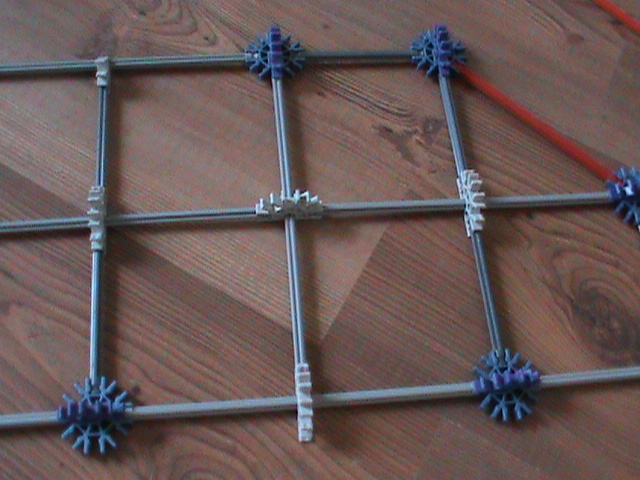

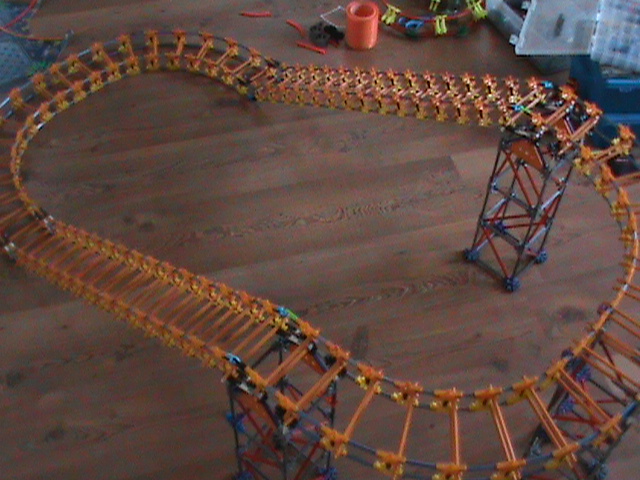

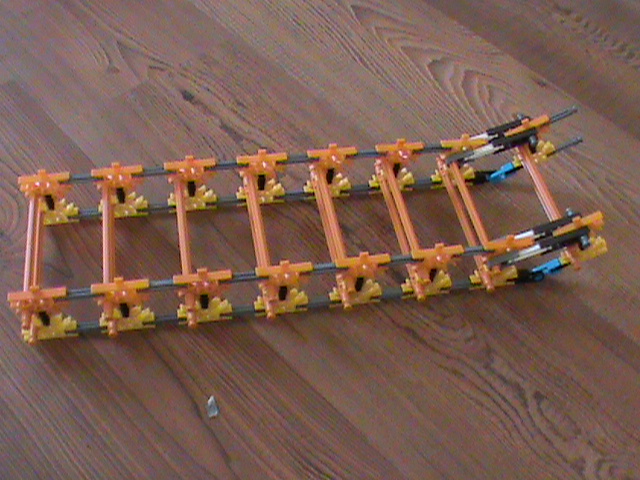

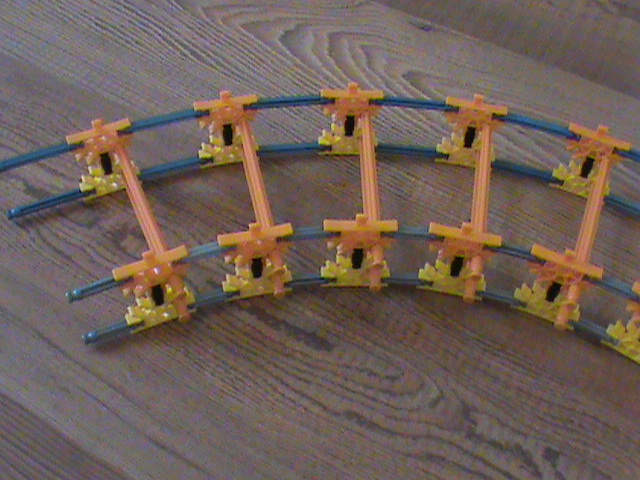

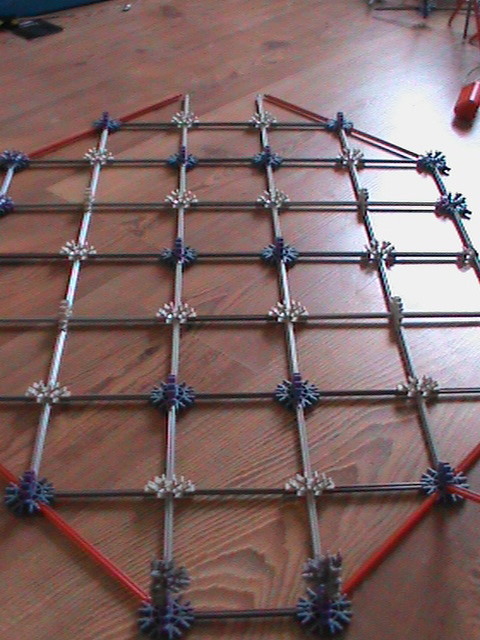

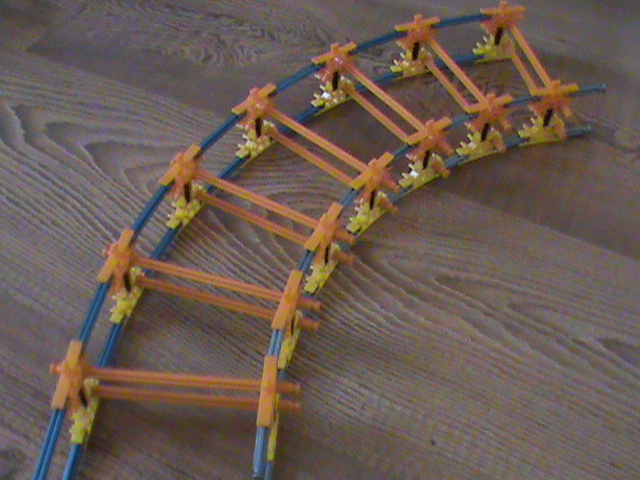

The track is what the cars will run on. The bottom turns are the ones that don't have the grey rod, the top ones do.

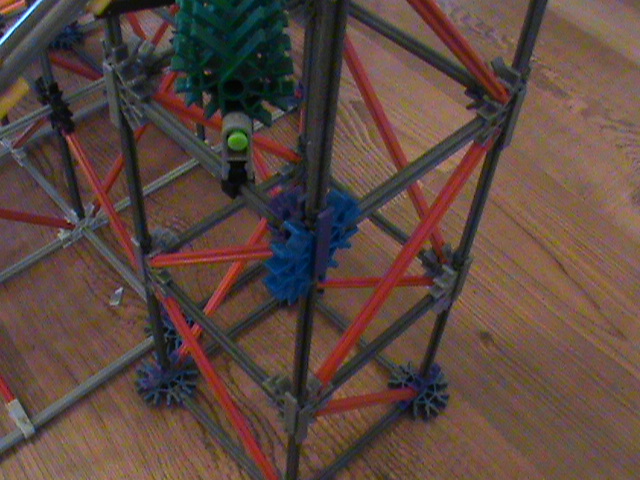

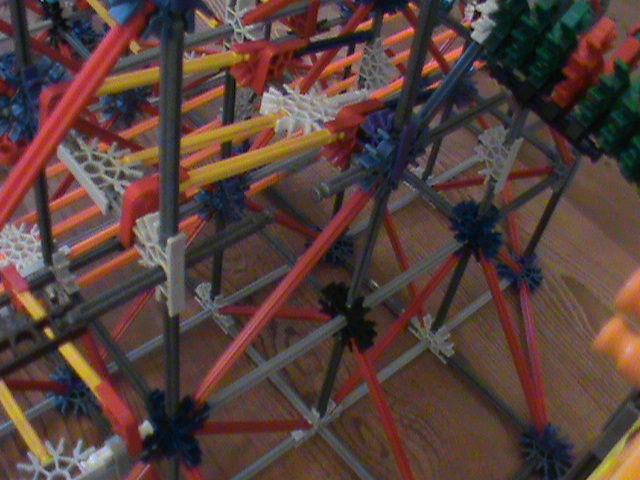

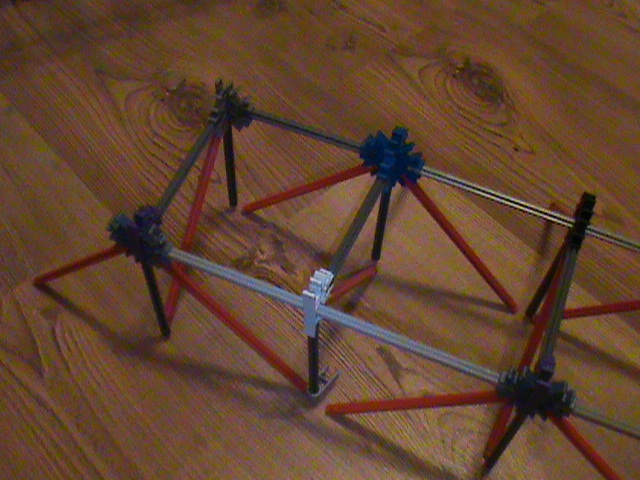

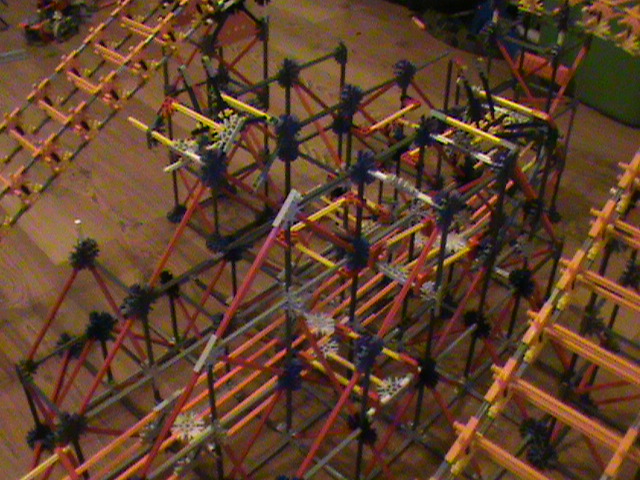

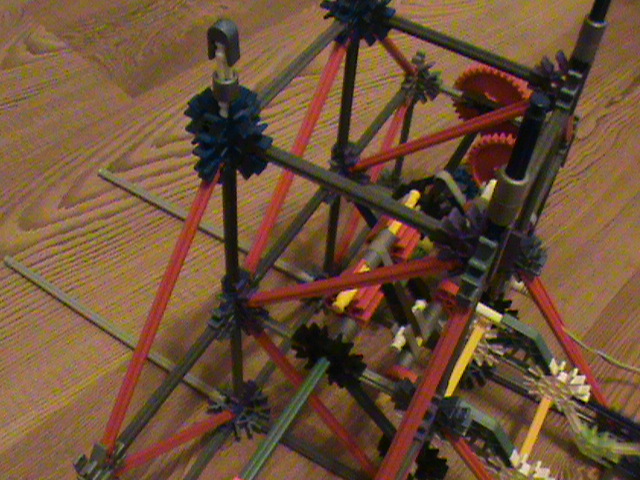

Building the Support Towers

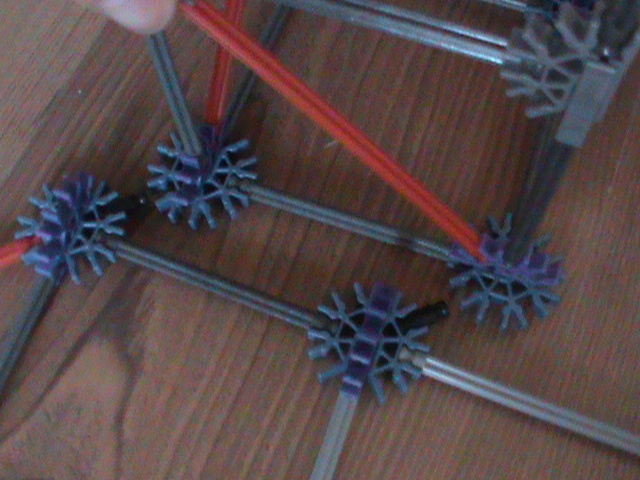

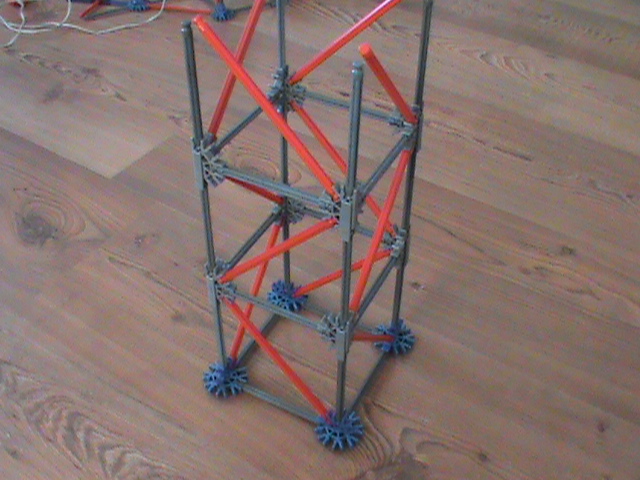

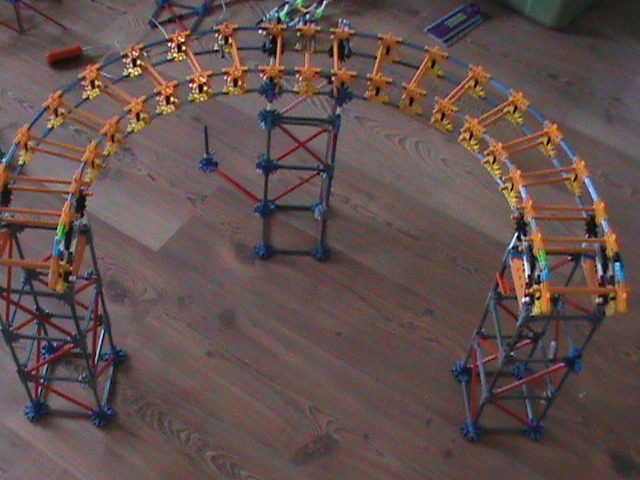

The support towers will... uh... support the track. First you will build the left one. Then the right. And finally the middle.

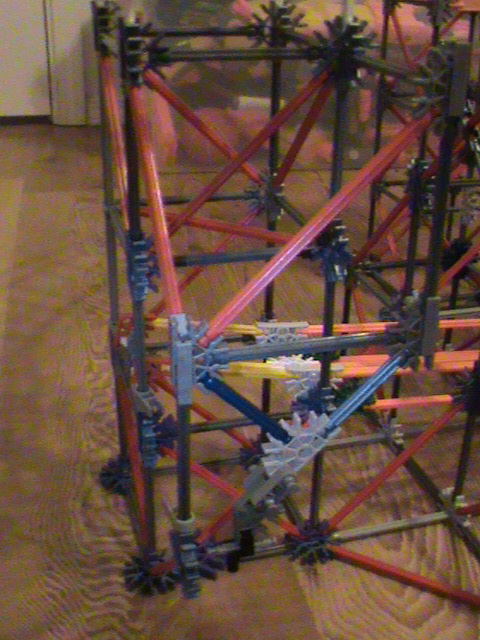

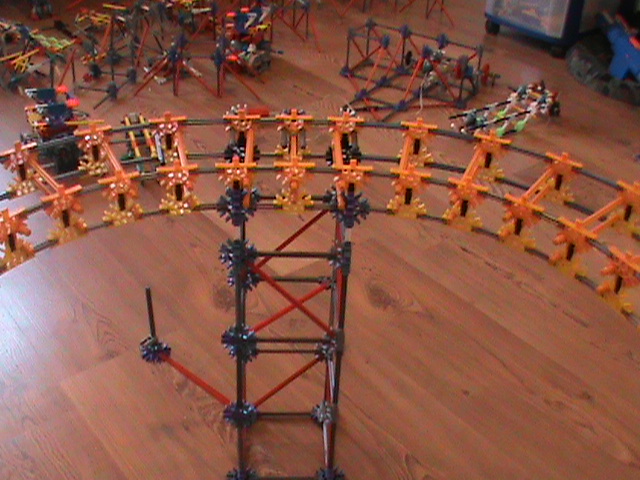

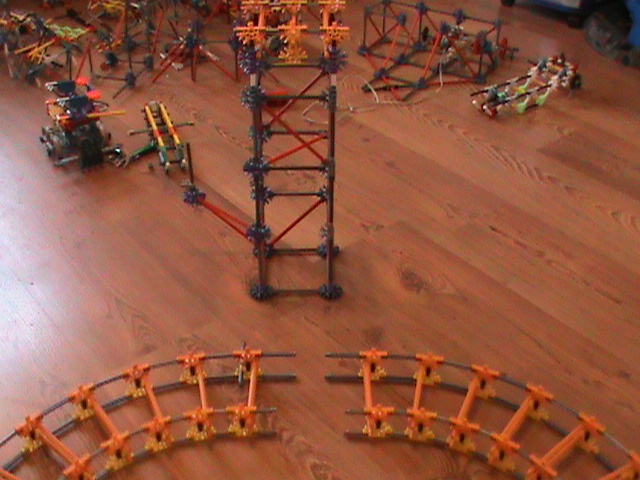

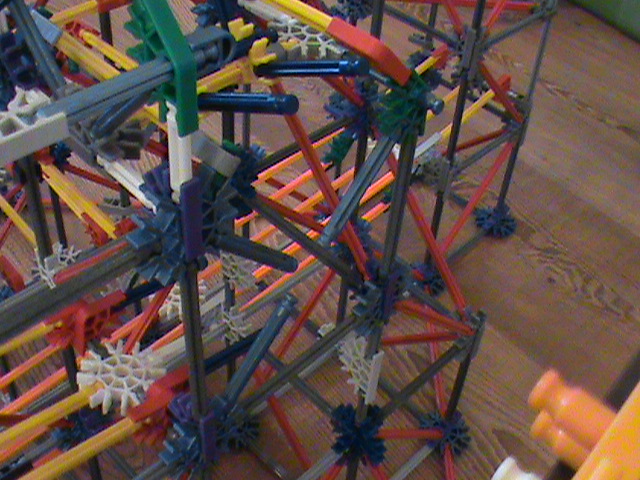

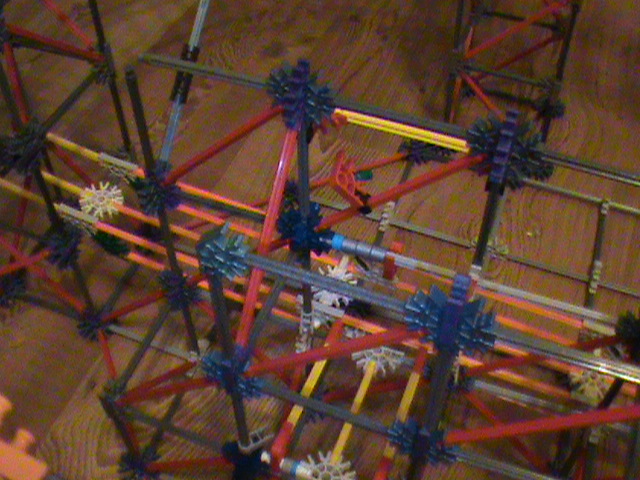

Attaching the Support Towers and Track

Building and Attaching the Base

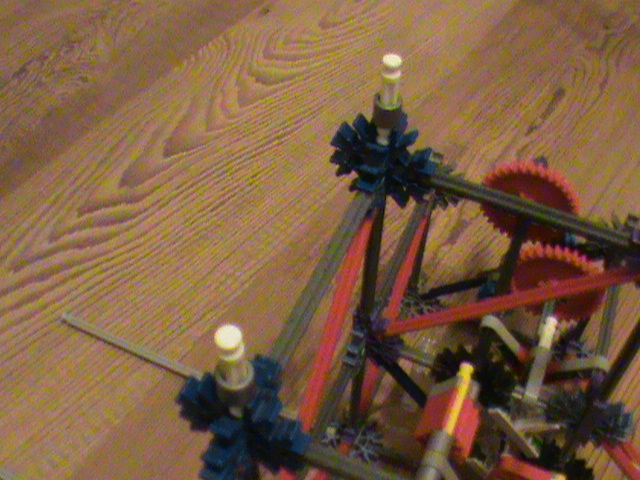

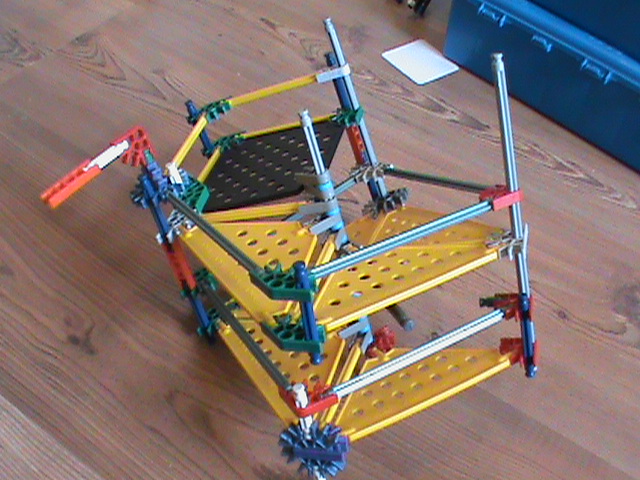

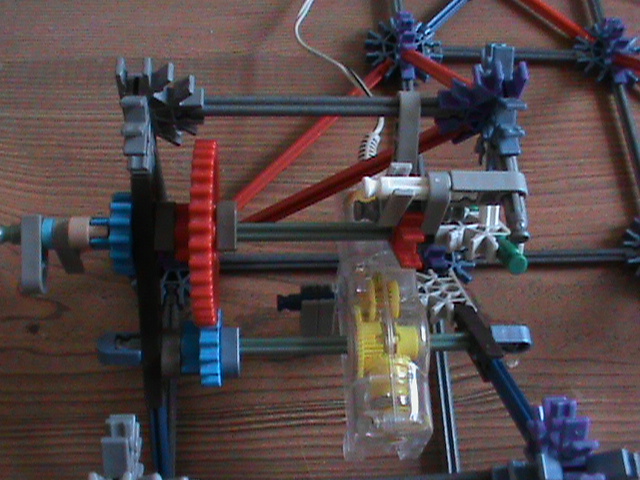

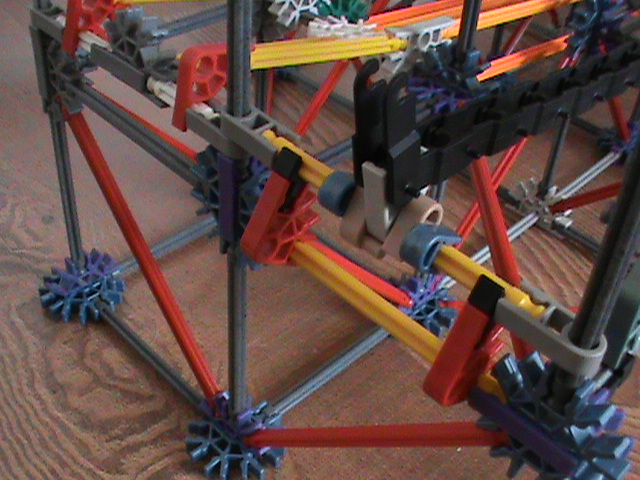

Building the Quarter Arm Lift

This lift was originally built by CassisDude98. I just modified it a little.

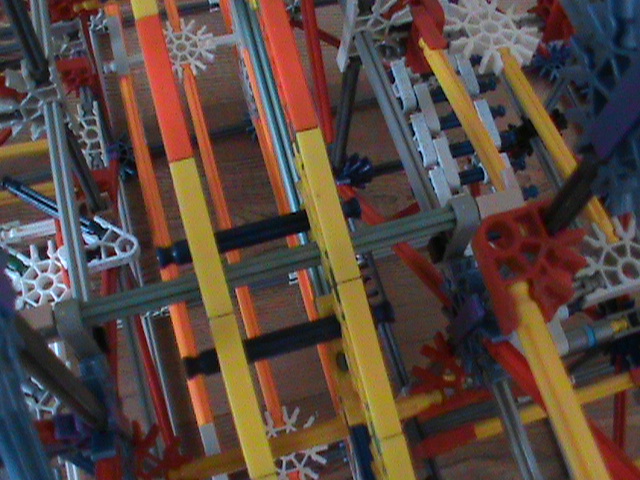

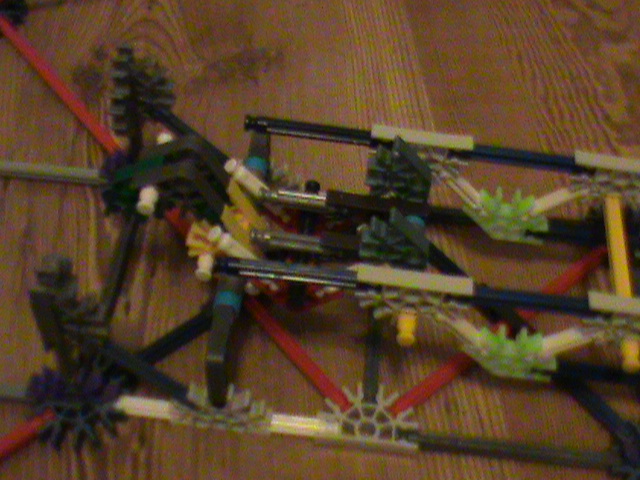

Building the Support Tower and Loading Mechanism

My ball loader is a bit different then Keggore1's.

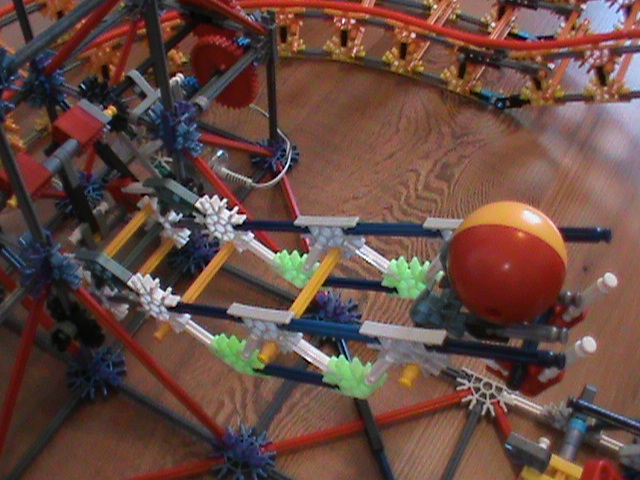

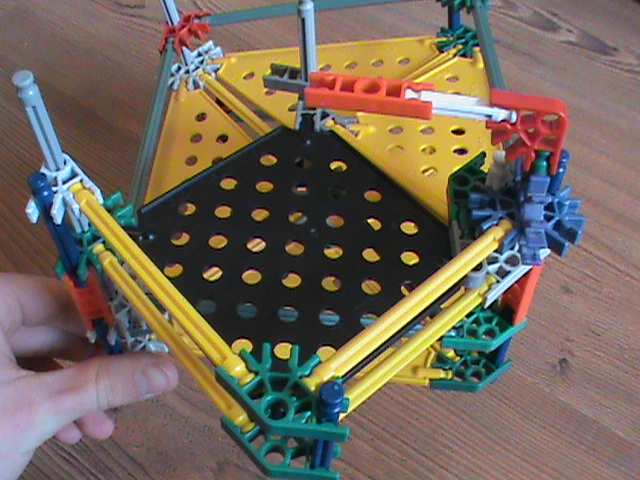

Building the Ball Loader, Main Paving, and Basket Lifter

The Left Side

Both the left and right side contain 3 levels.

The Right Side

The right side is almost the same as the left.

Extra Supports

Just a couple extra supports.

The Top

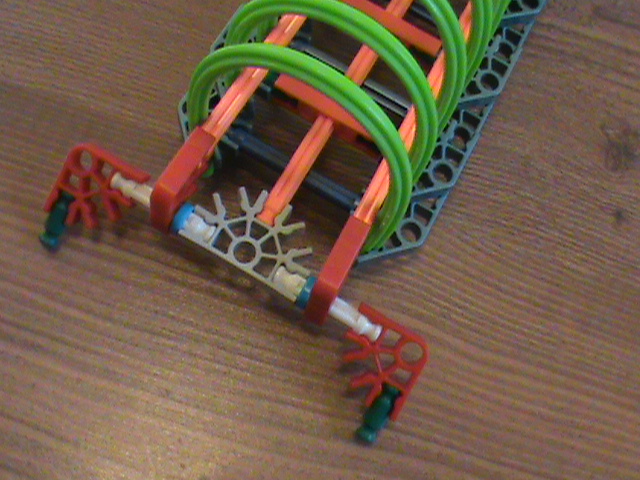

The Tunnel

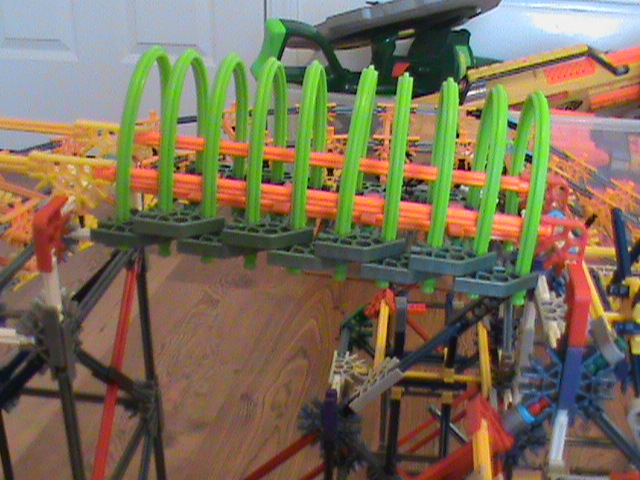

The green tunnel part is not a necessity. It just makes it look cool.

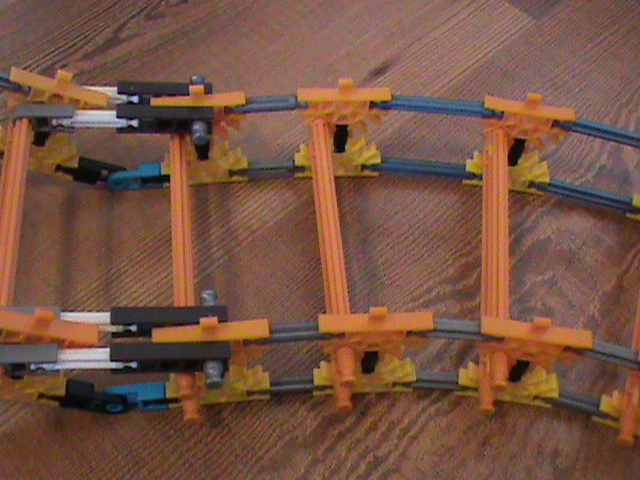

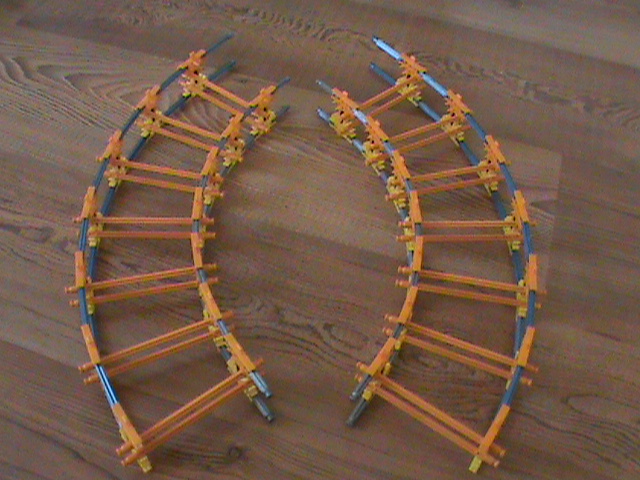

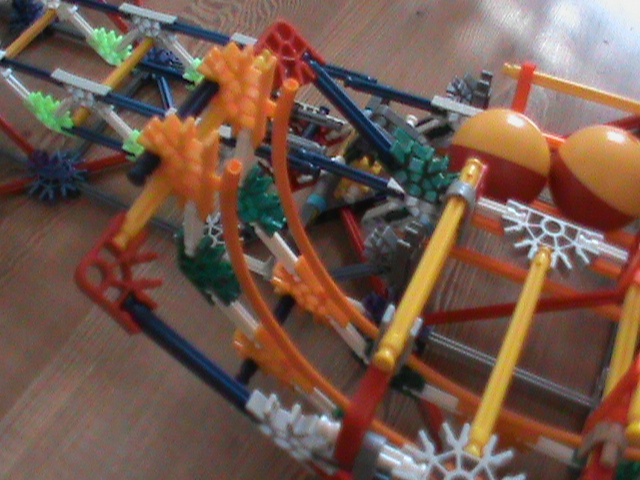

Track 1

Track 2

Track 3

Track 4

Tracks 5 and 6

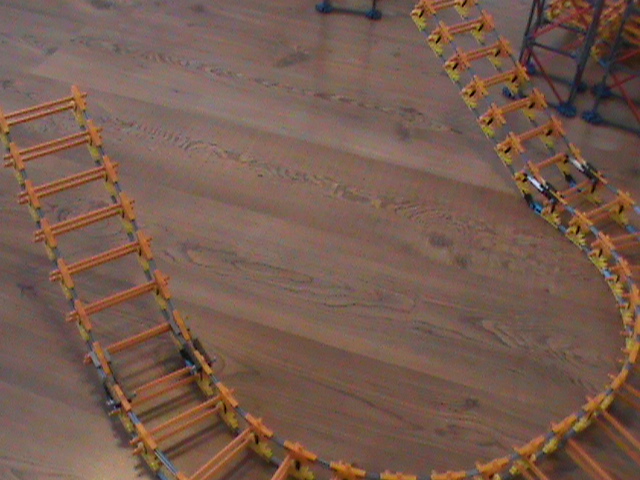

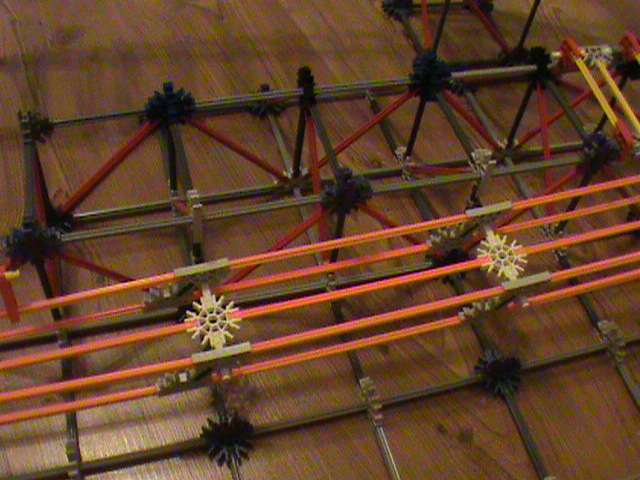

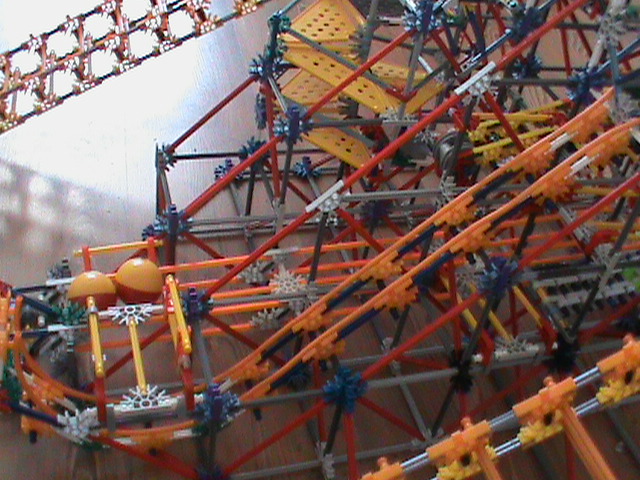

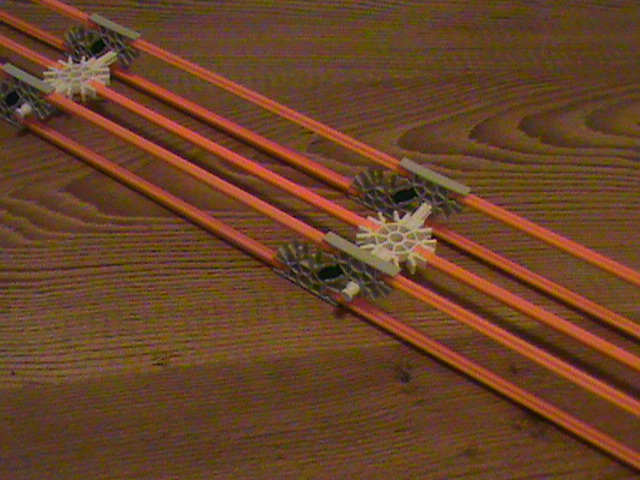

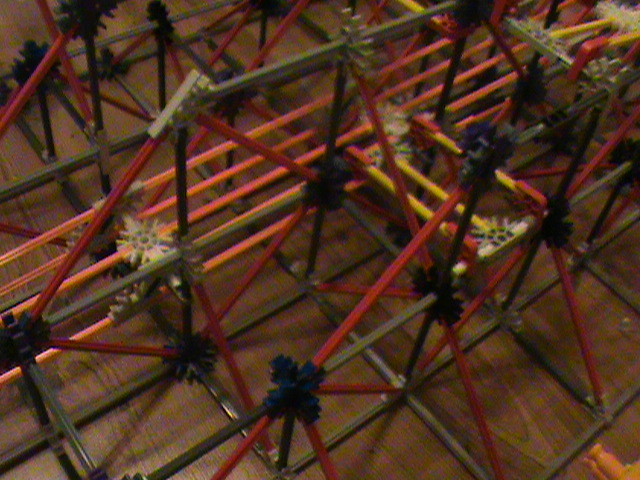

Attaching the Roller Coaster Tubing

You can use thick or thin roller coaster track. You may have to trim it a little shorter once you put it on.

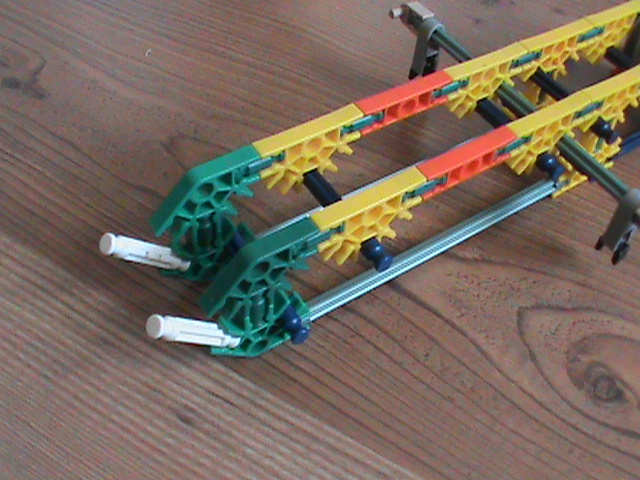

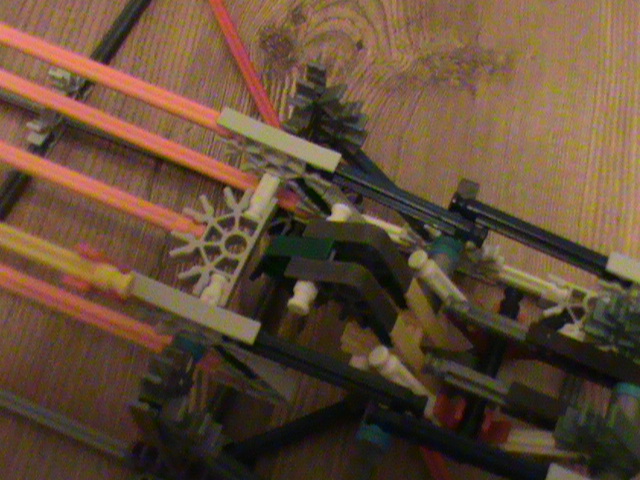

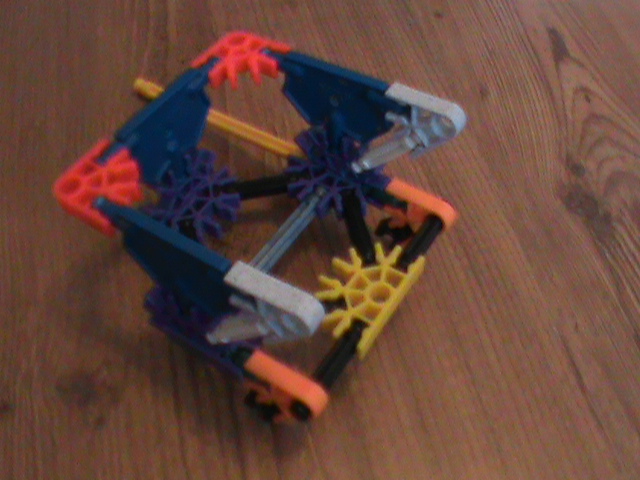

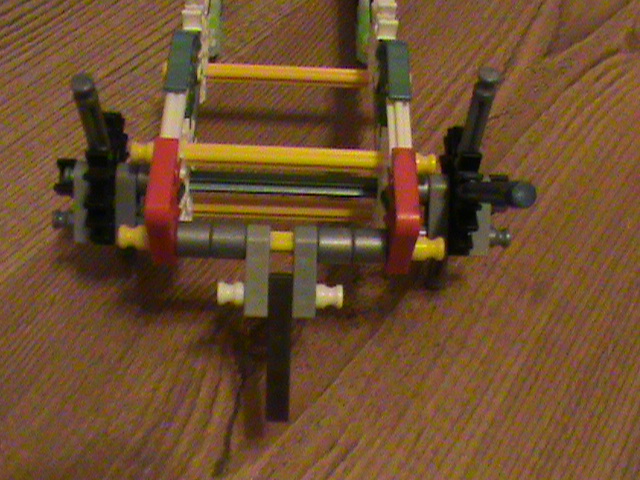

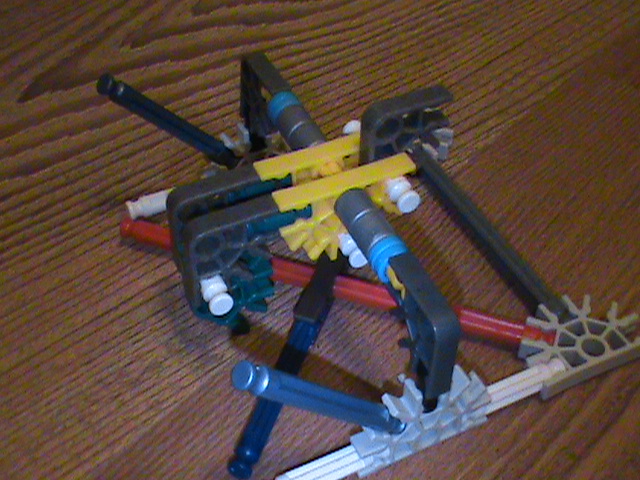

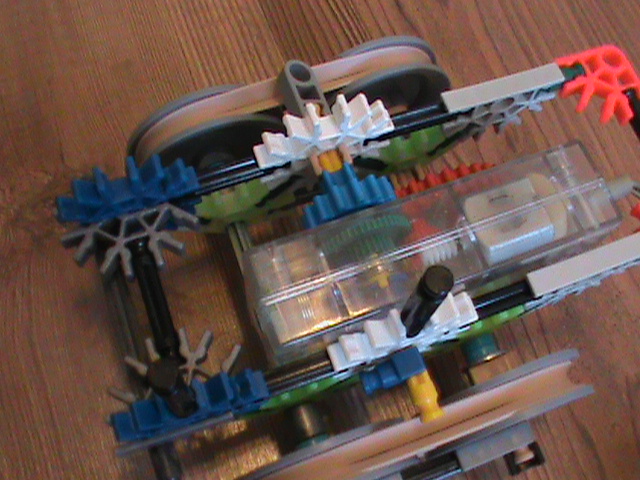

Building the Cars

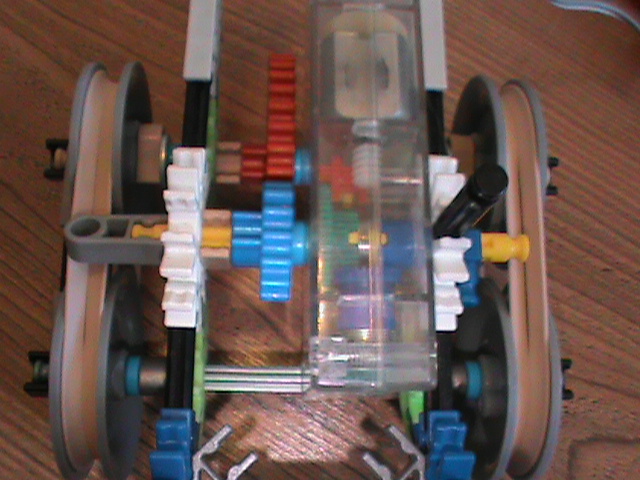

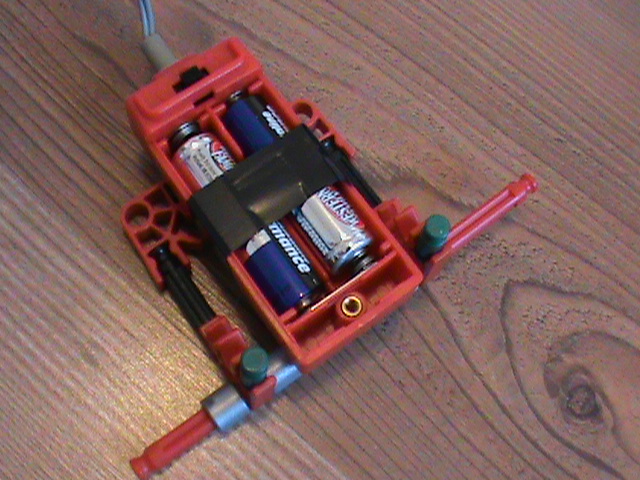

You can build as many cars as you want. If your using the older boxier motors make sure you take off the battery covers and put some tape around it so the batteries won't fall out.

All Done!

Congratulations! Now that your all done throw some balls in it and have fun watching the cars pick them up and take them up the hill.
Remember to check my guide out for those new elements. Hope everything was clear enough.

KneXtreme :)
