Kite Aerial Photography - GoPro

So you have a GoPro Camera, and you wonder if you can use it to take pictures from below a kite.

Follow the few easy steps, and soon you will have pictures like the one's at my Flickr website:

https://www.flickr.com/photos/142373518@N02/

You will need a few specialist parts if you want to do this the right way.

[ If you want to see a quick and dirty method see my instructable for Smartphones ]

I bought the parts from Brooxes.com, a specialist store for KAP Kite Aerial Photography

The Compact Picavet Package, gives you all the parts you need. They are:

1. The Picavet [ cross ]

2. Hangups [ to attach to the kite line ]

3. Ball bearing blocks

4. Line to make the complete Picavet

The GoPro will attach to picavet with an adapter that takes a quarter inch bolt. [ Multiple sources ]

The Brooked camera Keeper will screw into the GoPro attachment

Use the parts from the Compact Picavet Package and the Lacing Pattern Instructions [ from Brooxes ] and complete the Picavet.

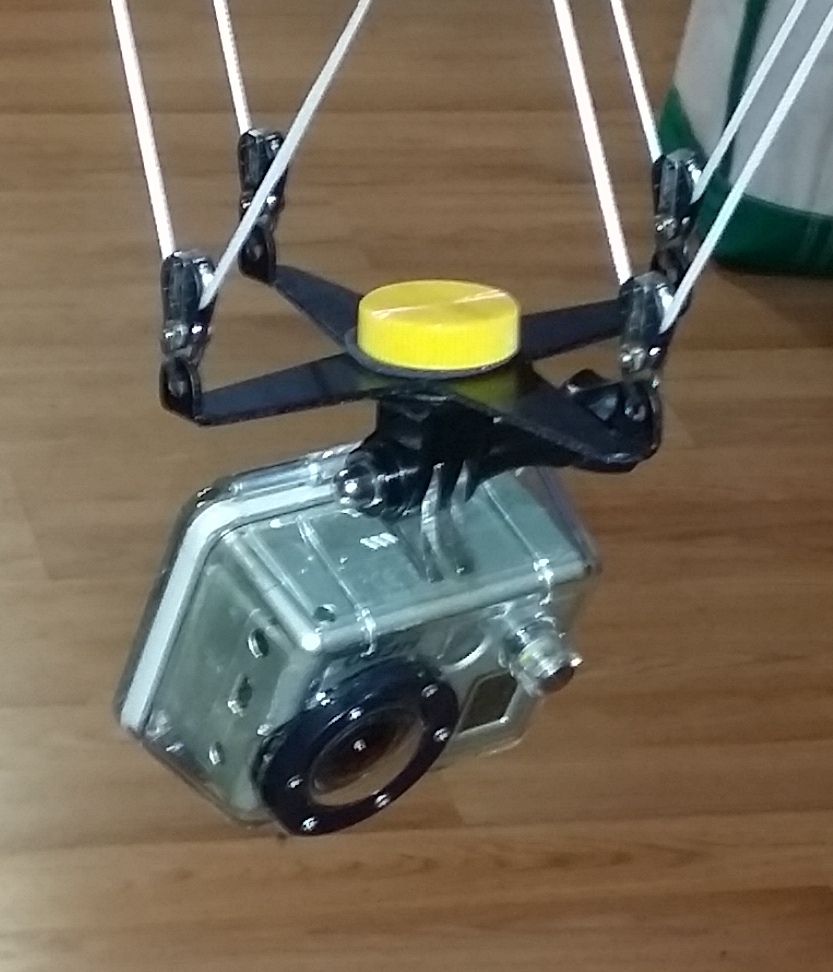

Use the Threaded Handbolt [ Brooxes camera keeper ] and the GoPro Adaptor to attach the GoPro to the Picavet.

Now set the GoPro to the Interval setting and you are ready to let it go up the kite line.

I have used several different types of kites, but the two types best suited I list below

For lower wind I suggest a Delta such as : http://www.cobrakites.com/delta17.html

For higher wind I suggest an Ultrafoil such as : http://www.cobrakites.com/ufoil9.html

I myself have used larger kites, but large kites can cause serious injury so please take care.

I took the picture of the Lighthouse at the Southern tip of Africa with a: http://www.cobrakites.com/ufoil30.html

but that kite is NOT a toy and should be handled with care.

Attach the Camera Rig to the kite line about 50 below the kite [ more stable ] and get the camera running and send it aloft, Remember to point the camera in the correct direction before you let it go up with the kite.

Enjoy your pictures, some of mine can be seen here: https://www.flickr.com/photos/142373518@N02/

Enjoy.
