Kite Aerial Photograph - Smartphone

So you want to to take Aerial Pictures with your Old Smartphone?

You can do it for a few $'s and I am going to tell you how to do it.

You will also need a Kite, I suggest a Delta Kite and a Smartphone.

I used an old Iphone, and YES the phone is at HIGH RISK of being lost.

First you need a small crate [ I found mine at staples ] and a few more smaller parts.

You will need two D-clips [ I used the cheap dollar store models, they carry little weight ]

You need 4 screw in eye-screws, a small washer and a flat piece of rubber.

I took a small tripod apart to get the swivel head so I could point the camera where I want it to look at.

Lastly you need some kind of holder for the phone, I used a Kugl holder for the older Iphone.

We are going to start the pendulum device that stabilize the camera is called a Picavet.

Cut the bottom of the crate down, and screw in the screw-eye's and drill a hole in the middle to attach the Smartphone holder.

The Phone is held underneath the rectangular plastic crate base.

See picture for the configuration.

The Picavet consists of a pendulum that is attached to the kite rope at two points.

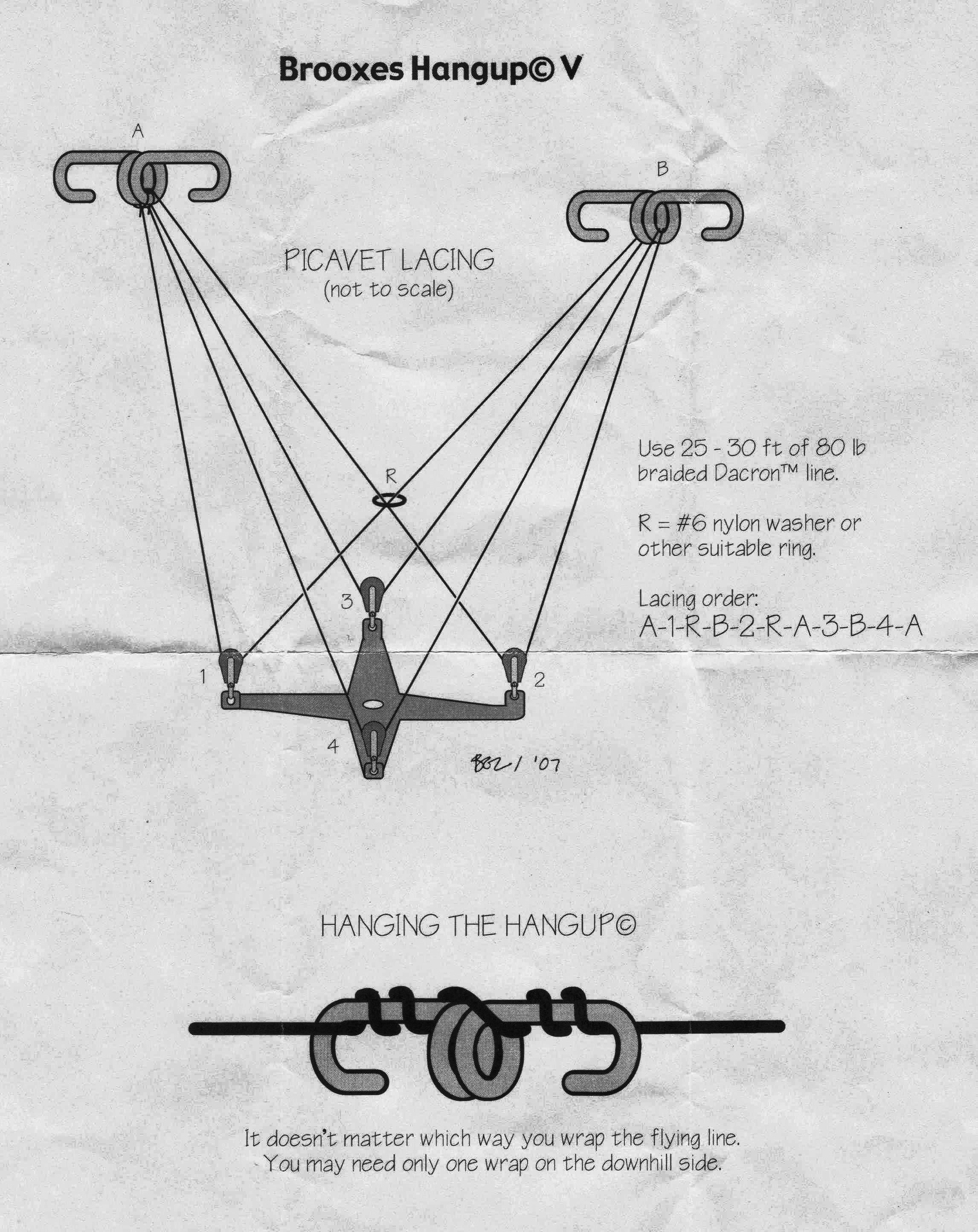

The thread pattern of the Picavet is from Brooxes.com, and is pictured for your use.

Once you have assembled the Rig, you can now use the D-Rings to attach the Rig to the Kite Line

Make sure you add at least one twist to the kite line as you clip the D-Ring onto the Kite Line, or it won't stay where you put it on the line.

You will use an app to fire the smartphone camera, and I will give you that information in the next step.

The Apps that fire the camera periodically on a Smartphone are called Intervalometers

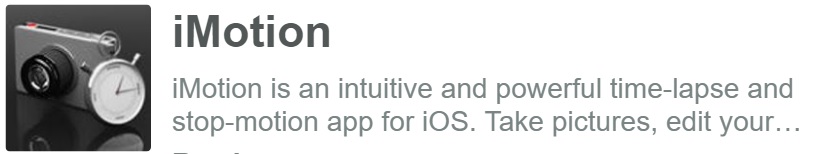

Examples are Tine Time Lapse for Android and iMotion for Apple

Now you can go and fly and come home with Aerial Pictures.

Enjoy!
