Kids Fidget Spinner Game

Fidget Spinner Game - Cool Fidget Spinner Game for my son's Science Fair

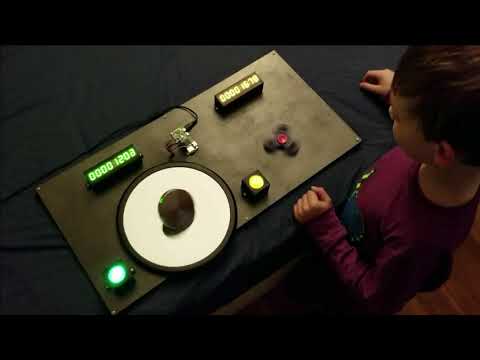

Kids love this one, who can spin the longest? Who can spin the fastest? Find out using this project!

Download "RASPBIAN JESSIE LITE" https://www.raspberrypi.org/downloads/raspbian/

Create your new hard disk for Fidget Spinner Game

Insert the microSD to your computer via USB adapter and create the disk image using the dd command

Locate your inserted microSD card via the df -h command, unmount it and create the disk image with the disk copy dd command

$ df -h /dev/sdb1 7.4G 32K 7.4G 1% /media/XXX/1234-5678

$ umount /dev/sdb1

Caution: be sure the command is completely accurate, you can damage other disks with this command

if=location of RASPBIAN JESSIE LITE image file of=location of your microSD card

$ sudo dd bs=4M if=/path/to/raspbian-jessie-lite.img of=/dev/sdb (note: in this case, it's /dev/sdb, /dev/sdb1 was an existing factory partition on the microSD)

Setting up your RaspberriPi

Insert your new microSD card to the raspberrypi and power it on with a monitor connected to the HDMI port

Login

user: pi

pass: raspberry

Change your account password for security

sudo passwd pi

Enable RaspberriPi Advanced Options

sudo raspi-config

Choose: 1 Expand File System

9 Advanced Options

A2 Hostname change it to "FidgetSpinner"

A4 SSH Enable SSH Server

A7 I2C Enable i2c interface

Enable the English/US Keyboard

sudo nano /etc/default/keyboard

Change the following line: XKBLAYOUT="us"

Reboot PI for Keyboard layout changes / file system resizing to take effect

$ sudo shutdown -r now

Auto-Connect to your WiFi

sudo nano /etc/wpa_supplicant/wpa_supplicant.conf

Add the following lines to have your raspberrypi automatically connect to your home WiFi (if your wireless network is named "linksys" for example, in the following example)

network={ ssid="linksys" psk="WIRELESS PASSWORD HERE" }

Reboot PI to connect to WiFi network

$ sudo shutdown -r now

Now that your PI is finally on the local network, you can login remotely to it via SSH. But first you need to get the IP address it currently has.

$ ifconfig Look for "inet addr: 192.168.XXX.XXX" in the following command's output for your PI's IP Address

Go to another machine and login to your raspberrypi via ssh

$ ssh pi@192.168.XXX.XXX

Start Installing required packages

$ sudo apt-get update

$ sudo apt-get upgrade

$ sudo apt-get install vim git python-smbus i2c-tools python-imaging python-smbus build-essential python-dev rpi.gpio python3 python3-pip python-gpiozero python-psutil

Update local timezone settings

$ sudo dpkg-reconfigure tzdata

select your timezone using the interface

Setup the simple directory l command [optional]

vi ~/.bashrc

add the following line:

alias l='ls -lh'

source ~/.bashrc

Fix VIM default syntax highlighting [optional]

sudo vi /etc/vim/vimrc

uncomment the following line:

syntax on

Clone Game repository

$ cd ~

$ git clone https://github.com/khinds10/FidgetSpinnerGame.git

Install i2c Backpack Python Drivers

$ cd ~

$ git clone https://github.com/adafruit/Adafruit_Python_LED_B...

$ cd Adafruit_Python_LED_Backpack/

$ sudo python setup.py install

Setup the scripts to run at boot crontab -e

Add the following lines:

@reboot /bin/sleep 15; nohup python /home/pi/FidgetSpinnerGame/player1.py > /home/pi/FidgetSpinnerGame/player1.log 2>&1

@reboot /bin/sleep 15; nohup python /home/pi/FidgetSpinnerGame/player2.py > /home/pi/FidgetSpinnerGame/player1.log 2>&1

For the below supplies list I went with yellow vs green for team colors, however you can pick, red vs blue etc.

Small thin sheet of plywood

RaspberriPi Zero

LED Illuminated Push button Built-in Switch 5V Button (yellow / green)

7-segment Display W/i2c Backpack (yellow)

7-segment Display W/i2c Backpack (green)

Solder Unique Display Jumpers

NOTE: All the I2C backpacks must be soldered on the back of each of the displays, the backpacks come with the display and must all be soldered on first.

For each of the I2C backpack displays you must solder the jumpers on the back in the 4 different possible combinations to have your RaspberriPI I2C interface to recognize each display with a unique address.

Leave the first display with no jumper soldered, the 2nd with the farthest right soldered, the 3rd with only the middle soldered and so on... There's a total of 3 pins so you should have a total combination of 8 unique combinations.

Wiring the buttons/displays to RaspberryPi as show above

Start up your RaspberryPi and make sure the I2C bus recognizes all your connected 7 segment displays.
[each display is given a unique address described above by how you solder each display's jumpers in different combinations]

If you have all 4 displays with jumpers soldered in all 4 combinations, you should have the following output for the i2cdetect command:

sudo i2cdetect -y 1

0 1 2 3 4 5 6 7 8 9 a b c d e f

00: -- -- -- -- -- -- -- -- -- -- -- -- --

10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

70: 70 71 72 73 -- -- -- --

(in this case all the displays numbered 0 to 4 are being recognized on the PI as I2C available devices)

Using a 3d printer and the provided (.stl) files in the /enclosure folder of this project print the button and display cases and the 6 small squares used to attach to the bottom of the plywood to hold the game board slightly off the table for wiring.

Paint the board to mount the button, RaspberriPi and 7 Seg. Displays
