Keychain Holder
![IMG_20220612_194057.jpg](/proxy/?url=https://content.instructables.com/FWE/5F6W/L4BBIGGR/FWE5F6WL4BBIGGR.jpg&filename=IMG_20220612_194057.jpg)
Hi All,
I will share a simple way to make a customized keychain holder using Tinkercad. Anyone can create 3d models by logging into Tinkercad website for free.
Supplies
- Tinkercad
- 3d Printer
- Acrylic paint
- metallic hooks
House
![Picture1.jpg](/proxy/?url=https://content.instructables.com/FOO/6LXT/L4FLTYUX/FOO6LXTL4FLTYUX.jpg&filename=Picture1.jpg)
![Picture2.jpg](/proxy/?url=https://content.instructables.com/FX7/C3B0/L4FLTYUY/FX7C3B0L4FLTYUY.jpg&filename=Picture2.jpg)
![Picture3.jpg](/proxy/?url=https://content.instructables.com/F2E/VT3X/L4FLTYUZ/F2EVT3XL4FLTYUZ.jpg&filename=Picture3.jpg)
![Picture4.jpg](/proxy/?url=https://content.instructables.com/FNE/R28D/L4FLTYV0/FNER28DL4FLTYV0.jpg&filename=Picture4.jpg)

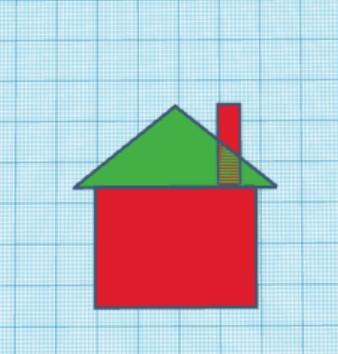

- We start with basic shapes,
- Drag and drop the following shapes as shown
- Rectangles
- Triangle
- Adjust the height and width till one is happy with the basic house shape
- Overall height is 8mm

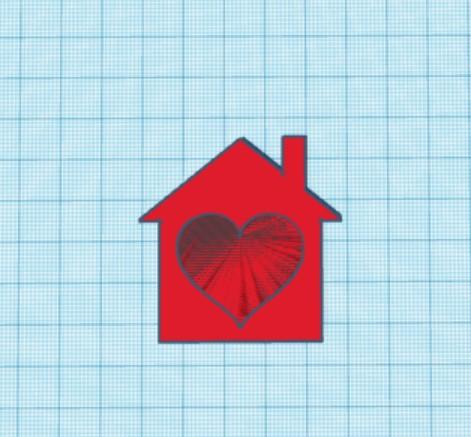

- Search for a heart shape from the right side of the tools and insert it as a hole
- Adjust the position of the heart and combine to make our house shape
Text
![Picture5.jpg](/proxy/?url=https://content.instructables.com/FH3/ILJZ/L4FLTYUW/FH3ILJZL4FLTYUW.jpg&filename=Picture5.jpg)
![Picture6.jpg](/proxy/?url=https://content.instructables.com/FEI/YL4P/L4FLTYVG/FEIYL4PL4FLTYVG.jpg&filename=Picture6.jpg)

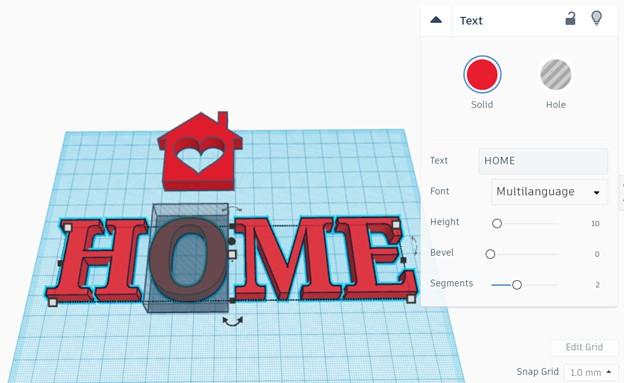

- Insert Text from the Basic Shapes
- Add a rectangle hole to remove "O" from HOME as shown
- Overall height is 8mm
- Bring the house shape, in-line with the text and group the shapes
Base
![Picture7.jpg](/proxy/?url=https://content.instructables.com/FIC/6VEQ/L4FLTYVH/FIC6VEQL4FLTYVH.jpg&filename=Picture7.jpg)
![Picture8.jpg](/proxy/?url=https://content.instructables.com/FSR/DX2Z/L4FLTYVI/FSRDX2ZL4FLTYVI.jpg&filename=Picture8.jpg)
![Picture9.jpg](/proxy/?url=https://content.instructables.com/FR0/JBZ2/L4FLTYVF/FR0JBZ2L4FLTYVF.jpg&filename=Picture9.jpg)

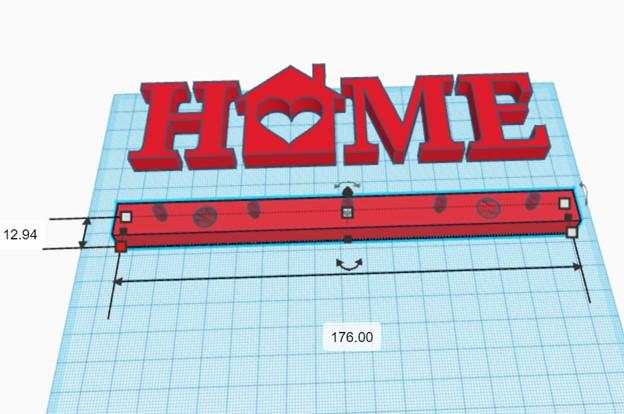

- Add rectangle with 10mm height
- Add holes for the hooks (3mm diameter)
- Add holes for the screws as shown

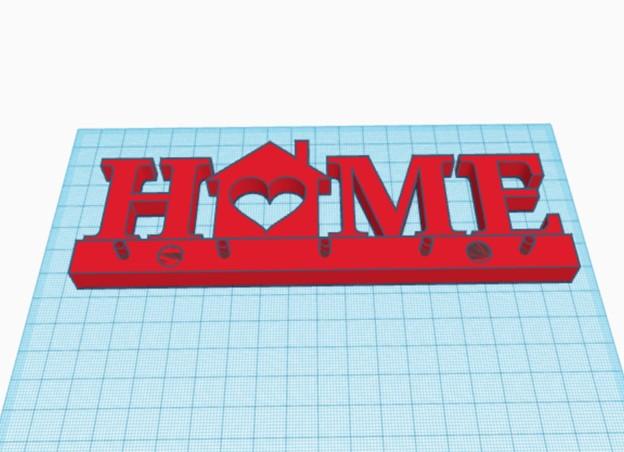

- Group all to make our final shape
STL Files
My Tinkercad project is available on https://www.tinkercad.com/things/5oXQolfZLZB-keychain-holder-3
and STL file at https://cults3d.com/en/3d-model/home/keychain-holder-3
Some of the other key chain holders
https://cults3d.com/en/3d-model/home/keychain-holder
https://cults3d.com/en/3d-model/home/key-chain-holder-house-v2
https://cults3d.com/en/3d-model/home/key-stand-house
My Designs
Printing
![IMG_20220605_184043.jpg](/proxy/?url=https://content.instructables.com/FI8/6SJO/L4BBIGGH/FI86SJOL4BBIGGH.jpg&filename=IMG_20220605_184043.jpg)
- I used Ender 3 to print this
- Layer height: 0.2mm
- No Supports
- Infill: 20%, Grid
- Time taken 4 hrs
Finishing
![IMG-20220605-WA0011.jpeg](/proxy/?url=https://content.instructables.com/FAL/UXYC/L4BBIGGL/FALUXYCL4BBIGGL.jpg&filename=IMG-20220605-WA0011.jpeg)

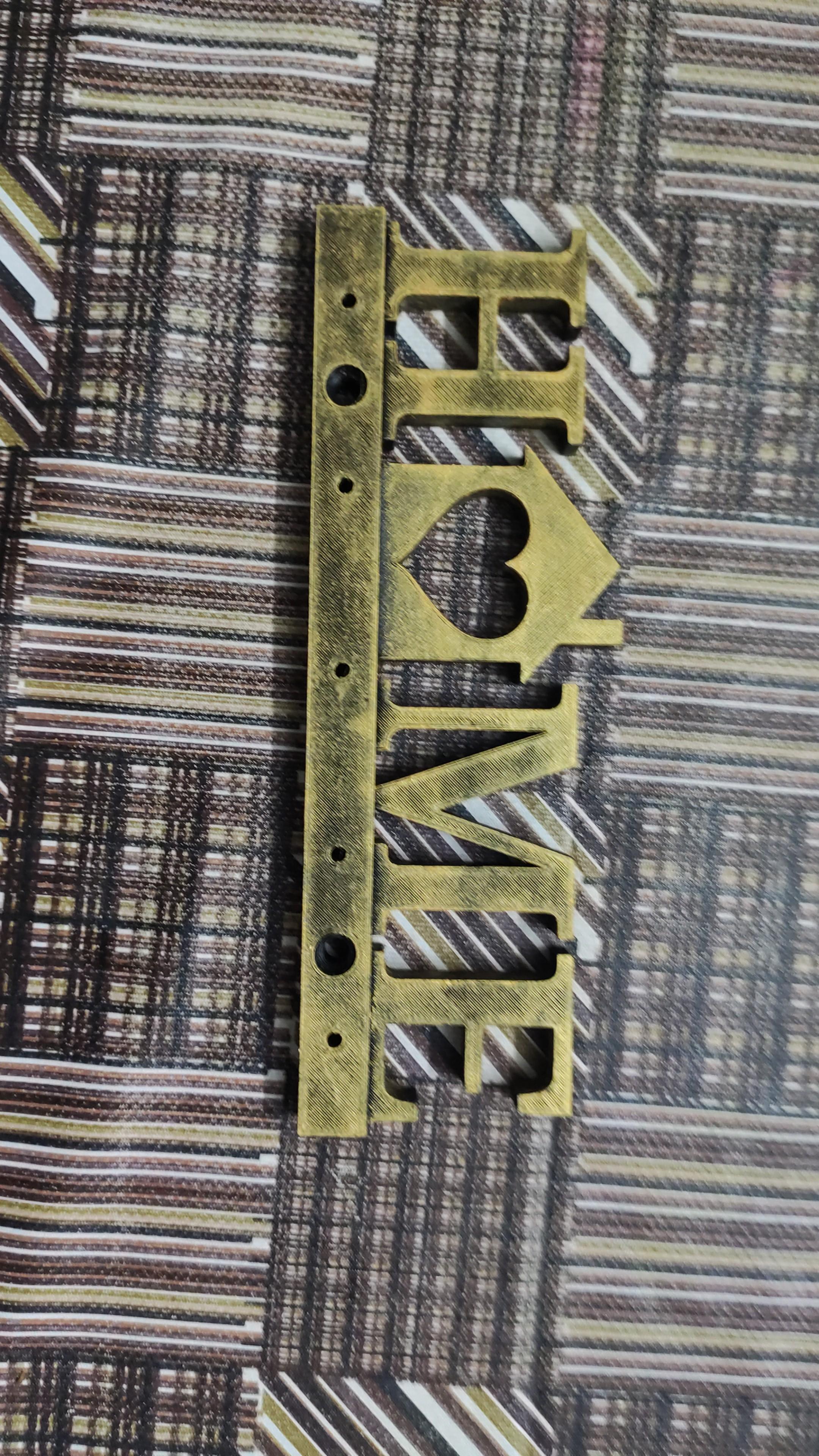

- Clean the edges with a box cutter
- dry brush - paint the keychain holder with gold acrylic paint
- Add the metallic hooks
- Hang it on the wall and we are done
Please let me know if you have any questions
