Key Light Switch

Light Switches are everywhere, house , offices, bathrooms,... and everyone must touched the same switch to turn on/off the lights. Few places have switches that don't need to be touch to be used because they are much more expensive. Here, I am offering a cheap and touchless solution.

With this device I tried to achieve two goals:

1. Do not spread the covid-19 through light switches
2. Privacy: only certain people (the one with the keys) can use the light switch.

I am 16 years old, I am going to 1º de bachillerato the equivalent to Grade 11.

In this project I am using trigonometry,geometry and a lot of maths in general.

• 3d Printer
• PLA
• 2 Springs (diameter 5mm and 7mm long more or less)

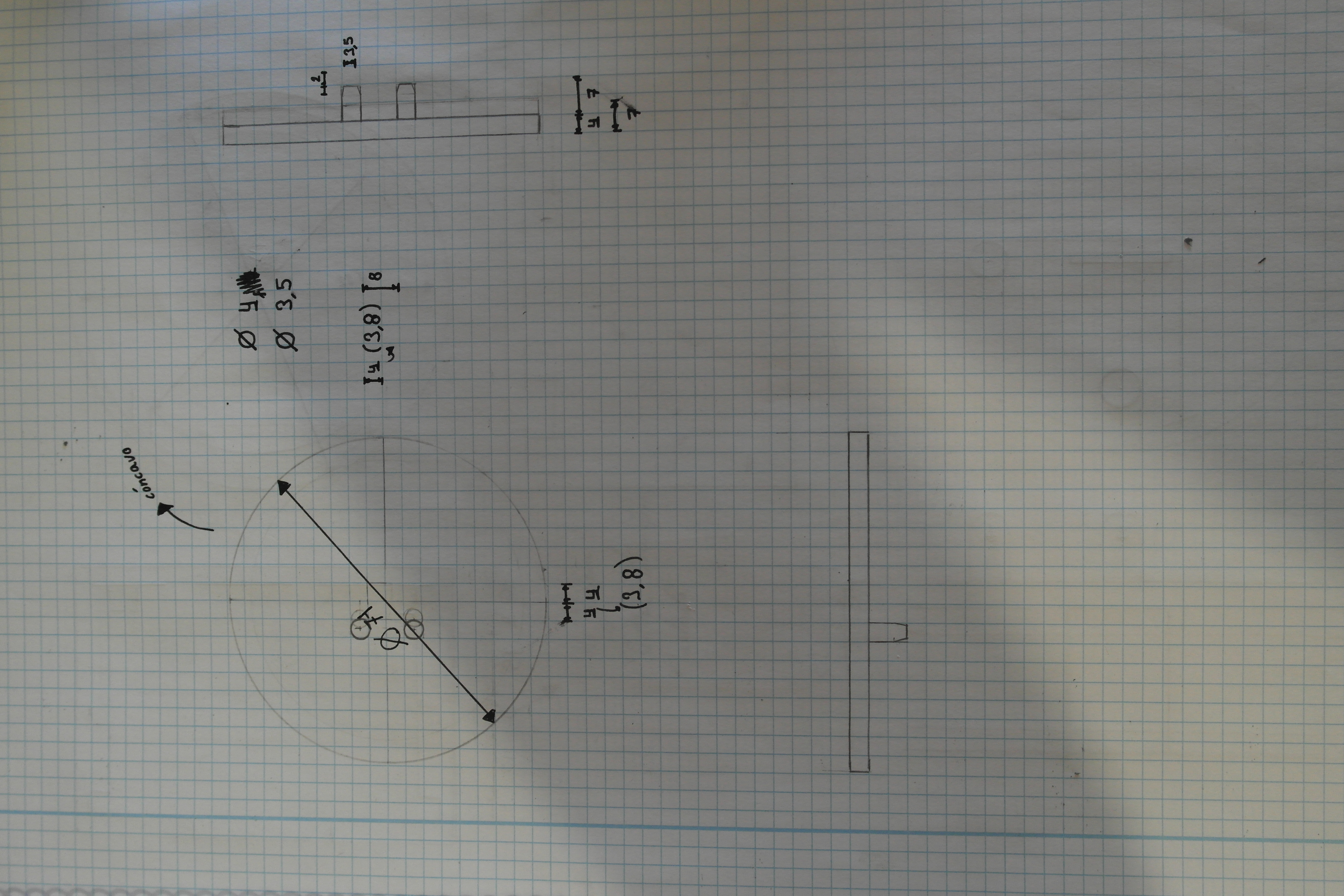

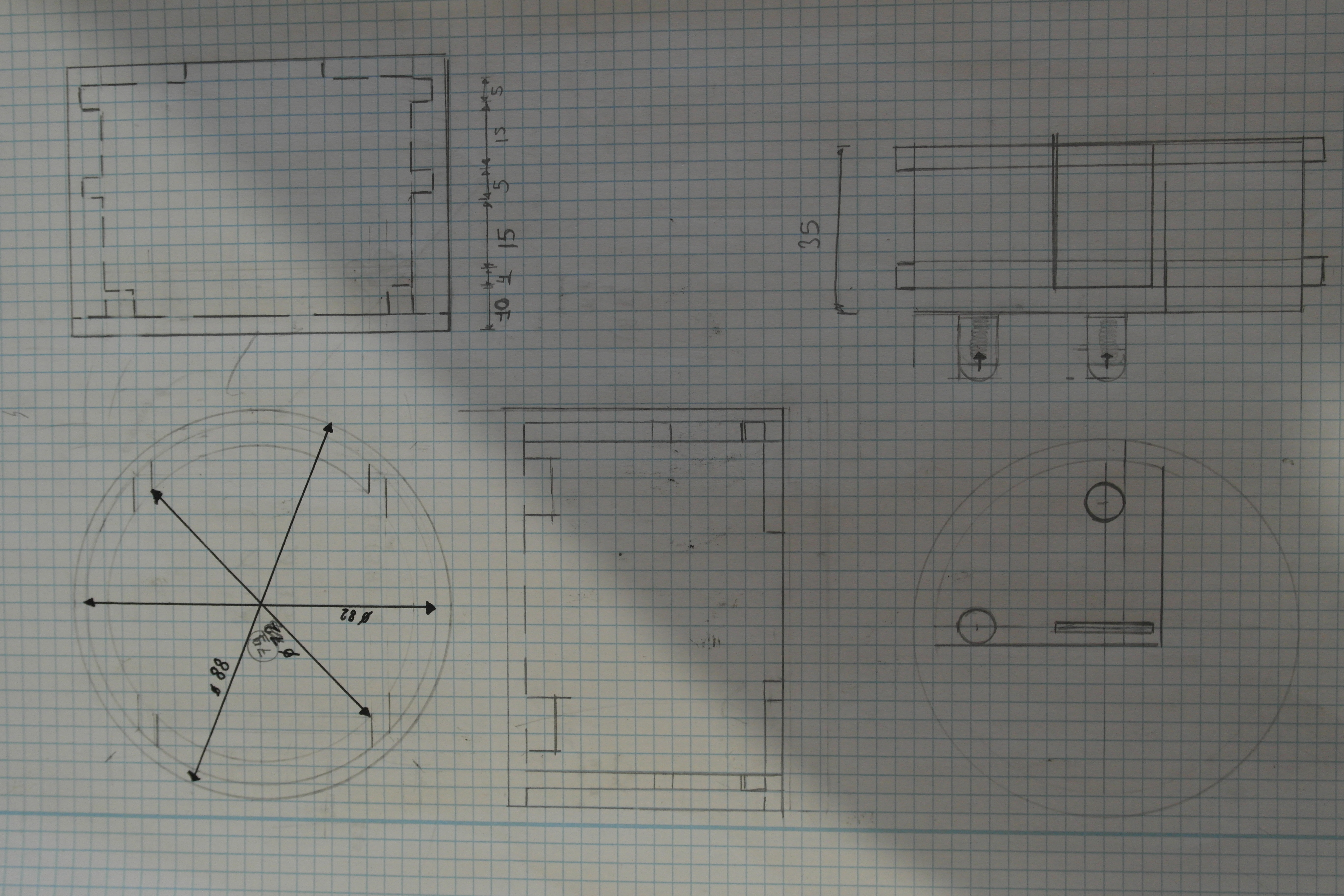

WARNING: I design this device taking my own light switch measures, that is a square of more or less 70mm size. If yours is much bigger or smaller I am afraid it won't work in your light switch.

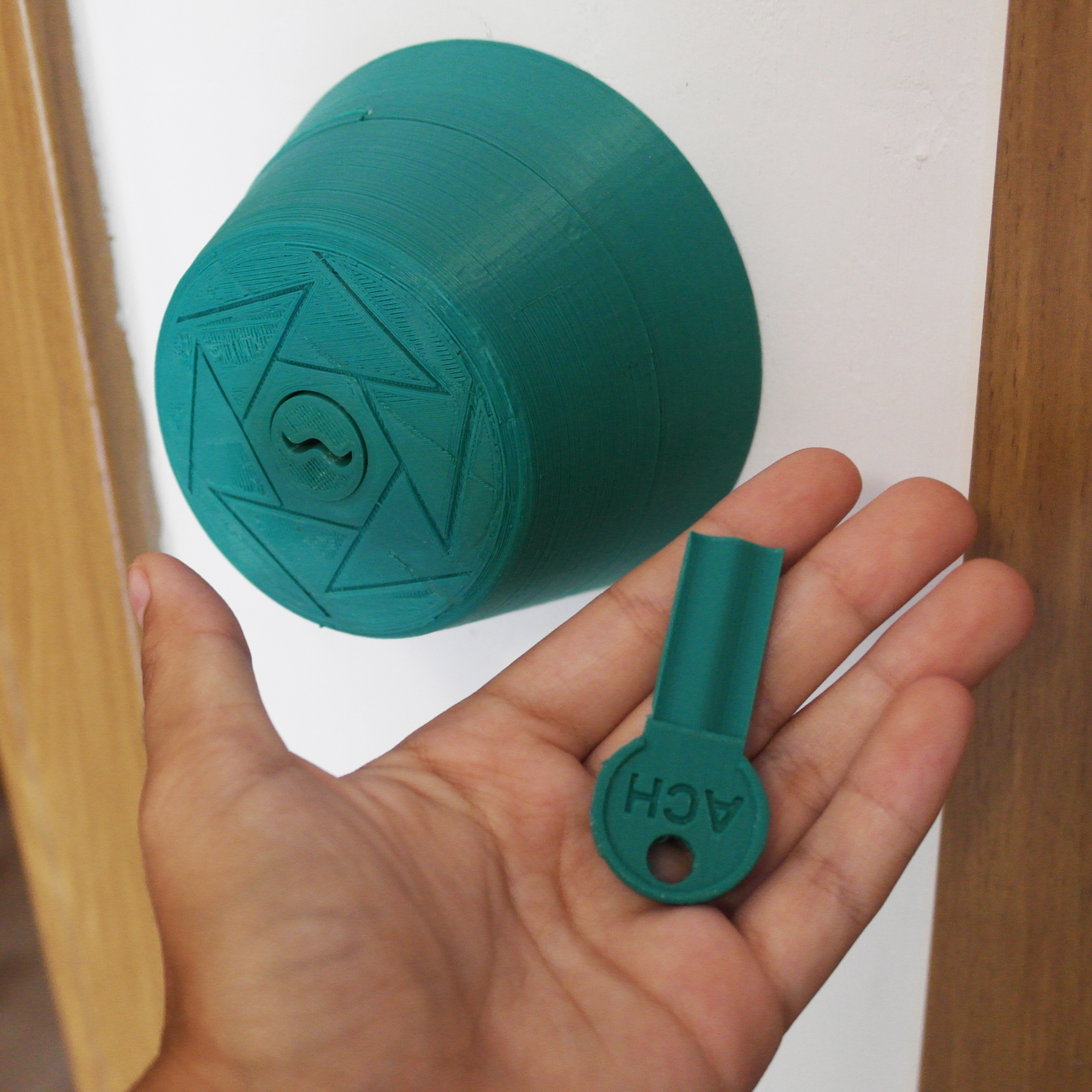

To give it a personal touch I designed the mandala you are seeing in the picture that is a combination of 3 hexagons.

I used 360 fusion to design it.

PRINT THE "ESFERA" twice.

I am leaving below the .stl files, you can also download it from these link:

https://www.thingiverse.com/thing:4572583

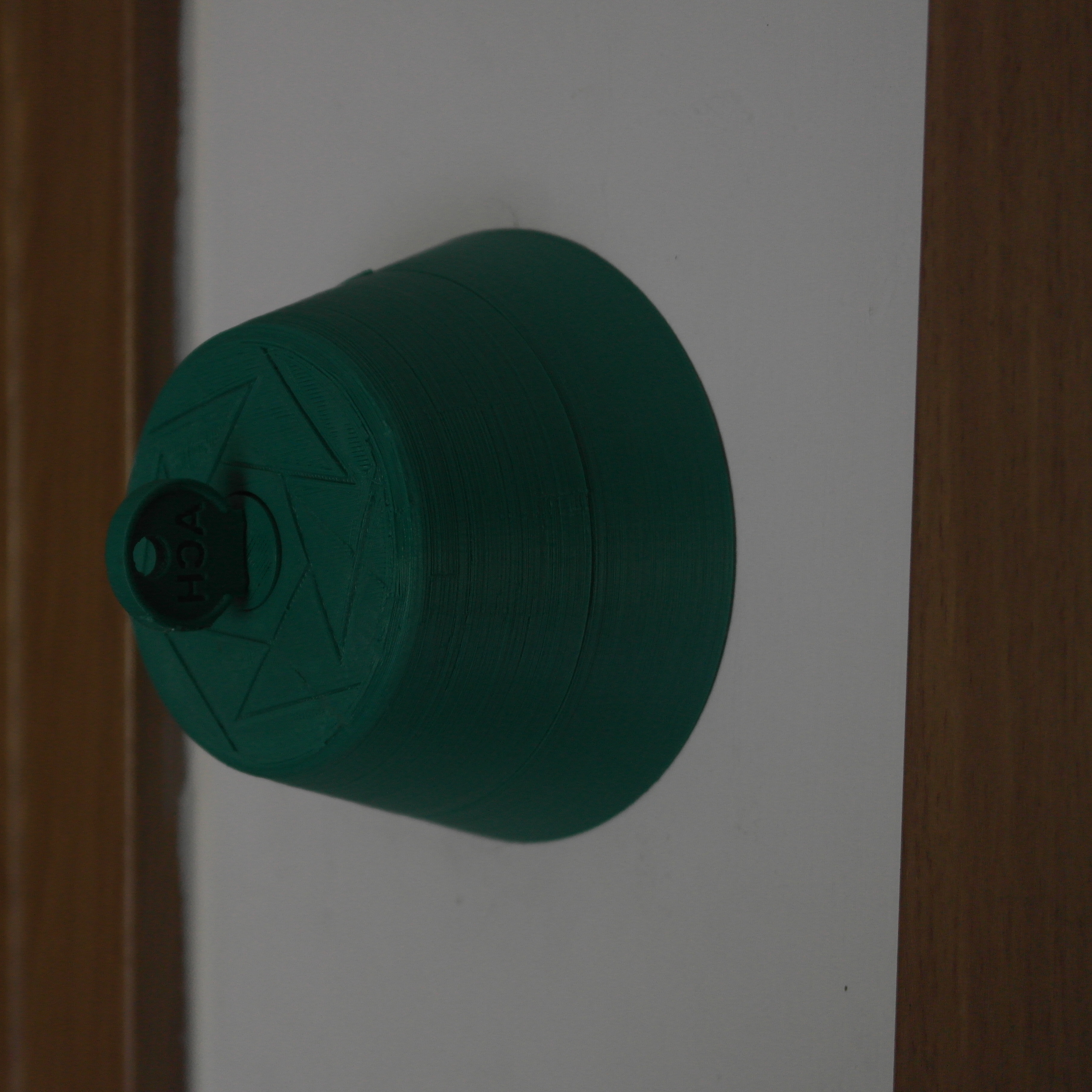

After assembling it stick it to the wall around the light switch. The border around the light switch must be removed.

And that is it, I hope you have enjoyed it the same I enjoyed doing it. :)
