Copper is known to humans from the ancient era and it is used till now for a lot of applications. The color, the relative soft texture and its ability to last in time has made copper very popular. Having in my small scrap yard two pieces of Φ40 copper tubes laying around I decided to use them as a material in order to make motorcycle key holders.

I will make a try to share my little experience on transforming copper from tube to sheet and on milling copper with a CNC router machine, and also I will share my way of making a gift package with alternative materials…

Maybe the following process, the choice of the router bit and the data for feeds and speeds are not ideal, but they worked pretty good for my case and my machine…

Supplies

As I have mentioned before, the material is Φ40 copper tube

The tools that have been used for the final product are:

  1. A chop saw with a multi material cutting disk mounted on it
  2. A sledgehammer
  3. A heavy and flat piece of iron stock (or an anvil)
  4. A 0.25mm, 2 flute, 10 degrees, Φ6 router bit https://vallder.com/en/c/cnc-cutting-tools/wct-deep-carving-tool-detail
  5. A diamond engraving bit
  6. A CNC router machine
  7. Some two-sided carpet tape
  8. Two pieces of predrilled aluminum flat bar and some wood screws

The tools and materials that have been used for the packaging of the product are:

  1. Substrate for laminate floor
  2. A ready-made paper box
  3. An Endurance 10W “invincible” laser diode mounted on a modified Openbuilds ACRO, you can find the .dxf plans for the machine here: https://openbuilds.com/builds/hydra-multi-tool-cnc-based-on-acro.9793/

Designing the Key Holder

yamaha first logo.jpg
IMG_20220126_075556 (2).jpg
yamaha history.jpg

The specific design is the first logo of YAMAHA, the most complicated logo in the history of the company. I found a raster image on the web and transformed it to vector using Vectric Aspire.

Having ready the main design, I draw a circle with about 2mm offset from the perimeter of the sketch and added a hole for the ring of the key holder.

The diameter of the key holder is 40mm.

Cutting the Copper Tube

copper tube cutting

Tools

  1. A chop saw with a multi material cutting disk mounted on it

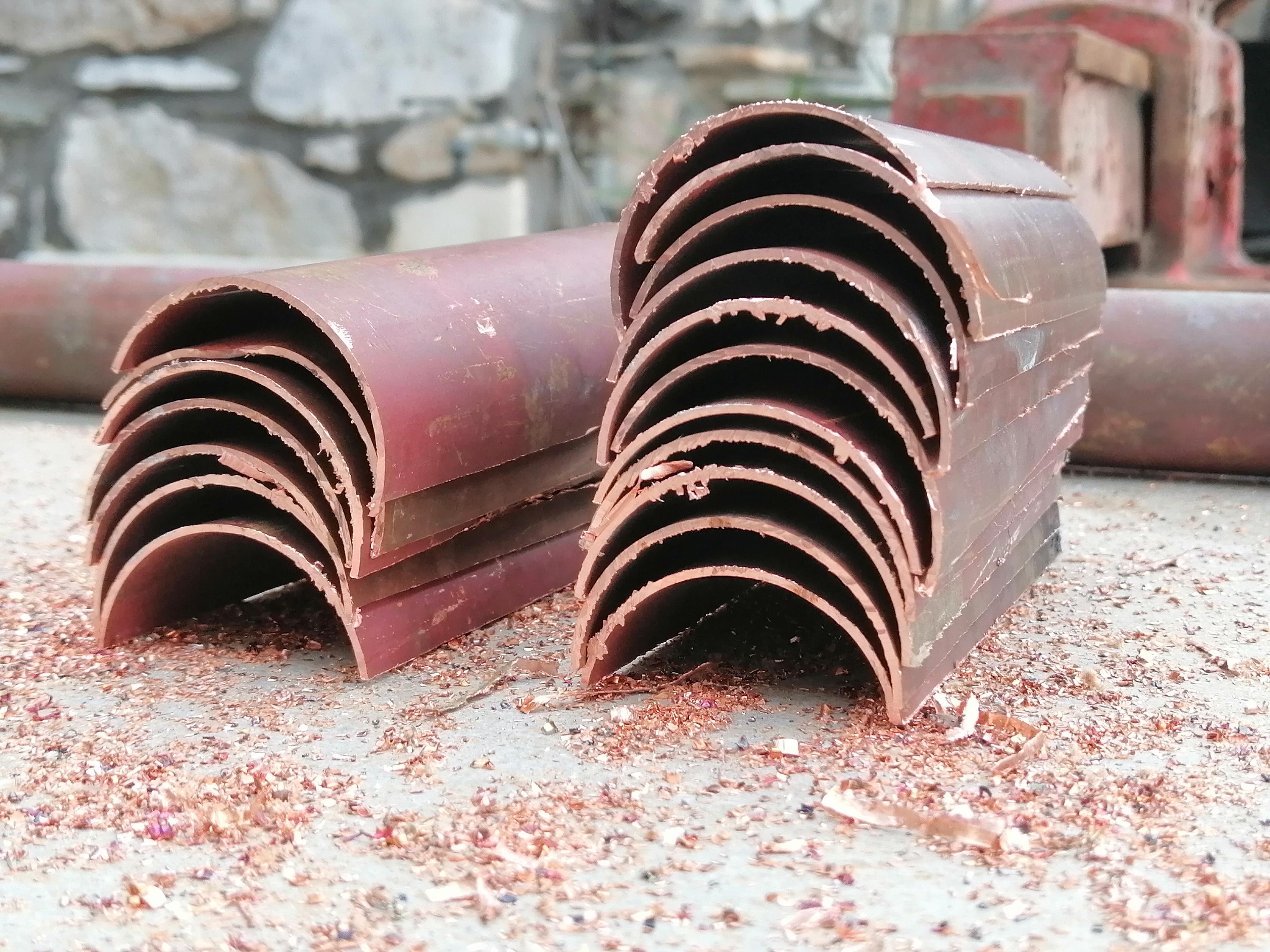

As we can see in the attached video, we make two cuts on the copper tube. The first one is parallel to the lenght of the tube and the second one is vertical to it's lenght line.

Straightening the Copper Tube Pieces


Straightening the copper tube pieces after the cut, has been done by hand, with a sledgehammer and a heavy piece of iron stock to act as an anvil.

Tools

  1. A sledgehammer
  2. An anvil or a heavy and flat piece of iron stock

This is not the ideal way! I could not achieve to make a completely even surface and the hammer leaves some marks on the surface. I have also tried a 4-ton benchtop hydraulic press with the press the process is slower and the piece is being straight only in the middle. With a 15-ton press, at a local machine shop, the results was better, but still the copper stock piece was not completely flat, especially at the edges.

Engraving the Copper Sheet

Diamond engraving bit on copper

Tools

  1. A diamond engraving bit / for the engravings
  2. A CNC router machine
  3. Some two-sided carpet tape
  4. Two pieces of predrilled aluminum flat bar and some wood screws

In order to mount the copper sheet on the wasteboard, the best way for my case was to use a two-sided tape for carpets in combination with aluminum flat bars that acted as clamps. First I screwed a scrap piece of floor laminate on the waste board and after cleaning with IPA I applied the tape with the copper stock and then the aluminum flat bars with wood screws, in order the copper to stay as much flat as possible to the surface of the waste board.

Due to the fact that the outer diameter of the engraving bit was 7mm and I did not have available a 7mm collet I used aluminum tape in order to use an 8mm collet.

Feeds and speeds

I set the value of the engraving bit diameter to 0,15mm and used the following settings for my machine:

Stepover : 36%

RPM : 0

Feed : 1250 mm/min

DOC : 0.3mm

Plunge Rate : 1000 mm/min

Passes : 3

Milling the Copper Sheet

vallder v bit.jpg
IMG_20211205_154853 (2).jpg
0.25mm, 2 flute, 10 degrees, Φ6 router Copper cutting
copper key ring

Tools

  1. A 0.25mm, 2 flute, 10 degrees, Φ6 router bit / for the cuts

Feeds and speeds

I found on Utube a pretty nice video about milling copper with a Nomad cnc and I kept in mind the suggested values, adapting them to my CNC machine.

As I mentioned before the copper sheet after hammering is not completely straight. Using aggressive values for speeds and feeds, the cutters were breaking one after another!...

After a lot of trials and some broken bits I used these values:

RPM : 12000

Feed : 450 mm/min

DOC : 0.06

Plunge Rate : 350 mm/min

From time to time, using a long paintbrush, I was cooling the bit with petroleum and at the same time I was cleaning the surface from copper chips.

I realized that cooling the bit with petroleum is not critical, maybe due to the morphology of the cutter and the very low DOC.

Finishing


I left the surface of the copper key holder unfinished in order to take advantage of the nice contrast between light and dark. For the edges of the product I used locksmith files.

Packaging Insert

photo case 1234.jpg
Laser diode, Endurance 10W "invincible", Polypropylene foam sheet cutting

The design

The Substrate for laminate floor I used as material for the packaging, is a polypropylene foam sheet 5mm , we will use 4 layers for the insert.

The first one, the base, is just a square 0.2mm smaller than the paper box.

The second one, has the outer dimensions of the base and an offset insert, 0.1mm bigger than the ring of the key holder.

The third one, has the outer dimensions of the base and an offset insert, 0.1mm bigger than the copper key holder

Finally, the fourth one is just like the base and acts as a lid and keeps in place the product in the box.

Laser cutting

Working with a diode laser, I used the following values for cutting the 5mm polypropylene foam sheet:

Power : 95%

Feed : 1800 mm/min

Passes : 1

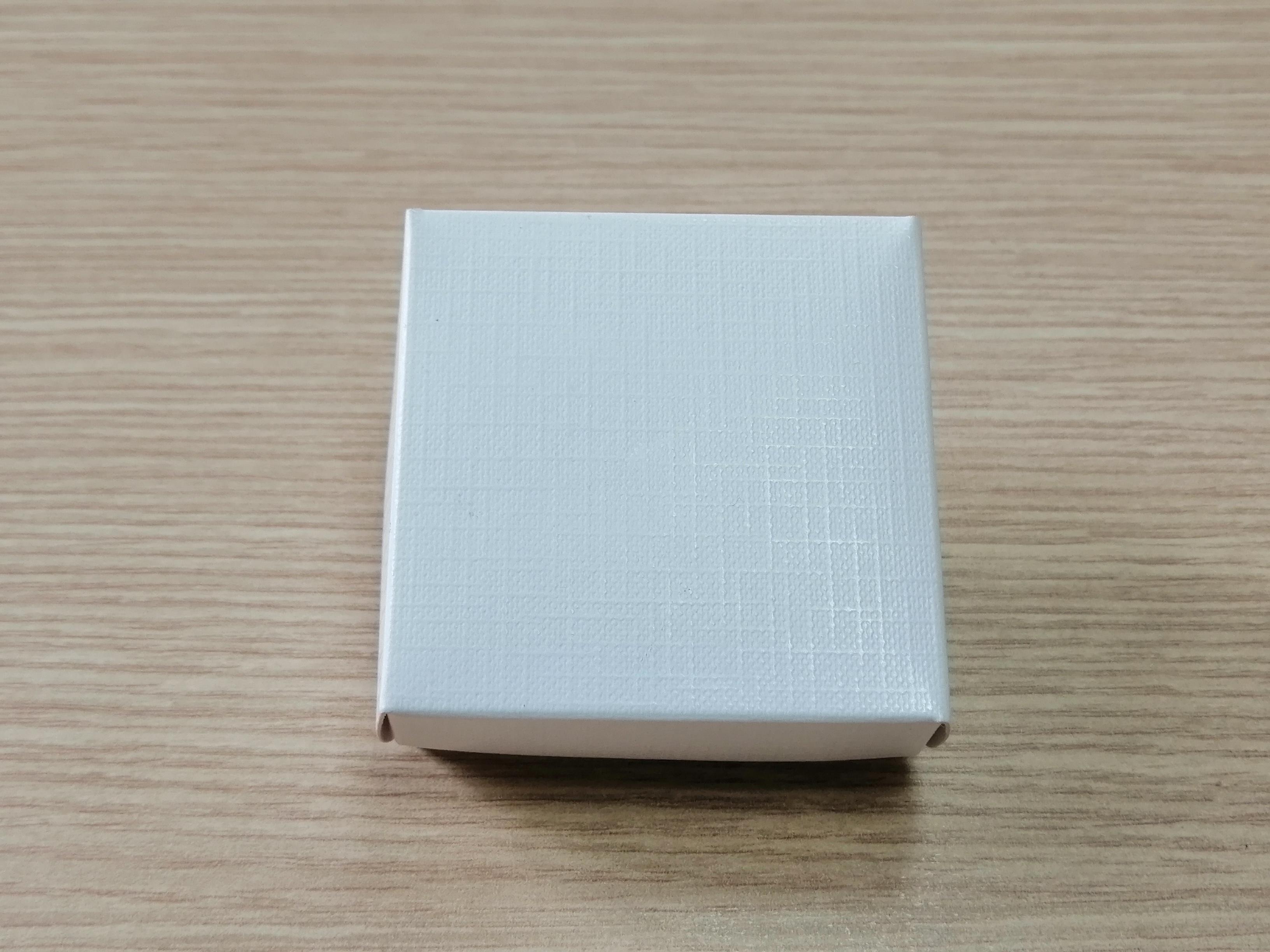

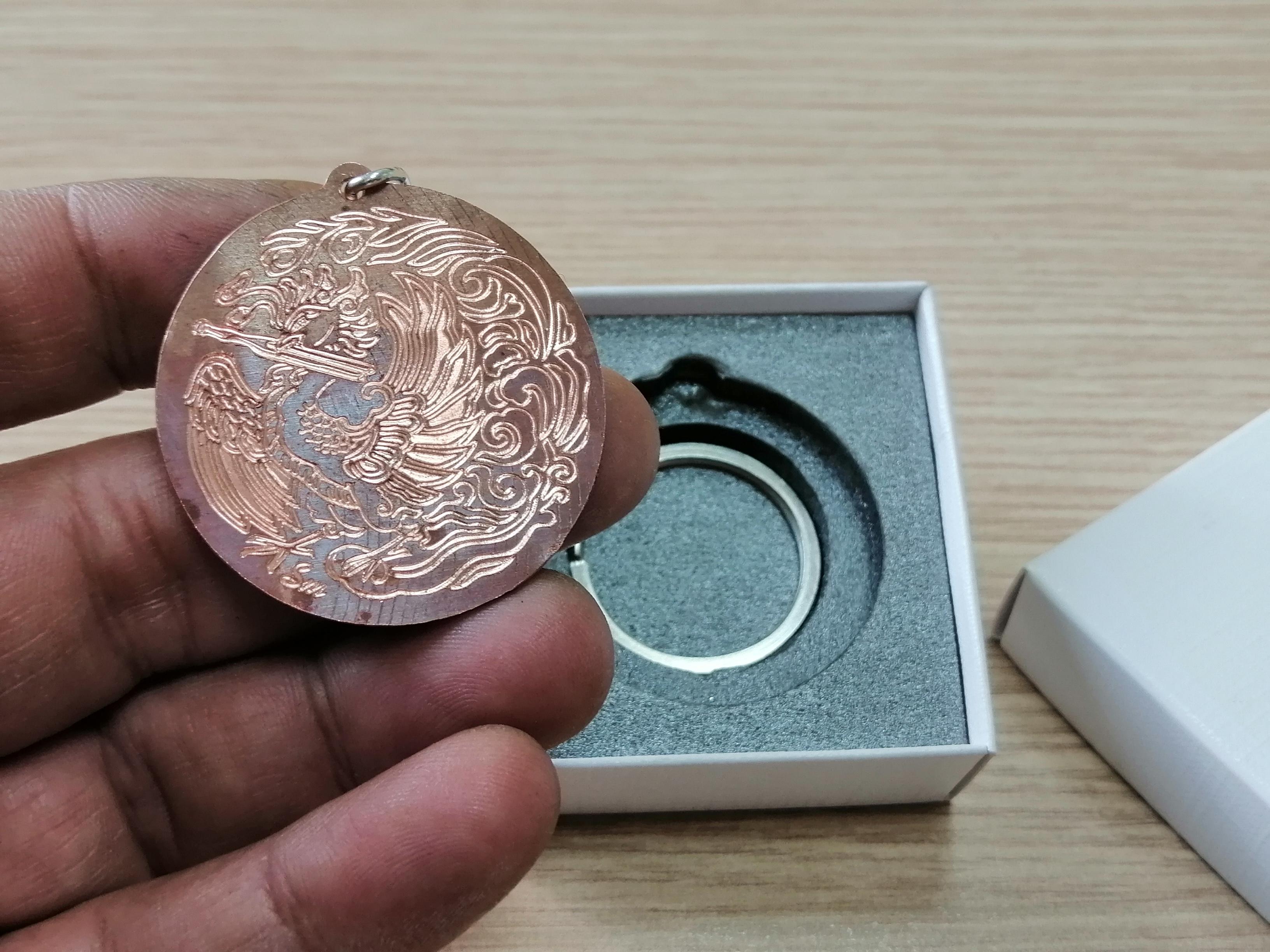

Unboxing !


Thank you for reading my story and…

happy making!
