Kayak Storage Rack
![IMG_3710.JPG](/proxy/?url=https://content.instructables.com/FNM/30DO/IN1SI1XT/FNM30DOIN1SI1XT.jpg&filename=IMG_3710.JPG)
I live in an apartment and needed a place to store my kayak. One wall in my bedroom is 11' long which will just fit my 10' kayak. I needed a custom stand, so I decided to build one with PVC pipes.
Step 1: Design
![KayakRack5-3.jpg](/proxy/?url=https://content.instructables.com/F6B/IG50/IN233NFG/F6BIG50IN233NFG.jpg&filename=KayakRack5-3.jpg)
![KayakRack5-1.jpg](/proxy/?url=https://content.instructables.com/FBH/FQT5/IN1SISLK/FBHFQT5IN1SISLK.jpg&filename=KayakRack5-1.jpg)
I looked at different concepts online. I decided on something similar to this:
http://ecx.images-amazon.com/images/I/81FxBc9a0FL....
I designed the prototype in 3DS Max using real measurements.
The final measurements are 3' tall x x 2' deep x 4' wide (plus abour 1.5' balance on each side.)
Step 2: PVC Cuts
![IMG_3696.JPG](/proxy/?url=https://content.instructables.com/FNG/YA59/IN1SI1UY/FNGYA59IN1SI1UY.jpg&filename=IMG_3696.JPG)

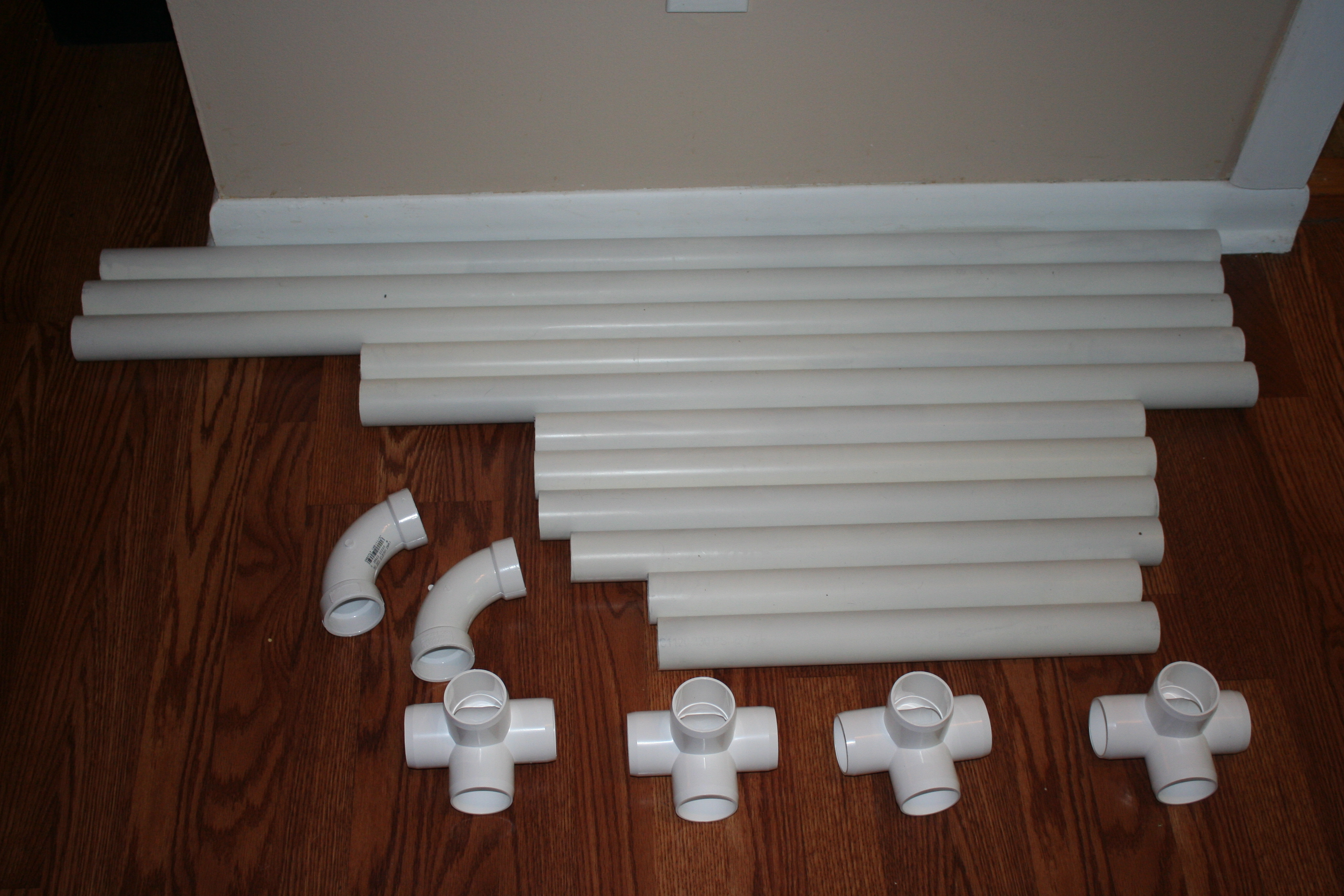

I bought 1.5" PVC and cut it down:
3 - 4' for width
2 - 3' for back supports
2 - 2' for depth
2 - 1.5' for front support
2 - 1.5' for back side balance
4 - 4-Way Tee
2 - 90° angle
Step 3: Assembling the Frame
![IMG_3698.JPG](/proxy/?url=https://content.instructables.com/FAB/3XLR/IN1SI1V7/FAB3XLRIN1SI1V7.jpg&filename=IMG_3698.JPG)
![IMG_3699.JPG](/proxy/?url=https://content.instructables.com/FYP/OPDC/IN1SI1VH/FYPOPDCIN1SI1VH.jpg&filename=IMG_3699.JPG)
![IMG_3702.JPG](/proxy/?url=https://content.instructables.com/FRT/EV46/IN1SI1VU/FRTEV46IN1SI1VU.jpg&filename=IMG_3702.JPG)
Step 4: Adding Supports
![IMG_3703.JPG](/proxy/?url=https://content.instructables.com/FD7/6DPW/IN1SI1X8/FD76DPWIN1SI1X8.jpg&filename=IMG_3703.JPG)
![IMG_3706.JPG](/proxy/?url=https://content.instructables.com/FAK/252Q/IN1SI1XH/FAK252QIN1SI1XH.jpg&filename=IMG_3706.JPG)

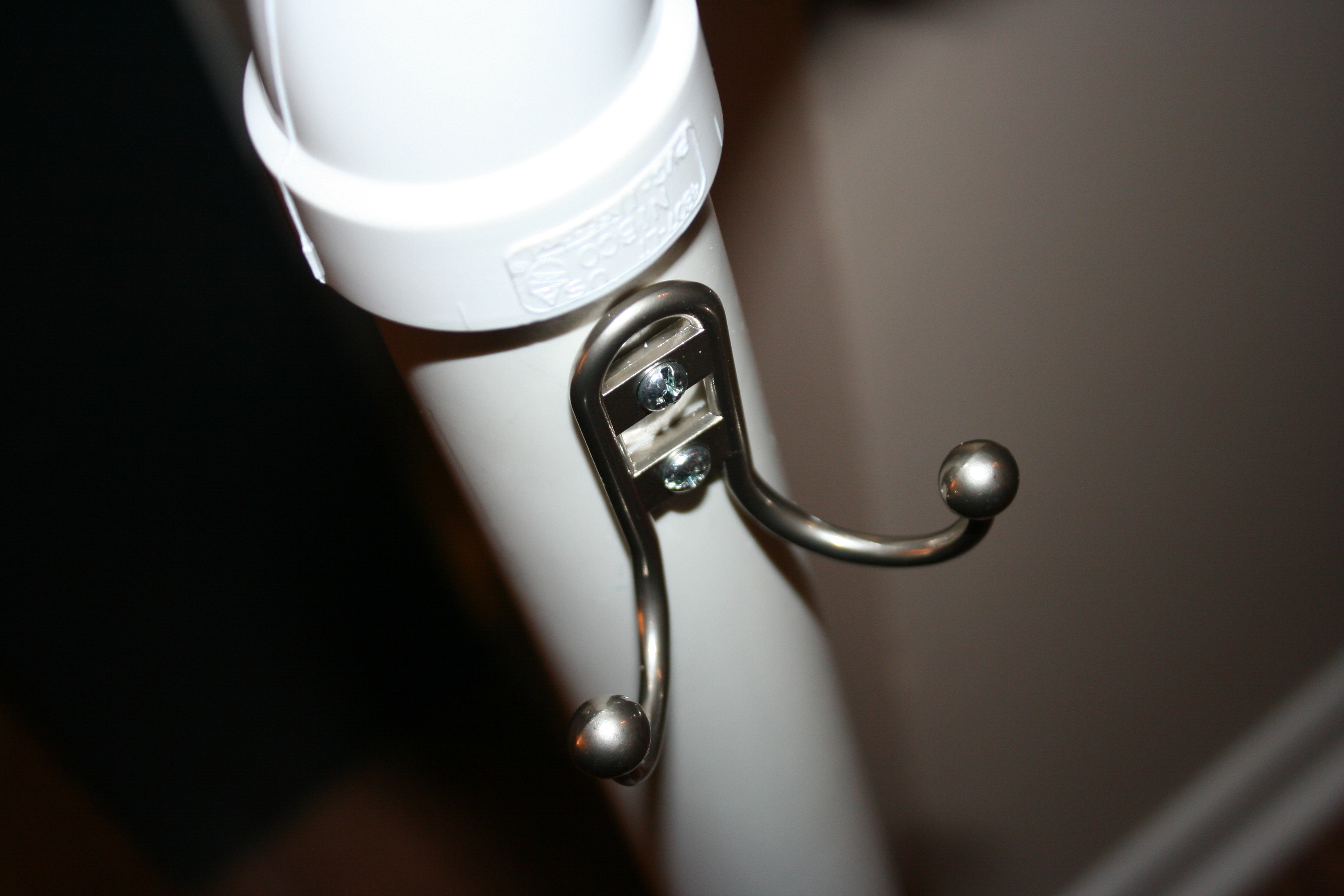

I added double coat hooks to each vertical pipe, wrapped a tie down strap with a pool noodle, and looped it into the hooks. I used zip-ties to keep the pool noodle in place.
Step 5: Final Test
![IMG_3707.JPG](/proxy/?url=https://content.instructables.com/FSO/431G/IN1SI1XO/FSO431GIN1SI1XO.jpg&filename=IMG_3707.JPG)
![IMG_3709.JPG](/proxy/?url=https://content.instructables.com/F3M/GVHL/IN1SI1XP/F3MGVHLIN1SI1XP.jpg&filename=IMG_3709.JPG)

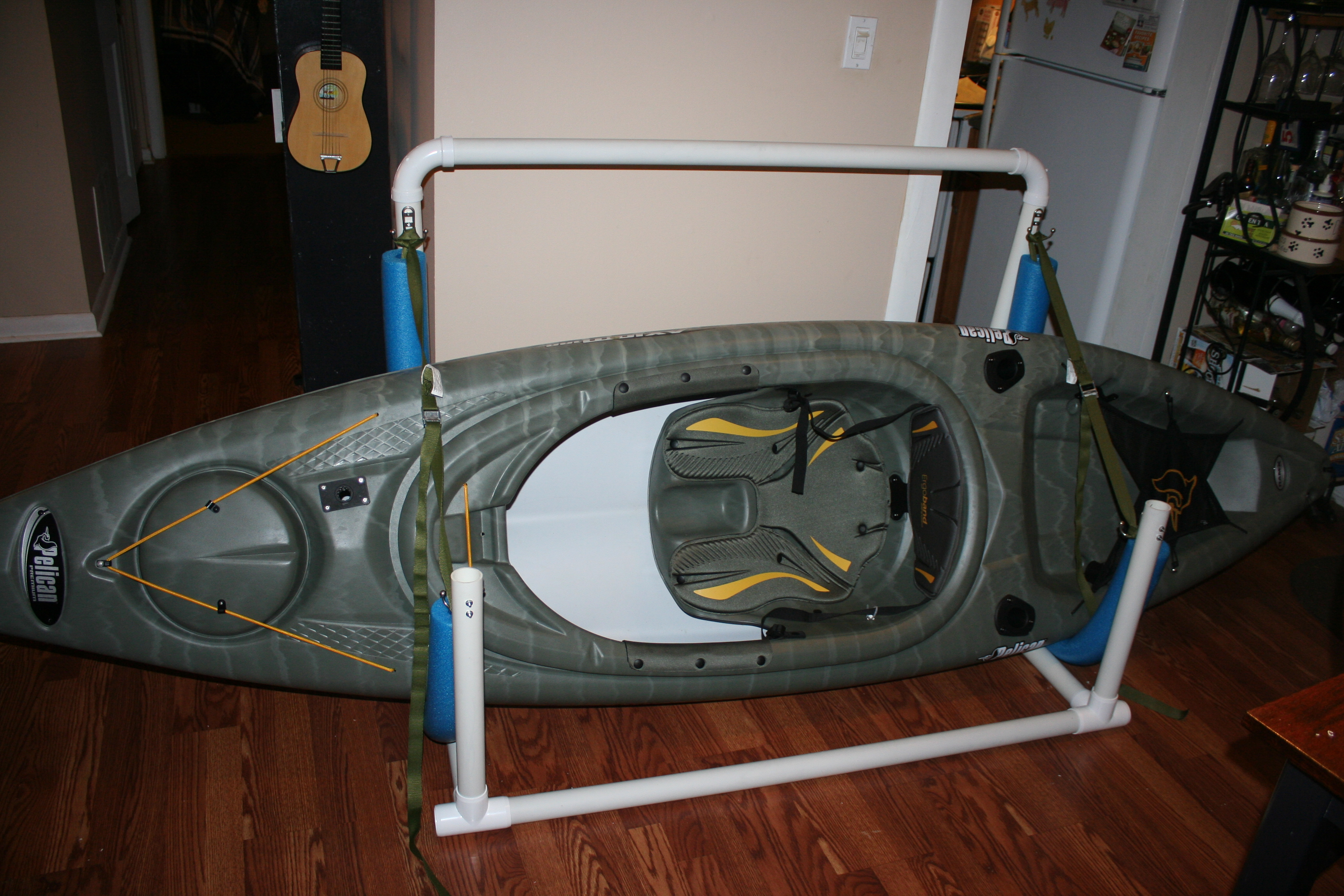

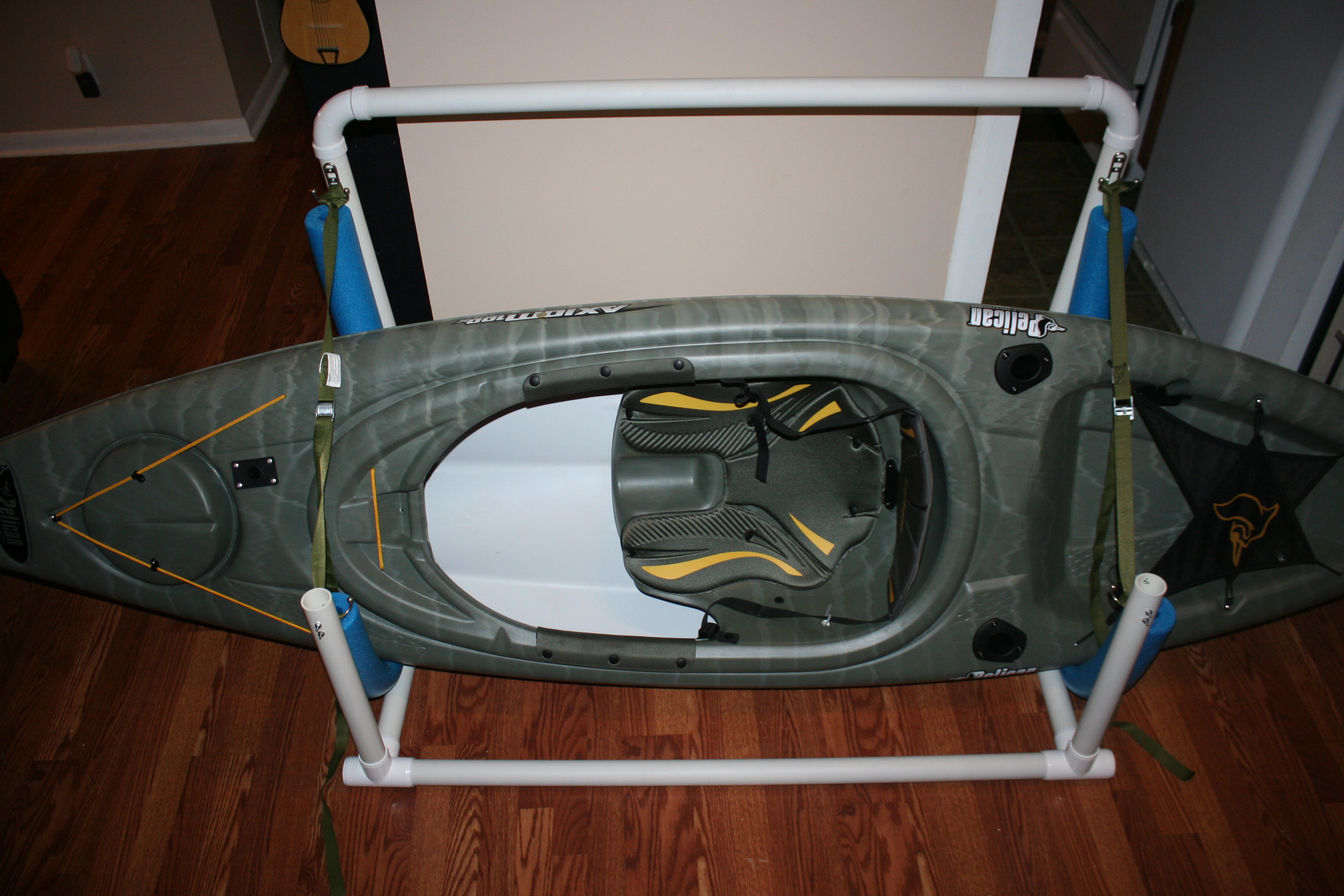

The kayak rests on the pool noodle, and the tie down strap can be used to secure it.
Works perfectly and can be disassembled and re-assembled when I move.
