Kayak Lights
![Screenshot_20220625-092253_Facebook.jpg](/proxy/?url=https://content.instructables.com/F0S/R8QN/L4SGTHKD/F0SR8QNL4SGTHKD.jpg&filename=Screenshot_20220625-092253_Facebook.jpg)
![20220627_210041.jpg](/proxy/?url=https://content.instructables.com/F5E/WNWW/L4VBOBQ7/F5EWNWWL4VBOBQ7.jpg&filename=20220627_210041.jpg)
![20220831_181504.jpg](/proxy/?url=https://content.instructables.com/FMS/KZEC/L7HMQ0UY/FMSKZECL7HMQ0UY.jpg&filename=20220831_181504.jpg)
![20220623_163535.jpg](/proxy/?url=https://content.instructables.com/FOK/BX9F/L53WBI4Y/FOKBX9FL53WBI4Y.jpg&filename=20220623_163535.jpg)
There are 3 kayaks in the night time photo. Can you see them? Probably not because they are not well lite up with a deck light and so stand a good chance of being crashed into be another boat. This tutorial is on how to make a kayak deck light. It costs about $4 to make.
There were two main problems to overcome when designing a deck light:
- The Light needs to be held on the deck of the kayak.
- The Light needs to be seen.
To secure the light to the kayak deck, a holder was made from a beverage can, filled with cement. This holds the torch vertically and the weight of the cement lowers the centre of gravity - adding to stability. Some anti-slid mat was glued to to the bottom for added grippy-ness. To further secure the holder, it will be secured to the kayak deck with some duct tape.
The original idea was to make a light reflector from the wire of a champagne bottle top, with the concave bottom of a beer can on top. While this reflected the light well, It didn't defuse the light and so was too bright to look at. The bottle from a spray bottle was found to defuse the light well. It may even mean the light will float should it go into the water.
Supplies
Small water proof Torch ($2)
500ml spray bottle ($1.99)
Aluminium beverage can
Plastic sheet (an old flexible cutting board was used)
Anti-Slip mat (the stuff which grips)
Cloth tape
Insulation tape
Cement
Water
Cut Hole in Can
![20220625_121656.jpg](/proxy/?url=https://content.instructables.com/F8E/E3YL/L4VBNK70/F8EE3YLL4VBNK70.jpg&filename=20220625_121656.jpg)
![20220625_123257.jpg](/proxy/?url=https://content.instructables.com/FNV/HV2L/L4VBNK82/FNVHV2LL4VBNK82.jpg&filename=20220625_123257.jpg)
- Draw a circle, the diameter of the small torch, on top of an aluminium beverage can.
- Cut out the circle - a rotary tool can help with this.
Remove Bottom of Can
![20220625_123324.jpg](/proxy/?url=https://content.instructables.com/FSB/8KNJ/L4VBNKIE/FSB8KNJL4VBNKIE.jpg&filename=20220625_123324.jpg)
![20220625_124357.jpg](/proxy/?url=https://content.instructables.com/FFC/UGM4/L4VBNKJK/FFCUGM4L4VBNKJK.jpg&filename=20220625_124357.jpg)

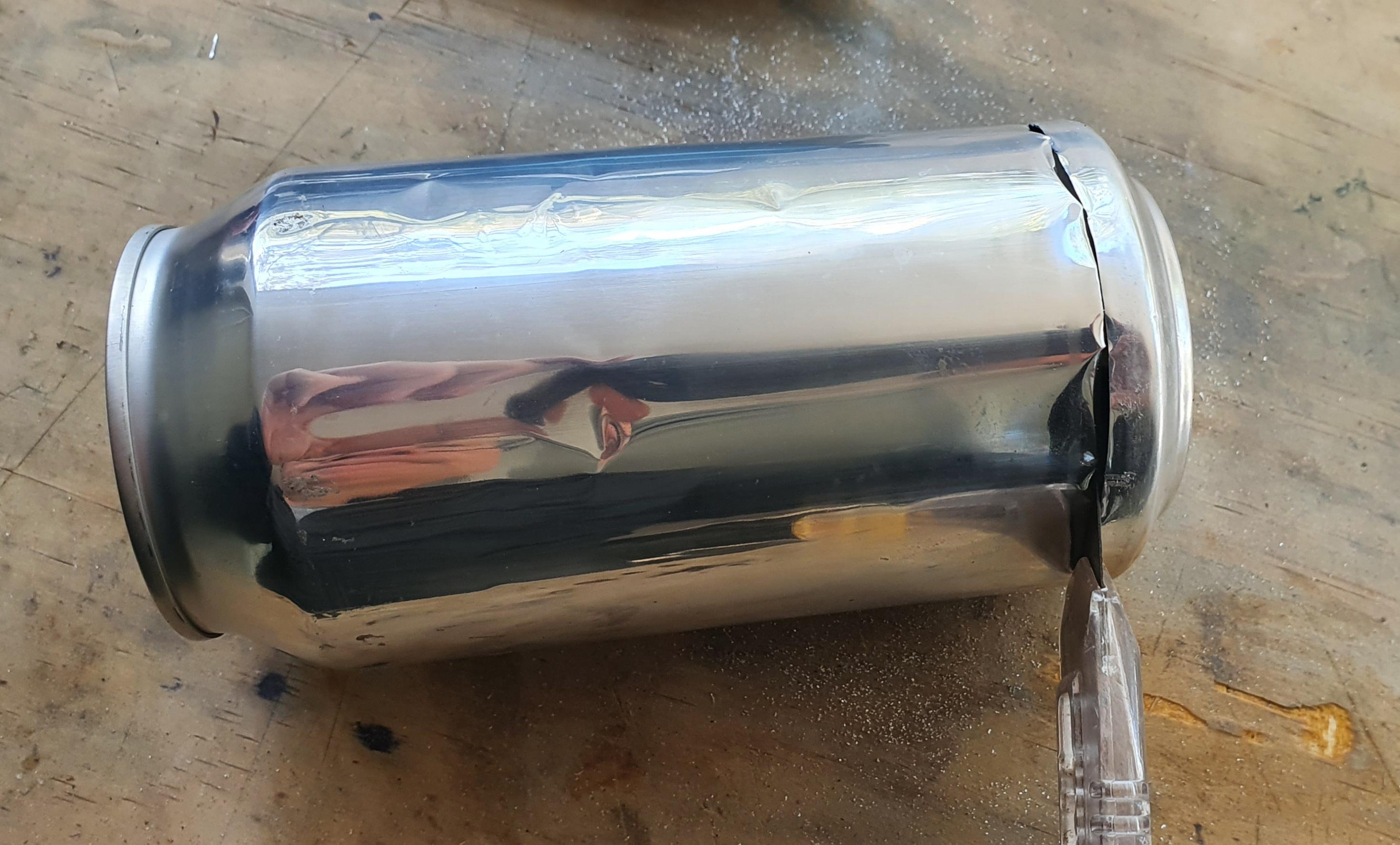

- Remove the bottom of the beverage can using a craft knife and trim with scissors.
- Cut down the sides of the can about halfway, 8 times around the can
Prepare the Can for Cement Pour
![20220625_131659.jpg](/proxy/?url=https://content.instructables.com/FW3/ZNYT/L4VBNJPE/FW3ZNYTL4VBNJPE.jpg&filename=20220625_131659.jpg)
![20220625_132451.jpg](/proxy/?url=https://content.instructables.com/FQJ/X66X/L4VBNJS4/FQJX66XL4VBNJS4.jpg&filename=20220625_132451.jpg)
![20220625_131907.jpg](/proxy/?url=https://content.instructables.com/F7A/NX5V/L4VBNJPC/F7ANX5VL4VBNJPC.jpg&filename=20220625_131907.jpg)
![20220625_132742.jpg](/proxy/?url=https://content.instructables.com/FEO/GMAP/L4VBNJR6/FEOGMAPL4VBNJR6.jpg&filename=20220625_132742.jpg)

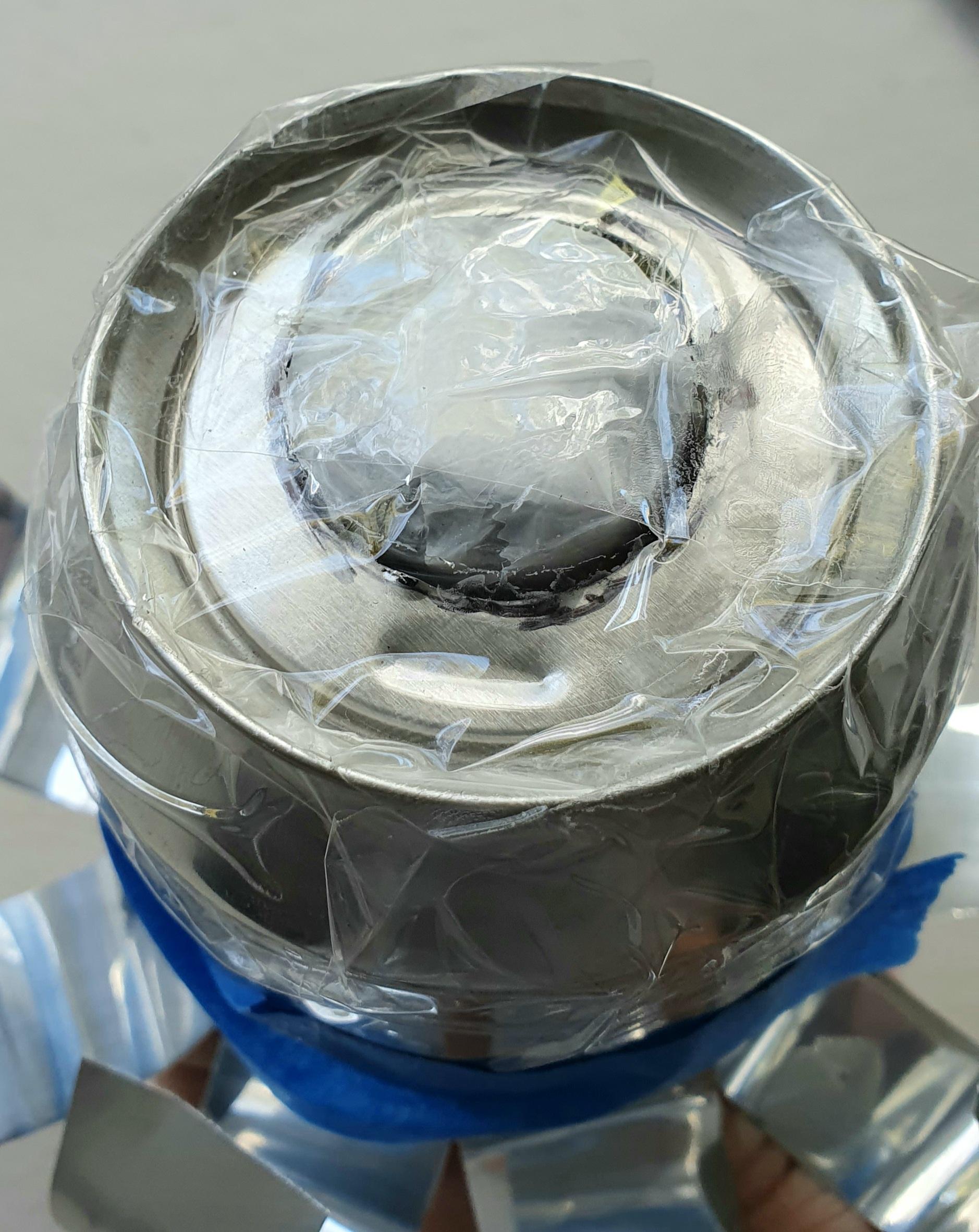

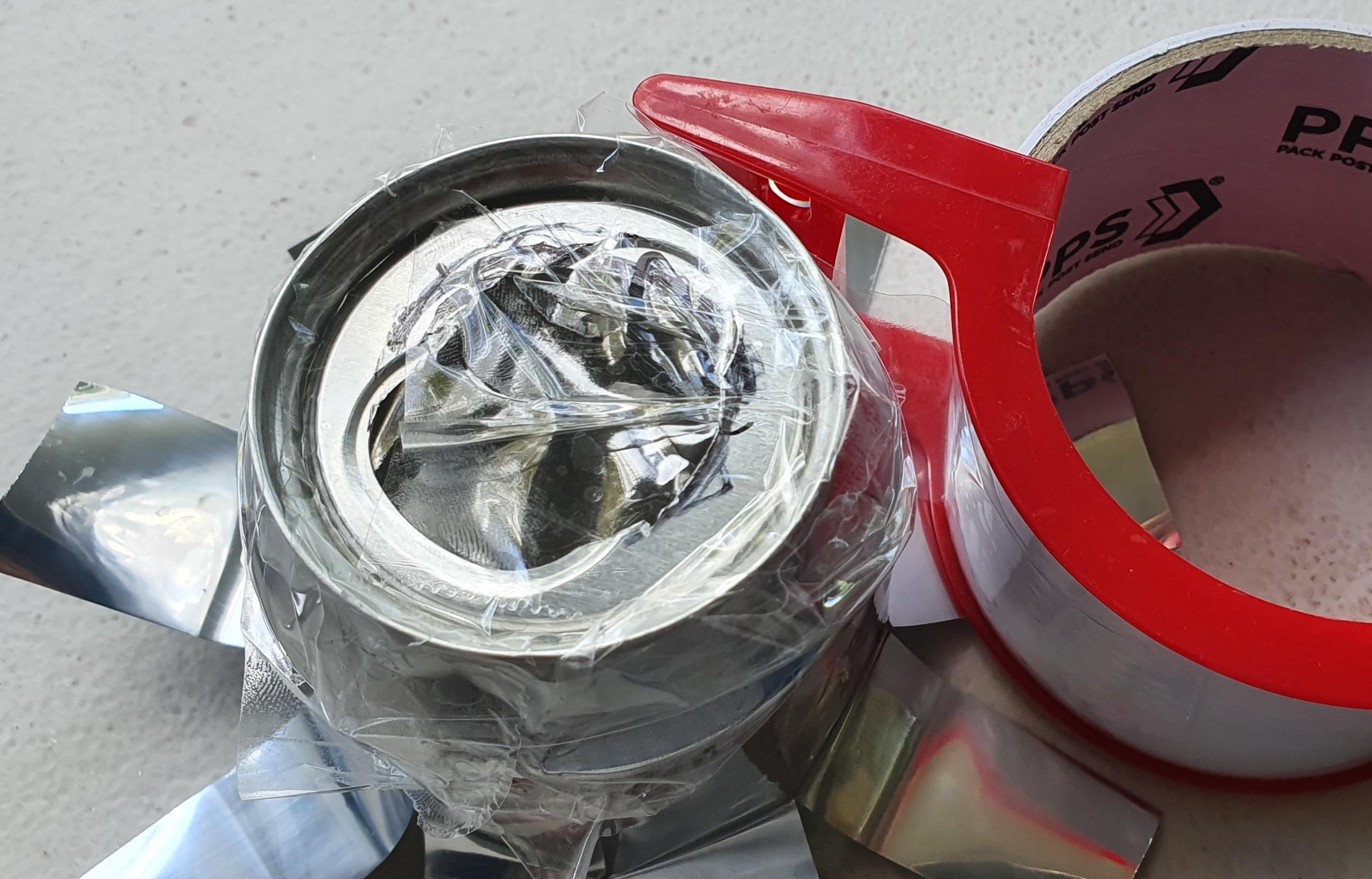

- Place some Sellotape over the hole you made previously.
- Cover the small torch with gladwrap (Cling film) so when the cement is poured it will not stick to it.
- Check the torch will slide out after the cement is poured and set. On one of my holders the torch body came in a bit and a 'persuader' was required to bash it out of the set cement. This could have been avoided by wrapping some tape to make a straight cylinder shape.
- Fold out the previously cut strips from around the can. These will form the base of the holder.
- Stick in the torch into the centre of the can, aligned with the hole.
Cement Pour
![20220625_134437.jpg](/proxy/?url=https://content.instructables.com/FFA/RDPR/L4VBNJYV/FFARDPRL4VBNJYV.jpg&filename=20220625_134437.jpg)
![20220625_134501.jpg](/proxy/?url=https://content.instructables.com/FAK/ONOE/L4VBNJZV/FAKONOEL4VBNJZV.jpg&filename=20220625_134501.jpg)

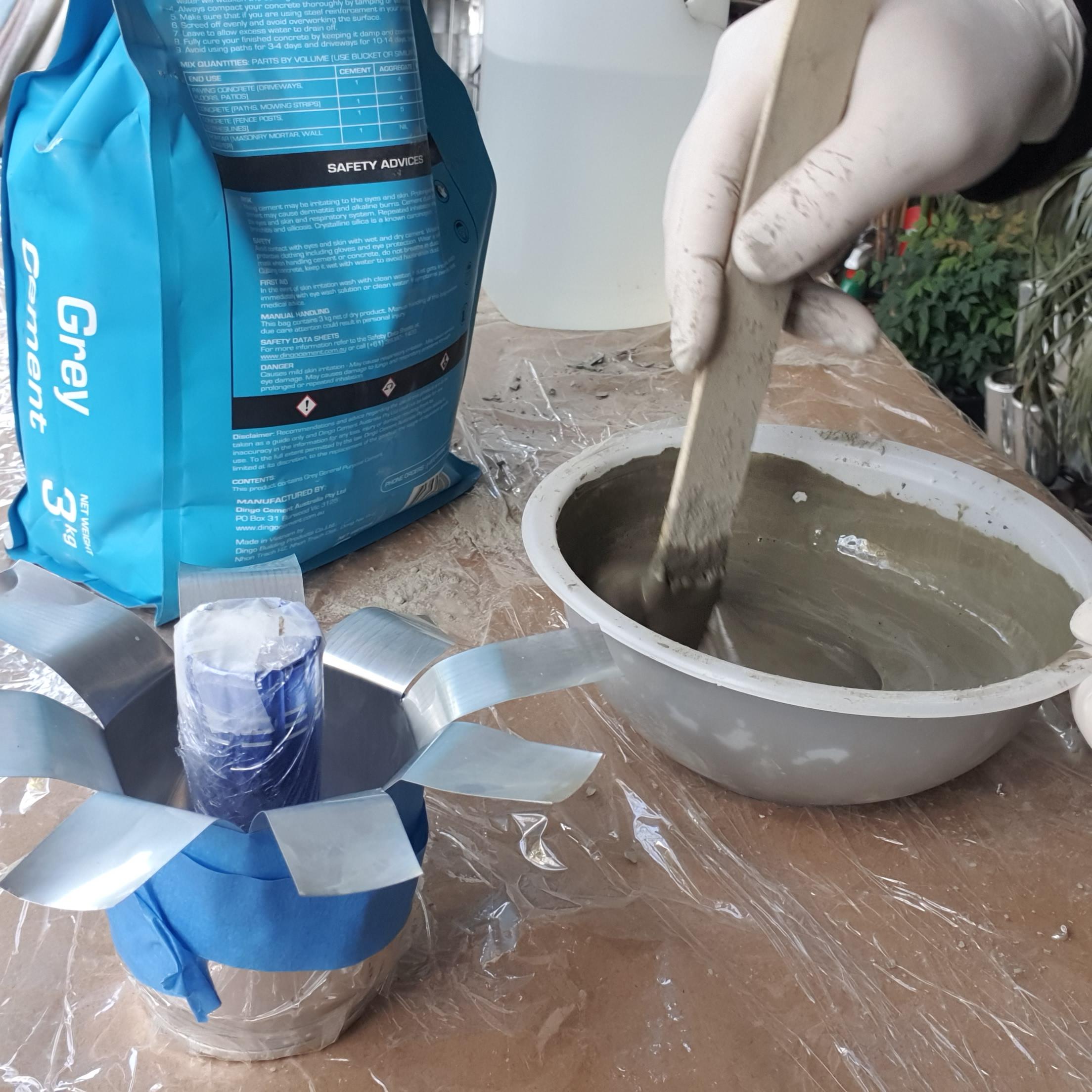

- Mix up some cement and pour around the sides of the torch.
- Use a paint stirrer to jiggle up and down in the cement to remove air bubbles
Allow Cement to Set and Remove Torch
![20220626_104648.jpg](/proxy/?url=https://content.instructables.com/F4L/KJUH/L4VBNJAG/F4LKJUHL4VBNJAG.jpg&filename=20220626_104648.jpg)
![20220626_105121.jpg](/proxy/?url=https://content.instructables.com/F3F/PB45/L4VBNJE7/F3FPB45L4VBNJE7.jpg&filename=20220626_105121.jpg)
- After the cement has set, but is still 'green', remove the torch.
- Place a loop of cloth tape around the base of the holder, next to where the aluminium strips go out.
- Remove any excess cement.
Make Base
![20220627_092833.jpg](/proxy/?url=https://content.instructables.com/FMZ/RNG9/L4VBOB5Q/FMZRNG9L4VBOB5Q.jpg&filename=20220627_092833.jpg)
![20220627_091623.jpg](/proxy/?url=https://content.instructables.com/FEK/5AJV/L4VBOB4B/FEK5AJVL4VBOB4B.jpg&filename=20220627_091623.jpg)
![20220627_093656.jpg](/proxy/?url=https://content.instructables.com/FVB/N1EL/L4VBOB76/FVBN1ELL4VBOB76.jpg&filename=20220627_093656.jpg)
![20220627_093841.jpg](/proxy/?url=https://content.instructables.com/FX4/ZGEL/L4VBOB8N/FX4ZGELL4VBOB8N.jpg&filename=20220627_093841.jpg)
![20220627_150024.jpg](/proxy/?url=https://content.instructables.com/FRW/XMDF/L4Y6KS6W/FRWXMDFL4Y6KS6W.jpg&filename=20220627_150024.jpg)
Finish off making the base:
- Place short strips of cloth tape over the aluminium strips to make a strong, flexible base.
- Draw out a topping base loop on a suitable plastic sheet and cut out. I used a flexible chopping board.
- Glue on some anti-slip matting to the bottom of the base with contact adhesive.
- Glue on the topping loop.
- Cut around the outside to the toping loop to trim the other layers of the base.
Add a Light Defuser
![20220628_124017.jpg](/proxy/?url=https://content.instructables.com/F49/YVPP/L4Y6KSBH/F49YVPPL4Y6KSBH.jpg&filename=20220628_124017.jpg)
![20220628_124711.jpg](/proxy/?url=https://content.instructables.com/FKZ/85UA/L4Y6KSD2/FKZ85UAL4Y6KSD2.jpg&filename=20220628_124711.jpg)
![20220628_140002.jpg](/proxy/?url=https://content.instructables.com/F5J/2LPB/L4Y6KS9X/F5J2LPBL4Y6KS9X.jpg&filename=20220628_140002.jpg)
![20220831_173808.jpg](/proxy/?url=https://content.instructables.com/F0Q/00JO/L7HMQ57J/F0Q00JOL7HMQ57J.jpg&filename=20220831_173808.jpg)
![20220713_173118.jpg](/proxy/?url=https://content.instructables.com/FWL/ZZI3/L5I6TARR/FWLZZI3L5I6TARR.jpg&filename=20220713_173118.jpg)

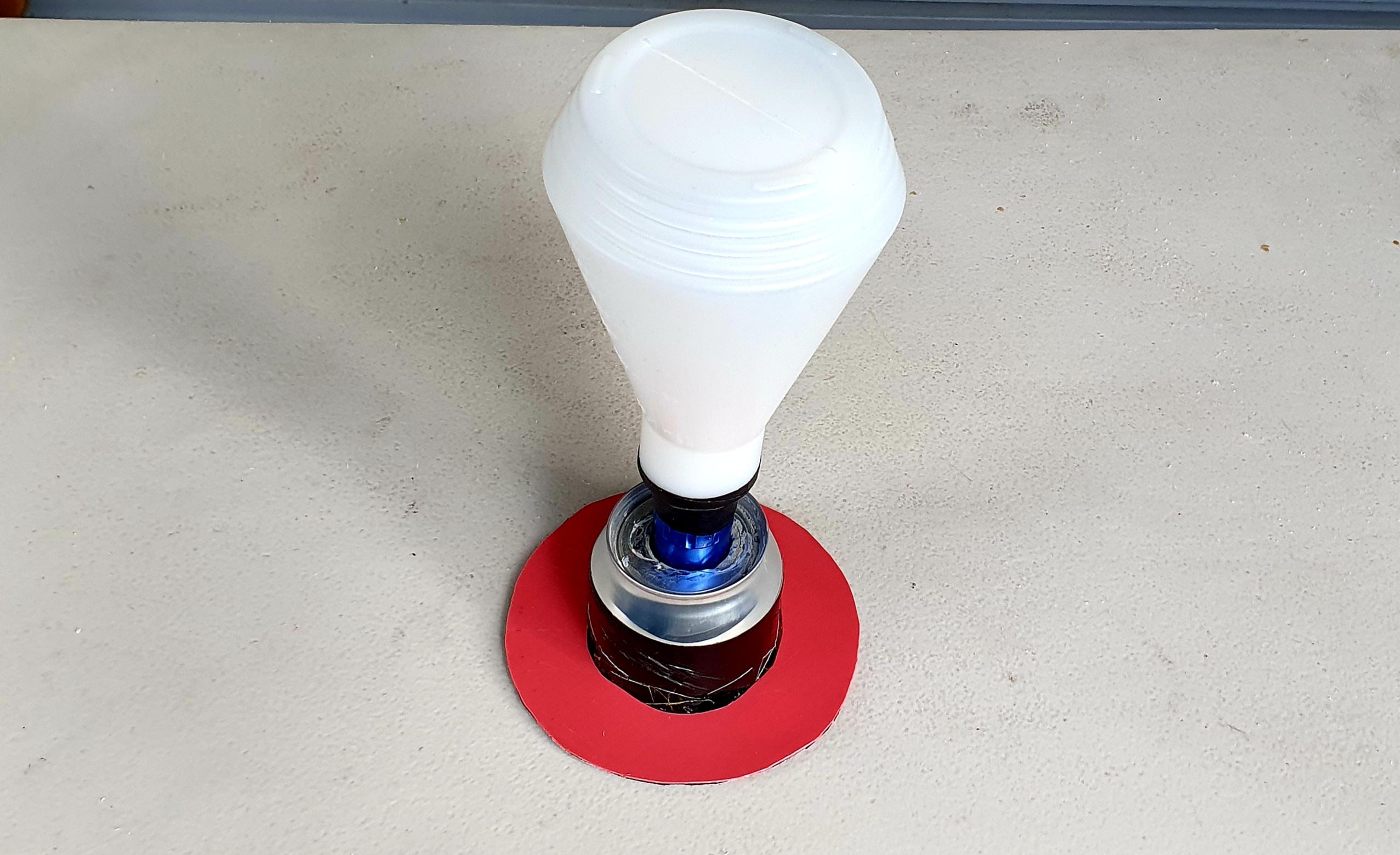

- Cut off the neck of a 500 ml spray bottle, using a hacksaw and enlarge the hole to just fit the torch head. I found a rotary sanding tool was useful for enlarging the hole.
- Insert the top of the torch just into the spray bottle.
- Secure the head of the torch to the bottle with some insulation tape.
- Insert the torch into the base.
- Tape base of the Light holder to the deck of a kayak using duct tape.
