KP Point Welder
![DSC09622.JPG](/proxy/?url=https://content.instructables.com/F9X/WLPK/HS0D8RZ2/F9XWLPKHS0D8RZ2.jpg&filename=DSC09622.JPG)
![DSC09207.JPG](/proxy/?url=https://content.instructables.com/FZY/EU78/HS0D8RYK/FZYEU78HS0D8RYK.jpg&filename=DSC09207.JPG)
![DSC09208.JPG](/proxy/?url=https://content.instructables.com/FT2/6GFC/HS0D8RYP/FT26GFCHS0D8RYP.jpg&filename=DSC09208.JPG)
![DSC09209.JPG](/proxy/?url=https://content.instructables.com/F5C/JUI3/HS0D8RYQ/F5CJUI3HS0D8RYQ.jpg&filename=DSC09209.JPG)
![DSC09210.JPG](/proxy/?url=https://content.instructables.com/FH2/95AD/HS0D8RYW/FH295ADHS0D8RYW.jpg&filename=DSC09210.JPG)
![DSC09211.JPG](/proxy/?url=https://content.instructables.com/F6M/X0M8/HS0D8RYX/F6MX0M8HS0D8RYX.jpg&filename=DSC09211.JPG)

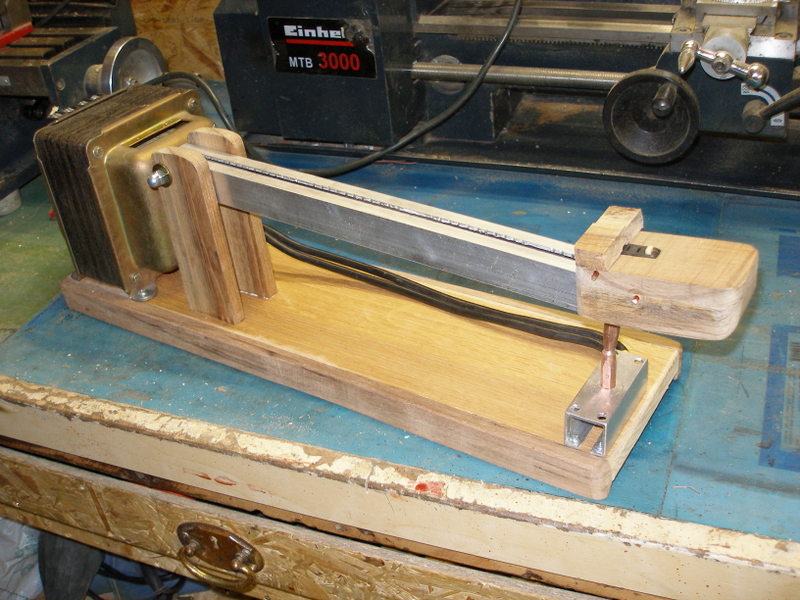

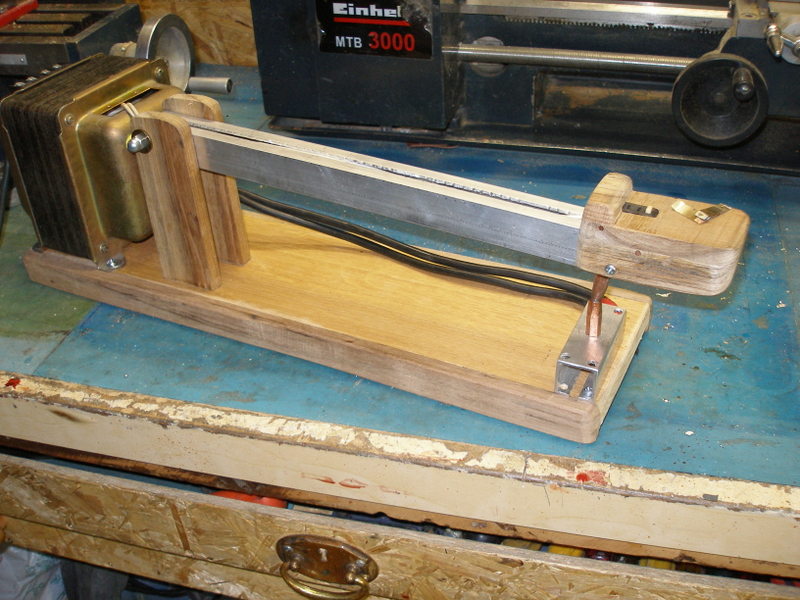

This a story is about how I made a point welding transformer.

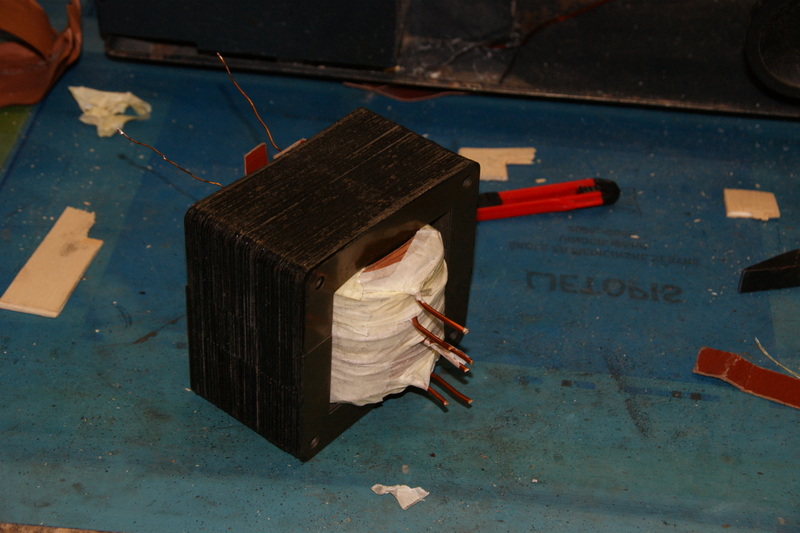

I found an old E-form, 220/24V transformer which had as secondary winding a wire 3mm in diameter. The idea was to replace that with a different winding.

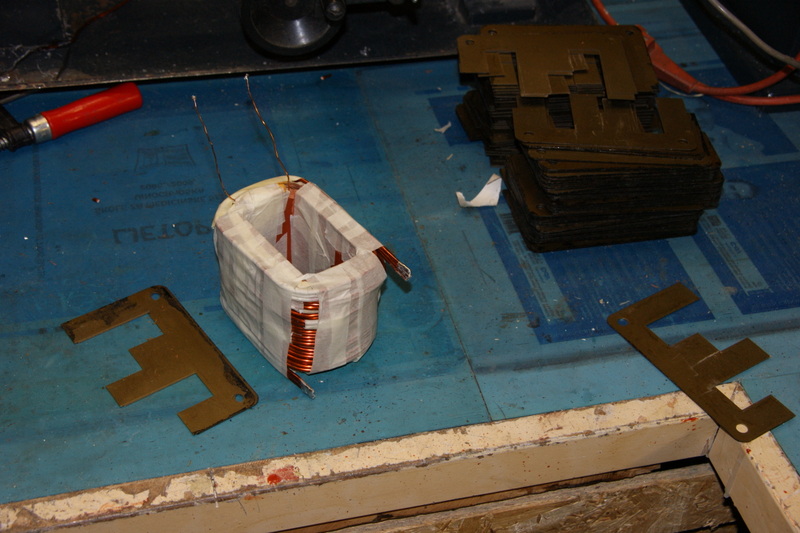

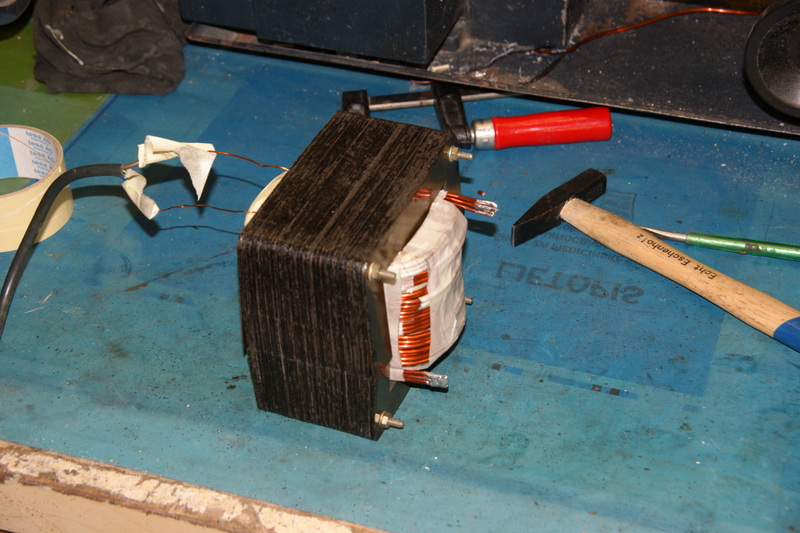

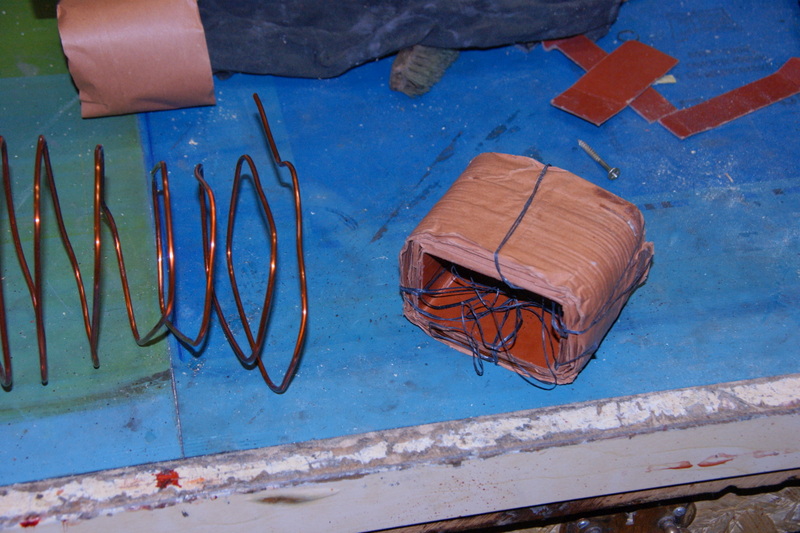

Disassembling was easy. First, I tried to get a smaller number of windings on secondary and test if I can get greater amp output and lower voltage. I read somewhere that voltage in this form of welding should be from 1.5V up to 6V and amps as much as possible.
Rewiring the Old Transformer
![DSC09241.JPG](/proxy/?url=https://content.instructables.com/F8X/YKFV/HS0D8S25/F8XYKFVHS0D8S25.jpg&filename=DSC09241.JPG)
![DSC09243.JPG](/proxy/?url=https://content.instructables.com/F60/W0BQ/HS0D8S26/F60W0BQHS0D8S26.jpg&filename=DSC09243.JPG)
![DSC09244.JPG](/proxy/?url=https://content.instructables.com/F95/RX1G/HS0D8S27/F95RX1GHS0D8S27.jpg&filename=DSC09244.JPG)
![DSC09245.JPG](/proxy/?url=https://content.instructables.com/F3T/4IB7/HS0D8S29/F3T4IB7HS0D8S29.jpg&filename=DSC09245.JPG)
![DSC09246.JPG](/proxy/?url=https://content.instructables.com/F9I/D1XB/HS0D8S2H/F9ID1XBHS0D8S2H.jpg&filename=DSC09246.JPG)
![DSC09247.JPG](/proxy/?url=https://content.instructables.com/FFG/QQ4V/HS0D8S2V/FFGQQ4VHS0D8S2V.jpg&filename=DSC09247.JPG)
![DSC09248.JPG](/proxy/?url=https://content.instructables.com/F1C/X5WX/HS0D8S2W/F1CX5WXHS0D8S2W.jpg&filename=DSC09248.JPG)
![DSC09249.JPG](/proxy/?url=https://content.instructables.com/FFU/GU1C/HS0D8S2Z/FFUGU1CHS0D8S2Z.jpg&filename=DSC09249.JPG)
![DSC09250.JPG](/proxy/?url=https://content.instructables.com/FEF/6CET/HS0D8S30/FEF6CETHS0D8S30.jpg&filename=DSC09250.JPG)
![DSC09251.JPG](/proxy/?url=https://content.instructables.com/FUP/D3X5/HS0D8S31/FUPD3X5HS0D8S31.jpg&filename=DSC09251.JPG)
![DSC09252.JPG](/proxy/?url=https://content.instructables.com/FI4/GRLI/HS0D8S32/FI4GRLIHS0D8S32.jpg&filename=DSC09252.JPG)
![DSC09253.JPG](/proxy/?url=https://content.instructables.com/FWL/2GMS/HS0D8S33/FWL2GMSHS0D8S33.jpg&filename=DSC09253.JPG)

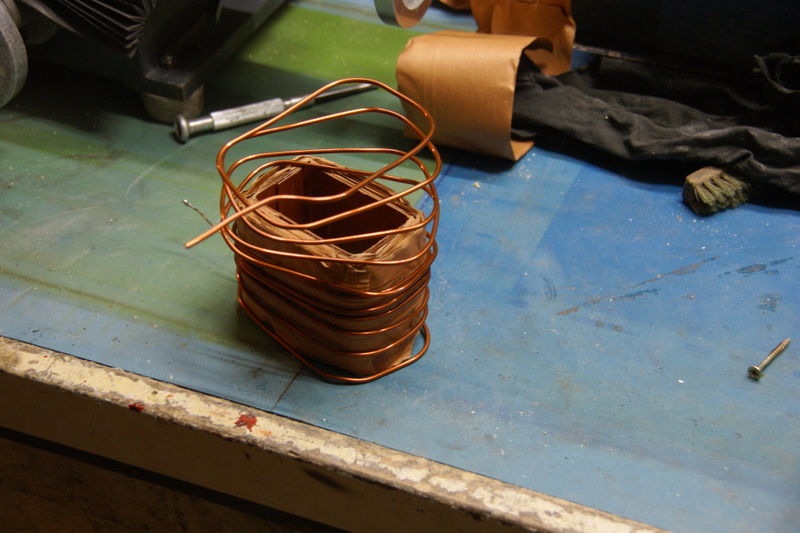

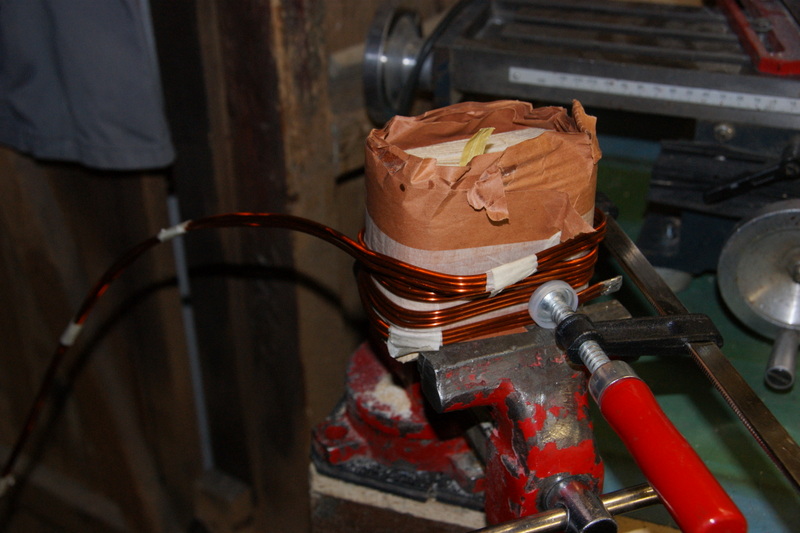

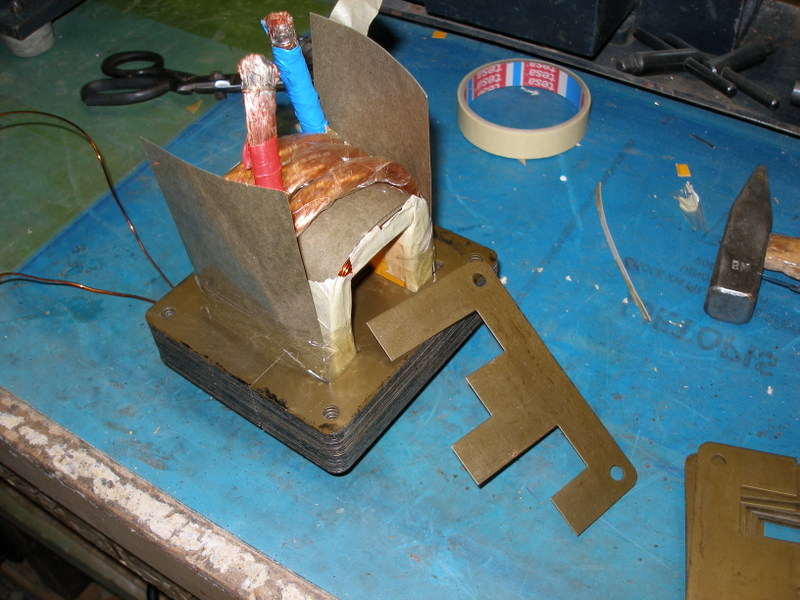

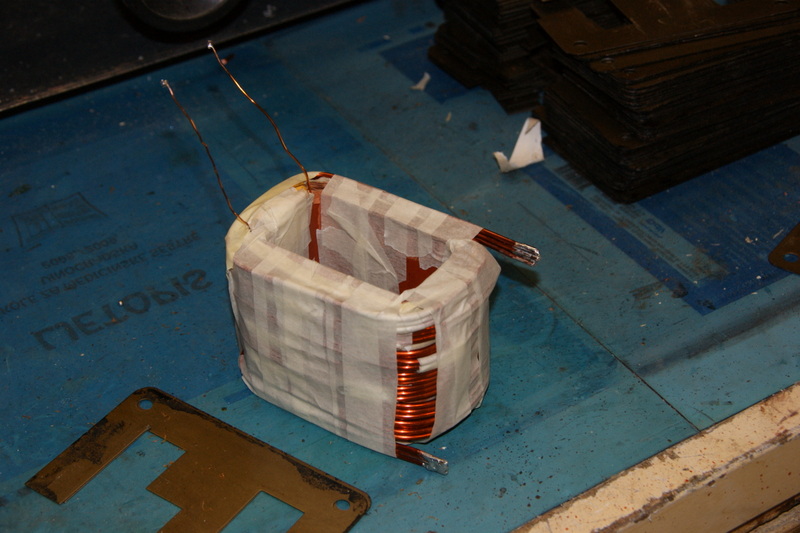

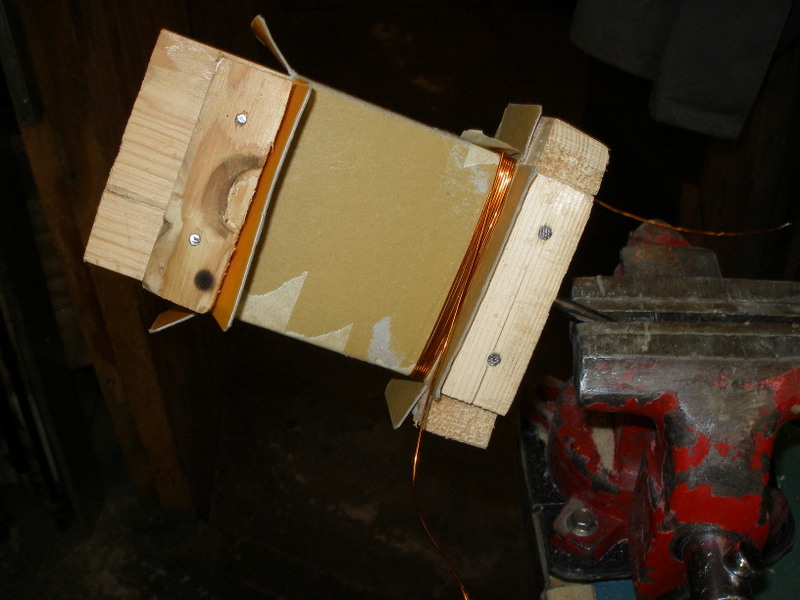

I made a wooden mold to help hold the old primary winding. Using the old secondary copper wire (3mm dia) I wound a double parallel winding over existing primary coil. This gave me about 6V on secondary side and test showed that it was not enough power to melt 1 mm steel wire. Additionally the transformer became very hot very fast.
Triple Parallel Winding
![DSC09256.JPG](/proxy/?url=https://content.instructables.com/FQB/O1LE/HS0D8S7J/FQBO1LEHS0D8S7J.jpg&filename=DSC09256.JPG)
![P2210002-001.JPG](/proxy/?url=https://content.instructables.com/FMU/XRVF/HS0D8S4D/FMUXRVFHS0D8S4D.jpg&filename=P2210002-001.JPG)
![P2210003-001.JPG](/proxy/?url=https://content.instructables.com/FNC/QTQF/HS0D8S4E/FNCQTQFHS0D8S4E.jpg&filename=P2210003-001.JPG)
![P2210004.JPG](/proxy/?url=https://content.instructables.com/FP6/YZS4/HS0D8S4F/FP6YZS4HS0D8S4F.jpg&filename=P2210004.JPG)
![P2210004-001.JPG](/proxy/?url=https://content.instructables.com/FD6/N133/HS0D8S4G/FD6N133HS0D8S4G.jpg&filename=P2210004-001.JPG)
![DSC09262.JPG](/proxy/?url=https://content.instructables.com/FPV/E43D/HS0D8S75/FPVE43DHS0D8S75.jpg&filename=DSC09262.JPG)
![DSC09261.JPG](/proxy/?url=https://content.instructables.com/FN1/TFJ3/HS0D8S7B/FN1TFJ3HS0D8S7B.jpg&filename=DSC09261.JPG)
![DSC09260.JPG](/proxy/?url=https://content.instructables.com/F68/KY7K/HS0D8S7C/F68KY7KHS0D8S7C.jpg&filename=DSC09260.JPG)
![DSC09259.JPG](/proxy/?url=https://content.instructables.com/FIB/7OCC/HS0D8S7F/FIB7OCCHS0D8S7F.jpg&filename=DSC09259.JPG)
![DSC09258.JPG](/proxy/?url=https://content.instructables.com/FQF/6D3H/HS0D8S7G/FQF6D3HHS0D8S7G.jpg&filename=DSC09258.JPG)
![DSC09257.JPG](/proxy/?url=https://content.instructables.com/FLS/LNTP/HS0D8S7I/FLSLNTPHS0D8S7I.jpg&filename=DSC09257.JPG)
![DSC09255.JPG](/proxy/?url=https://content.instructables.com/FNH/KMNH/HS0D8S7K/FNHKMNHHS0D8S7K.jpg&filename=DSC09255.JPG)

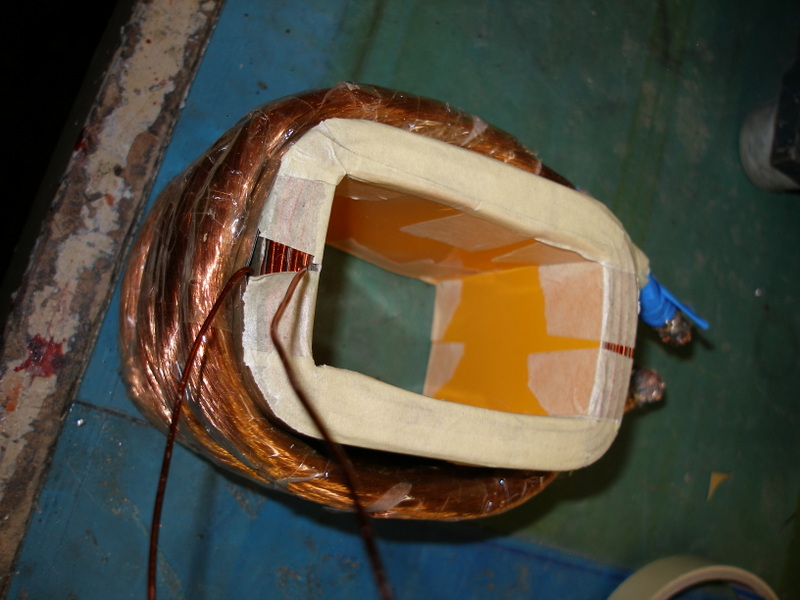

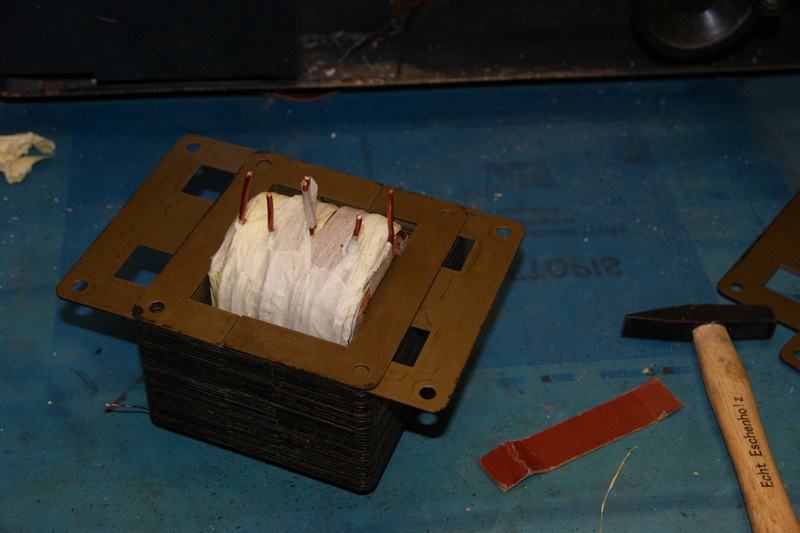

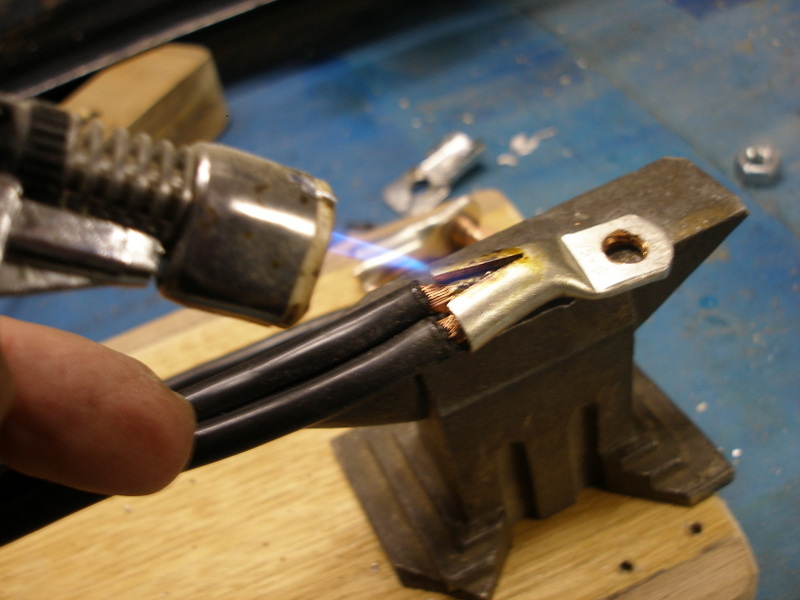

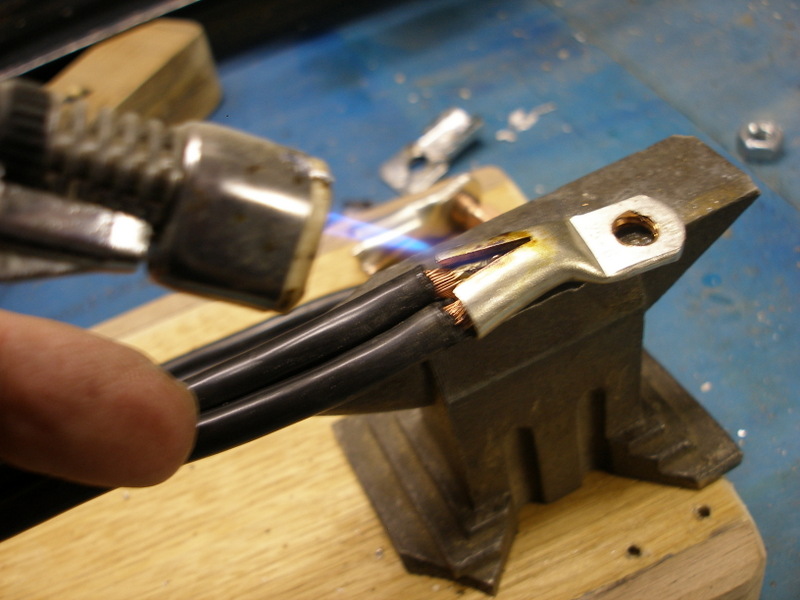

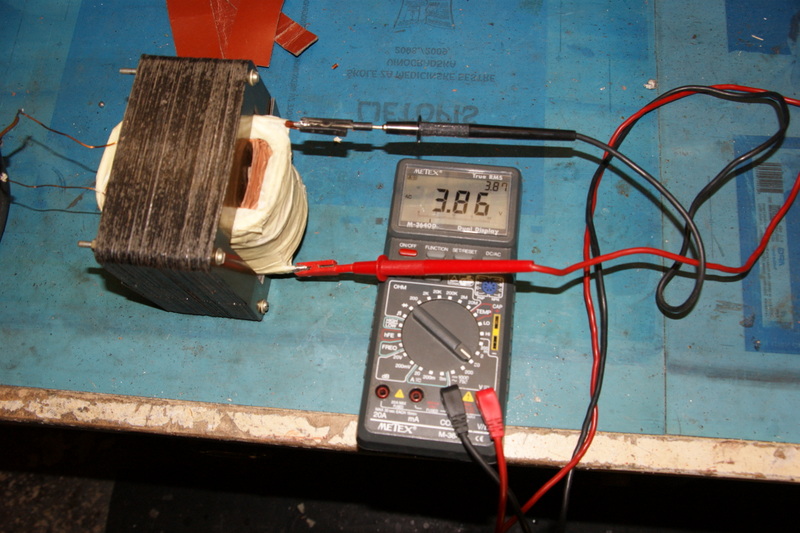

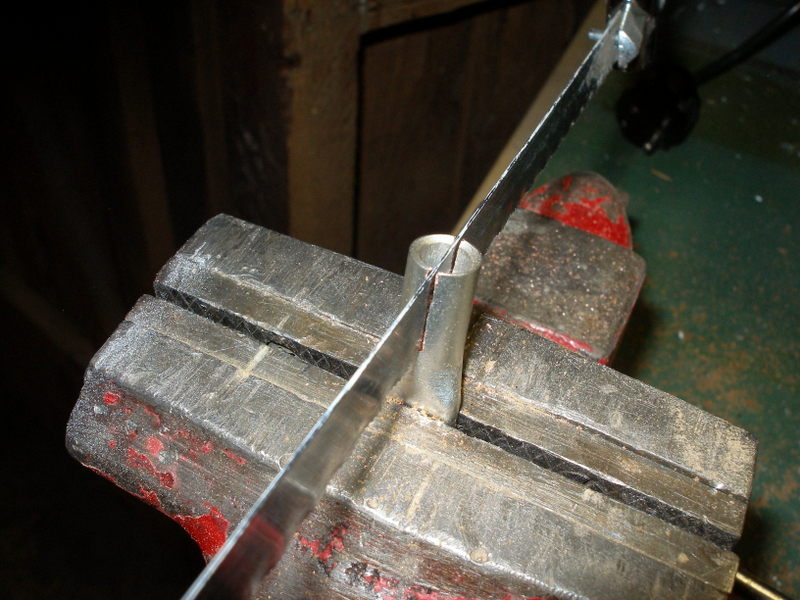

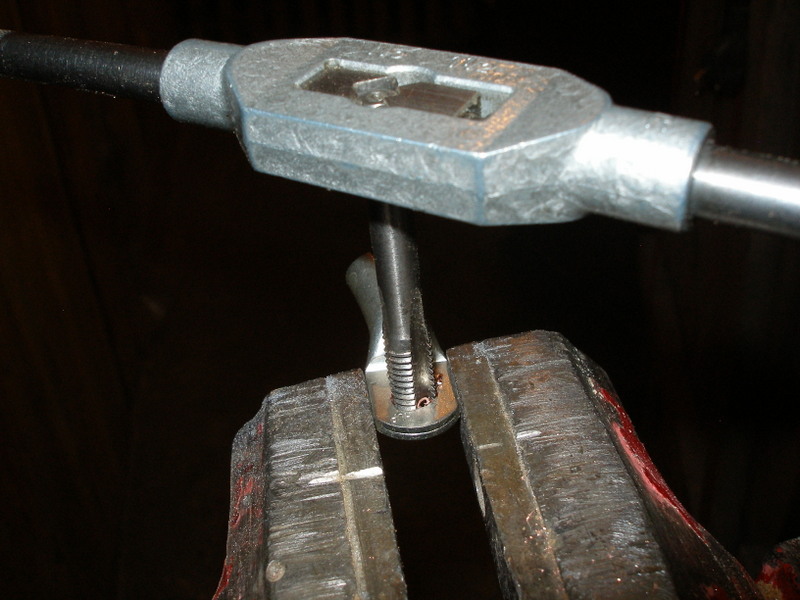

I tried the same trick but used 3 wires parallel which is equivalent to 21 square mm. Voltage measured 3,84 V on secondary side. I started to assemble all the parts on a board and I started to make end copper connections. I was sure that I got what I wanted from the beginning - Dear Murphy!
Still It was not enough amps.
Test Board Misc.
![P2210004.JPG](/proxy/?url=https://content.instructables.com/FAW/0CUN/HS0D8S9D/FAW0CUNHS0D8S9D.jpg&filename=P2210004.JPG)
![P2210004-001.JPG](/proxy/?url=https://content.instructables.com/FJR/PM62/HS0D8S9F/FJRPM62HS0D8S9F.jpg&filename=P2210004-001.JPG)
![P2210007.JPG](/proxy/?url=https://content.instructables.com/FMH/HRO6/HS0D8S9M/FMHHRO6HS0D8S9M.jpg&filename=P2210007.JPG)
![P2210005.JPG](/proxy/?url=https://content.instructables.com/FDP/239D/HS0D8S9J/FDP239DHS0D8S9J.jpg&filename=P2210005.JPG)
![P2210008.JPG](/proxy/?url=https://content.instructables.com/F3T/3AV2/HS0D8S9N/F3T3AV2HS0D8S9N.jpg&filename=P2210008.JPG)
![P2210009.JPG](/proxy/?url=https://content.instructables.com/FJA/RZ27/HS0D8S9O/FJARZ27HS0D8S9O.jpg&filename=P2210009.JPG)
![P2220001.JPG](/proxy/?url=https://content.instructables.com/FWU/NSN9/HS0D8S9P/FWUNSN9HS0D8S9P.jpg&filename=P2220001.JPG)
![P2220002.JPG](/proxy/?url=https://content.instructables.com/FC1/2VHH/HS0D8S9Q/FC12VHHHS0D8S9Q.jpg&filename=P2220002.JPG)
![P2220007.JPG](/proxy/?url=https://content.instructables.com/F2E/10Q3/HS0D8S9R/F2E10Q3HS0D8S9R.jpg&filename=P2220007.JPG)
![P2220008.JPG](/proxy/?url=https://content.instructables.com/FHU/VJ8X/HS0D8S9S/FHUVJ8XHS0D8S9S.jpg&filename=P2220008.JPG)
![P2220009.JPG](/proxy/?url=https://content.instructables.com/FTK/N8JM/HS0D8S9V/FTKN8JMHS0D8S9V.jpg&filename=P2220009.JPG)
![P2220010.JPG](/proxy/?url=https://content.instructables.com/FG0/KZ5S/HS0D8S9X/FG0KZ5SHS0D8S9X.jpg&filename=P2220010.JPG)
![P2220011.JPG](/proxy/?url=https://content.instructables.com/F4L/FKH8/HS0D8S9Z/F4LFKH8HS0D8S9Z.jpg&filename=P2220011.JPG)

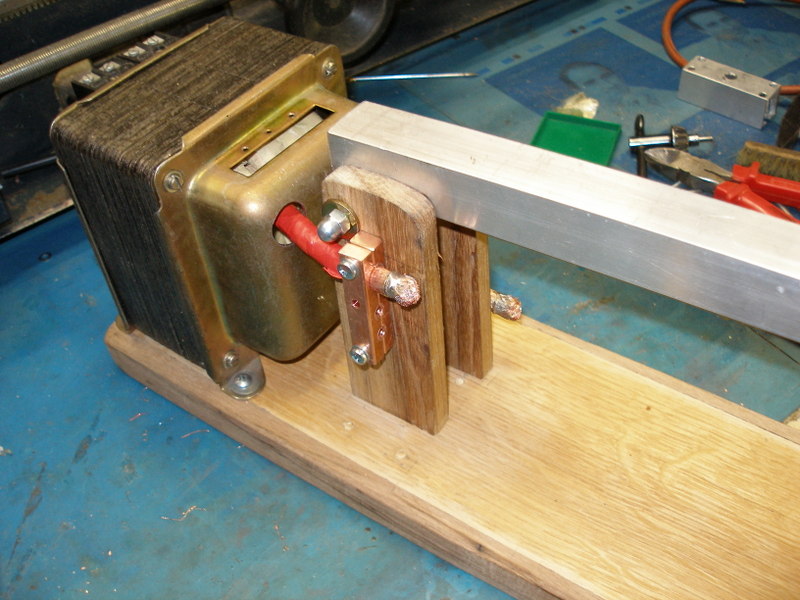

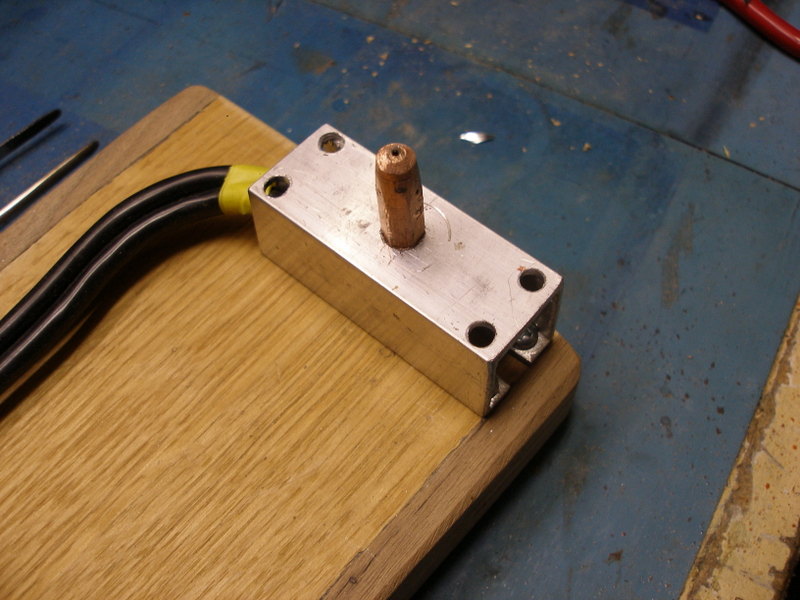

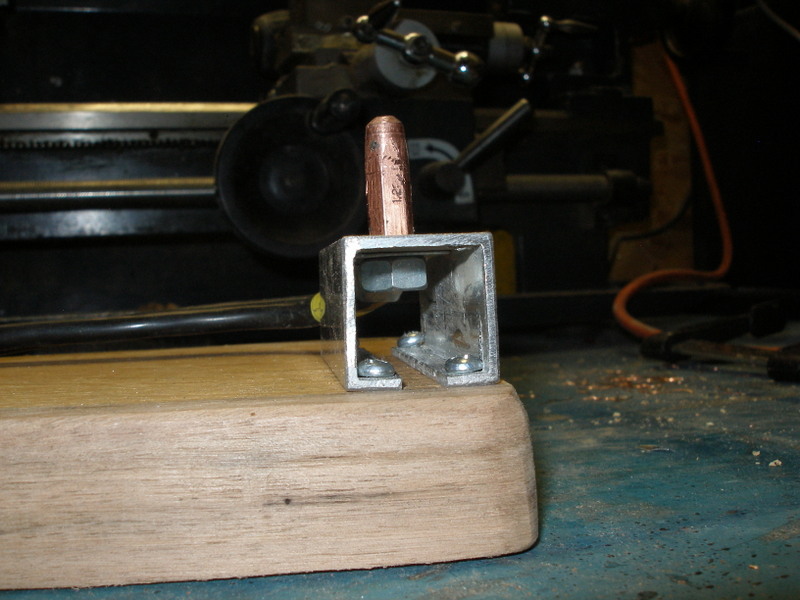

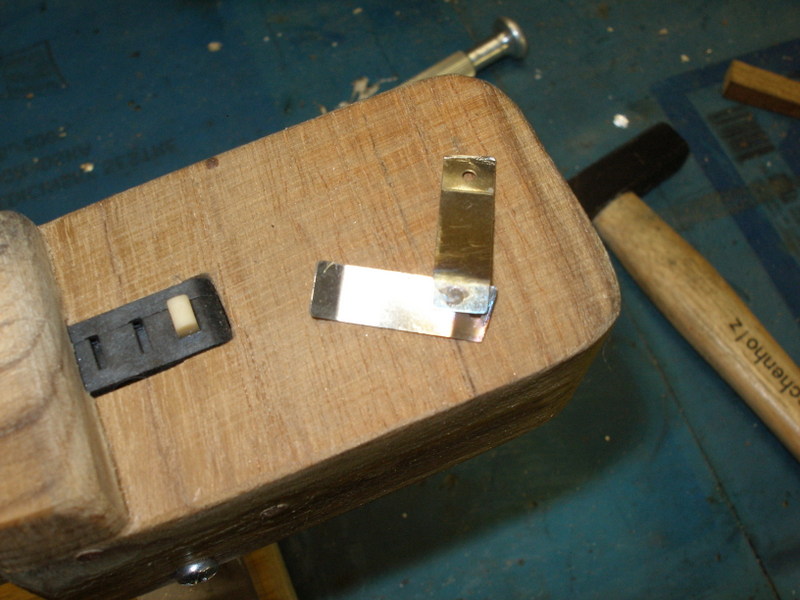

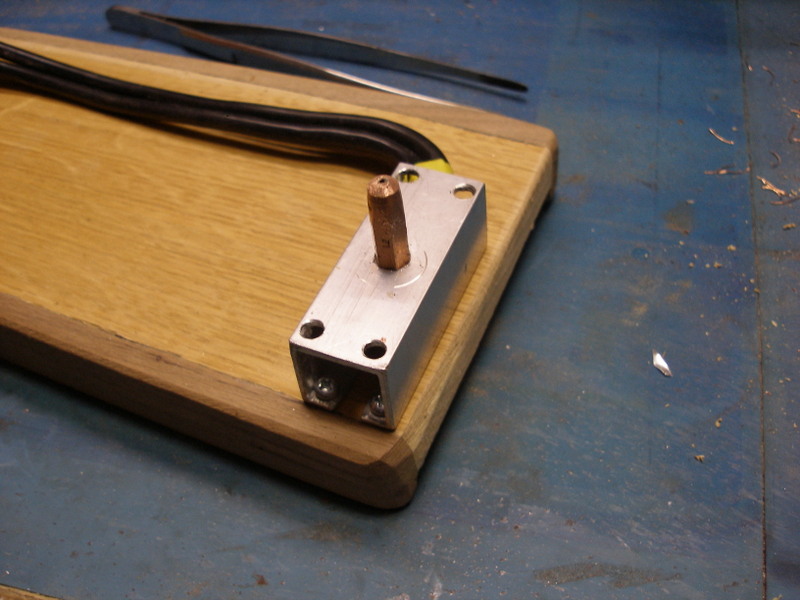

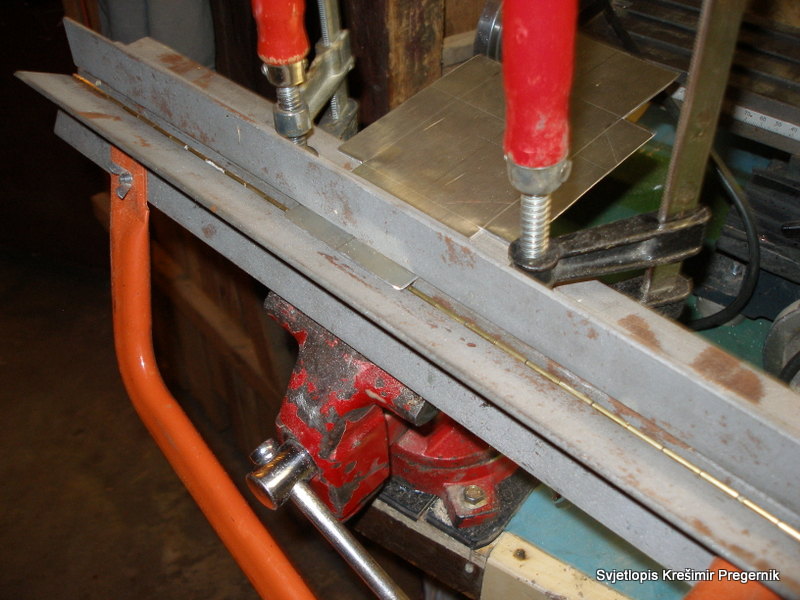

I made a simple construction (test board) to find out how this work. Micro switch was inserted on the top level in a small walnut wooden box (lacquer comes later). Lower electrode was mounted on a aluminium square rod.
A/mm2
![P2260008.JPG](/proxy/?url=https://content.instructables.com/FF7/7T1D/HS0D8SCA/FF77T1DHS0D8SCA.jpg&filename=P2260008.JPG)
![P1010001.JPG](/proxy/?url=https://content.instructables.com/FBR/FX2P/HS0D8SBJ/FBRFX2PHS0D8SBJ.jpg&filename=P1010001.JPG)
![P1010001-001.JPG](/proxy/?url=https://content.instructables.com/FXM/RZOU/HS0D8SBK/FXMRZOUHS0D8SBK.jpg&filename=P1010001-001.JPG)
![P1010003-001.JPG](/proxy/?url=https://content.instructables.com/FYN/GN8D/HS0D8SBP/FYNGN8DHS0D8SBP.jpg&filename=P1010003-001.JPG)
![P1010003-002.JPG](/proxy/?url=https://content.instructables.com/FV8/KBD7/HS0D8SBQ/FV8KBD7HS0D8SBQ.jpg&filename=P1010003-002.JPG)
![P1010005.JPG](/proxy/?url=https://content.instructables.com/F3I/GHXQ/HS0D8SBS/F3IGHXQHS0D8SBS.jpg&filename=P1010005.JPG)
![P1010006-001.JPG](/proxy/?url=https://content.instructables.com/FNQ/B1Z7/HS0D8SBT/FNQB1Z7HS0D8SBT.jpg&filename=P1010006-001.JPG)
![P1010007.JPG](/proxy/?url=https://content.instructables.com/FI4/C03W/HS0D8SBW/FI4C03WHS0D8SBW.jpg&filename=P1010007.JPG)
![P1010007-001.JPG](/proxy/?url=https://content.instructables.com/FTT/5DLO/HS0D8SBX/FTT5DLOHS0D8SBX.jpg&filename=P1010007-001.JPG)
![P1010008.JPG](/proxy/?url=https://content.instructables.com/FPF/B5ZK/HS0D8SBZ/FPFB5ZKHS0D8SBZ.jpg&filename=P1010008.JPG)
![P1010013.JPG](/proxy/?url=https://content.instructables.com/FTL/4CF8/HS0D8SC6/FTL4CF8HS0D8SC6.jpg&filename=P1010013.JPG)
![P1010014.JPG](/proxy/?url=https://content.instructables.com/F15/BPMZ/HS0D8SC9/F15BPMZHS0D8SC9.jpg&filename=P1010014.JPG)
![P2260010.JPG](/proxy/?url=https://content.instructables.com/FYV/EWVP/HS0D8SCD/FYVEWVPHS0D8SCD.jpg&filename=P2260010.JPG)
![P3040004.JPG](/proxy/?url=https://content.instructables.com/FXB/9NRU/HS0D8SCF/FXB9NRUHS0D8SCF.jpg&filename=P3040004.JPG)
![P3040005.JPG](/proxy/?url=https://content.instructables.com/F3X/X0G9/HS0D8SCI/F3XX0G9HS0D8SCI.jpg&filename=P3040005.JPG)
![P3040006.JPG](/proxy/?url=https://content.instructables.com/F92/RFOC/HS0D8SCJ/F92RFOCHS0D8SCJ.jpg&filename=P3040006.JPG)
![P3040007.JPG](/proxy/?url=https://content.instructables.com/FDY/99CH/HS0D8SCK/FDY99CHHS0D8SCK.jpg&filename=P3040007.JPG)
![P3040010.JPG](/proxy/?url=https://content.instructables.com/FID/6T46/HS0D8SCO/FID6T46HS0D8SCO.jpg&filename=P3040010.JPG)
![P3040014.JPG](/proxy/?url=https://content.instructables.com/FM9/JS4Z/HS0D8SCP/FM9JS4ZHS0D8SCP.jpg&filename=P3040014.JPG)
![P3040015.JPG](/proxy/?url=https://content.instructables.com/F4J/8VXE/HS0D8SCV/F4J8VXEHS0D8SCV.jpg&filename=P3040015.JPG)

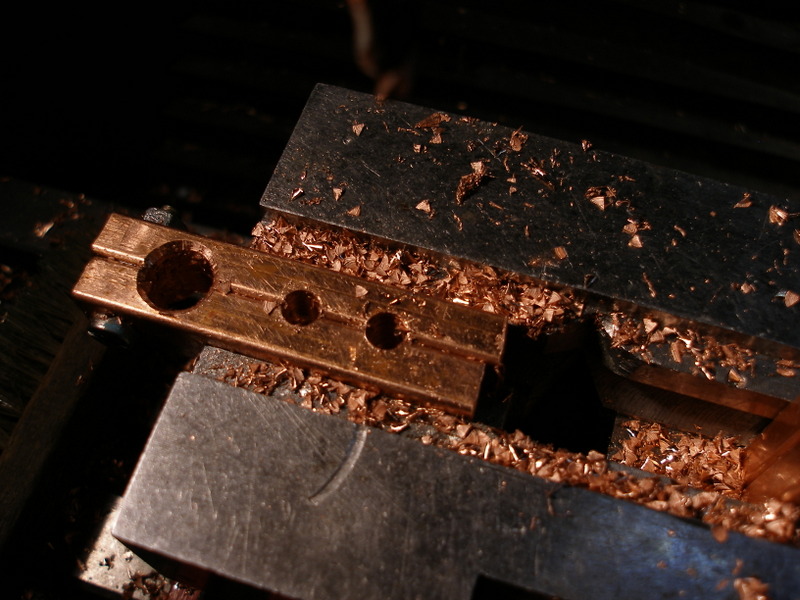

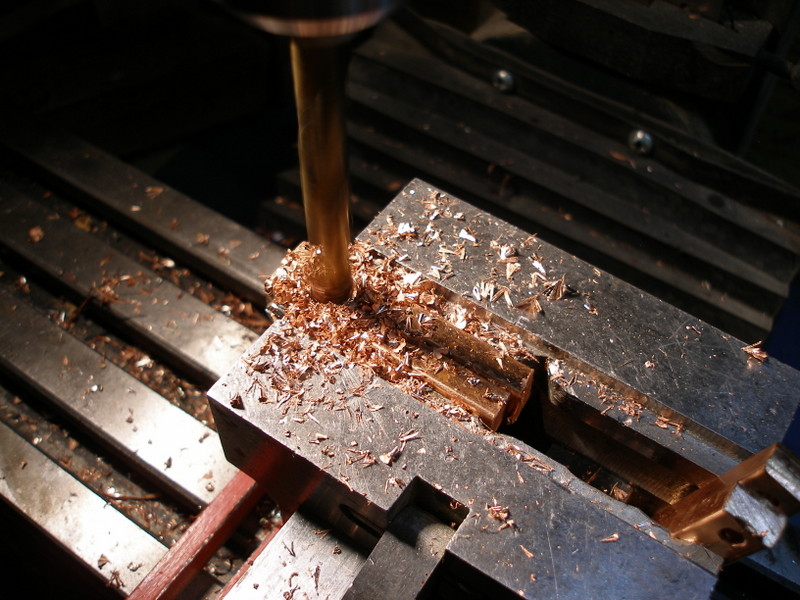

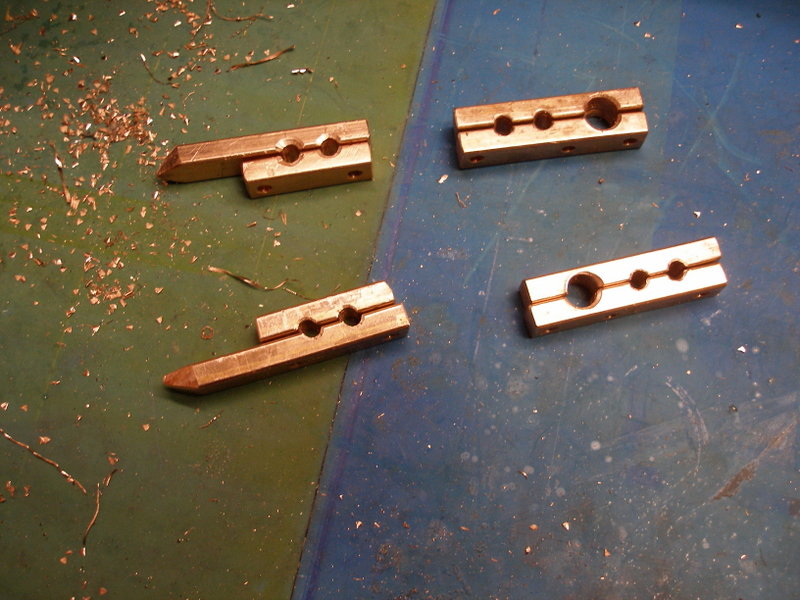

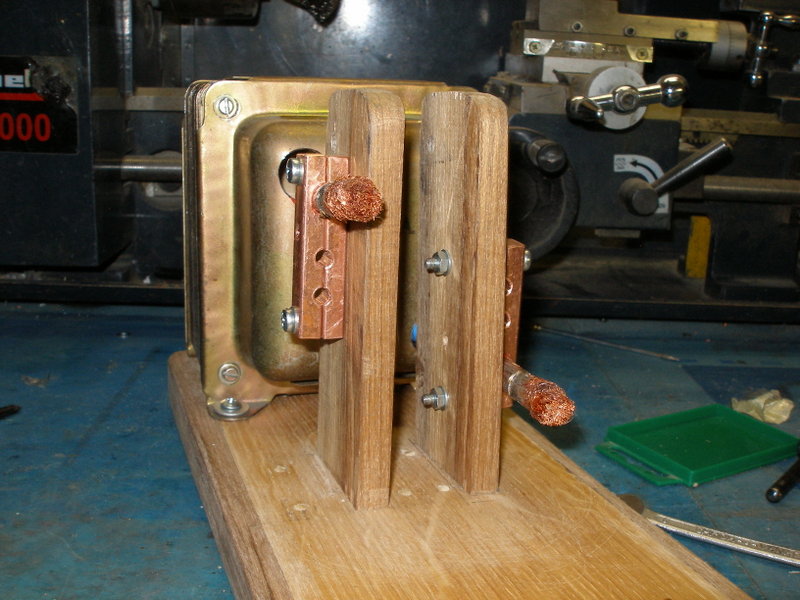

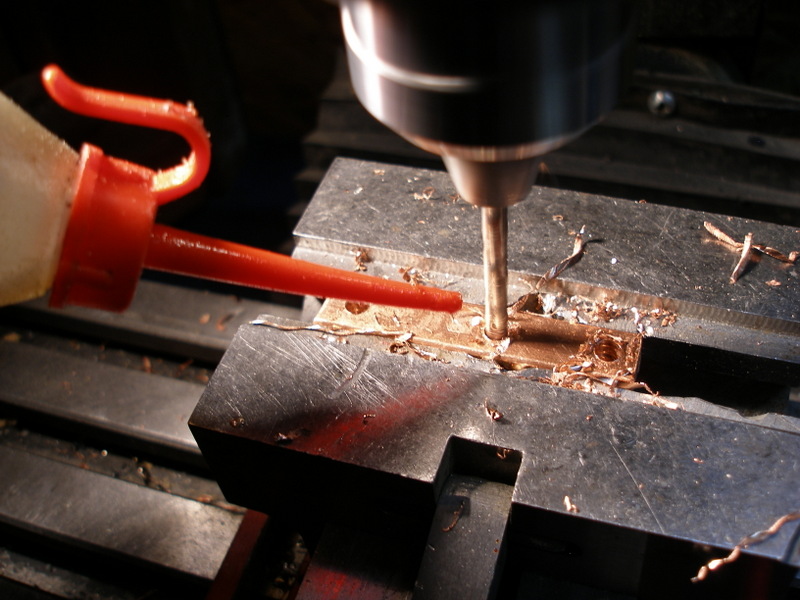

Finally, I bought a length of 60 mm2 copper wire, removed the insulation and got a smaller diameter. I wrapped this wire with common thin scotch tape. The goal was to put 4 windings in transformer. Insulation was ok because between each loop is max 0.7V. In the end I got 2,54 V at the terminals and hopefully plenty of amps. I finished the new copper terminals for the secondary winding as well.
All this was finished after I went back to read, study and learn from the beginning (see step 7).
Repetitio mater studiorum est!
Succes!
![P2220012.JPG](/proxy/?url=https://content.instructables.com/FXH/G6NN/HS0D8SH2/FXHG6NNHS0D8SH2.jpg&filename=P2220012.JPG)
![P1010012.JPG](/proxy/?url=https://content.instructables.com/FOL/8FAN/HS0D8SGY/FOL8FANHS0D8SGY.jpg&filename=P1010012.JPG)
![P2210002-001.JPG](/proxy/?url=https://content.instructables.com/FIT/NCTK/HS0D8SH1/FITNCTKHS0D8SH1.jpg&filename=P2210002-001.JPG)
![P2220013.JPG](/proxy/?url=https://content.instructables.com/FXV/KY5L/HS0D8SH3/FXVKY5LHS0D8SH3.jpg&filename=P2220013.JPG)

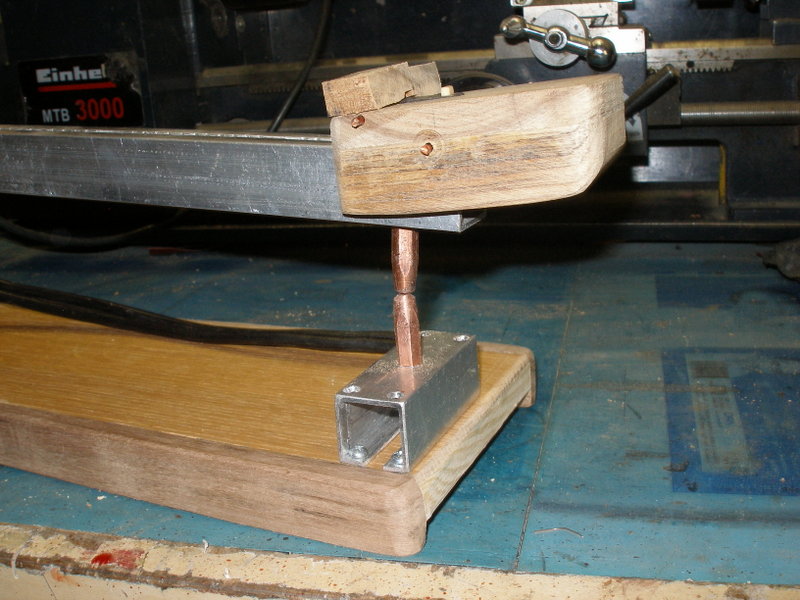

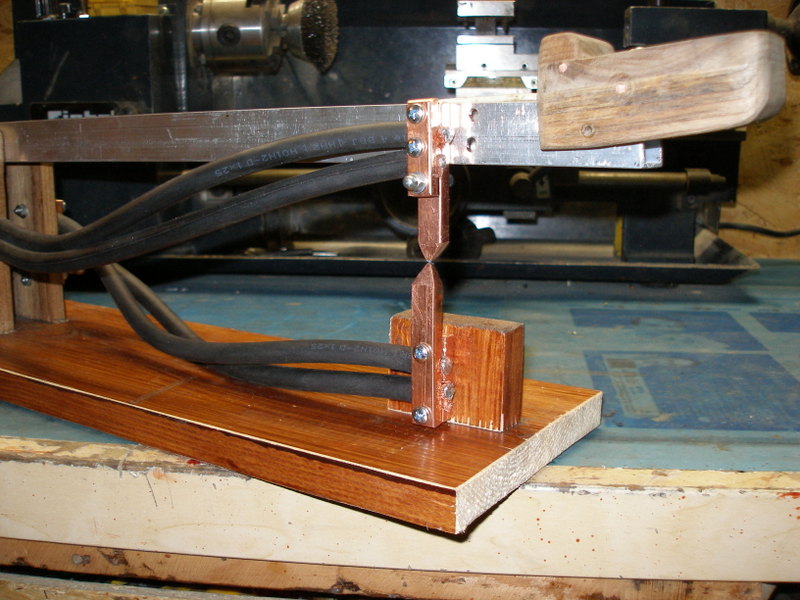

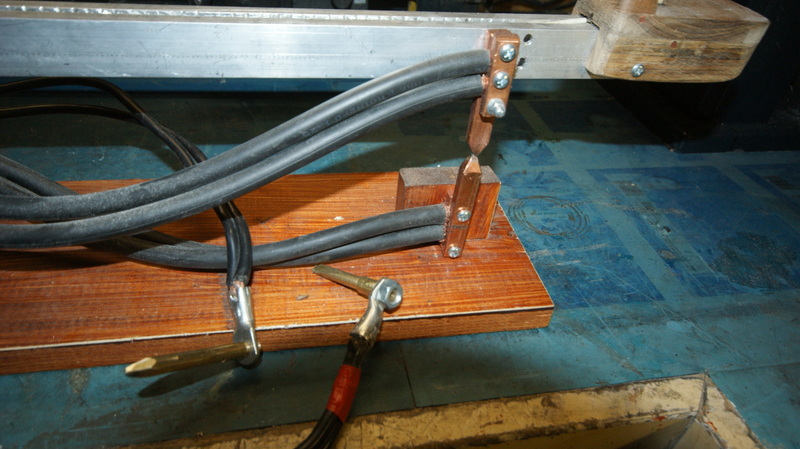

I got enough power. About 2.5 V and almost 70 Ampers! 1mm steel wire burned out in seconds. But switching it on and of manually is not accurate. I constantly burn out thinner material.

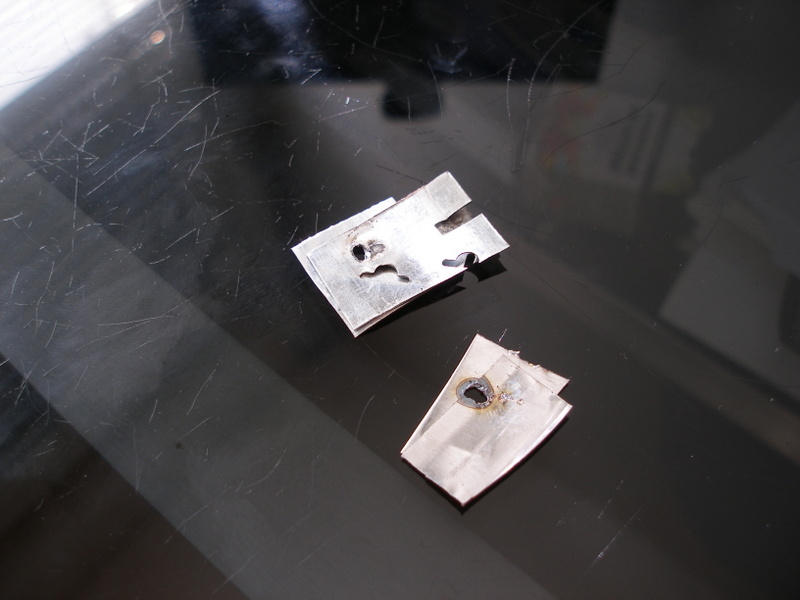

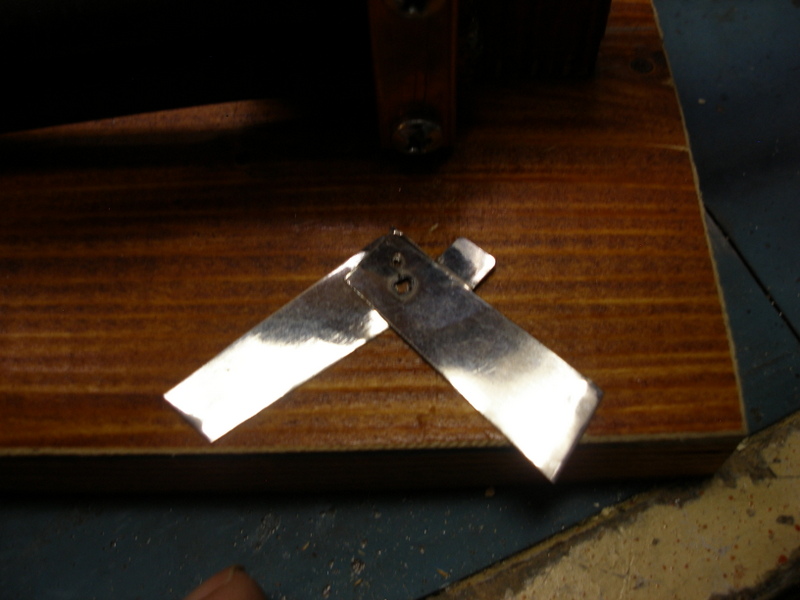

Sometimes the weld was perfect, but Murphy does not sleep!
Intermezzo
![DSC03881-1.JPG](/proxy/?url=https://content.instructables.com/F1A/RVUX/HS0D3B9B/F1ARVUXHS0D3B9B.jpg&filename=DSC03881-1.JPG)
![DSC03641.JPG](/proxy/?url=https://content.instructables.com/FDT/QBFI/HS0D8TAB/FDTQBFIHS0D8TAB.jpg&filename=DSC03641.JPG)
![DSC03642.JPG](/proxy/?url=https://content.instructables.com/F0S/XXQD/HS0D8TAC/F0SXXQDHS0D8TAC.jpg&filename=DSC03642.JPG)
![DSC03643.JPG](/proxy/?url=https://content.instructables.com/FMT/TNSG/HS0D8TAD/FMTTNSGHS0D8TAD.jpg&filename=DSC03643.JPG)
![DSC03644.JPG](/proxy/?url=https://content.instructables.com/FOP/Z3CU/HS0D8TAE/FOPZ3CUHS0D8TAE.jpg&filename=DSC03644.JPG)
![DSC03646.JPG](/proxy/?url=https://content.instructables.com/FNN/E5BL/HS0D8TAG/FNNE5BLHS0D8TAG.jpg&filename=DSC03646.JPG)
![DSC03647.JPG](/proxy/?url=https://content.instructables.com/FUP/JXEK/HS0D8TAK/FUPJXEKHS0D8TAK.jpg&filename=DSC03647.JPG)

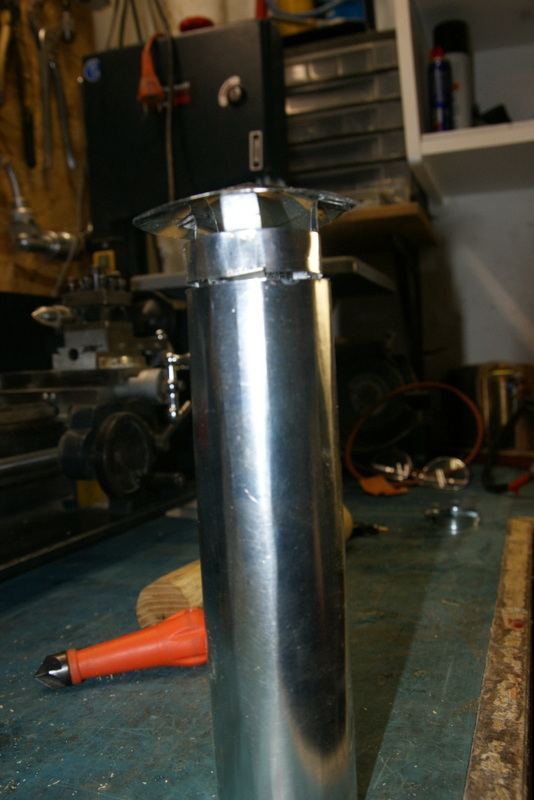

In the meantime I needed to weld a small chimney for my tent stove.
I used my welder as is and successfully, hand pressing switch, I made from tin cans 12 cm diameter a smaller 6 cm diameter tubes.
I used an aluminium tube 3 cm in diameter as lower electrode, wrapped this with a tape for isolation, and on one end mounted a screw head as a welding point. The other electrode was freely pressed by hand from above.
Triacs an So On
![P1010001 (2).JPG](/proxy/?url=https://content.instructables.com/FIW/HZ5D/HS0D8SIK/FIWHZ5DHS0D8SIK.jpg&filename=P1010001 (2).JPG)
![P1010001-003.JPG](/proxy/?url=https://content.instructables.com/FWR/V3Q8/HS0D8SIL/FWRV3Q8HS0D8SIL.jpg&filename=P1010001-003.JPG)
![P1010002-002.JPG](/proxy/?url=https://content.instructables.com/F8C/D0A7/HS0D8SIQ/F8CD0A7HS0D8SIQ.jpg&filename=P1010002-002.JPG)
![P1010003-004.JPG](/proxy/?url=https://content.instructables.com/F6Y/TY0W/HS0D8SIS/F6YTY0WHS0D8SIS.jpg&filename=P1010003-004.JPG)
![P1010006-002.JPG](/proxy/?url=https://content.instructables.com/FH3/PIYJ/HS0D8SIT/FH3PIYJHS0D8SIT.jpg&filename=P1010006-002.JPG)
![P1010006-003.JPG](/proxy/?url=https://content.instructables.com/F4G/UFZW/HS0D8SIV/F4GUFZWHS0D8SIV.jpg&filename=P1010006-003.JPG)

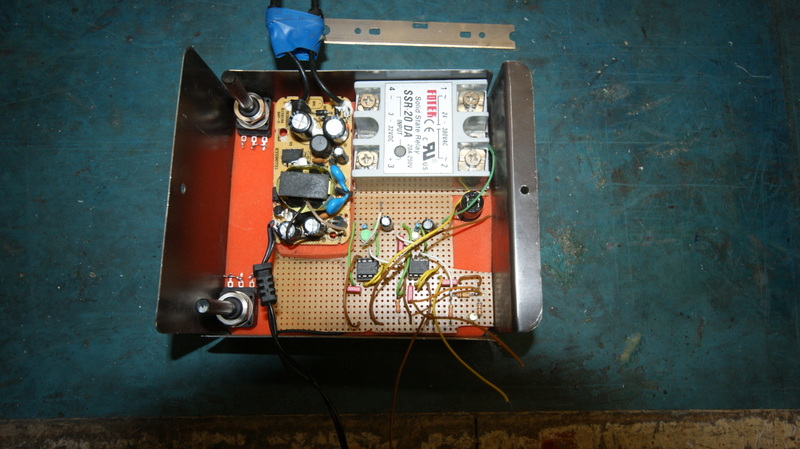

I found an article about how to regulate transformer action on primary side. This was using a triacs similarly as is in a light bulb dimmer or in vacuum cleaners. Lowering power splitting sinusoidal wave. According Fig 11. I collected the necessary components, assembled the circuit, put it in a aluminium box and connected it to the transformer.
Perhaps because of insufficient knowledge, it didn't work as I wanted it to. I could not regulate amps and time duration. I burned out constantly my thin sheets.
Murphy still does not sleep.
Conclusion
![DSC09620.JPG](/proxy/?url=https://content.instructables.com/FLI/KRPR/HS0D8SNF/FLIKRPRHS0D8SNF.jpg&filename=DSC09620.JPG)
![DSC09618.JPG](/proxy/?url=https://content.instructables.com/F82/B661/HS0D8SNC/F82B661HS0D8SNC.jpg&filename=DSC09618.JPG)
![DSC09619.JPG](/proxy/?url=https://content.instructables.com/FVJ/UJIJ/HS0D8SND/FVJUJIJHS0D8SND.jpg&filename=DSC09619.JPG)
![DSC09621.JPG](/proxy/?url=https://content.instructables.com/F09/LJIC/HS0D8SNG/F09LJICHS0D8SNG.jpg&filename=DSC09621.JPG)
![DSC09622.JPG](/proxy/?url=https://content.instructables.com/FL3/8OSM/HS0D8SNI/FL38OSMHS0D8SNI.jpg&filename=DSC09622.JPG)
![DSC09624.JPG](/proxy/?url=https://content.instructables.com/F9X/QI0S/HS0D8SNM/F9XQI0SHS0D8SNM.jpg&filename=DSC09624.JPG)
![DSC09625.JPG](/proxy/?url=https://content.instructables.com/FG7/TBD5/HS0D8SNN/FG7TBD5HS0D8SNN.jpg&filename=DSC09625.JPG)
![DSC09627.JPG](/proxy/?url=https://content.instructables.com/FEN/39AM/HS0D8SNP/FEN39AMHS0D8SNP.jpg&filename=DSC09627.JPG)
![DSC09320.JPG](/proxy/?url=https://content.instructables.com/F3F/7HLV/HS0D8SNB/F3F7HLVHS0D8SNB.jpg&filename=DSC09320.JPG)

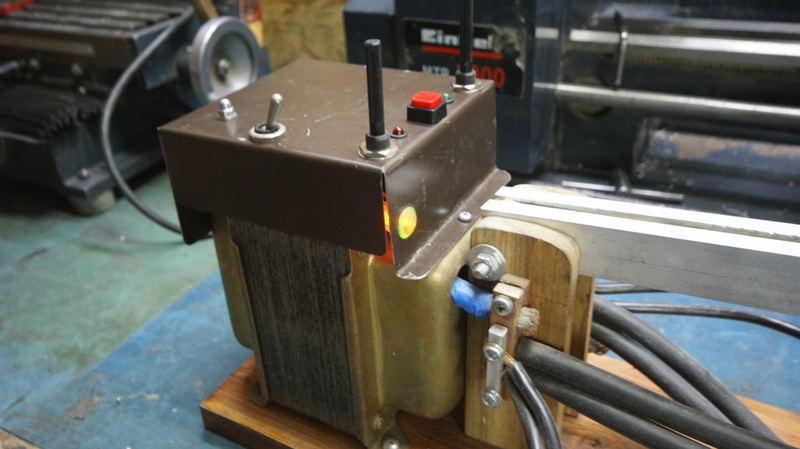

Let's get serious.
First, learn what the world already tested and wrote. I started with math from the books/web and in a spreadsheet form made a calculator with all the formulas (Proračun transformatora -Transformer calculation) and calculated the dimensions of transformer based on my core. This gave me a figure what my core is capable of. Rewinding the primary and secondary was then necessary.
My frend Mirko Jukl, drew me a simple 555 circuit schematic (Odgoda vremena i trajanje impulsa - Time delay and impulse time) to control time-duration of welding impulse on secondary side. I can choose delay from a few seconds and duration in miliseconds. Small movies show tests with 220V bulb, transformer an when everything was assembled and finished.
And it works!
Because this project was a back and forth process that lasted almost half a year this instructable is a bit inconsistent. Here is the final data of transformer:
Transormer core (E shape) - total square 28 cm2 ... cca 784W.
Primary windings 370 ... for 3,41A ... 1,5 mm dia
Secundar windings 5 ... for 261 A ... 11,54 mm dia
I hope that this DIY project helps somebody to get better results and extend knowledge.
Sincerely...
