KO's Non-fog Mask for Eyeglass Wearers

This mask
design is made with eyeglass wearers in mind. The premise is that a maker has a sewing machine and is in a shelter-in-place situation and only able to use materials at hand. Using a T-shirt for fabric allows a facemask to be made without metal nose bridge or elastic, two elements that will break down under repeated sterilization, therefore reduces the potential of medically toxic landfill of disposable masks, and is, by nature, reusable.

A clean t-shirt, good pair of shears, sewing machine [mine, a 1929 featherweight], thread & pattern shown here, somewhere..

A 100%
cotton T-shirt is said to block 50% of virus’, the design includes a pocket for additional filtration material if it is available to the maker or user.

Begin

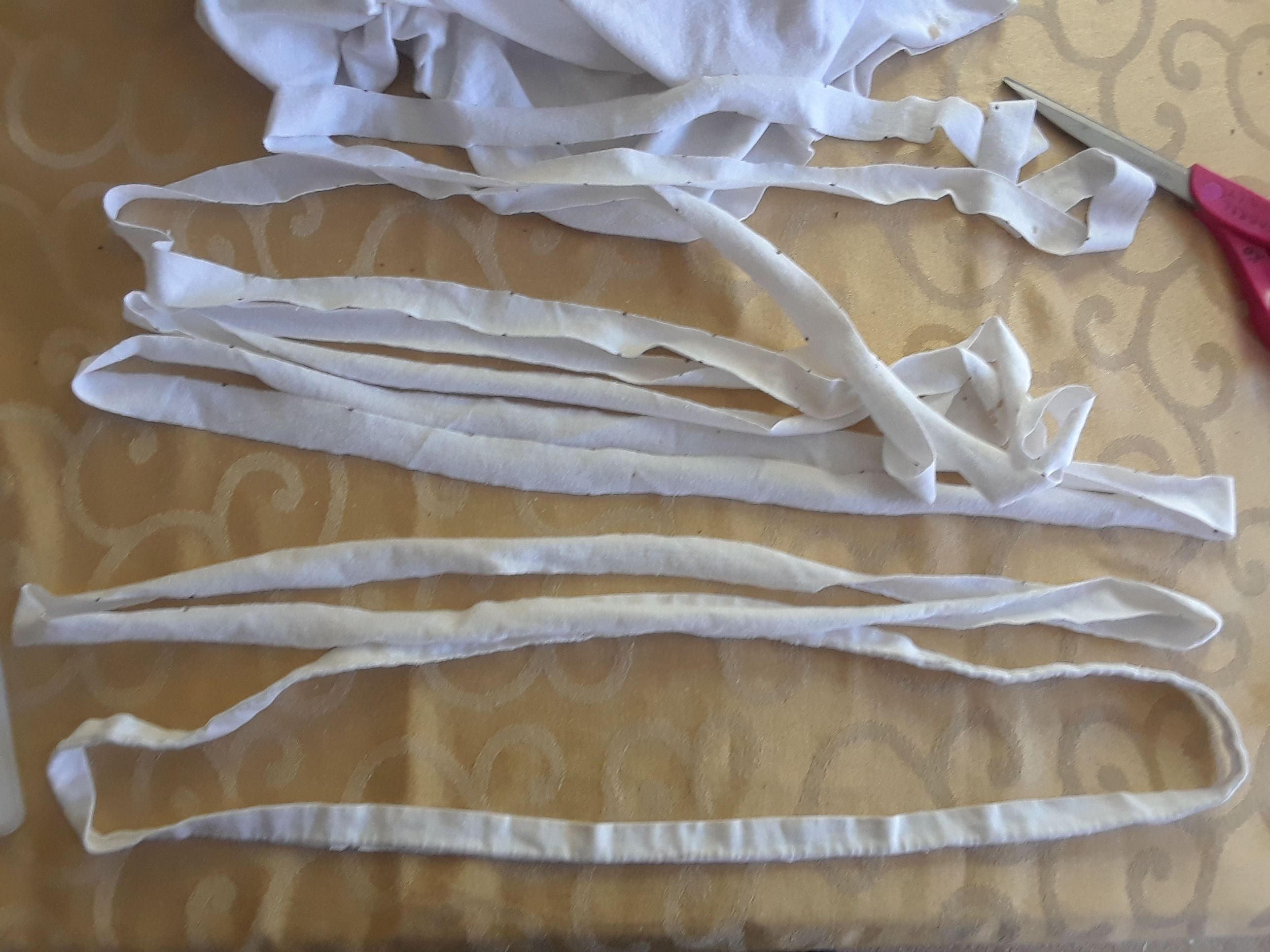

by taking your T-shirt and cutting the bottom hem off close to the interlock stitching. Mark at least four courses 1 inch wide from the bottom of the cut edge of the T-shirt. These strips will be your straps to hold the mask in place. Cut the 1 inch strips out and then pull them tight and you will see them turn into "shoestrings"!

Put them
aside and lay out the pieces as you would cut them from the T-shirt. If the T-shirt has a design that isn’t heavily preprinted with plastic ink you can use that as a decorative detail, so there no fast rules for cutting out the pieces. I found I could cut two complete masks out of the sleeves.

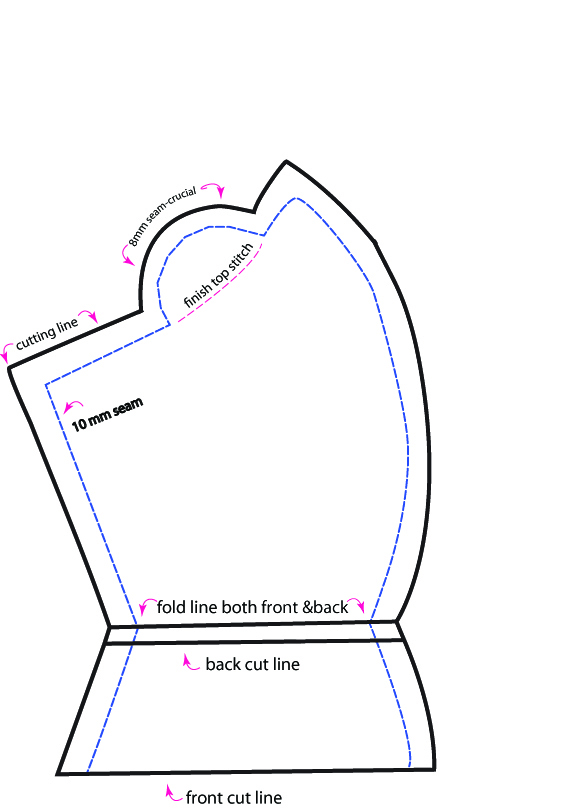

The pattern
provided is both the front and the back piece of the mask.

Cut two pieces of each pattern piece, the mindful of the print side in the backside of the T-shirt fabric.

I suggest sewing in this order:

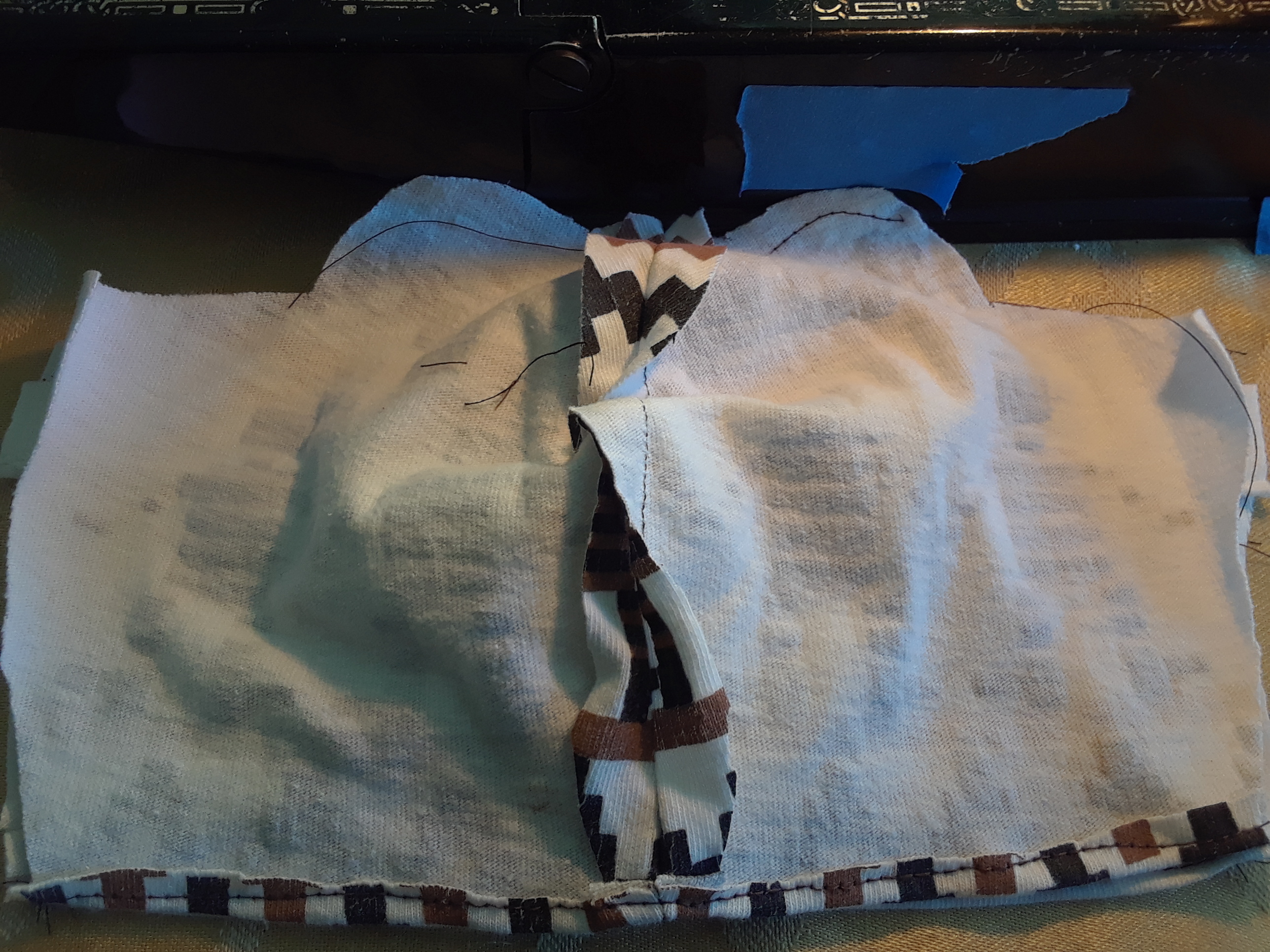

Stitch the large curved edges of the front and back parts of the mask together. Stay stitch along the bottom edges and turn the small edge of the back of the mask at the full mark and stitch that down. For the front part of the mask, fold what will be the pocket up and iron or shape it on your knee and then stitch down the sides to the outside edge of the mask. At this point the front and that should have the same size. I suggest stitching the bottom edge of the pocket to give it more strength at this time.

Next is
putting on the straps. As long as you have the bottom hem of the T-shirt to work with, use that for the top strap that goes above the ears. If it is sized snugly to the head, the wearer will not have to futz with it when they put the mask on.

I cut the t-shirt hem at 12.5 inches for the top strap. Make sure you place the top strap 10mm down from the cut edge. Because you’ve already finished the bottom edge of the mask the placement of the strings at the bottom are not crucial.

The "shoestrings" can be measured extra to tie a knot in it for adjustment,& they stretch. I cut mine at 20 inches they could’ve been a little bit shorter.

With the straps sewn at the edges, you can tuck them in and sew around the sides and top of the mask.

Note the seam allowance for the two little lobes at the top is only 8 mm. This is so you don’t have to cut excess fabric away. It will add a little puffiness next to the lobes which will weigh them down to make them more effective.

You’re
almost done. Turn the mask inside out and pull all the corners and edges out to the extent of the seams and flatten them, or iron if you have one. Now carefully sew about a 1/16th of an inch or 2 mm in from edge all along the sides and the top. Then go back to the top edge in stitch across that little gap at the bottom of the lobes. Bingo you’re done.

Try
it on for size and see how it fits. Take the two little lobes that are sticking up to the bottom of your eyes and just push them down alongside your nose. Exhale to make sure your glasses aren’t fogging up. Just as with the commercial facemasks you may have to adjust it to your face to get it to work right.

I tie a half hitch on the bottom shoestring and adjust to my neck.

You’ll find it’s comfortable, yet snug. If you like how it feels when you’re ready to put it to work sterilize it by placing it in on the steam rack in a pressure cooker and full steam for 15 minutes, simply boiling in water will work but I don’t know how long that will take. Now you’ve got it down, why don’t you use the rest of the fabric your T-shirt and make masks for your friends.

I use chopsticks to remove the steaming the piping hot masks from the pot and dry them over the heater, but you might have a clothes dryer. When you take them out, make sure you have your little rubber gloves on, sprayed with alcohol, to ensure they are sterile. Then put them in a new, sealable plastic sandwich bag that will be used to store the mask.

One last step. If you think this is a good pattern please share it wildly and if you can make an improvement please send a note and add your change to the design.

When you share them, remind the receiver that these are not throw away masks, they do notgo directly to landfill. Also, you have the tag on the T-shirt that says the fabric content, and you can include that on the bag so people know it’s 100% cotton and you might even have T-shirts that are 100% organic cotton.

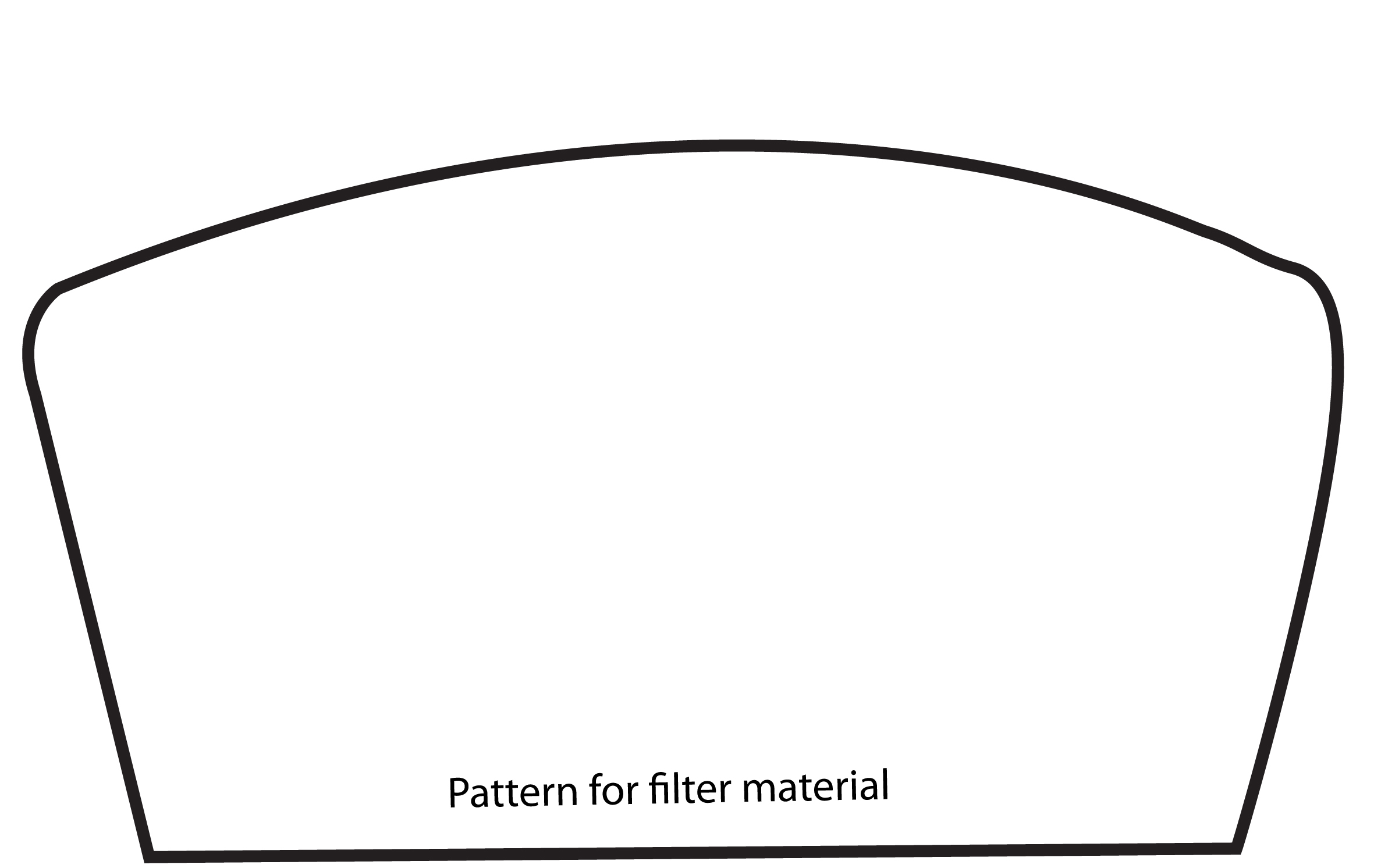

Additionally, if you have access to a filter paper that will increase the level of protection, you can cut it to the pattern here, and slip that inside the mask and behind the little pocket you sewed in so it will stay in place. That can be removed and tossed before the mask needs to be washed again.
