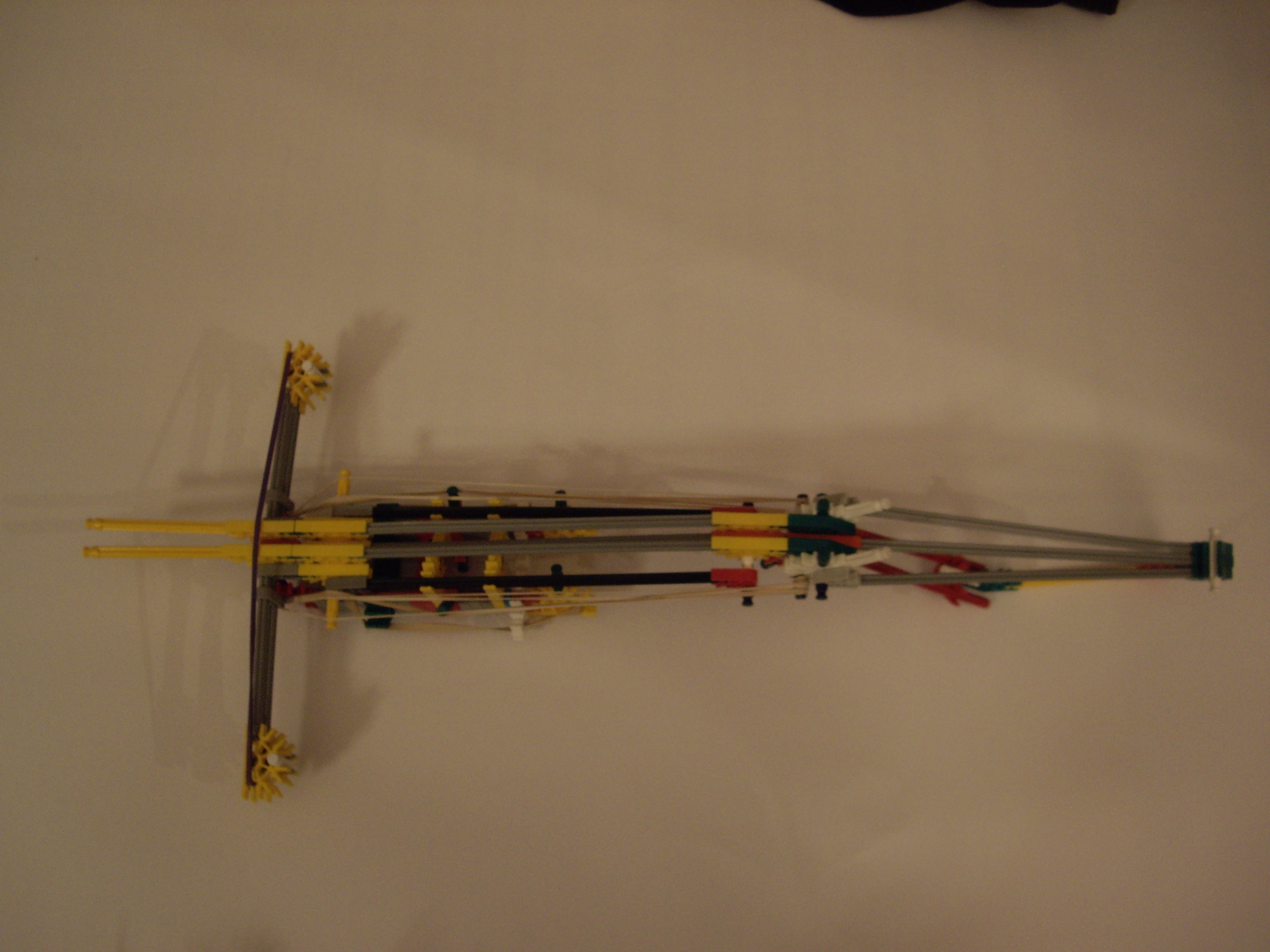

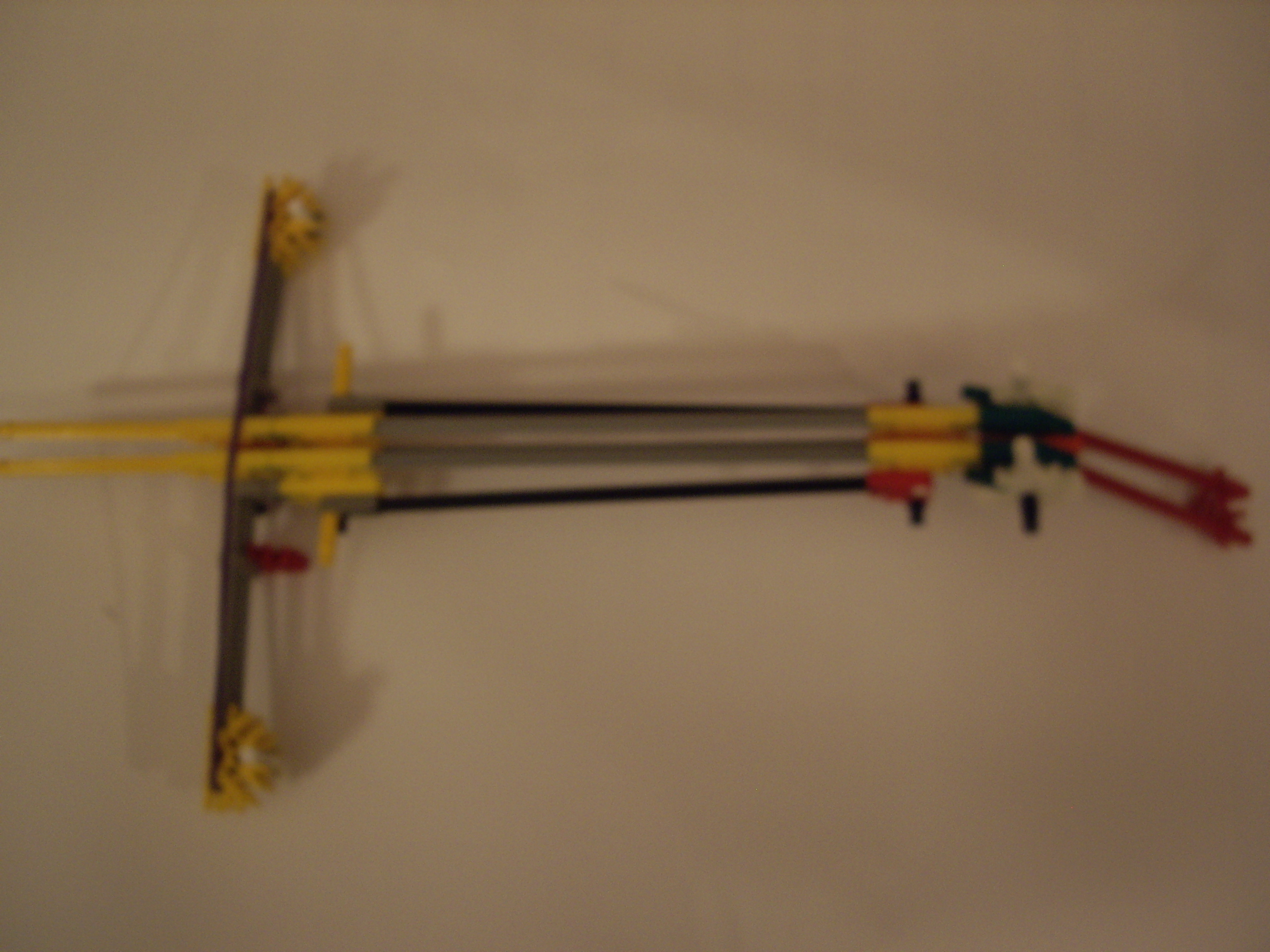

KNEX HEAVY CROSSBOW

A upgrade of the original crossbow. More powerful,accurate, and long ranged. Also includes two shotgun barrels on the bottom.

Connectors

11 red
19 yellow
10 green
4 light grey
24 grey
4 white
5 orange
2 brown
4 black nobs
4 blue spaces

Rods
8 grey
2 black
6 red
4 yellow
23 green
7 white
5 blue

Rubberbands
1 strong long rubberband (I got one at staples)
5-7 rubberbands for the trigger
2 thick rubberbands

First you must construct the main frame of the crossbow.

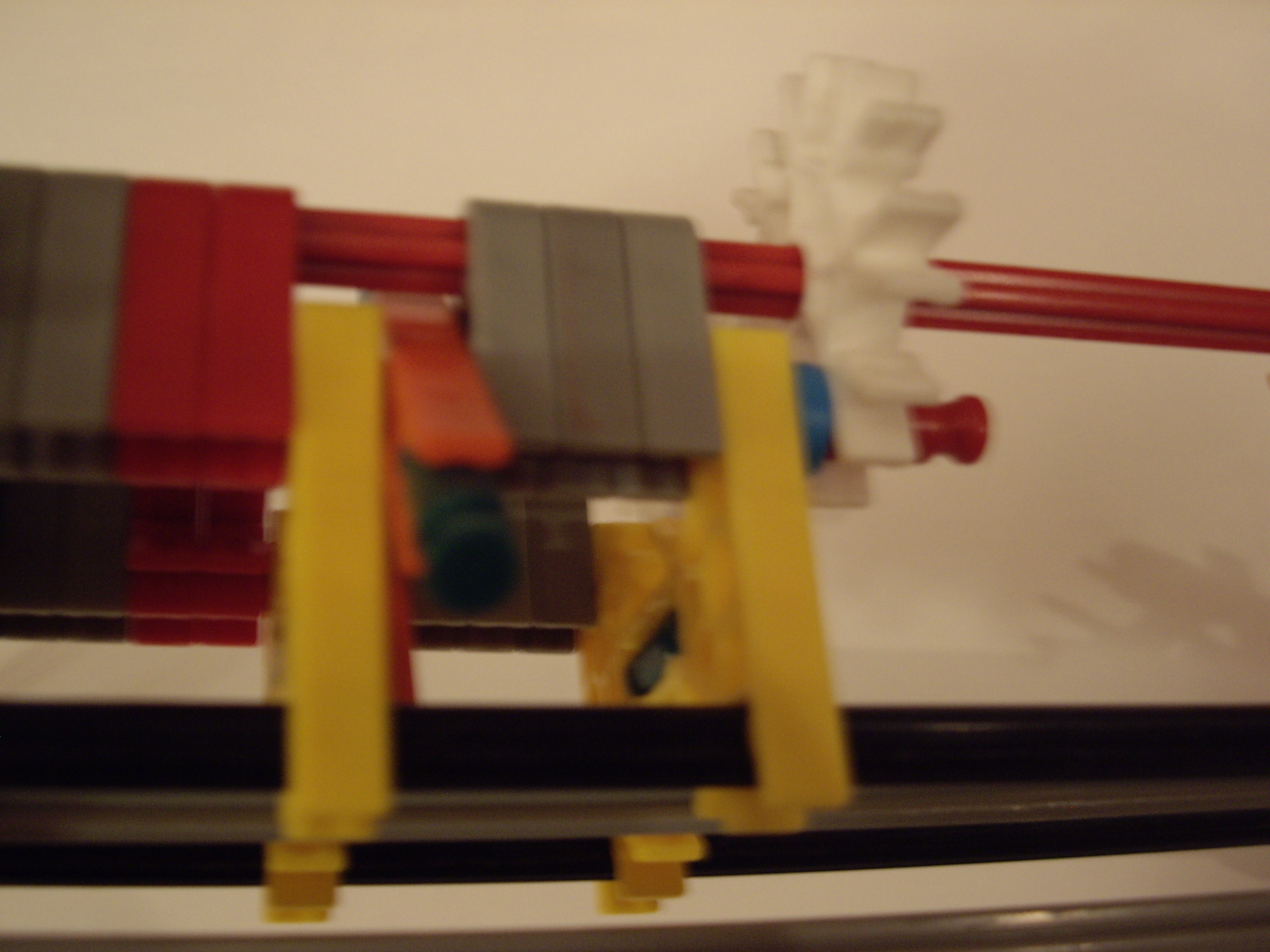

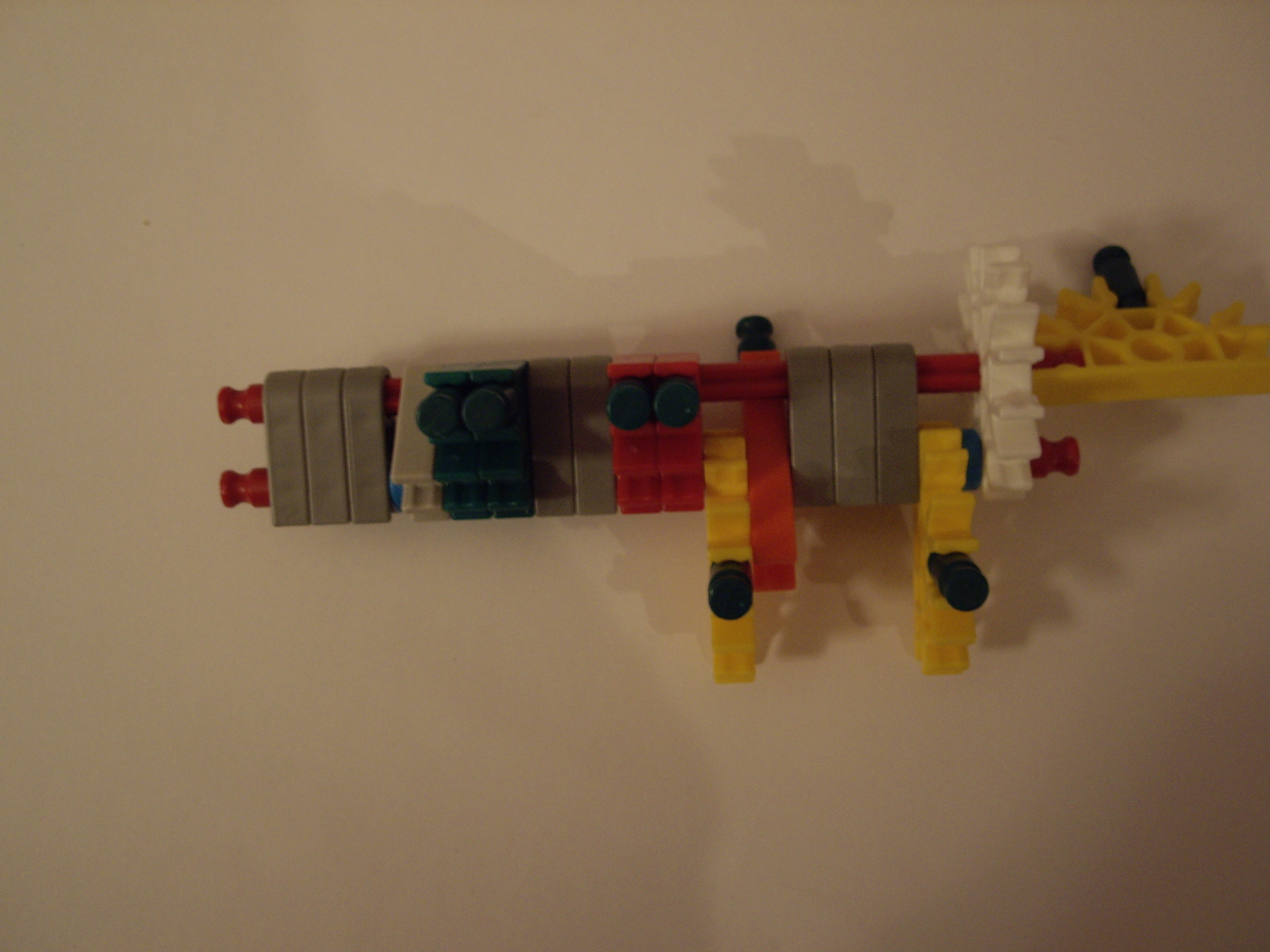

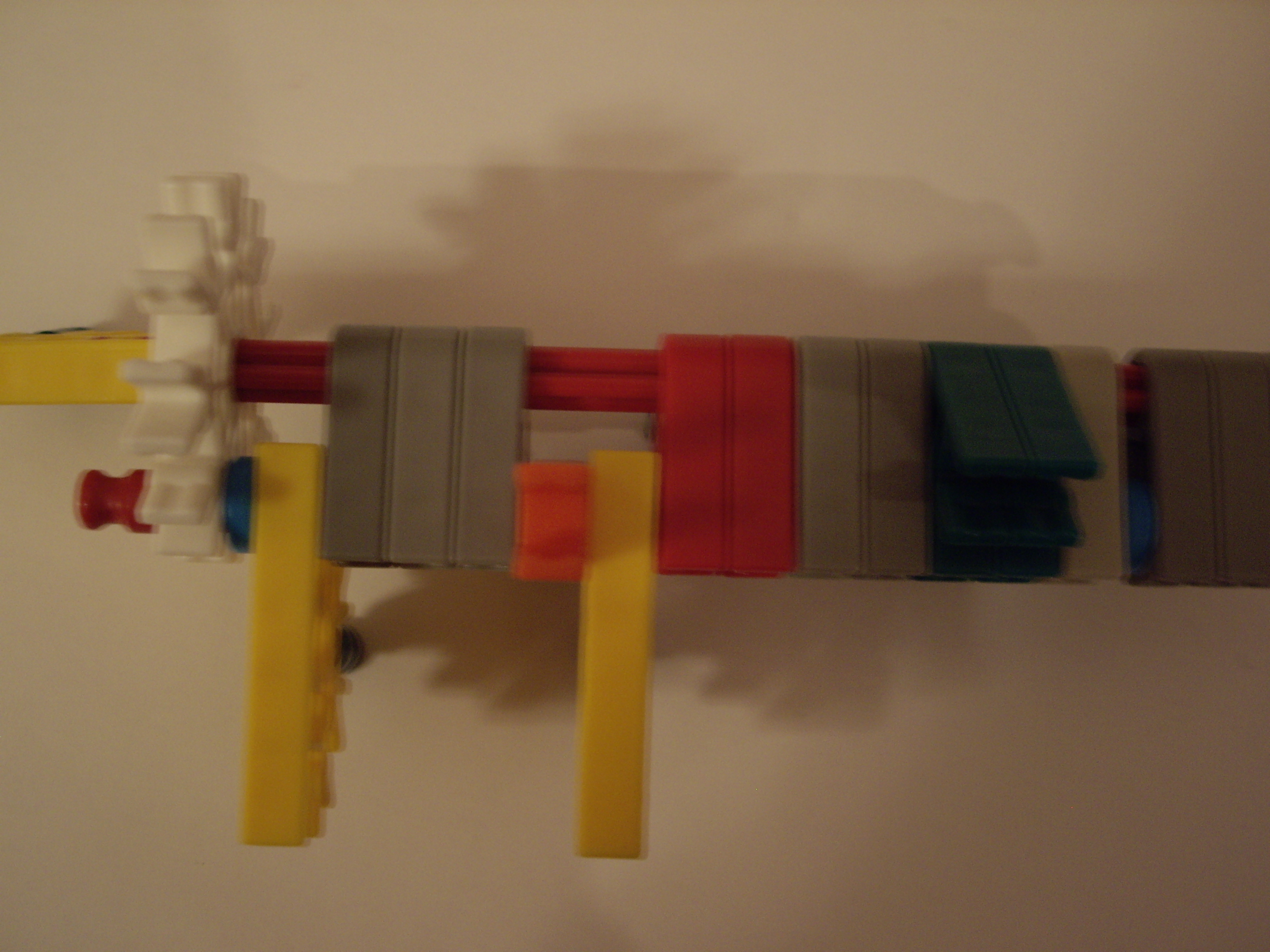

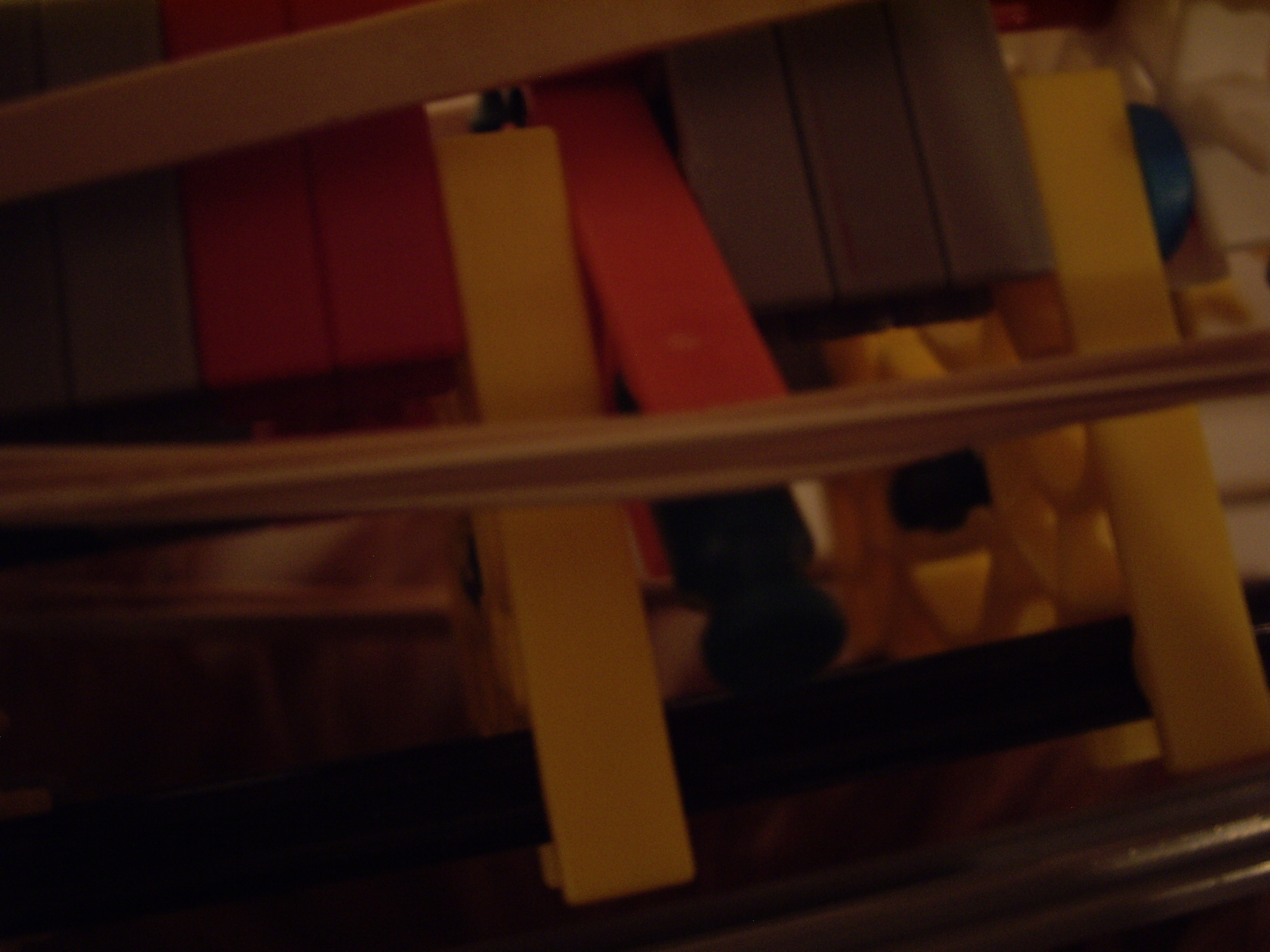

1.Construct the trigger area shown below.

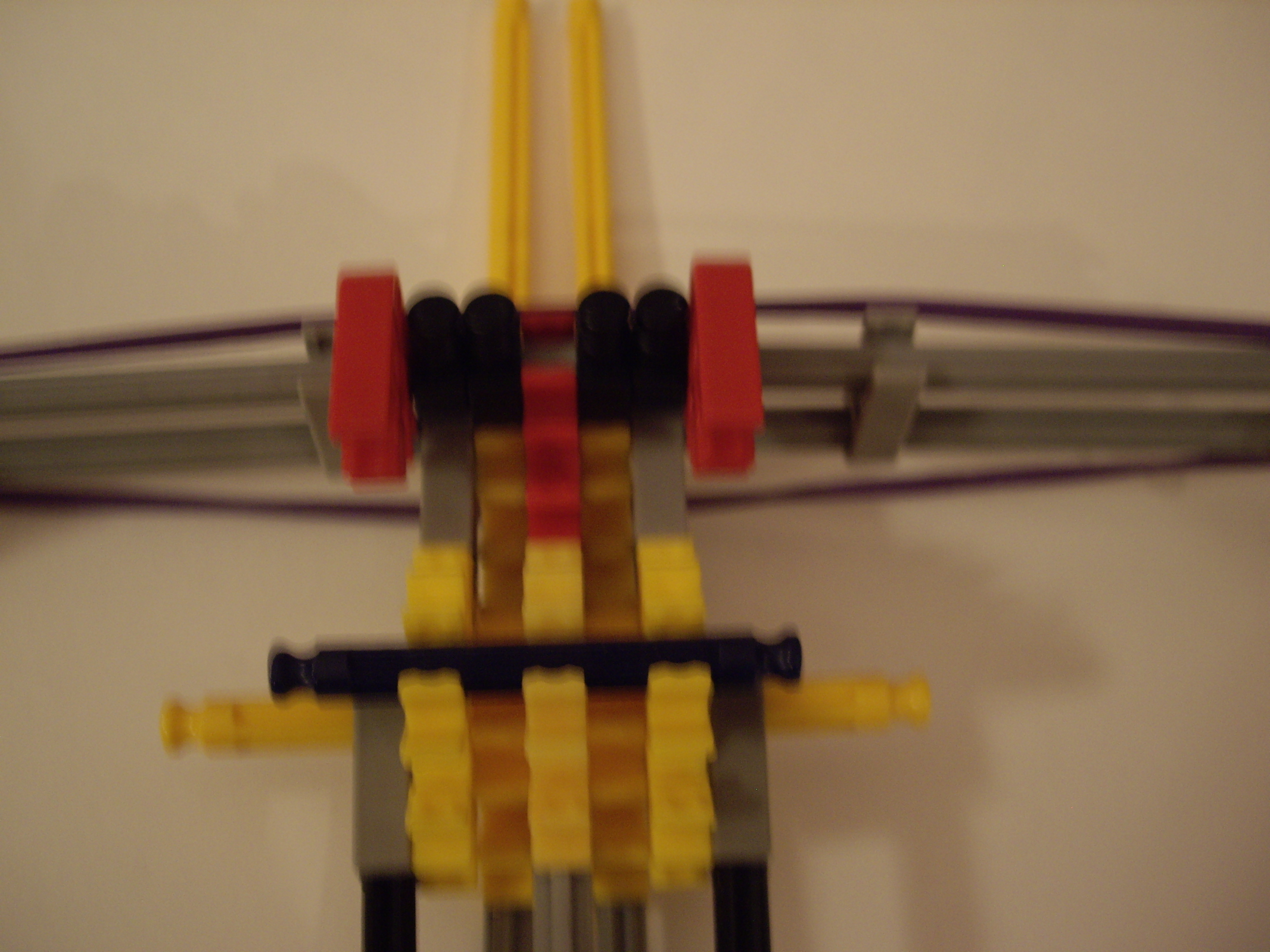

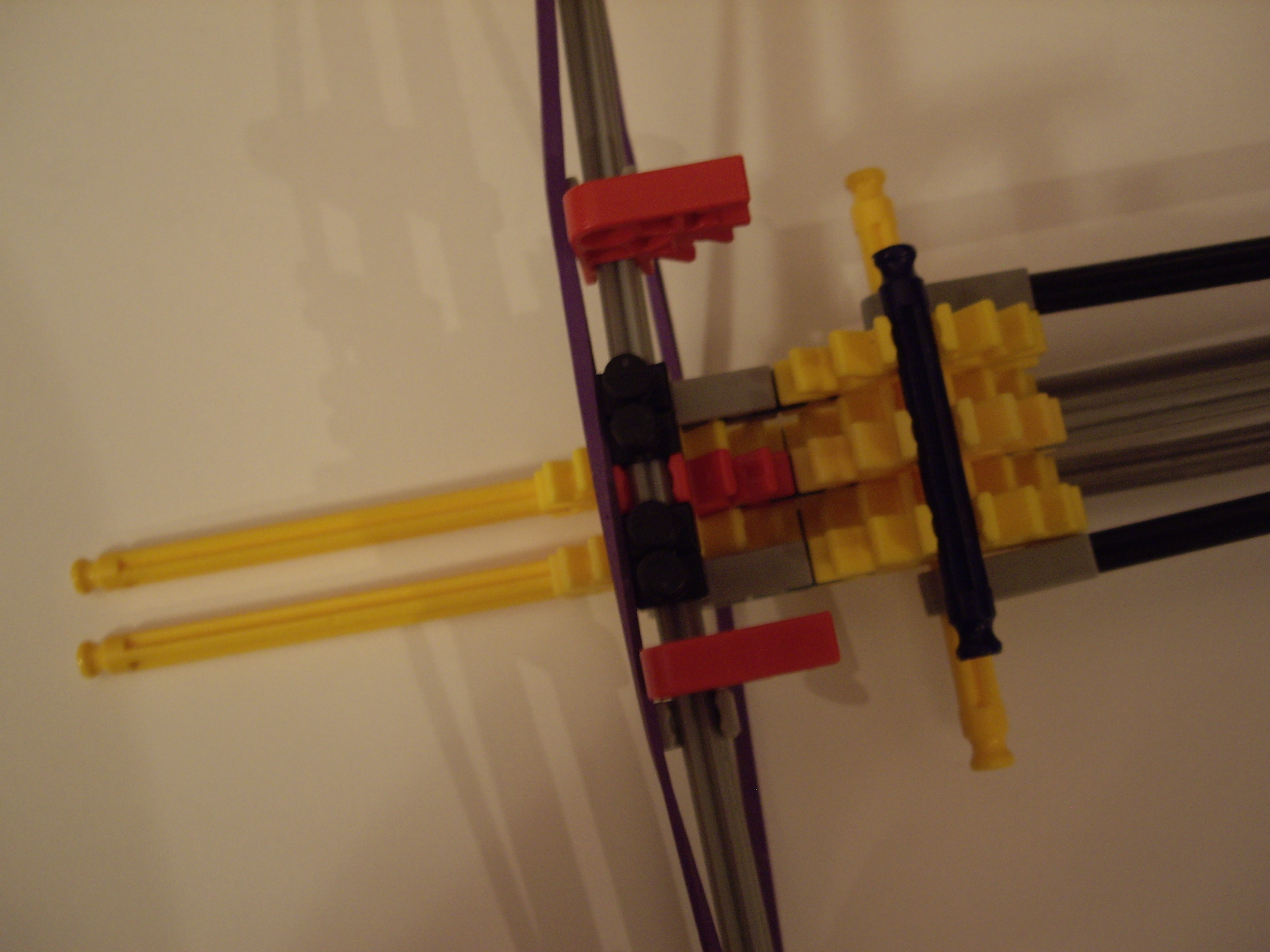

2.The construct the front of the gun.

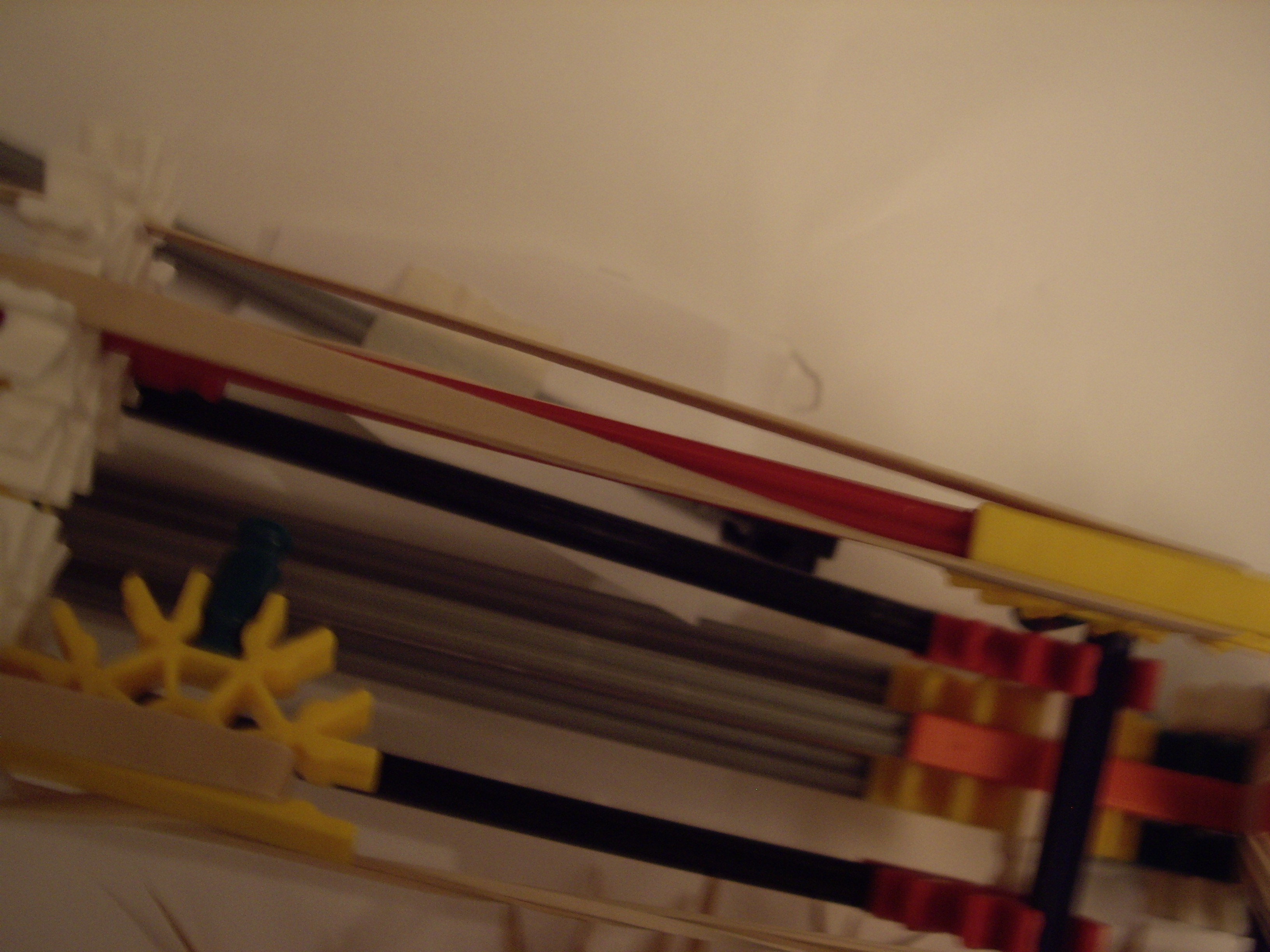

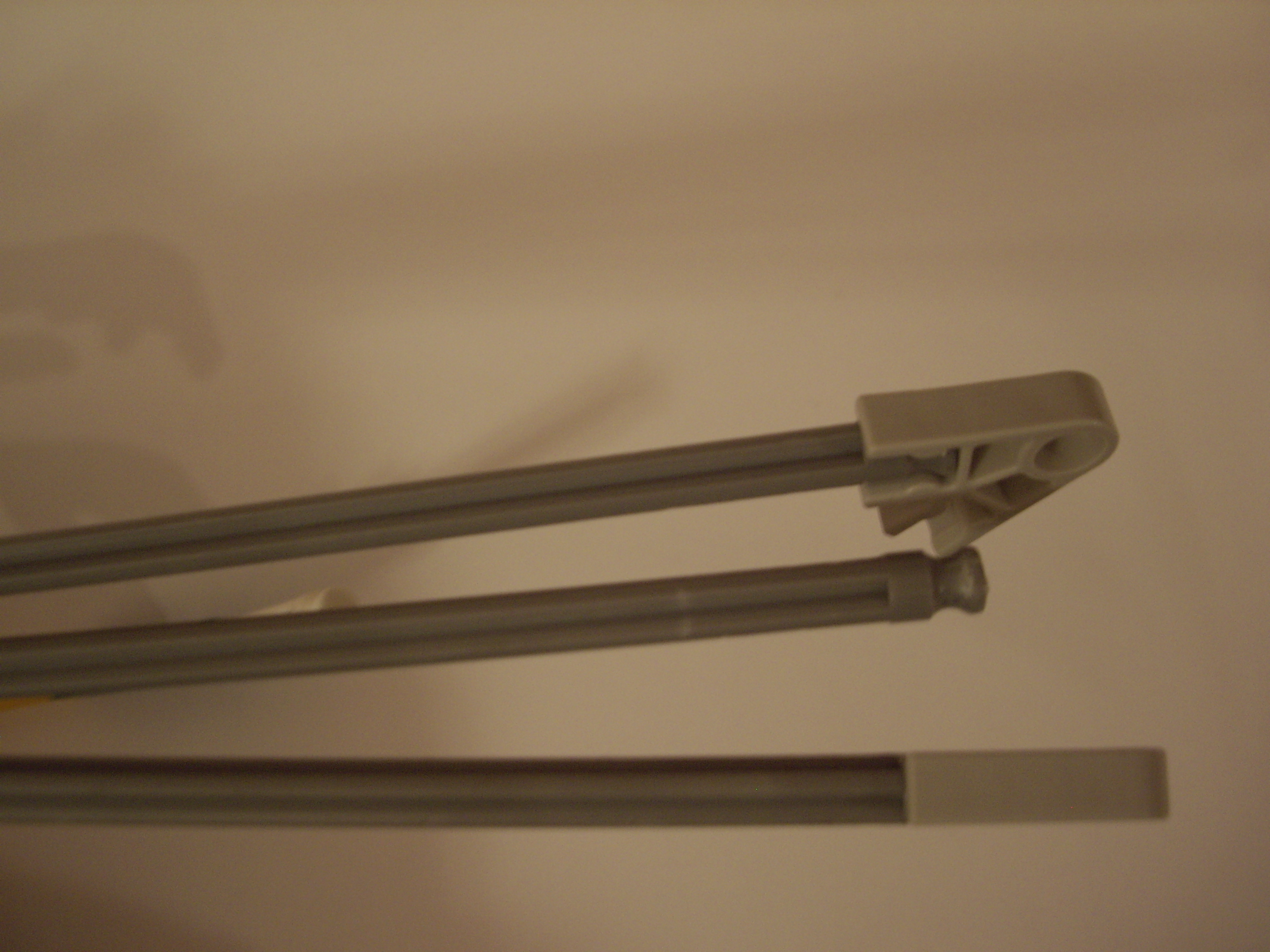

3 construct the firing track.

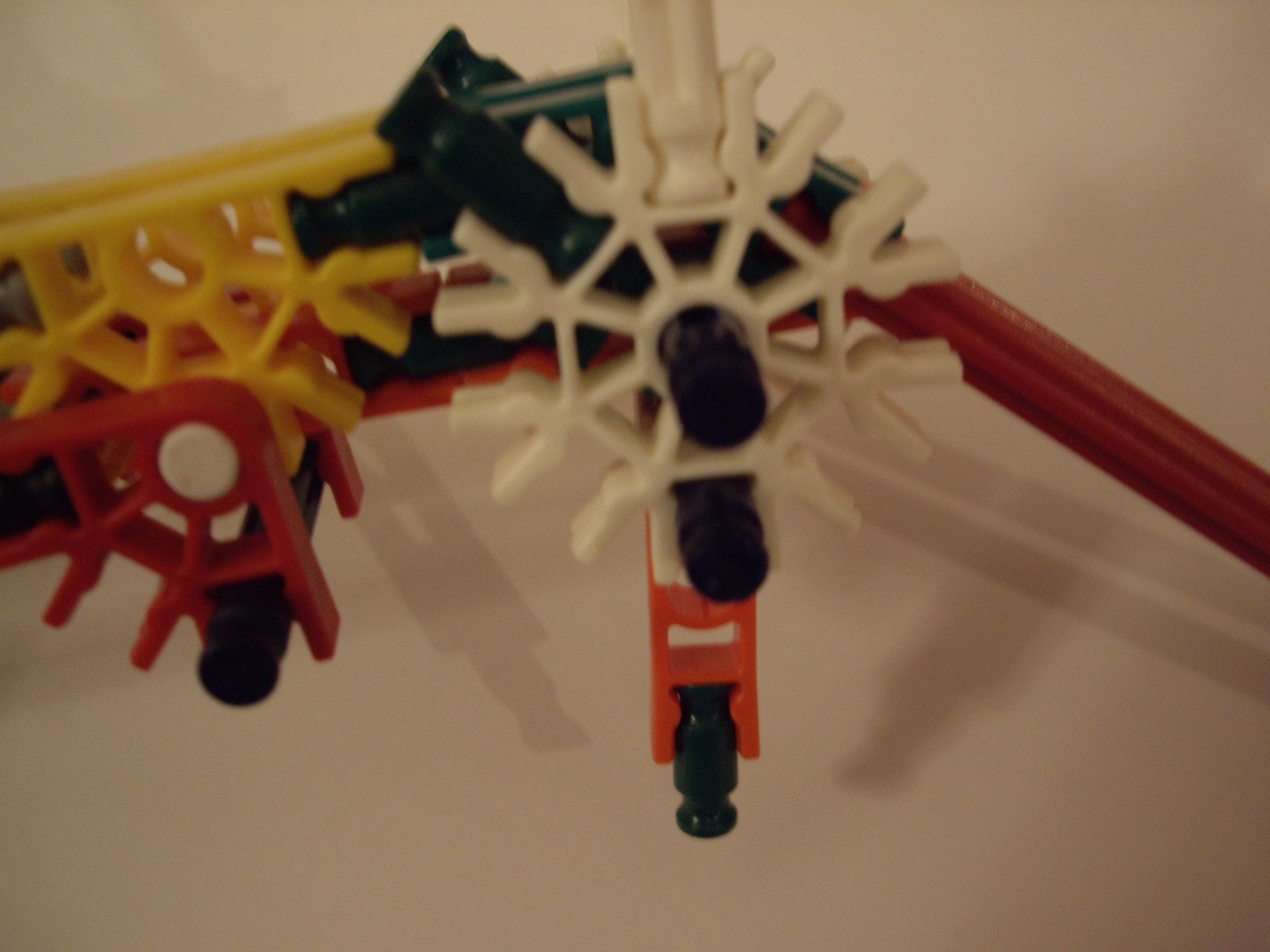

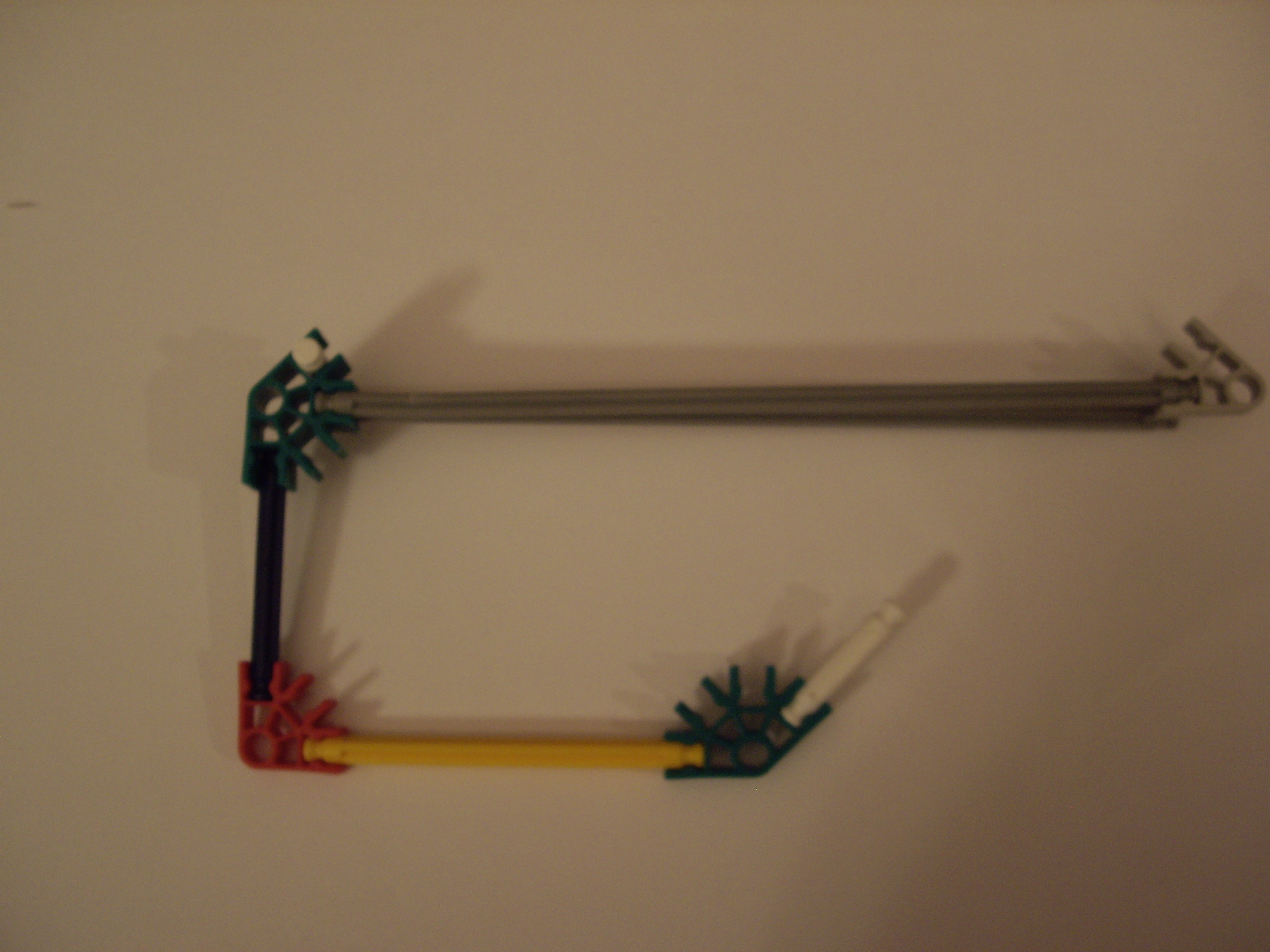

The new mods are the new stock, bow,shotgun barrels, and reiforced firing track.

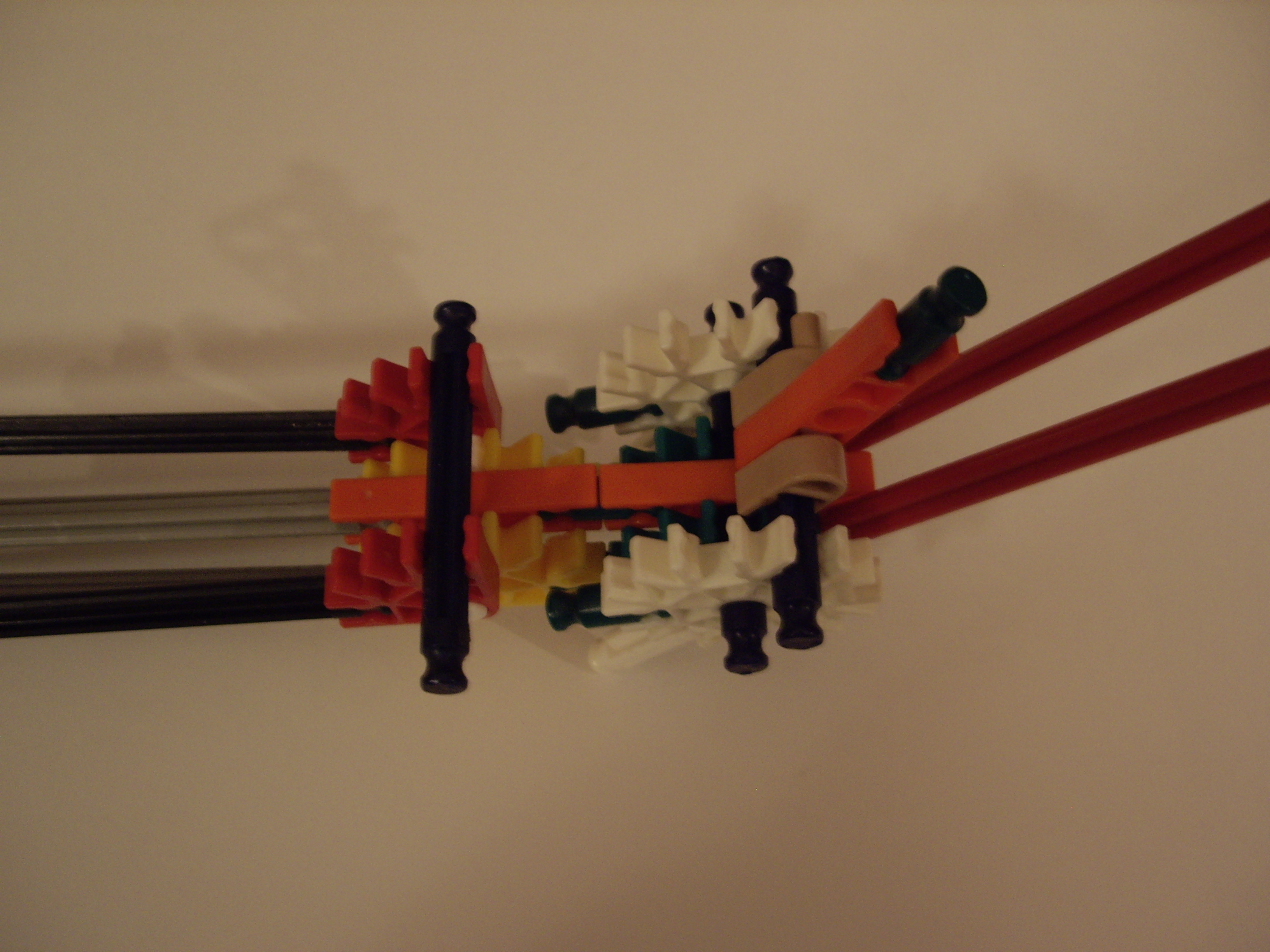

Construct the m through the pictures below.

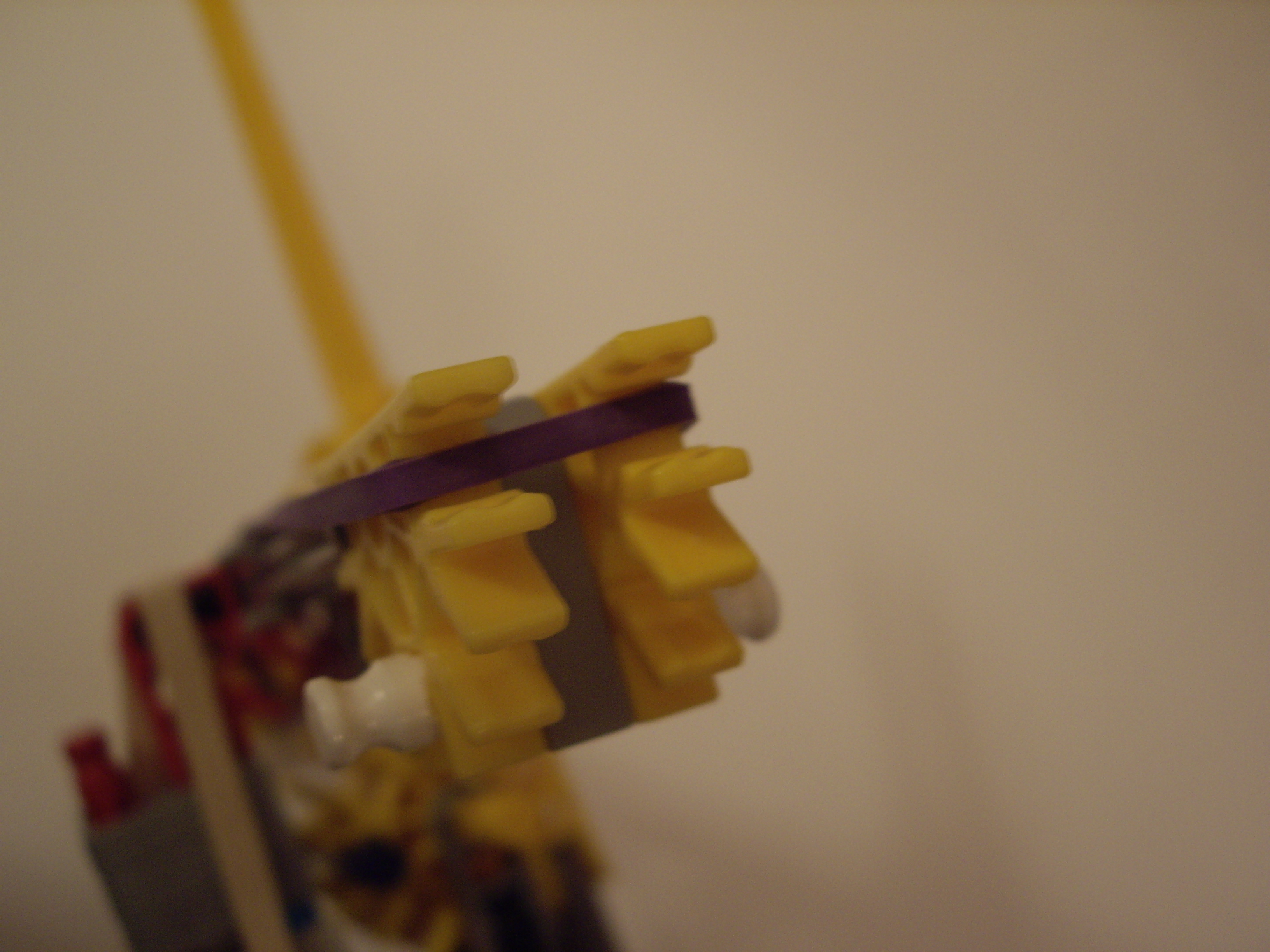

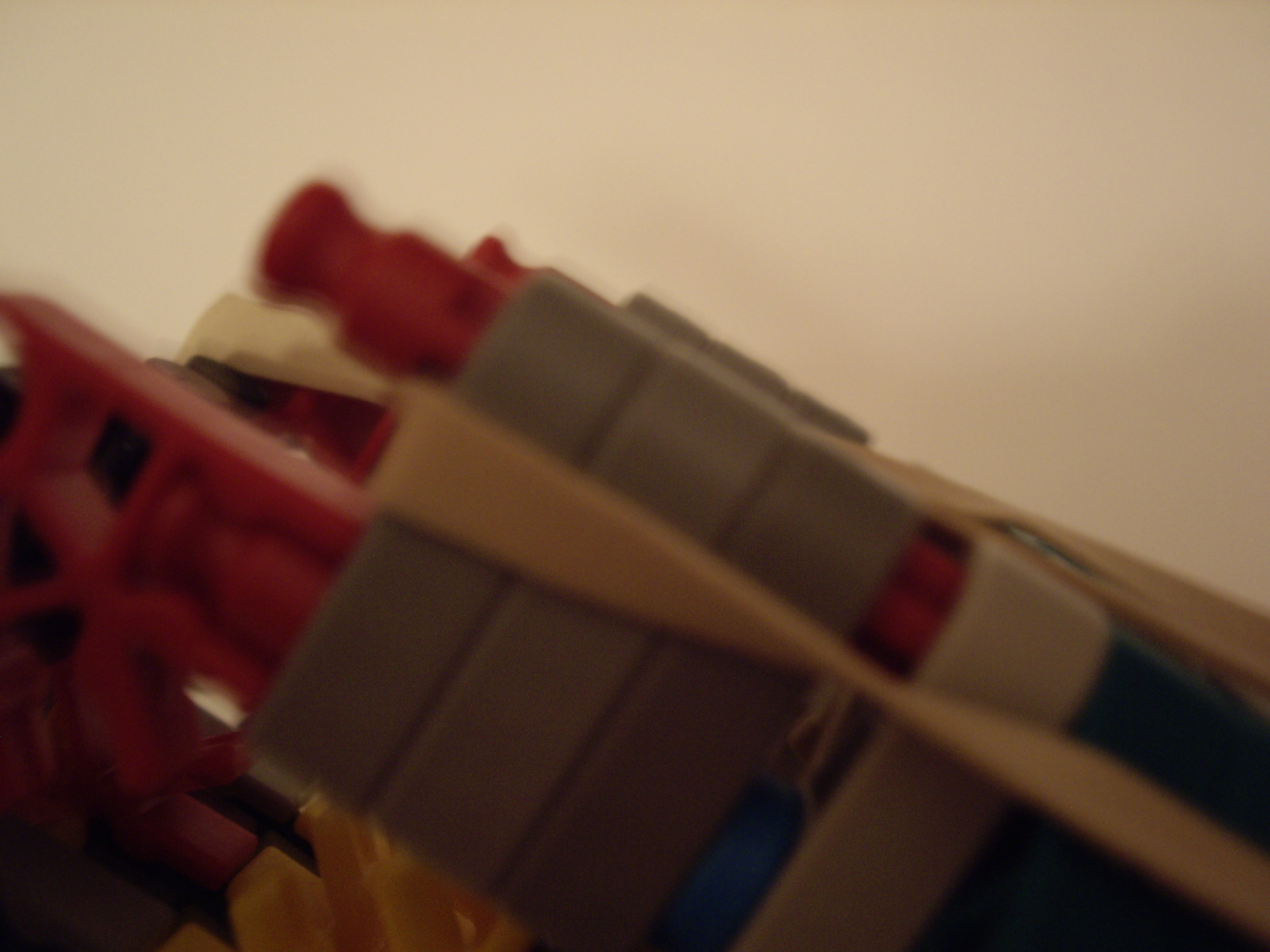

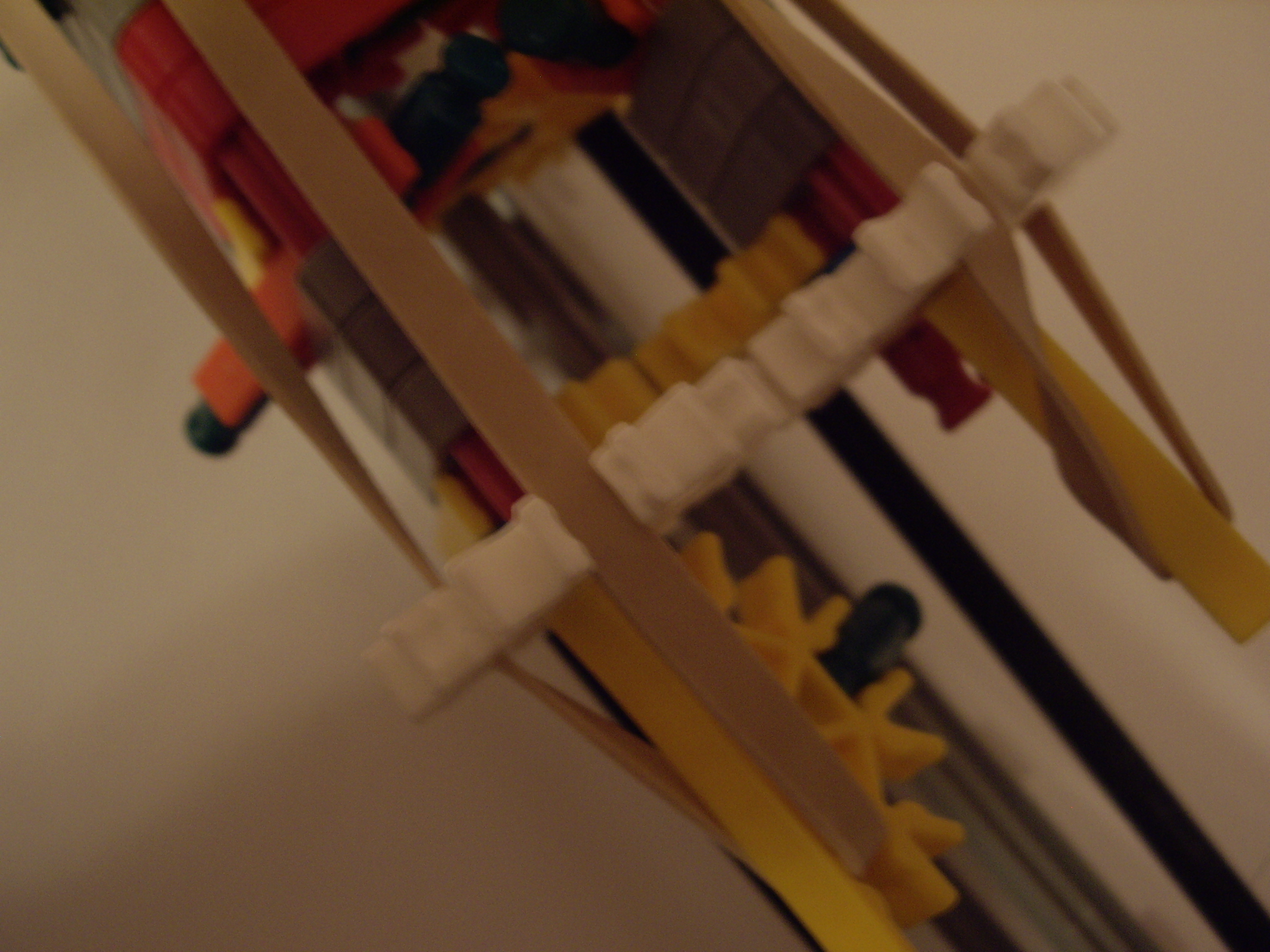

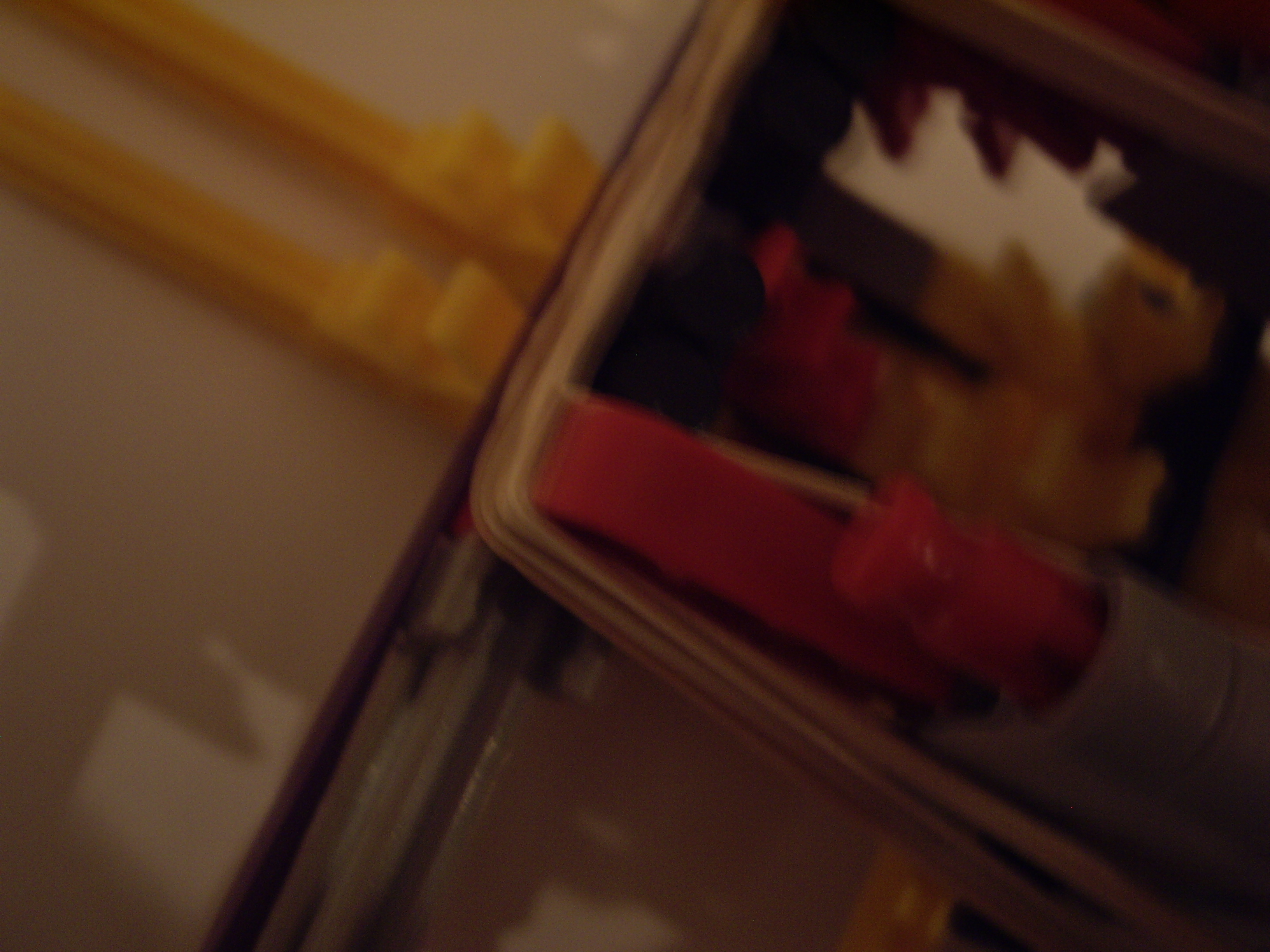

Add the trigger rubberbands, bow rubberband, and shot gun barrel rubberbands. The trigger lock is incorporated to the trigger rubberbands.

Add the rubberbands through the pictures below.

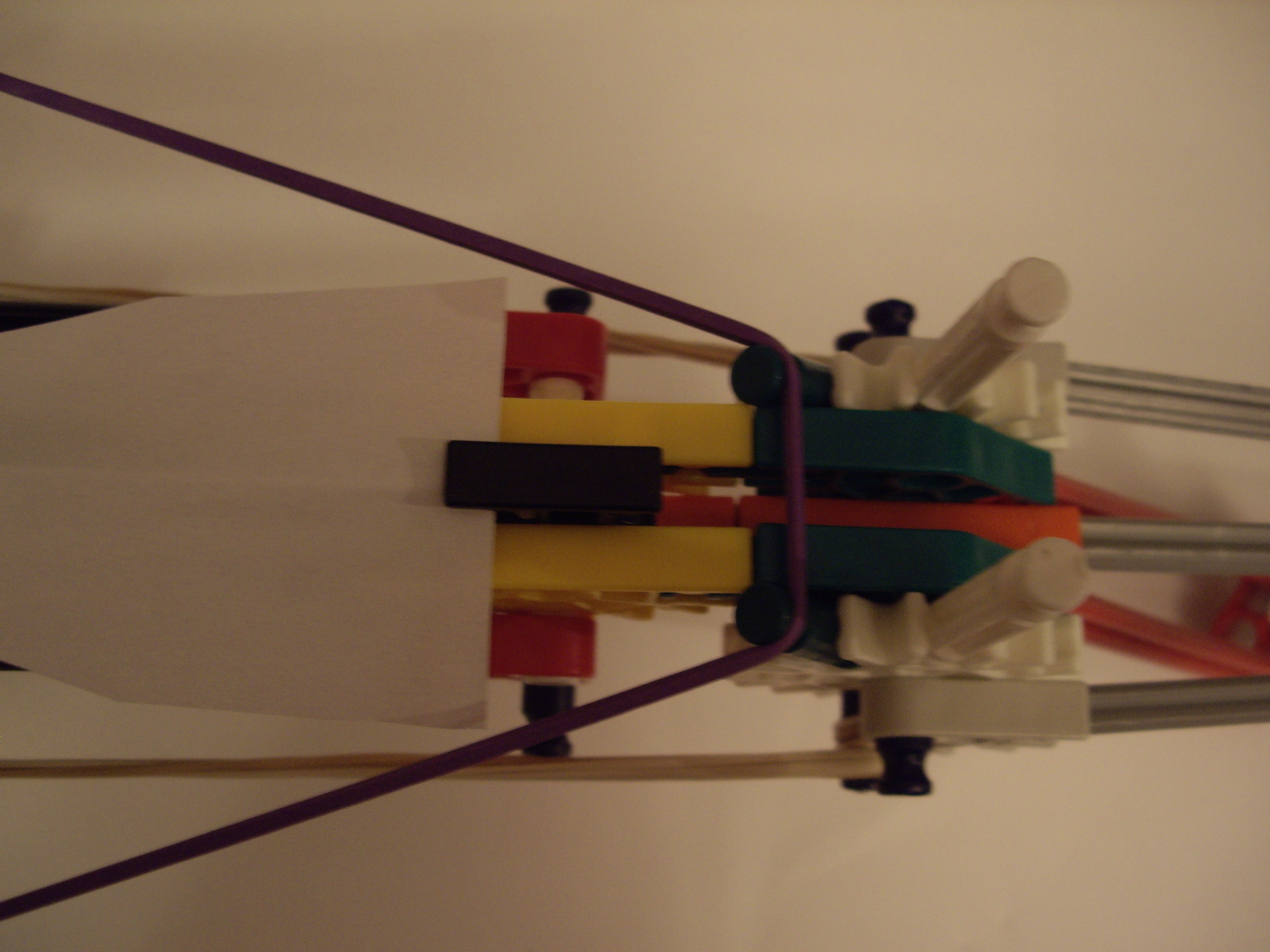

To fire the primary projectiles, pull the rubberband back and over the two green rods and load a bolt and pull the trigger.( find instructions for making the bolt on the KNEX CROSSBOW instructables.)

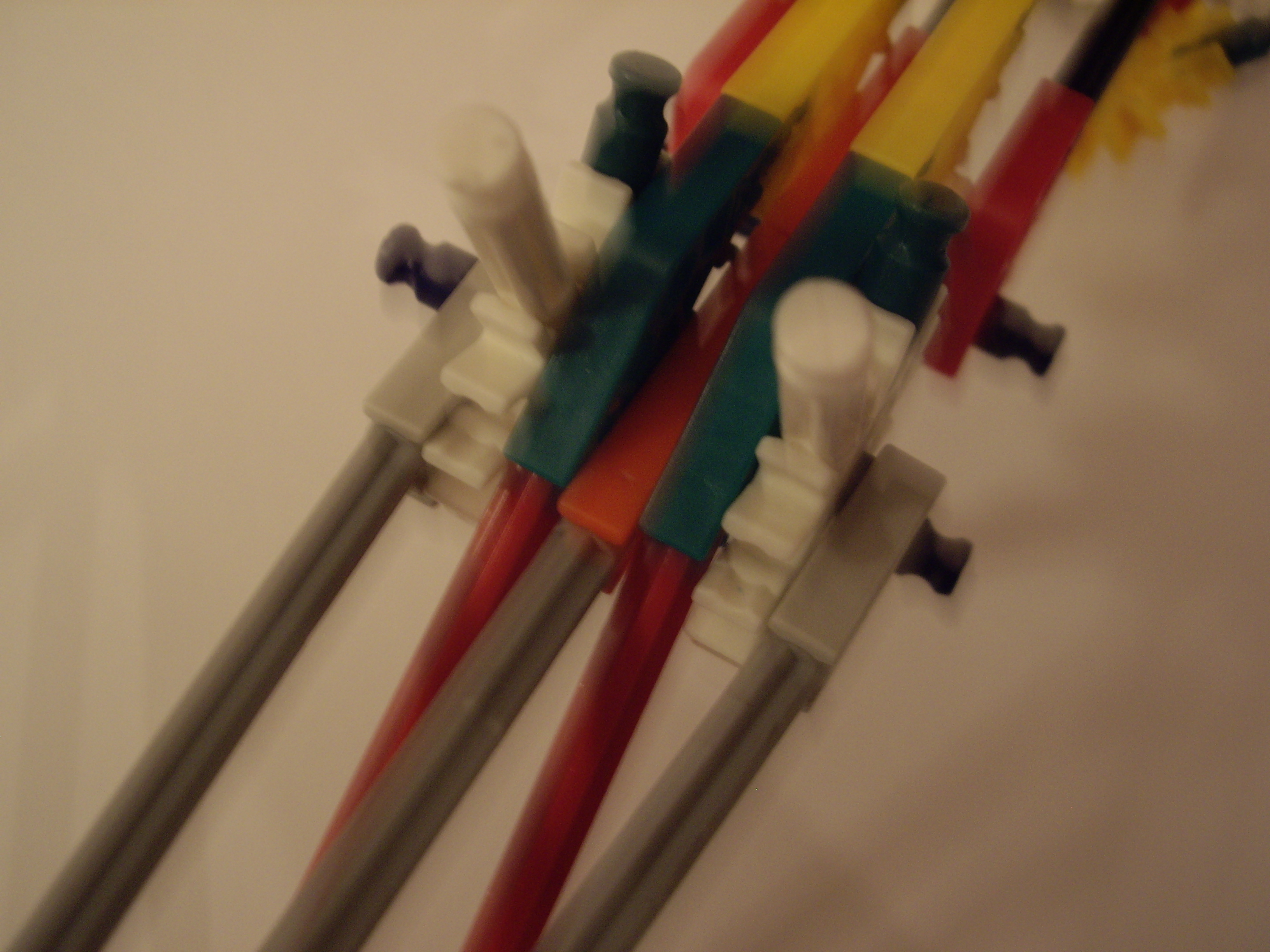

To fire the secondary fire, pull back the pins and load green or white rods into the barrels.Pinch the two orange connectors together. Press both at the same time for a double shot or just one for two single shot.
