Junk Battery - 2.65v Rechargable Aluminum-Ion

SAFETY FIRST: This project is not for the timid. Wear goggles and gloves, seriously. see my previous
instructable for further details https://www.instructables.com/id/Create-a-recharga...

********************

My goal, over the last four years, was to create a "good enough" battery for the billions who live in "light poverty" - 1.2-1.7 billion people who have no reliable source of light once the sun sets. Billions. So I decided that I can't help create a better LED, or necessarily in distribution, but I *COULD* help people build their own batteries for storage.

The first requirement was that the battery be cheap and easy to manufacture. It had to be an improvement over the toxicity of lead-acid, but could be as big and bulky as I might care to make it.

You can see some of my other instructables as steps toward this development.

What I've created is a wonderful 2.65v Aluminum-Ion battery due to an accidental discovery while exploring geopolymer-based electrodes for another cell. The aluminum silicates protect the aluminum from breaking down in the electrolyte, and allow the battery to work beautifully. I'm not 100% sure of the "final chemistry" of the cell, so I can't build one at 2.65 at the start, but the current cell (starting at 1.3-1.43 volts) can be conditioned to become the 2.65v cell over about 15 cycles. My "master" cell is still conditioning, so I'm not sure what the life cycle is at this point... but this is the best cell I've built in four years of working on it, and I want to make sure it's out there and ready.

Goals:

0. Abundance - The battery should take advantage of abundant natural
resources, sticking within the top 10 or top 12 elements. (O, Si, Al, Fe, Ca, Na, K, Mg, Ti, H and possibly P, Mn)

1. A simple-to-make battery that could be constructed in primitive conditions

2. It should be easily constructed from recyclable/recycled materials "Junk"

3. It should provide enough power to light LED lighting systems through the night

4. It should be rechargeable

5. It should be easily deconstructed, "serviced", or recycled once it fails.

6. Open Source - the "recipe" will be freely available for anyone to use.

Acceptable Trade-Offs:

0. Carbon, because it's hard to make a cell without it, and is generally accessible. Sulfur as well, again, because it's generally accessible by consumers (battery acid is a common thing).

1. Size - I don't care if it takes up the size of a chair, up to 5 times equivalent size lead acid

2. Voltage - I'm not worried about a low voltage cell, if I can just stack several together

3. Graphite - While not ideal for primitive situations, it can be easily recycled from dead primary batteries

4. Time to condition - it might take a while to condition the battery to a useful state through repeated charge/discharge cycles

5. "Outgassing" - while a serious negative, it is understood that some outgassing may occur during conditioning. Gasses like Chlorine might require the battery to be stored outside.

6. Boost converter - Our goal is to create light, not worry about continuous voltage - so a pulsed boost converter is acceptable (a "Joule Thief") to get a lower voltage up to a pulsed signal capable of lighting an LED. I've driven "30 watt" LEDs on as little as 2 watts using this method.

My original cell is actually the "Variant: Scrap Aluminum Tubing and Graphite stick" later in this instructable. This instructable is my first attempt at a flat cell. Below is the ingredient list, construction, and what I believe is the theory behind the cell.

The very basic ingredients:

Waterglass - Sodium Silicate - doesn't take a lot.

Aluminum

Urea

Salt (NaCl)

Borax

Epsom salt

Basic build process: (the aluminum tube variant is recommended)

1. Paint the aluminum surface "inside" with waterglass (sodium silicate). It will react and form a white gel, and a dark gel. It will produce hydrogen and heat up during this reaction.. so be careful.

2. You can place a paper seperator on top of this, as well as wave paper, and let it sit for 24-48 hours

3. Mix a slurry of urea, salt, borax, and epsom in equal parts. You may also add a small amount of waterglass to loosen it.

4. Spread the mixture on the paper seperator

5. insert/overlay with your graphite electrode. You may also try copper, but I haven't tried that yet. You will likely have a slighly lower voltage ~ 2.25v

6. The cell should have an initial voltage around 1.3-1.4v - I'm not 100% sure why... but that gives you a clue it's working.

7. charge >3.5v, discharge through a white LED. higher voltages (4v - 10v) are possible, but will create chlorine gas, which is bad news. This doesn't seem to ultimately affect the battery as far as I can tell. It may bubble over with what appears to be water with dissolved AlCl. Not good for you to touch or ingest.

8. Occasionally let it sit overnight without a charge.

9. repeat 6/7 - and the battery will slowly improve.

10. The cell can be smelted down into aluminum when you wish to recycle it.. you may wish to add lye to deactivate any salts in the electrolyte.

11. The first 10 or so charges can be a little disappointing. Keep it up, you'll see it gradually improve.

My working theory:

1. Waterglass (Sodium Silicate) reacts with the Aluminum to form (Aluminum Silicate - a relative of clay). This is the "white gel"

2. The "free" sodium will react with water to form lye (NaOH).

3. The lye reacts with the aluminum to form Aluminum hydroxide (and hydrogen)

4. The borax (Sodium tetraborate) and Salt (NaCL) already have sodium ions, so don't react

5. The magnesium sulfate I added since magnesium is far more reactive than aluminum, and I believe might help maintain the electrolyte. It may not be necessary

6. Overcharging the cell will change NaCl to NaOH and Chlorine.

7. The Chlorine reacts with AlOH and Al to form AlCl

8. The urea then helps for a Deep Eutectic Solvent with the AlCl, acting as our electrolyte.

9. Aluminum ions get intercalated in the graphite, but will rejoin with the Aluminum silicate on discharge

10. I believe the Aluminum silicate and Sodium silicate are the "merry go round" that causes the process to work, and that we, as we get to less and less water in the mix, find a perfect balance that allows the battery to work well.

11. I'm not sure the borax and epsom are needed, but in my experience they make batteries work better.

Waterglass - Sodium Silicate - can be made with silica gel and NaOH.

Aluminum - the thicker the better so we get into a good balance. Foil may require "additions" until the reactions stop.

Aluminum Silicate - the reaction product of waterglass an aluminum... speeds the whole process along, paint your aluminum with already reacted silicate to cut down on conditioning time. Such a pretty blue-grey

Aluminum Chloride (AlCl) - the reaction product of the reacted NaCl and the aluminum electrode. another way to speed things along.

Urea - Ice melt is a great source. I'm sure you can think of others. Helps form an ionic liquid electrolyte with the AlCl

Salt (NaCl) - Table salt. I haven't tried iodized.. but I would guess the over potentials might just drive off the iodine.

Borax - Used to wash clothes. I believe it might be acting as a flux in the electrolyte.

Epsom salt - Not 100% sure, but both my batteries use it, and it *seems* to help.

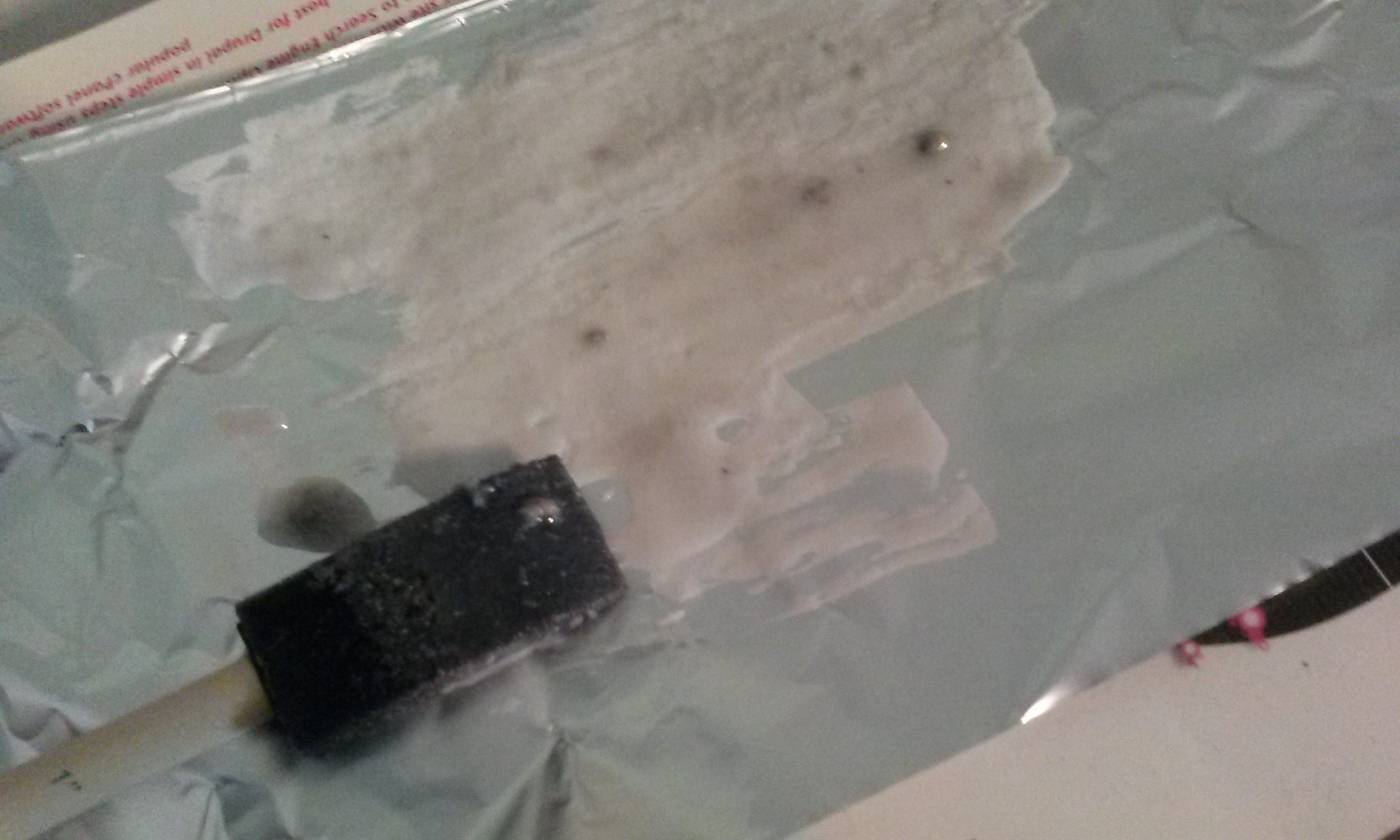

A thin layer is all that's needed

If you're using aluminum foil for your electrode, you'll need to pre-react some aluminum and waterglass before spreading - or the resulting reaction wil likely just eat through your foil. It may take 5 sheets of foil to completely react with the waterglass.

For this a thick piece of aluminum (or thick aluminum tubing) are definitely the way to go - they will have enough mass to allow the corrosion, but not suffer any problems.

For a flat battery, I lay a piece of paper on top to soak some of the electrolyte and acts as a seperator later. In the tube, this isn't necessary - as the electrolyte takes up the extra space.

Additionally, for contact, I added some wax paper and pressed the battery for 48 hours until it finished reacting.

After 48 hours, it was pretty stiff, with aluminum silicates forming, even around the edges.

You can see how it ate through the aluminum foil layers... so I added two more layers as additional anode material.

I taped the edges to help with current collection, and protect my output. Then painted with my electrolyte. In the last picture, you can see the edge of the packing tape resisted the liquid.

Definitely not easy to get in the US. I had to order mine twice from china. You may try copper sheeting, or attempt to make your own with graphite by mixing polyurethane and graphite and activate carbon and painting a copper sheet. For tubes, use graphite rods. which can be harvested from old alkaline batteries or purchased directly. I got 10 12-inch graphite/carbon rods for ~$10 online.

The advantage of a flat cell is that you can make additional layers to surround the graphite (cathode +) layer for more capacity. Here you could continue to paint, press and build up the layers in your battery for more capacity.

Same process, just a thick aluminum tube and graphite stick. So far, my best cell. It can bubble over when overcharged, so leave a few inches of "headspace" in there when you build it.

I haven't tried making a copper electrode, but would guess you'd only get 2.25v out of the cell, which still isn't bad. Plus the copper silicate is a very pretty blue color.

Graphene oxide, graphite, and activated carbon are all possiible electrode materials when mixed with a little polyurethane and glued onto a copper sheet.

I've also been experimenting with a geopolymer-based electrode, but will probably post about that at a later date.

The battery will exhibit 1.3-1.4 volts when initially constructed.

Conditioning requires repeated charge/discharge cycles. Run it up, run it down. It will start showing some capacity after 10-15 charge/discharge cycles.

I'm not 100% on the charge voltage, but I believe it is somewhere between 3 and 3.5 v - my guess is 3.25 or so. I'm still working on the reactions.. and from experience putting it right at 2.75 or 2.8v doesn't seem to get us much above the 2.5v "steady state"

I recommend a joule thief, or 100Ohm resistor for discharging. I prefer a joule thief (boost converter), because it runs a white LED, and is at least providing some "work" that I can watch.

It will tend to discharge to 2.5v overnight, which is something I'm still working on, but for a primitive setting, especially with a joule thief, we'll just abuse it as much as we want - the goal is light, and deep discharges don't seem to be a huge problem. Perhaps 2.5v is actually where the battery wants to live in daily use... only time will tell as we continue to experiment with it. It has a STRONG arc around 1.9-1.7v, but I don't know if we have to have the full 2.8v+ charge voltage to get that.

The cell doesn't handle high current well, which is why 100Ohms is a bit of a high drain for it. 1kOhm (about 2 mA) is a perfect drain for it. By using two cells in parallel, you could easily light a high brightness LED all night. Internal resistance is likely a problem with the electrolyte, or perhaps I should mix aluminum powder and graphite with the anode (-), or Manganese Dioxide in the Cathode(+) - but that puts me outside the parameters of the "junk battery"

Some preliminary experiments with copper cathodes look promising. While the voltage may ultimately be lower, it seems like a very strong battery can result from the formation of the copper silicates. I don't know if the liquid electrolyte is actually necessary, but I used it ( Paint the aluminum, allow to cure/dry, drip fresh aluminum silicate on the dried cake, and then lay a copper sheet on top, charge). So perhaps a simple copper/silicate/aluminum "solid state" cell is possible. Seems to exhibit a wonderful 1.7-1.5v chemistry - with no seperator, just the Al Silicate and Cu silicate, it's capable of a rapid charge at higher voltages, and a good 15mA discharge for nearly an hour. This might actually be the next stage in developing this battery... lower voltage, but intense durability.
