Joystick Led Pwm

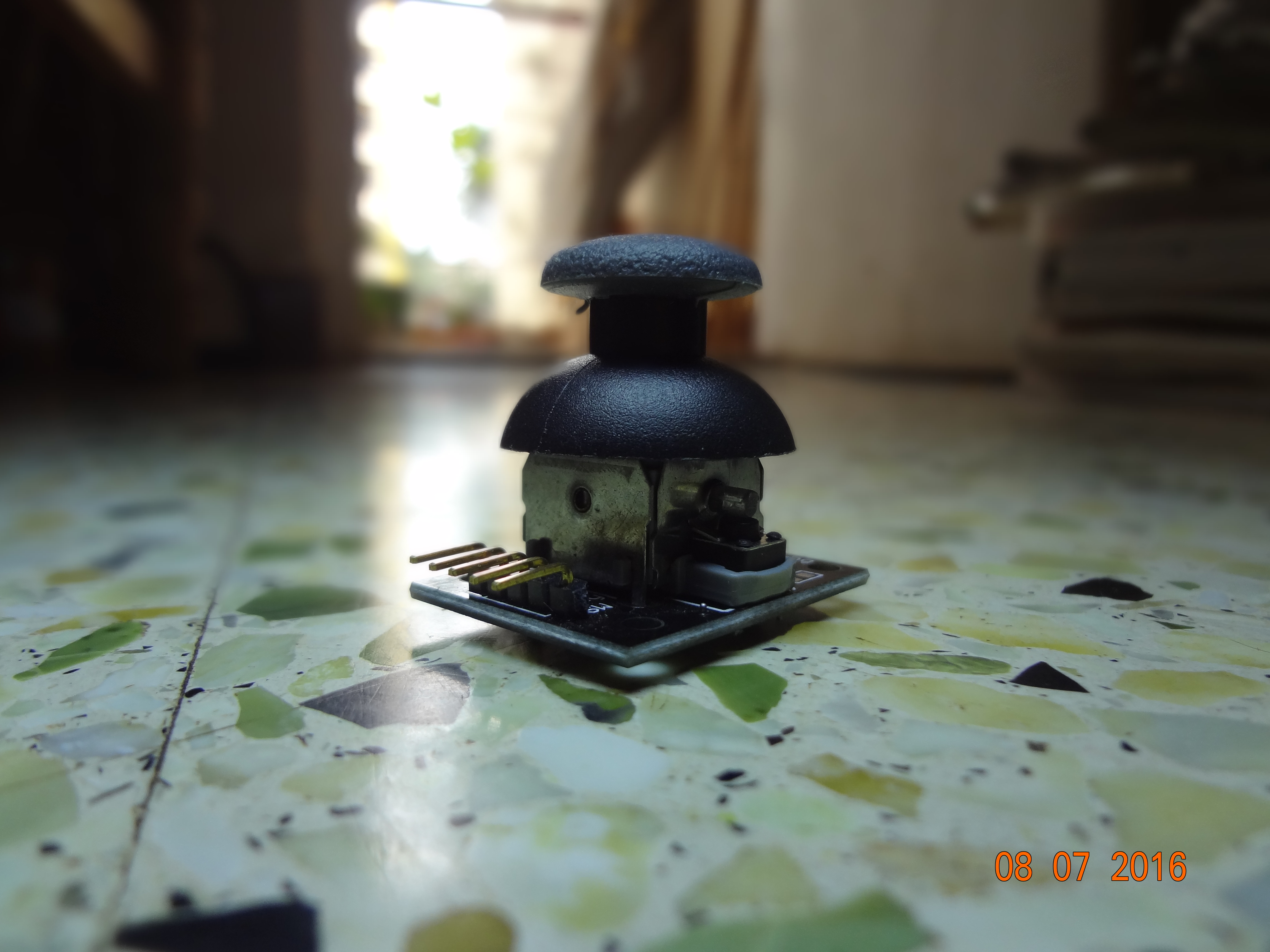

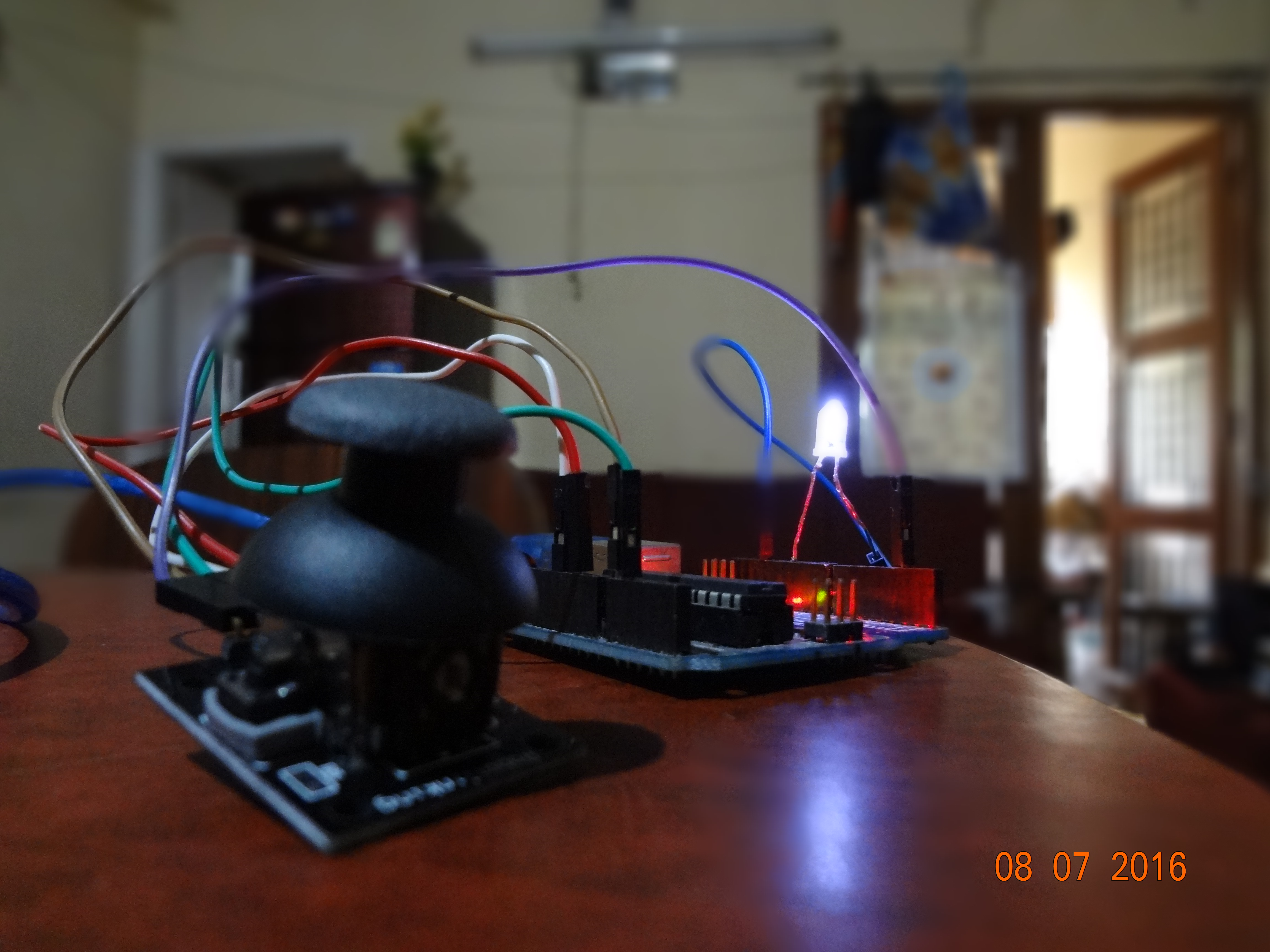

Easy to understand with this pic I guess and any questions feel free to comment....

x axis to A1

y axis to A0

SW to pin2

+5v to 5v pin or 3.3v pin

and gnd

Led to 11 pin

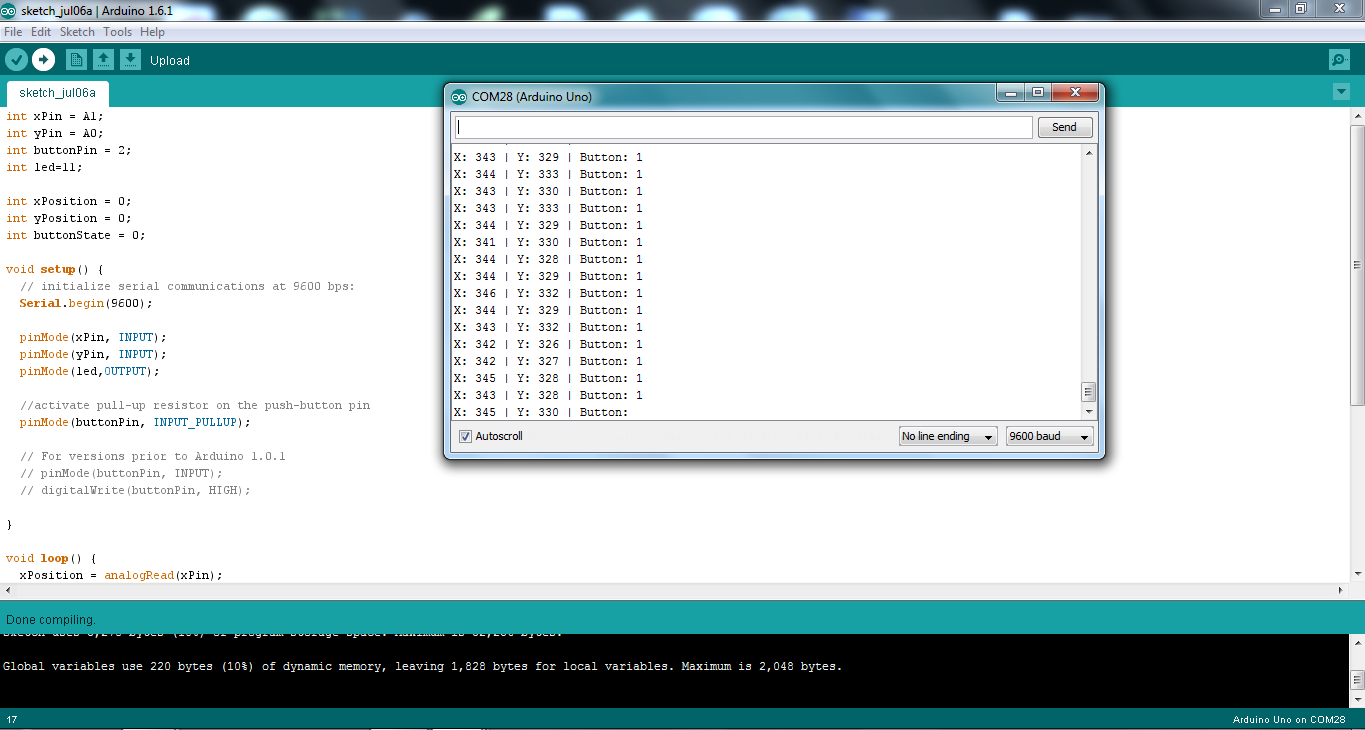

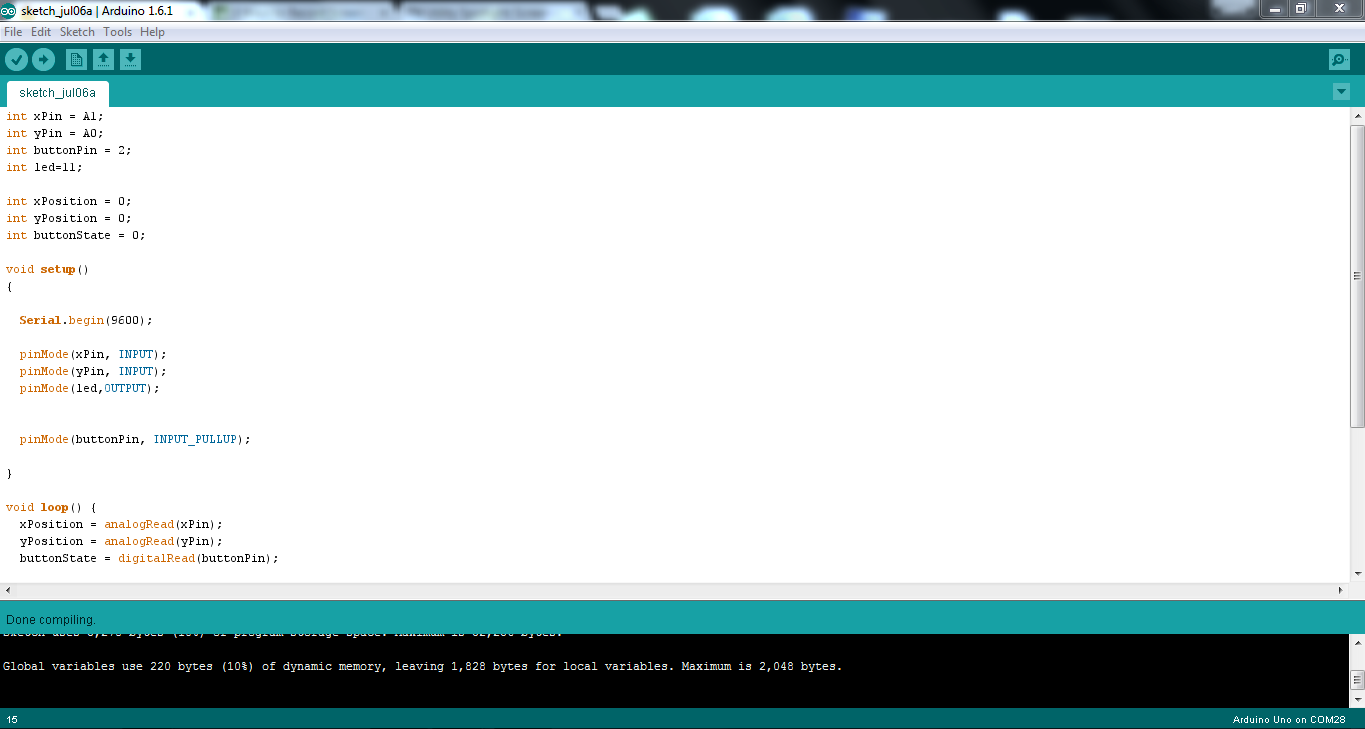

int xPin = A1;
int yPin = A0;

int buttonPin = 2;

int led=11;

int xPosition = 0;

int yPosition = 0;

int buttonState = 0;

void setup()

{

Serial.begin(9600);

pinMode(xPin, INPUT);

pinMode(yPin, INPUT);

pinMode(led,OUTPUT);

pinMode(buttonPin, INPUT_PULLUP);

}

void loop()

{

xPosition = analogRead(xPin);

yPosition = analogRead(yPin);

buttonState = digitalRead(buttonPin);

Serial.print("X: ");

Serial.print(xPosition);

Serial.print(" | Y: ");

Serial.print(yPosition);

Serial.print(" | Button: ");

Serial.println(buttonState);

analogWrite(led,xPosition);

delay(100);

}

You can add another led to to y axis and make to use
...

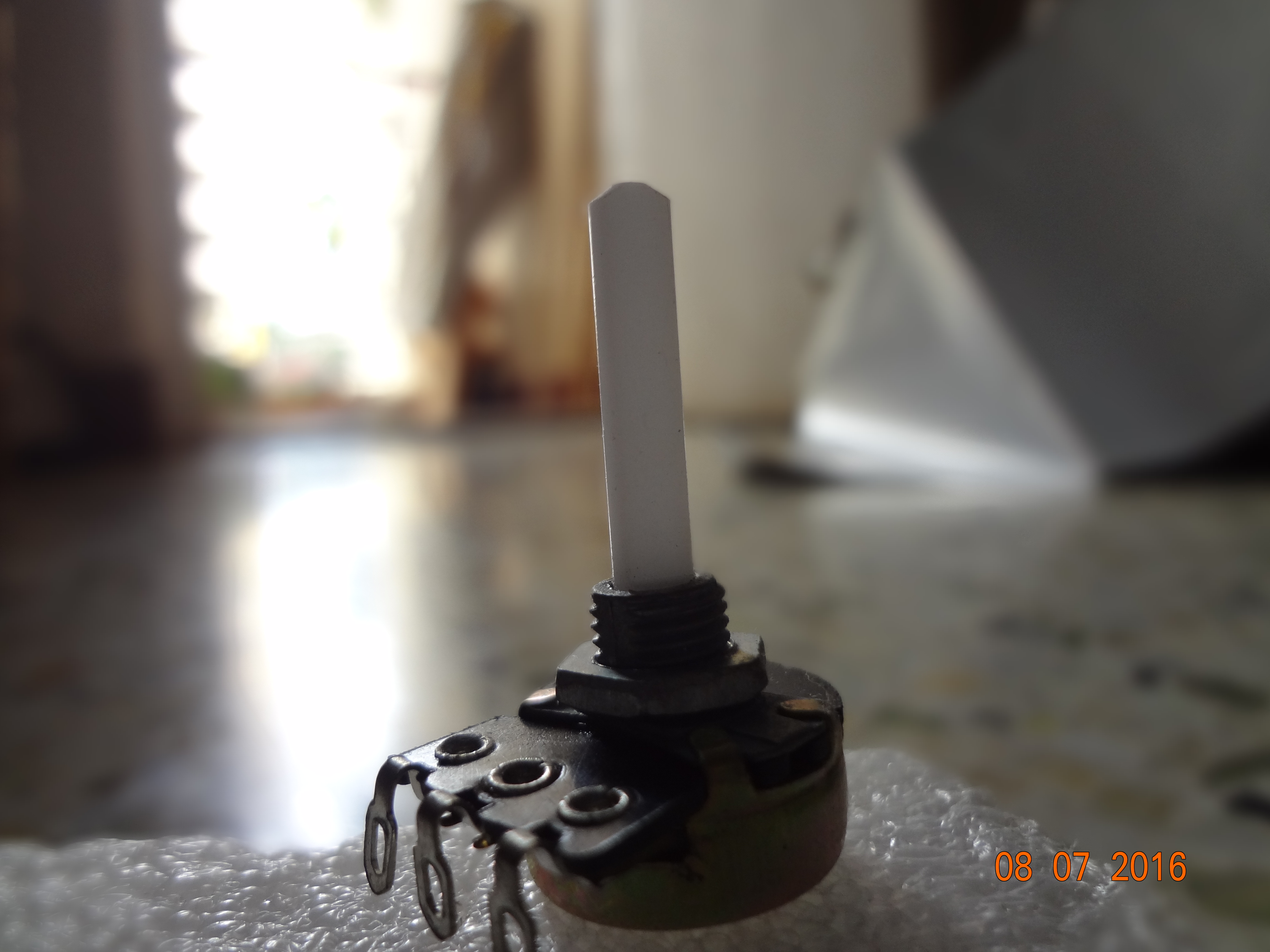

Potentiometer can be used instead of joystick
