Joystick Controlled FPV Cam Arduino

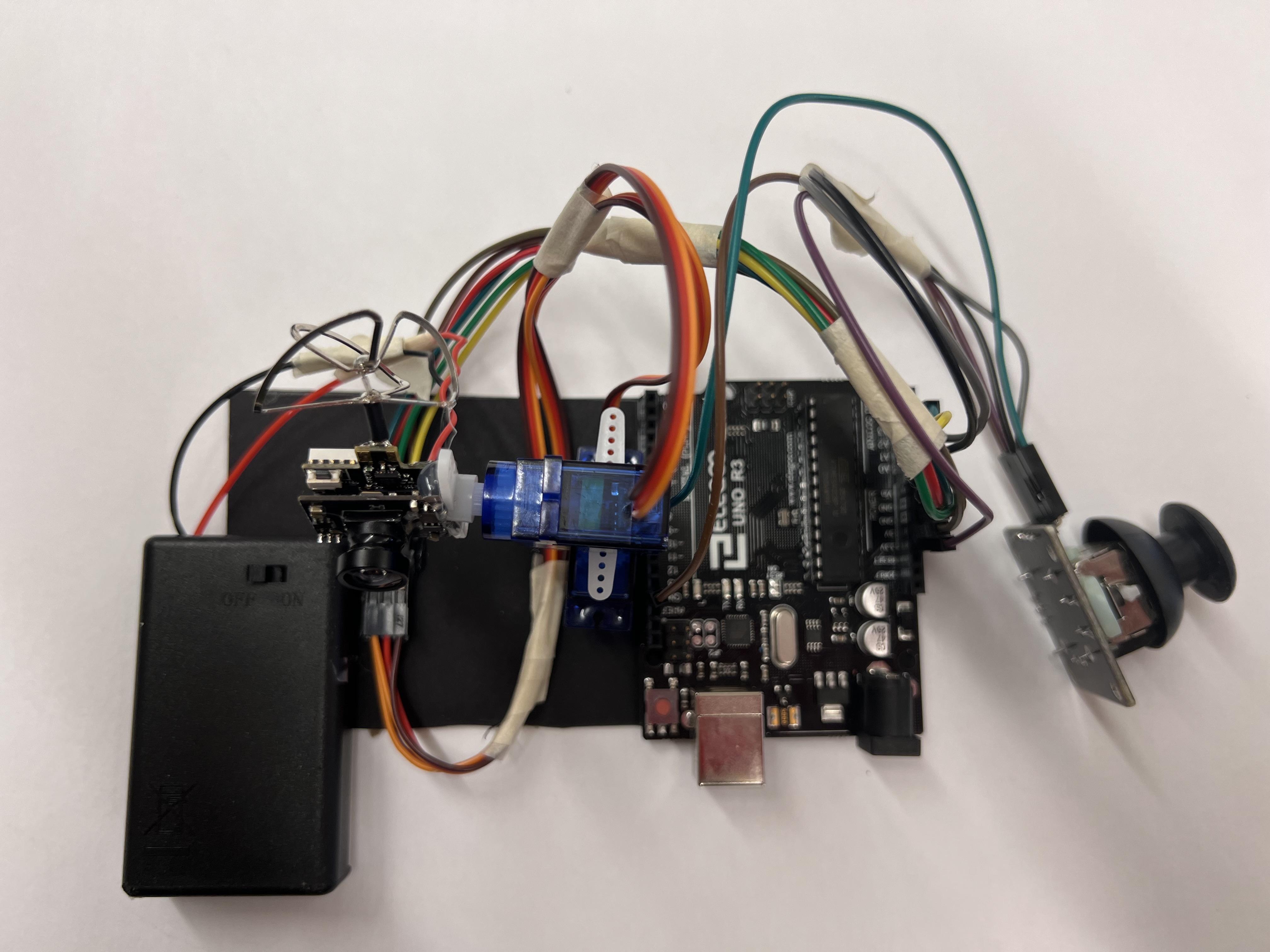

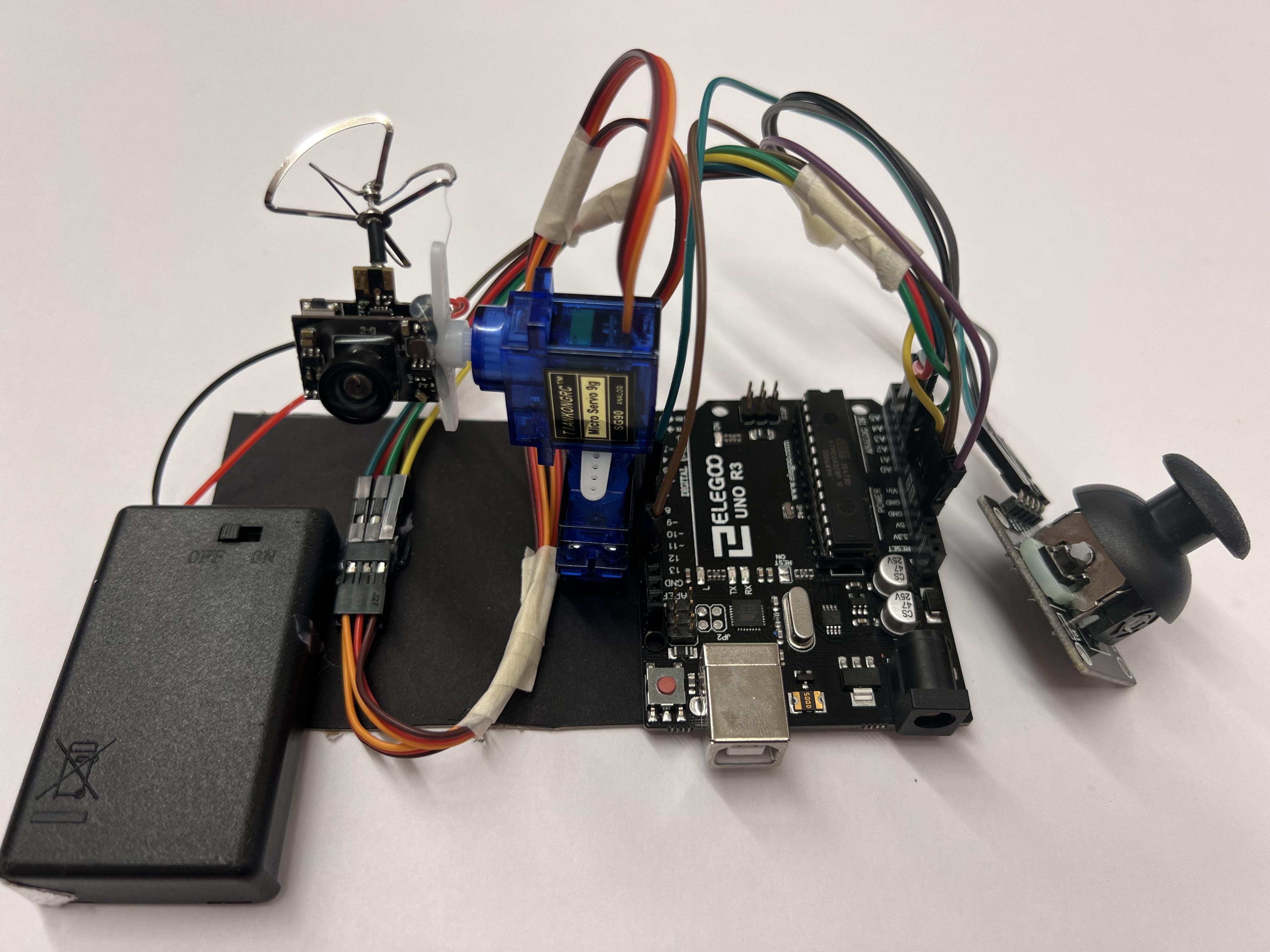

This is a joystick controlled FPV cam system fully based off the Arduino UNO microcontroller board (generic). I made this system to be able to control all movement of the FPV cam all with a single joystick, while viewing the camera contents on the FPV goggles that came with the FPV cam device.

All supplies are available on amazon under $30.

Supplies List:

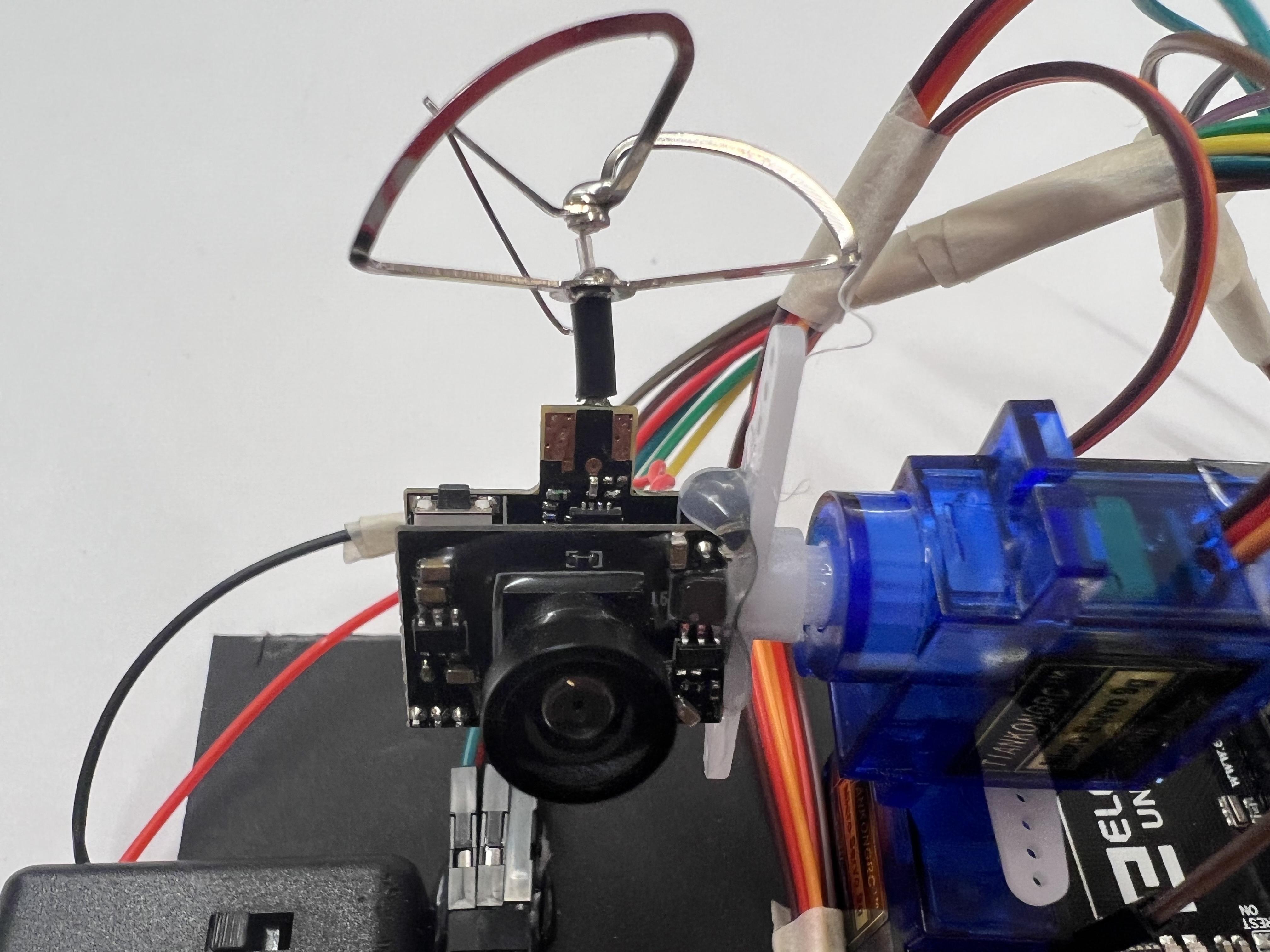

Any FPV cam

Arduino UNO

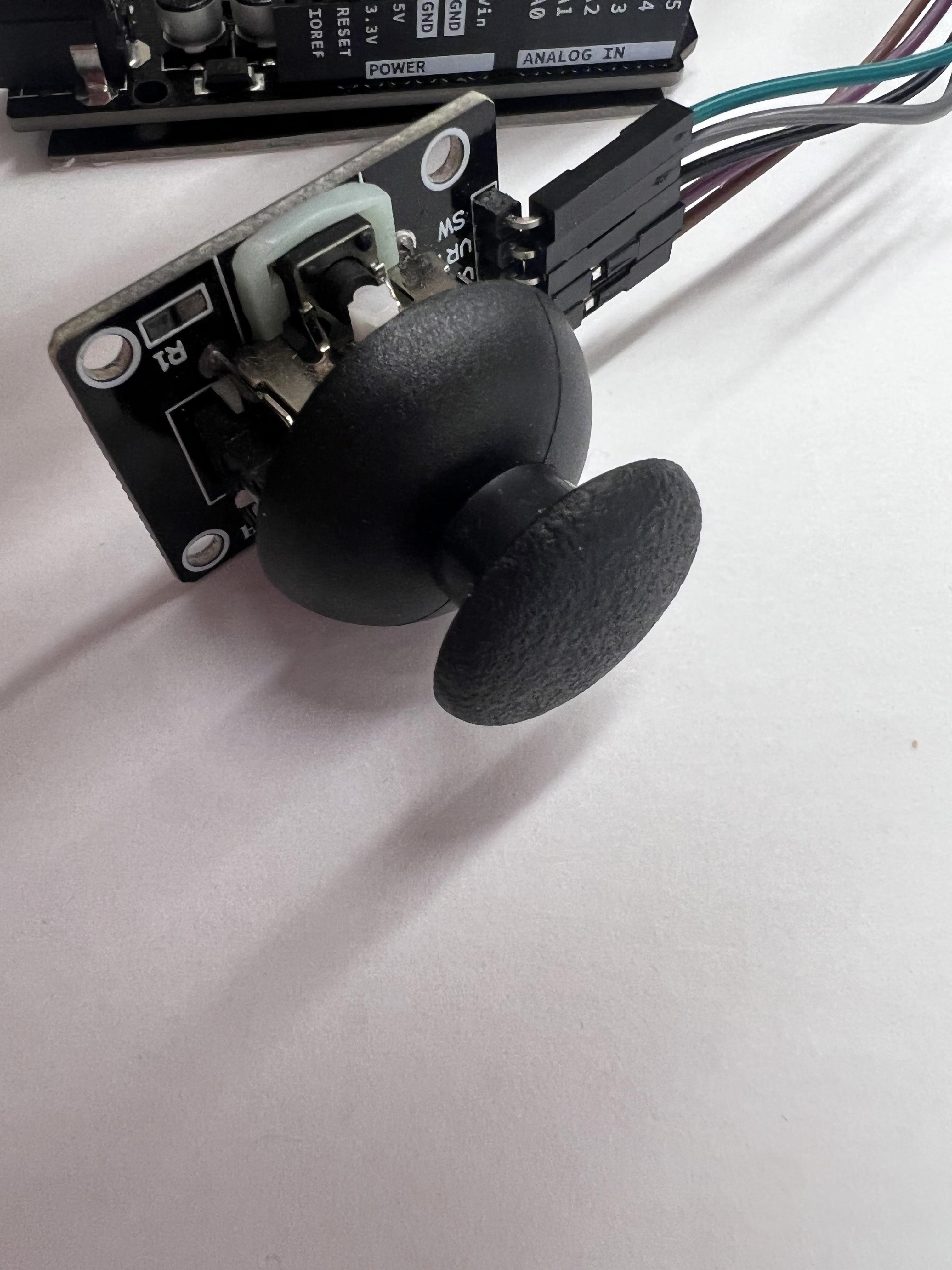

Joystick for Arduino

4.5V battery pack

2 SG90 Servos

Arduino 3.3V >> Joystick +5V

Arduino 5V >> RED SERVO WIRE

GND >> BROWN SERVO WIRE

A0 >> Joystick VRX

A1 >> Joystick VRY

A2 >> SERVO 1 ORANGE WIRE

A3 >> SERVO 2 ORANGE WIRE

VIN / FPV CAM POWER INPUT >> 3 AAA Battery Pack RED WIRE

Arduino GND / FPV CAM GROUND >> 3 AAA Battery Pack BLACK WIRE

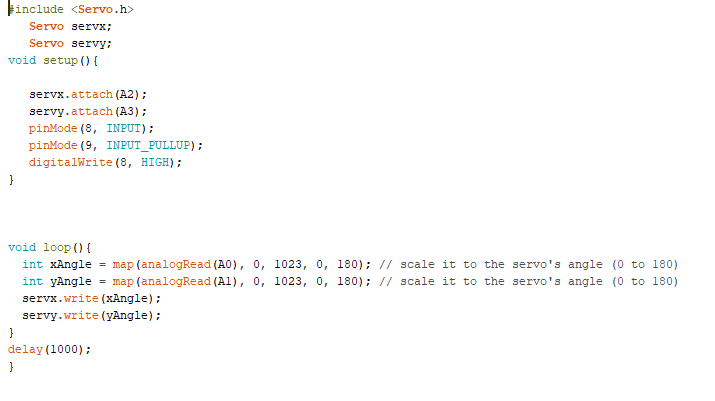

UPLOAD THIS FILE TO THE ARDUINO VIA THE ARDUINO IDE.
