JonnyBGood's Knex Nerf Gun Attempt Model III and Model V

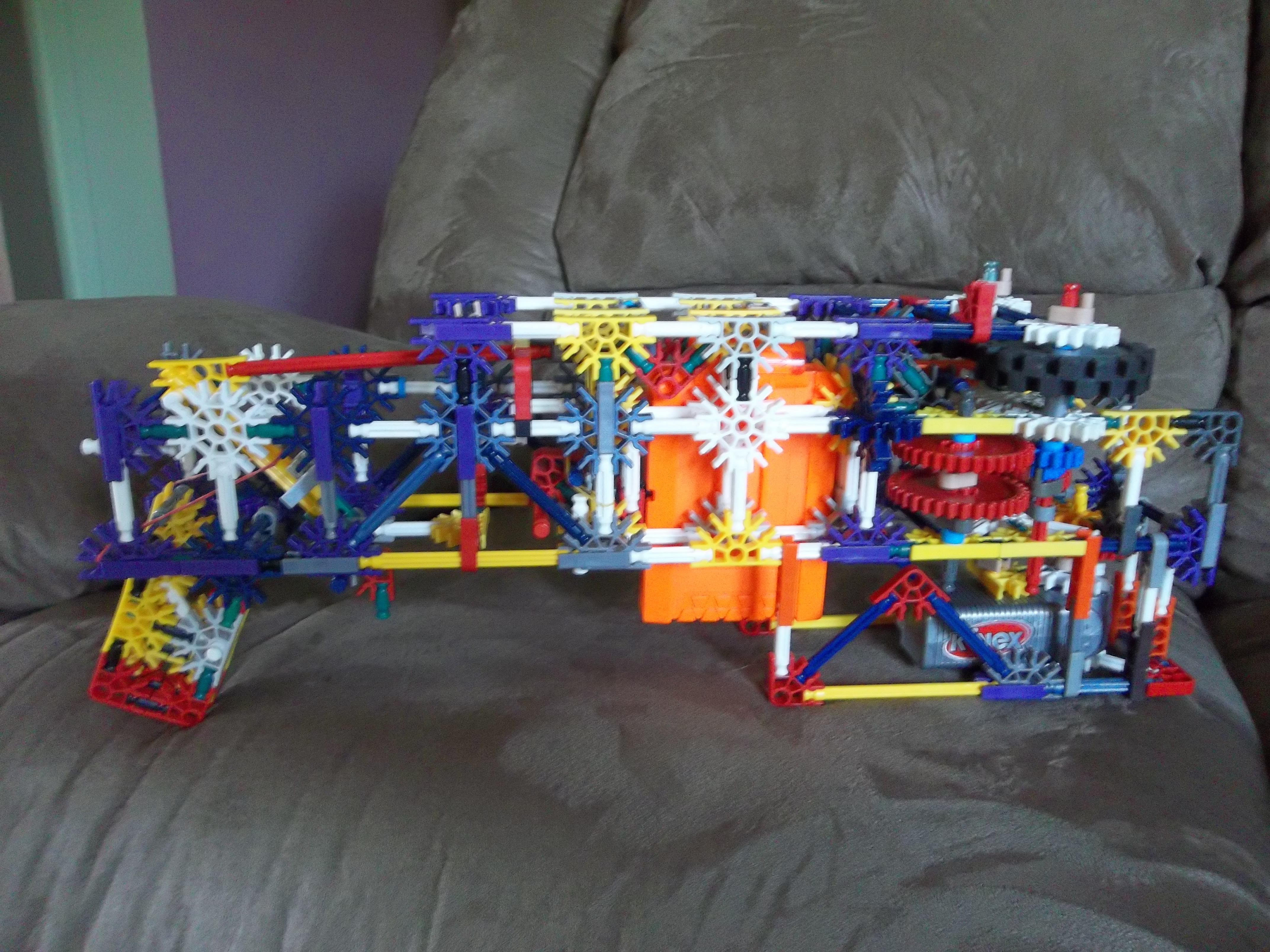

(Model III pictures shown in intro)

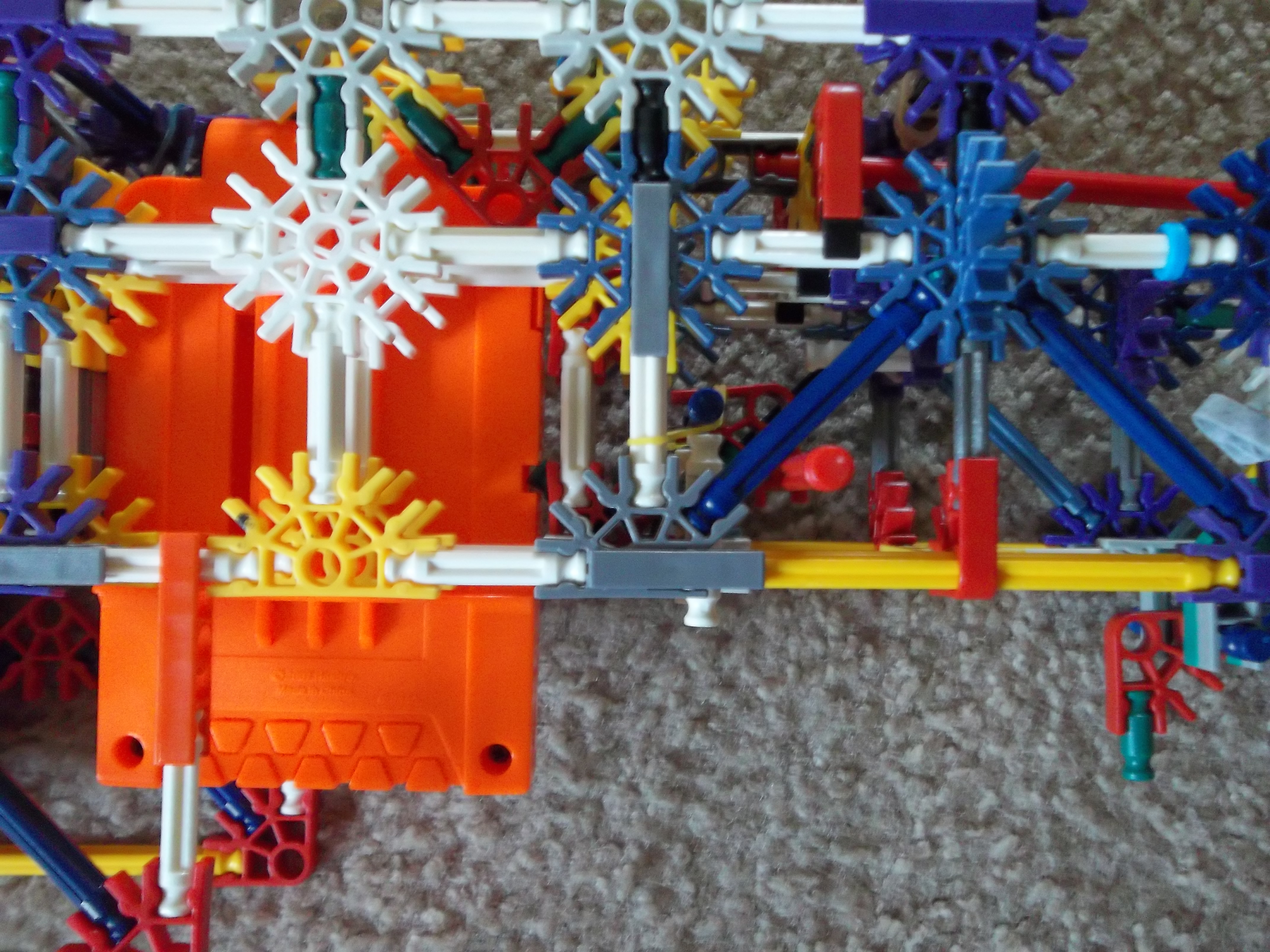

Hey fellow iblers'! Today i decided to post the only remaining pictures of project Nerfrocketeer. This is a semi auto nerf gun completely built out of knex. It featured a magazine lock that worked with any standered nerf magazine and a single motor as a power source. Unfortunately like most semi autos range is a problem, which was also a problem in my first two prototypes. This model had a maximum range of a pathetic 1 to 2 feet. I figured with a little advice from Nerfocketeer, an experienced ibler' in anything that shoots foam, can't hurt so he hped me brainstorm what i could do to increase the range on the gun. The only thing I could figure out is more speed=more range. And with more speed=more gears. I could get that, but that also increased friction and the amount of torque I will need to get the wheels spinning. My largest prototype II was used many more gears and required three engines to spin the wheels just to get 3 feet of range. A foot of that range was before it left the gun so really only 2 feet of range.

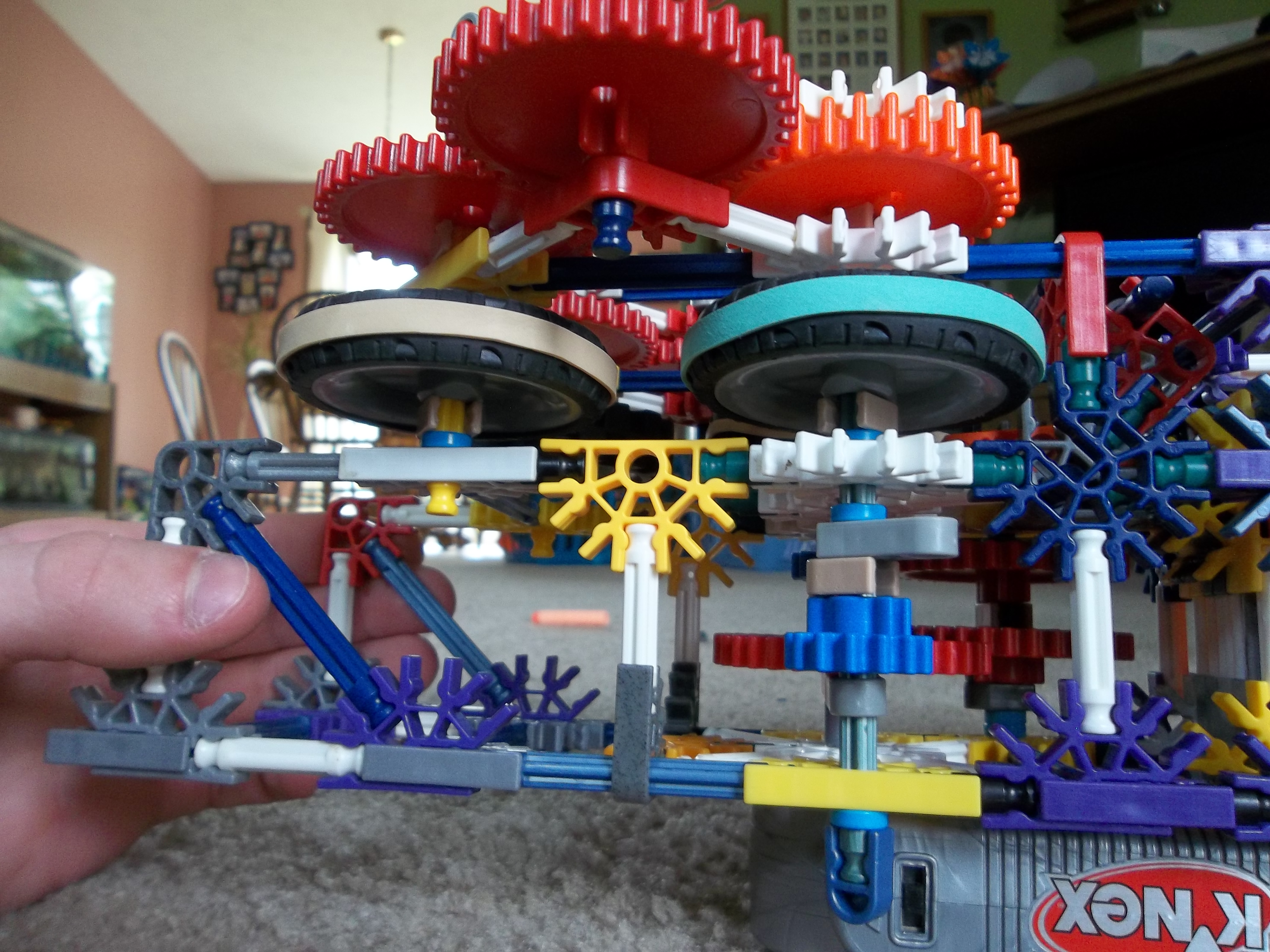

Model V (two wheel model)
Well Nerfrocketeer's idea to use tape on the wheels to increase the contact area on the nerf dart spawned a whole new brainstorm. Nerf gun Model V has larger wheel on it, a tad more gears (2 to be exact) and now a slightly less pathetic range of 5 feet. I was the most happy with this model so far because the nerf darts acctually appear to be launched instead of dropping out of the gun . I enjoyed what I built for the project, but I'm not quite happy with the complete picture of it. Not only does it not look good (more like a cardboard box with a handle and trigger) the range just isn't, well.... threatening. The only option I see now is more speed and I'm not quite sure how I would execute this, but I'll see what I can do maybe sometime in the future. To be perfectly honest this project and concept is very fun to work on and there's a heck of a lot of potential in this system so feel free to give it a try or suggest things. I'm planning for my next attempt to use a more powerful motor so I won' t have to use so many gears and maybe it'll bring a bit thinner.
Anyway please try or suggest things for this concept. If I like your idea I may dust off the old idea myself to give it a try.
Thanks for reading!
JonnyBGood
