Jaundice- Your AI Assistant Robot

We all are familiar with ‘Jarvis’ AI assistant robot from “Iron Man’ movies and Marvel series. It has always been a dream of programmers to make something on their own. I will today show a simple way to make such an assistant using Python programming. Moreover, I will also make a physical avatar of that robot, so that whenever we talk to the robot, it can do some movements. That will be more amazing than just a software robot. Because if it has a body, it is cool.

So today we will learn to use both Arduino and Python programming to make an AI robot which can control your computer and have a little chit chat with you. Let’s hop in guys!

Why I named the robot ‘Jaundice’? Because I painted it yellow, very very yellow!

Electronics -

• Arduino Nano – 1x
• Micro Servo Sg90 – 3x
• Ultra Sonic Sensor HCsr04 – 1x

To make robot Body –

• PVC sheet (preferably white, better for coloring, I used blue one)
• Servo wheel (for the stand)

Tools - :

• Cutter knife
• Scissor
• Hot glue
• Spray paint

Software - :

• Python3
• Arduino.ide

Before getting into the actual building, it is great to have an idea of what we will be doing.

So, the main code or AI part of the code will run on the computer, why? Cuz it supports python and has more processing power than the little Arduino, also as the AI bot will control/automate some tasks of my pc it has to run on my pc. So, the Arduino board it connected to my computer using the USB cable.

The idea is to run a python program that will do the Speech to text part, process the text and will also do Text to speech. Means the robot will listen, understand and talk back. For body movement I saved some movements (encapsulated in functions) in Arduino board. The function for each movements are executed by the python code.

As an example – if the robot has to say ‘Hi/hello’ the python code will send a byte ‘h’, Arduino then execute the hi() function. As simple as that.

Now that you have an idea, let’s move on to next process.

Circuits are the things that annoy most makers. If something goes wrong, you may burn some expensive parts. For that I designed a PCB board that can be used to make numerous projects. It has micro SD card slot, Bluetooth module slot, 5v External power source and the whole thing is powered by Arduino Nano.

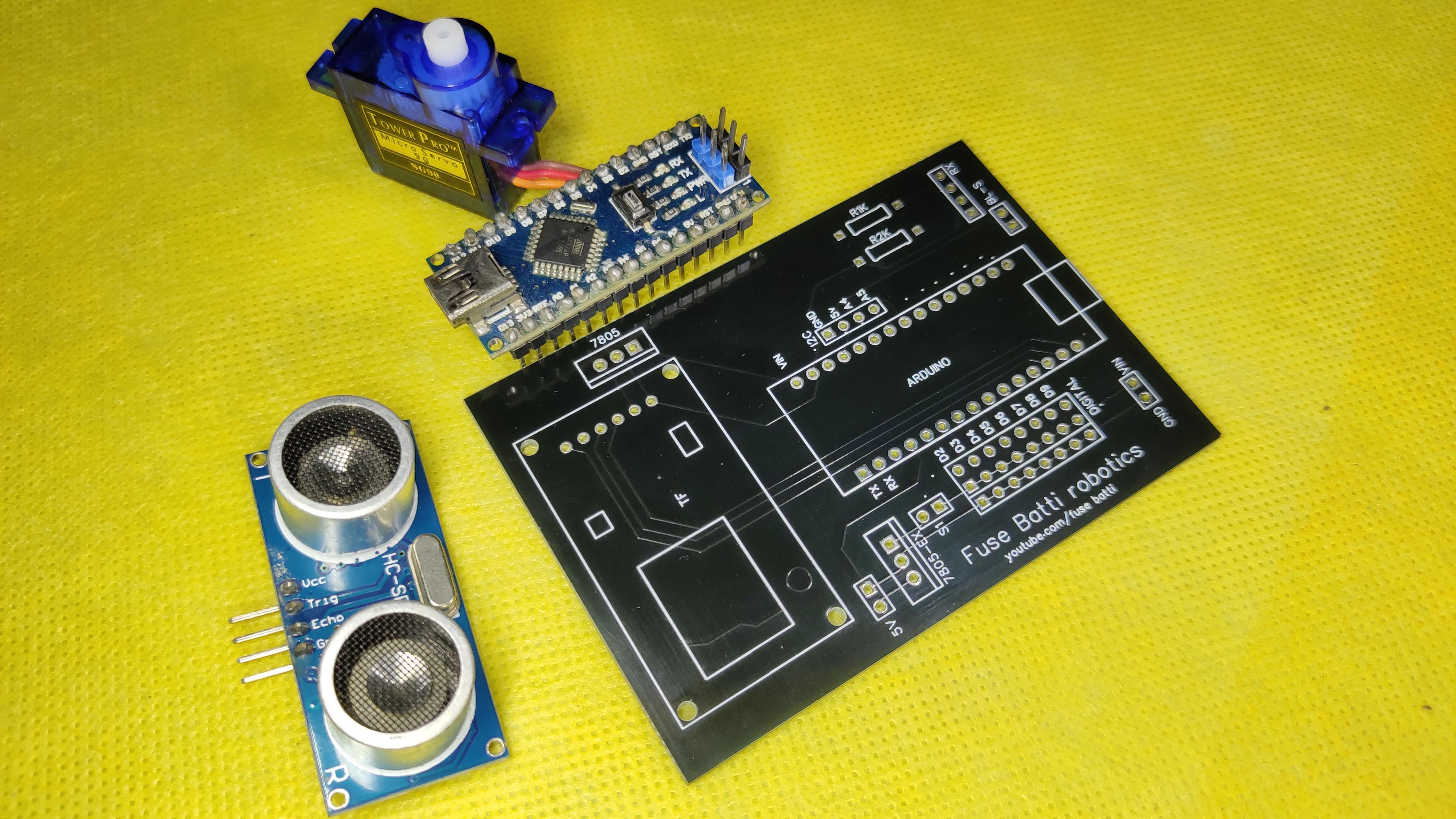

I designed a PCB using EasyEDA and printed using PCBWay online service. Their service is amazing. I ordered using PCB instant quote and their system automatically did everything for me. Within 3 days I got the board all the way from China to Bangladesh. The quality is fantastic, solder masking is perfect and the lines/traces, finish is as good as it could be. Anyway, I used .300 mm traces as it can bear 1Amp current.

You can just download the PCB files from here.

In this step I soldered everything. Be very careful not to inhale the fume, it may cause cancer.

I am not using Bluetooth module nor TF module, so I left those unsoldered. The good thing is, I used 3 servo motors and one sonar sensor, all the things get easily powered from the USB cable that we connect to program the Arduino. This is great as we don’t have to think of another power source, rather it uses laptop's battery power to run the bot.

However, if you still want to use external batteries then go for lipo 2s (7.4V) batteries, more than that and the servo burns.

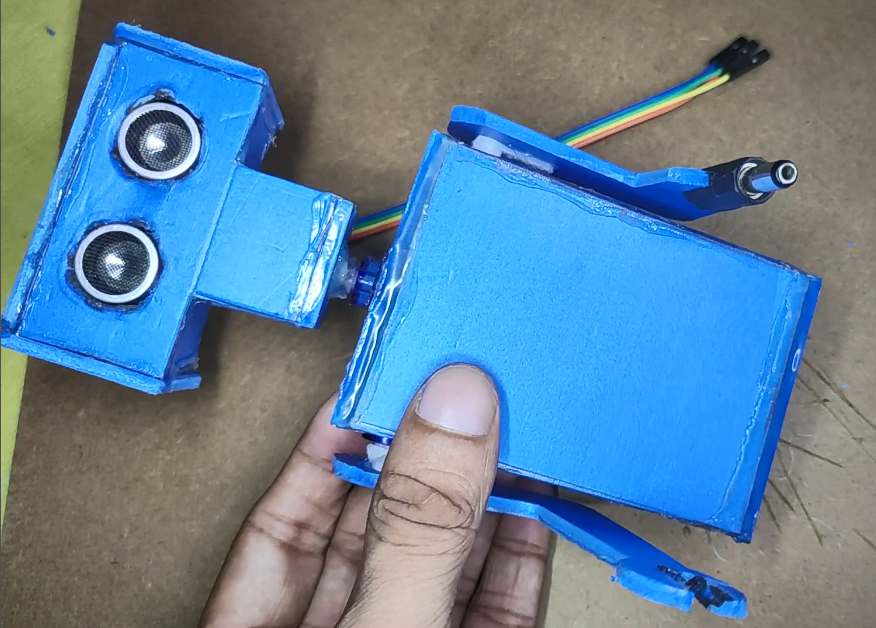

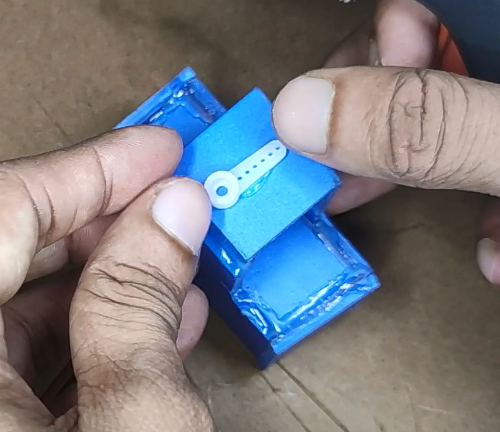

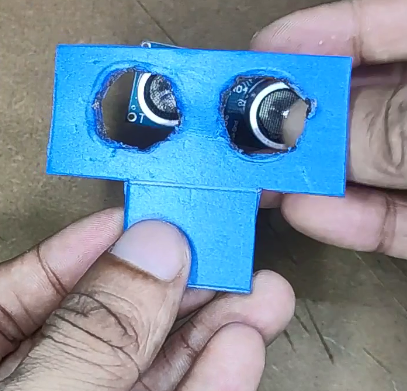

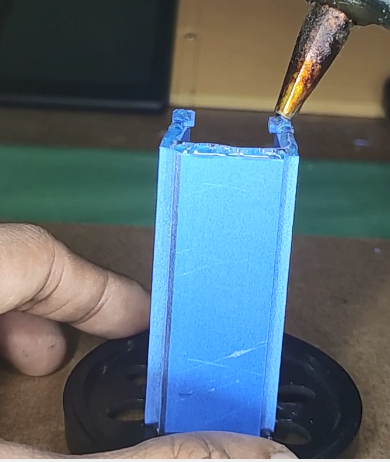

I used PVC sheet to make the body, you can use cardboard too. First, I made a box for the main part, there goes the main board, and servo motors. It is just like making boxes. I made the head the same way, made two hole for the sensor (as eyes). I have added all the pictures you need. I made one hand like a wrench and another one like a plug. I actually used a plug and added that to one arm using hot glue.

Dimension? Actually there is not any, cuz it’s your robot, you can make it using some easy tools so make it as you want, make it of any shape and size.

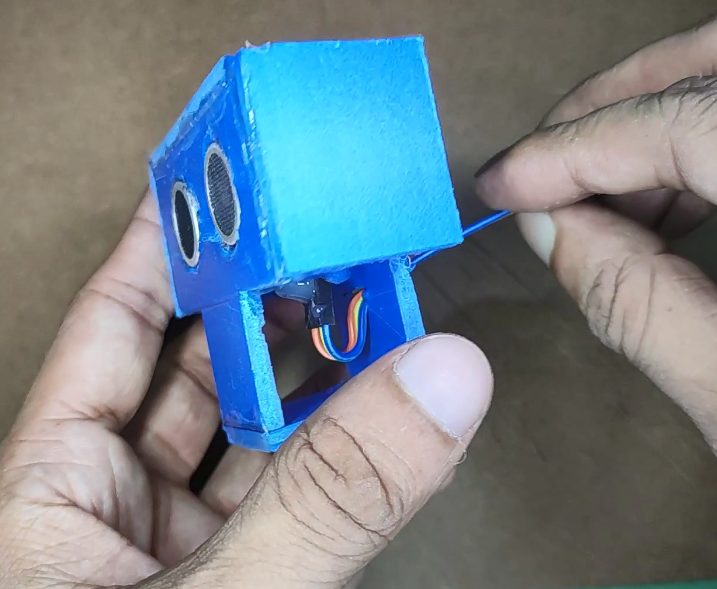

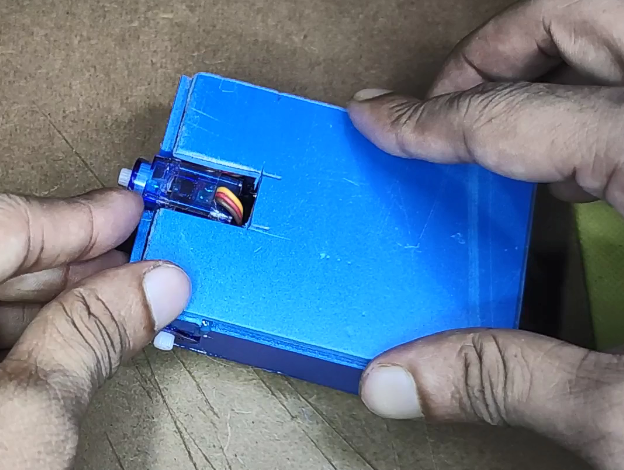

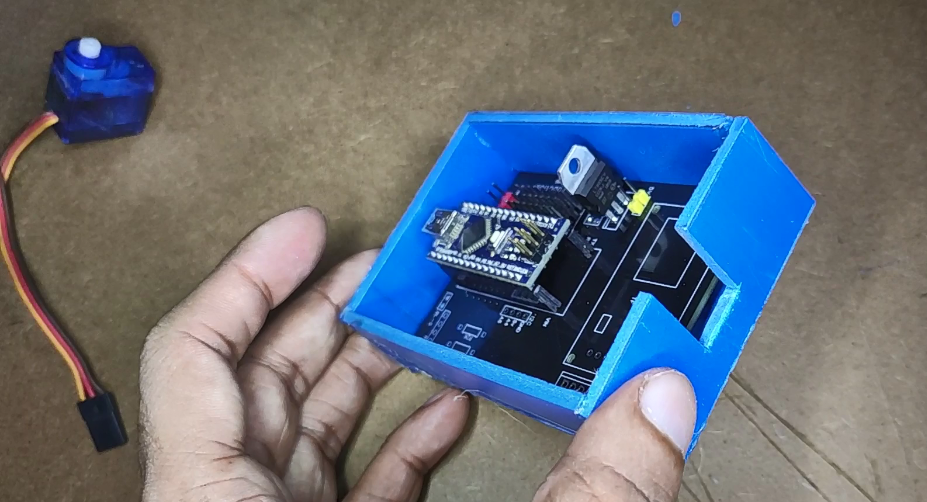

Be super careful to add all the electronics before closing the body. I painted the body after I put sensors and all the electronics. Do not do that, I already colored my Arduino yellow.

So, do paint after finishing the body, then put all the electronics.

(Check all the images to understand how I made it, or watch the youTube video)

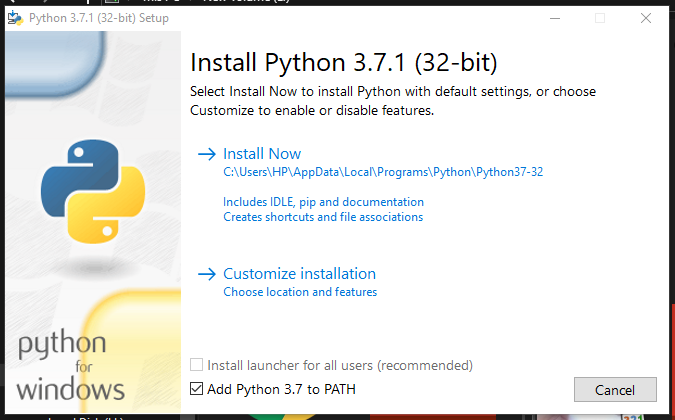

Download Python from this site, make sure to add python into your path while installing.

Note: You can use any Python version you want. I like to use older but stable one, so I am using Python3.7.1.

After installing Python you will need to run some commands from command prompt/terminal to install libraries for Speech Recognition, Audio Support, Text to Speech, Browser Automation, Serial Communication purposes. Run these commands -

pip install speechrecognition

pip install pyaudio

pip install pyttsx3

pip install pywhatkit

pip install pyserial

Then download the python code from here or copy from below.

""" JAUNDICE: AI Assistant robot with Arduino and Python

author: ashraf minhaj
mail: ashraf_minhaj@yahoo.com
Last Edit: Nov 2020

License: Copyright (C) Ashraf Minhaj.
General Public License (GPL3+)
"""


import speech_recognition as sr   # voice recognition library
import random                     # to choose random words from list
import pyttsx3                    # offline Text to Speech
import datetime                   # to get date and time
import webbrowser                 # to open and perform web tasks
import serial                     # for serial communication
import pywhatkit                  # for more web automation

# Declare robot name (Wake-Up word)
robot_name = 'jaundice'

# random words list
hi_words = ['hi', 'hello', 'yo baby', 'salam']
bye_words = ['bye', 'tata', 'hasta la vista']
r_u_there = ['are you there', 'you there']

# initilize things
engine = pyttsx3.init()                    # init text to speech engine
#voices = engine.getProperty('voices')      #check for voices
#engine.setProperty('voice', voices[1].id)  # female voice
listener = sr.Recognizer()                 # initialize speech recognition API

# connect with NiNi motor driver board over serial communication
try:
    port = serial.Serial("COM15", 9600)
    print("Phycial body, connected.")
except:
    print("Unable to connect to my physical body")


def listen():
	""" listen to what user says"""
	try:
		with sr.Microphone() as source:                         # get input from mic
			print("Talk>>")
			voice = listener.listen(source)                     # listen from microphone
			command = listener.recognize_google(voice).lower()  # use google API
			# all words lowercase- so that we can process easily
			#command = command.lower()
			print(command)

			# look for wake up word in the beginning
			if (command.split(' ')[0] == robot_name):
				# if wake up word found....
				print("[wake-up word found]")
				process(command)                 # call process funtion to take action
	except:
		pass

def process(words):
	""" process what user says and take actions """
	print(words) # check if it received any command

	# break words in
	word_list = words.split(' ')[1:]   # split by space and ignore the wake-up word

	if (len(word_list)==1):
		if (word_list[0] == robot_name):
		    talk("How Can I help you?")
		    #.write(b'l')
		    return

	if word_list[0] == 'play':
		"""if command for playing things, play from youtube"""
		talk("Okay boss, playing")
		extension = ' '.join(word_list[1:])                    # search without the command word
		port.write(b'u')
		pywhatkit.playonyt(extension)
		port.write(b'l')
		return

	elif word_list[0] == 'search':
		"""if command for google search"""
		port.write(b'u')
		talk("Okay boss, searching")
		port.write(b'l')
		extension = ' '.join(word_list[1:])
		pywhatkit.search(extension)
		return

	if (word_list[0] == 'get') and (word_list[1] == 'info'):
		"""if command for getting info"""
		port.write(b'u')
		talk("Okay, I am right on it")
		port.write(b'u')
		extension = ' '.join(word_list[2:])                    # search without the command words
		inf = pywhatkit.info(extension)
		talk(inf)                                              # read from result
		return

	elif word_list[0] == 'open':
		"""if command for opening URLs"""
		port.write(b'l')
		talk("Opening, sir")
		url = f"http://{''.join(word_list[1:])}"   # make the URL
		webbrowser.open(url)
		return
	elif word_list[0] == 'uppercut':
		port.write(b'U')

	elif word_list[0] == 'smash':
		port.write(b's')

	elif word_list[0] == 'punch':
		port.write(b'p')

    # now check for matches
	for word in word_list:
		if word in hi_words:
			""" if user says hi/hello greet him accordingly"""
			port.write(b'h')               # send command to wave hand
			talk(random.choice(hi_words))

		elif word in bye_words:
			""" if user says bye etc"""
			talk(random.choice(bye_words))


def talk(sentence):
	""" talk / respond to the user """
	engine.say(sentence)
	engine.runAndWait()

# run the app
while True:
    listen()  # runs listen one time

Head for coding2 step

This part is easy, nothing to install. Use Arduino.ide to program the board. Download from here if you have never used Arduino before.

As I have mentioned earlier, Arduino program waits for serial data, if it receives any data it checks the byte data. If data is matched to predefined command then it executes a statement. If ‘u’ is sent, it makes both the hand go up, like that.

Download the code from here of copy from below.

/** JAUNDICE: AI Assistant robot with Arduino and Python **
 *
 *  author: ashraf minhaj
 *  mail: ashraf_minhaj@yahoo.com
 *  Last Edit: Nov 2020
 *
 *  License: Copyright (C) Ashraf Minhaj.
 *  General Public License (GPL3+)
*/

#include<Servo.h>

Servo head;
Servo l_hand;
Servo r_hand;

// define sonar sensor's pins
int trig = 4;
int echo = 5;

// received data
byte val = "";

void setup() {
  // put your setup code here, to run once:
  head.attach(2);
  l_hand.attach(3);
  r_hand.attach(4);

  Serial.begin(9600); // for communicating via serial port with Python
}

void standby(){
  // all motors to these positions
  head.write(90);
  int r_pos = 30;
  int l_pos = map(r_pos, 0, 180, 180, 0);

  l_hand.write(l_pos);
  r_hand.write(r_pos);
}

void hi(){
  // all motors to these positions
  head.write(90);

  int i = 0;
  for(i=30; i<= 170; i++){
    r_hand.write(i);
    delay(5);
  }

  for(i=170; i>= 100; i--){
    r_hand.write(i);
    delay(5);
  }

  for(i=100; i<= 170; i++){
    r_hand.write(i);
    delay(5);
  }

  for(i=170; i>= 30; i--){
    r_hand.write(i);
    delay(5);
  }

  standby();
}

void hands_up(){
  // do this on every command (nothing much just move hands a bit)

  //head.write(150);
  //delay(300);
  //head.write(90);

  int i = 0;
  for(i=30; i<= 170; i++){
    int r_pos = i;
    int l_pos = map(r_pos, 0, 180, 180, 0);

    l_hand.write(l_pos);
    r_hand.write(r_pos);
    delay(5);
  }

  delay(600);

  for(i=170; i>= 30; i--){
    int r_pos = i;
    int l_pos = map(r_pos, 0, 180, 180, 0);

    l_hand.write(l_pos);
    r_hand.write(r_pos);
    delay(5);
  }

}

void weight_lift(){
  // lift weight using both hands
  int i = 0;
  for(i=30; i<= 170; i++){
    int r_pos = i;
    int l_pos = map(r_pos, 0, 180, 180, 0);

    l_hand.write(l_pos);
    r_hand.write(r_pos);
    delay(5);
  }

  for(int count=0; count<=4; count++){
    for(i=170; i>= 60; i--){
      int r_pos = i;
      int l_pos = map(r_pos, 0, 180, 180, 0);

      l_hand.write(l_pos);
      r_hand.write(r_pos);
      delay(5);
      }

    for(i=60; i<= 170; i++){
      int r_pos = i;
      int l_pos = map(r_pos, 0, 180, 180, 0);

      l_hand.write(l_pos);
      r_hand.write(r_pos);
      delay(5);
      }
    }

  for(i=170; i>= 30; i--){
    int r_pos = i;
    int l_pos = map(r_pos, 0, 180, 180, 0);

    l_hand.write(l_pos);
    r_hand.write(r_pos);
    delay(5);
  }
}

void excited(){
  return;
}

void look_left(){
  // rotate hed to left
  head.write(180);
}

void confused(){

  for(int count=0; count<=1; count++){
    head.write(30);
    r_hand.write(170);
    delay(700);
    r_hand.write(30);
    head.write(120);
    l_hand.write(30);
    delay(700);
    l_hand.write(160);
    }
  standby();
}

void double_punch(){
  // do a punch
  int i = 0;
  for(i=30; i>= 0; i--){
      int r_pos = i;
      int l_pos = map(r_pos, 0, 180, 180, 0);

      l_hand.write(l_pos);
      r_hand.write(r_pos);
      delay(5);
      }
  delay(2000);

  int r_pos = 80;
  int l_pos = map(r_pos, 0, 180, 180, 0);
  l_hand.write(l_pos);
  r_hand.write(r_pos);
  delay(500);
  standby();
}

void r_upper_cut(){
  // make right upper-cut
  int i = 0;
  for(i=30; i<= 170; i++){
    int r_pos = i;
    int l_pos = map(r_pos, 0, 180, 180, 0);

    l_hand.write(l_pos);
    r_hand.write(r_pos);
    delay(5);
  }

  for(int count=0; count<=4; count++){
    int i = 0;
    for(i=170; i>= 60; i--){
      r_hand.write(i);
      delay(1);
      }

    for(i=60; i<= 170; i++){
      r_hand.write(i);
      delay(1);
      }
    }
   standby();
   delay(100);
}

void smash(){
  // smash things
  int i = 0;
  for(i=30; i<= 170; i++){
    int r_pos = i;
    int l_pos = map(r_pos, 0, 180, 180, 0);

    l_hand.write(l_pos);
    r_hand.write(r_pos);
    delay(5);
  }
  delay(2000);
  for(i=170; i>= 0; i--){
    int r_pos = i;
    int l_pos = map(r_pos, 0, 180, 180, 0);

    l_hand.write(l_pos);
    r_hand.write(r_pos);
    delay(1);
  }
  delay(300);
  int r_pos = 180;
  int l_pos = map(r_pos, 0, 180, 180, 0);

  l_hand.write(l_pos);
  r_hand.write(r_pos);
  delay(1000);
  standby();
}

void eye_detect(){
  // do something if eye sensor detect motion
  return;
}

void loop() {
  // put your main code here, to run repeatedly:
  standby();

  while(Serial.available() > 0)  //look for serial data available or not
  {
    val = Serial.read();        //read the serial value

    if(val == 'h'){
      // do hi
       hi();
    }
    if(val == 'p'){
      // do hi
       double_punch();
    }
    if(val == 'u'){
      hands_up();
      delay(3000);
    }
    if(val == 'l'){
      standby();
      look_left();
      delay(2000);
    }
    if(val == 'U'){
      // uppercut
      r_upper_cut();
      delay(2000);
    }
    if(val == 's'){
      smash();
      delay(2000);
    }
  }
}

Upload the code.

After completing all those steps I connected my Arduino to pc using the USB cable and then ran the python program. While you are using it make sure to add the right port of Arduino in the python code. If you did everything as I have mentioned, the bot should work just like a charm.
