Jason Voorhees's Belt


The most detailed instructions for the manufacture of three-layer belt: outer leather, inner leather lining, and a sling for durability and wear resistance.
This belt was made as a gift to a friend who is a fan of Jason Voorhees:)

A friend was delighted :)

Prepare the Buckle


Choose a suitable buckle, not paying attention to the picture :)
In our case, Michael Jackson.

Using an awl or any other sharp tool, peel off the picture. Bye Michael!

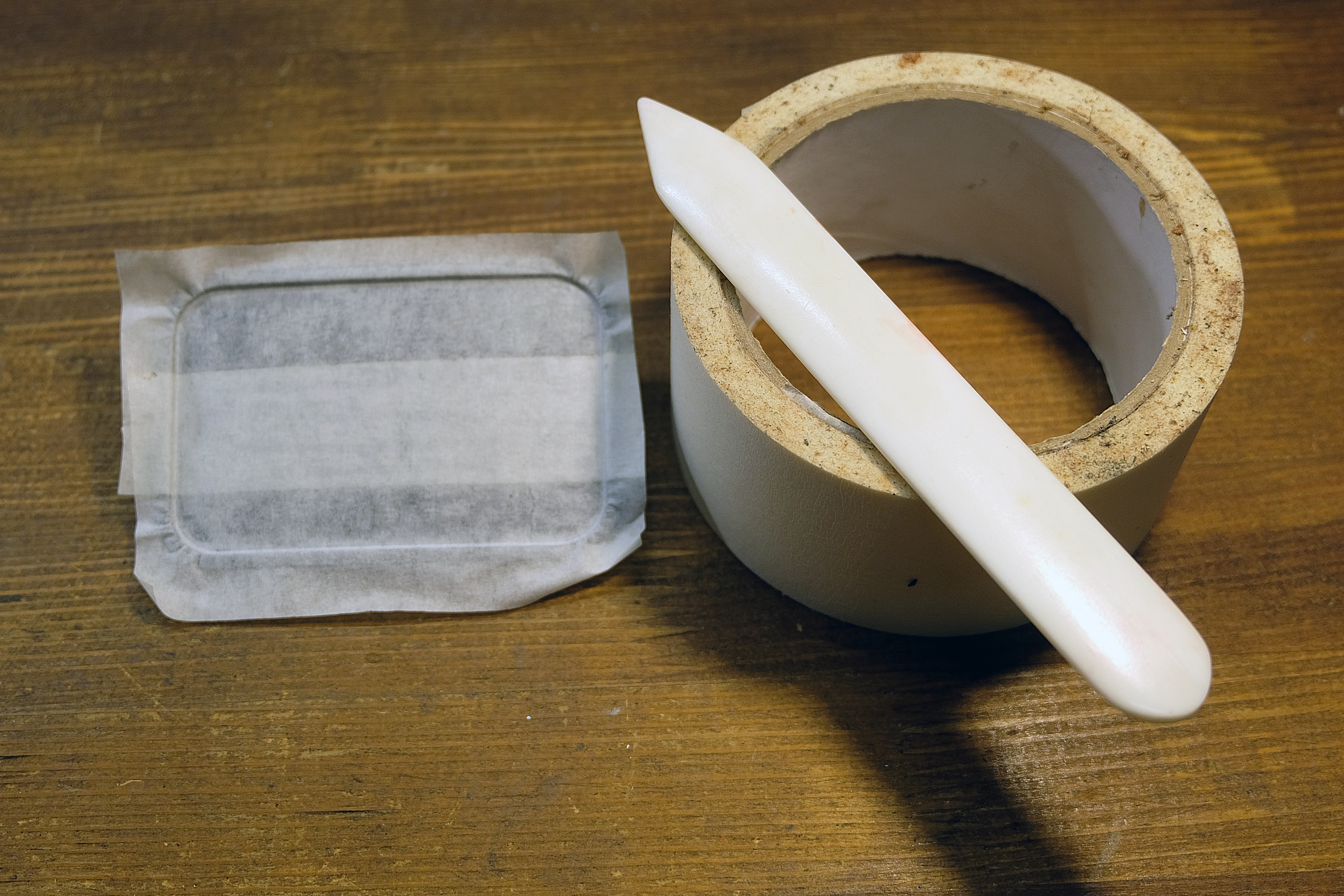

Make a Template Insert for Buckles


With the help of masking tape we glue the buckle, we will rub the contour with a handle and carefully cut out the inside.

Make a Blank Insert of Leather


We paste the turned out template from an adhesive tape from a reverse side on a piece of skin of vegetable tanning.

Well pushed with a bone stylus, outlined with a pen and carefully cut out with a sharp knife.

Mark Seam Line


With the help of a groover, we mark the edges of the edge and the seam line.

Wet and Wait Until Soaked


Then we wet the surface well, so that the embossing pattern would easily lie down and hold tight to the skin. We are waiting until soaked.

Move the Picture


Choose a picture and print it at the desired scale to the size of the buckle. We combine the edges of the leather buckle and the paper contour, glue the back side of the workpiece with adhesive tape so that nothing moves.

Then we gently use a non-sharp (!) Awl to trace the main outlines of the pattern on paper so that it is slightly pressed on the skin.

Create Volume


By means of a rotary knife and and stamps we create volume.
The photos show the sequence: first, we cut (not through) the outline of the image, then drop one of the sides of the cut, then add details, and finally, carefully and evenly fill in the remaining background.

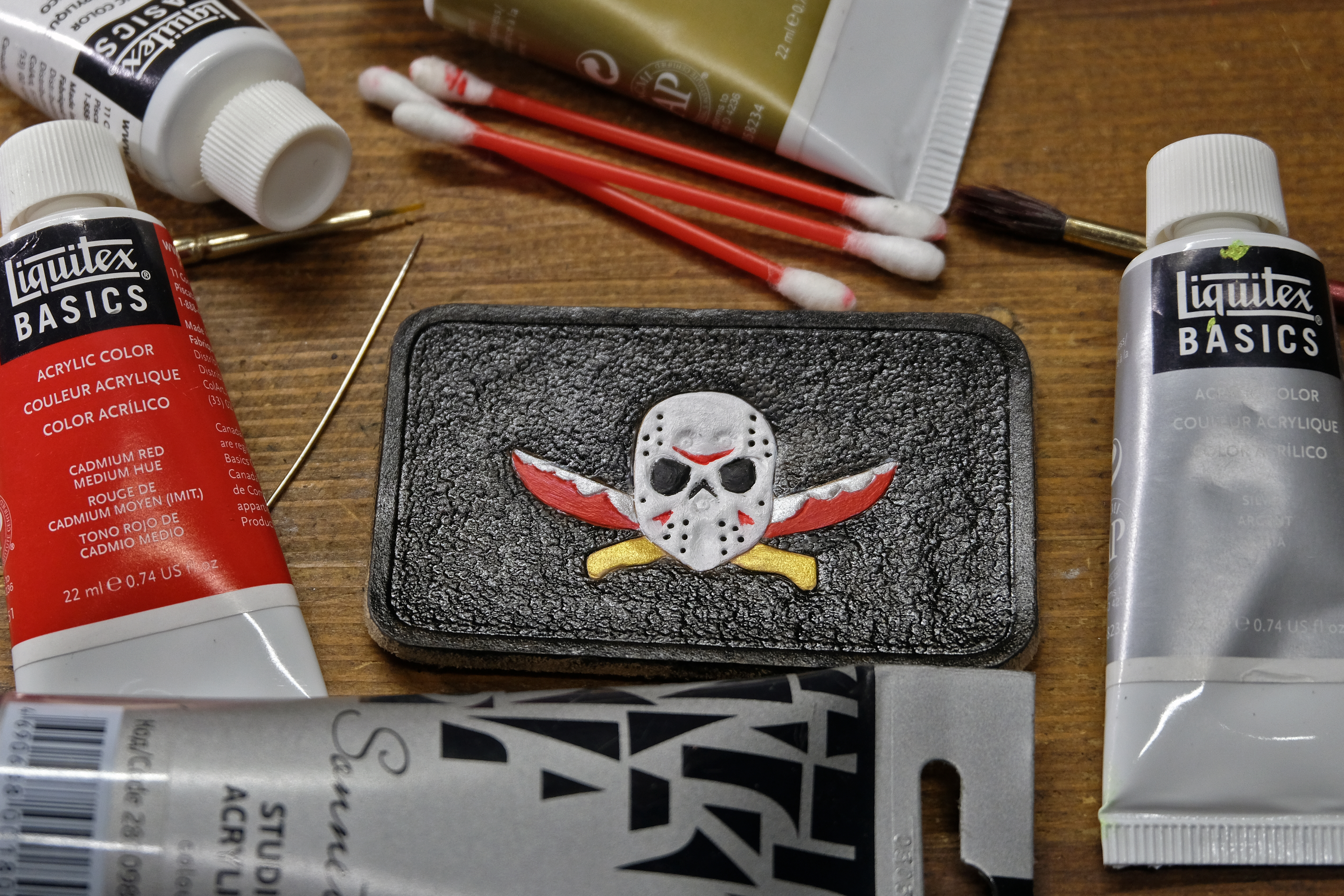

To Color


After the embossing is well dried, you can paint.

Ordinary acrylic paints and thin brushes neatly paint the image, adjusting with a needle and thin sticks.

Polish the Edges


Use the slicker to polish the edges. If you do not have a special tool, you can process the edges with a medium-hard nail file and then polish it with the soft side.

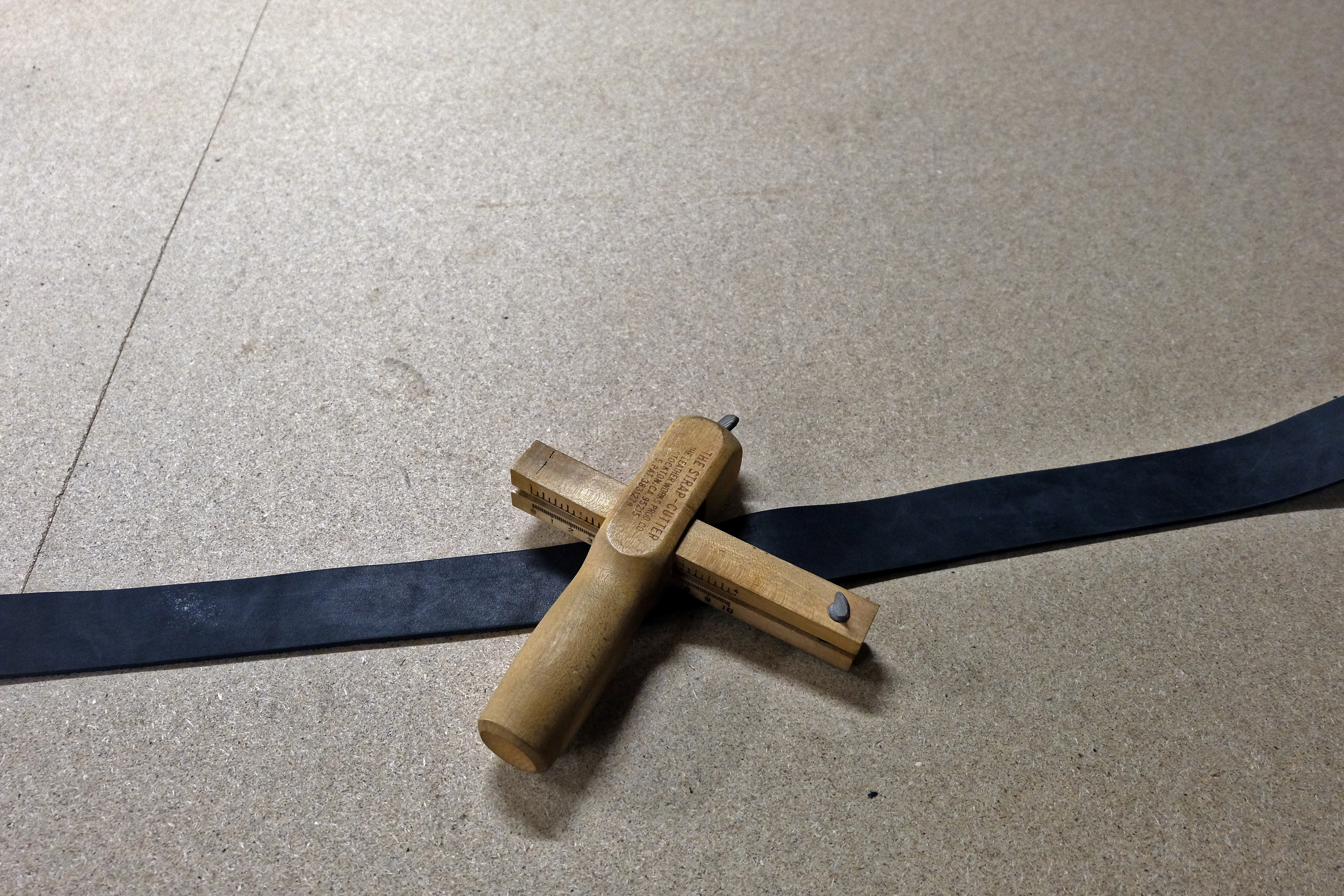

Cut Belt Strip


We measure the base of the buckle, choose the skin of a suitable size.
We are using a special knife for belts, cut out the base, but in its absence, you can cut the belt with a very sharp knife.

Carefully trim the tip of the belt to the desired shape.

Mark Seam Line and Trim Edge


With the help of a groover, mark the line, trim the edge with a beveler and remove the chamfer for a more neat shape.

To Thin Skin


Thin skin with a special plane for the skin.

Since the belt is multi-layered, for convenience, the thickness of the upper skin should be reduced.

Glue the Sling


To strengthen the belt and give the internal volume, glue in the sling inside, leaving approximately at the edges.

The place where the belt will be bent is already glued in the bent state.

Glue Pad


Leather belt with a sling sticking to the lining.

The lining remains untreated, it allows the skin to breathe, absorb sweat and not paint clothes.

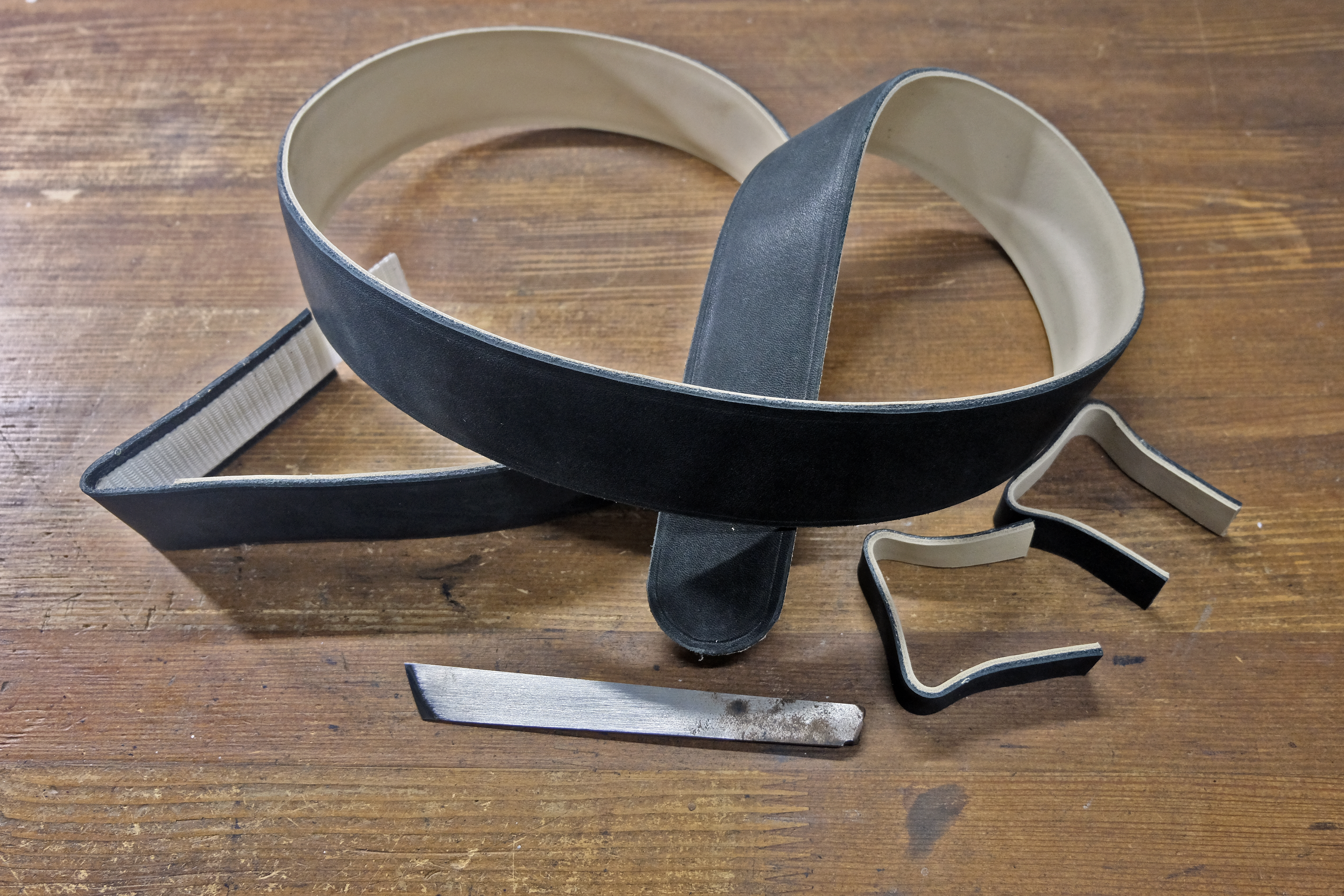

Trim Excess Pad on All Parts


Carefully trim the excess lining on all parts: on the basis of the belt and loops.

Protect the Masking Tape Lining (optional)


We glue masking tape on the lining for a while in order to protect it from paint, wax and anything else.

Refresh Color


We update the color by painting, for example, paint for shoes, after which we remove the masking tape, we will not need it anymore.

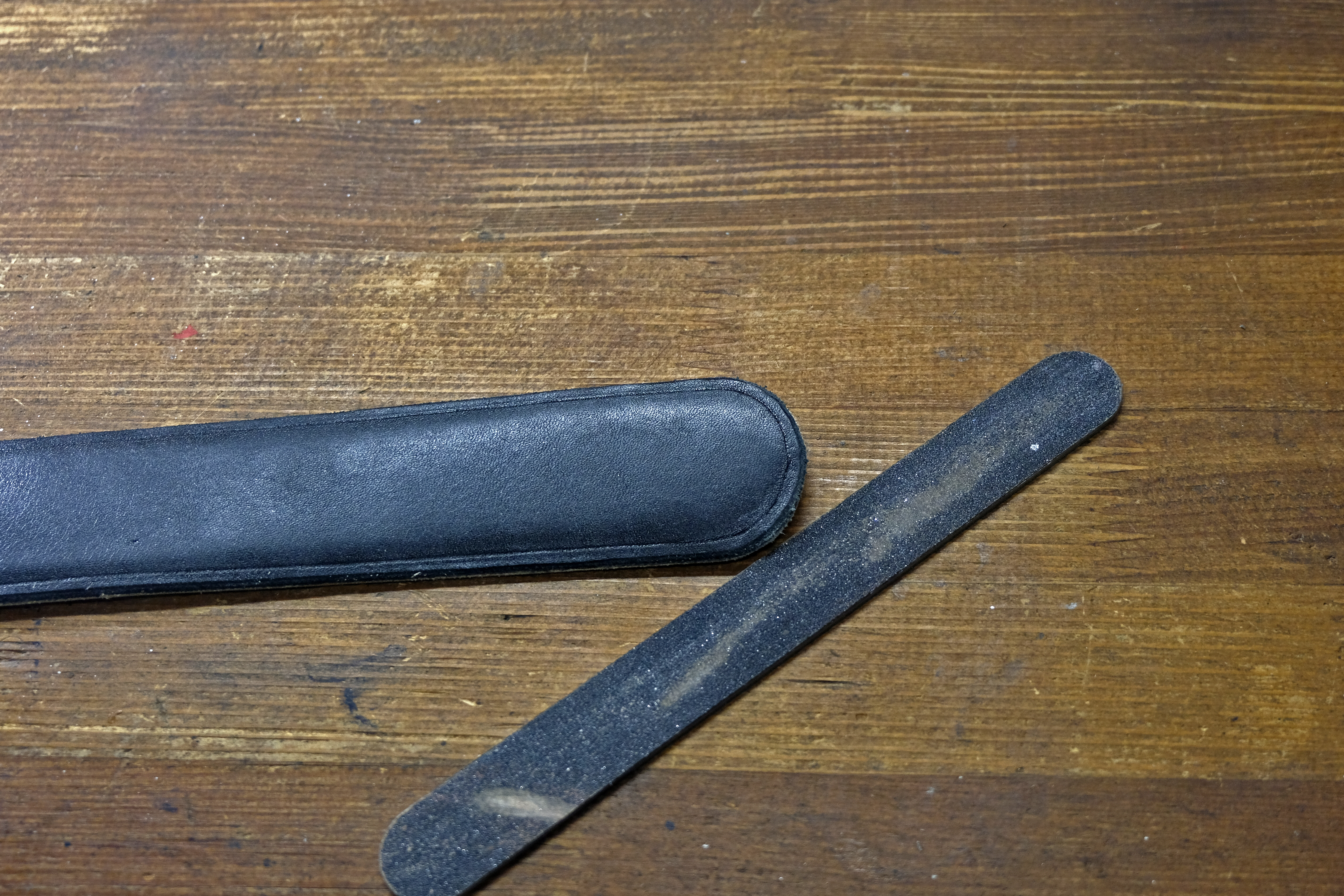

Trim Edges


Nail file gently grind the edges of the belt.

Punch Holes for Seams


With the help of horizontal punches and hammer punch holes in the belt and loops.

Thinner Inner Edge


Thin with a knife the inner edge of the belt and loops.

Color the Edges


To color the edges of the loops and at the beginning of the belt, since after stitching the belt it will be difficult to process them

Prepare Holes for the Seam on the Buckle


Punch holes in the leather insert.

Using a screwdriver or drill, drill the same holes in the metal base for the buckle.

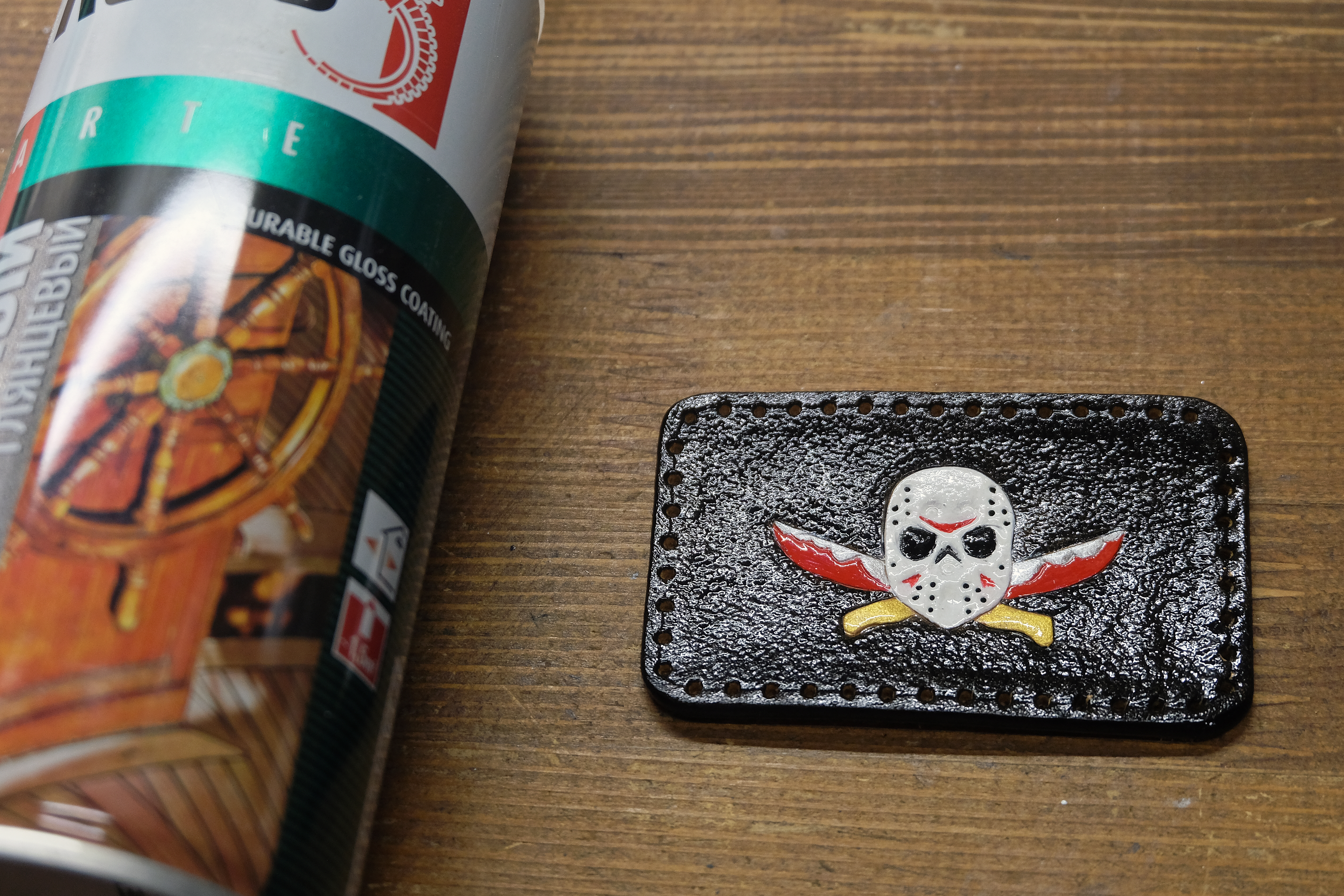

Varnish the Insert


Treat the leather insert with yacht varnish to increase durability.

Flash Loop


Sew a needle, loop and fasten the nodules with a lighter.

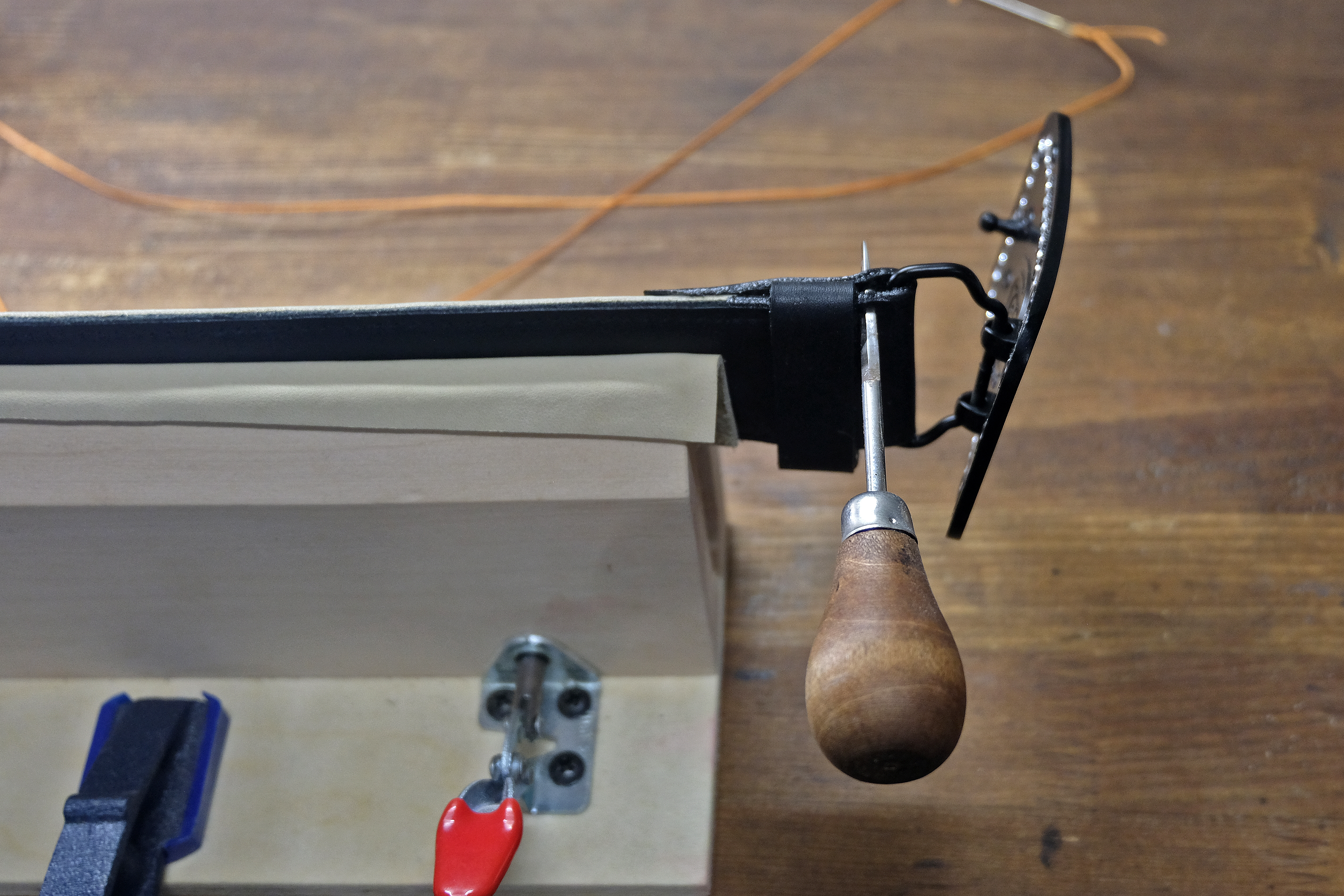

Stitch Belt


Thread the belt edge into the buckle and glue it to the base, thus securing the buckle.

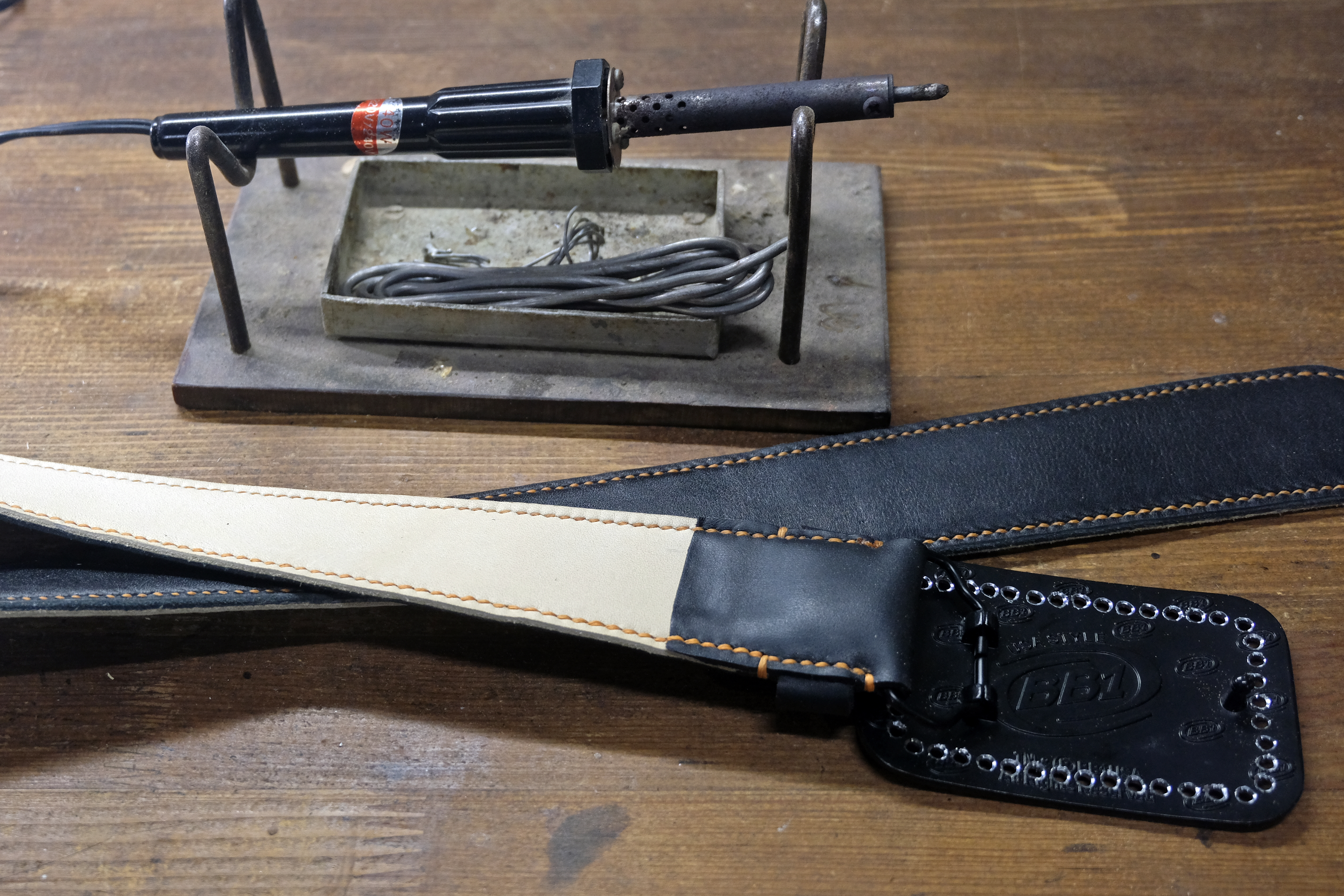

Stitch the belt along the entire length, fasten the knots for strength with a lighter or a soldering iron.

Sew in the Buckle


Sew a leather insert inside the metal base.

Process the Edges of the Belt


Sand the edges of the belt and paint them completely.

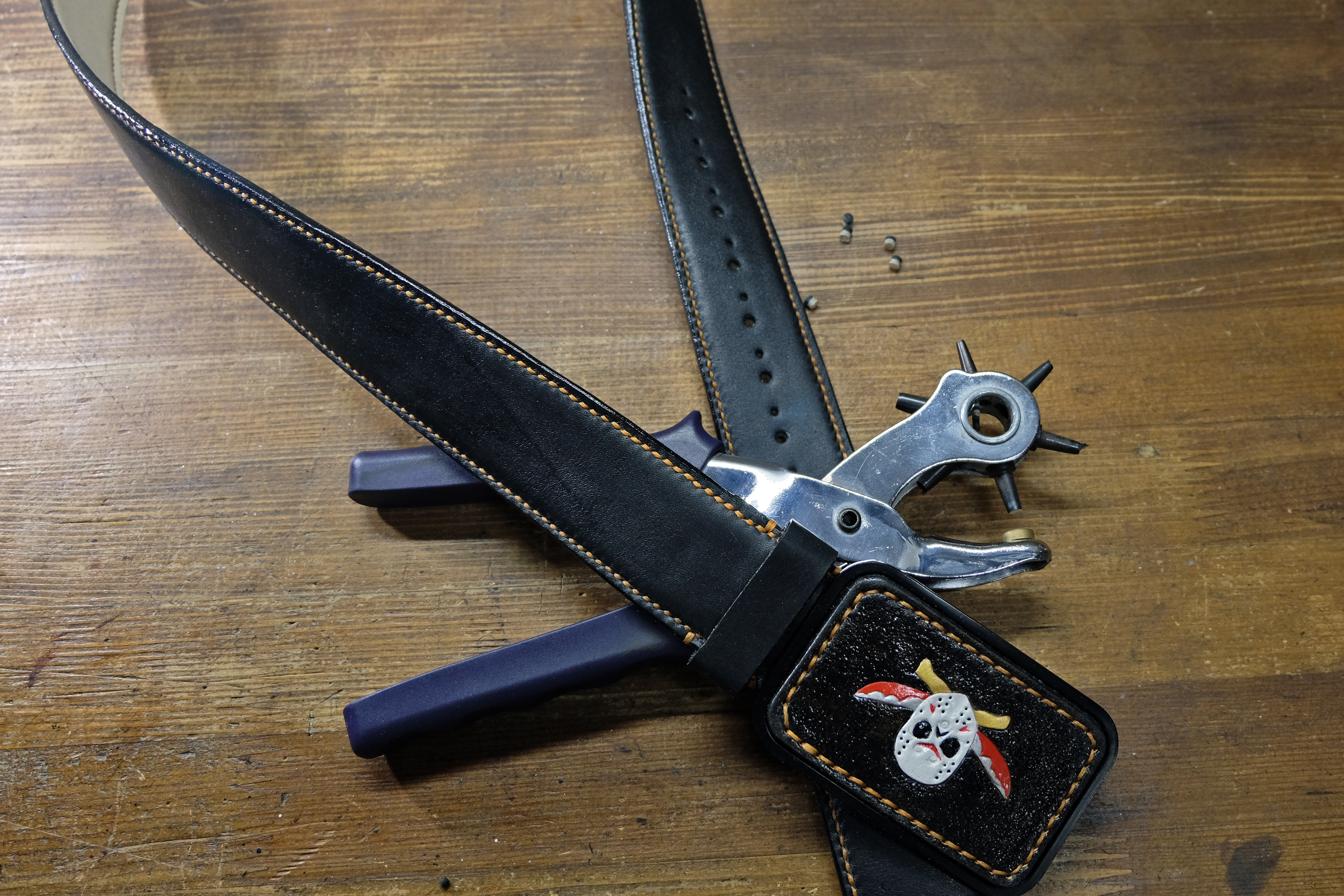

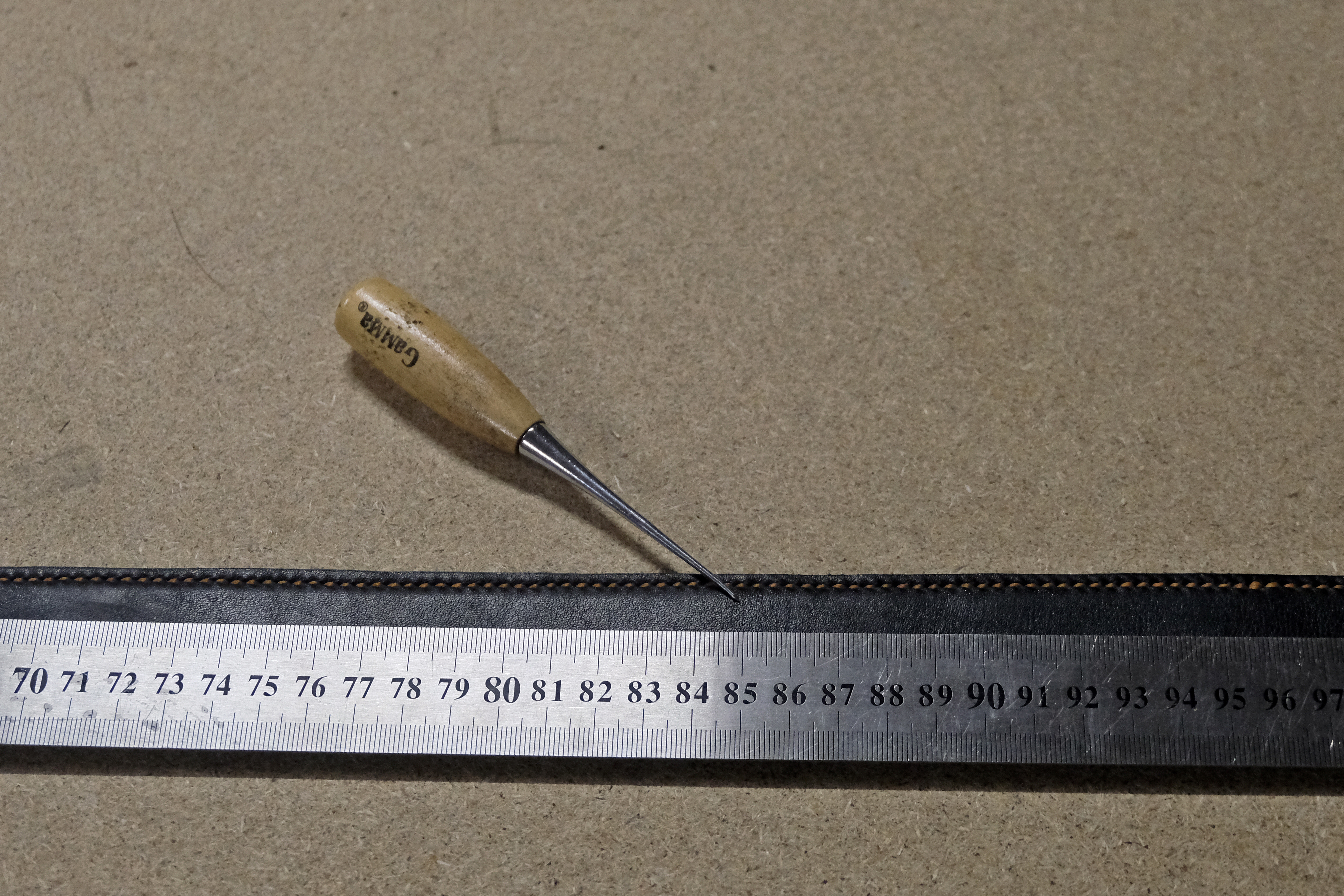

Mark and Punch Holes in the Belt


Mark the holes with the awl and punch to punch holes in the belt. If necessary, make a slot with a sharp knife.

Wax Polish


Polish the finished belt with wax.

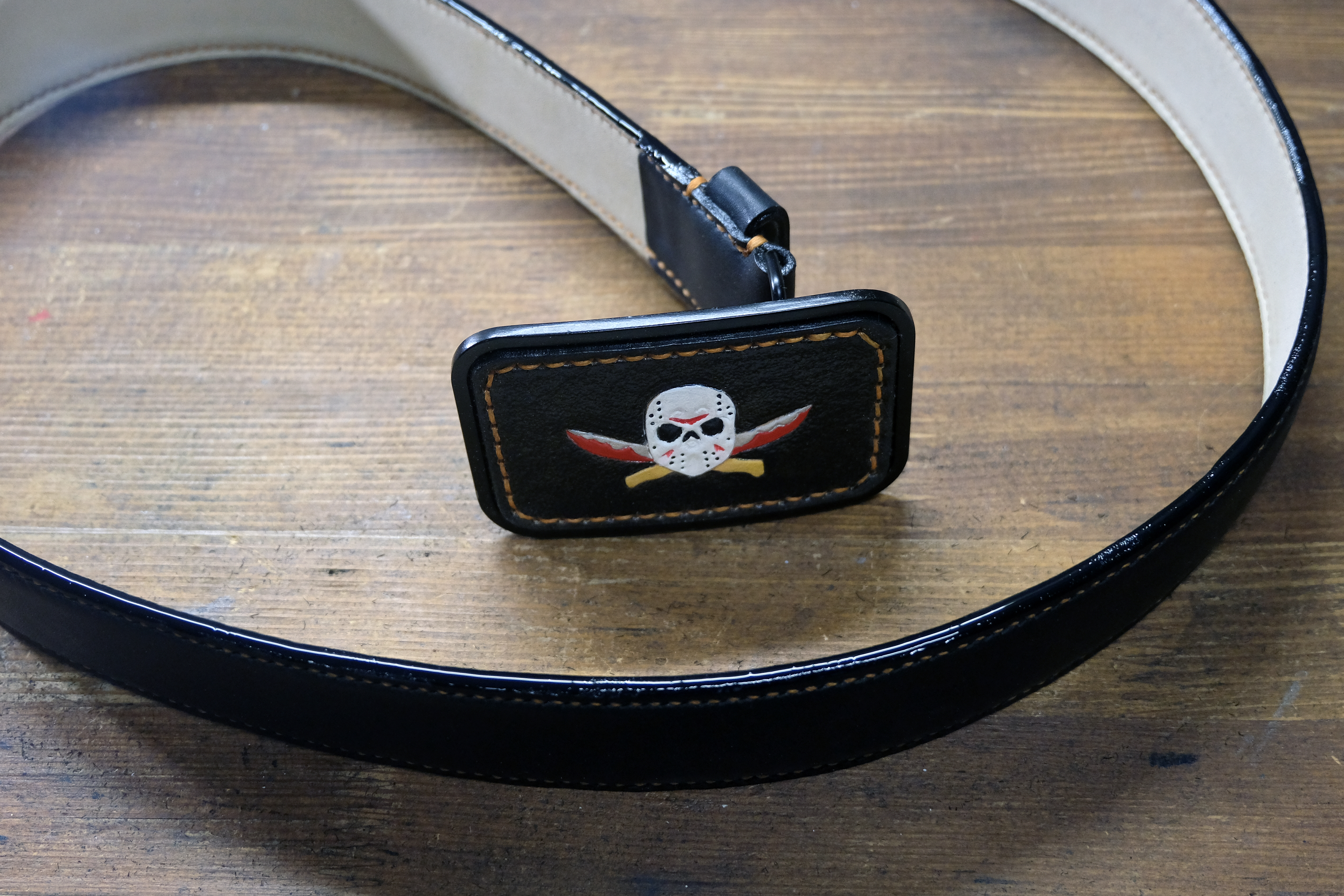

Done)


Profit! Your beautiful masterpiece is ready!
