// 3D PUZZLE FURNITURE // Japanese Bench

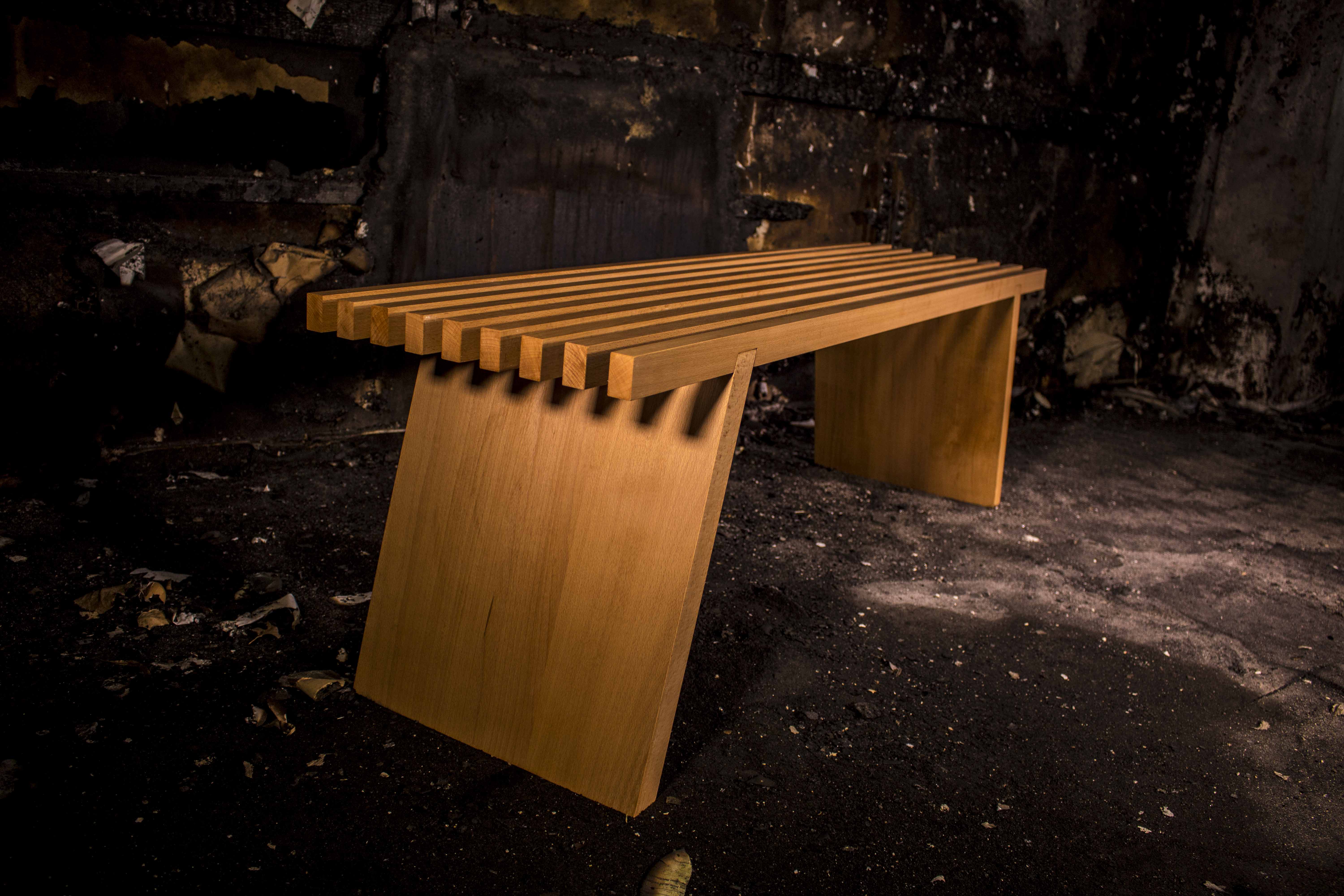

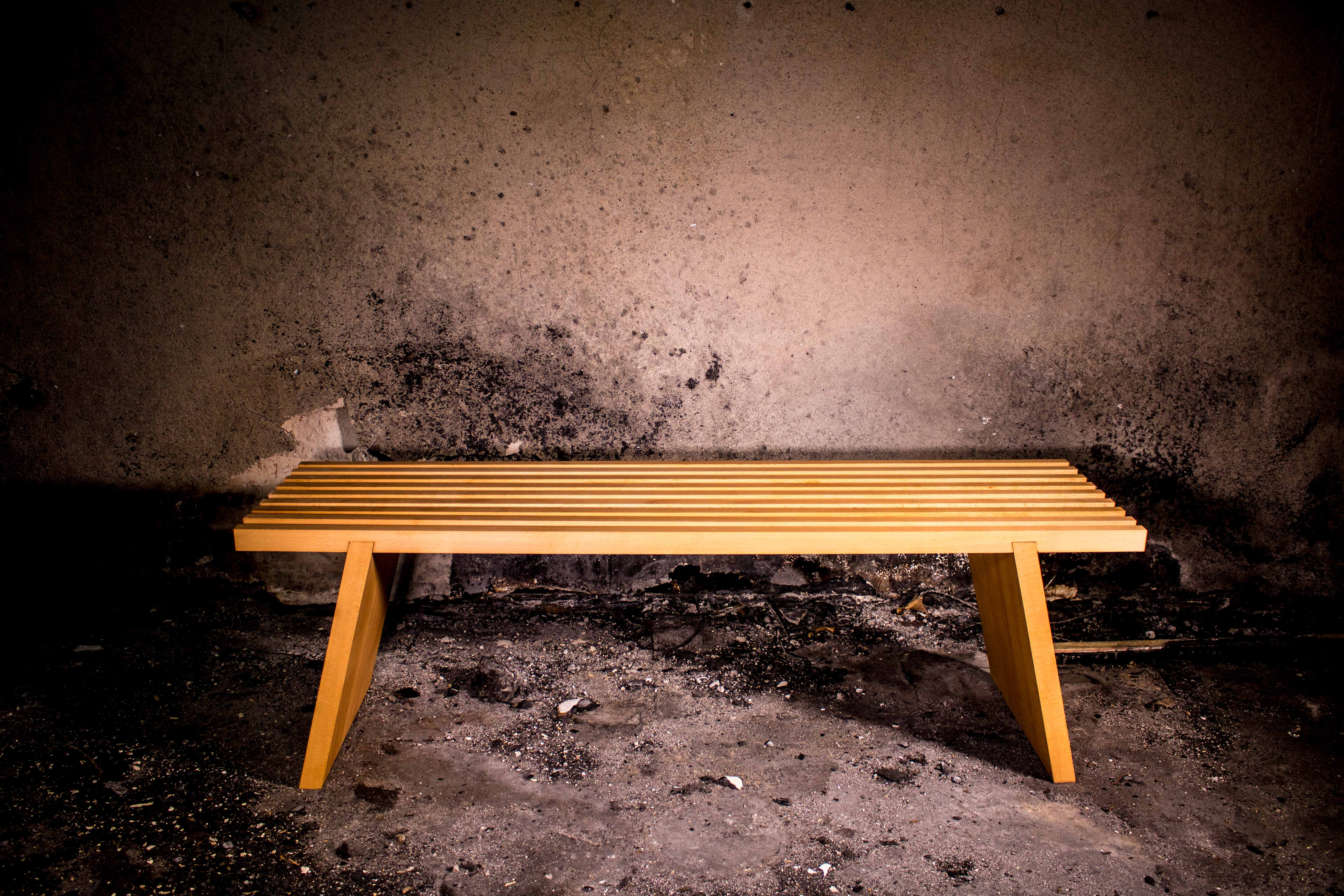

In this tutorial we show you how to build your own modern Japanese bench.

You don`t need power tools for Japanese woodworking, every step of this tutorial is possible to master without using any power tools. With that being said we use the help of modern power tools.

You need 40 mm wood of your own favor. In this tutorial we have beech as a scratch.

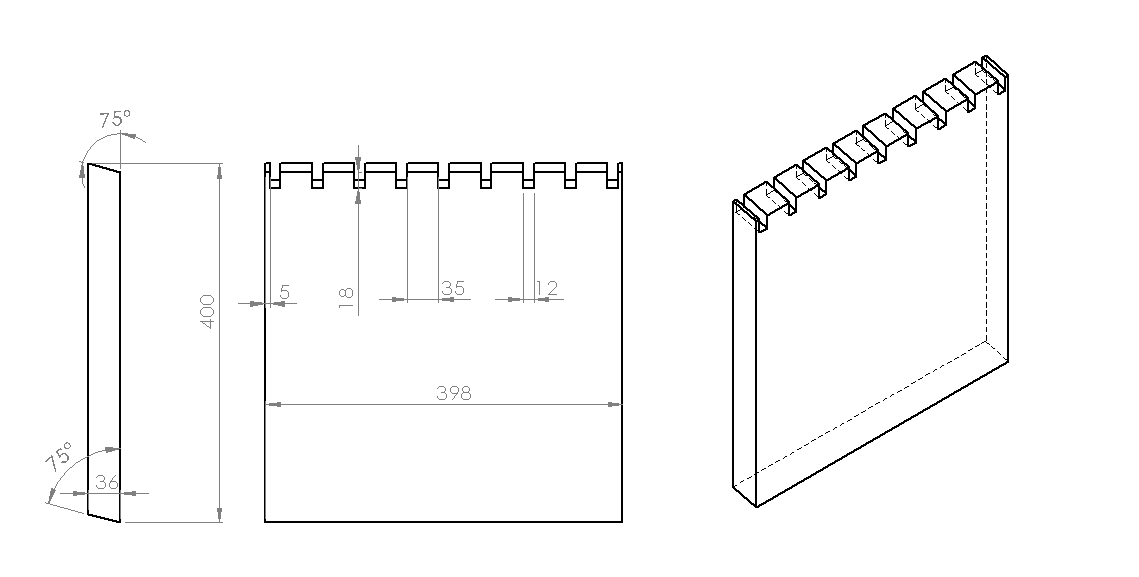

The destination is to have a wood plate with the following measures:

400 x 36 x 398 mm. That will be the bench leg.

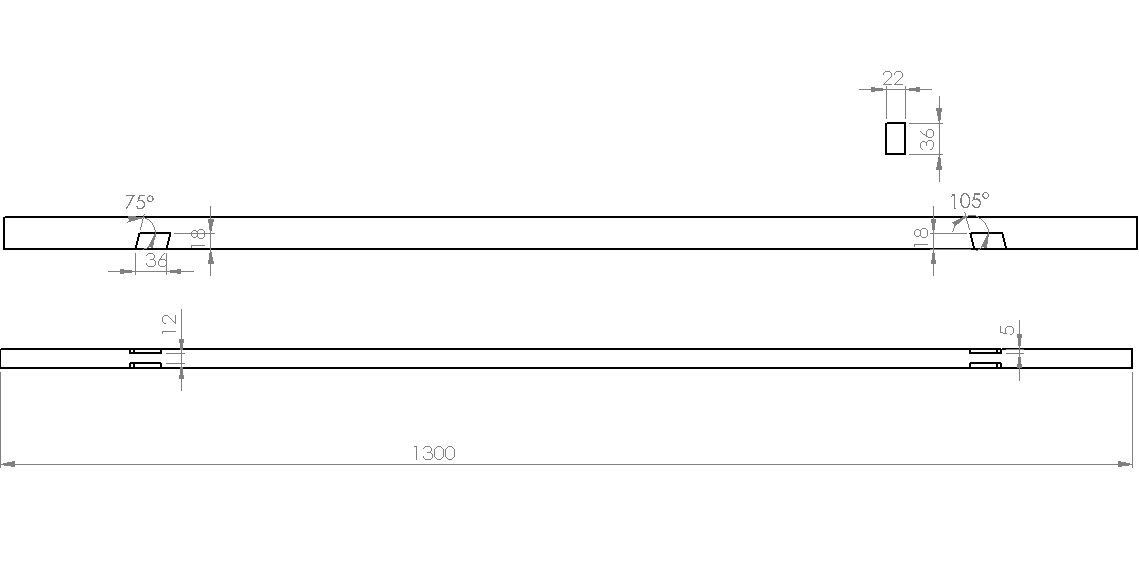

You also need to cut 9 times with the measure

22 x 36 x 1300 mm

These will form the bench seat.

You can skip this step if your wood is big enough.

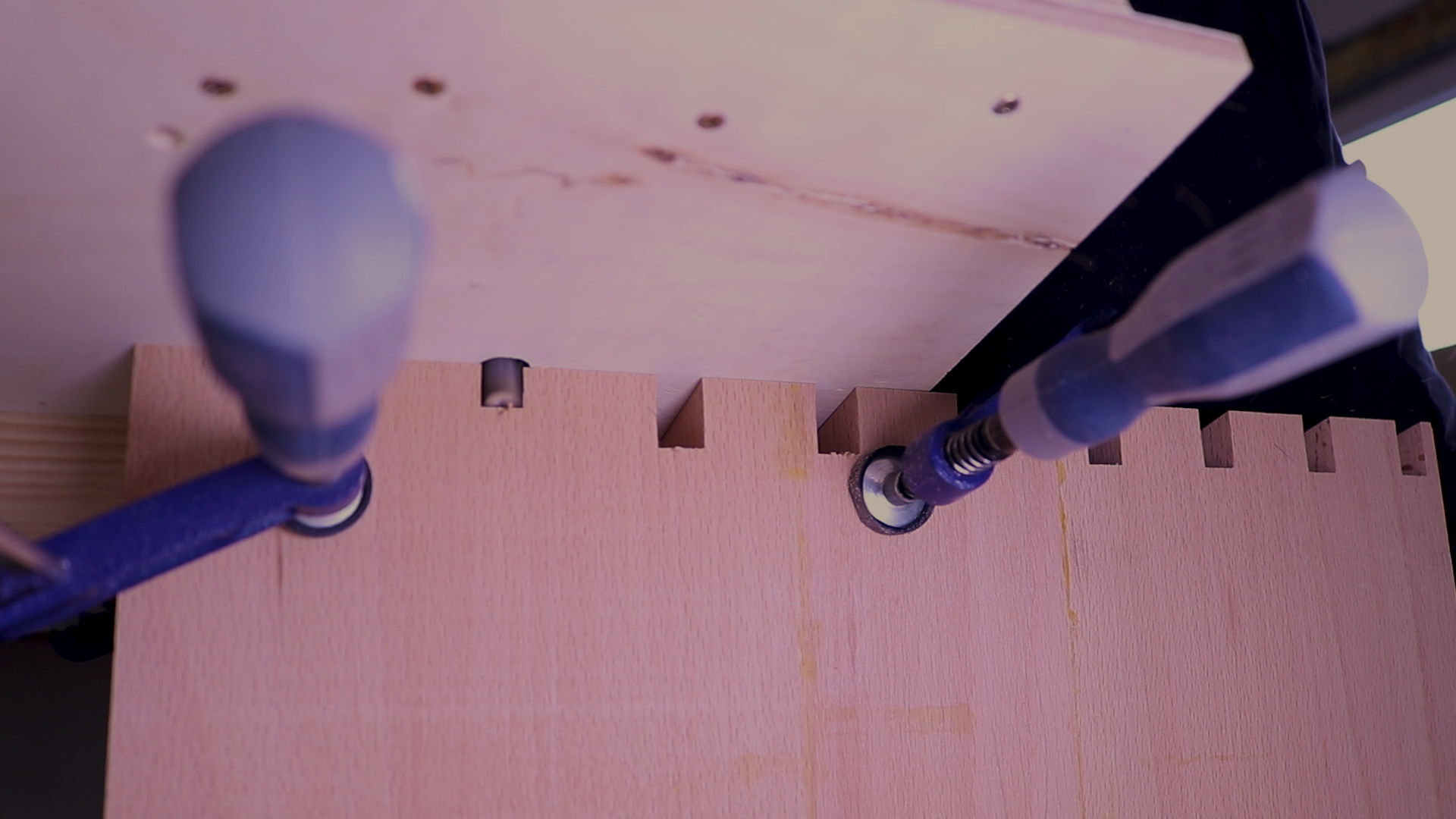

We had to glue it from three pieces together to get the minimum size:

400 x 36 x 398 mm

Now cut the bench legs under 15 degrees in down and upper side (see the drawing above).

Mill using milling machine the ribs for the bench. These have to be under 15 degrees 12 x 36 mm.
Left joiner is under 75 degrees 5 x 18 x 36 mm and right one will be mirroring it with 105 degrees.

Mark the joiners and use chisel to cut the corners that milling machine were not able to cut.

Cut the joiners to the bench legs. They should be milled under 15 degrees and the measures are 12 x 36 mm.

Sand all the surfaces, soften the corners and oil everything. Then put all the ribs into their places.
