JIGGLYPUFF Bluetooth Speaker
Hello dear instructables funs
My todays project is a bluetooth speaker, I have named it as "jigglypuff" because it looks goofy and singing song as like that pokemon. Actually I didnt intend to make a comparison, I made it improvisingly :)
I have spend 3 hours to make this cute speaker, but it worth. İts operation time abouth 10 hours with full charge.
Lets see the steps...

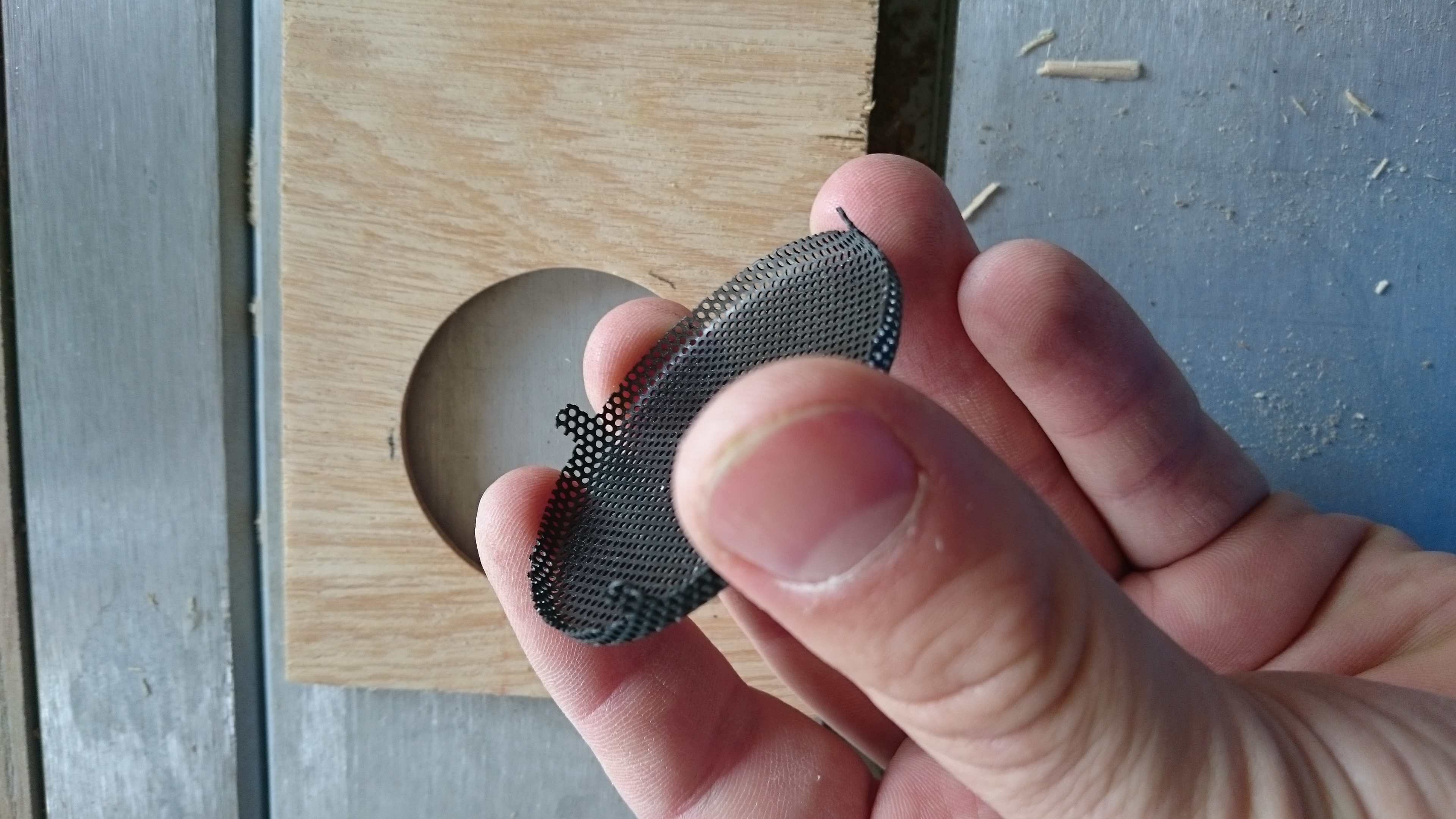

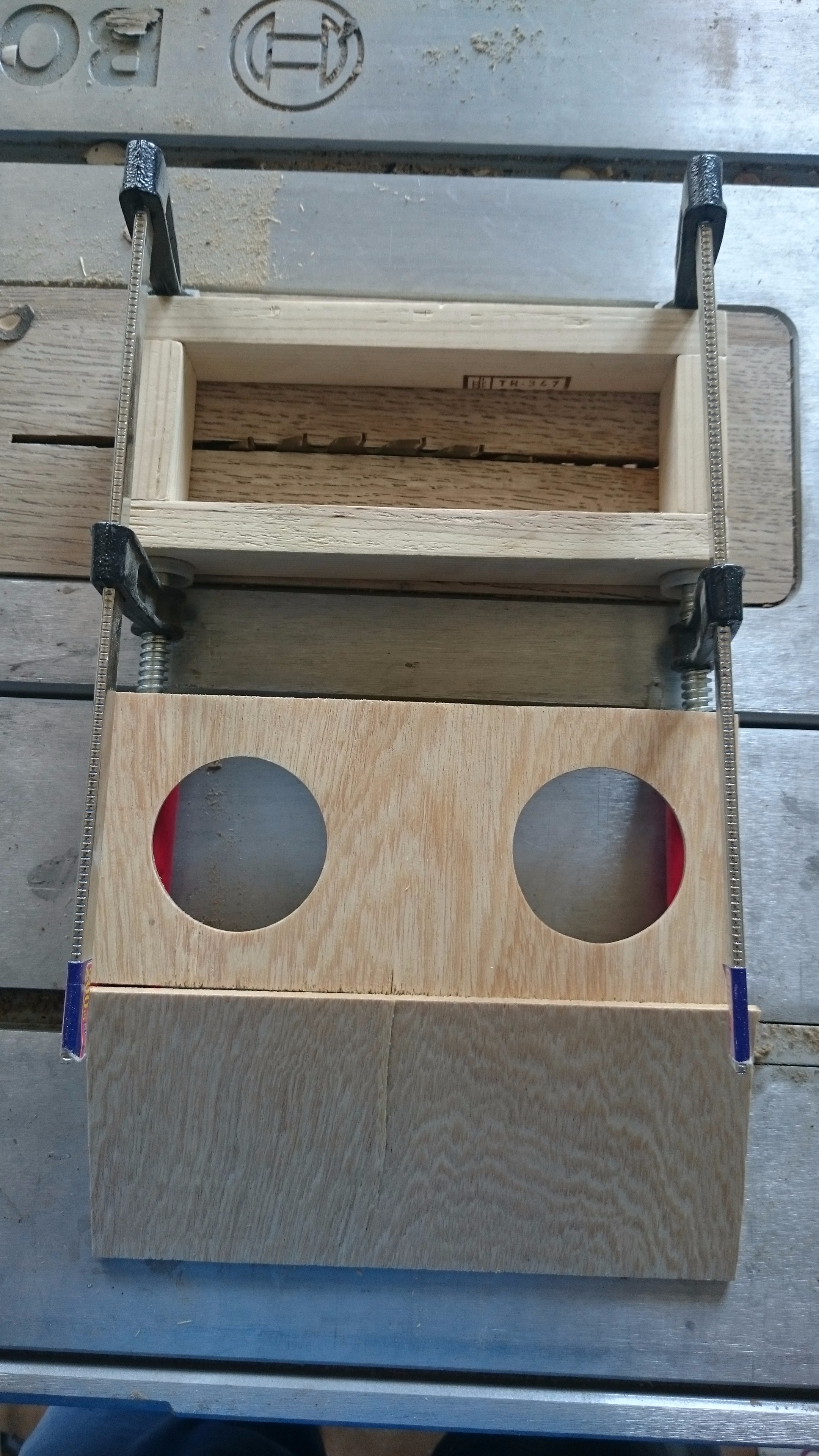

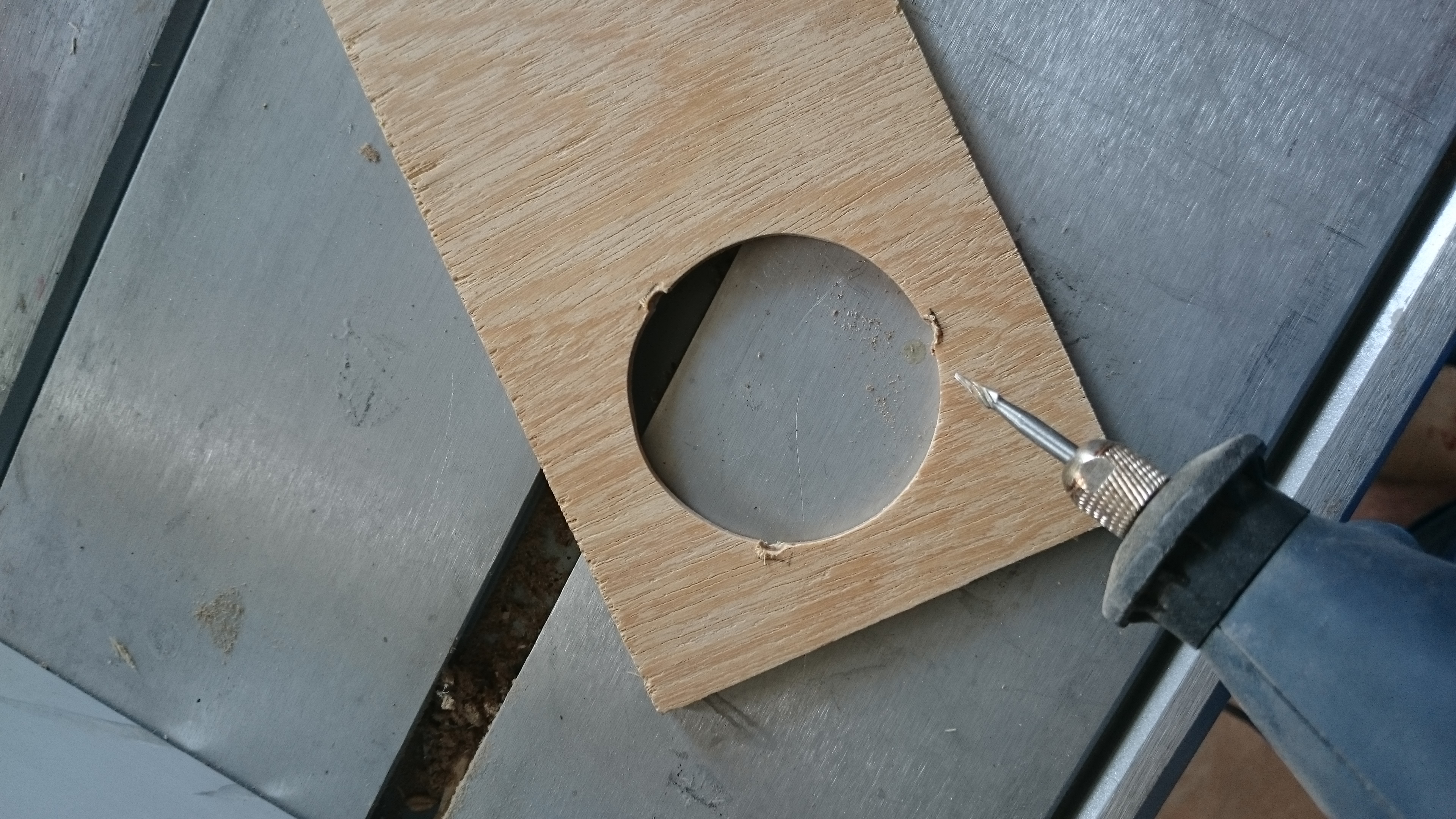

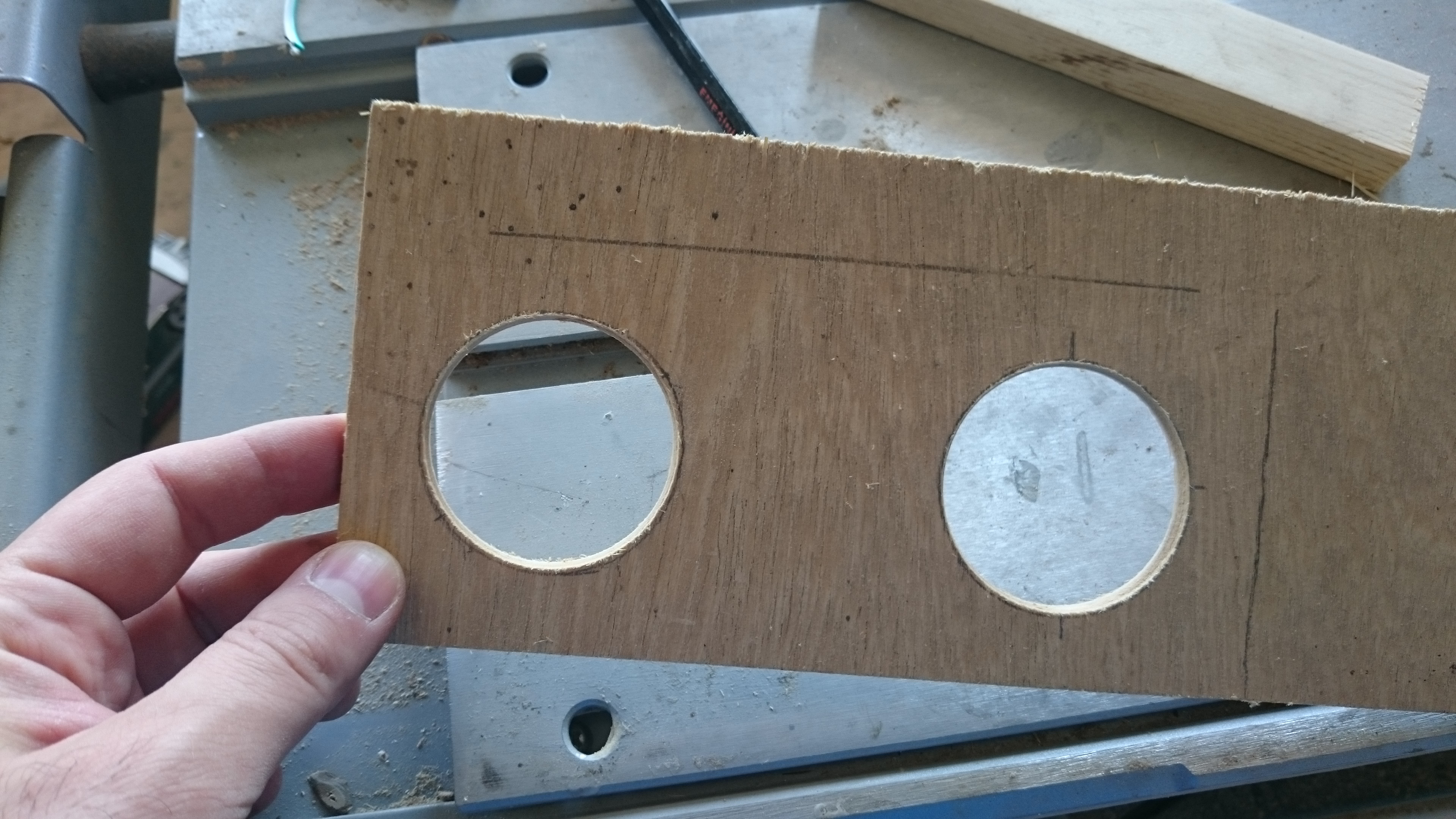

Wooden Enclosure Making Process
Tools
Table saw
Hole saw cutter bit
Drill
Dremel
Gorilla glue
Sandpaper
Tung oil in order to sealing wood

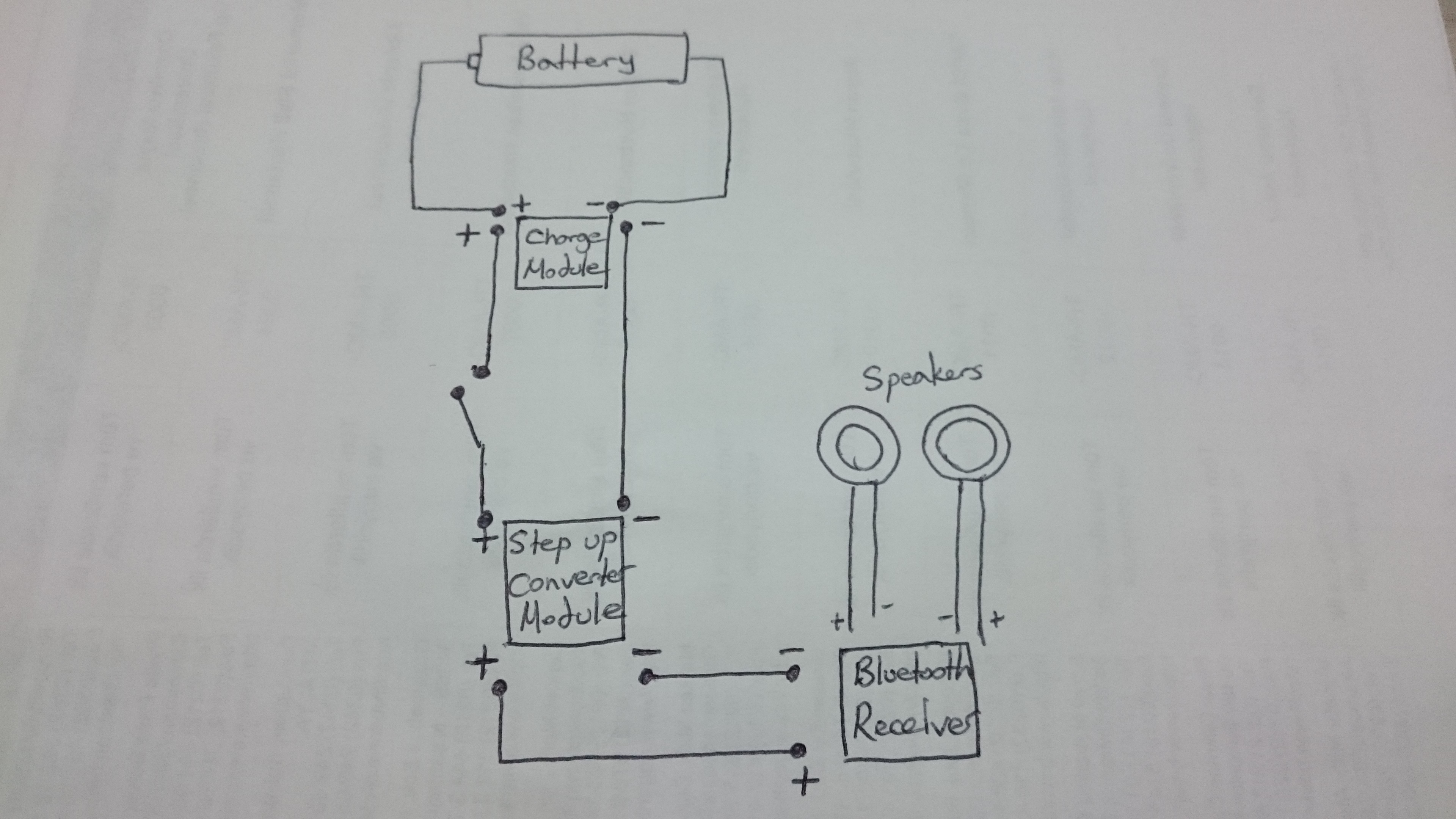

Electronic Components
Components
-18650 battery one piece
-Bluetooth receiver amplifier
-Adjustable voltage regulator
-Charging module
-700 mf capacitor
-On off switch
-Two speaker salvaged from an old radio
Soldering iron
Note: I bought all electronic components from aliexpress except speakers and switch
