JEWELRY CLEANING DEVICE

by ДмитрийТим in Living > Decorating

379 Views, 6 Favorites, 0 Comments

JEWELRY CLEANING DEVICE









Supplies


● Three AA batteries

● DC motor for radio-controlled models "Sodfunt Co" 3-6V (L20mm)(or others)

● Any soldering iron

● Bottle with a volume of 0.5 liters

● The body that is

● Six screws

● Gearbox for radio-controlled models

● Remote control from the toy

● Installation wire 30AWG 0.25mm

You will still need sand, and better slag

Bottle

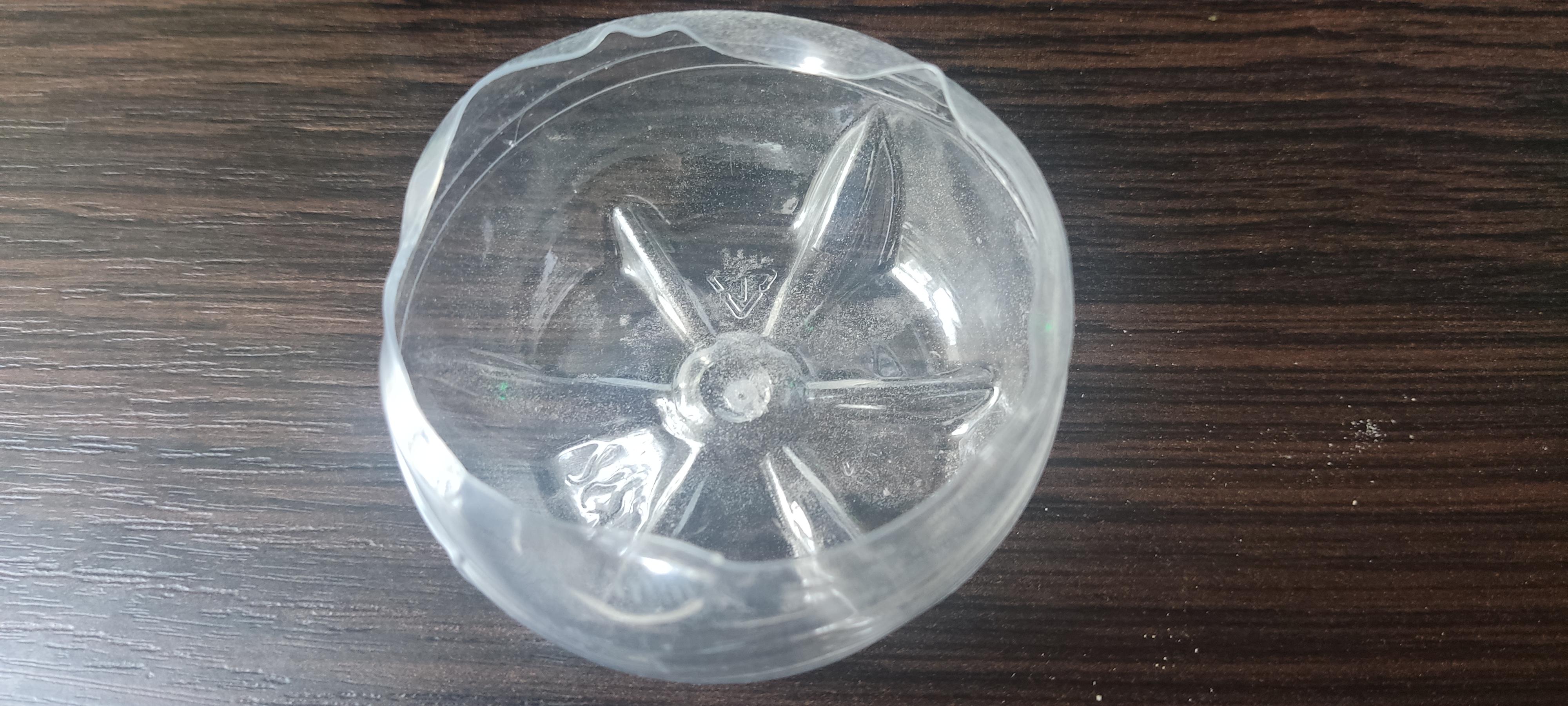

First you need to cut the bottle. Then screw in the self-tapping screws.

Gearbox and Motor


We connect everything in series. Battery compartment with ENGINE. Then the engine with the gearbox.

Axis and Bottle


From the gearbox we let's put an axis with a white gear at the end. Which is connected to the larger yellow one.

Cover and Bottle Is Already Cut



That's All
