JCase Blu

Here is the second installment of my budget suitcase speakers.  I renamed it JCase since before I didn't have a name for them except Boomcase Mimic.  Please enjoy.

Parts:
Lepai 2020A+ Amplifier

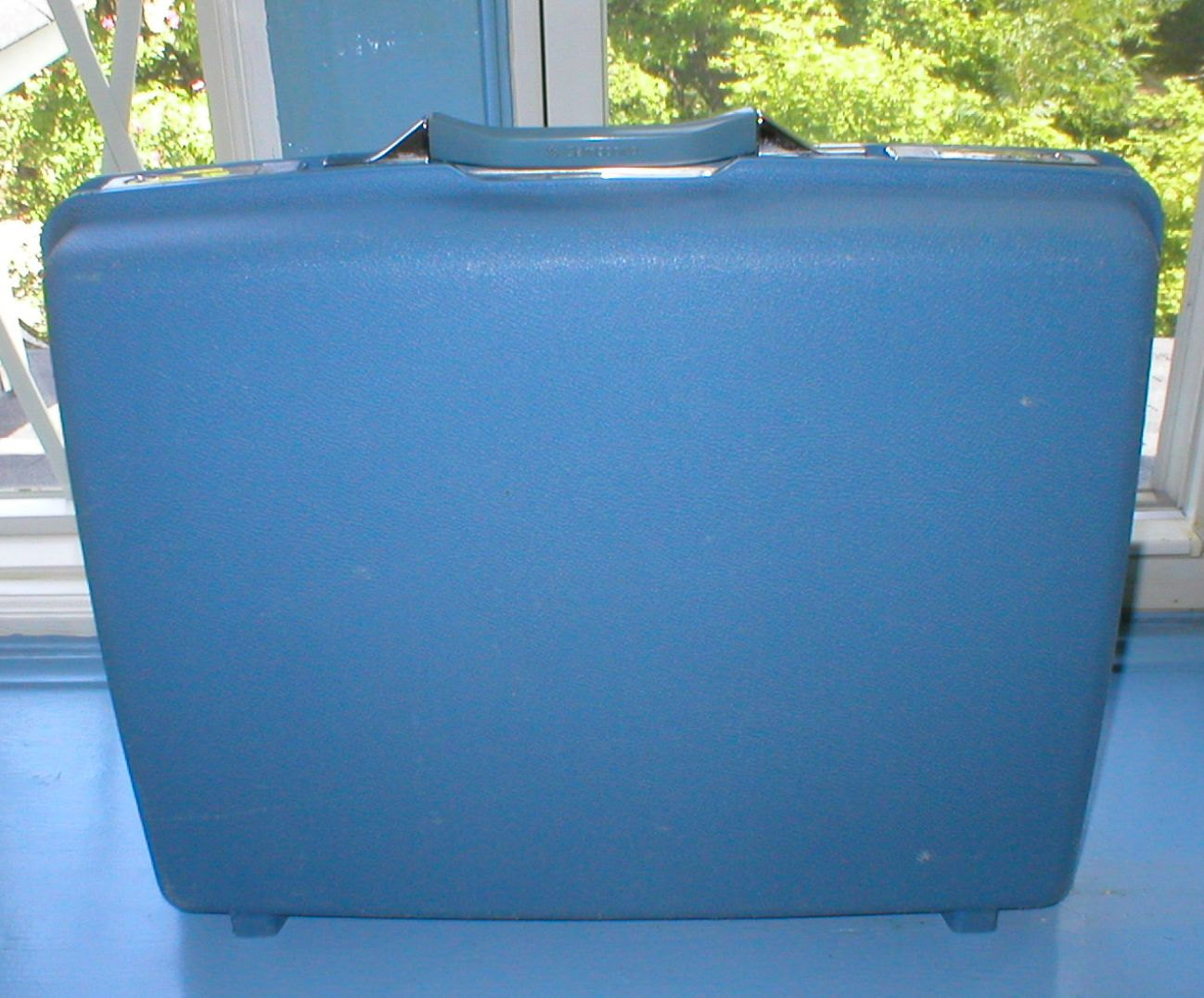

1970 Samonite Blue Suitcase

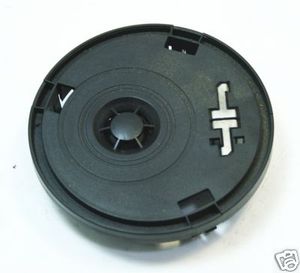

2 used Isophen 4 ohm VW Rear speakers/ 2 philips 8 ohm Front tweeters from a 1993 Corrado VR6
1 philmore DC panel mount jack
1 3.5mm panel mount jack
1 retractable 3.5mm male to male audio jack
1 L.E.D volt display meter
Poly-fil (from the store or old stuffed animals, sorry Teddy Ruxpin)

Tools:
12v-18v drill
1/2" Drill bit
1/4" Drill bit
hand saw or in my case a stainless steel kitchen knife ( router is faster)
solder, soldering iron
electrical tape
voltmeter
Dremel, sanding bits
Plastic masking
3M or similar masking tape
pencil
ruler

Fun:
Walking Dead on AMC and a six pack of Ithaca Flower Power IPA, or a cocktail I looked up on  my "Mr. Bartender" app

https://play.google.com/store/apps/details?id=com.LEO.Mr_Bartender&hl=en
https://itunes.apple.com/us/app/mr-bartender-mixed-drink-bartending/id505867992?mt=8

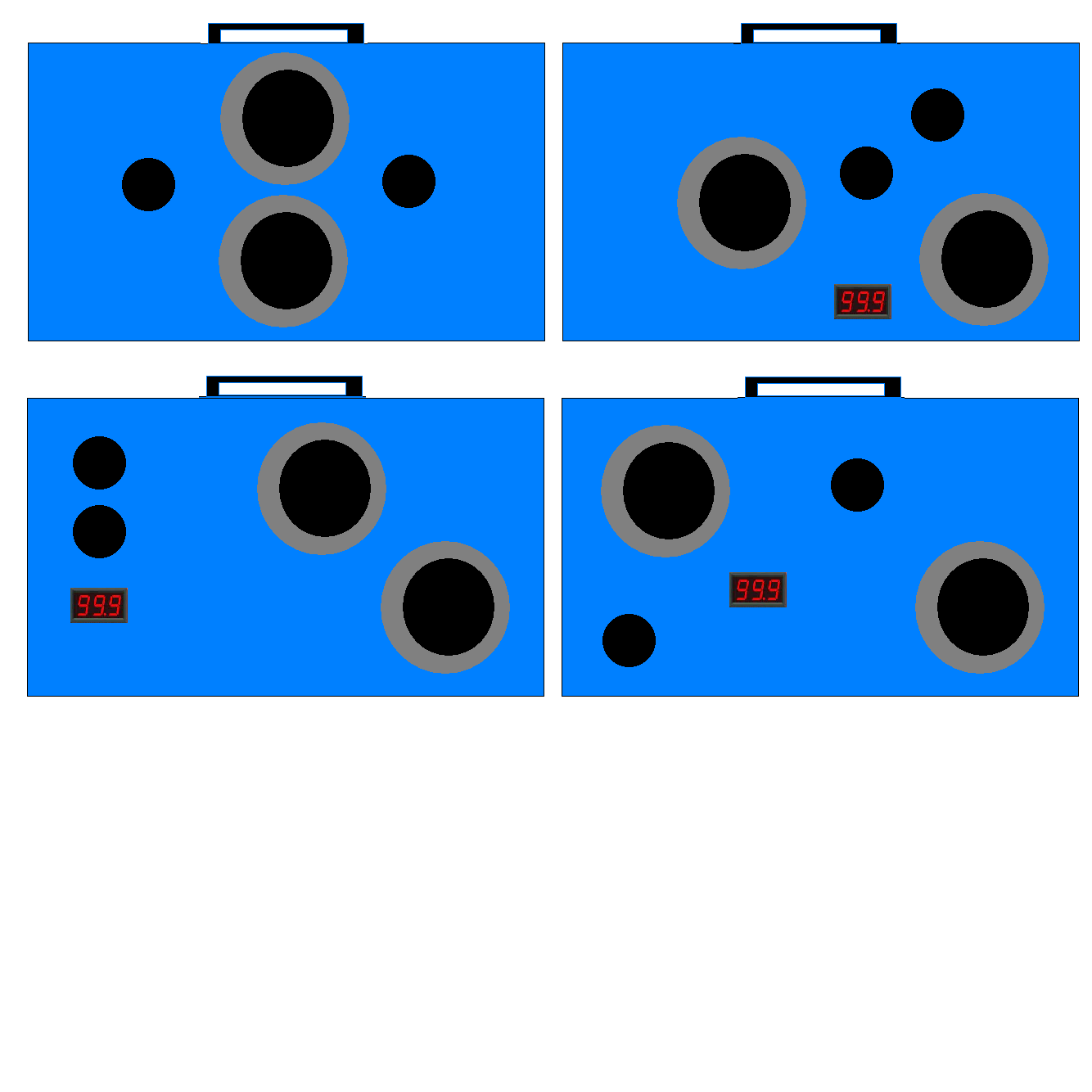

I strayed from a stock mockup in a cardbaord box to just a simple design placement in photoshop.  The main difference from this case compared to the BoomCase Mimic is the L.E.D volt meter for the battery.

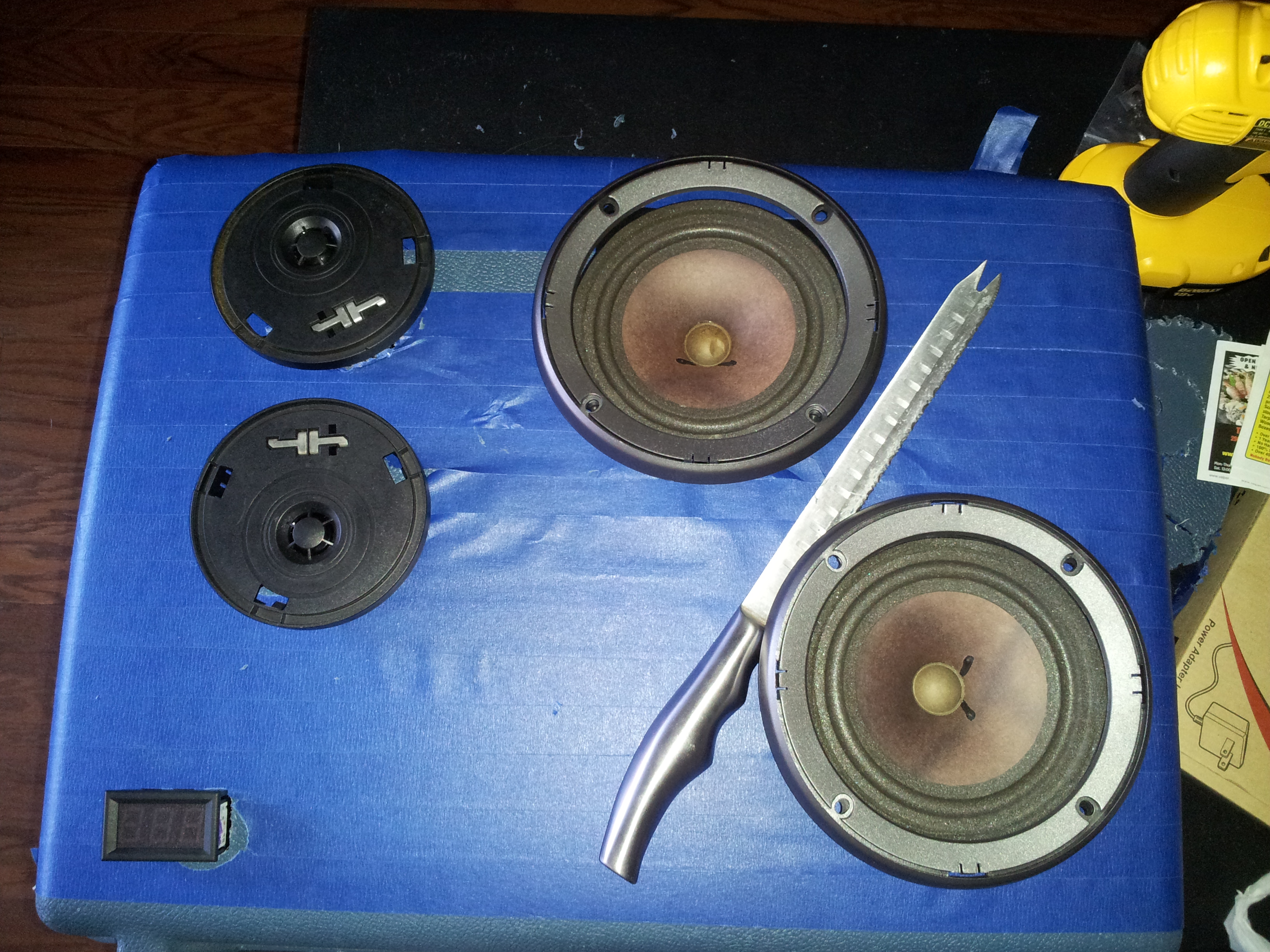

-Tape up your suitcase, draw your template
-Drill starting holes, and cut into the box, a router would be ideal but I only had a stainless steel kitchen knife
-Dremel your holes smooth and to fit the speakers

-This time the plastic was at least about 1/4 inch thick so it took me way longer to cut.  I think it's time to invest in some power tools. :)

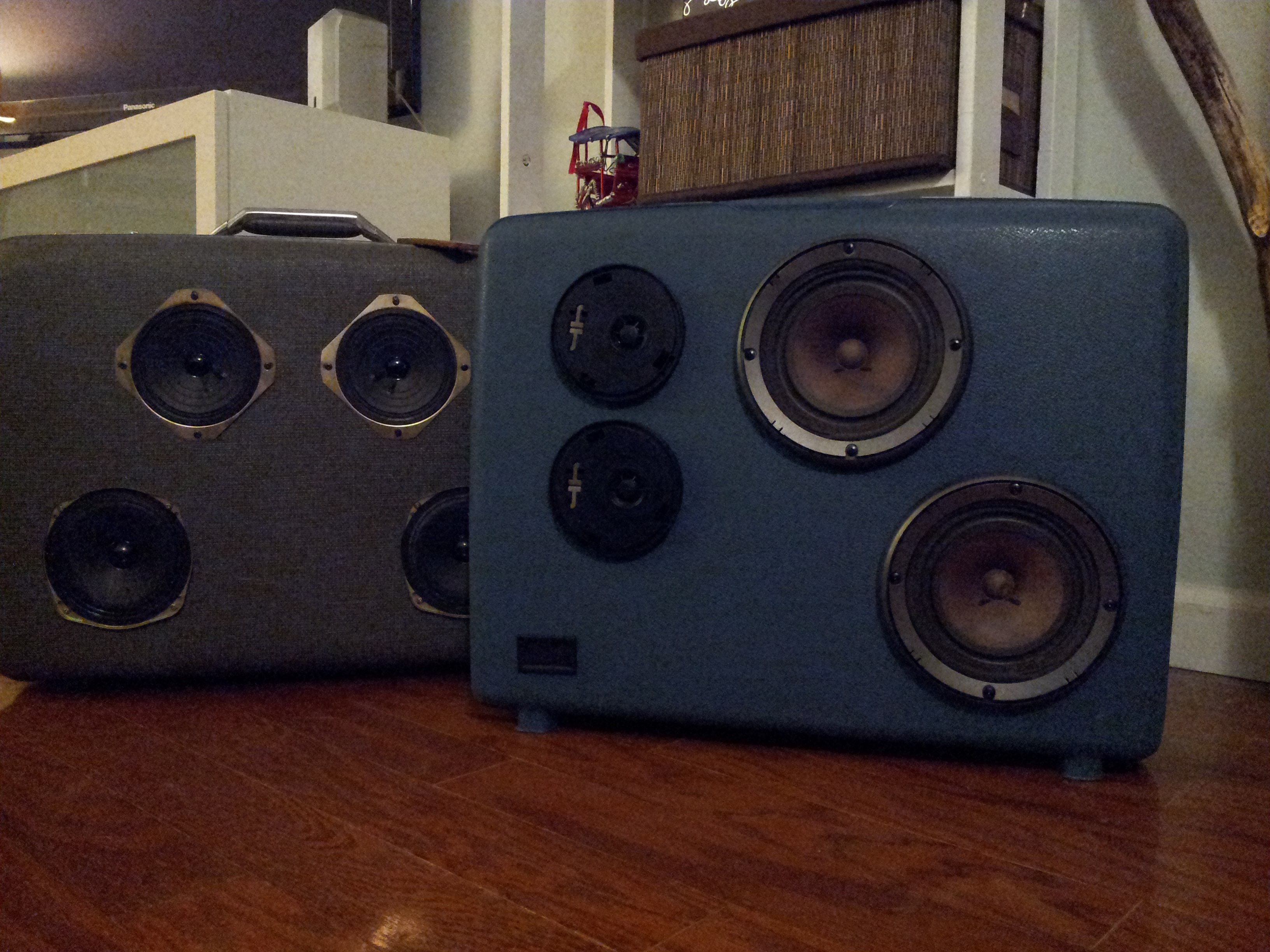

Finished product next to Boomcase Mimic.  Please enjoy.  I'm considering selling these so if your interested please message me and I will also do commisions if you have a specific case you want to be built.  Thanks for reading.............  Keep on creating..
