Hydraulic Arm From Syringes

after getting my prize in spring cleaning challenge I'm more enthusiasm.If you are looking for easy to make and techy, this is the right place for you. All the material used is cheap and easily available at pharmacists.

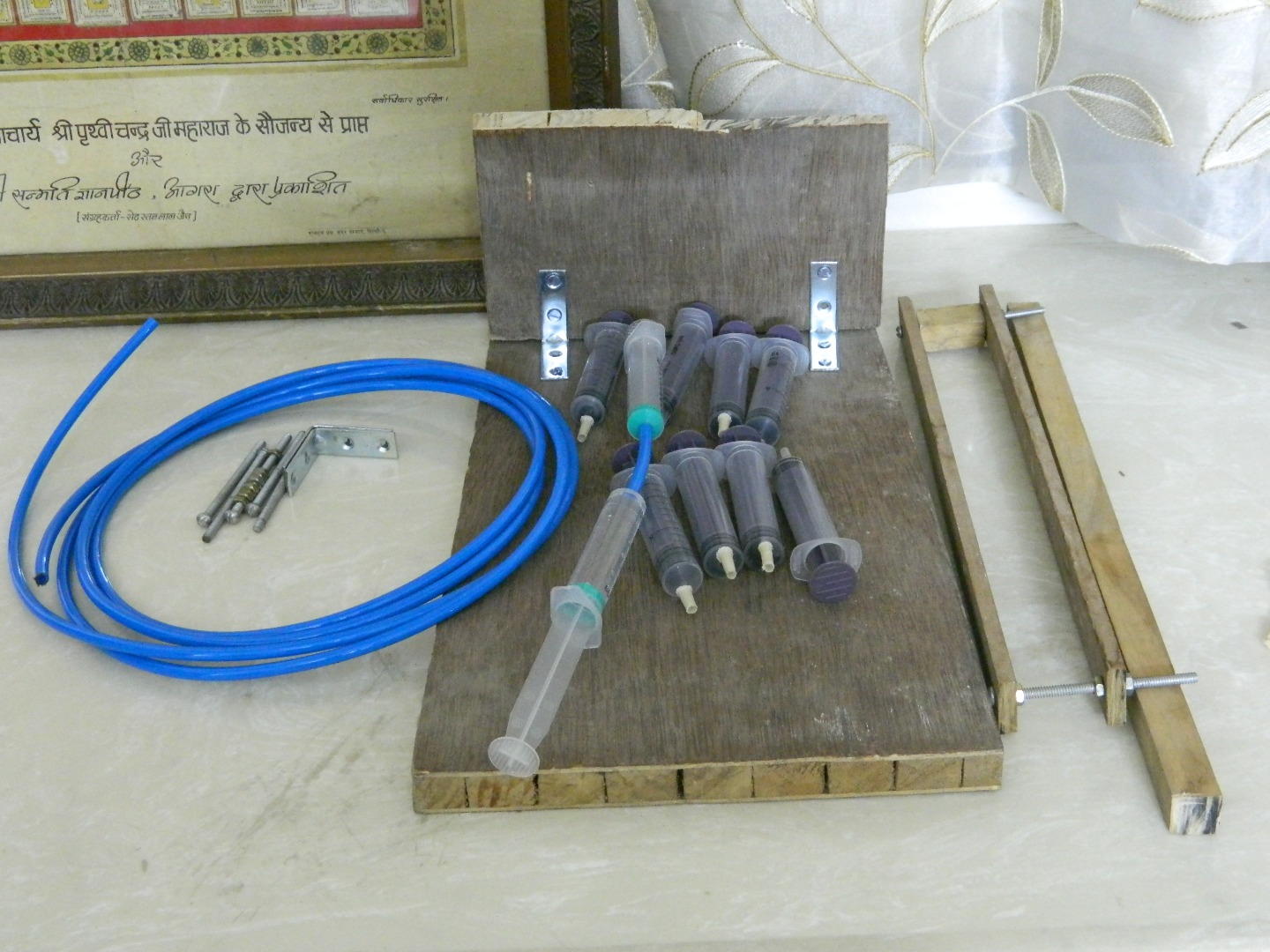

Supplies required-

1. 10 ml syringes X 10

2. pipe (you can use the one used in water filters)

3. wooden plank

4. nuts and bolts

5. nails

6. angle brackets

7. hot glue sticks

8. 18mm drill bit

9. wheels

10. metal sticks(for wheels)

11. wooden sticks(for arms)

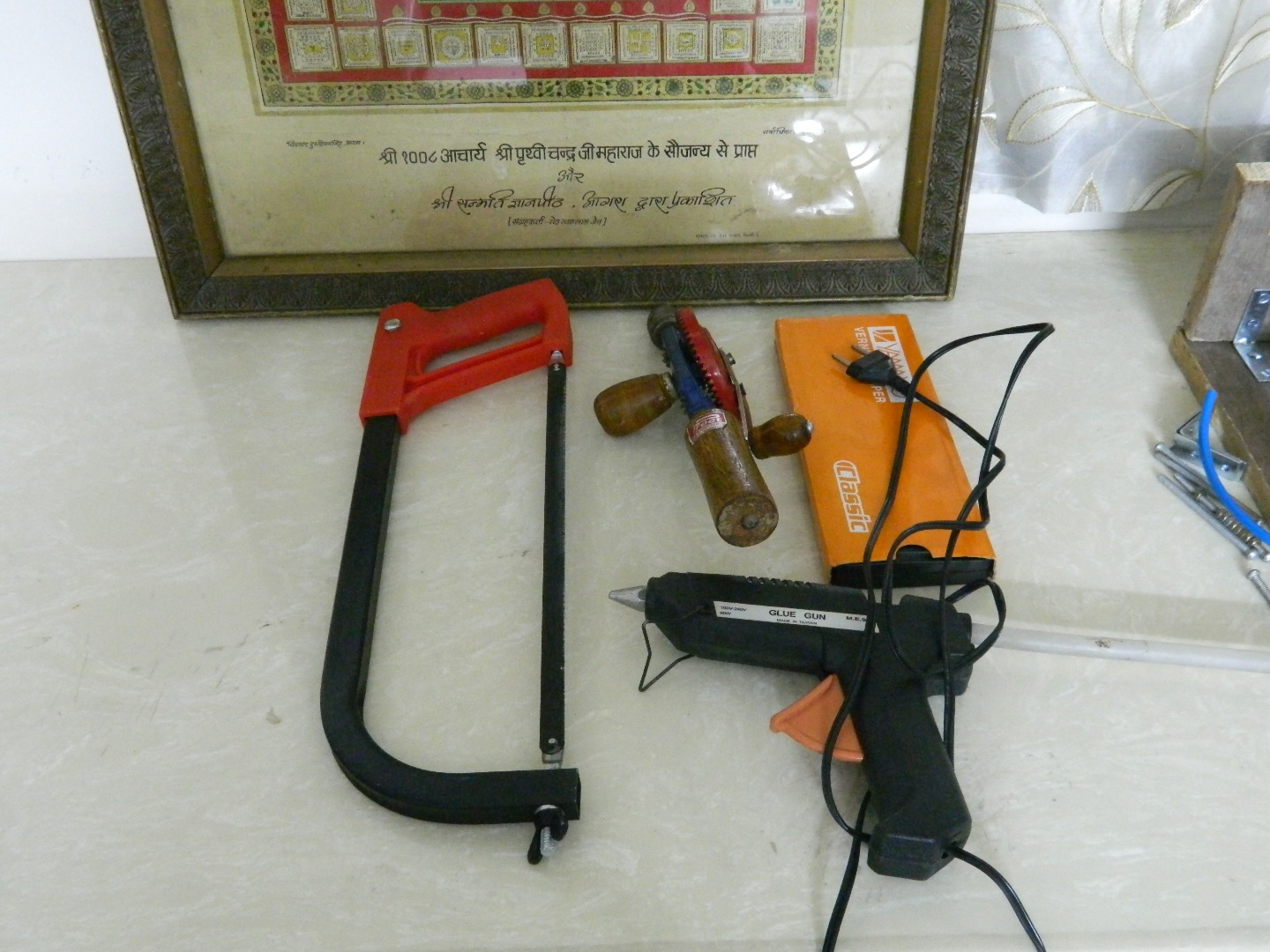

tools required -

• drill
• glue gun
• hammer
• screw driver
• filer

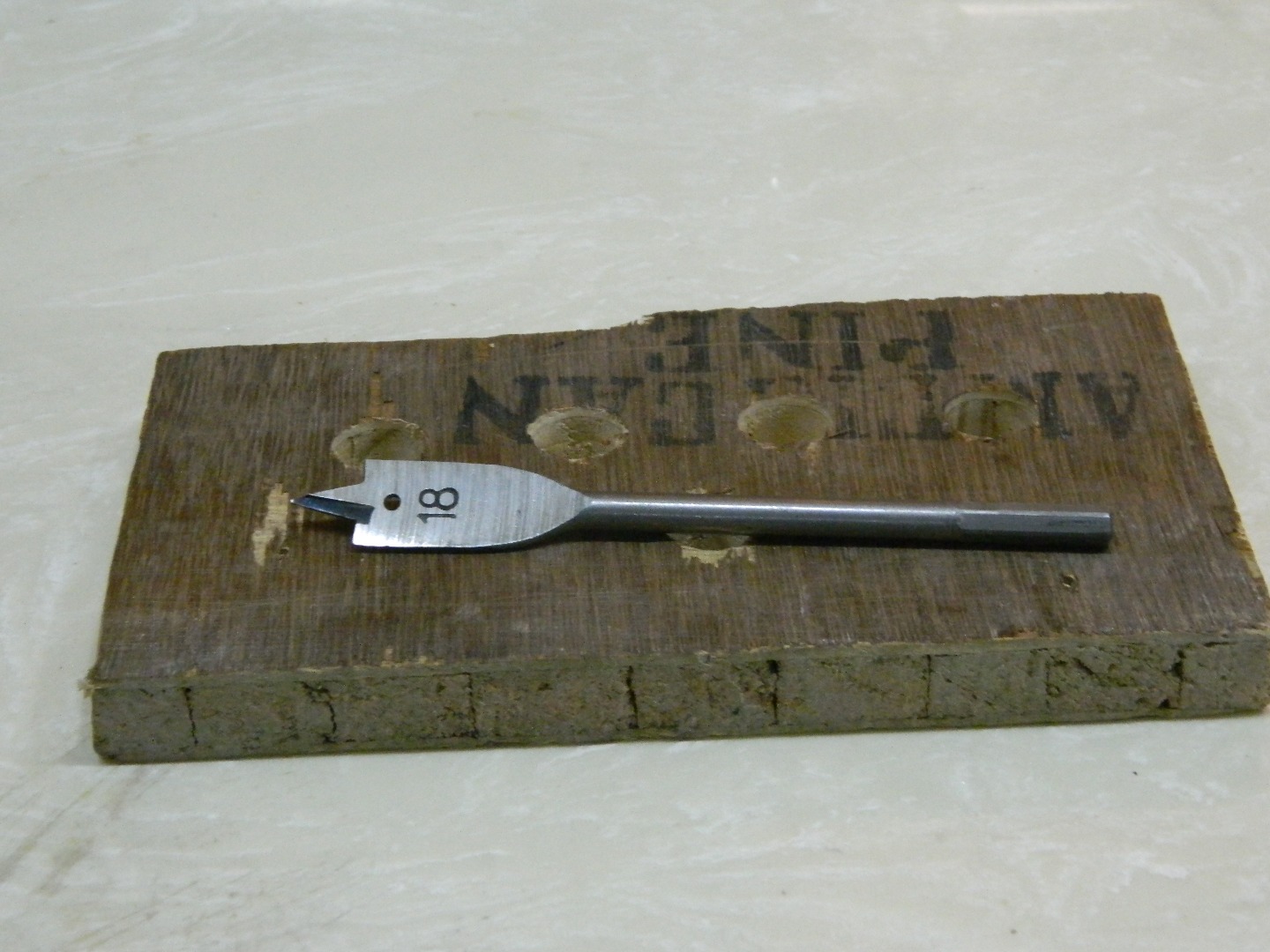

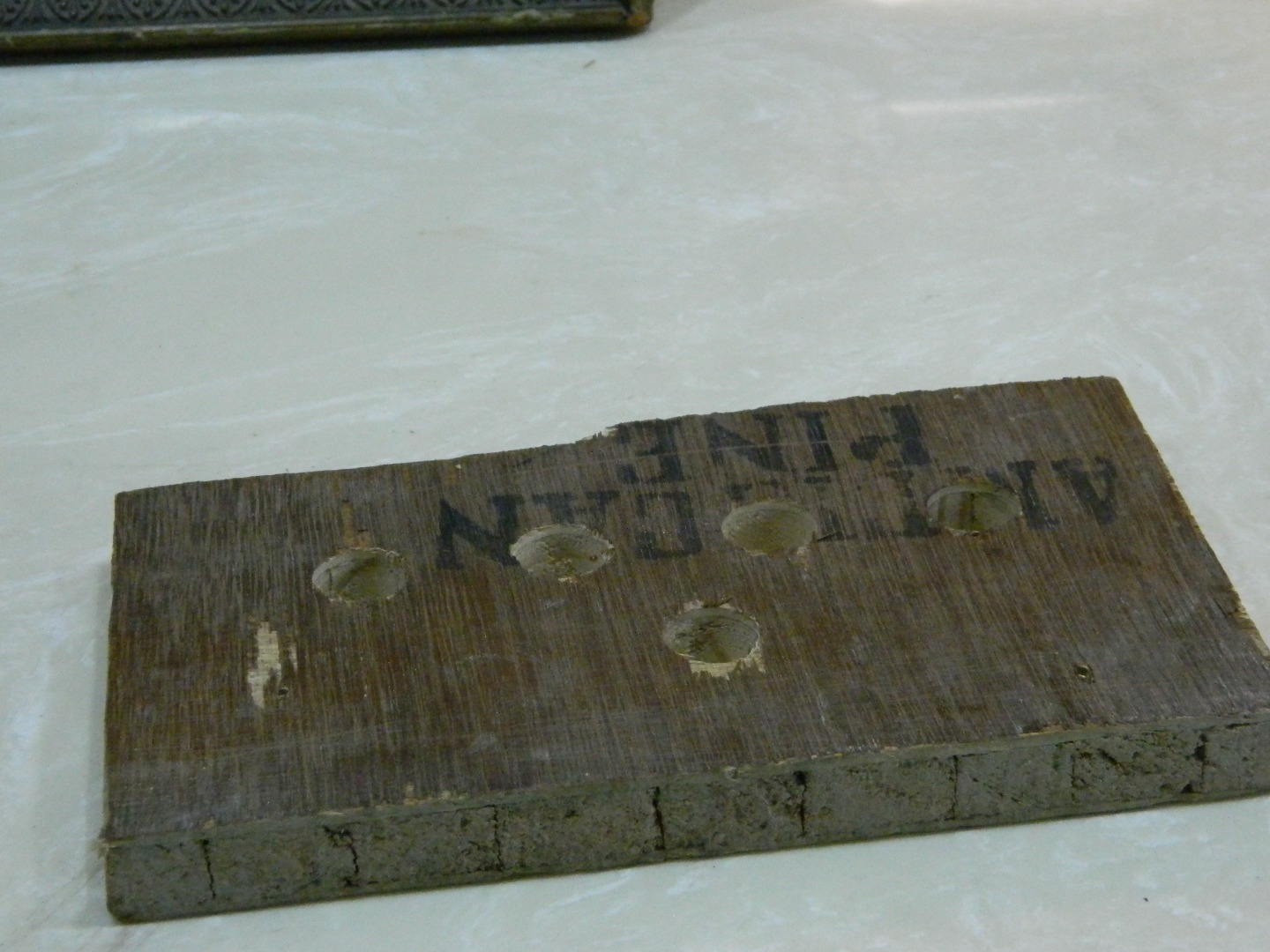

Drill 5 holes on the smaller wooden plank with 18mm flat drill bit

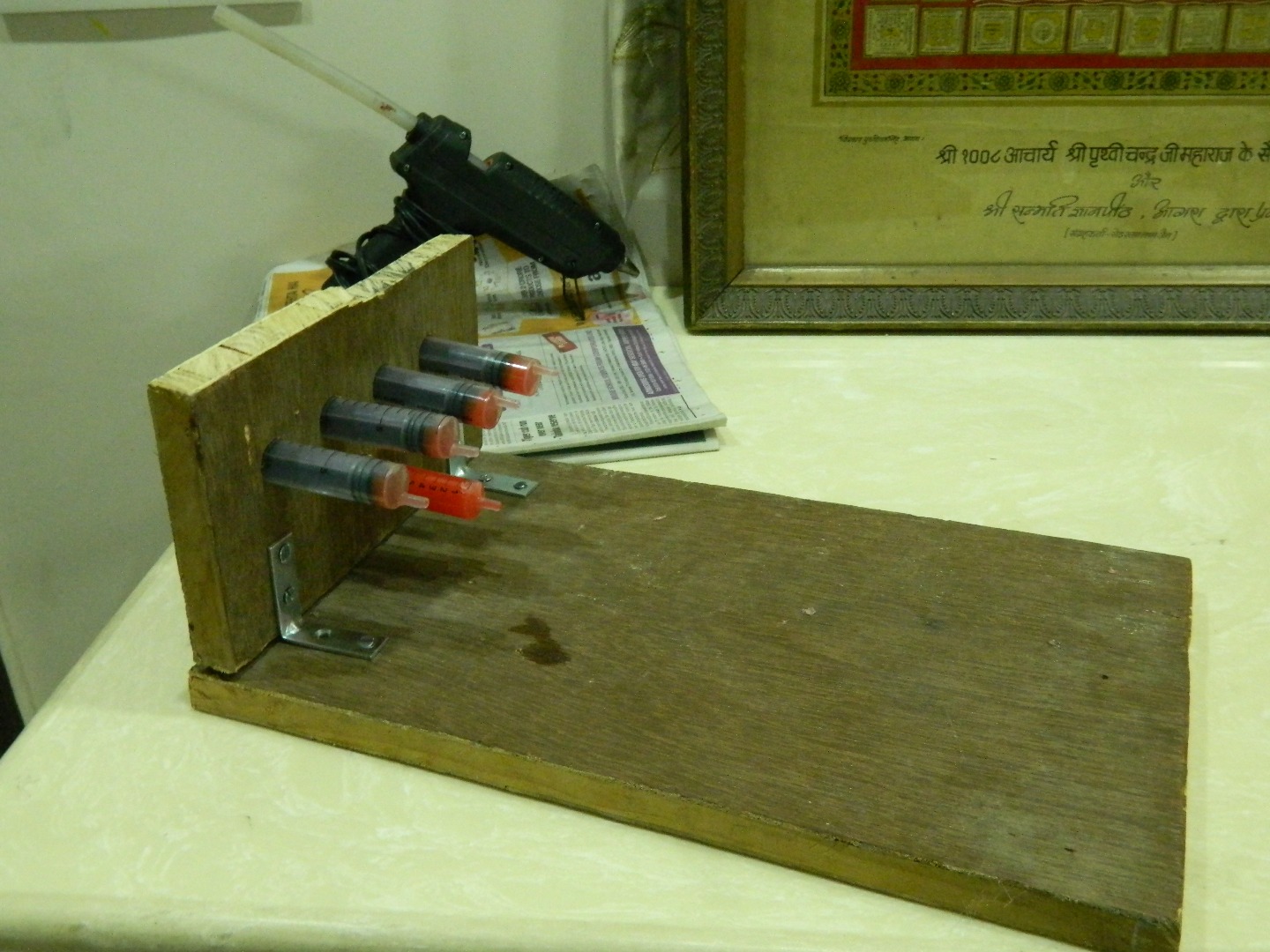

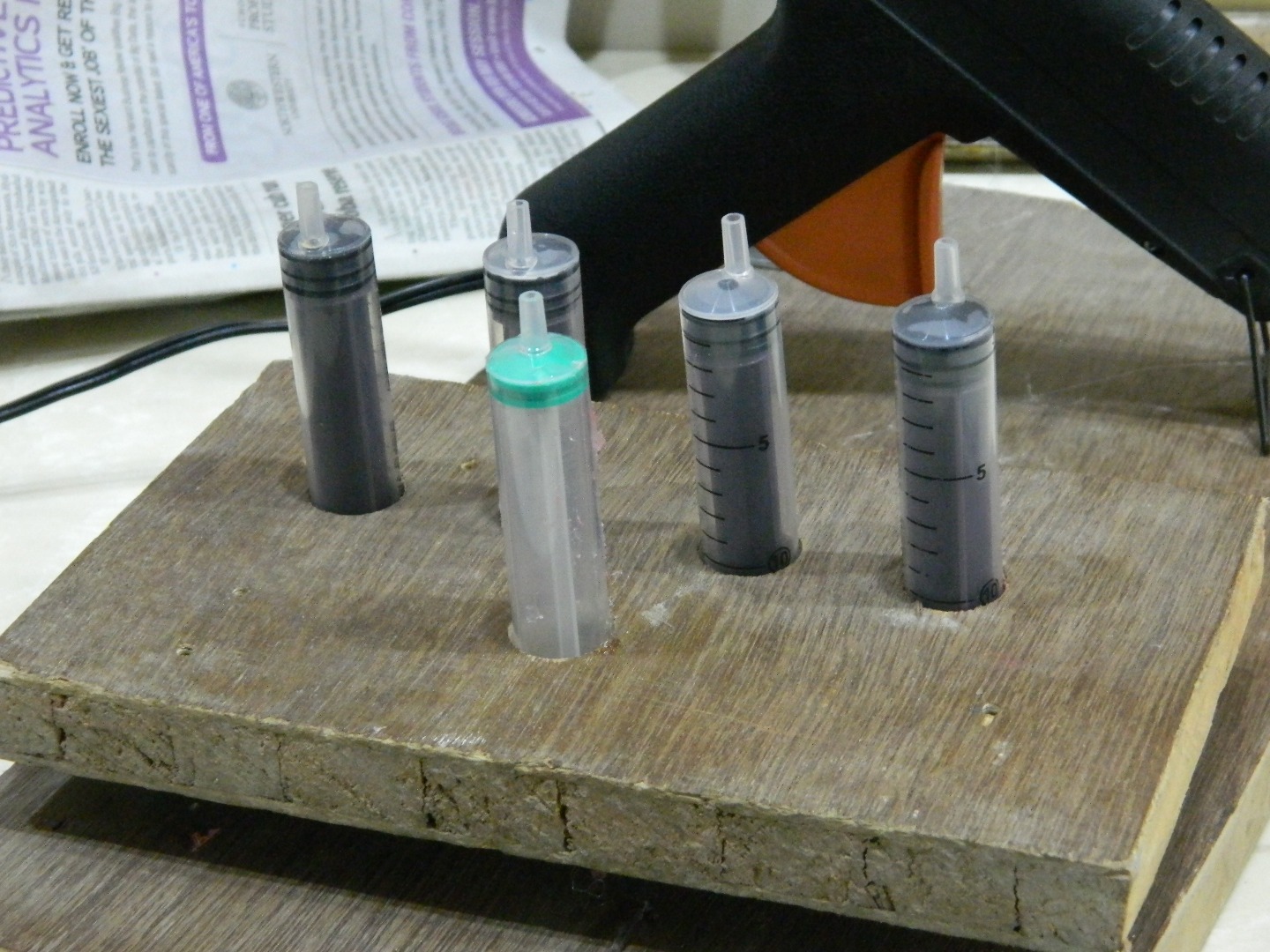

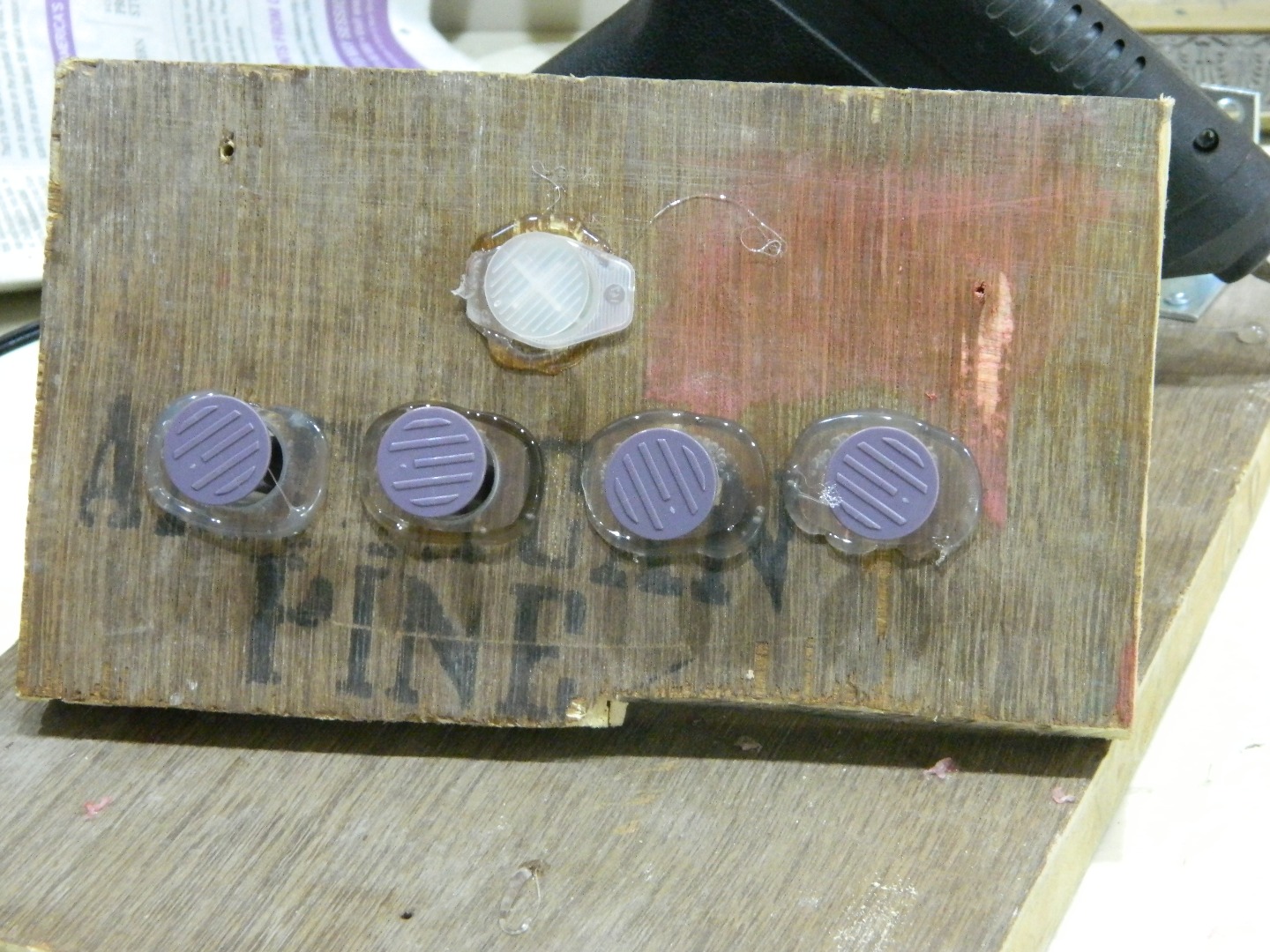

for fixing syringes use very hot hard glue.paste the glue on the syringe ends

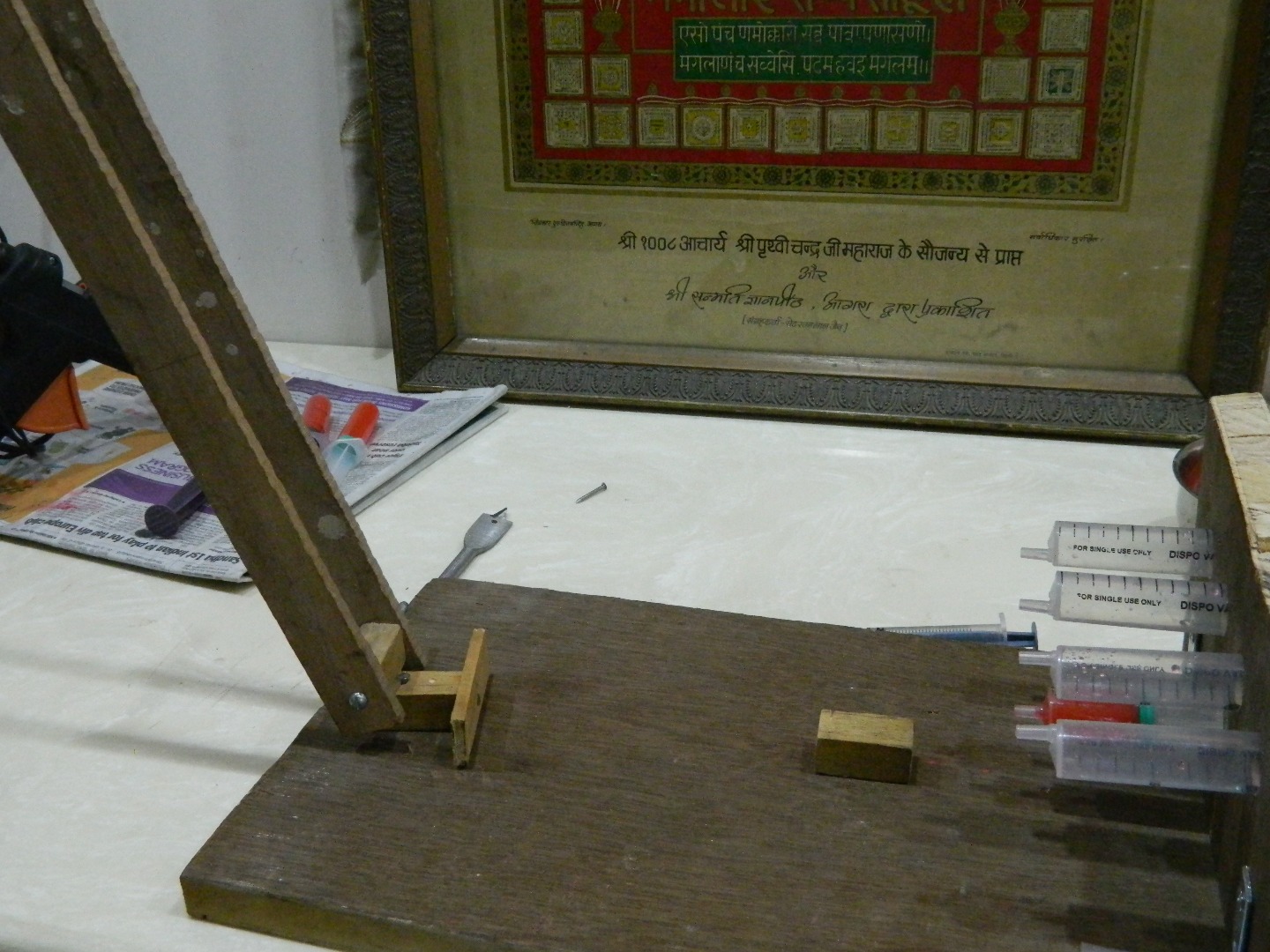

take the 2 pieces and join them with help of angle brackets and secure them with screws

first cut the 2pieces of size-27cm. now drill 3 holes at distances of 2cm,12cm,25.5cm respectively from base in each as shown above.add the screws on all the holes as shown

first cut the 2pieces of size-27cm . now drill 4 holes at distances of 1.5cm,12cm,23.5cm,26cm respectively from base in each as shown above.

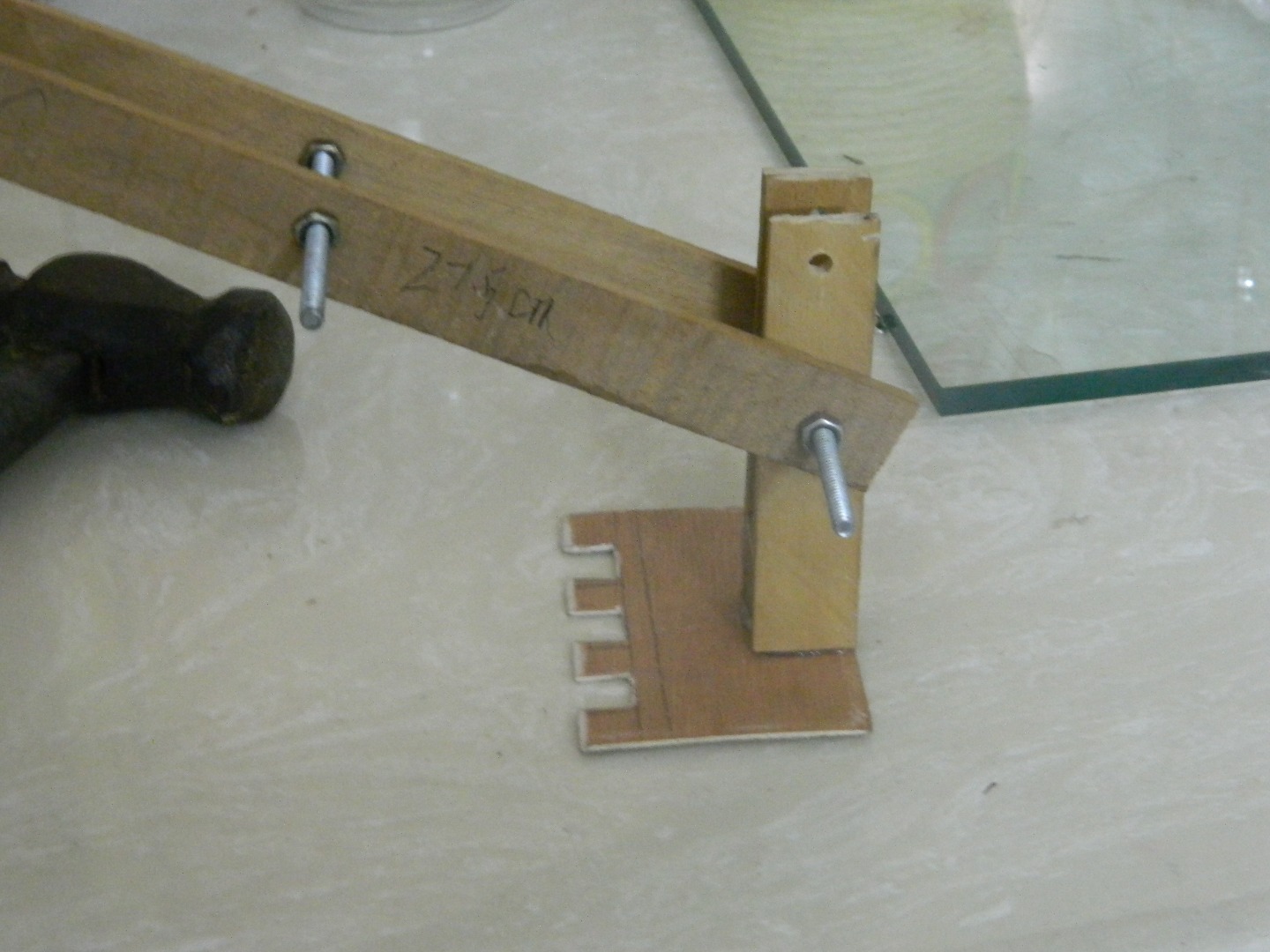

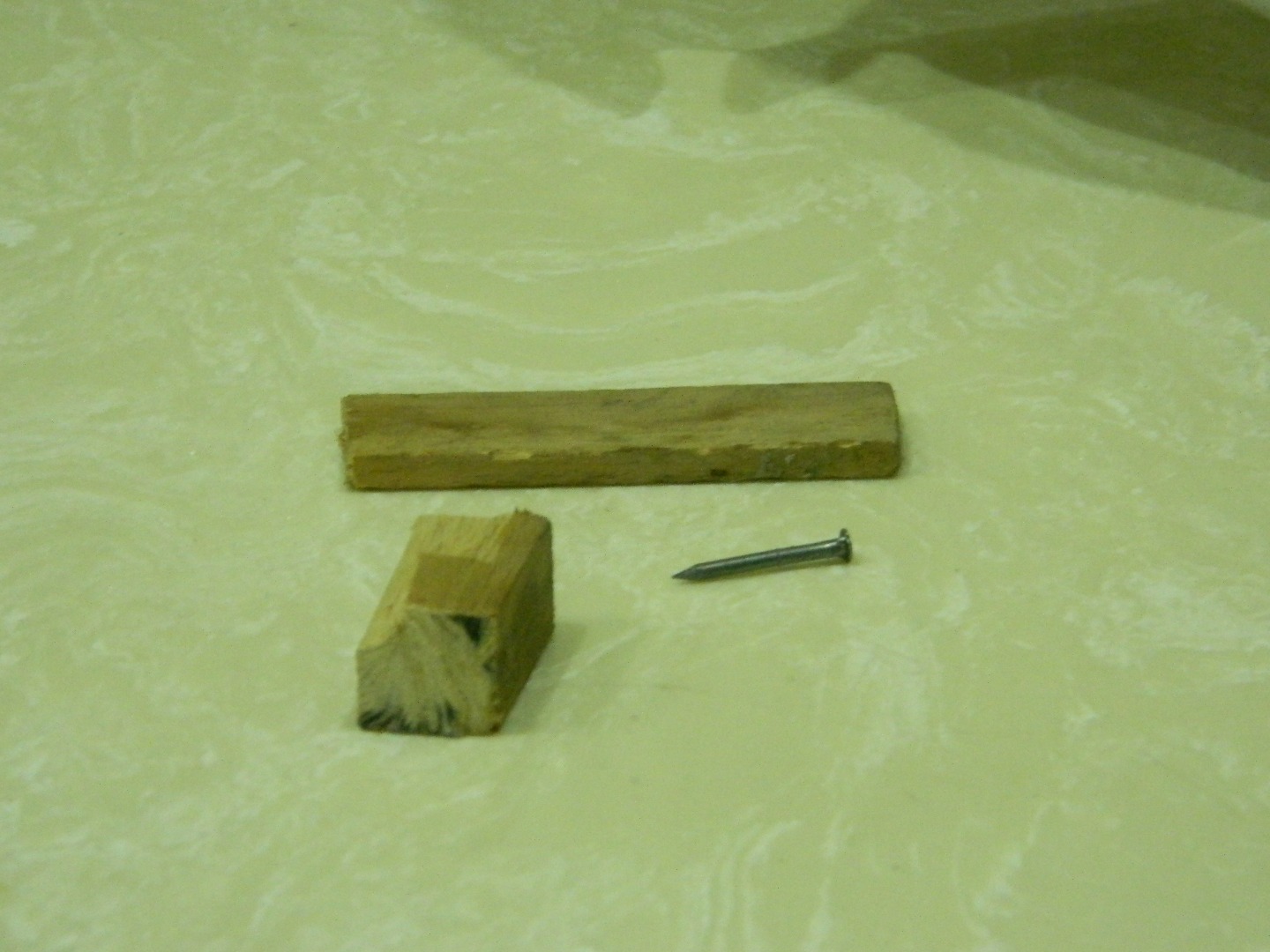

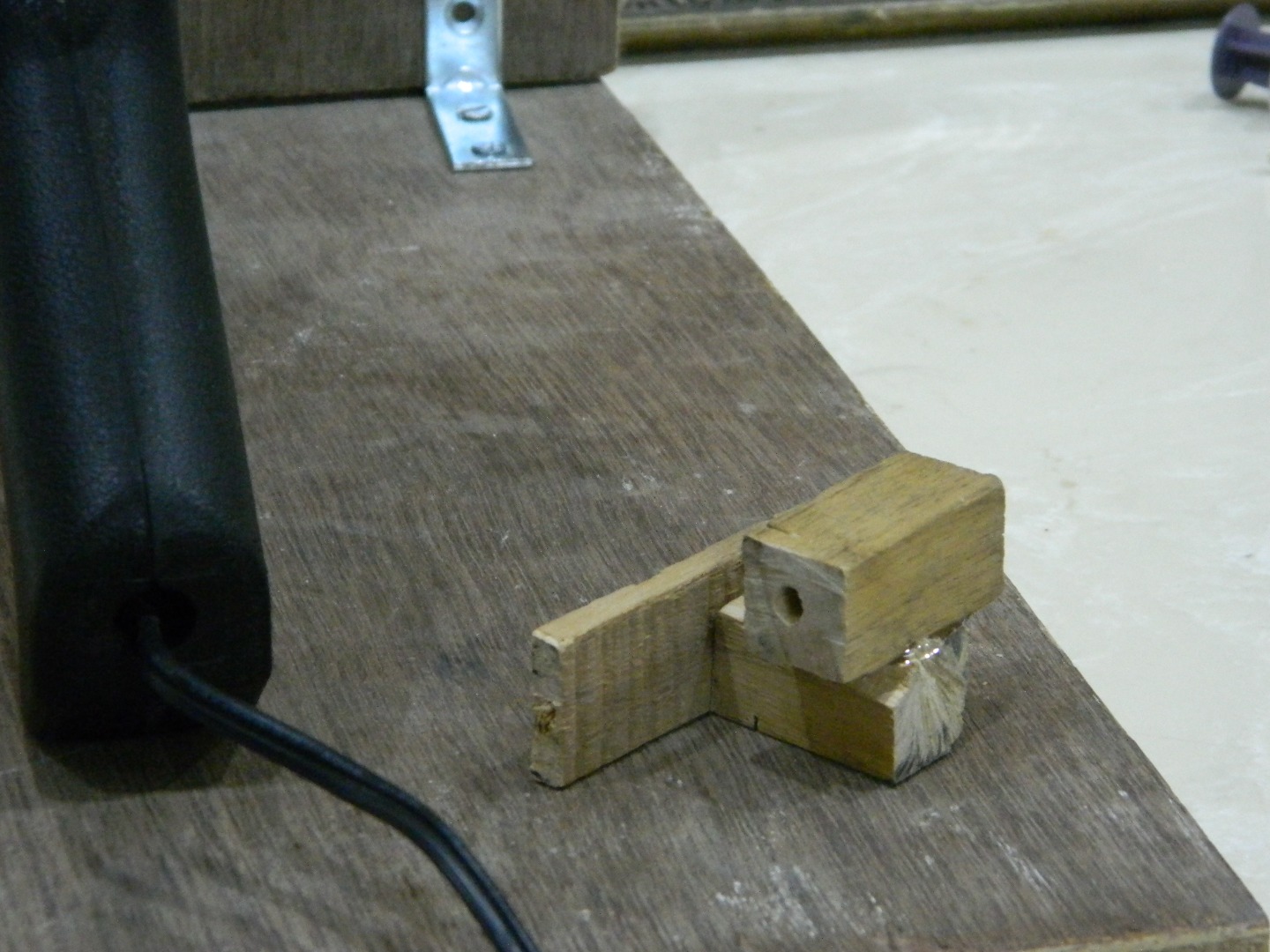

for making the grabber you need to kind of thin wood of size 9cmX6cm . now with help of a chisel cut out small squares out of that as shown above.now make them smooth with help of a filer.you need 2 same size pieces and a square block. join them with hot glue as shown in next step

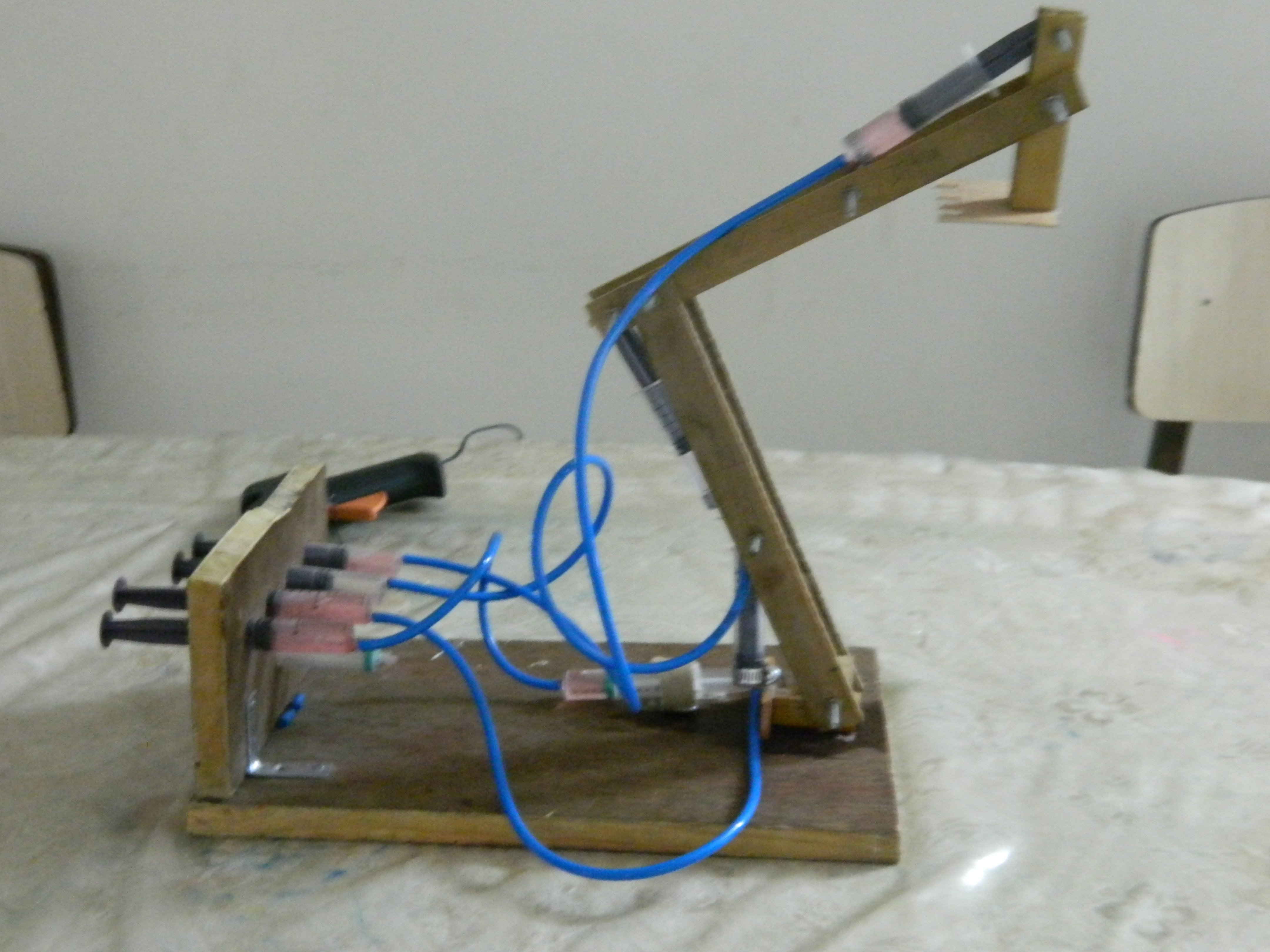

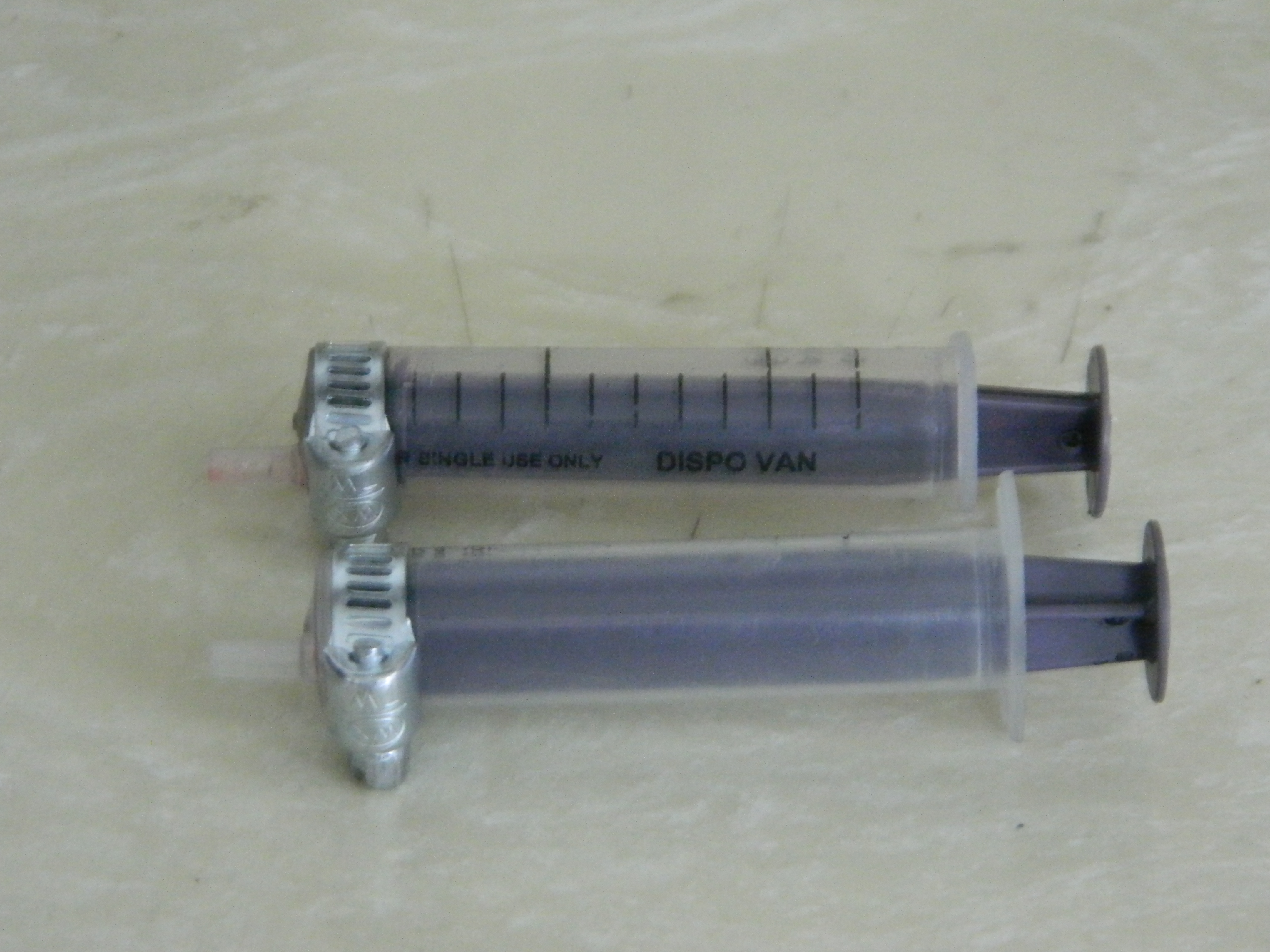

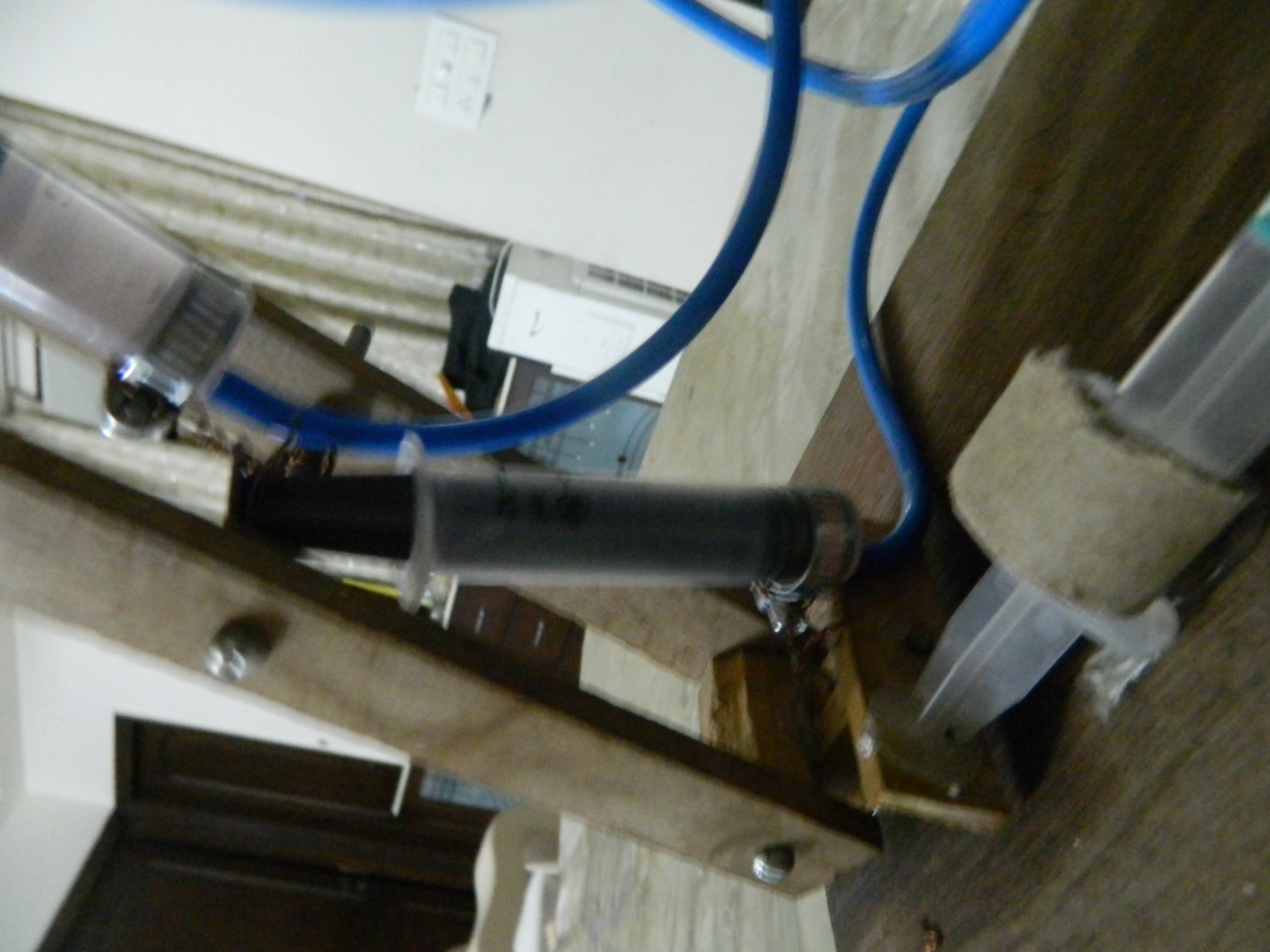

follow the steps as shown in the pictures.for joining the front of syringes i've used hose clamp and hobby clay.i tried other ways but they were useless.

hope you like it do not forget to vote :D

More posibilities

wheels can be added

a box for material can be added
