IoT Service Robot

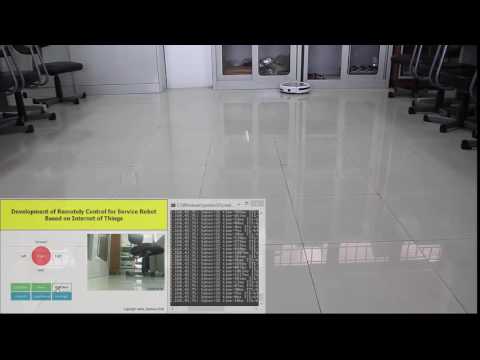

In this project, we will be making a Vacuum Cleaner Robot that could be control remotely via internet with single-board computer raspberry pi. We also would use camera as user interface feedback!
It’s a quite complicated project and need some basic knowledge requirement which is :
- Introduction to IoT PHP
- Introduction to HTML and CSS
- Raspberry Pi Stream Video
- Make your LocalHost Online
List of Material
In this project we will be using :
- Raspberry Pi 2
- Raspberry Pi Camera
- Arduino Nano
- IR 333

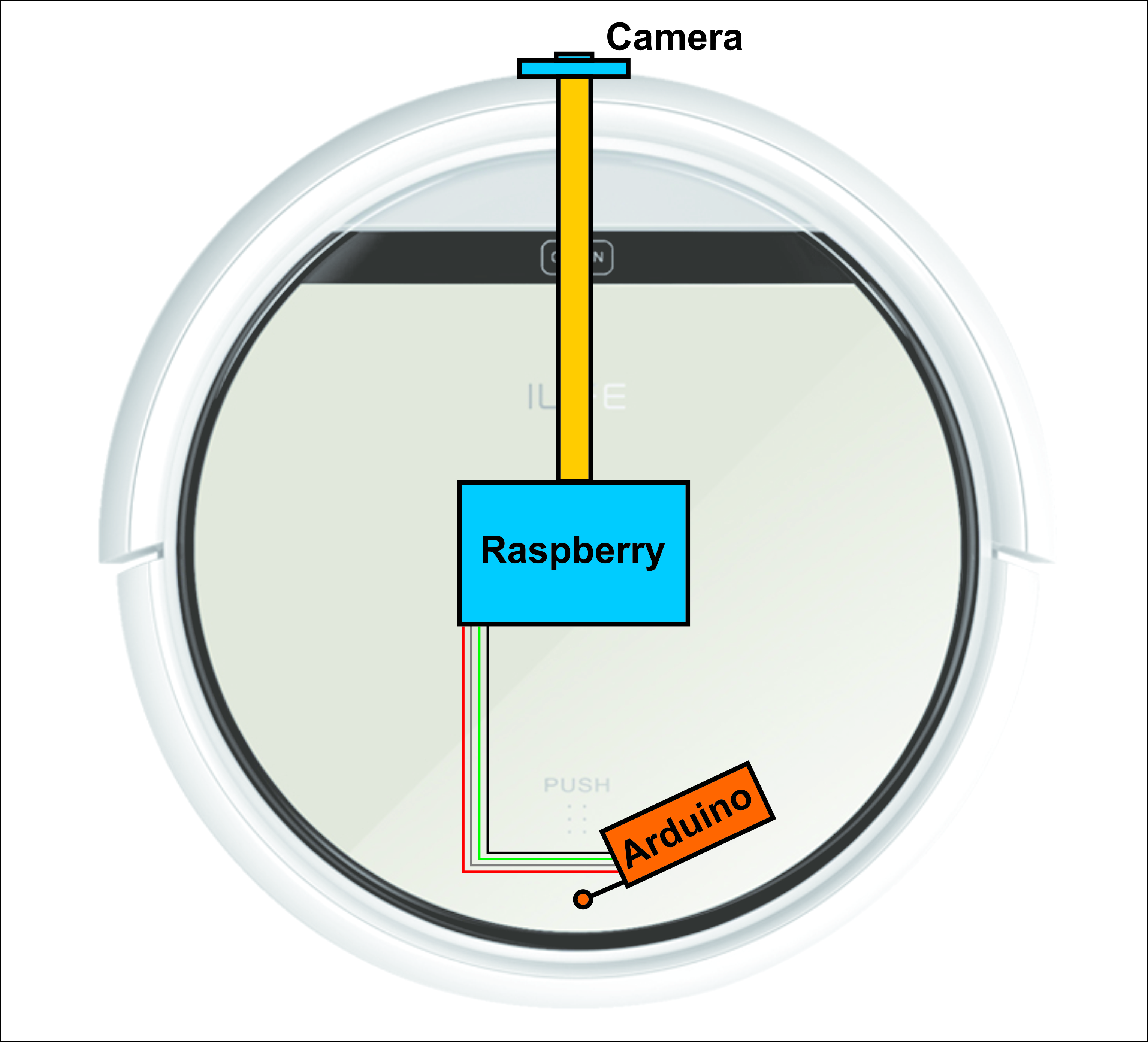

Hardware Connection
In general, the connections are very simple. Follow the instructions and images above, and you should have no problems.
- Connect Raspberry Pi Camera to Raspberry through camera socket
- Connect Arduino Nano to Raspberry Pi through USB cable
- Connect IR333's VCC to Arduino's digital pin 3
- Connect IR333's GND to Arduino's GND
Microcontroller Programming
Below is IoT Vacuum Robot Code. Upload Nano.ino code to Arduino, index.php and index.css to Raspberry pi in /var/www/ and you should have no problems.
You could clone and edit the code in any way you prefer.
Downloads
Enjoy!
After making sure that IoT Vacuum Robot working perfectly, port forward your server to make your IoT Robot ability to be access from everywhere. Check it out here.
