IoT-Based Fire Safety System With GPS Location Reporting

The IoT-Based Fire Safety System is a multifaceted project that ingeniously brings together an array of hardware components for a comprehensive solution. At its core is the versatile ESP32 microcontroller, orchestrating the various functionalities seamlessly. The NEO-6M GPS module plays a pivotal role in the project, consistently acquiring the precise GPS coordinates of the device's location. The SIM800L module comes into play to bolster its communication capabilities, enabling the system to communicate through GSM networks and efficiently transmit data and send SMS to designated recipients. Providing a tangible interface for the user, a 16x2 LCD offers real-time updates on the system's status, from initialization to fire detection and data transmission. The inclusion of a fire sensor is paramount, as it tirelessly scans the environment for any indications of fire. A buzzer is also used in the system.

The operational workflow of the system is meticulously orchestrated:

1. Fire Detection: The system continuously and vigilantly monitors its surroundings for the presence of a fire or extreme heat conditions, triggering a series of actions upon detection.
2. GPS Location Retrieval: When a fire is detected, the system promptly activates the NEO-6M GPS module, seeking to acquire the current GPS coordinates, which are vital for pinpointing the incident's location.
3. Sending Google Maps Link: The system adeptly compiles the GPS coordinates into a Google Maps link, forming a comprehensive message that serves as a beacon to the emergency responders or concerned parties.
4. Data Transmission: The SIM800L module, empowered with GSM capabilities, acts as the conduit for transmitting the crucial message containing the Google Maps link, channeling it through email and Telegram to swiftly reach its intended recipients.
5. Status Display: The real-time feedback is seamlessly presented on the 16x2 LCD, ensuring that the user is informed at every stage of operation, from fire detection to data transmission, and providing insights into the system's overall health.
6. Blynk Integration: The project is further elevated through seamless integration with the Blynk platform, allowing remote monitoring of the system's status. This not only enhances user convenience but also empowers individuals to receive real-time updates and alerts on their smartphones or tablets.

The primary aim of this IoT-Based Fire Safety System is to facilitate a rapid and effective response to fire incidents by providing the GPS location of the event via email or Telegram. This is instrumental in ensuring that emergency services and concerned individuals can react promptly to the precise location of the fire, potentially preventing further damage and safeguarding lives. Furthermore, the project serves as an exemplar of the capabilities of IoT devices in creating sophisticated and responsive solutions for critical scenarios, offering a glimpse into the future of safety and security systems.

Hardware Components:

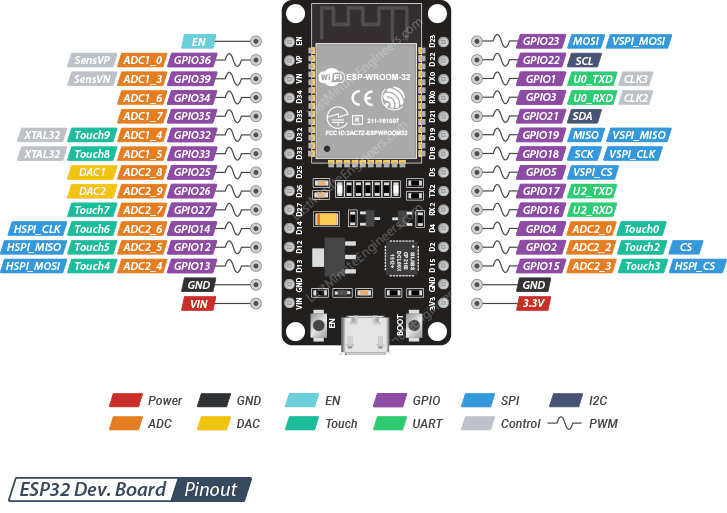

1. ESP32 Microcontroller
2. NEO-6M GPS Module

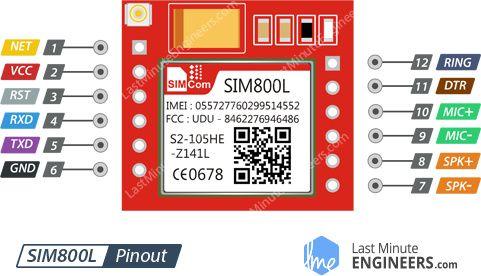

3. SIM800L GSM Module
4. 16x2 LCD Display
5. Fire Sensor
6. Blynk IoT Platform (software)
7. Power Supply (as required for the components)

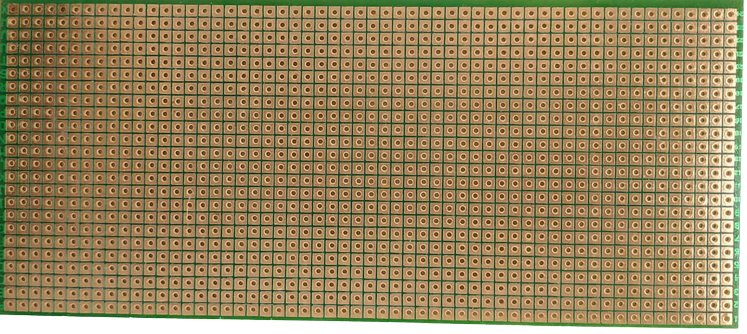

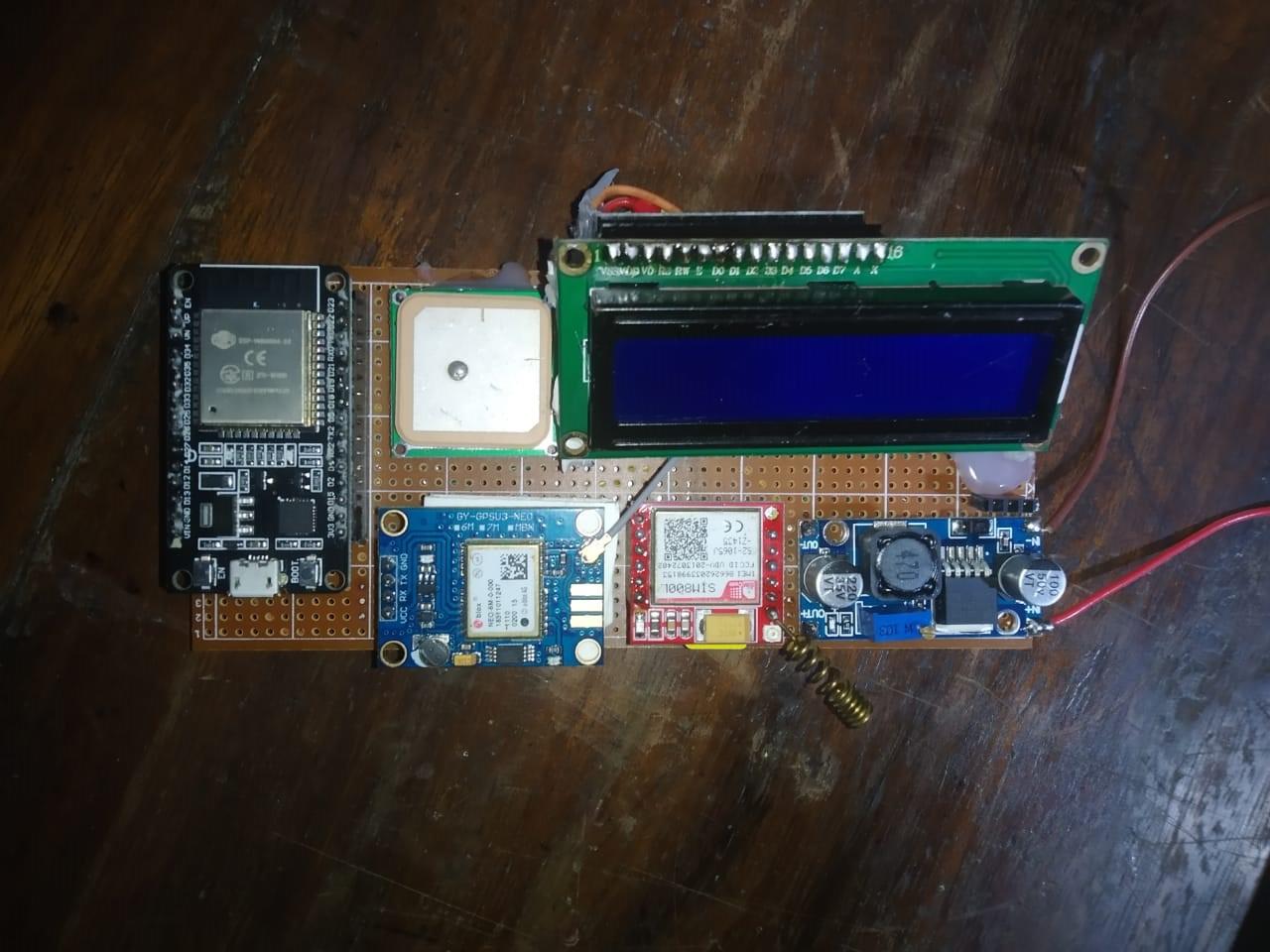

8. VeroBoard

Software Components:

1. Arduino IDE for ESP32 programming
2. Blynk App (for remote monitoring and alerts)
3. Email API or Service (for sending email notifications)
4. Telegram Bot API (for sending Telegram messages)
5. GPS Parsing and Data Formatting Code (to process GPS coordinates)
6. Code for Fire Sensor Integration (to detect fire)
7. Libraries and Drivers for ESP32, GPS Module, and SIM800L

Extremely sorry for not using the recommended sign of the component in the circuit diagram.

// includes
#include <SoftwareSerial.h>
#include <HTTPClient.h>
#include <WiFi.h>
#include <ESP_Mail_Client.h>
#include <BlynkSimpleEsp32.h>
#include <TinyGPSPlus.h>
#include <LiquidCrystal_I2C.h>
// defines............//

#define WIFI_SSID "use your wifi ssid"
#define WIFI_PASSWORD "use your wifi ssid"
#define BLYNK_TEMPLATE_ID "use your info"        //blynk
#define BLYNK_TEMPLATE_NAME "use your info"      //blynk
#define BLYNK_AUTH_TOKEN "use your info"         //blynk
const char* telegramBotToken = "use your info";  //telegram
const char* chatId = "use your info";            //telegram
#define AUTHOR_EMAIL "use your info"             // The sign in credentials  for email
#define AUTHOR_PASSWORD "use your info"          // The sign in credentials  for email
/** The smtp host name e.g. smtp.gmail.com for GMail or smtp.office365.com for Outlook or smtp.mail.yahoo.com */
#define SMTP_HOST "smtp.gmail.com"
#define SMTP_PORT 465
/* Recipient's email*/
#define RECIPIENT_EMAIL "use your info"

// pins...//

const int inputPin = 15;         // Sensor pin
SoftwareSerial mySerial(5, 18);  // for sim800L  Connect SIM800L
LiquidCrystal_I2C lcd(0x27, 16, 2);
/* Declare the global used SMTPSession object for SMTP transport */
SMTPSession smtp;
TinyGPSPlus gps;
/* Callback function to get the Email sending status */
void smtpCallback(SMTP_Status status);

void setup() {
  Serial.begin(9600);
  mySerial.begin(9600);
  Serial2.begin(9600);  //for gps
  Serial.println("Initializing...");
  Serial.println();
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  Serial.print("Connecting to Wi-Fi");
  while (WiFi.status() != WL_CONNECTED) {
    Serial.print(".");
    delay(300);
  }
  Serial.println();
  Serial.print("Connected with IP: ");
  Serial.println(WiFi.localIP());
  Serial.println();
  Blynk.begin(BLYNK_AUTH_TOKEN, WIFI_SSID, WIFI_PASSWORD);
  pinMode(inputPin, INPUT);
  delay(9000);
  lcd.init();
  lcd.clear();
  lcd.backlight();
  lcd.setCursor(2, 0);
  lcd.print("ALL OK");
  pinMode(13, OUTPUT);
}


void loop() {
  Blynk.run();
  int inputValue = digitalRead(inputPin);

  if (inputValue == LOW) {  // low means fire found
    lcd.clear();
    lcd.setCursor(2, 0);  //Set cursor to character 2 on line 0
    lcd.print("Fire detected");
    while (Serial2.available() > 0)
      if (gps.encode(Serial2.read())) {
        gpsdatalink();
        digitalWrite(13, HIGH);  //buzzer
        lcd.clear();
        lcd.setCursor(2, 0);  //Set cursor to character 2 on line 0
        lcd.print("sending Alert!");
        delay(1000);
      }
    if (millis() > 5000 && gps.charsProcessed() < 10) {
      Serial.println(F("No GPS detected: check wiring."));
      while (true)
        ;
    }
    Blynk.virtualWrite(V0, 1);  // Turn on the virtual LED widget
    delay(1000);
    lcd.clear();
    lcd.setCursor(2, 0);  //Set cursor to character 2 on line 0
    lcd.print("Email Sent");
    delay(100);
    lcd.setCursor(2, 1);
    lcd.print("SMS Sent");
    delay(100);
    lcd.clear();
    lcd.setCursor(2, 0);
    lcd.print("Telegram sent");
    delay(100);
    lcd.clear();
    Serial.println("Status:B_LED ON");
  } else {  // fire is not found
    Serial.println("Input pin is HIGH");
    Blynk.virtualWrite(V0, 0);  // Turn off the virtual LED widget
    Serial.println("Status: OFF");
    digitalWrite(13, LOW);  //buzzer
  }
}

void gpsdatalink() {
  String mapLink;
  if (gps.location.isValid()) {
    String lat = String(gps.location.lat(), 6);
    String lng = String(gps.location.lng(), 6);
    // Create the Google Maps link
    mapLink = "Fire is detected !!!! @ https://www.google.com/maps/place/" + lat + "," + lng;

    // Send the Google Maps link via Telegram
    email(mapLink);
    sendTelegramMessage(mapLink);
    sms(mapLink);
    Serial.println();
    delay(1000);
  }

  else {
    Serial.println(F("INVALID"));
  }
}


void sendTelegramMessage(const String& message) {
  // Create the URL with the required parameters
  String url = "https://api.telegram.org/bot";
  url += telegramBotToken;
  url += "/sendMessage?chat_id=";
  url += chatId;
  url += "&text=";
  url += urlEncode(message);

  // Send the GET request
  HTTPClient http;
  http.begin(url);
  int httpResponseCode = http.GET();

  // Check the response
  if (httpResponseCode == HTTP_CODE_OK) {
    Serial.println("Telegram alert sent successfully");
  } else {
    Serial.print("Failed to send Telegram alert. Error code: ");
    Serial.println(httpResponseCode);
  }

  // Close the connection
  http.end();
}

String urlEncode(const String& str) {
  String encodedString = "";
  char c;
  char code0;
  char code1;
  const char* strchar = str.c_str();

  for (int i = 0; i < str.length(); i++) {
    c = strchar[i];

    if (c == ' ') {
      encodedString += '+';
    } else if (isalnum(c)) {
      encodedString += c;
    } else {
      code1 = (c & 0xf) + '0';
      if ((c & 0xf) > 9) {
        code1 = (c & 0xf) - 10 + 'A';
      }

      c = (c >> 4) & 0xf;
      code0 = c + '0';
      if (c > 9) {
        code0 = c - 10 + 'A';
      }

      encodedString += '%';
      encodedString += code0;
      encodedString += code1;
    }
    yield();
  }

  return encodedString;
}


/* Callback function to get the Email sending status */
void smtpCallback(SMTP_Status status) {
  /* Print the current status */
  Serial.println(status.info());

  /* Print the sending result */
  if (status.success()) {
    Serial.println("----------------");
    ESP_MAIL_PRINTF("Message sent success: %d\n", status.completedCount());
    ESP_MAIL_PRINTF("Message sent failed: %d\n", status.failedCount());
    Serial.println("----------------\n");

    for (size_t i = 0; i < smtp.sendingResult.size(); i++) {
      /* Get the result item */
      SMTP_Result result = smtp.sendingResult.getItem(i);
      ESP_MAIL_PRINTF("Message No: %d\n", i + 1);
      ESP_MAIL_PRINTF("Status: %s\n", result.completed ? "success" : "failed");
      ESP_MAIL_PRINTF("Date/Time: %s\n", MailClient.Time.getDateTimeString(result.timestamp, "%B %d, %Y %H:%M:%S").c_str());
      ESP_MAIL_PRINTF("Recipient: %s\n", result.recipients.c_str());
      ESP_MAIL_PRINTF("Subject: %s\n", result.subject.c_str());
    }
    Serial.println("----------------\n");
    // You need to clear sending result as the memory usage will grow up.
    smtp.sendingResult.clear();
  }
}

void email(const String& msg) {
  /*  Set the network reconnection option */
  MailClient.networkReconnect(true);
  smtp.debug(1);

  /* Set the callback function to get the sending results */
  smtp.callback(smtpCallback);

  /* Declare the Session_Config for user defined session credentials */
  Session_Config config;

  /* Set the session config */
  config.server.host_name = SMTP_HOST;
  config.server.port = SMTP_PORT;
  config.login.email = AUTHOR_EMAIL;
  config.login.password = AUTHOR_PASSWORD;
  config.login.user_domain = "";

  config.time.ntp_server = F("pool.ntp.org,time.nist.gov");
  config.time.gmt_offset = 6;
  config.time.day_light_offset = 0;

  /* Declare the message class */
  SMTP_Message message;

  /* Set the message headers */
  message.sender.name = F("ESP");
  message.sender.email = AUTHOR_EMAIL;
  message.subject = F("Fire is detected !!!!");
  message.addRecipient(F("ESP32"), RECIPIENT_EMAIL);


  //Send raw text message
  String textMsg = msg;
  message.text.content = textMsg.c_str();
  message.text.charSet = "us-ascii";
  message.text.transfer_encoding = Content_Transfer_Encoding::enc_7bit;

  message.priority = esp_mail_smtp_priority::esp_mail_smtp_priority_low;
  message.response.notify = esp_mail_smtp_notify_success | esp_mail_smtp_notify_failure | esp_mail_smtp_notify_delay;


  /* Connect to the server */
  if (!smtp.connect(&config)) {
    ESP_MAIL_PRINTF("Connection error, Status Code: %d, Error Code: %d, Reason: %s", smtp.statusCode(), smtp.errorCode(), smtp.errorReason

().c_str());
    return;
  }

  if (!smtp.isLoggedIn()) {
    Serial.println("\nNot yet logged in.");
  } else {
    if (smtp.isAuthenticated())
      Serial.println("\nSuccessfully logged in.");
    else
      Serial.println("\nConnected with no Auth.");
  }

  /* Start sending Email and close the session */
  if (!MailClient.sendMail(&smtp, &message))
    ESP_MAIL_PRINTF("Error, Status Code: %d, Error Code: %d, Reason: %s", smtp.statusCode(), smtp.errorCode(), smtp.errorReason().c_str());
}


// For data transmission from Serial to Software Serial port & vice versa
void updateSerial() {
  delay(500);
  while (Serial.available()) {
    mySerial.write(Serial.read());  //Forward what Serial received to Software Serial Port
  }

  while (mySerial.available()) {
    Serial.write(mySerial.read());  //Forward what Software Serial received to Serial Port
  }
}

void sms(const String& messageContent) {
  // Send attention command to check if all fine, it returns OK
  mySerial.println("AT");
  updateSerial();

  // Configuring module in TEXT mode
  mySerial.println("AT+CMGF=1");
  updateSerial();
  mySerial.println("AT+CMGS=\"use your info\"");  // 1)
  updateSerial();
  Serial.println("1");
  mySerial.print(messageContent);  //text content
  updateSerial();
  Serial.println("2");
  mySerial.write(26);  // 3)
}

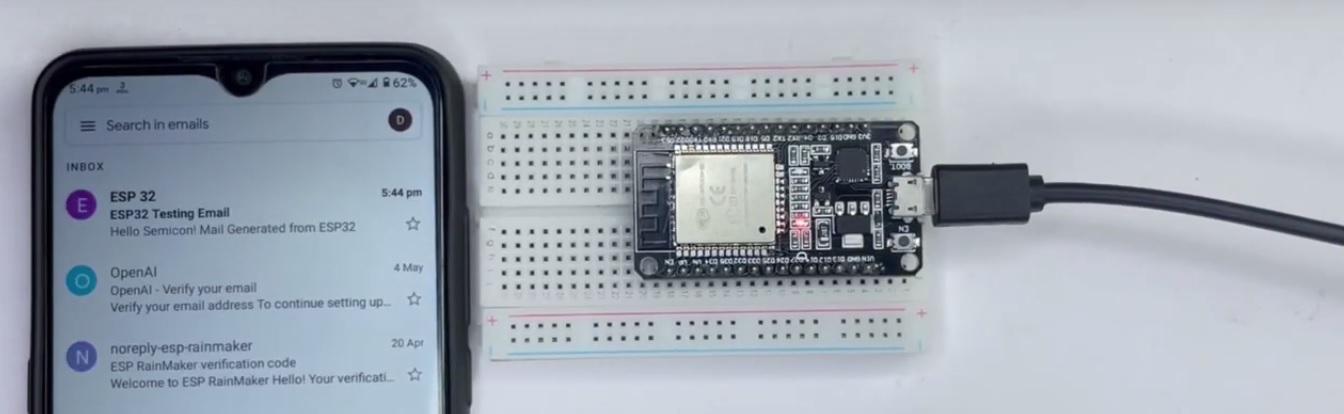

Use this Video as a reference.

A step-by-step guide to set up the process of sending Telegram alerts.

Create a Telegram Bot

1. Open the Telegram app and search for the "BotFather" bot.     @BotFather
2. Start a chat with BotFather and follow the instructions to create a new bot.
3. Once the bot is created, BotFather will provide you with a Bot Token. Make sure to save this token as you'll need it later. Find your Chat ID:
4. Search for the "IDBot" bot on Telegram.             @myidbot
5. Start a chat with IDBot and follow the instructions to obtain your Chat ID.
6. Make a note of your Chat ID as you'll need it in the code.

Use this Video as a reference.

Out of consideration for privacy and security, I have refrained from disclosing email, Telegram SMS, and other information containing photos in this context.

Feel free to see these sites.
