LEGO Green Screen Light Box

A friend had taken interest in making short films with LEGO minifigs, so I wanted to make him something to help for his birthday. Depending on the color of items you'll be photographing, you may want a blue or hot pink color background instead of the green I used for this one.

Materials:

24" Horizontal Organizer

4 x 1.5" Zinc corner braces

8 foot indoor extension cord

2 x 13W CFL bulbs (I would have preferred a round CFL with Edison adapter but I couldn't find one locally)

"Round metal electrical box cover" with two bulb sockets

8 oz. (sample size) Valspar Pantone Green Flash paint

Wire nuts

Tools:

Drill

Circular saw

Screwdrivers

Disclaimer: Please be careful when using power (or any) tools! I am not responsible for your safety, so be smart out there!

I measured the halfway point on the two shelves and cut them in half using a circular saw. A table saw or miter box would be a better option, but I didn't have access to either at the time.

Each of the boards I ripped for the sides and bottom had a plain MDF side and a side with a white surface coating. I decided to use the bare MDF sides as my painting surface to avoid having to remove the white coating from the other side. I painted straight onto the bare MDF side without any prep, but for a smoother finish you can lightly sand with a high-grit sandpaper. I used ~2 oz of the paint to do 3 coats on the box's interior.

My plan for the box was to use the sides of the shelving unit for the top, and the cut shelves as the sides, back, and bottom.

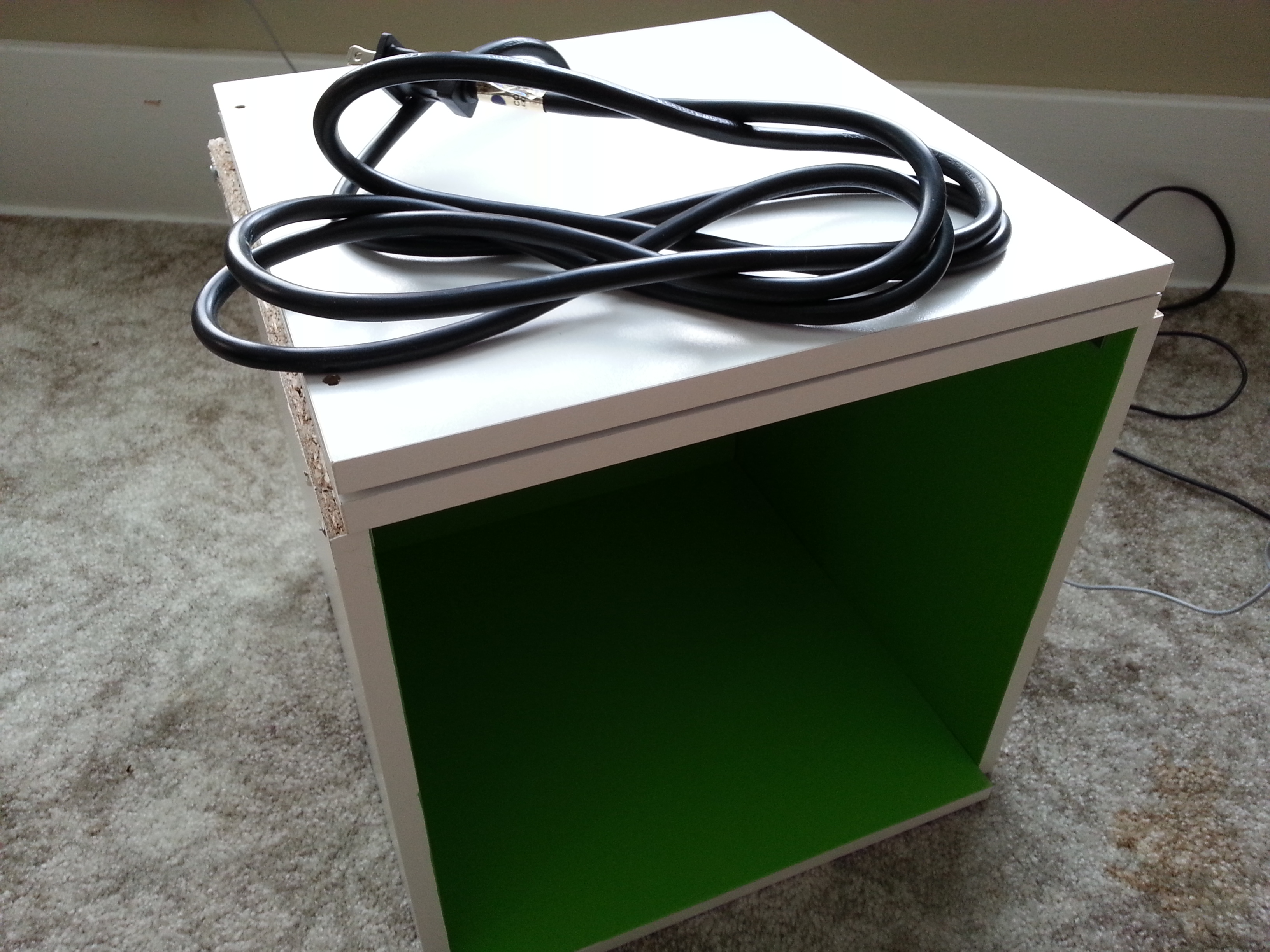

After painting, the cut shelves were attached with screws after drilling pilot holes to prevent cracking. I didn't take into account the top pieces were a little smaller than the pieces I had cut from the shelves and ended up having to use some corner braces to mount the one to the top of the box. A little bit more preparation on my part would have prevented a lot of pain and improvisation in this step.

The light fixture was mounted against the hole drilled in the top, and the wires were connected to the extension cord using wire nuts (not pictured). As the bracket screws were sticking out the top, I decided to add the other end piece from the shelving unit as a second layer to the top to clean up the overall appearance and make it less likely to bite the user.

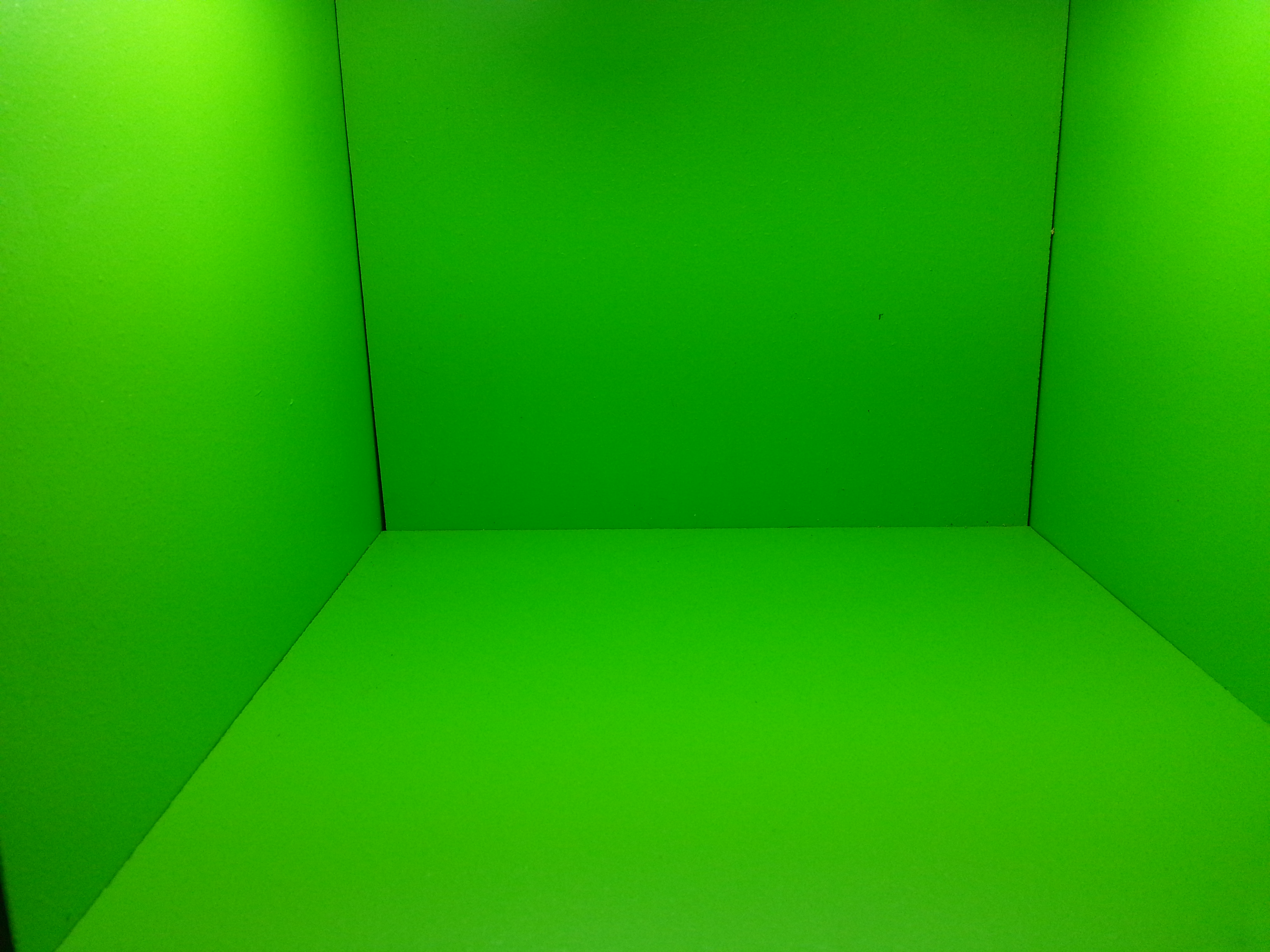

This particular light fixture is tricky to adjust, so I'd suggest something a little different if you want to build your own. The two 13W CFls seem to put out plenty of light and the 6500K color temperature seems to give a good color for the background. As this was a gift I didn't get a chance to take any pictures with minifigs in the box, but I think it will work out well.
