Interfacing of LED With STM32F1 (ARM Cortex) Microcontroller Using Arduino IDE

Introduction of STM32F1:

The STM32F103xx medium-density performance line family incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.

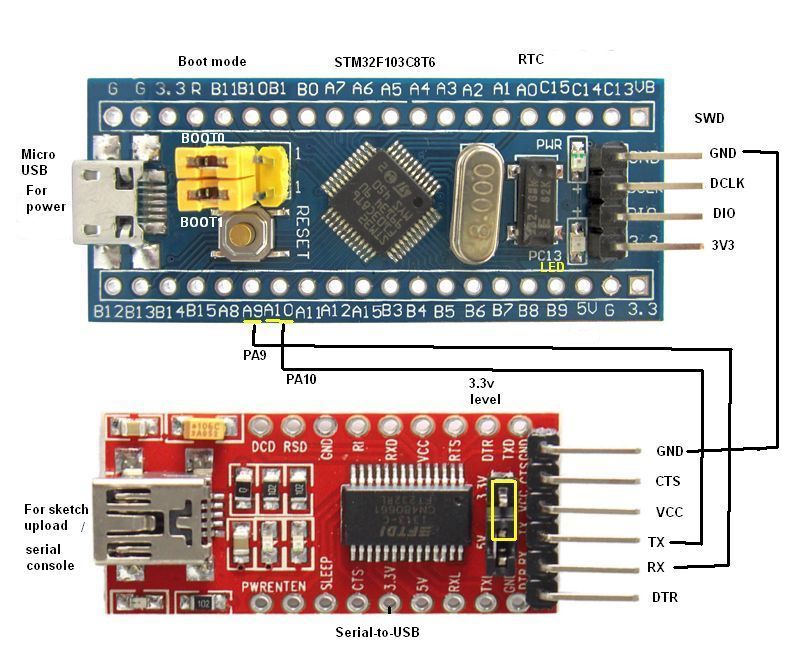

1) STM32F103 Board

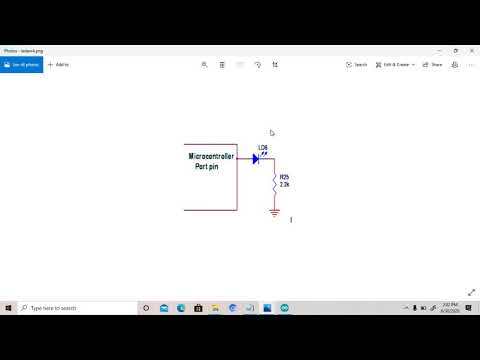

2) LED

1) Arduino IDE

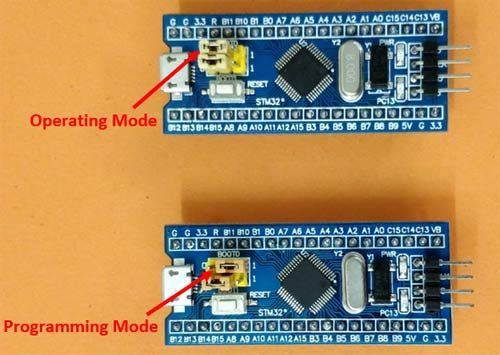

1) Operating Mode

2) Programming Mode
