Interfacing Joystick With Arduino

As Joystick is the game controller it is used in applications like DIY electronics.

Supplies

Hardware Components

Arduino Uno

Joystick Module

LED

Resistor 100 ohm

Connecting wires

Software Components

Arduino IDE

About Project

The joystick is an integration of two potentiometers for the X and Y plane respectively. It shows the voltage via the potentiometer and provides analog value to the Arduino and the analog value modifies as we move the joystick shaft. Joysticks are accessible in various shapes and sizes.

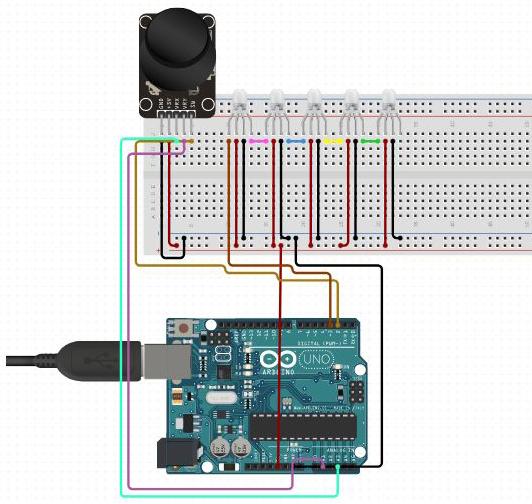

The joystick module is as follows. This Joystick module generally gives Analog Outputs and the output voltages given by this module have changed as per the direction in which we drive it. And we can get the direction of evolution by understanding these voltage changes utilizing some microcontroller.

This joystick module has two axes. X-axis as well as Y-axis. Each axis of JOYSTICK is installed to a potentiometer or pot. The midpoints of these pots are turned out as Rx and Ry. So these two axes are variable points to these pots.

Classroom IoT Training will help you to get a thorough view of IoT Applications.

Run a Program

#define joyX A0 #define joyY A1 int button=2; int buttonState = 0; int buttonState1 = 0; void setup() { pinMode(7,OUTPUT); pinMode(button,INPUT); digitalWrite(button, HIGH); Serial.begin(9600); } void loop() { int xValue = analogRead(joyX); int yValue = analogRead(joyY); Serial.print(xValue); Serial.print("\t"); Serial.println(yValue); buttonState = digitalRead(button); Serial.println(buttonState); if (xValue>=0 && yValue<=10) { digitalWrite(10, HIGH); } else{digitalWrite(10, LOW);} if (xValue<=10 && yValue>=500) { digitalWrite(11, HIGH); } else{digitalWrite(11, LOW);} if (xValue>=1020 && yValue>=500) { digitalWrite(9, HIGH); } else{digitalWrite(9, LOW);} if (xValue>=500 && yValue>=1020) { digitalWrite(8, HIGH); } else{digitalWrite(8, LOW);} if (xValue>=1020 && yValue>=1020) { digitalWrite(9, LOW); digitalWrite(8, LOW); } if (buttonState == LOW) { Serial.println("Switch = High"); digitalWrite(7, HIGH); } else{digitalWrite(7, LOW);} buttonState1 = digitalRead(7); Serial.println(buttonState1); delay(50); }
