Instuctables Weather Robot

by mrdovie in Circuits > Gadgets

4197 Views, 5 Favorites, 0 Comments

Instuctables Weather Robot

Picture 368.jpg

Having made a few weather toys that move in response to higher humidity, I wanted to try building the Instructables Robot. My last toy is a wooden Gendarme that salutes when rain is coming; but the Robot should hate rain, due to rust, so, She raises her arms and celebrates Dry Weather! No Electronics were needed, so this Robot needs no batteries!

Bending the Frame & Gluing the Front

Picture 328.jpg
I decided to steam bend a tongue depressor by soaking it in water (just to wet) then microwave 10 seconds to steam. I bent the stick over a bottle and used a rubber band to hold it. It took 3 tries to get the shape I wanted. Then cooling and drying kept the shape. Cut a 6" foam circle in half, put super glue on one edge and stick it to one half circle, trim about a 1/2" lip all around & glue this to the side of the bent frame. Any bulges can be re-glued later.

Best Clamps

Picture 327.jpg

Clamps tend to leave dents in the foam, so I used fingers to hold, use gel glue if you want more control.

The Pine Cone Used

Picture 344.jpg
This cone comes from a very tall pine and the scales curl when dry. soaking the cone an hour or so will close it up & may make removing scales easier. The top of this cone was remove, now the scales can be removed one at a time. Try not to break the scales & leave the stub at the base intact, it makes a tenon & is great for mounting.

Mounting the Pine Scale

Picture 342.jpg

Mounted on a Popsicle stick cut to fit & with a slot cut to take the base of the pine scale, I dried the scale in a microwave 10 seconds or so to get it very nearly dry, it will rest on the stick if bone dry. Coating the scale with very salty water will let it draw moisture from the air better.

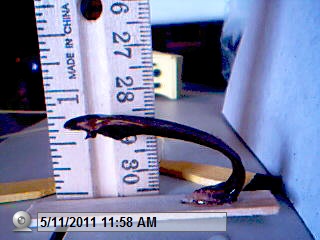

Check for Movement

Picture 347.jpg
An inch of movement is needed to move the arms all the way, this pine scale will do 1.5" easy. Two hole were drilled into the tip of the scale to hold the control lines, Stretchy cord should be used to allow the arms to move & not pull loose or break the scale if forced by curious hands. A 0.5 mm cord may have been better  since it is not as stiff. I used 1 mm since I had yellow in that size.

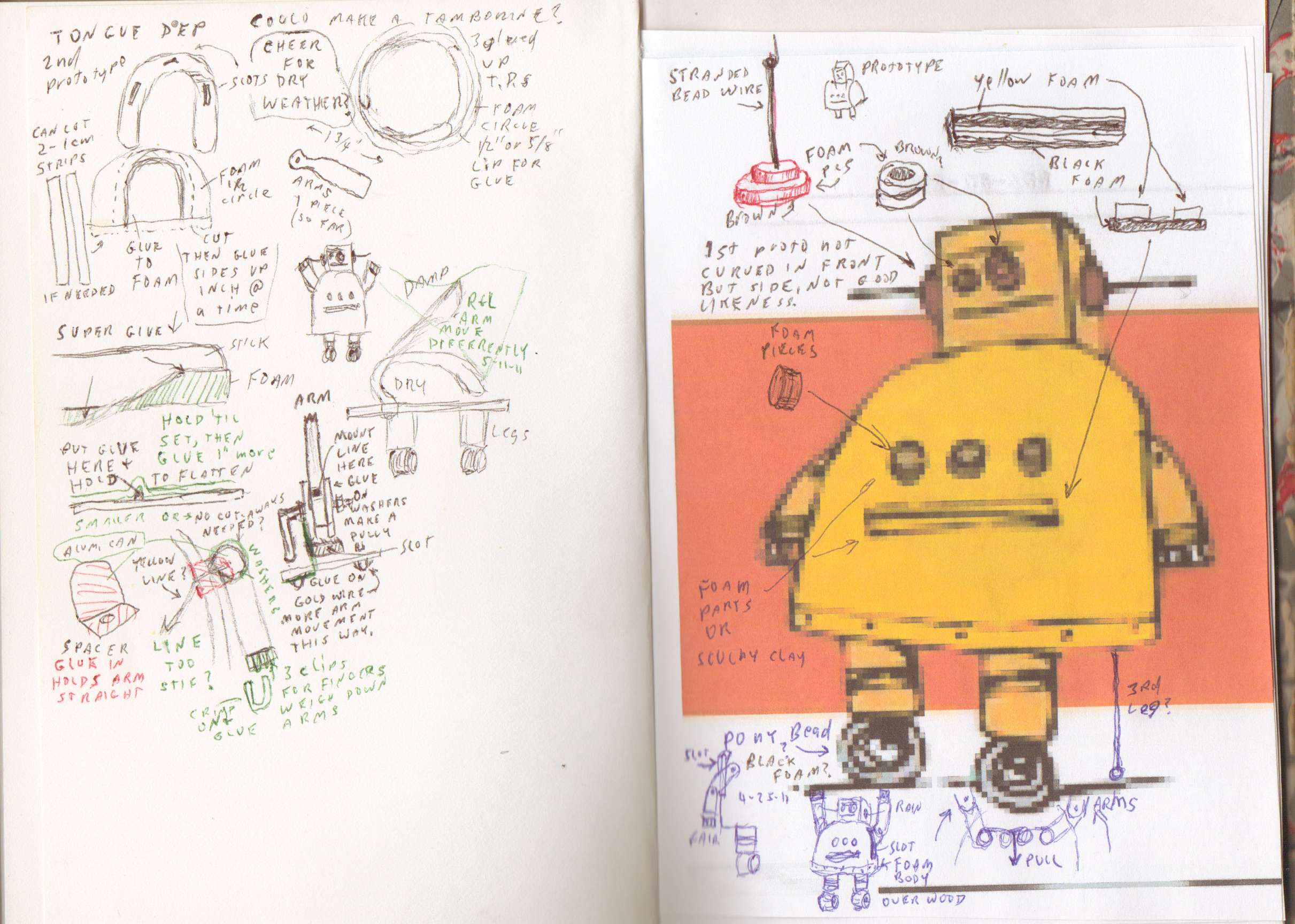

A Peak at My Notes

Robot Page.jpg

Here is a scan of my note book showing the model picture used and some of the notes on construction.

Self Stick Foam Parts

Picture 324.jpg

The self adhesive foam parts can be removed & repositioned at will.

Checking the Look

Picture 323.jpg

The arms, here were not yet mounted, just checking the look.

Getting Ready to Mount the Works

Picture 353.jpg

With holes drilled in the tip of the pine scale (I like to call them petals), we are ready to glue the bottom in place. Lots of room left front and back for air to circulate.

Mounting Detail

Picture 325.jpg
A little more drying is needed to get the tip of the scale down so lines can be glued to pull the arms up all the way.

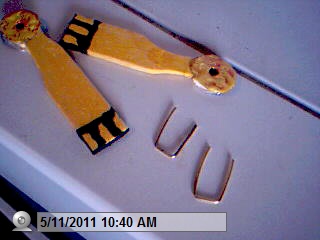

Arms With Pullys in Place

Picture 339.jpg
Here is a detail of the arms & brackets that hold them.

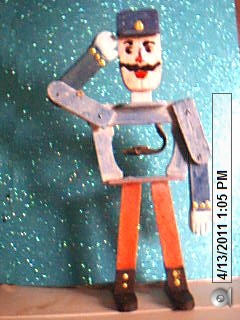

Salute!

Picture 274.jpg

My previous toy, Pierre the Gendarme, has his scale mounted inverted, so he salutes the rain. The arm was pushed into a salute for this photo, the scale is only half way extended. You can easily see how he works.

Picture 354.jpg
Here feeding the lines through the scales & behind the base for pulling tight & gluing

The Arms

Picture 346.jpg

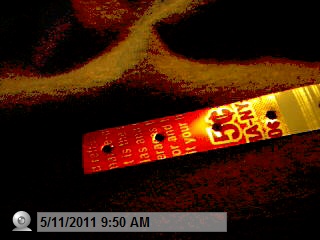

Here are the arms with washers and line glued in place.

Picture 329.jpg
Here is a strip of can metal used to make washers & braces. I painted the washers yellow later.

Mounting the Back.

Picture 357.jpg
Sure that the robot was working OK, we are ready to glue on the back foam cover. We could put a face on both sides, so that it can be appreciated from both sides if placed in a window between the sashes as I like to do.

Trim the Edges

Picture 358.jpg
ready to glue up the sides & make legs for her.

Super Glue!

Picture 359.jpg

Watch the thumbs! I got stuck a few times but pulled loose easily, no skin lost.

1st Prototype

Picture 322.jpg

My first prototype lost his head when he saw Miss Insructable, I stuck his face on the curved side & a little trimming, it fit!, Later, a new face was added.

Now to Test Ms Robot.


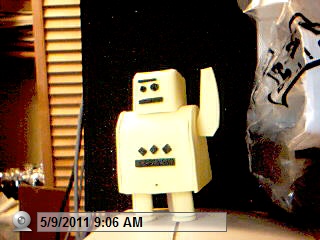

We are having rain, try to chill, The thingy on her left is three pine scales glued end to end, it is straight out meaning 100% humid, it will curl into a hoop when it's dry.

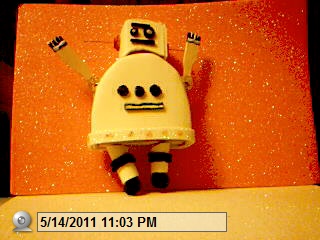

Happy Robot!

Picture 380.jpg
With it rainy the last few days, I used a hair drier to trick Ms Robot into a happy pose, just to make sure she was working. This is a glamor shot with the orange background and all.
