Instructables Contest Trophy!
by lejustin6454 in Circuits > Software
116 Views, 2 Favorites, 0 Comments
Instructables Contest Trophy!
![trophy.png](/proxy/?url=https://content.instructables.com/FJV/QLNZ/LB53978X/FJVQLNZLB53978X.png&filename=trophy.png)

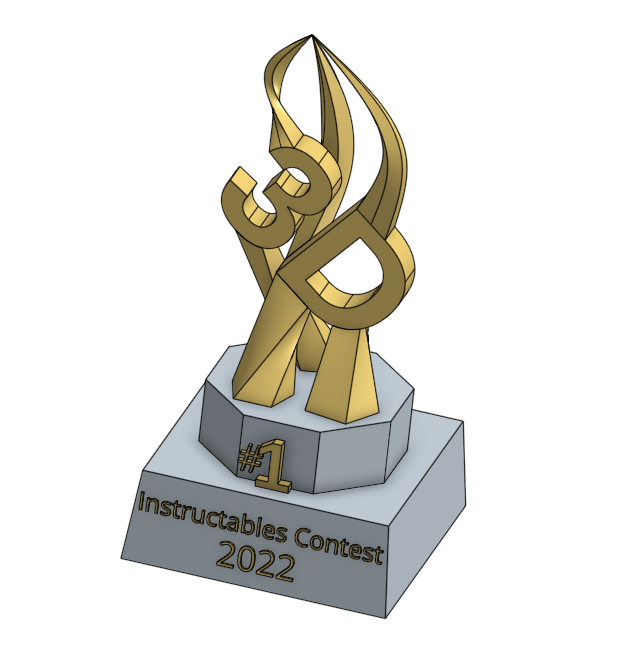

I made my own trophy for the Instructables 3D printing competition!
Supplies
![onshape.png](/proxy/?url=https://content.instructables.com/F37/4Q6N/LB5397B9/F374Q6NLB5397B9.png&filename=onshape.png)
The software used for this trophy is an online 3D cad software called Onshape which you can find here https://www.onshape.com/
Create Base
![step 1.png](/proxy/?url=https://content.instructables.com/FL3/T7S6/LB5397DD/FL3T7S6LB5397DD.png&filename=step 1.png)
The base of the trophy is created through a loft from a square to a smaller square on a plane offset above.
Create Another Base
![step 2.png](/proxy/?url=https://content.instructables.com/FCV/K0ZC/LB5397GY/FCVK0ZCLB5397GY.png&filename=step 2.png)

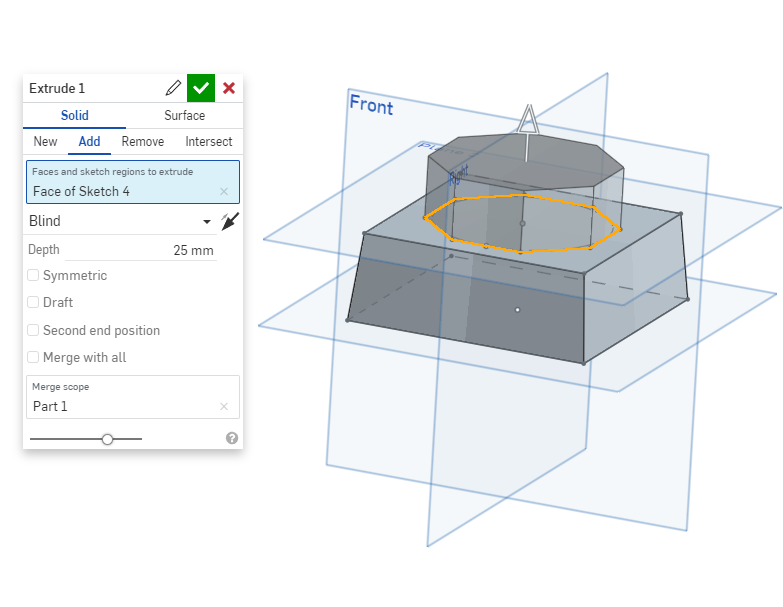

On top of the other base in the center, extrude an octagon shape to create a second base, because one base simply wasn't cool enough.
Create the "3D" Word
![step 3.png](/proxy/?url=https://content.instructables.com/FF2/UNMS/LB5397Q2/FF2UNMSLB5397Q2.png&filename=step 3.png)
To make the 3D word, I made a sketch using the text tool to make the word and then extruded it.
Create the Silly Little Strings at the Top
![step 4 p4.png](/proxy/?url=https://content.instructables.com/F5C/G9JM/LB5398RV/F5CG9JMLB5398RV.png&filename=step 4 p4.png)
![step 4 p2.png](/proxy/?url=https://content.instructables.com/FLO/GEFL/LB53984W/FLOGEFLLB53984W.png&filename=step 4 p2.png)
![step 4 p3.png](/proxy/?url=https://content.instructables.com/FSZ/7YYI/LB53984X/FSZ7YYILB53984X.png&filename=step 4 p3.png)

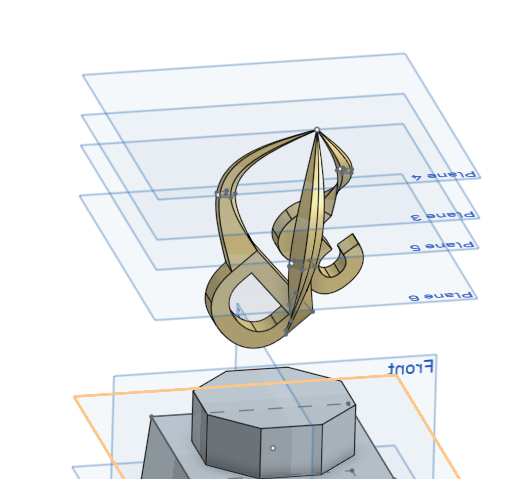

Those silly little strings at the top are there to imitate the filament coming out of the 3D printer nozzle and printing out the "3D" word. First, I made two different drawings on different planes offset from the top plane above the "3D" word. The first drawing was a pentagon, and the next was a point. A loft was used to pass from a random face of the 3 to the pentagon and point, making the illusion of the 3 being created from something.
These same steps were done to create the two other strings, which resulted in a lot of planes 😅. If you look closely, you will see that the loft for the string coming out from the bottom of D has it's own sketch at the bottom as a starting point, instead of just some random face.
Connect "3D" Word to the Bottom
![step 5 p1.png](/proxy/?url=https://content.instructables.com/FDS/0E2G/LB5399AH/FDS0E2GLB5399AH.png&filename=step 5 p1.png)
![step 5 p2.png](/proxy/?url=https://content.instructables.com/FPN/V639/LB5399AI/FPNV639LB5399AI.png&filename=step 5 p2.png)
I made 3 pentagons on the base and lofted them to random faces of the "3D" word to connect the "3D" word to the bottom.
Add Words
![step 6.png](/proxy/?url=https://content.instructables.com/FC1/2S02/LB5399FK/FC12S02LB5399FK.png&filename=step 6.png)
Create drawings on the faces of the base and use the text tool to write the words on the trophy. These words are then extruded.
