Installing an Oil Air Separator!

OK the "real deal" oil air separator arrived from Amazon.com. I made a neat upgrade last night to capture more oil and a drain valve. My wife's car has alot of oil in the blow by gases and these seriously mess with the car's fuel economy and emissions.

Read for how I installed this device into my wife's Hyundai trajet.

I used a fuel filter to trap the oil before going into the air intake manifold. It worked somewhat OK but now I have to get rid of it.

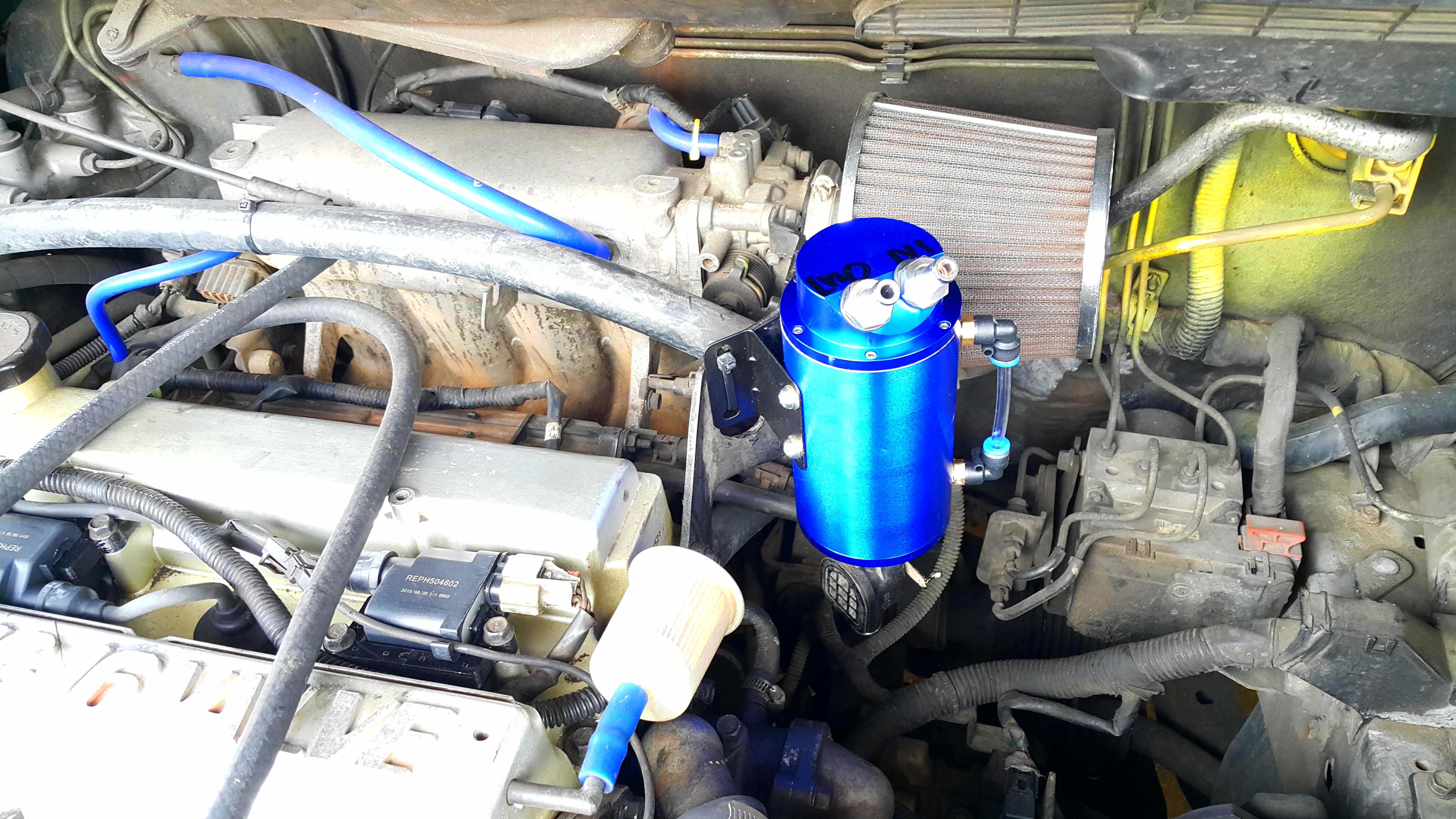

3 plastic cable ties did the job nicely to secure the separator.

I used a thin layer of silicone adhesive to ensure vacuum integrity with the separator. I applied at the lid Jar joint, the sight level fittings and the hose fittings.

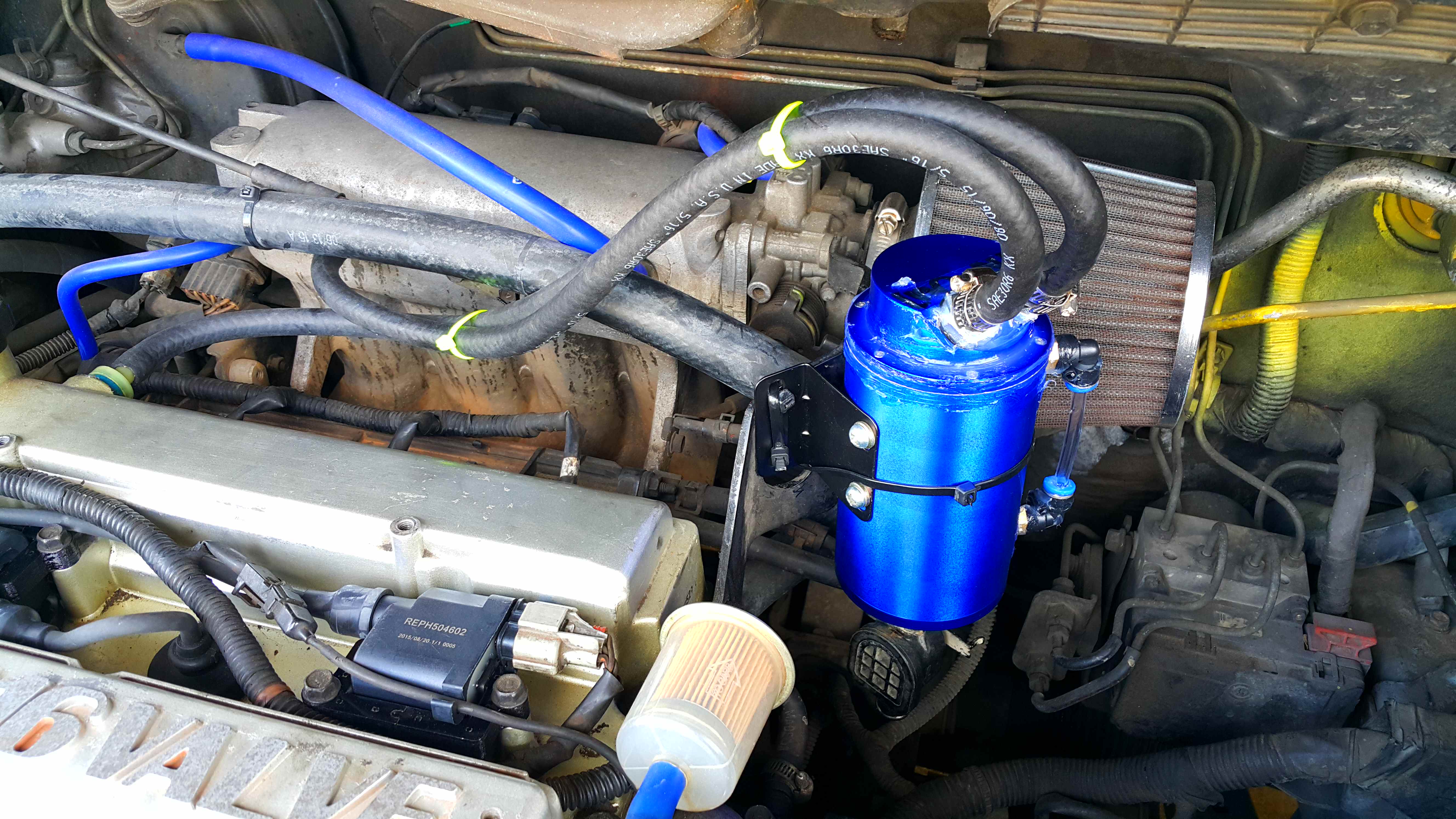

I cut and secured each hose with the supplied hose clamps. I made sure to pay attention to which was for in and out. From the pcv valve the hose went to 'in' and the hose from the intake manifold went to 'out.'

Using some cable ties to neaten the works. Starting the engine, the car idled just fine. In time the separator will collect the oil in the blow by gases and keep the combustion chambers cleaner. Next job is to replace the oxygen sensor which has gone bad from the burnt oil crude.

I hope this instructable has been helpful!
