Installing a Computer Cabinet Ventilation Fan

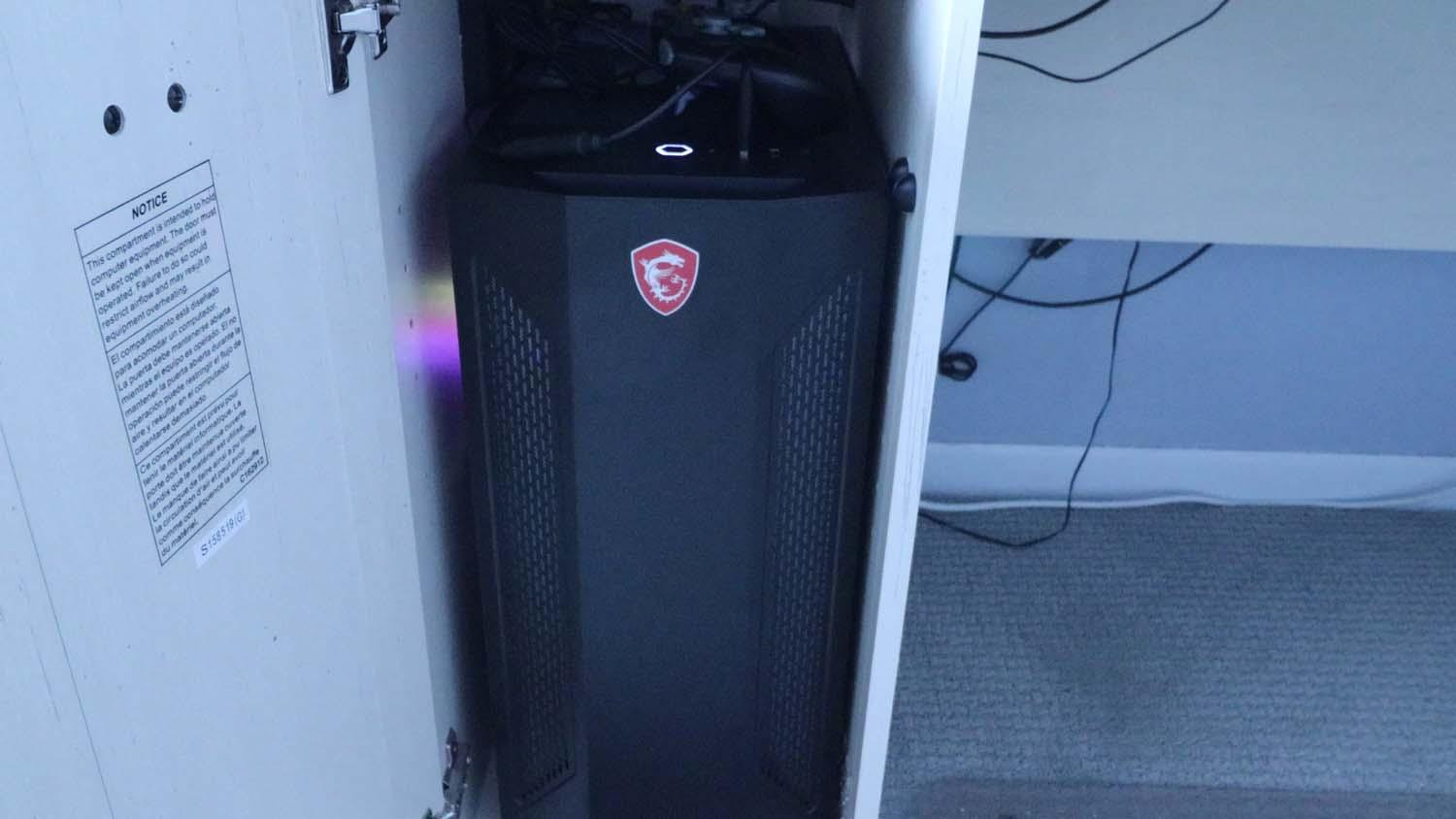

Most premade computer desks have a cabinet for the computer, which is little more than a poorly ventilated box. This is terrible for your computer, so most desk manufacturers tell you to leave the door open when the computer is in use. If you're like me, you probably have your computer on all day and you don't like the look with the door open. Adding a cabinet fan to exhaust the hot air from inside is a great solution to this problem, and it doesn't take much time at all.

If you enjoy this Instructable, be sure to subscribe to my YouTube channel for more!

• Cabinet vent fan

To provide for good airflow, I'm drilling a series of vent holes on the bottom of the cabinet, on the opposite side from where I'll put the fan. This way, cool air will be drawn into the bottom of the cabinet, circulate within the PC case, and then the hot exhaust air will rise to the top of the cabinet to be expelled by the new ventilation fan.

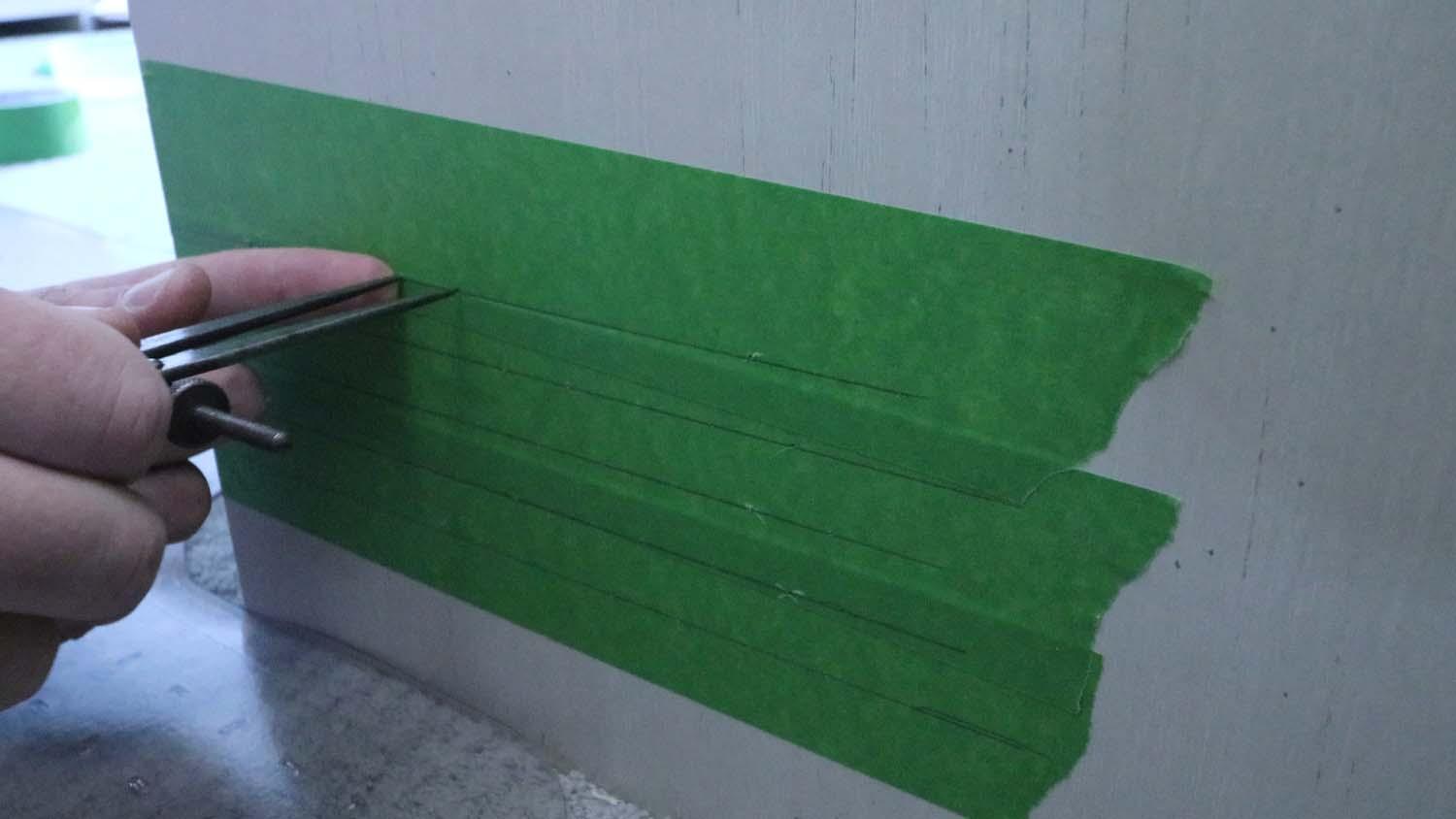

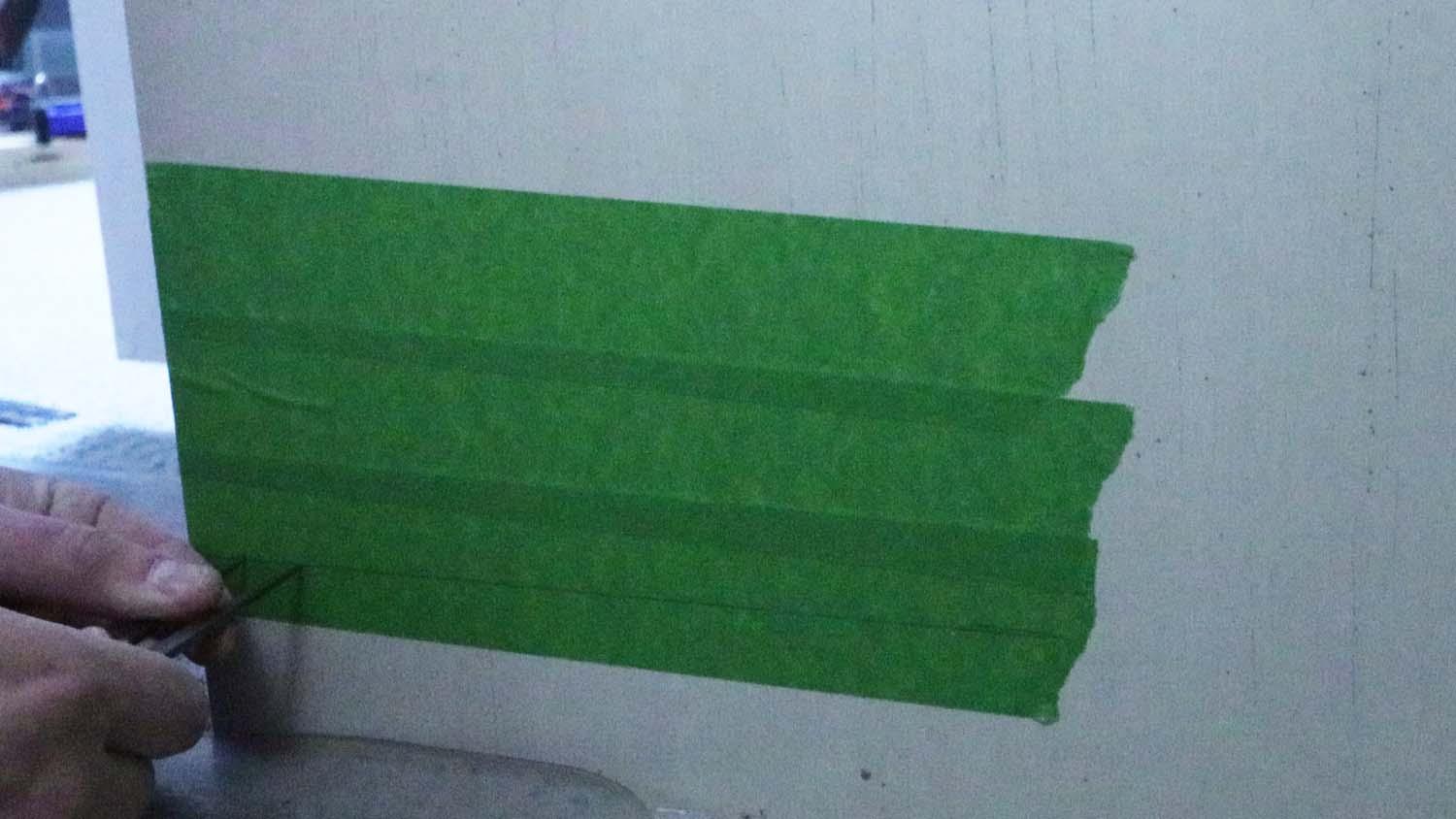

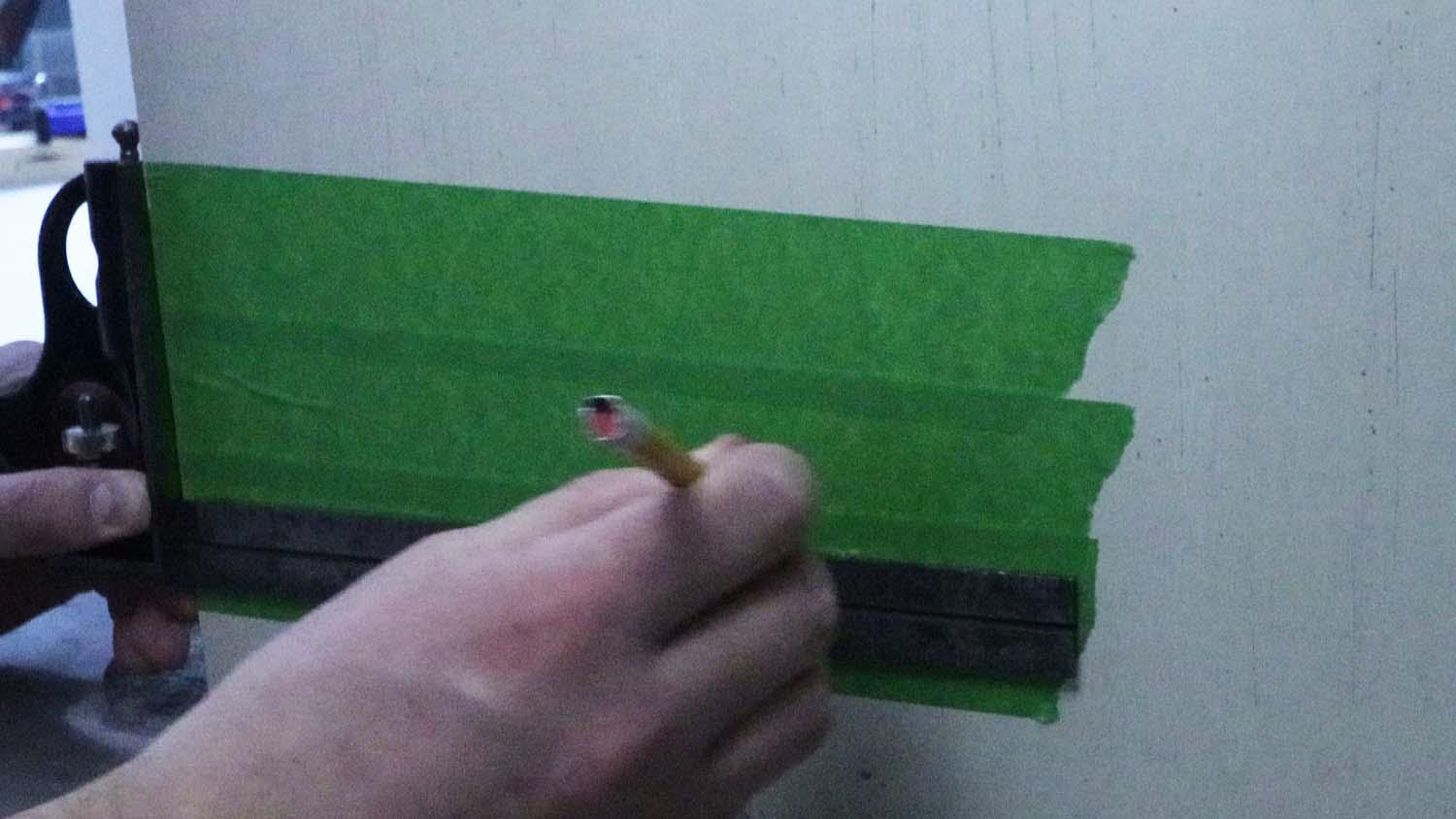

To make the marks easy to see, and so I don't get pencil all over the cabinet, I mask the area off with tape. I then establish a baseline for the bottom row of holes, and will work up from there. These holes will be 3/8" (9.5mm) diameter, spaced at 3/4" (19mm) in a hexagonal grid. I step these off with a dividers for consistent spacing. At the ends, I swing an arc from the two end points, like what you would've done in high school Geometry class to draw an equilateral triangle. This intersection becomes the baseline for the next row up, and so forth.

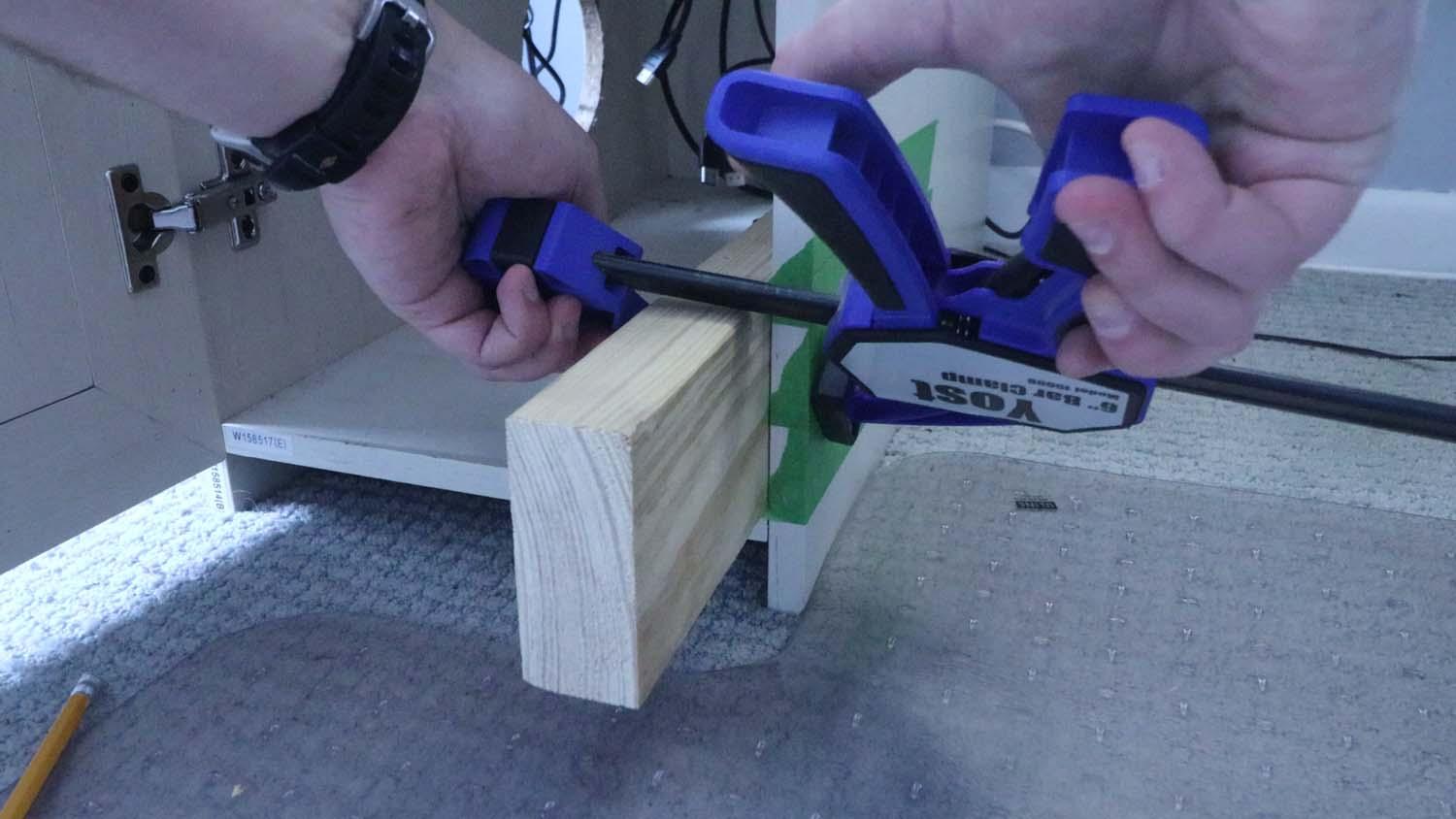

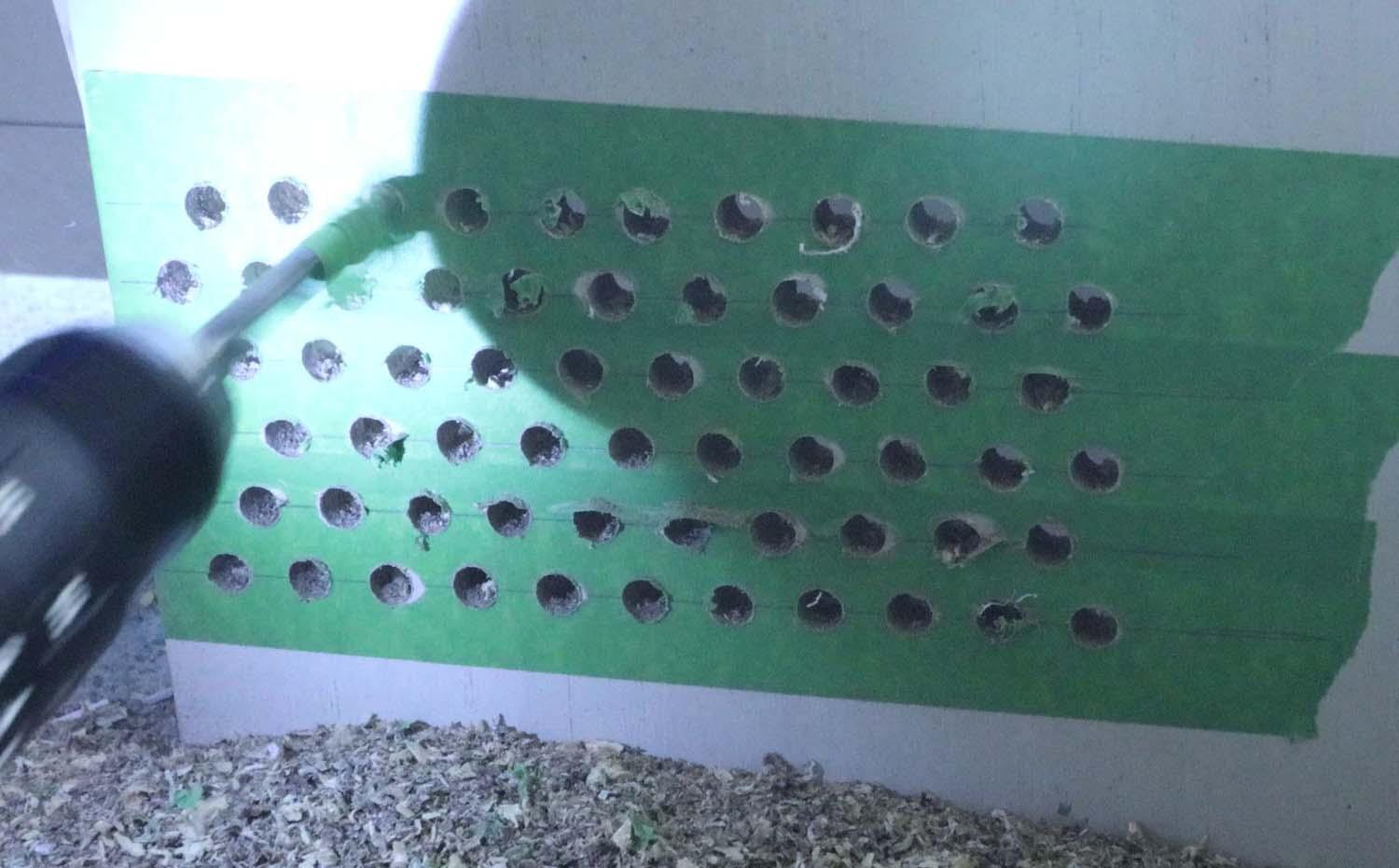

With the holes marked out, I clamp a backer board to the side panel of the cabinet to help with chip out on the hole exit. I recommend a brad point drill bit for this since it results in a cleaner entry hole. After that, it's just a matter of drilling out all the holes you just marked out.

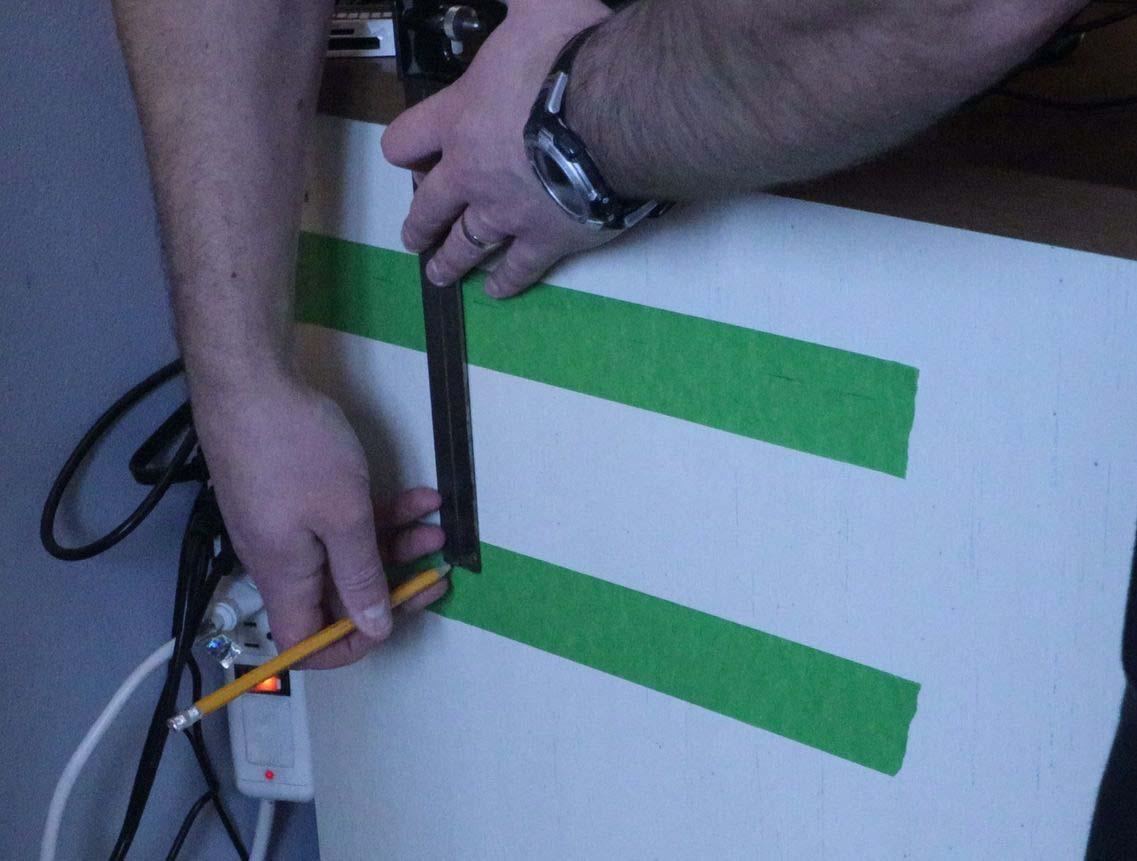

Now is time to cut the hole for the ventilation fan. I marked this out using masking tape and a combination square, then did and idiot check against the fan body to make sure I had it correct.

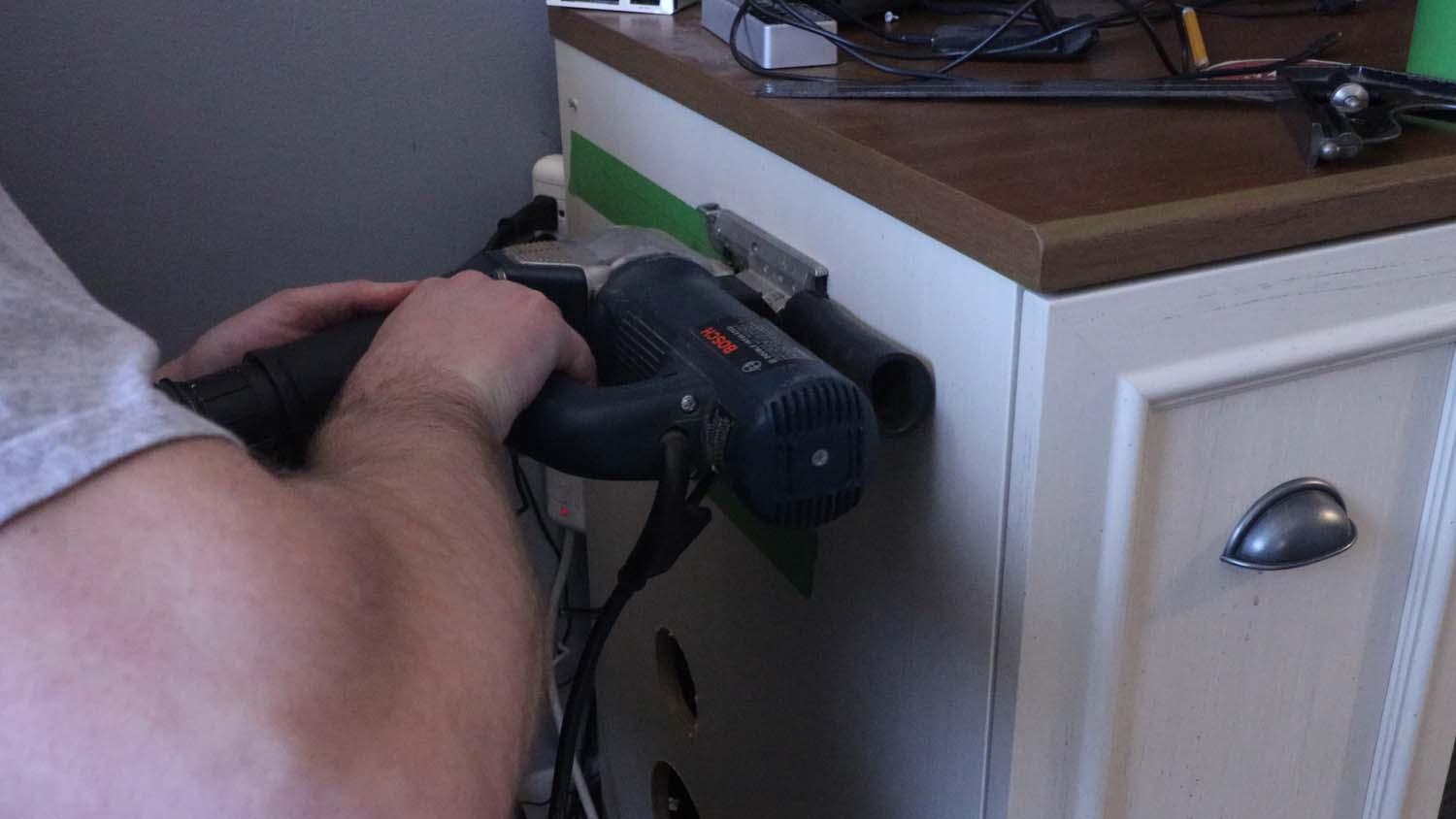

After that, I drilled a couple starter holes in the corners of the opening for my jigsaw blade and cut out the waste. This is as simple as following the lines previously marked.

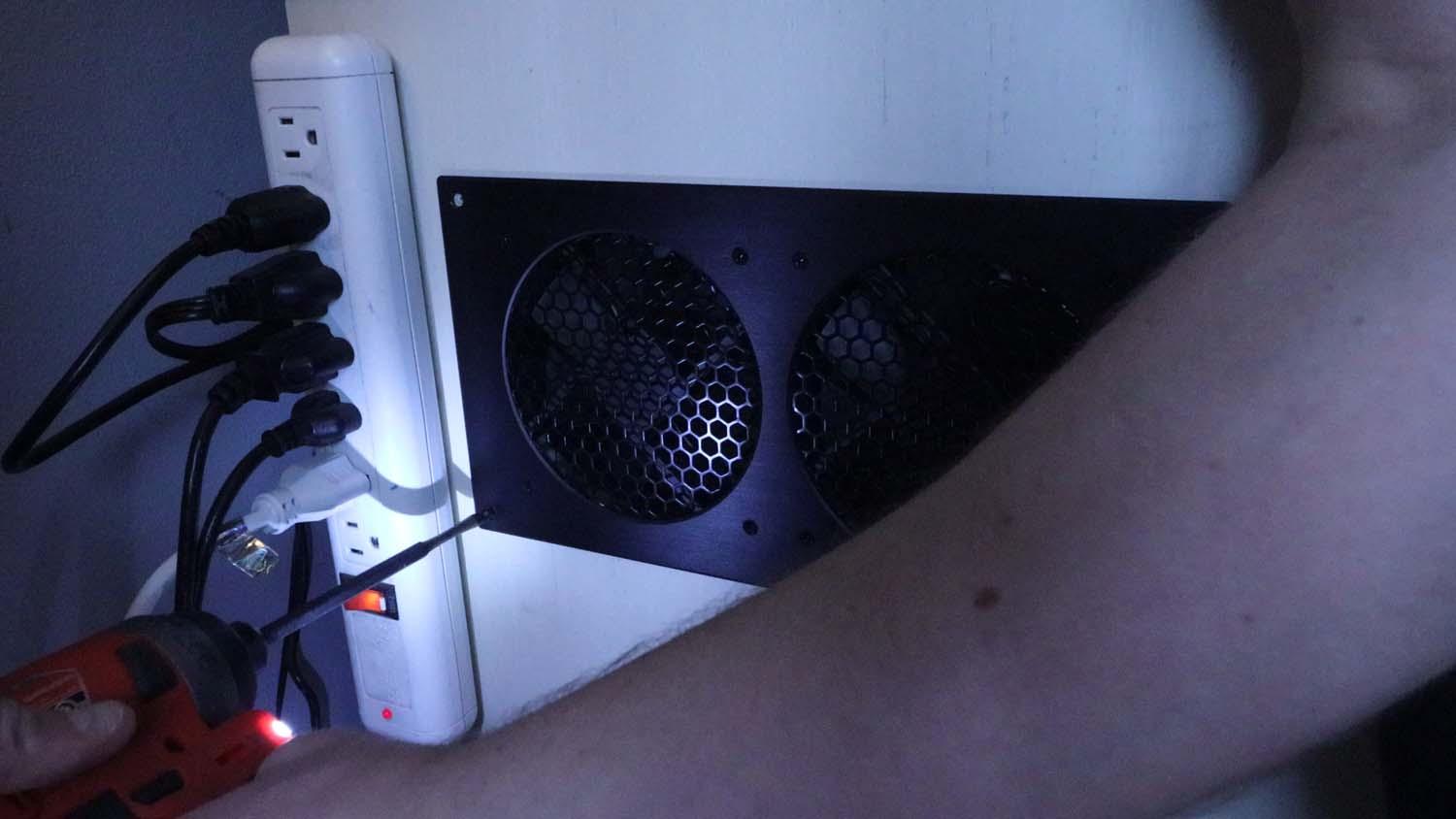

With the hole cut, I put the fan body in and marked for the corner screws. I then predrilled for them with a drill bit slightly smaller in diameter than the root diameter of the screw, and then screwed them in to fasten the fan to the cabinet.

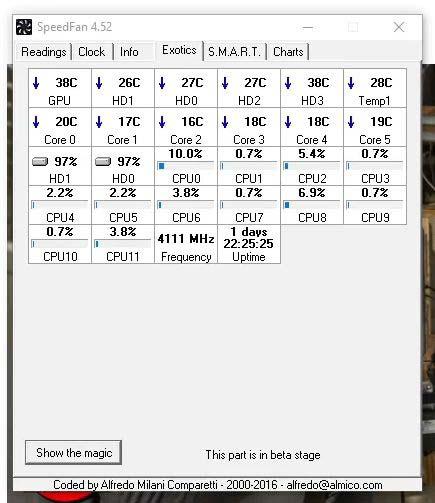

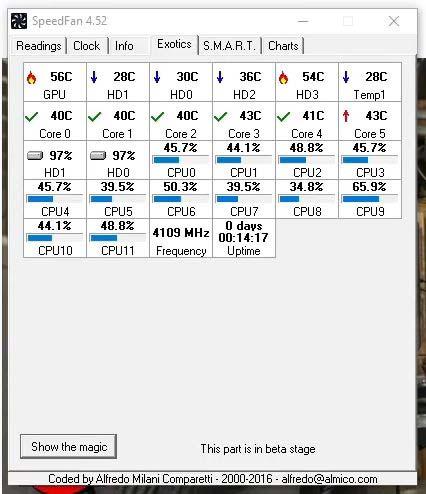

At this point, the installation is complete. Shown are two screenshots of the temperatures inside my PC, one at no load, and one after 30 minutes of gaming with the door closed. The PC components are hotter, as expected, but the inside of the case is cool, as is the exhaust air from the new fan. All in all, I'd say this is a success!
