Install IJDMTOY Dual LED Fog Lights for Chevy Silverado

by ilovejdmtoy in Workshop > Cars

2930 Views, 2 Favorites, 0 Comments

Install IJDMTOY Dual LED Fog Lights for Chevy Silverado


Looking for a new fog light kit for your Chevy Silverado? Check out our iJDMTOY Chevrolet Silverado LED Fog Lamps that's both looks great and is super bright. This product comes with 4 pieces of 3" Cube 20w Cree spot beam LED Lamps and included is our custom made heavy duty mounting brackets. This is a direct bolt on with no modifications needed to install this.

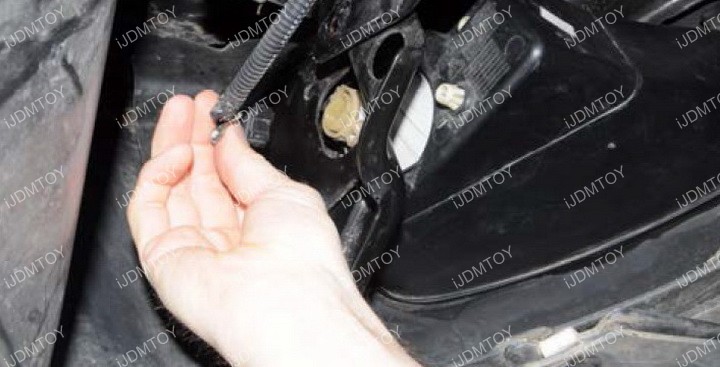

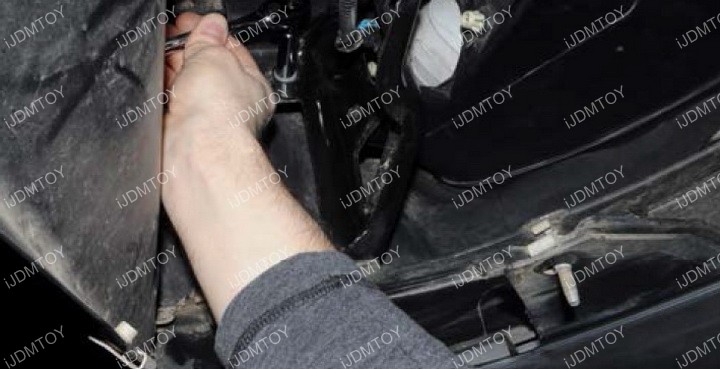

The first thing you are going to do is to remove the OEM fog light. Get behind the fog lights and take out the screws that are holding the fog lights in place. Then after, unplug the socket so you can remove the bezel.


Indicated in the picture are 3 tabs that each need to be removed to access the OEM fog lamp and release it from the bezel.

How to Assemble iJDMTOY LED Pod Light Kit

Now time to put the LED pod lights together. Check out how to install LED pod lights for the detailed process.

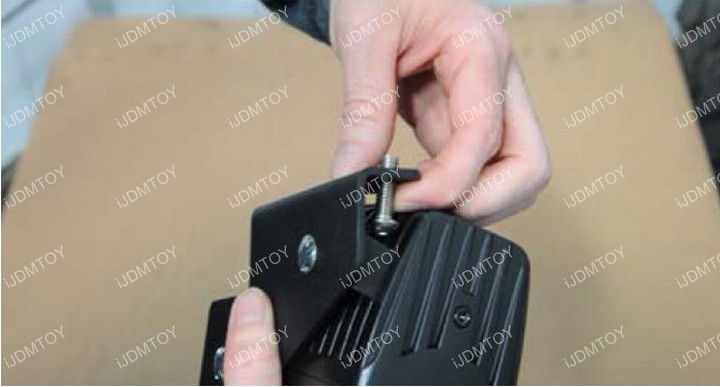

Once you have assembled LED pod lights, mount them to the metal mounting brackets with a screw and bolt.


Now its time to put back the LED pod light kit and the metal mounting bracket back into the bezel covers. From behind, mount the LED pod light kit using the 2 opened diagonal locations with screws back onto the bezel on the original. Put back the entire fog light assemble the same way you removed it. Moving on to the wiring. Connect the LED pod light wires to the included adapter wires and then plug the adapters back to the stock harness.


Now that you've completed your install of your LED Truck Lights for your Chevy Silverado, it's time to show it off on the road. These pod lights will fit the 2007-2013 Chevrolet Silverado 1500 and the 2007-2010 Silverado 2500/3500. This will be an amazing add on to your truck and the best part is that there is no modifications needed to install this on your truck.
