Install IJDMTOY Toyota Tundra LED Light Bar

The Toyota Tundra I biggest and baddest truck that Toyota produces and its great for people who need a big and reliable truck. Many Tundra owners aren’t satisfied with the OEM lighting situation so they add LED light bars to their trucks. Here we’ll show you how to install our Toyota Tundra LED Light Bar for the 2007-2013 Toyota Tundra.

Open up the hood.

Find the support that holds the crash beams and you will see 3 screws on one side and 1 screw on the other. Focus on the single screw. Remove that bolt. If you cannot remove that bolt, you can also use a separate hex nut and screw it on top of the original bolt

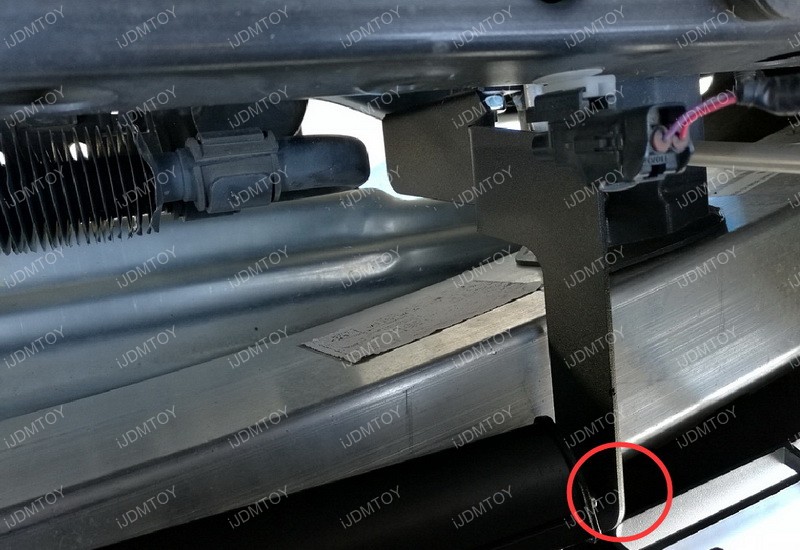

moving on the mounting the bracket. We are going to use the upper hole in the bracket Hold the bracket shown in the picture to get a better idea of which one is the upper hole.

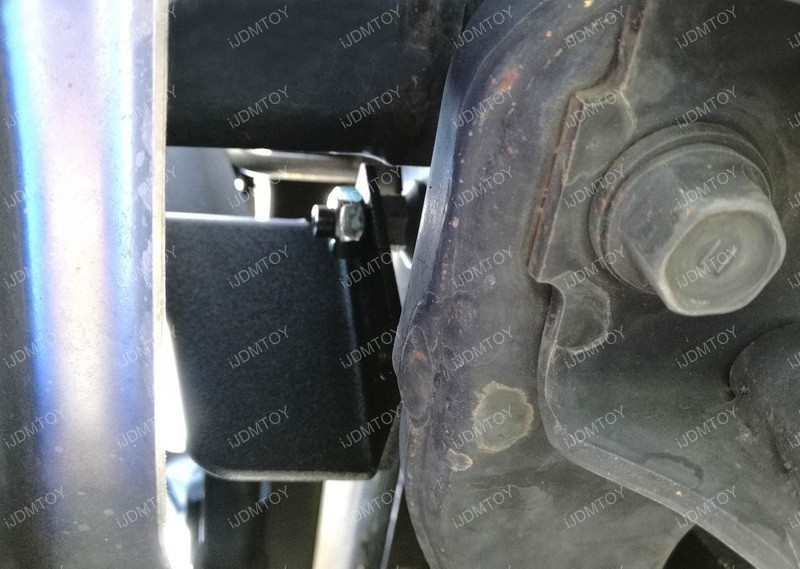

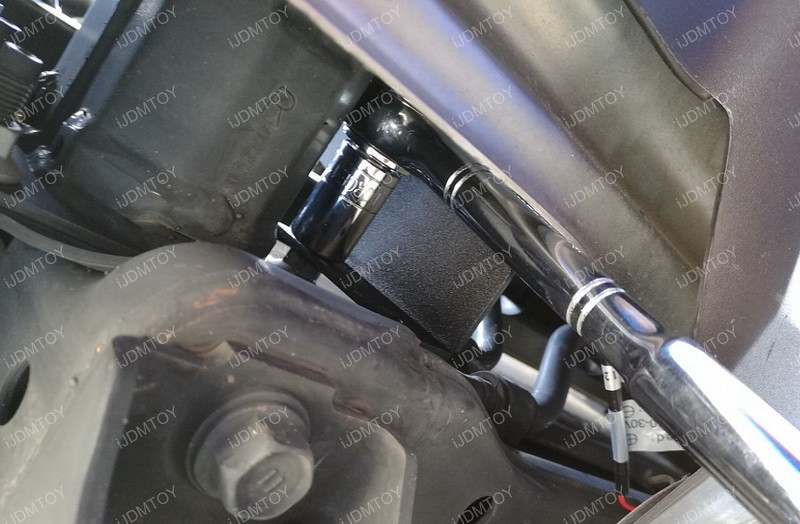

If you are struggling, physically getting underneath the truck maybe easier to mount the brackets. The photo is a view from the under carriage. After we inserted the mounting bracket, use the included hex nut and hand tight the brackets onto that screw. Mount the bracket on the other side.

Bolt on the LED light bar onto the mounting brackets. Get the washer and thread it around the screw, then screw in the LED light bar onto both of the brackets.

Then connect the wires. This Toyota Tundra LED Light Bar System looks great on the Toyota Tundra and will surely light up the dark. It's great for using it for off-roading or as a work light.
